Top » Piese de schimb » PIESE METABO » 06251441

W 14-150 Ergo - 06251441 - US 120V
[06251441]
W 14-150 Ergo - 06251441 - US 120V
Click pentru a mari
Imagini suplimentare
W 14-150 Ergo - 06251441 - US 120V
Click pentru a mari

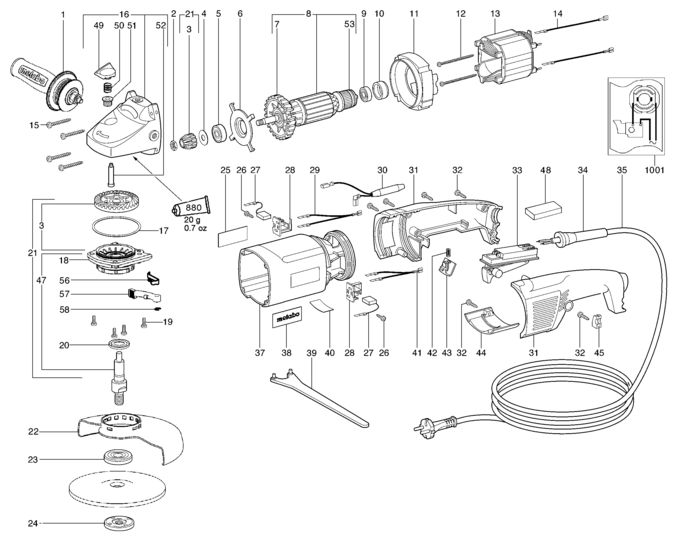

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Anti-vibration handle,M 8 (314000970) Indisponibil Indisponibil
2 1 1 Flat hex nut (141131890) 446 RON
3 1 1 Bevel gear and bevel gear (316046190) 2848 RON
4 1 1 Washer (339006790) 446 RON
5 1 1 Ball bearing, 9x26x8 (143114990) 5926 RON
6 1 1 Bearing cover (339130880) 1340 RON
7 1 1 Fan w. prot. Grid (316032610) 4249 RON
8 1 1 Armature cpl.120V (310008240) 54357 RON
9 1 1 Ball bearing,8x22x7 (143115180) 2124 RON
10 1 1 Rubber bearing (344096020) Indisponibil Indisponibil
11 1 1 Baffle (339150960) 105 RON
12 1 2 Self-tap. fill. h. screw (141118840) 446 RON
13 1 1 Field coil (311010030) 24046 RON
14 1 2 399999990 - Indisponibil
15 1 4 Self-tap. fill. h. screw (141120560) 446 RON
16 1 1 Gear housing cpl. (316032600) 19236 RON
17 1 2 Compensating Washer (339060320) 781 RON
18 1 1 Flange (343397160) 8275 RON
19 1 4 Fillister head screw (141119860) 781 RON
20 1 1 Washer (339011190) 781 RON
21 1 1 Flange compl.,5/8" (316046230) 33553 RON
22 1 1 Wheel guard,D150 (339203020) 5479 RON
23 1 1 Clamping flange (341031290) 3018 RON
24 1 1 Flange nut (341101480) 3689 RON
25 1 1 Rating plate (338041480) 446 RON
26 1 2 Self-tap. fill. h. screw (141116130) 446 RON
27 1 1 Brush set 120V (316034690) 7157 RON
28 1 2 Brush holder cp 120V (316032100) 7157 RON
29 1 1 Strand (344494670) 781 RON
30 1 1 Strand (344495210) 781 RON
31 1 1 Handle (upper+under part) (343376670) 7157 RON
32 1 6 Self-tap. fill. h. screw (141116020) 781 RON
33 1 1 Switch (343407120) 13756 RON
34 1 1 Cable sleeve (344100970) 781 RON
35 1 1 Cable with UL-CSA-plug (344492750) 7157 RON
37 1 1 Motor housing (315012780) 7157 RON
38 1 1 M-Label,08 52x22 (338122160) 446 RON
39 1 1 Pin spanner (344160840) 2124 RON
40 1 1 Indication label (338116200) 1564 RON
41 1 1 Strand (344494680) 781 RON
42 1 1 342002950 - Indisponibil
43 1 1 Locking Lever (343376680) 105 RON
44 1 1 Cover (343376650) 1340 RON
45 1 1 Cable clip (343362490) 781 RON
47 1 1 Spindle w.flange,5/8" (316046220) 18341 RON
48 1 1 399999990 - Indisponibil
49 1 1 Push button black (343376660) 446 RON
50 1 1 Pressure spring (342001550) Indisponibil Indisponibil
51 1 1 Threaded bushing (341003670) 1340 RON
52 1 1 Bolt (341513790) 1564 RON
53 1 1 Sealing washer (343376620) 446 RON
56 1 1 Flat spring (342050940) 1340 RON
57 1 1 Lever (341070440) 1340 RON
58 1 1 Circlip (141181810) 446 RON
880 1 1 Grease 50Gr 1,8oz (344130970) 488 RON
1001 1 1 338503890 - Indisponibil
