ST 135 AC/DC - 11133390 - GB 110V
[11133390]
ST 135 AC/DC - 11133390 - GB 110V
Click pentru a mari
Imagini suplimentare
ST 135 AC/DC - 11133390 - GB 110V
Click pentru a mari

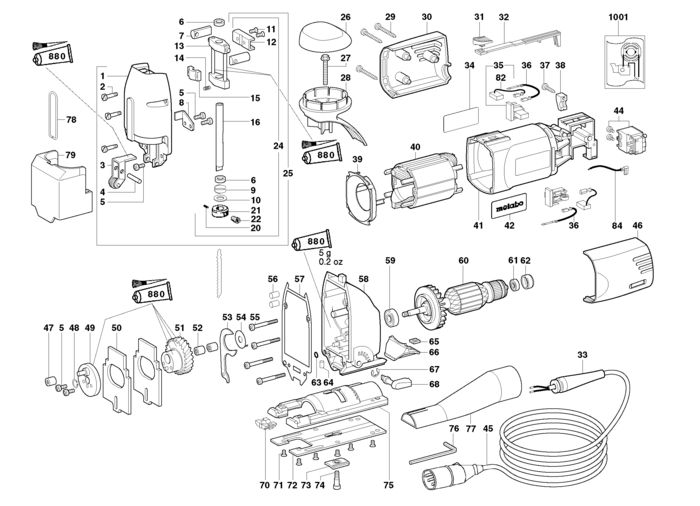

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Gear-box cover cpl. (316031260) 3698 RON
2 1 3 Tight-fit screw (341702980) 446 RON
3 1 1 Supporting lever (316037680) 5926 RON
4 1 1 Cylindrical pin (341513860) 446 RON
5 1 5 Fillister head screw (141110540) 446 RON
6 1 2 Felt ring (344070700) 446 RON
7 1 2 Oscillating guide (316031290) 5479 RON
8 1 1 Guide plate (339129460) 2459 RON
9 1 1 Pressure spring (342001730) 446 RON
10 1 1 Washer (344000160) 446 RON
11 1 2 Countersunk screw (141120550) 446 RON
12 1 1 Connecting link (339129450) 781 RON
13 1 1 Pestle guide cpl. (316031250) 5479 RON
14 1 1 Pressure spring (342021680) 446 RON
15 1 1 Cover plate (341070310) 781 RON
16 1 1 Ram (341057250) 11519 RON
20 1 1 Tightening pin (141160810) 781 RON
21 1 1 Clamping piece (344600340) 2124 RON
22 1 1 Cap screw (141119160) 781 RON
24 1 1 Ram with guide (316035680) 24046 RON
25 1 1 316037740 - Indisponibil
26 1 1 Handle upper part (343375060) 190 RON
27 1 1 Hexagon head screw (141118980) 446 RON
28 1 1 Handle bottom part (343398470) 2459 RON
29 1 3 Self-tap. fill. h. screw (141116990) 781 RON
30 1 1 343376730 - Indisponibil
31 1 1 Switch slide (343394180) 669 RON
32 1 1 Switch rod (343373640) 781 RON
33 1 1 Cable sleeve (344101140) 105 RON
34 1 1 Rating plate (338048180) 446 RON
35 1 2 Brush holder cpl. (316035480) 488 RON
36 1 2 Cable strand (344493960) 781 RON
37 1 1 Self-tap. fill. h. screw (141116020) 781 RON
38 1 1 Cable clip (343362490) 781 RON
39 1 1 Baffle (339150930) 781 RON
40 1 1 Field coil 120V (311010680) 13756 RON
41 1 1 Motor housing (315012680) 488 RON
42 1 1 M-Label,08 52x22 (338122160) 446 RON
44 1 1 Switch (343408150) 488 RON
45 1 1 Cable with plug,110V (344496850) 21361 RON
46 1 1 Housing with cover (343393160) 3018 RON
47 1 1 Needle bearing (341002610) 5479 RON
48 1 1 Retaining ring (141180020) 446 RON
49 1 1 Eccentric washer (316031280) 8275 RON
50 1 2 Balancing plate (339129480) 3689 RON
51 1 1 Gear wheel cpl. (316031270) 19236 RON
52 1 2 Needle sleeve (143111460) 1564 RON
53 1 1 Pressure spring (339129440) 2459 RON
54 1 1 Butting washer (339129470) 446 RON
55 1 4 Tight-fit screw (341701490) 446 RON
56 1 2 Rubber plug (344092220) 446 RON
57 1 1 Gasket (339210840) 781 RON
58 1 1 Gear housing cpl. (316031220) 34448 RON
59 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
60 1 1 Armature cpl. (310009140) 33553 RON
61 1 1 Ball bearing, 6x19x6 (143112230) Indisponibil Indisponibil
62 1 1 Rubber bushing (344095260) 781 RON
63 1 1 O-ring (143193620) 781 RON
64 1 1 Cylindrical pin (141163740) 446 RON
65 1 1 Square nut (141130660) 446 RON
66 1 1 Claw (315414980) 1340 RON
67 1 1 Circlip (141181710) 446 RON
68 1 1 Shift lever compl. (316046020) 2459 RON
70 1 1 Anti-splintering insert (343375040) 446 RON
71 1 6 Countersunk screw (141119950) 781 RON
72 1 1 Base plate (339129420) 2459 RON
73 1 1 Champing claw (339133640) 446 RON
74 1 1 Tight-fit screw (341702620) 446 RON
75 1 1 Base plate (315414990) 10288 RON
76 1 1 Hexagonal key (344161530) 781 RON
77 1 1 Nozzle (343375090) 2459 RON
78 1 1 Protective strap (342200580) 781 RON
79 1 1 Eye shield (344350420) 190 RON
82 1 1 Carbon brush (316035510) 5479 RON
84 1 1 Strand (344493970) 446 RON
880 1 1 Grease 50Gr 1,8oz (344130990) 955 RON
1001 1 1 338504580 - Indisponibil
