Top » Piese de schimb » PIESE METABO » 0250130023 10

HV 1300/20 - 0250130023 10 - EU 230V
[0250130023 10]
HV 1300/20 - 0250130023 10 - EU 230V
Click pentru a mari
Imagini suplimentare
HV 1300/20 - 0250130023 10 - EU 230V
Click pentru a mari

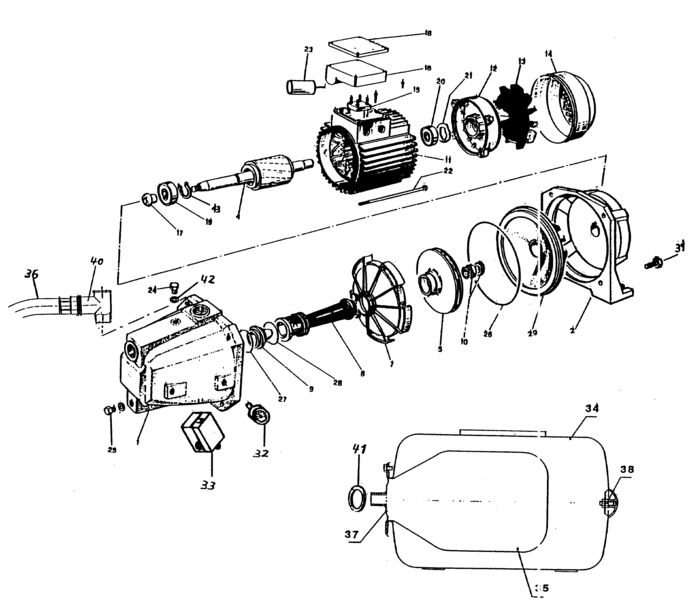

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 PUMP CASING ET (81349149318) 49212 RON
2 1 1 MOTOR BASE ET (81349149326) 18341 RON
4 1 1 ARMATURE ET (81349149121) 33553 RON
5 1 1 IMPELLER ET (81349149130) 13756 RON
7 1 1 PEELER ET (81349149148) 955 RON
8 1 1 JET PIPE ET (81349149334) 3018 RON
9 1 1 NOZZLE ET (81349149342) 105 RON
10 1 1 DUOCONE SEAL (4SCHR) /ET (81349131559) 7157 RON
11 1 1 STATOR ET (81349149180) 88582 RON
12 1 1 BEARING CAP ET (81349148869) 5926 RON
13 1 1 COOLING FAN ET (81349148877) 1340 RON
14 1 1 FAN COVER ET (81349148885) 3018 RON
15 1 1 TERMINAL BOARD ET (81349148915) 2459 RON
16 1 1 1349148907 - Indisponibil
17 1 1 SPLASH RING ET (81349148818) Indisponibil Indisponibil
18 1 1 1349149377 - Indisponibil
19 1 1 DEEP GROOVE BALL BEARING (87100136915) Indisponibil Indisponibil
20 1 1 DEEP GROOVE BALL BEARING (87100136915) Indisponibil Indisponibil
21 1 1 SPACER WASHER RD 35 ET (81349148893) 781 RON
22 1 1 MOTOR TIE ROD M 5X132 ET (81349148850) 446 RON
23 1 1 CAPACITOR 20uF/P2/IP44 ET (88050148921) 15993 RON
24 1 1 THREADED PLUG 1/4" ET (86109149193) 105 RON
25 1 1 THREADED PLUG 1/4" ET (86109149193) 105 RON
26 1 1 O-RING 165X3,5 ET (7632149217) 105 RON
27 1 1 O-RING 23,81X2,62 ET (87632149381) 446 RON
28 1 1 O-RING 26,65X2,62 ET (87632149390) 446 RON
29 1 1 CAP, MOTOR BASE ET (81349149407) 5479 RON
32 1 1 PRESSURE GAUGE, REAR CONNECT RD 40 R1/4" (87823127590) 11519 RON
33 1 1 PRESSURE SWITCH 1/4"IG (2,5/4,0 BAR) M.D (81349148982) 26730 RON
34 1 1 PRESSURE VESSEL 24 L / 3/4"-ANSCHLU? ZIL (81314647706) 4442 RON
35 1 1 RUBBER BAG 24 L ET (81349102346) 19236 RON
36 1 1 PRESSURE HOSE 520 MM 3/4"?BERW.1" AG /ET (87853149017) 15993 RON
37 1 1 FLANGE CAP 3/4" 24LT CIMM ET (81342149029) 10288 RON
38 1 1 7830149036 - Indisponibil
39 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
40 1 1 TEE FITTING I/A 1" MITTELABG.1" ET (87871082469) 955 RON
41 1 1 GASKET, PRESSURE HOSE 25X16X2 ET (81349149091) 781 RON
42 1 1 GASKET, THREADED PLUG 1/4" ET (81349149202) 446 RON
43 1 1 RETAINING RING ET (86403149070) 446 RON
7003 1 1 LID, PRESSURE SWITCH ET (81349181300) 781 RON
