KS 1266 S - 01266180 - CH 230V
[01266180]
KS 1266 S - 01266180 - CH 230V
Click pentru a mari
Imagini suplimentare

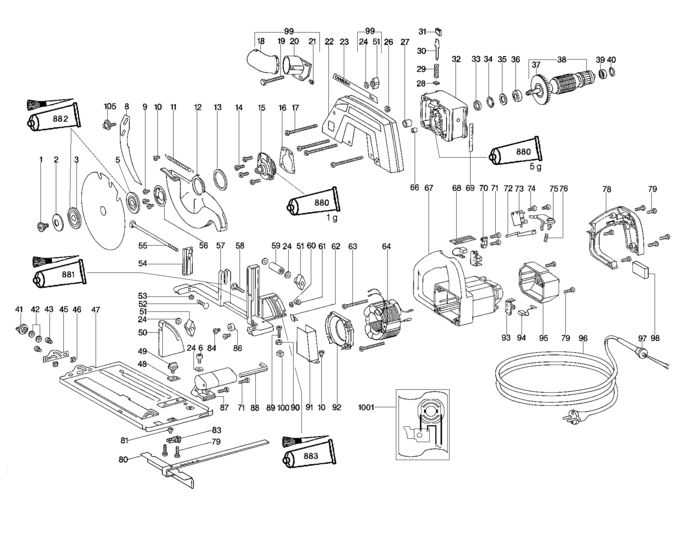

KS 1266 S - 01266180 - CH 230V
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Screw (341701980) 488 RON
2 1 1 Cup spring (141154060) 1564 RON
3 1 1 Clamping flange (341031730) 3018 RON
5 1 1 Flange (339122610) 5479 RON
6 1 1 Cap screw (141113840) 781 RON
8 1 1 Riving knife (339124010) 3018 RON
9 1 1 Self-tapp. fill. h. screw (141119900) 446 RON
10 1 1 Self-tap. fill. h. screw (141116790) 446 RON
11 1 1 Tension spring (342010900) 3018 RON
12 1 1 Wheel guard cpl. (316019970) 18341 RON
13 1 1 141154140 - Indisponibil
14 1 1 Fill. head screw(DIN 7985) (141119440) 446 RON
15 1 1 Bearing flange cpl. (316019980) 34448 RON
16 1 1 339011240 - Indisponibil
17 1 1 141120400 - Indisponibil
18 1 1 343369180 - Indisponibil
19 1 1 Hexagon head screw (141116250) 446 RON
20 1 1 343363330 - Indisponibil
21 1 2 Self-tap. fill. h. screw (141116790) 446 RON
22 1 1 316020090 - Indisponibil
23 1 1 338108850 - Indisponibil
24 1 4 Washer Washer cod vechi 86300016365 (141151940) 446 RON
26 1 1 Hexagonal nut (141130100) 446 RON
27 1 1 Bush (341054050) 4249 RON
28 1 1 Felt (344070600) 446 RON
29 1 1 Pressure spring (342007800) 781 RON
30 1 1 339123720 - Indisponibil
31 1 1 Knob (343362430) 446 RON
32 1 1 316020080 - Indisponibil
33 1 1 Felt ring (344070620) 446 RON
34 1 1 Washer (339011340) 446 RON
35 1 1 Washer (141151480) 781 RON
36 1 1 Ball bearing, 12x28x8 (143111080) 5926 RON
37 1 1 Fan (330000940) 2124 RON
38 1 1 Armature cpl. 220 V (310005450) 59166 RON
39 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
40 1 1 O-ring (143192130) 781 RON
41 1 1 Thumb-nut (341111890) 781 RON
42 1 2 Washer (141150120) 446 RON
43 1 1 Fillister head screw (141120190) 446 RON
45 1 1 343363090 - Indisponibil
46 1 1 Square nut (141131210) 446 RON
47 1 1 Guide plate (339123730) 18341 RON
48 1 1 339123880 - Indisponibil
49 1 1 Thumbscrew (341111920) 105 RON
50 1 1 Angle (343362630) 2459 RON
51 1 2 341100970 - Indisponibil
52 1 1 Truss head screw (141111510) 781 RON
53 1 1 Washer (141150800) 446 RON
54 1 1 Clamping piece (315412270) 190 RON
55 1 1 141120250 - Indisponibil
56 1 1 339004670 - Indisponibil
57 1 1 Cutting height guide (316024720) 24046 RON
58 1 1 Truss head screw (141111560) 781 RON
59 1 1 341053080 - Indisponibil
60 1 1 Butting washer (339001290) 446 RON
61 1 1 Self-tapp. fill. h. screw (141119900) 446 RON
62 1 1 343362850 - Indisponibil
63 1 2 Self-tap. fill. h. screw (141118700) 781 RON
64 1 1 Field coil 220 V (311008170) 33553 RON
66 1 1 Needle bushing (143112240) 1564 RON
67 1 1 Motor housing (343362580) 21361 RON
68 1 1 338028920 - Indisponibil
69 1 1 338106510 - Indisponibil
70 1 1 Cable clip (343371710) 446 RON
71 1 1 Self-tap. fill. h. screw (141116800) 446 RON
72 1 1 343363070 - Indisponibil
73 1 1 Switch (343406260) Indisponibil Indisponibil
74 1 1 Fillister head screw (141116970) 781 RON
75 1 1 343362740 - Indisponibil
76 1 1 Pressure spring (342001070) 446 RON
78 1 1 343362590 - Indisponibil
79 1 10 Self-tap. fill. h. screw (141116020) 781 RON
80 1 1 Parallel guide (331050470) 955 RON
81 1 1 Fillister head screw (141110510) 446 RON
83 1 1 343363080 - Indisponibil
84 1 2 Fill. head screw(DIN 7985) (141119570) 446 RON
86 1 1 Rubber ring (339040620) 781 RON
87 1 1 341111980 - Indisponibil
88 1 1 Cranked wrench key (344161520) 781 RON
89 1 1 Fillister head screw (141115960) 781 RON
90 1 1 Hexagonal nut (141130090) 446 RON
91 1 1 339124180 - Indisponibil
92 1 1 339150820 - Indisponibil
93 1 1 Brush holder cpl. (343000540) 3689 RON
94 1 1 Carbon brush (316033420) 7157 RON
95 1 1 343362600 - Indisponibil
96 1 1 344489560 - Indisponibil
97 1 1 Cable sleeve (344093180) 1340 RON
98 1 1 Insert (344103000) 446 RON
99 1 1 316024460 - Indisponibil
100 1 1 Square nut (141130660) 446 RON
105 1 1 Cylinder head screw (141122830) 781 RON
880 1 1 Grease 100G (344130920) 5926 RON
881 1 1 Grease SF 016 50Gr 1,8oz (344130130) 5926 RON
882 1 1 Grease SF 011 50Gr 1,8oz (344130560) 5926 RON
883 1 1 Grease SGF 079 (344130270) 2459 RON
1001 1 1 338500850 - Indisponibil
