Top » Piese de schimb » PIESE METABO » 01256000

TK 1256 - 01256000 - EU 230V
[01256000]
TK 1256 - 01256000 - EU 230V
Click pentru a mari
Imagini suplimentare
TK 1256 - 01256000 - EU 230V
Click pentru a mari
TK 1256 - 01256000 - EU 230V
Click pentru a mari
TK 1256 - 01256000 - EU 230V
Click pentru a mari

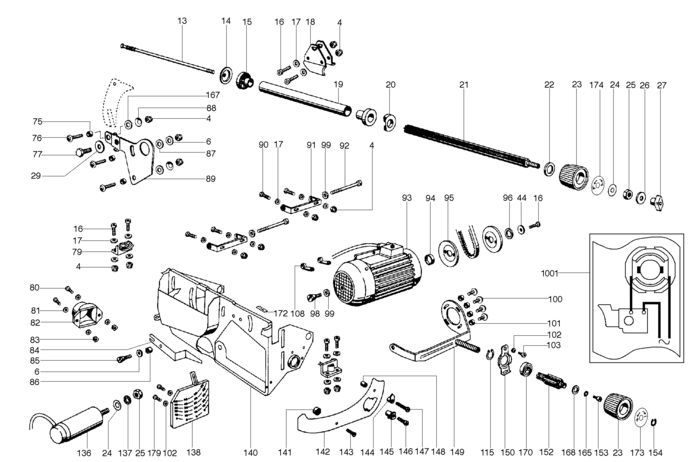

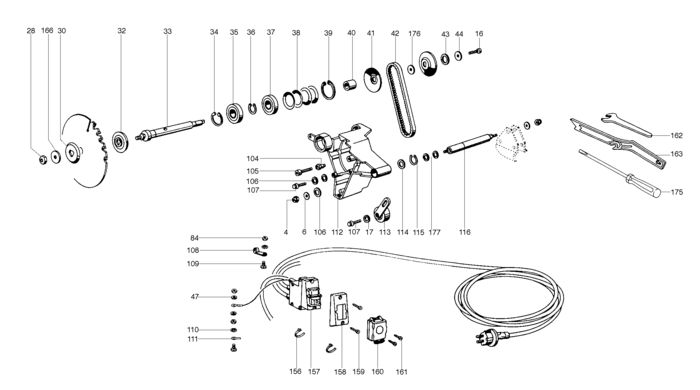

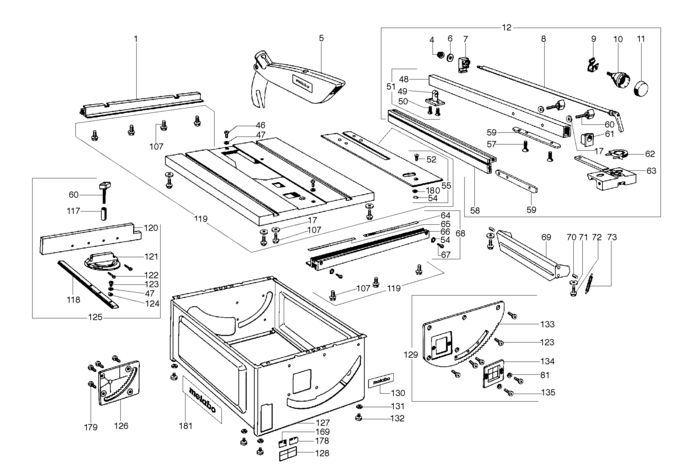

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Guide rail (341145040) 30980 RON
4 1 15 Hexagonal lock nut (141130650) 781 RON
5 1 1 Wheel guard cpl. (316023340) 19236 RON
6 1 2 Washer (141153950) 446 RON
7 1 1 Clamping piece (315413240) 5926 RON
8 1 1 Clamping lever (316023370) 18341 RON
9 1 1 Clamp strap (339124270) 2459 RON
10 1 1 Handle bottom part (316011810) 3018 RON
11 1 1 Handle upper part (341111320) 2459 RON
12 1 1 Parallel guide cpl. (316023360) 78180 RON
13 1 1 Rod (341053480) 10288 RON
14 1 1 Washer (339002950) 1564 RON
15 1 2 Spacer (343368140) 105 RON
16 1 6 Cap screw (141113850) 781 RON
17 1 20 Washer Washer cod vechi 86300016365 (141151940) 446 RON
18 1 2 Clamp (339005640) 2124 RON
19 1 1 Tube (341053520) 7157 RON
20 1 1 Spacer (343366560) 105 RON
21 1 1 Bar (341144460) 26730 RON
22 1 1 Washer (141153500) 105 RON
23 1 1 Handwheel (343357770) 5479 RON
24 1 2 Washer (141151050) 446 RON
25 1 1 Hexagonal nut (141131010) 446 RON
26 1 1 Washer (141150950) 781 RON
27 1 1 341100970 - Indisponibil
28 1 1 Hexagonal nut (141131520) 781 RON
29 1 1 Washer (141150140) 446 RON
30 1 1 Clamping flange (341053890) 955 RON
32 1 1 341053910 - Indisponibil
33 1 1 Saw axle (341053490) 26730 RON
34 1 1 Retaining ring (141180390) 781 RON
35 1 1 Ball bearing, 17x35x10 (143111450) 3689 RON
36 1 4 Retaining ring (141180110) 781 RON
37 1 1 Ball bearing, 15x32x9 (143110210) 7157 RON
38 1 1 Cup spring (141150630) 781 RON
39 1 1 Retaining ring (141180380) 781 RON
40 1 1 Bush (341004570) 105 RON
41 1 2 Washer (339005470) 190 RON
42 1 1 V-belt (344260210) 8275 RON
43 1 1 Washer (141154740) 781 RON
44 1 1 Washer ZN5BK (141150970) 446 RON
46 1 2 Self-tap. fill. h. screw (141118730) 446 RON
47 1 4 Washer (141150010) 446 RON
48 1 1 Rectangular tube (341144510) 19236 RON
49 1 1 Holder (343366590) 2459 RON
50 1 2 Countersunk screw (DIN965) (141119500) 446 RON
51 1 1 Rectangular tube cpl. (316023410) 21361 RON
52 1 1 Countersunk screw (141119150) 446 RON
54 1 1 O-ring (143193620) 781 RON
55 1 1 Insert compl. (316021460) 2848 RON
57 1 2 Countersunk screw (141112470) 446 RON
58 1 1 Profil (341144540) 21361 RON
59 1 2 Slot strip (339126750) 2124 RON
60 1 2 Thumbscrew (341111670) 781 RON
61 1 1 Cover (343366610) 105 RON
62 1 1 Magnifier (316019530) 955 RON
63 1 1 Parallel guide (316021480) 21361 RON
64 1 1 Scale (338107810) 2459 RON
65 1 1 Scale (338107820) 2459 RON
66 1 1 Guide rail (341144530) 24046 RON
67 1 2 Cap screw (141111050) 446 RON
68 1 1 Guide rail (316023320) 2848 RON
69 1 1 Cover cpl. (316023460) 8275 RON
70 1 2 Tightening pin (141161150) 446 RON
71 1 2 Washer (141150120) 446 RON
72 1 2 Hexagon head screw (141120390) 446 RON
73 1 1 Tension spring (342010090) 105 RON
75 1 3 Bush (341053460) 781 RON
76 1 2 Screw (341701550) 781 RON
77 1 1 Hexagon head screw (141121410) 781 RON
79 1 2 Segment holder (343366620) 2124 RON
80 1 2 Fillister head screw (141113040) 446 RON
81 1 6 Washer (141153700) 446 RON
82 1 1 Exhaust nozzle (343366510) 2459 RON
83 1 2 Hexagonal nut (141130070) 446 RON
84 1 3 339126230 - Indisponibil
85 1 1 141120800 - Indisponibil
86 1 1 Spacer bush (341003010) 1340 RON
87 1 1 Washer (141153960) 781 RON
88 1 2 Cup spring (141150530) 781 RON
89 1 1 Riving knife support (339126170) 8275 RON
90 1 4 Hexagon head screw (141110270) 446 RON
91 1 2 Retaining strap (339126220) 2124 RON
92 1 2 Cheese head srew (176114060) 781 RON
93 1 1 Motor 230 V (317001330) 295725 RON
94 1 1 Bush (341004580) 105 RON
95 1 2 Washer (339005480) 2459 RON
96 1 1 Washer (141152090) 446 RON
98 1 1 Flat headed screw (141119770) 190 RON
99 1 2 Washer (141151340) 446 RON
100 1 4 Screw (341702400) 446 RON
101 1 4 Bush (341053470) 781 RON
102 1 2 Washer (141150130) 446 RON
103 1 6 Cap screw (141113830) 446 RON
104 1 1 Excentric Bush (341053450) 3018 RON
105 1 1 141120540 - Indisponibil
106 1 2 Washer (141152830) 105 RON
107 1 11 Hexagon head screw (141119780) 781 RON
108 1 1 Fastening clamp (343364990) 446 RON
109 1 2 Fillister head screw (141113200) 446 RON
110 1 2 Serrated lock washer (141150410) 781 RON
111 1 1 Earthing label (175514010) 781 RON
112 1 1 Bearing support cpl. (316023330) 4442 RON
113 1 1 Belt tightener (316013870) 13756 RON
114 1 1 Washer (141153820) 446 RON
115 1 1 Retaining ring (141180090) 781 RON
116 1 1 Spindle (341053780) 7157 RON
117 1 1 Spacer bush (341003210) 2124 RON
118 1 1 Cross cutting fence (341142270) 955 RON
119 1 1 Saw table cpl. (316023000) 197187 RON
120 1 1 344500610 - Indisponibil
121 1 1 Measuring head (315407040) 18341 RON
122 1 2 Self-tap. fill. h. screw (141119380) 446 RON
123 1 5 Fillister head screw (141110510) 446 RON
124 1 1 Pointer (339060070) 781 RON
125 1 1 Cross cutting fende (316023350) 30980 RON
126 1 1 Toothed segment (343366530) 4249 RON
127 1 1 316021450 - Indisponibil
128 1 1 338026070 - Indisponibil
129 1 1 316023010 - Indisponibil
130 1 1 Metabo label (338116270) 446 RON
131 1 4 Plain hexagon nut (141130020) 446 RON
132 1 4 Rubber buffer (344094090) 1564 RON
133 1 1 Face plate cpl. (316023450) 13756 RON
134 1 1 Sight glas (316022870) 3689 RON
135 1 2 Fillister head screw (141113220) 446 RON
136 1 1 Condenser motor (343253040) 33553 RON
137 1 1 Serrated lock washer (141150440) 446 RON
138 1 1 343366550 - Indisponibil
140 1 1 Swivelling frame cpl. (316021470) 64311 RON
141 1 1 341053880 - Indisponibil
142 1 1 339005450 - Indisponibil
143 1 1 Countersunk screw (141112080) 446 RON
144 1 1 Pointer (343366570) 781 RON
145 1 1 Guide element (343366580) 105 RON
146 1 1 Fillister head screw (141113050) 446 RON
147 1 1 Fillister head screw (141111420) 781 RON
148 1 1 Spacer bush (341003120) 190 RON
149 1 1 Shift fork cpl. (316022540) 15993 RON
150 1 1 Bearing holder (339126110) 2459 RON
152 1 1 Intermediate gear (341145110) Indisponibil Indisponibil
153 1 1 Cap screw (341702410) 105 RON
154 1 1 RETAINING RING (141180060) 446 RON
156 1 2 Cable retaining band (343362480) 446 RON
157 1 1 Switch with cable (343405750) 41718 RON
158 1 1 Switch cover (343367580) 5479 RON
159 1 2 Self-tap. fill. h. screw (141116800) 446 RON
160 1 1 Switch cover (343405760) 3689 RON
161 1 2 Self-tap. fill. h. screw (141116840) 446 RON
162 1 1 Open-end spanner (344161060) 5479 RON
163 1 1 Push stick (343368840) 7157 RON
165 1 1 O-ring (143190070) 781 RON
166 1 1 Washer (141150050) 446 RON
167 1 2 Washer (141153540) 446 RON
168 1 1 Washer (341011620) 446 RON
169 1 1 Label (338109020) 1564 RON
170 1 1 Ball bearing, 15x35x11 (143111520) 7157 RON
172 1 1 Label (338115600) 781 RON
173 1 1 Pictograph (338109110) 190 RON
174 1 1 Pictograph (338109120) 190 RON
175 1 1 344162390 - Indisponibil
176 1 1 Washer (141152710) 781 RON
177 1 2 Washer (141151250) 781 RON
178 1 1 GS SEAL (338109570) 446 RON
179 1 4 Self-tap. fill. h. screw (141116130) 446 RON
180 1 1 Circlip (141155010) 446 RON
181 1 1 Metabo character (338116510) 446 RON
1001 1 1 338502880 - Indisponibil
