Top » Piese de schimb » PIESE METABO » 06211421

WP 7-125 Quick - 06211421 - US 120V
[06211421]
WP 7-125 Quick - 06211421 - US 120V
Click pentru a mari
Imagini suplimentare
WP 7-125 Quick - 06211421 - US 120V
Click pentru a mari

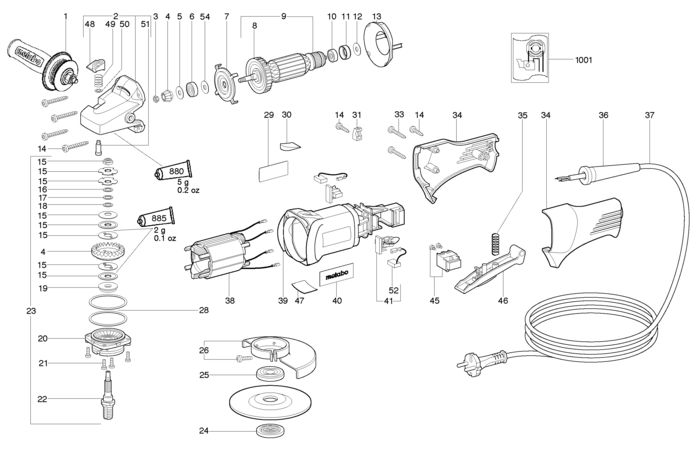

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Anti-vibration handle,M 8 (314000970) Indisponibil Indisponibil
2 1 1 Gear housing cpl. (316029180) 19236 RON
3 1 1 Hexagon nut w.recess (341100940) 781 RON
4 1 1 Bevel gear (316029470) 11519 RON
5 1 1 Washer (339006810) 446 RON
6 1 1 Ball bearing,6x19x6 cod vechi 143115170 (143115690 ) 190 RON
7 1 1 Cover (343373670) Indisponibil Indisponibil
8 1 1 Fan w. prot. Grid (316031210) Indisponibil Indisponibil
9 1 1 Armature cpl.120V (310008880) 2848 RON
10 1 1 Ball bearing,6x19x6 cod vechi 143115170 (143115690 ) 190 RON
11 1 1 Rubber bushing (344095260) 781 RON
12 1 1 Washer (141153340) 446 RON
13 1 1 Baffle (339150880) 781 RON
14 1 6 Self-tap. fill. h. screw (141116020) 781 RON
15 1 1 Friction washer cpl. (316029480) Indisponibil Indisponibil
16 1 1 Washer 10,2 X 14,8X 0,1 (141152300) 781 RON
17 1 1 Washer 10,2 X 14,8X 0,5 (141153920) 446 RON
18 1 1 Washer 10,2 X 14,8X 0,2 (141151120) 446 RON
19 1 1 Intermediate piece (341051480) 105 RON
20 1 1 Flange complete (343377210) Indisponibil Indisponibil
21 1 4 Fillister head screw (141119860) 781 RON
22 1 1 Spindle shaft (341160840) 7157 RON
23 1 1 Intermediate Gear 5/8 120V. 750 W (316039310) 2848 RON
24 1 1 Clamping nut compl.,5/8" (316023840) 955 RON
25 1 1 Clamping flange (341031290) 3018 RON
26 1 1 Wheel guard cpl. (316035710) 8275 RON
28 1 2 Compensating Washer (339060160) 781 RON
29 1 1 Rating plate (338047150) 446 RON
30 1 1 Cover (343380550) 781 RON
31 1 1 Cable clip (343362490) 781 RON
33 1 2 Self-tap. fill. h. screw (141116990) 781 RON
34 1 1 2 part motor cap (343375550) 488 RON
35 1 1 Pressure spring (342010220) 446 RON
36 1 1 Cable sleeve (344100970) 781 RON
37 1 1 Cable with UL-CSA-plug (344492750) 7157 RON
38 1 1 Field coil assembly w.field coil,115V (311010300) 21361 RON
39 1 1 Motor housing (315012720) 4249 RON
40 1 1 M-Label,08 52x22 (338122160) 446 RON
41 1 2 Brush holder cpl.,120V (316028700) 7157 RON
45 1 1 Switch (343406730) 7157 RON
46 1 1 Switch lever cpl. (316031180) 2459 RON
47 1 1 Indication label (338116210) 1564 RON
48 1 1 Push button, red (343394190) 669 RON
49 1 1 Pressure spring (342001550) Indisponibil Indisponibil
50 1 1 Sealing washer (339006520) Indisponibil Indisponibil
51 1 1 Bolt (341513790) 1564 RON
52 1 1 Set carbon brush (316034930) 5479 RON
54 1 1 Washer (339132280) 446 RON
880 1 1 Special grease 100Gr 3,6oz (344130840) Indisponibil Indisponibil
885 1 1 Grease SF 011 50Gr 1,8oz (344130560) 5926 RON
1001 1 1 338502190 - Indisponibil
