Top » Piese de schimb » PIESE METABO » 00825001

W 8-125 - 00825001 - EU 230V
[00825001]
W 8-125 - 00825001 - EU 230V
Click pentru a mari
Imagini suplimentare
W 8-125 - 00825001 - EU 230V
Click pentru a mari

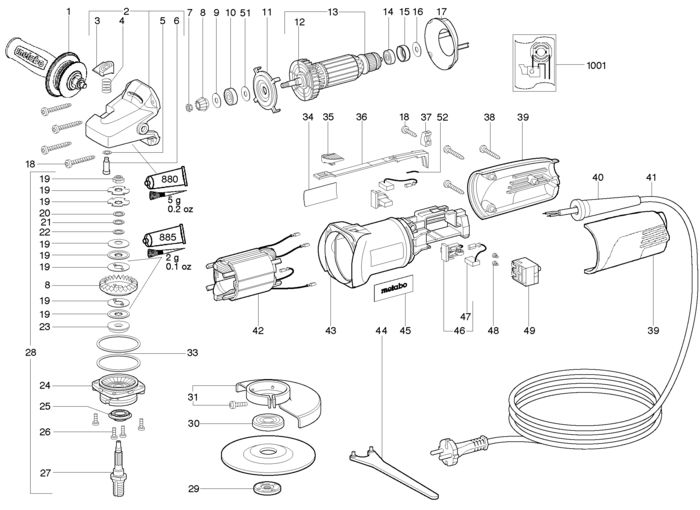

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Anti-vibration handle,M 8 (314000970) Indisponibil Indisponibil
2 1 1 Gear housing cpl. (316029310) 21361 RON
3 1 1 Push button black (343373720) 446 RON
4 1 1 Pressure spring (342001550) Indisponibil Indisponibil
5 1 1 Sealing washer (339006520) Indisponibil Indisponibil
6 1 1 Bolt (341513790) 1564 RON
7 1 1 Hexagon nut w.recess (341100940) 781 RON
8 1 1 Bevel gear (316029470) 11519 RON
9 1 1 Washer (339006810) 446 RON
10 1 1 Ball bearing,8x22x7 (143115180) 2124 RON
11 1 1 Cover (343373670) Indisponibil Indisponibil
12 1 1 Fan w. prot. Grid (316031210) Indisponibil Indisponibil
13 1 1 Armature 230 V (310007740) 46975 RON
14 1 1 Ball bearing,6x19x6 cod vechi 143115170 (143115690 ) 190 RON
15 1 1 Rubber bushing (344095260) 781 RON
16 1 1 Washer (141153340) 446 RON
17 1 1 Baffle (339150890) 781 RON
18 1 5 Self-tap. fill. h. screw (141116020) 781 RON
19 1 1 Friction washer cpl. (316029480) Indisponibil Indisponibil
20 1 1 399999990 - Indisponibil
21 1 1 Washer 10,2 X 14,8X 1,0 (141155550) 446 RON
22 1 1 Washer 10,2 X 14,8X 0,2 (141151120) 446 RON
23 1 1 Intermediate piece (341051480) 105 RON
24 1 1 Flange complete (343377210) Indisponibil Indisponibil
25 1 1 Sealing washer (343375540) 446 RON
26 1 4 Fillister head screw (141119860) 781 RON
27 1 1 Spindle shaft (341161030) 955 RON
28 1 1 Intermediate Gear (316039320) 2848 RON
29 1 1 Flange nut (341106900) 3689 RON
30 1 1 Clamping flange (341031160) 488 RON
31 1 1 Wheel guard cpl. (316035710) 8275 RON
33 1 2 Compensating Washer (339060160) 781 RON
34 1 1 Rating lable (338045130) 446 RON
35 1 1 Switch slide (343394180) 669 RON
36 1 1 Switch rod (343391880) Indisponibil Indisponibil
37 1 1 Cable clip (343362490) 781 RON
38 1 3 Self-tap. fill. h. screw (141116990) 781 RON
39 1 1 2 part motor cap (343375690) 2459 RON
40 1 1 Cable sleeve (344100970) 781 RON
41 1 1 Cable with plug (344493180) 955 RON
42 1 1 Field coil assembly w.field coil,230V (311010190) 24046 RON
43 1 1 Motor housing (315012630) Indisponibil Indisponibil
44 1 1 Pin spanner (344160830) 190 RON
45 1 1 M-Label,08 52x22 (338122160) 446 RON
46 1 2 Brush holder cpl. (316035480) 488 RON
47 1 1 Carbon brush (316035510) 5479 RON
48 1 2 Fillister head screw (141115780) 446 RON
49 1 1 Switch (343406740) 8275 RON
51 1 1 Washer (339132280) 446 RON
52 1 1 Foam rubber cord (344097440) 446 RON
880 1 1 Special grease 100Gr 3,6oz (344130840) Indisponibil Indisponibil
885 1 1 Grease SF 011 50Gr 1,8oz (344130560) 5926 RON
1001 1 1 338501980 - Indisponibil
