Top » Piese de schimb » PIESE METABO » 0010115256 10

1150/15/1000 D - 0010115256 10 - 3 / 400V/50Hz
[0010115256 10]
1150/15/1000 D - 0010115256 10 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
1150/15/1000 D - 0010115256 10 - 3 / 400V/50Hz
Click pentru a mari
1150/15/1000 D - 0010115256 10 - 3 / 400V/50Hz
Click pentru a mari

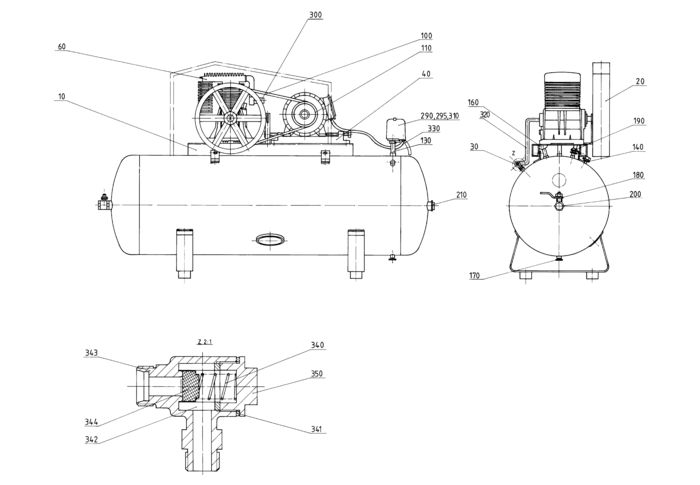

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
10 1 1 MOUNTING BRACKET AB 750 L B6000/B7000 (81001004901) 9821 RON
20 1 1 PROTECTIVE GRATING NS 45/50/59 B6000/B70 (81001010693) 127394 RON
30 1 1 CHECK VALVE, ELBOW TYPE R 1/2"X RD 18 (81001014745) 24046 RON
40 1 1 SLIDING RAIL 400 (81310086173) 18341 RON
60 1 1 COMPRESSOR PUMP B 7000 (81313030560) 1180893 RON
100 1 1 V-BELT SPA 13X2083 (87230051970) 10288 RON
110 1 1 7240041990 - Indisponibil
130 1 1 PIPE NIPPLE 1/2"X80 VERZINKT ENTFETTET (87812025613) 190 RON
140 1 1 TEST FLANGE R 3/8" (87818026352) 7157 RON
160 1 1 PRESSURE GAUGE RD100 R1/2" 0-25 BAR ROTE (87823010235) 33553 RON
170 1 1 DRAIN VALVE R 1/2" (87830029286) 15993 RON
180 1 1 BALL VALVE 3/4" X 3/4" (87830026279) 10288 RON
190 1 1 SAFETY VALVE R 1/4" 16 BAR M.RED.1/4"X1/ (81001615145) 30980 RON
200 1 1 REDUCER NIPPLE 2"X3/4" NR.241 / VERZ. (87871043030) 7157 RON
210 1 1 THREADED PLUG 2" NR.290 / VERZ. (87871056409) 5479 RON
290 1 1 AUTOM. PRESSURE CONTROL SWITCH MDR 3/16 (88101685846) 83437 RON
295 1 1 MOTOR PROTECTION RELAY 11-18 A / MDR 5-6 (88103145466) 4442 RON
300 1 1 SOLENOID VALVE (341148420) 78180 RON
340 1 1 PRESSURE SPRING RD 1XDM 15X40 ROSTFREI (87051052638) 446 RON
341 1 1 7631057092 - Indisponibil
342 1 1 CAGE RD 27,5X26 (81311052310) 105 RON
343 1 1 VALVE BODY R 1/2" AG X RD 18 (81310097574) 10288 RON
344 1 1 1311052620 - Indisponibil
350 1 1 THREADED PLUG C M30X1,5 (86109055202) 8275 RON
400 1 1 ELECTRIC MOTOR 400/3/50 3000UPM B3 (88013011622) 492019 RON
1001 1 1 1310165448 - Indisponibil
1002 1 1 CYLINDER ET (81310165561) 639324 RON
1003 1 1 CYLINDER HEAD ET (81319156328) 171574 RON
1005 1 1 HOUSING LID ET (81310164611) 64311 RON
1006 1 1 VALVE ASSEMBLY ET (81319156336) 197187 RON
1007 1 1 CONROD BEARING SHELL ET (81319166730) 15993 RON
1008 1 1 CONNECTING ROD ET (81319165661) 64311 RON
1010 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
1011 1 1 PISTON, HP RD 70 ET (81319163847) 93951 RON
1012 1 1 1319163855 - Indisponibil
1013 1 1 GUDGEON PIN RD 25X56 ET (81315163966) 19236 RON
1014 1 1 GUDGEON PIN RD 25X120 ET (81315163974) 26730 RON
1015 1 1 RETAINING RING FOR SHAFTS 25X1,2 (86400016664) 446 RON
1016 1 1 PISTON RING RD 70X2 ET (81319164169) 15993 RON
1017 1 1 PISTON RING RD 70X2 ET (81319164177) 15993 RON
1018 1 1 OIL WIPING RING RD 70X4 ET (81319164185) 18341 RON
1023 1 1 AIR FILTER ASSEMBLY ET (87825637707) 14839 RON
1024 1 1 AFTERCOOLER ET (81313631792) 73930 RON
1027 1 1 1319161780 - Indisponibil
1028 1 1 INTERMEDIATE COOLER ET (81319633258) 14839 RON
1029 1 1 FLYWHEEL RD 430 ET (81319155852) 88582 RON
1032 1 1 OIL SIGHT GLASS 1" ET (81319155879) 7157 RON
1033 1 1 CRANKCASE BREATHER 1/2" ET (81319155917) 26730 RON
1034 1 1 ROTARY SHAFT SEAL 45x60x7 ET (87635638383) 955 RON
1060 1 1 CRANKCASE PACKING ET (81319164487) 26730 RON
1061 1 1 CYLINDER FOOT GASKET ET (81319162026) 13756 RON
1062 1 1 CYLINDER GASKET ET (81319156352) 18341 RON
1064 1 1 CYLINDER HEAD GASKET ET (81319156360) 13756 RON
1065 1 1 PACKING,BEARG.CAP, PINION END ET (81319165858) 3689 RON
1066 1 1 PACKING, AFTERCOOLER ET (81319161747) 8275 RON
1067 1 1 PACKING, INTERMEDIATE COOLER ET (81319161755) 5926 RON
1116 1 1 PISTON RING RD 135X3 ET (81319164371) 21361 RON
1117 1 1 PISTON RING RD 135X3 ET (81319164380) 24046 RON
1118 1 1 OIL WIPING RING RD 135X5 ET (81319164398) 34448 RON
