Top » Piese de schimb » PIESE METABO » 00267390

WP 8-115 QuickProtect - 00267390 - GB 110V
[00267390]

WP 8-115 QuickProtect - 00267390 - GB 110V
Click pentru a mari
Imagini suplimentare
WP 8-115 QuickProtect - 00267390 - GB 110V
Click pentru a mari

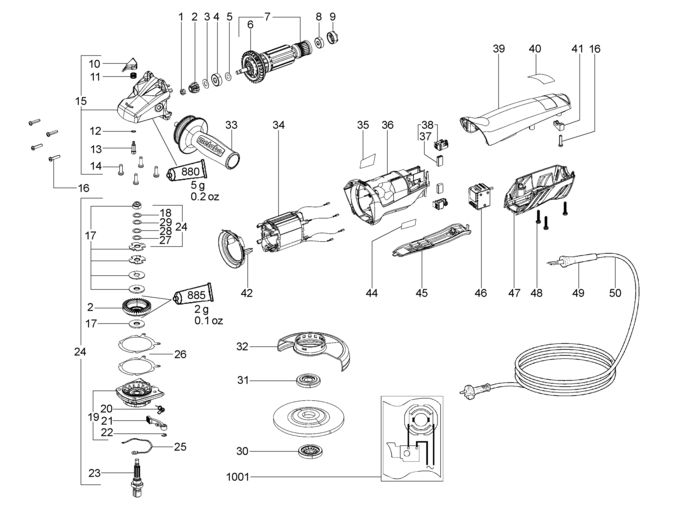

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)
Cumpara
1 1 1 Hexagon nut w.recess (341100940) 781 RON
2 1 1 Bevel gear w.pinion (316041660) 7157 RON
3 1 1 Washer,7,05x19,5x0,2 (339006390) 446 RON
4 1 1 Ball bearing,8x22x7 (143115180) 2124 RON
5 1 1 Washer,8,05x17x0,4 (339133060) 446 RON
6 1 1 Fan w. prot. Grid (316041450) Indisponibil Indisponibil
7 1 1 Armature compl.,120V (310009050) 2848 RON
8 1 1 Ball bearing,6x19x6 cod vechi 143115170 (143115690 ) 190 RON
9 1 1 Rubber bushing (344097870) 446 RON
10 1 1 Push button red (343393650) 446 RON
11 1 1 Pressure spring (342003390) 446 RON
12 1 1 O-ring (143193650) 446 RON
13 1 1 Bolt (341515280) 446 RON
14 1 4 Fillister head screw (141123660) 446 RON
15 1 1 Gear housing compl. (316041620) 11519 RON
16 1 5 Self-tap. fill. h. screw (141116020) 781 RON
17 1 1 Friction washer cpl. (316041650) 5479 RON
18 1 1 Washer 10,2 X 14,8X 0,2 (141151120) 446 RON
19 1 1 Flange w.clamping lever cpl. (316041720) 11519 RON
20 1 1 Spring clip (342022040) 446 RON
21 1 1 Lever (341070440) 1340 RON
22 1 1 Circlip (141181810) 446 RON
23 1 1 Spindle shaft (341161030) 955 RON
24 1 1 Safety clutch w.pinion,230V (316041680) 26730 RON
25 1 1 Compression Spring (342050840) 669 RON
26 1 2 Gasket (339011570) 446 RON
27 1 1 Washer 10,2 X 14,8X 0,1 (141152300) 781 RON
28 1 1 Washer 10,2 X 14,8X 0,5 (141153920) 446 RON
29 1 1 Washer 10,2 X 14,8X 1,0 (141155550) 446 RON
30 1 1 Clamping nut compl.,M14 (316023660) 7157 RON
31 1 1 Clamping flange (341031160) 488 RON
32 1 1 Wheel guard,D115 (339202990) 488 RON
33 1 1 Anti-vibration handle,M 8 (314000970) Indisponibil Indisponibil
34 1 1 Field coil assembly w.field coil,120V (311011600) 2848 RON
35 1 1 Rating plate (338052930) 446 RON
36 1 1 Motor housing (315013390) 488 RON
37 1 1 Carbon brush set (316046800) 3689 RON
38 1 2 Brush holder compl. cut out (316045980) 4249 RON
39 1 1 Housing cover (343397190) 2459 RON
40 1 1 338122990 - Indisponibil
41 1 1 Cable clip (343362490) 781 RON
42 1 1 Baffle (339151050) Indisponibil Indisponibil
44 1 1 399999990 - Indisponibil
45 1 1 Switch trigger compl. (316044040) 2459 RON
46 1 1 Switch (343408580) 3689 RON
47 1 1 Housing (343398510) 190 RON
48 1 3 Fillister head screw (141123490) 446 RON
49 1 1 Cable sleeve (344100970) 781 RON
50 1 1 Cable w.british plug,110V (344497230) 11519 RON
880 1 1 Special grease 100Gr 3,6oz (344130840) Indisponibil Indisponibil
885 1 1 Grease SF 011 50Gr 1,8oz (344130560) 5926 RON
1001 1 1 338504690 - Indisponibil
