Top » Piese de schimb » PIESE METABO » 01027180

PS E 1027 - 01027180 - CH 230V
[01027180]
PS E 1027 - 01027180 - CH 230V
Click pentru a mari
Imagini suplimentare
PS E 1027 - 01027180 - CH 230V
Click pentru a mari

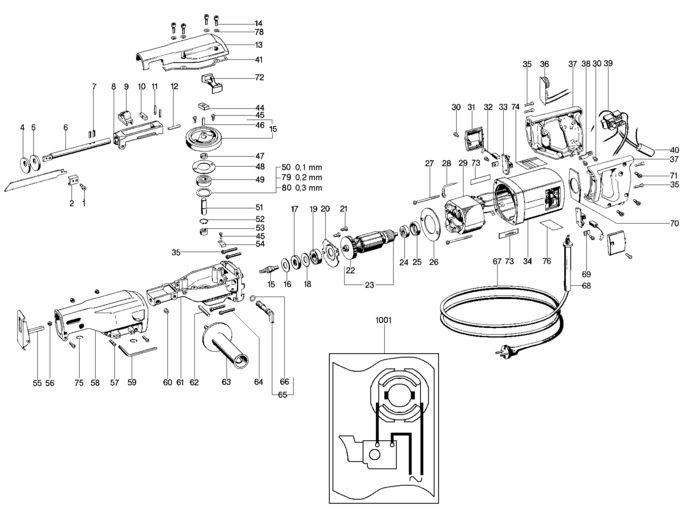

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Cap screw (141113680) 781 RON
2 1 1 Clamping piece (315411690) 3689 RON
4 1 1 Sealing ring (344000110) 3018 RON
5 1 1 Felt ring (344070160) 3018 RON
6 1 1 Ram (341051360) 49212 RON
7 1 2 Tightening pin (141163100) 446 RON
8 1 1 Ram guide (315411710) 59166 RON
9 1 1 Connecting link (341142950) 39481 RON
10 1 1 Slide block (341142970) 11519 RON
11 1 2 Pressure spring (342001490) 105 RON
12 1 1 Cylindrical pin (141163280) 2459 RON
13 1 1 Gear-box cover (315411700) 30980 RON
14 1 4 Cap screw (141113690) 781 RON
15 1 1 Bevel gear (316016770) 46975 RON
16 1 1 Washer (339004430) 1340 RON
17 1 1 Felt ring (344070230) 781 RON
18 1 1 Washer (339004410) 1340 RON
19 1 1 Ball bearing, 10x26x8 (143111120) 7157 RON
20 1 1 Bearing cover (339122670) 4249 RON
21 1 2 Fillister head screw (141119850) 446 RON
22 1 1 Fan (330000740) 4249 RON
23 1 1 310005190 - Indisponibil
24 1 1 Ball bearing, 7x19x6 (143111610) 488 RON
25 1 1 Rubber bushing (344092870) 190 RON
26 1 1 Baffle (339150770) 488 RON
27 1 2 341701890 - Indisponibil
28 1 1 Strand (344489390) 2459 RON
29 1 1 Field coil 220 V (311006910) 2848 RON
30 1 6 341701830 - Indisponibil
31 1 2 Cover (343361290) 2459 RON
32 1 1 Carbon brush (316033650) 7157 RON
33 1 2 Brush holder (343000620) 955 RON
34 1 1 Motor housing (343361310) 3698 RON
35 1 6 341701840 - Indisponibil
36 1 1 343068220 - Indisponibil
37 1 1 Handle with cover (343361280) 19236 RON
38 1 1 Cable clip (339180280) 1340 RON
39 1 1 Switch (343403780) 8275 RON
40 1 1 Condenser (343253450) 955 RON
41 1 1 Gasket (339210570) 2459 RON
44 1 1 Slide block (341142960) 11519 RON
45 1 2 Cap screw (341701870) 1340 RON
46 1 1 Cylindrical pin (341143020) 955 RON
47 1 1 Spacer bush (341003620) 4249 RON
48 1 1 Bearing cover (339122680) 3018 RON
49 1 1 Ball bearing, 12x32x10 (143113500) 5479 RON
50 1 1 Compensating Washer (339005160) 2124 RON
51 1 1 Bearing bolt (341513690) 7157 RON
52 1 1 RETAINING RING (141180060) 446 RON
53 1 1 320050230 - Indisponibil
54 1 1 Angle spring (339122760) 190 RON
55 1 1 Tool rest (341142930) 10288 RON
56 1 3 Hexagonal nut (141130070) 446 RON
57 1 3 Fillister head screw (141111420) 781 RON
58 1 1 Covering hood (343361270) 21361 RON
59 1 1 Hexagonal key (344161980) 1564 RON
60 1 1 Grub screw (141120030) 105 RON
61 1 1 Gear housing (316016780) 14839 RON
62 1 1 Cylindrical pin (141162970) 781 RON
63 1 1 Handle cpl. (314000540) 488 RON
64 1 2 Fillister head screw (341701900) 105 RON
65 1 1 Eccentric shaft (341142940) 13756 RON
66 1 1 O-ring (344092890) 2459 RON
67 1 1 344491230 - Indisponibil
68 1 1 Cable sleeve (344100490) 3689 RON
69 1 2 Cover plate (339122690) 1340 RON
70 1 1 Sealing plate (344092880) 2124 RON
71 1 3 Fillister head screw (341701880) 781 RON
72 1 1 Support (315412370) 11519 RON
73 1 1 338111070 - Indisponibil
74 1 1 Indication label (338112340) 2459 RON
75 1 2 Circlip (141181850) 781 RON
76 1 1 Rating plate (338018690) 446 RON
78 1 4 Spring washer (141150270) 446 RON
79 1 1 Spacer ring (339004420) 1340 RON
80 1 1 339005170 - Indisponibil
1001 1 1 338503150 - Indisponibil
