Top » Piese de schimb » PIESE METABO » 00852000

KS 0852 S - 00852000 - EU 230V
[00852000]
KS 0852 S - 00852000 - EU 230V
Click pentru a mari
Imagini suplimentare
KS 0852 S - 00852000 - EU 230V
Click pentru a mari

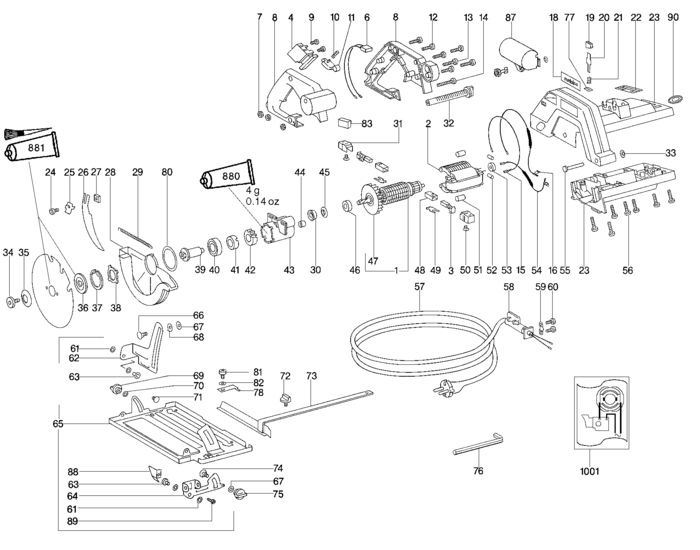

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Armature cpl. 220 V (310005060) 41718 RON
2 1 1 Field coil 220 V (311006920) 24046 RON
3 1 1 Carbon brush (316033640) Indisponibil Indisponibil
4 1 1 Switch (343403510) 3018 RON
6 1 1 Interference suppr. cond. (343253580) 3689 RON
7 1 3 Hexagonal nut (141130070) 446 RON
8 1 1 Handle with cover (343361110) 13756 RON
9 1 2 Fillister head screw (141116970) 781 RON
10 1 1 Pressure spring (342001690) 446 RON
11 1 1 Release (343361360) 781 RON
12 1 5 Self-tap. fill. h. screw (141116020) 781 RON
13 1 2 Fillister head screw (141116850) 781 RON
14 1 1 Fillister head screw (141111430) 781 RON
15 1 1 Strand cpl. AWG18SW (344488940) 105 RON
16 1 1 Interf. suppr. (344489790) 3689 RON
18 1 1 Metabo Label 99 (338118370) 446 RON
19 1 1 Knob (343362430) 446 RON
20 1 1 Locking lever (339122580) 781 RON
21 1 1 Pressure spring (342001070) 446 RON
22 1 1 Rating plate (338020550) 446 RON
23 1 1 Housing with cover (343361060) 24046 RON
24 1 1 Cap screw (141113840) 781 RON
25 1 1 Clamping plate (339123570) 105 RON
26 1 1 Riving knife (339122570) 190 RON
27 1 1 Square nut (141131370) 446 RON
28 1 1 Wheel guard (339202260) 8275 RON
29 1 1 Tension spring (342021010) 1564 RON
30 1 1 Sealing washer (343363130) 781 RON
31 1 2 Brush holder (343353380) 1340 RON
32 1 1 Thumb-nut (341111880) Indisponibil Indisponibil
33 1 1 Circlip (141180930) 446 RON
34 1 1 Screw (341701820) 3689 RON
35 1 1 Cup spring (176113240) 781 RON
36 1 1 Flange (339122610) 5479 RON
37 1 1 Retaining ring (141180390) 781 RON
38 1 1 Retraining sheet (339122780) 781 RON
39 1 1 Saw axle (341602880) 11519 RON
40 1 1 Ball bearing, 15x35x11 (143111520) 7157 RON
41 1 1 Bush (341003630) 190 RON
42 1 1 Spur gear (340011440) 8275 RON
43 1 1 Gear housing (315411680) 7157 RON
44 1 1 Needle bushing (143112240) 1564 RON
45 1 1 O-ring (143192570) 781 RON
46 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
47 1 1 Fan (330000880) 190 RON
48 1 2 Brush guide (343000230) 1340 RON
49 1 2 Covering plate (339034820) 1340 RON
50 1 2 Self-tapp. counters. screw (341701160) 446 RON
51 1 2 Rubber stopper (344092550) 446 RON
52 1 2 Rubber plug (344091420) 446 RON
53 1 1 Ball bearing, 6x19x6 (143112230) Indisponibil Indisponibil
54 1 1 Interf. suppr. (344489780) 3018 RON
55 1 1 Flat-head rivet (141163340) 446 RON
56 1 7 Self-tap. fill. h. screw (141117060) 781 RON
57 1 1 Cable with plug (344481030) 5479 RON
58 1 1 Cable sleeve (344100210) 105 RON
59 1 1 Cable clip (339187200) 781 RON
60 1 2 Self-tap. fill. h. screw (141116800) 446 RON
61 1 4 Washer (141150920) 446 RON
62 1 1 Adjusting lever (339122550) 3018 RON
63 1 2 Tubular rivet (142160380) 446 RON
64 1 1 Swivelling segment (339122540) 1340 RON
65 1 1 316016570 - Indisponibil
66 1 1 Truss head screw (141111530) 781 RON
67 1 2 Washer (141150800) 446 RON
68 1 1 Washer (339004350) 3018 RON
69 1 1 Thumb-nut (341111890) 781 RON
70 1 1 Washer (141150020) 446 RON
71 1 1 Truss head screw (141120180) 446 RON
72 1 1 Thumbscrew (341111920) 105 RON
73 1 1 Parallel guide (331050650) 7157 RON
74 1 1 Truss head screw (141115590) 781 RON
75 1 1 Thumb-nut (341111870) 105 RON
76 1 1 Cranked wrench key (344161520) 781 RON
77 1 1 Felt (344070600) 446 RON
78 1 1 Cut indicator (339124250) 1340 RON
80 1 1 Washer (141154070) 781 RON
81 1 1 Fillister head screw (141115780) 446 RON
82 1 1 Washer (141150010) 446 RON
83 1 1 Insert (344100070) 446 RON
87 1 1 Exhaust nozzle (316024470) 7157 RON
88 1 1 Guard (339126390) 105 RON
89 1 1 Fillister head screw (141110450) 446 RON
90 1 1 399999990 - Indisponibil
880 1 1 Grease SF 025 (344130460) 3689 RON
881 1 1 Grease SF 011 50Gr 1,8oz (344130560) 5926 RON
1001 1 1 338503480 - Indisponibil
