BH E 24 SR - 06224000 - EU 230V
[06224000]
BH E 24 SR - 06224000 - EU 230V
Click pentru a mari
Imagini suplimentare
BH E 24 SR - 06224000 - EU 230V
Click pentru a mari

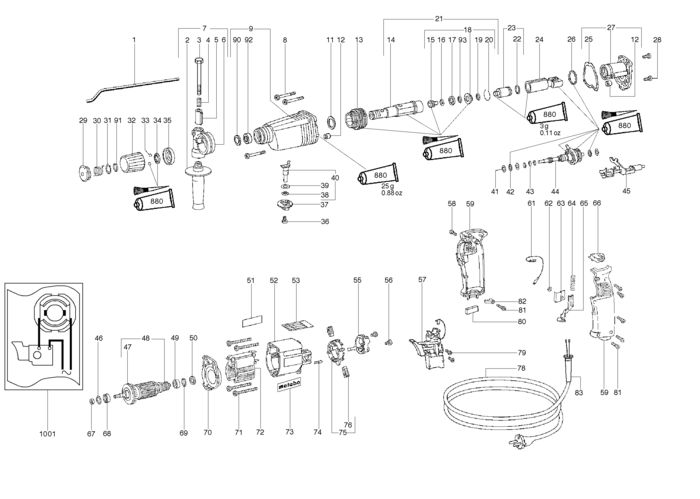

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 627288000 - Indisponibil
2 1 1 314000550 - Indisponibil
3 1 1 Hexagon head screw (141116160) 781 RON
4 1 1 Pressure spring (342007800) 781 RON
5 1 1 Locking bushing (343364910) 781 RON
6 1 1 Clamping piece (343359780) 2124 RON
7 1 1 Supporting handle cpl. (314000630) 7157 RON
8 1 3 Tight-fit screw plast. 45 (341702190) 781 RON
9 1 1 Gear housing cpl. (316024090) 30980 RON
11 1 1 Supporting disc (141153750) 781 RON
12 1 1 Needle sleeve (143111430) Indisponibil Indisponibil
13 1 1 Intermediate gear cpl. (316024110) 46975 RON
14 1 1 Drilling sleeve (341054210) 3698 RON
15 1 1 Piston cpl. (316020620) 8275 RON
16 1 1 O-ring (143192400) 781 RON
17 1 1 Damping ring (341055960) 1564 RON
18 1 1 Catching sleeve cpl. (316024100) 11519 RON
19 1 1 O-ring (143193920) 2459 RON
20 1 1 Circlip (141181840) 446 RON
21 1 1 Drilling sleeve cpl. (316024120) 46975 RON
22 1 1 Sealing ring (344093140) Indisponibil Indisponibil
23 1 1 Striker cpl. (316017660) 13756 RON
24 1 1 Exciter sleeve (341054150) 10288 RON
25 1 1 SEAL (344095020) 105 RON
26 1 1 Ball holder (320050200) Indisponibil Indisponibil
27 1 1 Gear flange cpl. (316026140) 24046 RON
28 1 2 Fill. head screw(DIN 7985) (141119440) 446 RON
29 1 1 Rubber cap (344092950) 2459 RON
30 1 1 Torsion spring (342021040) 781 RON
31 1 1 Retaining ring (141180120) 781 RON
32 1 1 Adjusting ring (343361680) 955 RON
33 1 2 Ball (143120320) 669 RON
34 1 1 Tension-spring ring (342001560) Indisponibil Indisponibil
35 1 1 Spacer ring (343361690) Indisponibil Indisponibil
36 1 1 Cap screw (341702380) 446 RON
37 1 1 Control knob cpl. (316023850) 190 RON
38 1 1 O-ring (143190060) 446 RON
39 1 1 Washer (141151130) 781 RON
40 1 1 Shift bolt cpl. (316024150) 5926 RON
41 1 3 Washer (339123780) 446 RON
42 1 2 Axial needle bearing (143114280) 2459 RON
43 1 3 Cup spring (141154920) 781 RON
44 1 1 Intermediate gear cpl. (316023870) 49212 RON
45 1 1 Shift element (316023860) 7157 RON
46 1 1 O-ring (143192570) 781 RON
47 1 1 Fan cpl. (330001060) 190 RON
48 1 1 Armature cpl. 220 V (310005530) 64311 RON
49 1 1 Ball bearing, 6x19x6 (143112230) Indisponibil Indisponibil
50 1 1 Washer (141153400) 781 RON
51 1 1 338035430 - Indisponibil
52 1 1 Motor housing (315012320) 11519 RON
53 1 1 338111750 - Indisponibil
55 1 1 Pressure plate cpl. (316021020) 4249 RON
56 1 2 Self-tap. fill. h. screw (141116840) 446 RON
57 1 1 Electronic unit 220 V (343075670) Indisponibil Indisponibil
58 1 1 Screw (341702050) 446 RON
59 1 1 Pistol grip (343362350) 8275 RON
61 1 1 Strand cpl. AWG18SW (344490150) 105 RON
62 1 1 Circlip (141181760) 446 RON
63 1 1 Cover (339111020) 446 RON
64 1 1 Pressure spring (342001210) 446 RON
65 1 1 Locking catch (343362460) 446 RON
66 1 1 Cover (343361770) 781 RON
67 1 1 Sealing washer (343364720) 669 RON
68 1 1 Ball bearing, 8x22x7 (143114880) Indisponibil Indisponibil
69 1 1 O-ring (143192430) Indisponibil Indisponibil
70 1 1 Flange (343361790) 2124 RON
71 1 4 Self-tap. fill. h. screw (141116090) 446 RON
72 1 1 311008090 - Indisponibil
73 1 1 338114180 - Indisponibil
74 1 1 Index bolt (342001140) 781 RON
75 1 1 316029390 - Indisponibil
76 1 1 316033850 - Indisponibil
78 1 1 344488390 - Indisponibil
79 1 2 Fillister head screw (141116970) 781 RON
80 1 1 Insert (344100750) 669 RON
81 1 6 Screw (141120340) 446 RON
82 1 1 Cable clip (343362490) 781 RON
83 1 1 Cable sleeve (344101080) 669 RON
90 1 1 Seal (143194060) 781 RON
91 1 1 Washer (339006190) 446 RON
92 1 1 Needle sleeve (143113940) 488 RON
93 1 1 O-ring (143194640) 781 RON
880 1 1 Grease FG 126 (344130800) Indisponibil Indisponibil
1001 1 1 338500640 - Indisponibil
