PS E 0525 - 00525190 - AU 240V
[00525190]
PS E 0525 - 00525190 - AU 240V
Click pentru a mari
Imagini suplimentare
PS E 0525 - 00525190 - AU 240V
Click pentru a mari

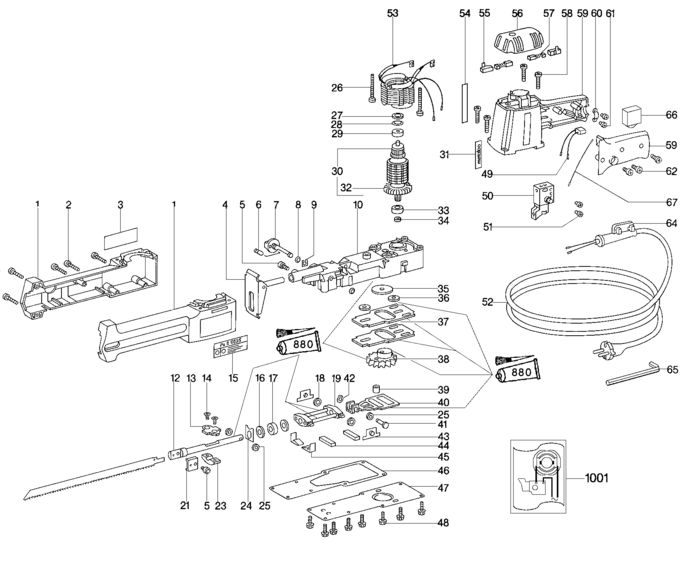

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Handle half (343362860) 10288 RON
2 1 5 Screw (341701850) 446 RON
3 1 1 Indication label (338117220) 446 RON
4 1 1 Tool rest (341142930) 10288 RON
5 1 2 Cap screw (141113680) 781 RON
6 1 1 Index bolt (342001140) 781 RON
7 1 1 Shift bolt cpl. (316019050) 11519 RON
8 1 2 O-ring (143190060) 446 RON
9 1 1 Locking plate (339002720) 446 RON
10 1 1 Gear housing cpl. (316019060) 4442 RON
12 1 1 Ram (341052270) 21361 RON
13 1 1 Butting plate (341143530) 3689 RON
14 1 2 Countersunk screw (141120550) 446 RON
15 1 1 Indication label (338117220) 446 RON
16 1 2 Washer (339011250) 446 RON
17 1 1 O-ring (143194590) 446 RON
18 1 2 Washer (141150910) 446 RON
19 1 1 Guide rod cpl. (316019030) 8275 RON
21 1 1 Clamping piece (315411690) 3689 RON
23 1 1 Cover plate (341070310) 781 RON
24 1 1 Sealing plate (339011260) 781 RON
25 1 2 Washer (141150020) 446 RON
26 1 2 Self-tap. fill. h. screw (141116090) 446 RON
27 1 1 Washer (141153400) 781 RON
28 1 1 O-ring (143191620) 781 RON
29 1 1 Ball bearing, 6x19x6 (143112230) Indisponibil Indisponibil
30 1 1 Armature cpl. 220 V (310005730) 49212 RON
31 1 1 Metabo label (338123580) 105 RON
32 1 1 Fan cpl. (330001050) 190 RON
33 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
34 1 1 Sealing ring (343357800) 446 RON
35 1 1 Washer (141154050) 781 RON
36 1 2 Washer (141153950) 446 RON
37 1 2 Balancing plate (339123910) 5926 RON
38 1 1 Spur gear cpl. (316019040) 21361 RON
39 1 1 Needle bearing (341002140) 8275 RON
40 1 1 Plastic washer (339123920) 7157 RON
41 1 1 Collar bolt (341513960) 2459 RON
42 1 1 Retaining ring (141181210) 446 RON
43 1 2 Bearing plate (341050790) 105 RON
44 1 2 Felt strip (344070540) 446 RON
45 1 2 Spring (342050420) 446 RON
46 1 1 Gasket (339011290) 105 RON
47 1 1 Cover (339123930) 4249 RON
48 1 8 Hexagon head screw (141119020) 446 RON
49 1 1 Interference suppr. cond. (343253630) 2124 RON
50 1 1 Switch (343402680) 3689 RON
51 1 2 Fillister head screw (141116970) 781 RON
52 1 1 Cable with plug (344491030) 7157 RON
53 1 1 Field coil 240 V (311007960) 19236 RON
54 1 1 Rating plate (338022440) 446 RON
55 1 2 Brush guide (343000020) 1340 RON
56 1 1 Motor cap cpl. (316013910) 5926 RON
57 1 1 Carbon brush (316033560) 4249 RON
58 1 2 Tight-fit screw (341702140) 446 RON
59 1 1 Housing with cover (315012050) 19236 RON
60 1 1 Cable clip (339187200) 781 RON
61 1 2 Self-tap. fill. h. screw (141116130) 446 RON
62 1 3 Self-tap. fill. h. screw (141116020) 781 RON
64 1 1 Cable sleeve (344100210) 105 RON
65 1 1 Hexagonal key (344161530) 781 RON
66 1 1 Switch (343402820) 26730 RON
67 1 1 Strand cpl. AWG18SW (344492110) 781 RON
880 1 1 Grease SF 016 50Gr 1,8oz (344130130) 5926 RON
1001 1 1 338504210 - Indisponibil
