Top » Piese de schimb » PIESE METABO » 02271000

BS 9.6 - 02271000 - -
[02271000]
BS 9.6 - 02271000 - -
Click pentru a mari
Imagini suplimentare
BS 9.6 - 02271000 - -
Click pentru a mari

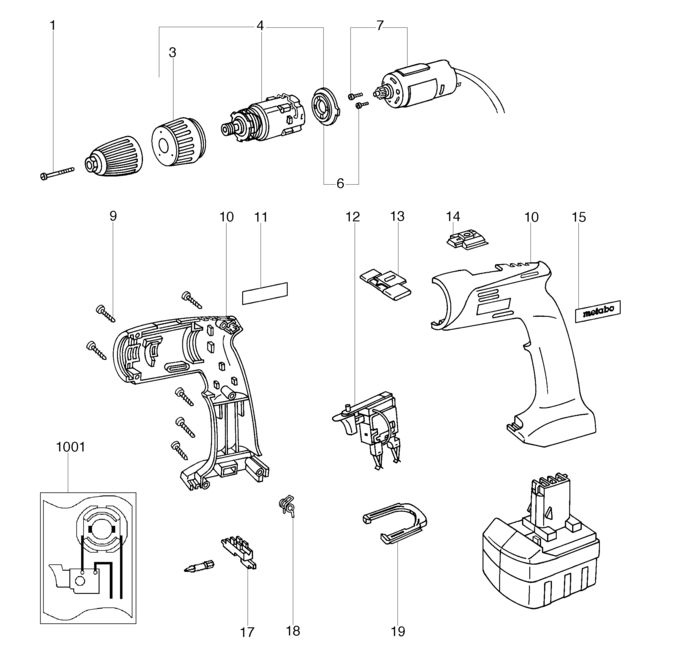

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Cheese-head screw (341701940) 781 RON
3 1 1 Sleeve (343375370) 3689 RON
4 1 1 Gearbox complete (316029840) 26730 RON
6 1 1 Convertion flange kit cpl. (316037860) 488 RON
7 1 1 Conversion kit (316037170) 21361 RON
9 1 6 Self-tap. fill. h. screw (141113180) 446 RON
10 1 1 Housing with cover (343374970) 488 RON
11 1 1 Rating plate (338037750) 446 RON
12 1 1 Electronic switch (343406840) 19236 RON
13 1 1 Switch slide (343374910) 446 RON
14 1 1 H/L switch (343374890) 781 RON
15 1 1 338114850 - Indisponibil
17 1 1 Bit Holder 9.6 V (343374360) 446 RON
18 1 1 Spring clip (342021670) 446 RON
19 1 1 Locking slide (343374940) 446 RON
1001 1 1 338502030 - Indisponibil
