BE 75-16 - 00580420 - US 120V
[00580420]
BE 75-16 - 00580420 - US 120V
Click pentru a mari
Imagini suplimentare
BE 75-16 - 00580420 - US 120V
Click pentru a mari

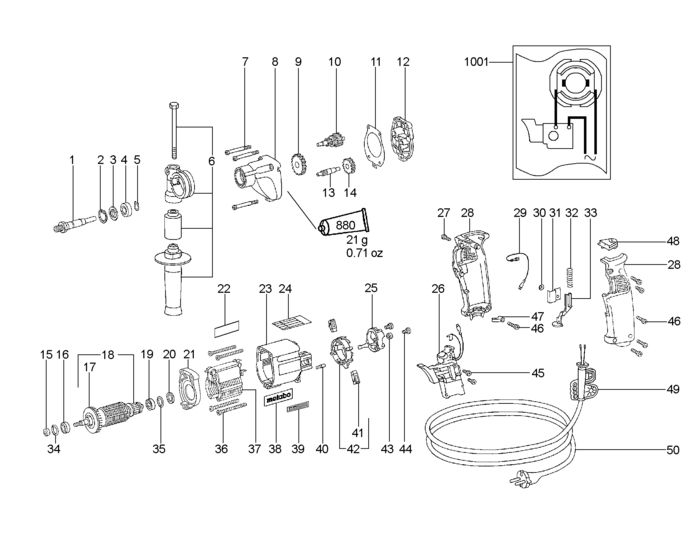

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Spindle (341602990) 19236 RON
2 1 1 RETAINING RING (141180060) 446 RON
3 1 1 Cover plate (343362170) 3689 RON
4 1 1 Ball bearing, 12x28x8 (143111440) 955 RON
5 1 1 Retaining ring (141181560) 446 RON
6 1 1 Side support handle compl. (314001250) 8275 RON
7 1 3 Tight-fit screw plast. 45 (341702180) 781 RON
8 1 1 Gear housing cpl. (316048270) 33553 RON
9 1 1 Spur gear (340011640) 11519 RON
10 1 1 Pinion shaft w.slip-clutch (316048280) 34448 RON
11 1 1 Gasket (339210270) 1340 RON
12 1 1 Gear flange cpl. (316022940) 19236 RON
13 1 1 Intermediate gear (340011630) 15993 RON
14 1 1 Spur gear (340011620) 11519 RON
15 1 1 Sealing ring (343356500) 446 RON
16 1 1 Ball bearing, 8x22x7 (143114880) Indisponibil Indisponibil
17 1 1 Fan cpl. (330001060) 190 RON
18 1 1 Armature cpl. 115 V (310006220) 41718 RON
19 1 1 Ball bearing, 6x19x6 (143112230) Indisponibil Indisponibil
20 1 1 Washer (141153400) 781 RON
21 1 1 Intermediate flange (343361780) 2459 RON
22 1 1 Rating plate (338055240) 446 RON
23 1 1 Motor housing (315012320) 11519 RON
24 1 1 Rueckenschild BE 75-16 (338122600) 781 RON
25 1 1 Pressure plate cpl. (316021020) 4249 RON
26 1 1 Electronic unit 120 V (343072460) 26730 RON
27 1 1 Screw (341702050) 446 RON
28 1 1 Pistol grip (343362350) 8275 RON
29 1 1 Strand cpl. AWG18SW (344490150) 105 RON
30 1 1 Circlip (141181760) 446 RON
31 1 1 Cover (339111020) 446 RON
32 1 1 Pressure spring (342001210) 446 RON
33 1 1 Locking catch (343362460) 446 RON
34 1 1 O-ring (143192570) 781 RON
35 1 1 O-ring (143192430) Indisponibil Indisponibil
36 1 4 Self-tap. fill. h. screw (141118260) 446 RON
37 1 1 Field coil 115 V (311008880) 26730 RON
38 1 1 M-Label,56x25 (338122370) 781 RON
39 1 1 399999990 - Indisponibil
40 1 1 Index bolt (342001140) 781 RON
41 1 1 Brush with holder (316033740) 5926 RON
42 1 1 Setting ring compl.,R+L (316025770) 955 RON
43 1 1 399999990 - Indisponibil
44 1 2 Self-tap. fill. h. screw (141116840) 446 RON
45 1 2 Fillister head screw (141116970) 781 RON
46 1 6 Self-tap. fill. h. screw (141116020) 781 RON
47 1 1 Cable clip (343362490) 781 RON
48 1 1 Cover (343361770) 781 RON
49 1 1 Cable sleeve (344100590) 105 RON
50 1 1 Cable with plug (344490960) 7157 RON
880 1 1 Cable with UL-CSA-plug (344492750) 7157 RON
1001 1 1 338500130 - Indisponibil
