KS 54 - 00540390 - GB 110V
[00540390]

KS 54 - 00540390 - GB 110V
Click pentru a mari
Imagini suplimentare
KS 54 - 00540390 - GB 110V
Click pentru a mari

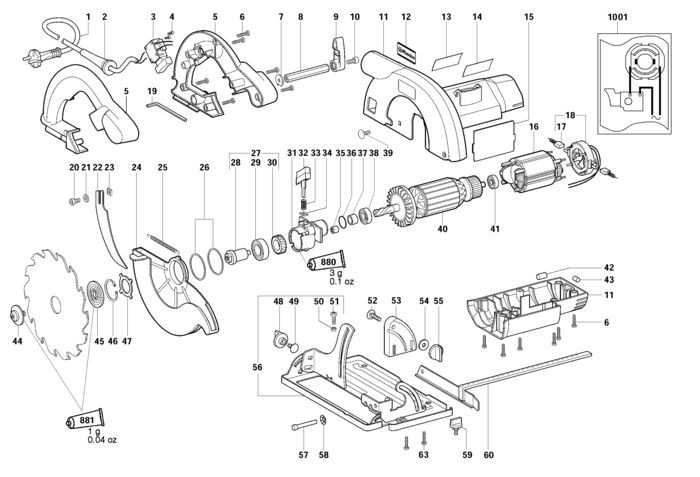

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)
Cumpara
1 1 1 Cable without plug,110V (344489670) 13756 RON
2 1 1 Cable sleeve (344100970) 781 RON
3 1 1 Switch (343407360) 4249 RON
4 1 2 Fillister head screw (141116970) 781 RON
5 1 1 Handle with cover (343377650) 5926 RON
6 1 12 Self-tap. fill. h. screw (141116020) 781 RON
7 1 1 Washer (339004350) 3018 RON
8 1 1 Spacing element (341056960) 2124 RON
9 1 1 Clamping lever (343377640) 781 RON
10 1 1 Cap screw (141113840) 781 RON
11 1 1 Housing with cover (343377620) 18341 RON
12 1 1 M-Label,08 52x22 (338122160) 446 RON
13 1 1 Rating plate (338043380) 446 RON
14 1 1 399999990 - Indisponibil
15 1 1 Insert (339131750) 781 RON
16 1 1 Field coil 110 V (311009870) 21361 RON
17 1 1 Brush set 120V (316034680) 7157 RON
18 1 1 Brush holder module 120 V (316033060) 955 RON
19 1 1 Cranked wrench key (344161520) 781 RON
20 1 1 Cap screw (141113840) 781 RON
21 1 1 Washer (141150130) 446 RON
22 1 1 Riving knife (339131420) 190 RON
23 1 1 Square nut (141131370) 446 RON
24 1 1 Wheel guard cpl. (339131410) 10288 RON
25 1 1 Tension spring (342021820) 781 RON
26 1 2 Washer (141154070) 781 RON
27 1 1 Saw spindle cpl. (316034540) 18341 RON
28 1 1 Saw axle (341056970) 7157 RON
29 1 1 Ball bearing, 15x35x11 (143114020) 5479 RON
30 1 1 Spur gear (341056990) 7157 RON
31 1 1 Gear box housing (315104110) 7157 RON
32 1 1 Spindle lock (316034820) 3018 RON
33 1 1 Pressure spring (342001070) 446 RON
34 1 1 Felt (344070600) 446 RON
35 1 1 Needle bushing (143111180) 3689 RON
36 1 1 O-ring (143192570) 781 RON
37 1 1 Sealing ring (343376040) 781 RON
38 1 1 Ball bearing, 8x22x7 (143114980) 488 RON
39 1 1 Truss head screw (141111530) 781 RON
40 1 1 Armature cpl.,120V (310008390) 39481 RON
41 1 1 Ball bearing, 6X 19X 6 (143114750) Indisponibil Indisponibil
42 1 1 Rubber stopper (344092550) 446 RON
43 1 1 Rubber plug (344091420) 446 RON
44 1 1 Screw compl. (316034800) 3689 RON
45 1 1 Flange (339131430) 3018 RON
46 1 1 Retaining ring (141180390) 781 RON
47 1 1 Retraining sheet (339122780) 781 RON
48 1 1 Thumb-nut (341111890) 781 RON
49 1 1 Truss head screw (141120180) 446 RON
50 1 1 Hexagonal nut (141130090) 446 RON
51 1 1 Fillister head screw (141116780) 446 RON
52 1 1 Truss head screw (141111550) 781 RON
53 1 1 Console (343377670) 2124 RON
54 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
55 1 1 Thumb-nut (341111870) 105 RON
56 1 1 Guide plate cpl. (316034530) 26730 RON
57 1 1 Flat-head rivet (141163340) 446 RON
58 1 1 Circlip (141180930) 446 RON
59 1 1 Thumbscrew (341111920) 105 RON
60 1 1 Parallel guide (331050650) 7157 RON
63 1 2 Self-tap. fill. h. screw (141116800) 446 RON
880 1 1 Grease 50Gr 1,8oz (344130970) 488 RON
881 1 1 Grease SF 011 50Gr 1,8oz (344130560) 5926 RON
1001 1 1 338504030 - Indisponibil
