VC1310L
[VC1310L]
VC1310L
Click pentru a mari
Imagini suplimentare
VC1310L
Click pentru a mari
VC1310L
Click pentru a mari

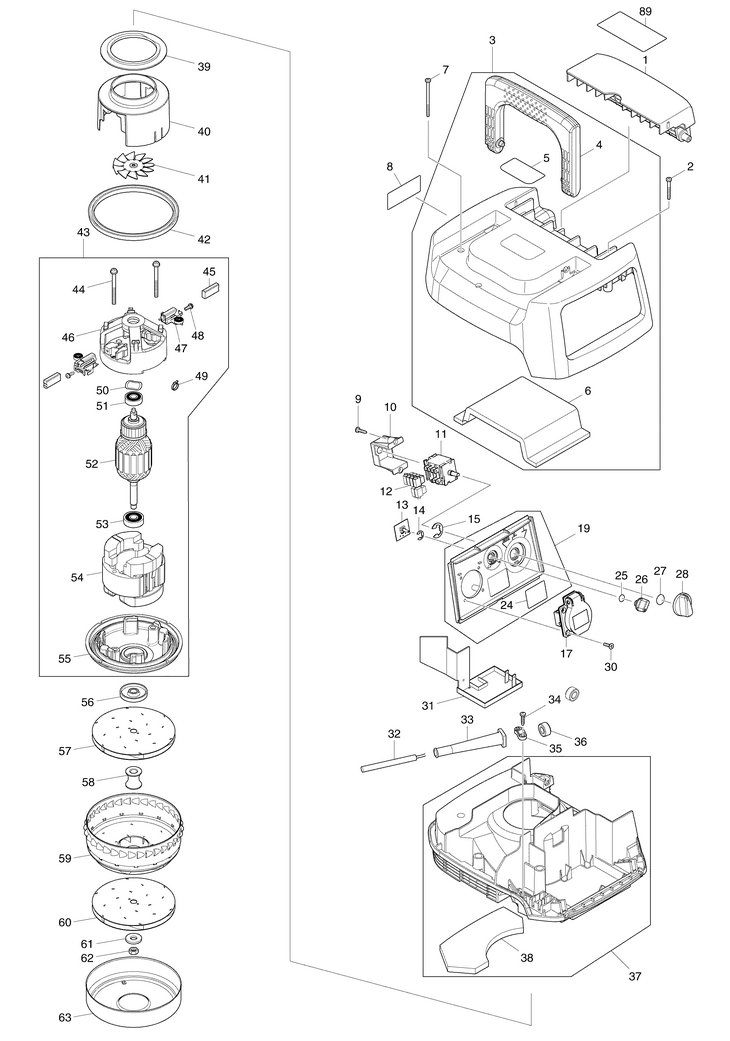

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BASE HOOK (452451-7) 2012 RON
2 1 3 SURUB cod vechi 266053-1 ARC 4X35 JV100D (266351-3) 558 RON
3 1 1 COWLING COMPLETE (140751-4) 9730 RON
4 1 1 GRIP (451340-3) 3354 RON
5 1 1 891977-8 - Indisponibil
6 1 1 TOP DAMPER (423393-2) 2012 RON
7 1 3 SURUB PT (266060-4) 2124 RON
8 1 1 869042-1 - Indisponibil
9 1 2 SURUB 4X18 cod vechi 266326-2 SURUB AUTOFILETANT 4X18 (265995-6) 558 RON
10 1 1 SWITCH HOLDER (451343-7) 446 RON
11 1 1 650623-0 - Indisponibil
11 2 1 INTRERUPATOR (650659-9) 6822 RON
12 1 6 RECEPTACLE SLEEVE (686023-8) 223 RON
12 2 8 RECEPTACLE SLEEVE (686023-8) 223 RON
13 1 1 SUB REGULATOR DE TURATIEE (631922-9) 3466 RON
14 1 1 INEL BLOCARE E-7 (961013-5) 558 RON
15 1 1 STOP RING E-12 KP312S (961062-2) 223 RON
17 1 1 655117-0 - Indisponibil
17 2 1 OUTLET (655123-5) 4137 RON
18 1 1 685740-7 - Indisponibil
19 1 1 SWITCH BASE COMPLETE (140742-5) 3466 RON
24 1 1 891982-5 - Indisponibil
25 1 1 O RING 9 AN901 (213054-0) 558 RON
26 1 1 SWITCH DIAL (451344-5) 334 RON
27 1 1 O RING 14 (213176-6) 558 RON
28 1 1 SWITCH LEVER (451342-9) 334 RON
30 1 4 SURUB (266630-9) 111 RON
31 1 1 REGULATOR DE TURATIEE VC2510 VC3210 (620033-5) 26843 RON
32 1 1 CABLU ALIMENTARE 1.5-3-5.0 VC2510 VC3210 VC3211 (695350-2) 14427 RON
33 1 1 CORD GUARD 12-90 (682575-7) 334 RON
34 1 2 SURUB 4X25 cod vechi 265999-8 SURUB AUTOFILETANT 4x25, cod echivalent 265999-8 (266374-1) 558 RON
35 1 1 STRAIN RELIEF (687149-9) 223 RON
36 1 2 INEL FILTRU LS1013 cod vechi 688106-0 FILTRU INEL MT240/HM1810 (688131-1) 334 RON
37 1 1 SEPARATOR COMPLETE (140254-8) 6151 RON
38 1 1 BOTTOM DAMPER (423395-8) 894 RON
39 1 1 SEAL RING 70 (423279-0) 1341 RON
40 1 1 MOTOR COVER (451338-0) 1117 RON
41 1 1 FAN 62 (241512-6) 558 RON
42 1 1 RUBBER RING 120 (424228-0) 190 RON
43 1 1 MOTOR ASSEMBLY VC3210L VC3211 (125876-5) 5761 RON
44 1 2 PAN HEAD SCREW M5X60 (911283-6) 223 RON
45 1 1 PERII CARBON CB-173 (195483-8) 488 RON
46 1 1 ENDBELL (452106-4) 4137 RON
47 1 2 SUPORT PERII 6.5X13.5 (643610-6) 1117 RON
48 1 2 SURUB M4X12 (911118-1) 558 RON
49 1 1 687010-0 - Indisponibil
50 1 1 WAVE WASHER 20 (267715-4) 223 RON
51 1 1 RULMENT 629DDW cod vechi 210042-8 (211092-6) 4584 RON
52 1 1 ROTOR VC2510 VC3210 VC3211 (517849-6) 21697 RON
53 1 1 RULMENT 6200DDW (211087-9) 2347 RON
54 1 1 STATOR 240V VC2510 VC3210 VC3211 (526204-1) 17335 RON
55 1 1 BASE (452105-6) 4249 RON
56 1 1 FLANGE (316795-8) 558 RON
57 1 1 FAN 125 (241910-4) 1453 RON
58 1 1 SPACER (325747-8) 894 RON
59 1 1 RETURN VANE (346114-4) 2571 RON
60 1 1 FAN 125 (241910-4) 1453 RON
61 1 1 SAIBA PLATA 10 (316799-0) 223 RON
62 1 1 PIULITA M8 (931403-6) 446 RON
63 1 1 FAN COVER (346115-2) 1341 RON
64 1 1 SUPPORT RING (424229-8) 1453 RON
65 1 1 REAR BLOCK FILTER (423396-6) 2124 RON
66 1 1 SIDE BLOCK FILTER (423399-0) 670 RON
67 1 1 BAND DAMPER (423397-4) 894 RON
68 1 1 140251-4 - Indisponibil
69 1 1 FLOAT COMPLETE (141019-1) 2348 RON
70 1 1 FLOAT CAGE (452446-0) 2124 RON
71 1 1 195438-3 - Indisponibil
72 1 1 DAMPER (424377-3) 6151 RON
73 1 1 AC1300 (AC1300) Indisponibil Indisponibil
73 2 1 140253-0 - Indisponibil
74 1 1 424230-3 - Indisponibil
75 1 3 SURUB 4X28 (266257-5) 334 RON
76 1 1 419351-4 - Indisponibil
77 1 1 419350-6 - Indisponibil
78 1 1 421468-1 - Indisponibil
79 1 4 SURUB AUTOFILETANT 4x14 (266192-7) 334 RON
80 1 2 HOOK (168537-4) 6151 RON
81 1 2 168535-8 - Indisponibil
82 1 2 168434-4 - Indisponibil
83 1 1 649150-2 - Indisponibil
84 1 1 452291-3 - Indisponibil
85 1 1 O RING 56 (213655-4) 446 RON
86 1 1 451348-7 - Indisponibil
87 1 3 SURUB 4X25 cod vechi 265999-8 SURUB AUTOFILETANT 4x25, cod echivalent 265999-8 (266374-1) 558 RON
88 1 1 RUBBER HOLDER (424382-0) 105 RON
89 1 1 891978-6 - Indisponibil
1001 1 1 195433-3 - Indisponibil
1002 1 1 417765-1 - Indisponibil
1003 1 1 424379-9 - Indisponibil
1004 1 4 417764-3 - Indisponibil
1005 1 1 195432-5 - Indisponibil
1006 1 1 195439-1 - Indisponibil
1007 1 1 195434-1 - Indisponibil
1008 1 1 192563-1 - Indisponibil
1009 1 1 192562-3 - Indisponibil
1010 1 1 410306-2 - Indisponibil
1011 1 1 451350-0 - Indisponibil
1012 1 1 451354-2 - Indisponibil
1013 1 1 SURUB M4X20 (911138-5) 334 RON
