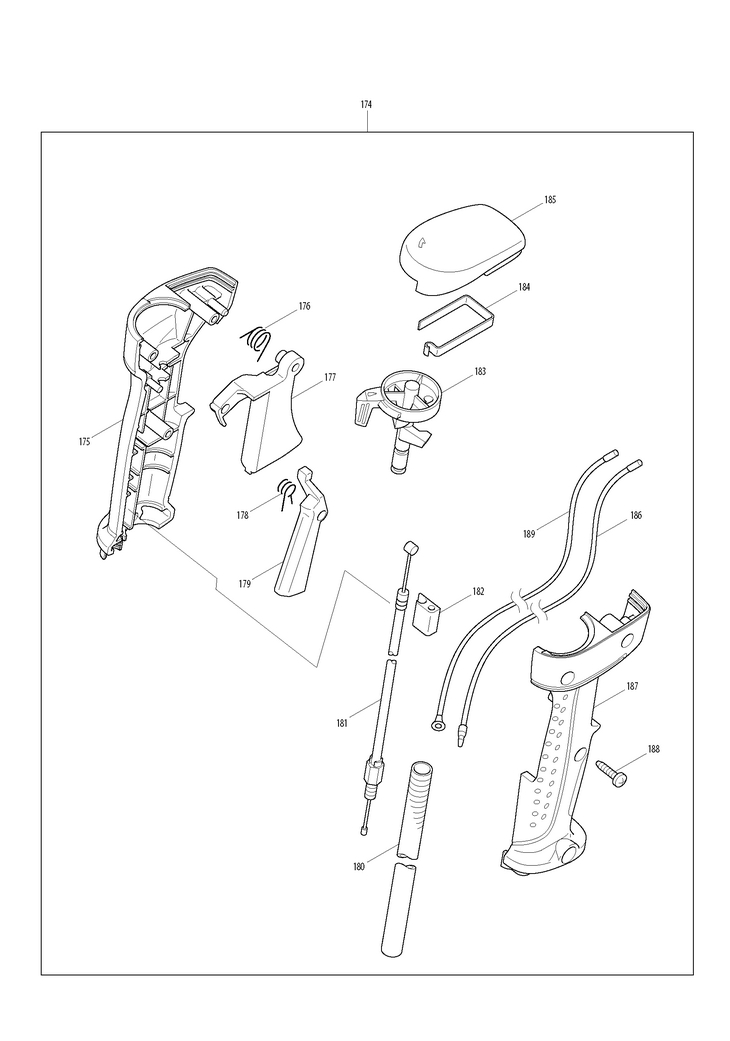

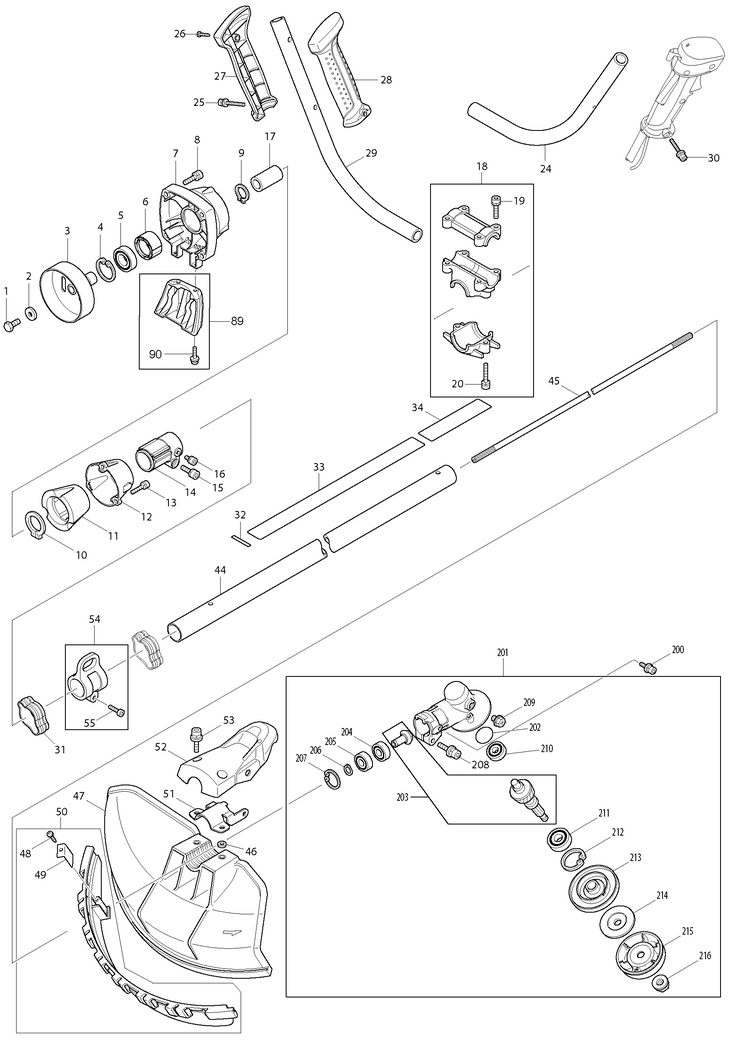

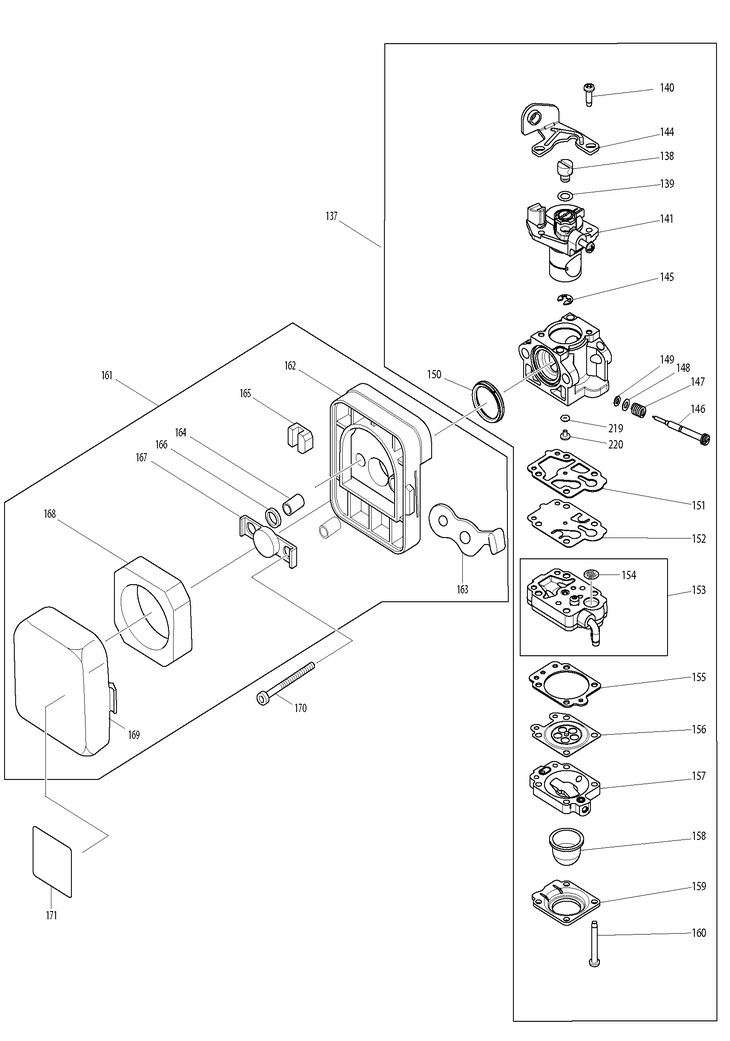

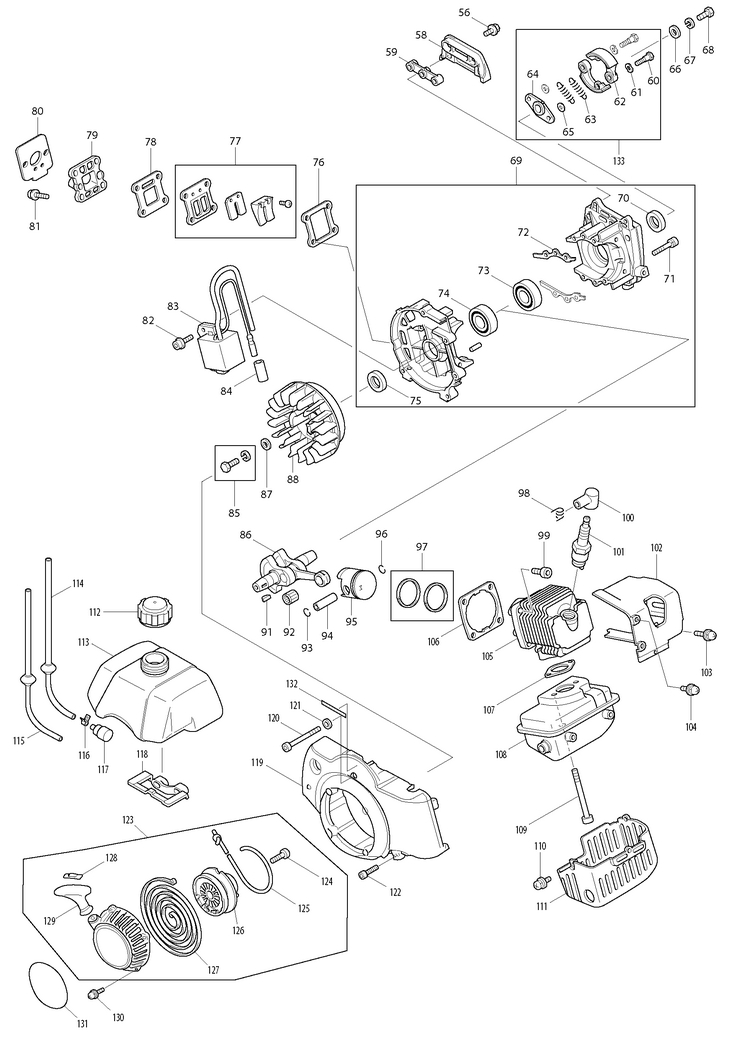

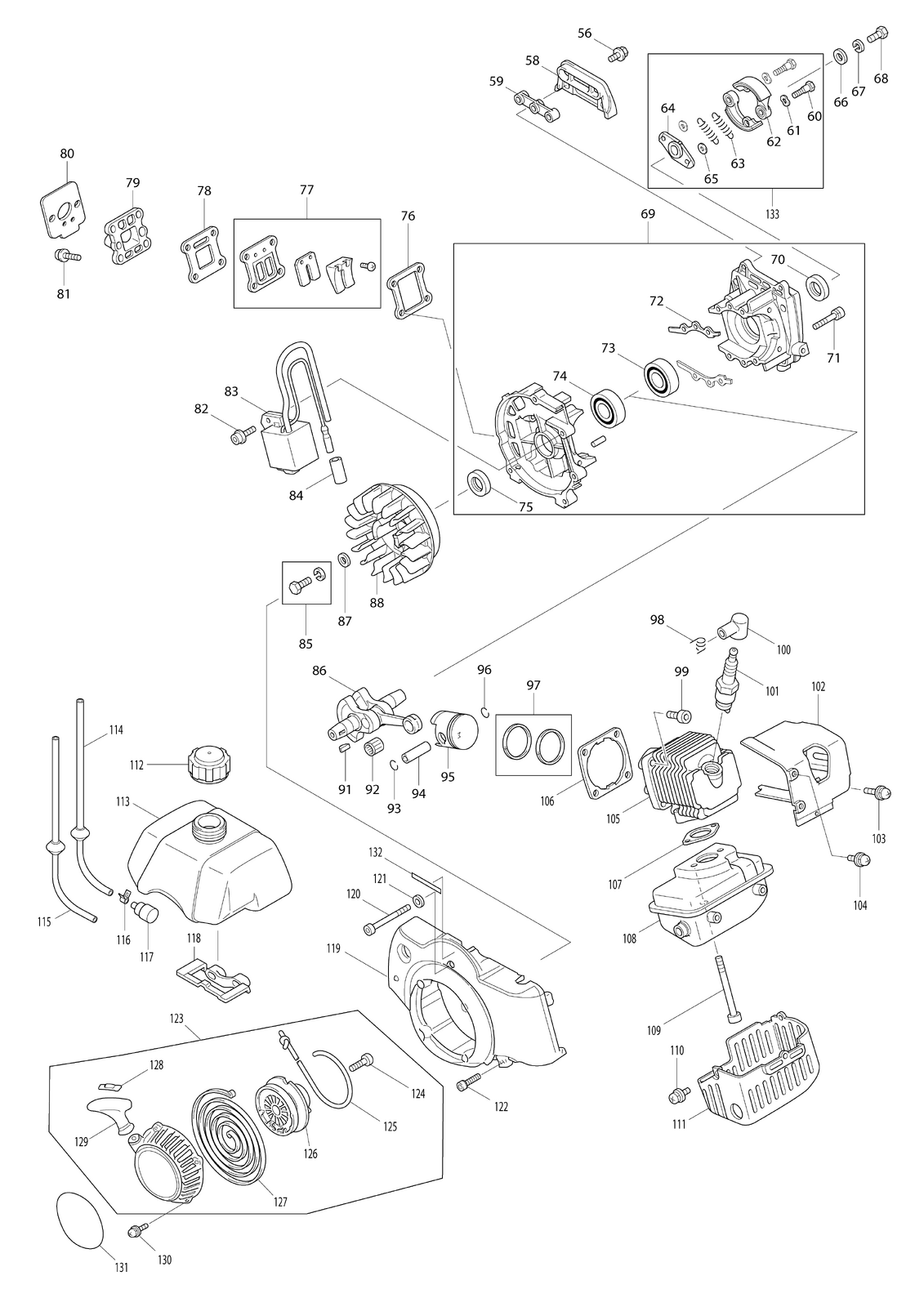

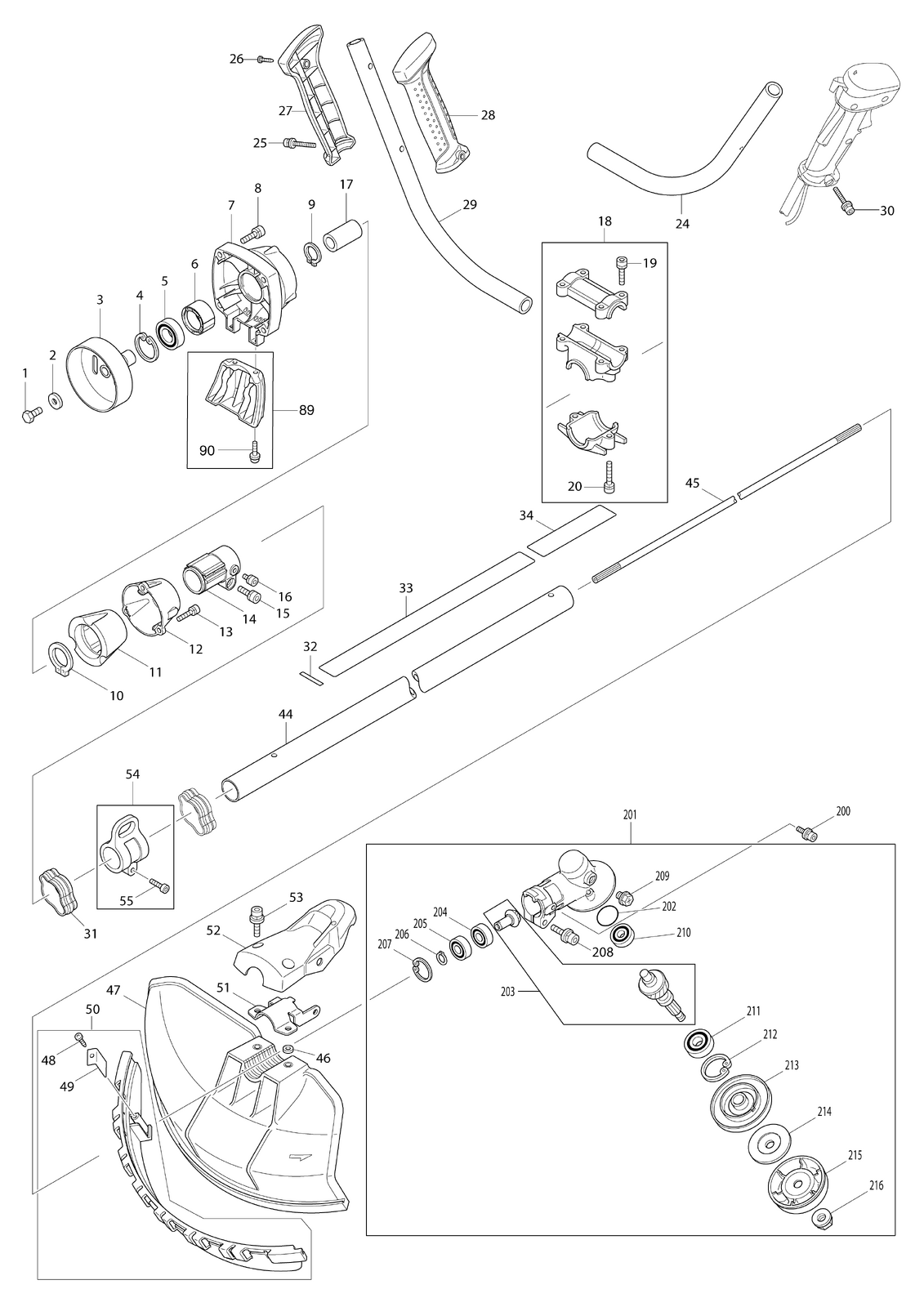

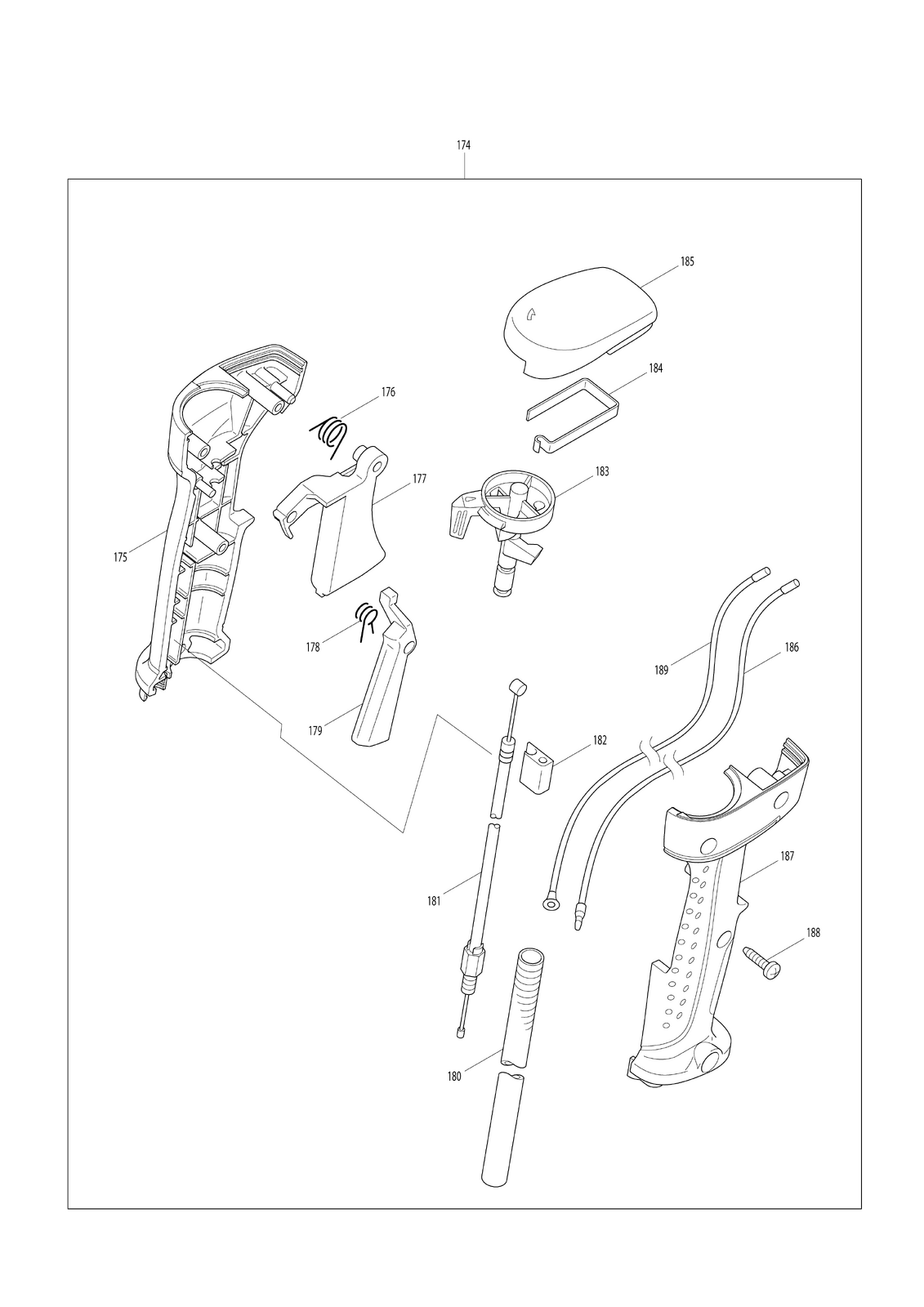

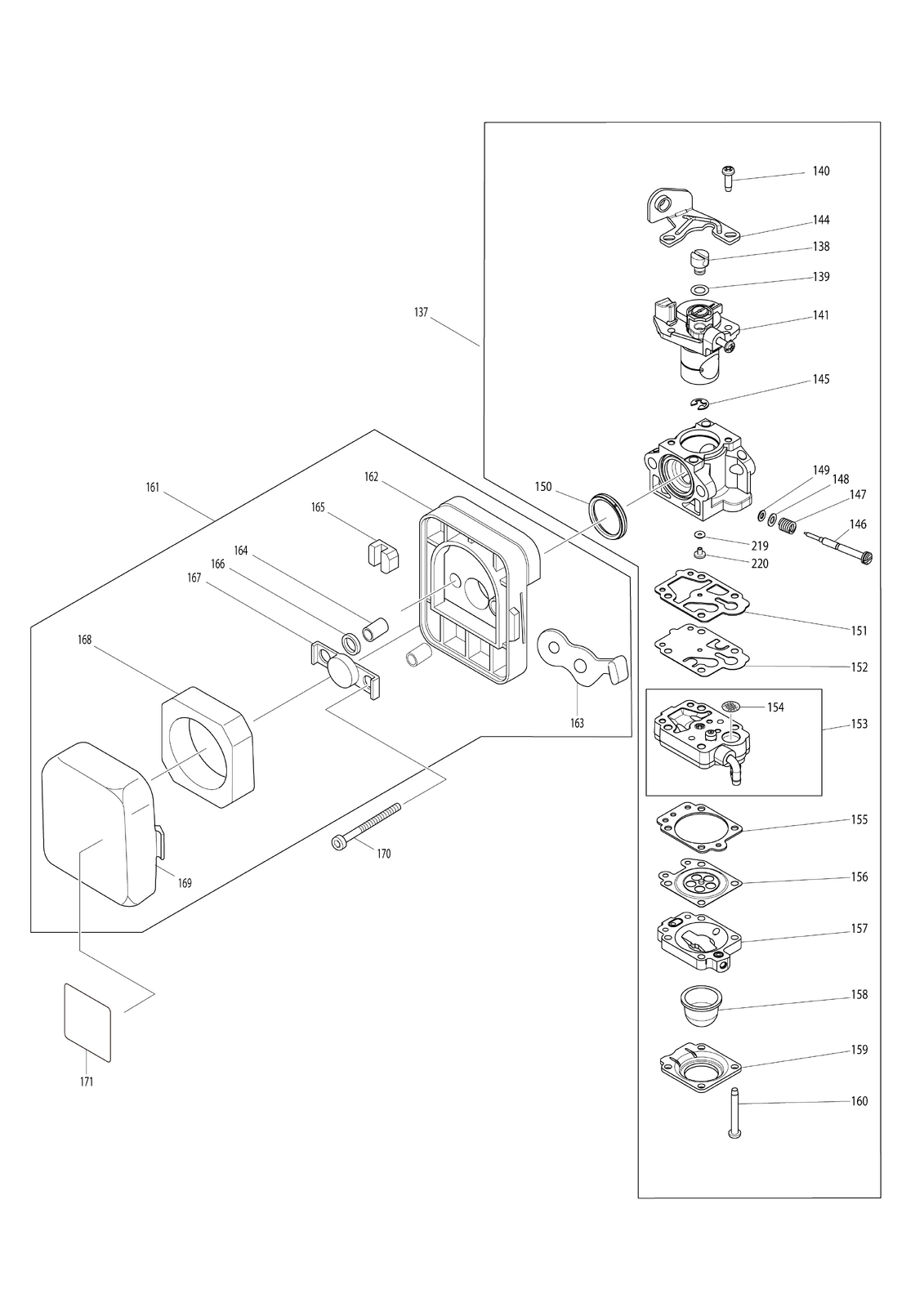

Top » Piese de schimb » PIESE MAKITA » Makita - Gazon » RBC413U RBC413U [RBC413U] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari Click pentru a mari Click pentru a mari Click pentru a mari Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara A08 0 1 TOOL COVER EBH252U (450573-7) 190 RON A07 0 1 Accessory Baguum EM2651UH (831304-7) 1676 RON A06-1 1 1 783217-7 - Indisponibil A06 0 1 HEX. WRENCH 5 EM2651UH (783232-1) 670 RON A05 0 1 WRENCH 4 EM2651UH (783223-2) 1453 RON A04 0 1 782238-6 - Indisponibil A03 0 1 782235-2 - Indisponibil A02 0 1 122882-1 - Indisponibil C10 0 1 140400-3 - Indisponibil A01 0 1 122906-3 - Indisponibil C20 0 1 424412-7 - Indisponibil C10 0 1 213595-6 - Indisponibil C10 0 1 803S35-2 - Indisponibil A08-1 1 1 456924-2 - Indisponibil A09 0 1 STAR BLADE 255-4T RBC420E (B-14124) 11631 RON A10 0 1 195246-2 - Indisponibil F02 0 1 197756-5 - Indisponibil F03 0 1 197777-7 - Indisponibil 001-1 1 1 HEX. HEAD BOLT M6X14 cod vechi 266598-9 (251527-5) 223 RON 001 0 1 266598-9 - Indisponibil 002 0 1 SAIBA EVH2000 cod vechi 6202500600 (267429-5) 669 RON 003-1 1 1 CLUTCH DRUM COMPLETE cod vechi 141689-6 (161877-9) 4697 RON 003 0 1 141689-6 - Indisponibil 004 0 1 SAIBA DE SIGURANTA R-35 (962153-2) 558 RON 005 0 1 210126-2 - Indisponibil 006 0 1 DISTANTIER EBH341U (451157-4) 558 RON 007 0 1 CLUTCH CASE EBH341U (318421-5) 4473 RON 008 0 4 922331-6 - Indisponibil 009 0 1 SAIBA DE SIGURANTA S-17 (961057-5) 334 RON 010 0 1 RETAINING RING S-32 EBH341U (961151-3) 446 RON 011 0 1 AMORTIZOR EBH341U (424204-4) 1117 RON 012 0 1 PIPE RETAINER EBH341U (318453-2) 2236 RON 013 0 3 SURUB M5X20 LF1000 EBH341U (922231-0) 223 RON 014 0 1 PIPE BRACKET EBH341U (318454-0) 3466 RON 015 0 1 922331-6 - Indisponibil 016 0 1 HEX. SOCKET HEAD BOLT M5X8 EBH341U (922201-9) 334 RON 017 0 1 DAMPER RBC420E (424403-8) 297 RON 018-1 1 1 136665-3 - Indisponibil 018 0 1 135614-7 - Indisponibil 019 0 4 HEX. SOCKET HEAD BOLT M5 EM2651UH (922241-7) 334 RON 020 0 2 SURUB INBUS M6X30 (922351-0) 558 RON 024 0 1 HANDLE 19R (332040-3) 3578 RON 025 0 1 HEX. SOCKET HEAD BOLT M5 EBH252U (922256-4) 893 RON 026 0 1 SURUB AUTOFILETANT 4X18 (266326-2) 024 RON 027 0 1 SET MANER BBC231U (188659-4) 3466 RON 028 0 1 SET MANER BBC231U (188659-4) 3466 RON 029 0 1 HANDLE 19L (332041-1) 382 RON 030 0 1 HEX. SOCKET HEAD BOLT M5 EBH252U (922256-4) 893 RON 031-2 2 2 WIRE CLAMP (455588-9) 446 RON 031-1 1 2 451160-5 - Indisponibil 031 0 2 WIRE CLAMP EBH341U (451525-1) 670 RON 032 0 1 801D19-4 - Indisponibil 034 0 1 MAKITA Logo Label EM2651UH (819312-8) 558 RON 044 0 1 SHAFT PIPE COMPLETE (142677-6) 2466 RON 045 0 1 AX TRANSMISIE RBC413U / 1436X8MM (142144-1) 6710 RON 046 0 2 WASHER EM2651UH (413143-3) 334 RON 047 0 1 PROTECTIE EBH341U (452259-9) 5256 RON 048 0 1 SURUB AUTOFILETANT 4X18 (266326-2) 024 RON 049 0 1 CUTTER EM2651UH (346074-0) 781 RON 050 0 1 PROTECTOR EXTENSION EM2651UH (135398-7) 4361 RON 051 0 1 PROTECTOR CLAMP EBH341U (346072-4) 105 RON 052 0 1 PROTECTOR COVER EBH341U (451090-0) 2124 RON 053 0 2 HEX. SOCKET BOLT M6x30 EM2651UH SURUB INBUS M6X30 cod vechi 922353-6 (266579-3) 334 RON 054 0 1 HANGER ASSEMBLY EBH341U (125558-9) 2571 RON 055 0 1 SURUB INBUS M5 (922232-8) 334 RON 056 0 2 HEX. HEAD BOLT M5X14 (266595-5) 223 RON 058-1 1 1 FUEL TANK BRACKET RBC411 (455434-6) 894 RON 058 0 1 168586-1 - Indisponibil 059-1 1 1 DAMPER RBC420E (424660-8) 446 RON 059 0 1 DAMPER RBC420E (424335-9) 1341 RON 060-1 1 2 251523-3 - Indisponibil 060 0 2 SHOULDER HEX. BOLT M8 (266894-5) 1453 RON 061-1 1 2 253385-5 - Indisponibil 061 0 2 WAVE SAIBA 10 (267849-3) 446 RON 062-1 1 2 161465-2 - Indisponibil 062 0 2 CLUTCH SHOE (168622-3) 4697 RON 063-1 1 2 ARC (AN23010C00) 1022 RON 063 0 2 ARC (231869-3) 670 RON 064-1 1 1 310774-8 - Indisponibil 064 0 1 SUPORT (313197-9) 5032 RON 065-1 1 2 253384-7 - Indisponibil 065 0 2 FLAT WASHER 8 EM4350UH (267428-7) 1117 RON 066 0 1 SAIBA EVH2000 cod vechi 6202500600 (267429-5) 669 RON 067-1 1 1 SAIBA ARC 6 (253428-3) 012 RON 067 0 1 SAIBA ELASTICA 6 (942151-2) 558 RON 068-1 1 1 HEX. HEAD BOLT M6X14 cod vechi 266598-9 (251527-5) 223 RON 068 0 1 266598-9 - Indisponibil 069 0 1 CRANKCASE ASSEMBLY (135558-1) 4549 RON 070 0 1 GARNITURA ULEI RBC420E (213546-9) Indisponibil Indisponibil 071-1 1 4 HEX. SOCKET HEAD BOLT M5x30 (922252-2) 558 RON 071 0 4 SURUB M5X30 SG1250 KP312S (922251-4) 334 RON 072 0 1 CRANKCASE GASKET RBC420E (442157-5) 782 RON 073 0 1 RULMENT 6202 (211483-1) 1565 RON 074 0 1 RULMENT 6202 (211483-1) 1565 RON 075 0 1 GARNITURA ULEI RBC420E (213546-9) Indisponibil Indisponibil 076 0 1 CARBURETOR GASKET RBC420E (442160-6) 670 RON 077 0 1 126211-0 - Indisponibil 078 0 1 INSULATOR GASKET RBC420E (442189-2) 670 RON 079 0 1 Insulator Ass'y RBC420E (453971-4) 2683 RON 080 0 1 GARNITURA CARBURATOR (442190-7) 558 RON 081 0 4 SURUB INBUS M5X25 DBC260U cod vechi 0119059640 (266793-1) 670 RON 082 0 2 PIULITA M5X22 (922236-0) 223 RON 083 0 1 BOBINA APRINDERE RBC420E cod vechi 5417041020 (168587-9) 18454 RON 084 0 1 Tube RBC420E (422059-1) 1229 RON 085 0 1 266596-3 - Indisponibil 086 0 1 CRANKSHAFT COMPLETE (142159-8) Indisponibil Indisponibil 087 0 1 SAIBA M6 RBC420E RBC3101 (267427-9) 446 RON 088 0 1 FLYWHEEL RBC413U (318632-2) 6262 RON 089 0 1 Stand Set EBH252U (195144-0) 1788 RON 090 0 2 911218-7 - Indisponibil 091 0 1 PANA BHX2500 cod vechi 0323039990 WOODRUFF KEY 3 EM2651UH (254040-2) 1229 RON 092 0 1 RULMENT CU ACE EPH1000 cod vechi 5412501300 (212085-6) 4025 RON 093 0 1 CLEMA EPH1000 cod vechi 0565099990 (233983-1) Indisponibil Indisponibil 094 0 1 PISTON PIN RBC420E (257797-4) 558 RON 095 0 1 PISTON RBC420E (318631-4) 8723 RON 096 0 1 CLEMA EPH1000 cod vechi 0565099990 (233983-1) Indisponibil Indisponibil 097 0 2 SEGMENT RBC420E (257309-3) 2124 RON 098 0 1 ARC FIXARE CABLU BUJIE cod vechi 0654009931 PLUG CAP SPRING EM2651UH (324891-8) 446 RON 099-1 1 4 922332-4 - Indisponibil 099 0 4 PIULITA M6X18 (922327-7) 223 RON 100 0 1 125936-3 - Indisponibil 101 0 1 BUJIE DBC260U cod vechi 0650149661 BUJIE DBC260U/EM2600U cod vechi DA00000085 BUJIE DBC260U/EM2600U cod vechi 0650149661 (168648-5) 10848 RON 102 0 1 CYLINDER COVER (452003-4) 2012 RON 103-3 3 1 266963-2 - Indisponibil 103-2 2 1 265A08-9 - Indisponibil 103-1 1 1 0140059330 - Indisponibil 103 0 1 SCREW WASHER ASSY SURUB M5X20 (911233-1) 334 RON 104-1 1 1 266677-3 - Indisponibil 104 0 1 911218-7 - Indisponibil 105 0 1 CILINDRU RBC420E (318630-6) 32435 RON 106 0 1 GARNITURA CILINDRU RBC420E (442156-7) 1453 RON 107 0 1 MUFFLER GASKET RBC420E (168584-5) 894 RON 108-1 1 1 161573-9 - Indisponibil 108 0 1 EXHAUST MUFFLER (168589-5) 3466 RON 109 0 2 HEX. SOCKET HEAD BOLT M6X60 RBC420E (266589-0) 446 RON 110-1 1 3 266677-3 - Indisponibil 110 0 3 911218-7 - Indisponibil 111 0 1 MUFFLER COVER (451998-8) 1565 RON 112 0 1 BUSON REZERVOR COMBUSTIBIL cod vechi 377605900 (168668-9) 4920 RON 113 0 1 FUEL TANK (454559-3) Indisponibil Indisponibil 114 0 1 FURTUN RBC420E FURTUN RBC420E cod vechi 0851279970 (168765-1) 190 RON 115 0 1 FURTUN RBC420E (168766-9) 2795 RON 116 0 3 345920-4 - Indisponibil 117-1 1 1 FILTRU DE BENZINA DCS230T (163447-0) 1788 RON 117 0 1 FILTRU DE BENZINA DCS230T (163447-0) 1788 RON 118 0 1 FUEL TANK DAMPER (424336-7) 894 RON 119 0 1 BLOWER HOUSING (452002-6) 4137 RON 120 0 1 SURUB INBUS M5X50 (266592-1) 446 RON 121 0 1 SAIBA PLATA 5 (941102-2) 894 RON 122 0 2 PIULITA M5X22 (922236-0) 223 RON 123 0 1 RECOIL STARTER ASSEMBLY (126364-5) 6822 RON 124-1 1 1 SG00000013 - Indisponibil 124 0 1 SET SCREW M6X20 EM4350UH (266634-1) 670 RON 125 0 1 SG00000019 - Indisponibil 126 0 1 ROLA STARTER EM4350UH (452288-2) 3914 RON 127 0 1 SPIRAL SPRING (SG00000018) 297 RON 128 0 1 STOPPER cod vechi 388500103 (424360-0) 1788 RON 129 0 1 MANER START EM4350UH (424361-8) 1677 RON 130 0 4 911218-7 - Indisponibil 131 0 1 MODEL NO. LABEL RBC413U (803S09-3) 223 RON 132 0 1 819967-9 - Indisponibil 133-1 1 1 CLUTCH ASSEMBLY cod vechi 125829-4 (123885-8) Indisponibil Indisponibil 133 0 1 125829-4 - Indisponibil 137 0 1 CABURATOR RBC413U (168874-6) Indisponibil Indisponibil 138 0 1 SWIVEL EM2651UH PIVOT cod vechi 367325922 (325922-6) 3689 RON 139 0 1 SAIBA cod vechi 367600503 WASHER EM2651UH (413140-9) 1676 RON 140 0 2 THROTTLE COLLAR SCREW RBC2500 (266704-6) 105 RON 141 0 1 VALVA ACCELERATIE RBC420E (453970-6) 22257 RON 144 0 1 BRACKET CABLE RBC2500 (346491-4) 488 RON 145 0 1 STOP RING E-3 EM2651UH SAIBA DE SIGURANTA cod vechi 367257964 (257964-1) 894 RON 150 0 1 SET INELE RBC2500 (424444-4) 1677 RON 151 0 1 GARNITURA cod vechi 381600103 (442172-9) 3130 RON 152-1 1 1 MEMBRANA POMPA EBH252U cod vechi 168575-6 MEMBRANA BHX2500 PUMP DIAPHRAGM (WJ00009599) Indisponibil Indisponibil 152 0 1 MEMBRANA POMPA cod vechi 367168575 (168575-6) 3242 RON 153 0 1 CORP POMPA CARBURATOR MS252U RBC420E cod vechi 5236046130 (140989-1) 28744 RON 154-1 1 1 INLET SCREEN (WJ00014070) 2012 RON 154 0 1 SITA CARBURATOR EBH252U FILTRU cod vechi 367352010 (352010-6) Indisponibil Indisponibil 155 0 1 GARNITURA cod vechi 367442154 GARNITURA MEMBRANA NIVEL EBH252U (442154-1) Indisponibil Indisponibil 156 0 1 DIAFRAGMA DE METALIZARE (168767-7) 5898 RON 157 0 1 SUPORT FILTRU DE AER DBC260U cod vechi 5236046060 (140988-3) 6039 RON 158 0 1 POMPA EBH252L (424314-7) 1311 RON 159 0 1 PRIMER PUMP COVER EM2651UH POMPA DE AMORSARE cod vechi 374604605 (346270-0) 1788 RON 160 0 4 TAPPING SCREW 3X24 EM2651UH SURUB cod vechi 367266582 (266582-4) 1453 RON 161 0 1 126212-8 - Indisponibil 162 0 1 AIR CLEANER HOUSING RBC420E (453981-1) 5144 RON 163 0 1 346627-5 - Indisponibil 164 0 2 332044-5 - Indisponibil 165 0 1 Clip (Air Cleaner) RBC420E (453983-7) 2460 RON 166 0 1 SAIBA RBC420E (424523-8) 105 RON 167 0 1 346626-7 - Indisponibil 168 0 1 FILTRU AER RBC420E (443180-3) 4361 RON 169 0 1 Air Cleaner Cover RBC420E (453982-9) 488 RON 170 0 2 HEX. SOCKET HEAD BOLT M5X50 RBC420E (266794-9) 558 RON 171 0 1 800G01-8 - Indisponibil 174 0 1 CONTROL LEVER ASSEMBLY (126446-3) 12862 RON 175-1 1 1 CARCASA MANETA SET (183A10-9) 3914 RON 175 0 1 LEVER CASE SET EM2651UH (188656-0) 3914 RON 176 0 1 ARC TORSIUNE 11 EBH253U (233540-5) 558 RON 177 0 1 THROTTLE LEVER EM2651UH (451084-5) 893 RON 178 0 1 ARC TORSIUNE 7 EBH253U (233541-3) 558 RON 179 0 1 Lock Off Lever EM2651UH (451083-7) 558 RON 180 0 1 CORRUGATE TUBE (454103-6) 1117 RON 181 0 1 CONTROLL CABLE (168845-3) 2460 RON 182 0 1 CABLE HOLDER EM2651UH (451081-1) 446 RON 183 0 1 LEVIER OPRIRE/PORNIRE EM4350UH (451500-7) 670 RON 184 0 1 LEAF SPRING EM2651UH (232251-9) 446 RON 185-1 1 1 ACOPERITOARE INTRERUPATOR (455723-9) 558 RON 185 0 1 CAPAC EM4350UH (451253-8) 670 RON 186 0 1 LEAD UNIT (632A58-3) 894 RON 187-1 1 1 CARCASA MANETA SET (183A10-9) 3914 RON 187 0 1 LEVER CASE SET EM2651UH (188656-0) 3914 RON 188 0 3 SURUB AUTOFILETANT 4X18 (266326-2) 024 RON 189 0 1 LEAD UNIT (632A59-1) 894 RON 200 0 2 HEX. SOCKET BOLT M5x14 EM2651UH (922218-2) 558 RON 201 0 1 126310-8 - Indisponibil 201-1 1 1 ANS. CARCASA ANGRENAJ EBH341U cod vechi 126310-8 (123835-3) 27961 RON 202 0 1 O RING 32 (213459-4) 558 RON 203-1 1 1 CUTTER SHAFT SET EBH341U cod vechi 187644-4 (183K07-8) 7269 RON 203 0 1 187644-4 - Indisponibil 204-1 1 1 210161-0 - Indisponibil 204 0 1 RULMENT 6000 (211064-1) 2347 RON 205-1 1 1 210160-2 - Indisponibil 205 0 1 RULMENT 6000ZZ (211062-5) 2012 RON 206-1 1 1 257408-1 - Indisponibil 206 0 1 SAIBA DE SIGURANTA S-10 (961006-2) 558 RON 207-1 1 1 INEL DE SIGURANTA INT. DB260U cod vechi 0031426000 (257988-7) 558 RON 207 0 1 SAIBA DE SIGURANTA R-26 (962105-3) 446 RON 208 0 1 SURUB INBUS M6X30 (922353-6) 178 RON 209 0 1 Hex Bolt M8x10 with R EM2651UH (265590-2) 558 RON 210-1 1 1 210159-7 - Indisponibil 210 0 1 RULMENT 629ZZ EBH341U (210081-8) 1565 RON 211 0 1 RULMENT 6201LLU EBH341U (210116-5) 2012 RON 212-1 1 1 257409-9 - Indisponibil 212 0 1 SAIBA DE SIGURANTA R-32 (962151-6) 334 RON 213-1 1 1 326823-1 - Indisponibil 213 0 1 RECEIVE WASHER EBH341U cod vechi 331860-2 RECEIVE SAIBA (332114-0) 297 RON 214 0 1 SAIBA EM4350UH (346355-2) 573 RON 215 0 1 LIMITATOR EBH252U (168526-9) 2124 RON 216 0 1 PIULITA HEXAGONALA EBH (264025-0) 1788 RON 218 0 1 804K21-8 - Indisponibil 219 0 1 O RING (WJ00016104) 894 RON 220 0 1 JET #50 RBC420E (5416046010) 297 RON 221 0 1 SURUB INBUS M6X30 (922353-6) 178 RON
