Top » Piese de schimb » PIESE MAKITA » Masini pentru gradina » RBC3110

RBC3110
[RBC3110]
RBC3110
Click pentru a mari
Imagini suplimentare
RBC3110
Click pentru a mari
RBC3110
Click pentru a mari
RBC3110
Click pentru a mari
RBC3110
Click pentru a mari

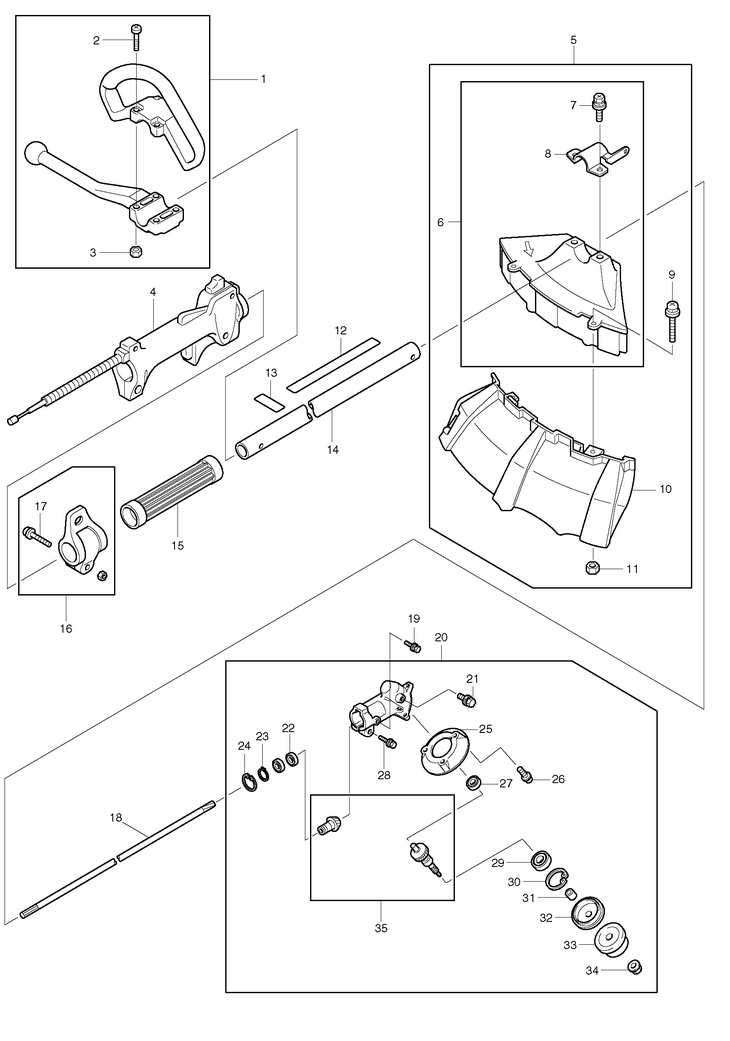

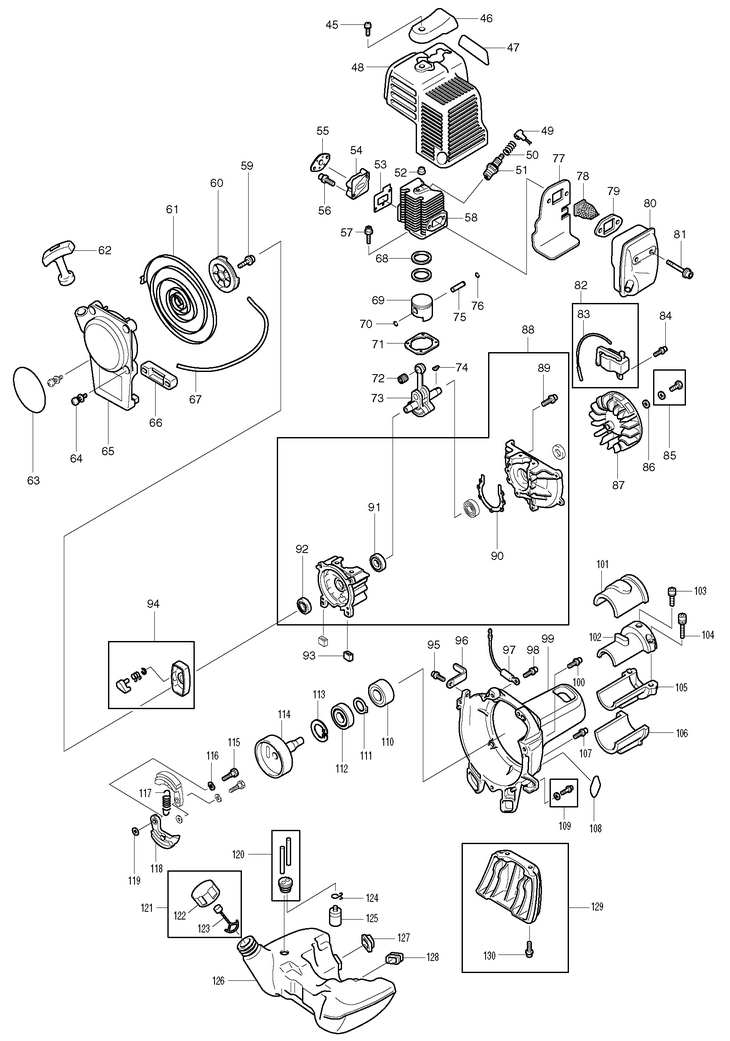

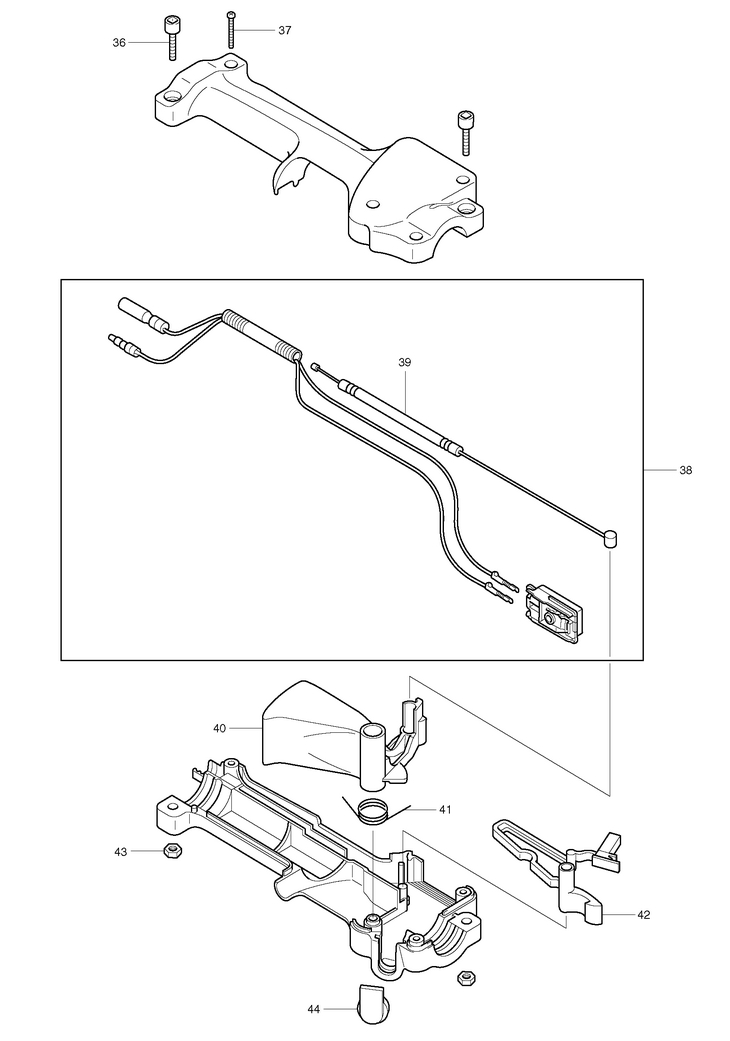

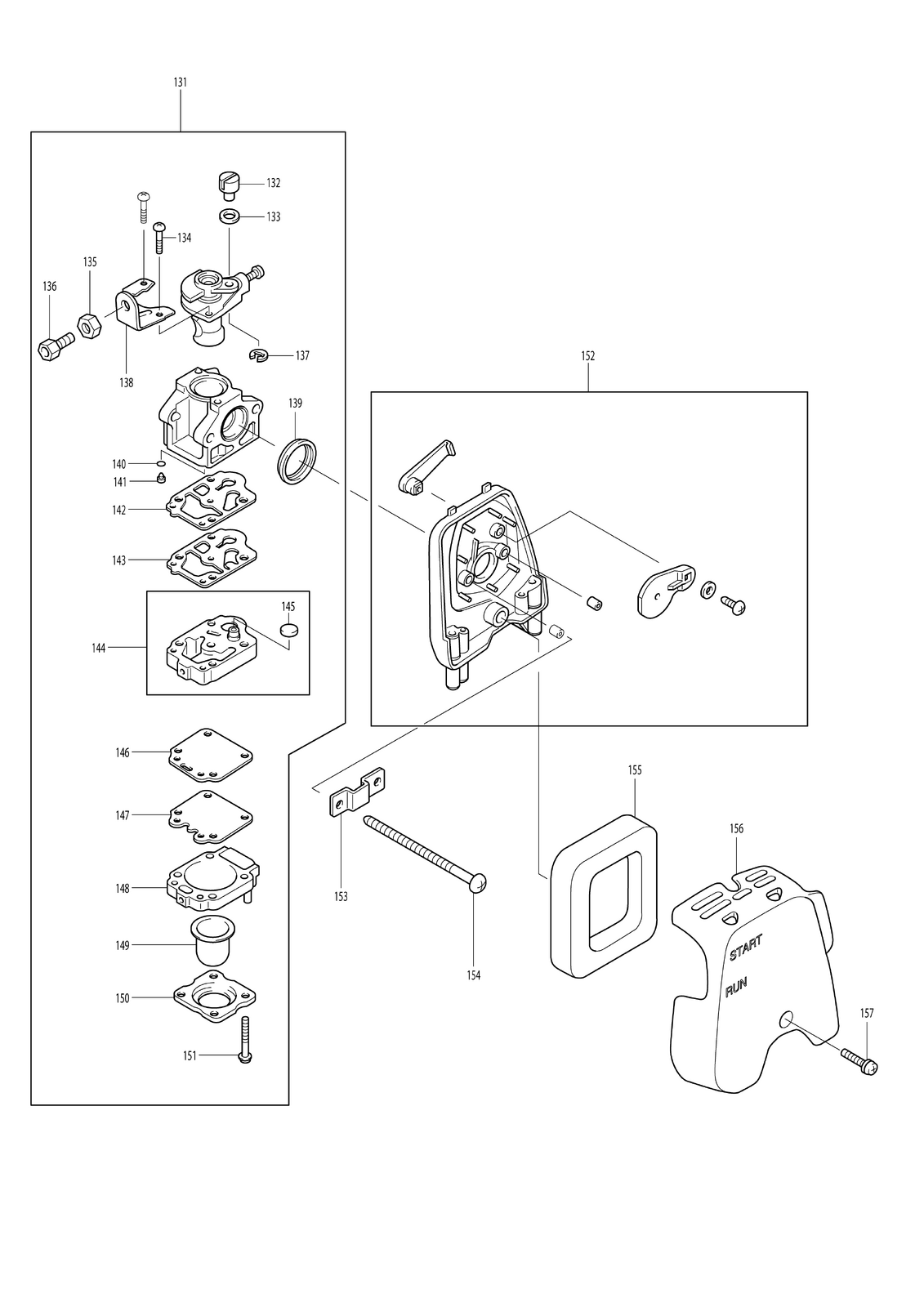

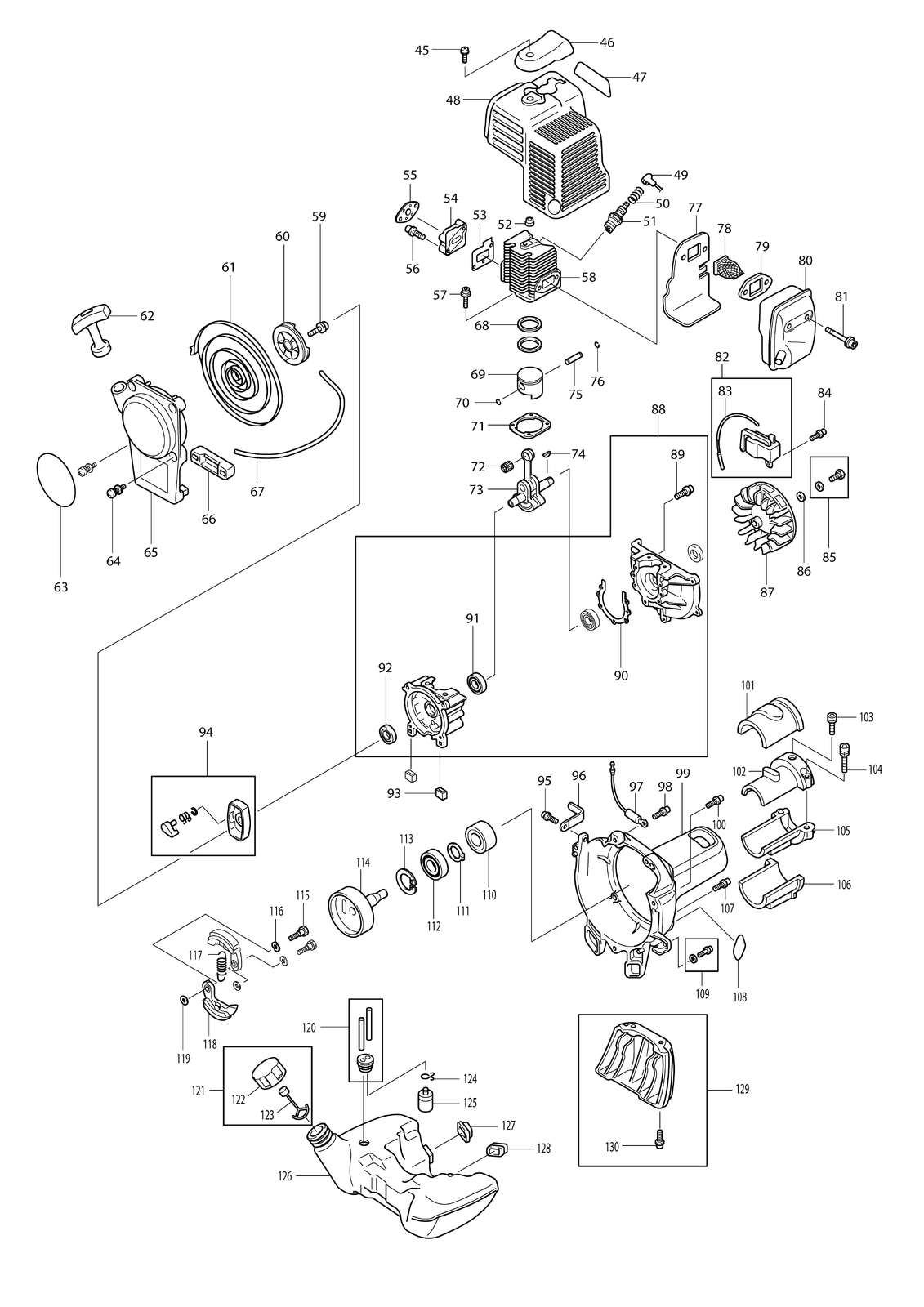

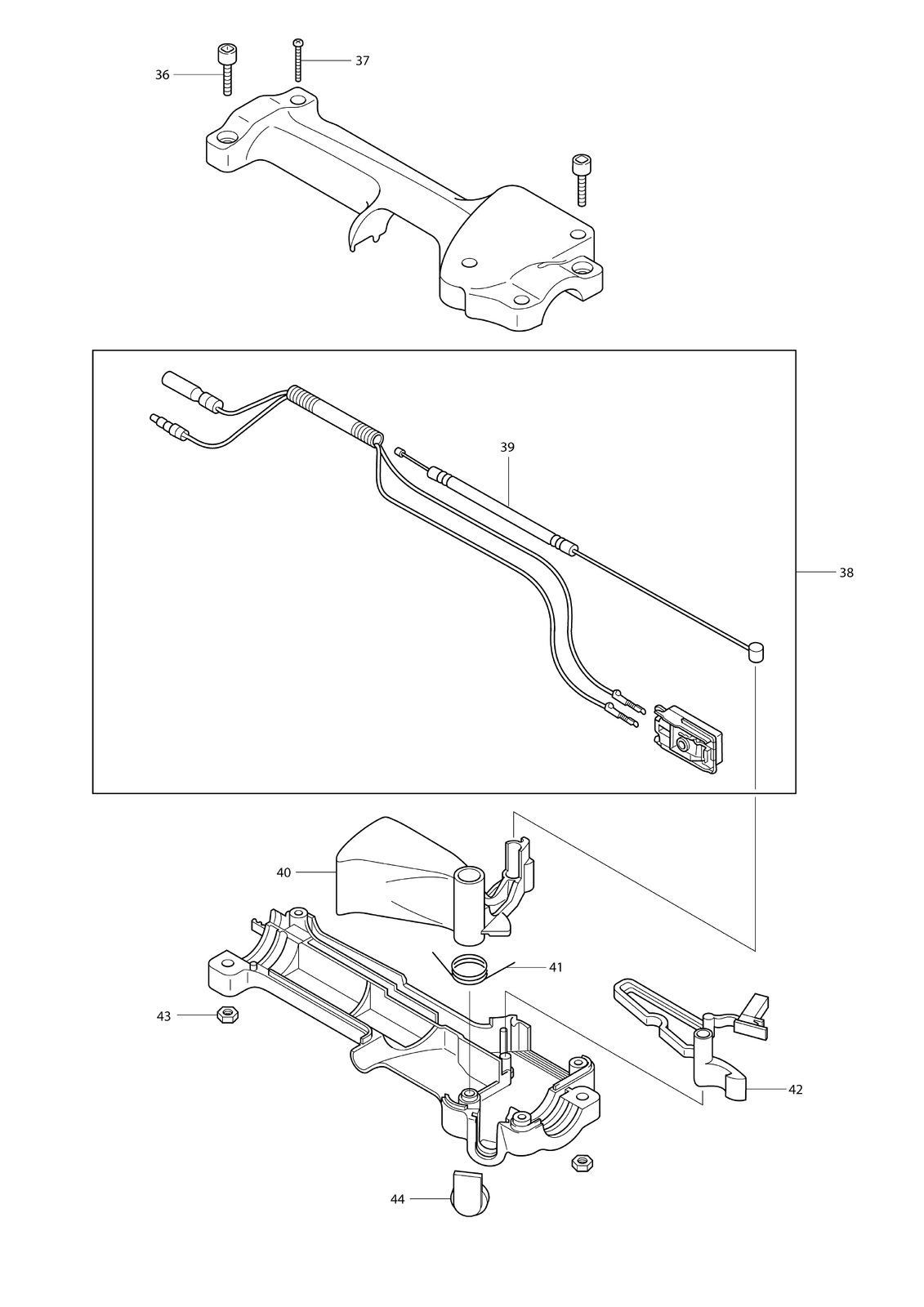

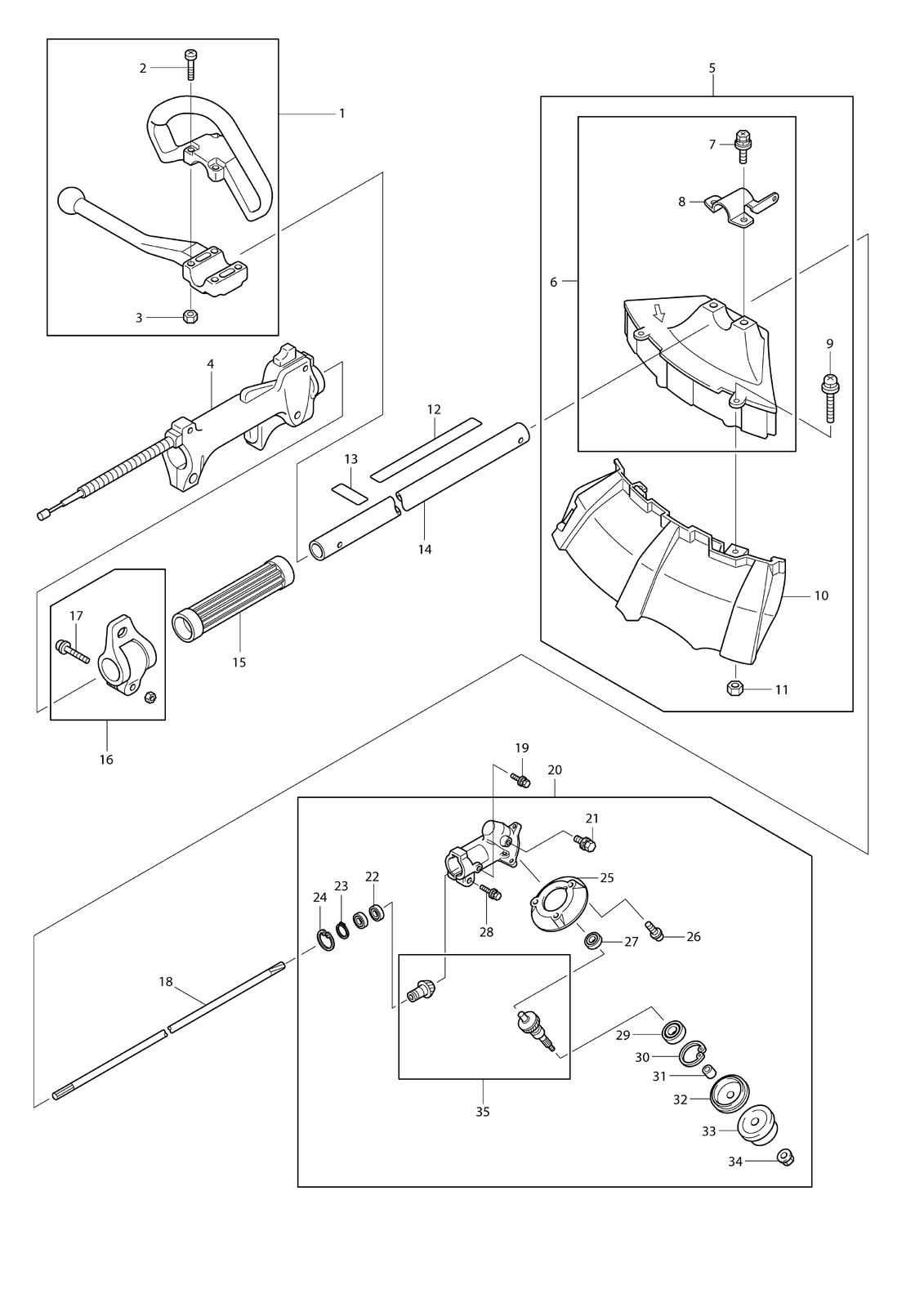

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 6274011000 - Indisponibil
2 1 4 6214016030 - Indisponibil
2 2 4 266845-8 - Indisponibil
3 1 4 0022705000 - Indisponibil
3 2 4 264093-3 - Indisponibil
4 1 1 6275010000 - Indisponibil
5 1 1 6278011001 - Indisponibil
5 2 1 PROTECTOR ASSY RBC3101 (6278011002) 24158 RON
6 1 1 6278012001 - Indisponibil
6 2 1 Protector Ass'y RBC3101 (6278012002) 12079 RON
7 1 2 SURUB M6x30 DBC260U (0100069790) 446 RON
7 2 2 SURUB RBC420E RBC3101 (0100069770) 1453 RON
7 3 2 SURUB (266617-1) 334 RON
8 1 1 Protector Clamp RBC3101 (6278501000) 2012 RON
9 1 2 SURUB ASSEMBLY RBC3101 RBC2500 (0140059380) 558 RON
10 1 1 CAPAC PROTECTIE DBC260U cod vechi 6258053001 CAPAC PROTECTIE EM2600U (DA00000526) 9617 RON
10 2 1 140424-9 - Indisponibil
11 1 2 0021805000 - Indisponibil
11 2 2 264035-7 - Indisponibil
12 1 1 6279518400 - Indisponibil
13 1 1 ETICHETA ATENTIONARE DBC260U (6259514700) 446 RON
13 2 1 AUOCOLANT ATENTIONARE I DBC260U cod vechi 6259514700 (808723-2) 334 RON
13 3 2 AUOCOLANT ATENTIONARE I DBC260U cod vechi 6259514700 (808723-2) 334 RON
14 1 1 SHAFT PIPE COMPLETE RBC3101 (6271019000) 55028 RON
15 1 1 6271501501 - Indisponibil
15 2 1 450659-7 - Indisponibil
16 1 1 HANGER ASS'Y RBC3101 (6277002000) 3242 RON
17 1 1 ANS. SURUB DBC260U (0140059360) 446 RON
17 2 1 ANS. SURUB DBC260U cod vechi 0140059360 (266788-4) 558 RON
18 1 1 AX TRANSMISIE RBC3101 (6271500802) 8388 RON
19 1 1 0130069910 - Indisponibil
20 1 1 ANS. CARCASA ANGRENAJ RBC3101 (6273001008) 51226 RON
21 1 1 OIL BOLT MS3202 (6413500600) 1453 RON
21 2 1 OIL BOLT RBC3101 (266671-5) 1229 RON
22 1 2 RULMENT 609ZZ (6212500300) 4137 RON
22 2 2 RULMENT 609ZZ EBH252U RULMENT #609ZZ EM2500U (DA00000152) 9394 RON
23 1 1 OUTER SNAP RING RBC3101 (6253502600) 893 RON
24 1 1 INEL DE SIGURANTA INT. DB260U (0031424000) 558 RON
24 2 1 INEL DE SIGURANTA INT. DB260U cod vechi 0031424000 (257987-9) 781 RON
25 1 1 Guard RBC3101 (6418500200) 2012 RON
25 2 1 Guard RBC3101 (412099-7) 1453 RON
26 1 3 ANS SURUB DBC260U (0140059390) 558 RON
26 2 3 ANS SURUB DBC260U cod vechi 0140059390 (265195-8) 781 RON
27 1 1 Rulment 627ZZ RBC3101 (0600079990) 2795 RON
27 2 1 Rulment 627ZZ RBC3101 (210127-0) 2460 RON
28 1 1 0130069920 - Indisponibil
29 1 1 Rulment 3200DDU RBC3101 (0600109970) 4025 RON
30 1 1 SIGURANTA INEL RBC3101 (0031430000) 670 RON
31 1 1 Spacer RBC3101 (6253501300) 297 RON
32 1 1 RECEIVE WASHER RBC3101 (6258503600) 7381 RON
33 1 1 CLAMP WASHER RBC3101 (6258500001) 4137 RON
34 1 1 PIULITA DBC260U cod vechi 6258505001 PIULITA EM2600U (DA00000172) 3130 RON
34 2 1 PIULITA DBC260U (264018-7) 558 RON
35 1 1 SET PINIOANE CAP TAIERE RBC3101 (6273013000) 25612 RON
36 1 2 0119059720 - Indisponibil
36 2 2 HEX. SOCKET HEAD BOLT M5X20 EM4350UH (266698-5) 446 RON
37 1 4 TAPPING SCREW M4x20 RBC2500 (6195006060) 105 RON
37 2 4 SURUB AUTOFILETANT M4x20 RBC2500 (266584-0) 670 RON
38 1 1 6215027011 - Indisponibil
39 1 1 6215027021 - Indisponibil
40 1 1 6195006030 - Indisponibil
40 2 1 451933-6 - Indisponibil
41 1 1 ARC DBC260U (6195006050) 894 RON
41 2 1 ARC DBC260U cod vechi 6195006050 (233568-3) 105 RON
42 1 1 PARGHIE DBC260U (6195013010) 190 RON
42 2 1 PARGHIE DBC260U cod vechi 6195013010 (452278-5) 2236 RON
43 1 2 6415011160 - Indisponibil
43 2 2 HEX. NUT M5 (931203-4) 558 RON
44 1 1 CAPAC DBC260U (6195006150) 670 RON
44 2 1 CAPAC DBC260U cod vechi 6195006150 (451936-0) 893 RON
45 1 1 SURUB RBC3101 (0140059490) Indisponibil Indisponibil
46 1 1 Plug Cover RBC3101 (5317501200) 1453 RON
47 1 1 TRADE MARK LABEL Makita RBC2500 (6279505700) 2124 RON
48 1 1 Cylinder Cover RBC3101 (5315505400) 8723 RON
49 1 1 Plug Cap RBC3101 (5317010030) 1117 RON
49 2 1 Plug Cap RBC3101 (5317010030) 1117 RON
50 1 1 ARC FIXARE CABLU BUJIE (0654009931) 670 RON
50 2 1 ARC FIXARE CABLU BUJIE cod vechi 0654009931 PLUG CAP SPRING EM2651UH (324891-8) 446 RON
50 3 1 5317015040 - Indisponibil
51 1 1 BUJIE RBC3101 (0650149721) 9953 RON
51 2 1 BUJIE RBC3101 cod vechi 0650149721 (168662-1) 10848 RON
52 1 1 SPACER HTR5600 (5503503001) 670 RON
53 1 1 INSULATOR GASKET RBC3101 (5313502300) 105 RON
54 1 1 INSULATOR COMPLETE RBC3101 (5313021002) 297 RON
55 1 1 SPACER GASKET HTR4500 (5103502801) 670 RON
55 2 1 Spacer Gasket RBC3101 cod vechi 5103502801 (442177-9) Indisponibil Indisponibil
56 1 2 0119059631 - Indisponibil
56 2 2 SOCKET HAEAD BOLT M5X22 RBC3101 (266590-5) 782 RON
56 3 2 266903-0 - Indisponibil
57 1 4 SURUB INBUS M5X18 RBC3101 RBC2500 (0119059950) 558 RON
57 2 4 266844-0 - Indisponibil
58 1 1 Cilindru RBC3101 (5311500201) 44850 RON
58 2 1 5311500202 - Indisponibil
58 3 1 319255-9 - Indisponibil
59 1 1 SURUB RBC (5425003010) 105 RON
59 2 1 SURUB cod vechi 367266580 (266580-8) 1229 RON
60 1 1 TAMBUR EPH1000 (5315022020) 3466 RON
60 2 1 ROLA cod vechi 367451923 (451923-9) 3019 RON
61 1 1 ARC SPIRAL EPH1000 (5025001020) 2571 RON
61 2 1 ARC SPIRAL cod vechi 367232257 (232257-7) 5480 RON
62 1 1 BUTON DE START EPH1000 (5215002110) 2012 RON
62 2 1 MANER DE START cod vechi 381500211 (424317-1) 296 RON
63 1 1 6279519200 - Indisponibil
64 1 4 0140059350 - Indisponibil
64 2 4 266699-3 - Indisponibil
65 1 1 STARTER CASE CP RBC3101 (5315021001) 16664 RON
66 1 1 DAMPER RBC3101 (5316503800) 2012 RON
67 1 1 SFOARA DE START EPH1000 (5315022040) 2795 RON
67 2 1 SFOARA DE START cod vechi 367444018 (444018-5) 3018 RON
68 1 2 Segment RBC3101 (5982500200) 2348 RON
69 1 1 PISTON RBC3101 (5312500601) 10289 RON
70 1 1 CLEMA FIXARE RST/RBC/RBL/EM/BHX (0565089970) 1117 RON
70 2 1 CLEMA FIXARE RST/RBC/RBL/EM/BHX cod vechi 0565089970 Clip EM2651UH (233976-8) 334 RON
71 1 1 Garnitura cilindru RBC3101 (5311500301) 2012 RON
72 1 1 NEEDLE ROLLER BEARING RBC3101 (0610089990) 3354 RON
73 1 1 CRANK SHAFT COMPLETE RBC3101 (5312012000) 133434 RON
74 1 1 PANA BHX2500 (0323039990) 670 RON
74 2 1 PANA BHX2500 cod vechi 0323039990 WOODRUFF KEY 3 EM2651UH (254040-2) 1229 RON
75 1 1 PISTON PIN RBC3101 (5312500400) 8275 RON
76 1 1 CLEMA FIXARE RST/RBC/RBL/EM/BHX (0565089970) 1117 RON
76 2 1 CLEMA FIXARE RST/RBC/RBL/EM/BHX cod vechi 0565089970 Clip EM2651UH (233976-8) 334 RON
77 1 1 MUFFLER GASKET RBC3101 (5313504101) 3690 RON
78 1 1 Spark Arrester RBC3101 (5243501400) 6039 RON
79 1 1 MUFFLER GASKET RBC3101 (5313500600) 1564 RON
80 1 1 EXHAUST MUFFLER RBC3101 (5313028000) 14427 RON
81 1 2 SURUB INBUS M5X55 RBC3101 (0119059670) 1229 RON
82 1 1 Bobina aprindere RBC3101 (5317015021) 23375 RON
82 2 1 5317015022 - Indisponibil
83 1 1 5317015030 - Indisponibil
83 2 1 5317015030 - Indisponibil
84 1 2 SURUB INBUS M4X20 RBC3101 EVH2000 SURUB M4X20 WG EBH252/253 MS245.4 BUR181 cod vechi 911139-3 SURUB M4X20 WG EBH252/253 MS245.4 BUR181 cod vechi 911139-3 (Duplicat_0119049970) 446 RON
85 1 1 ANS. BOLT cod vechi 381130616 (0011306160) 446 RON
86 1 1 0200069920 - Indisponibil
86 2 1 SAIBA M6 RBC420E RBC3101 (267427-9) 446 RON
87 1 1 FLYWHEEL RBC3101 (5317015010) 14763 RON
88 1 1 CRANKCASE CPL. RBC3101 (5311007000) 53686 RON
89 1 5 SURUB M5X25 RBC3101 (0140059790) 446 RON
89 2 5 266805-0 - Indisponibil
90 1 1 Garnitura cilindru RBC3101 (5311501200) 1229 RON
91 1 2 Rulment 6001C3 UR MS252U RBC3101 (0600129850) 297 RON
91 2 2 Rulment 6001C3 UR MS252U RBC3101 cod vechi 0600129850 (210113-1) 2683 RON
92 1 2 GARNITURA ULEI RBC3101 RBC2500 (0440129970) 1117 RON
92 2 2 OIL SEAL RBC3101 RBC2500 (213628-7) 1229 RON
93 1 2 DAMPER ETR2500 (5216500200) 446 RON
93 2 2 DAMPER RBC2500 cod vechi 5216500200 (424446-0) 558 RON
94 1 1 FULIE EPH1000 (5315023000) 5927 RON
94 2 1 165606-2 - Indisponibil
95 1 1 SURUB M5x12 (0140059370) 446 RON
95 2 1 SURUB M5x12 cod vechi 0140059370 (266808-4) 558 RON
96 1 1 0566059980 - Indisponibil
96 2 1 Clamp EBH252U (345963-6) 446 RON
97 1 1 Wire 1 RBC2500 (6165500201) 1564 RON
97 2 1 Wire 1 RBC2500 (638784-6) 105 RON
98 1 1 0119059870 - Indisponibil
98 2 1 H.S.H.BOLT M5X18 WITH WR EX2650LH (266787-6) 558 RON
99 1 1 CLUTCH CASE RBC3101 (6271502200) 37021 RON
100 1 1 0119059870 - Indisponibil
100 2 1 H.S.H.BOLT M5X18 WITH WR EX2650LH (266787-6) 558 RON
101 1 1 PIPE DAMPER 1 RBC3101 (6241501200) 2683 RON
102 1 1 PIPE BRACKET 1 RBC3101 (6271502000) 2460 RON
103 1 1 SURUB INBUS M5X12 DBC 260U SURUB INBUS cod vechi 367905990 (0119059900) 670 RON
104 1 2 SURUB INBUS M5X18 RBC3101 RBC2500 (0119059950) 558 RON
104 2 2 266844-0 - Indisponibil
105 1 1 PIPE BRACKET 2 RBC3101 (6271502100) 2571 RON
106 1 1 PIPE DAMPER 2 RBC3101 (6241501300) 2683 RON
107 1 1 0119059870 - Indisponibil
107 2 1 H.S.H.BOLT M5X18 WITH WR EX2650LH (266787-6) 558 RON
108 1 1 6279516201 - Indisponibil
109 1 1 SURUB M5x12 (0140059370) 446 RON
109 2 1 SURUB M5x12 cod vechi 0140059370 (266808-4) 558 RON
110 1 1 Spacer RBC3101 (6271502300) 2347 RON
111 1 1 INEL DE SIGURANTA EXT. DBC260U INEL DE SIGURANTA cod vechi 382151200 (0031512000) 558 RON
111 2 1 SAIBA DE SIGURANTA S-12 (961052-5) 558 RON
112 1 1 RULMENT RBC3101 (0600129810) 3578 RON
112 2 1 RULMENT EBH252U (210111-5) 2235 RON
113 1 1 INEL DE SIGURANTA cod vechi 382143200 (0031432000) 105 RON
113 2 1 SAIBA DE SIGURANTA R-32 (962151-6) 334 RON
114 1 1 CLUTCH DRUM COMPLETE RBC3101 (6272006000) 9170 RON
115 1 2 5318500503 - Indisponibil
115 2 2 CLUTCH BOLT cod vechi 367266571 (266571-9) 1453 RON
116 1 2 0204109990 - Indisponibil
116 2 2 0200109870 - Indisponibil
116 3 2 WAVE WASHER 10 EBH341U (267832-0) 446 RON
116 4 2 WAVE SAIBA 10 (267849-3) 446 RON
117 1 1 ARC AMBREIAJ RBC3101 (5318004010) 2012 RON
117 2 1 AN02010000 - Indisponibil
118 1 2 GREUTATE AMBREIAJ RBC3101 (5318003010) 5367 RON
118 2 2 CLUTCH SHOE EBH341U PATINA AMBREIAJ cod vechi 367168563 (168563-3) 7157 RON
118 3 1 CLUTCH ASSEMBLY (125757-3) 5591 RON
119 1 2 0200089800 - Indisponibil
119 2 2 FLAT WASHER 8 EBH341U (267424-5) 782 RON
120 1 1 FURTUN RBC3101 (0851179940) 3914 RON
121 1 1 FUEL TANK CAP COMPL. RBC2500 (5256059000) 3466 RON
121 2 1 BUSON REZERVOR COMBUSTIBIL cod vechi 377605900 (168668-9) 4920 RON
122 1 1 FUEL TANK CAP ETR2500 (5256058000) 3466 RON
122 2 1 FUEL TANK CAP COMPLETE new RBC2500 cod vechi 5256058000 (452920-8) 3131 RON
123 1 1 STRAP RBC2500 (5256067000) 3242 RON
123 2 1 STRAP complete EBH252U (140436-2) 2795 RON
124 1 1 CLEMA FIXARE RBC220/EM4250 (0561059990) 781 RON
124 2 1 HOSE CLAMP EBH252U cod vechi 345920-4 CLEMA FIXARE RBC220/EM4250/EM2600U (DA00000120) 670 RON
125 1 1 FILTRU /BHX (5236503900) 2795 RON
125 2 1 FILTRU DE BENZINA DCS230T (163447-0) 1788 RON
126 1 1 FUEL TANK RBC3101 (5316503700) 10624 RON
127 1 1 PLACA EPH (5036500200) 1117 RON
127 2 1 PLACA cod vechi 381650020 PLATE EBH252U (424102-2) 670 RON
128 1 1 PLACA EPH (5036500300) 894 RON
128 2 1 PLATE EBH252U PLACA cod vechi 381650030 (424103-0) 1676 RON
129 1 1 Stand Set RBC3101 (5219002000) Indisponibil Indisponibil
129 2 1 Stand Set EBH252U (195144-0) 1788 RON
130 1 2 0140059480 - Indisponibil
130 2 2 SCREW ASS'Y M5X14 (266809-2) 446 RON
131 1 1 CARBURATOR cod vechi 381602100 CARBURETOR RBC3101 (5316021000) 44067 RON
132 1 1 PIVOT BHX (5236018040) 3242 RON
132 2 1 SWIVEL EM2651UH PIVOT cod vechi 367325922 (325922-6) 3689 RON
133 1 1 SAIBA BHX2500 (5426005030) 190 RON
133 2 1 SAIBA cod vechi 367600503 WASHER EM2651UH (413140-9) 1676 RON
134 1 2 THROTTLE COLLAR SCREW RBC2500 (5246001240) 1676 RON
134 2 2 THROTTLE COLLAR SCREW RBC2500 (266704-6) 105 RON
135 1 1 ADJUST NUT RBC2500 (5316005450) 1229 RON
135 2 1 ADJUST NUT RBC2500 (264065-8) 894 RON
136 1 1 CABLE ADJUST SCREW RBC2500 (5316020020) 2795 RON
136 2 1 CABLE ADJUST SCREW RBC2500 (326084-3) 2795 RON
137 1 1 INEL /BHX (5316005120) 2124 RON
137 2 1 STOP RING E-3 EM2651UH SAIBA DE SIGURANTA cod vechi 367257964 (257964-1) 894 RON
138 1 1 BRACKET CABLE RBC2500 (5236052020) 5031 RON
138 2 1 BRACKET CABLE RBC2500 (346491-4) 488 RON
139 1 1 RING PACKING RBC2500 (5236018020) 2459 RON
139 2 1 SET INELE RBC2500 (424444-4) 1677 RON
140 1 1 O RING (5246001010) 2235 RON
140 2 1 O RING 2 EM2651UH ORING cod vechi 367213538 (213538-8) 1788 RON
141 1 1 JET RBC3101 (5036002010) 297 RON
142 1 1 GARNITURA MEMBRANA POMPA RBC420E (5246001030) 2683 RON
142 2 1 GARNITURA cod vechi 381600103 (442172-9) 3130 RON
143 1 1 MEMBRANA POMPA EBH252U cod vechi 168575-6 MEMBRANA BHX2500 PUMP DIAPHRAGM (WJ00009599) Indisponibil Indisponibil
143 2 1 MEMBRANA POMPA EBH252U cod vechi 168575-6 MEMBRANA BHX2500 PUMP DIAPHRAGM (WJ00009599) Indisponibil Indisponibil
144 1 1 CORP POMPA CARBURATOR MS252U RBC420E (5236046130) 25053 RON
144 2 1 CORP POMPA CARBURATOR MS252U RBC420E cod vechi 5236046130 (140989-1) 28744 RON
145 1 1 VIZOR INTERIOR BHX (5016004010) 2012 RON
145 2 1 SITA CARBURATOR EBH252U FILTRU cod vechi 367352010 (352010-6) Indisponibil Indisponibil
146 1 1 MEMBRANA /BHX2500 (5236046040) 3018 RON
146 2 1 GARNITURA cod vechi 367442154 GARNITURA MEMBRANA NIVEL EBH252U (442154-1) Indisponibil Indisponibil
147 1 1 MEMBRANE CARBURATOR DBC260U cod vechi 168767-7 MEMBRANE CARBURATOR DBC260U (5316005250) 9953 RON
147 2 1 MEMBRANE CARBURATOR DBC260U cod vechi 168767-7 MEMBRANE CARBURATOR DBC260U (5316005250) 9953 RON
148 1 1 SUPORT FILTRU DE AER DBC260U (5236046060) 6822 RON
148 2 1 SUPORT FILTRU DE AER DBC260U cod vechi 5236046060 (140988-3) 6039 RON
149 1 1 BALON POMPA AMORSARE /BHX2500 (5246001150) 2571 RON
149 2 1 BALON POMPA AMORSARE cod vechi 381600115,424314-7 (DA00001149) 2348 RON
150 1 1 CAPAC POMPA AMORSARE BHX2500 (5236046050) 3019 RON
150 2 1 PRIMER PUMP COVER EM2651UH POMPA DE AMORSARE cod vechi 374604605 (346270-0) 1788 RON
151 1 4 SURUB CAPAC POMPA BHX2500 (5236046010) 1453 RON
151 2 4 TAPPING SCREW 3X24 EM2651UH SURUB cod vechi 367266582 (266582-4) 1453 RON
152 1 1 Air Cleaner Plate Ass'y RBC3101 (5253022000) 3242 RON
152 2 1 5253022001 - Indisponibil
153 1 1 Air Cleaner Plate Ass'y RBC2500 (5013502400) 1788 RON
153 2 1 346489-1 - Indisponibil
154 1 2 SURUB M5X55 RBC3101 (0043105550) 446 RON
155 1 1 FILTRU AER RBC3101 cod vechi 5233504700 FILTRU AER RBC3101 cod vechi 5233504700 (443167-5) 1117 RON
155 2 1 FILTRU AER RBC3101 cod vechi 5233504700 FILTRU AER RBC3101 cod vechi 5233504700 (443167-5) 1117 RON
156 1 1 Air Cleaner Case RBC3101 RBC3101 cod vechi 5253501300 AIR CLEANER CASE MS3202 453410-4 cod vechi 5253501300 (453410-4) 2235 RON
156 2 1 Air Cleaner Case RBC3101 RBC3101 cod vechi 5253501300 AIR CLEANER CASE MS3202 453410-4 cod vechi 5253501300 (453410-4) 2235 RON
156 3 1 Air Cleaner Case RBC3101 RBC3101 cod vechi 5253501300 AIR CLEANER CASE MS3202 453410-4 cod vechi 5253501300 (453410-4) 2235 RON
157 1 1 0140059480 - Indisponibil
157 2 1 SCREW ASS'Y M5X14 (266809-2) 446 RON
158 1 2 WASHER EM2651UH (413143-3) 334 RON

Conditii Generale
