Power Cutter MAKITA DPC6200
[DPC6200]
Power Cutter MAKITA DPC6200
Click pentru a mari
Imagini suplimentare
Power Cutter MAKITA DPC6200
Click pentru a mari
Power Cutter MAKITA DPC6200
Click pentru a mari
Power Cutter MAKITA DPC6200
Click pentru a mari
Power Cutter MAKITA DPC6200
Click pentru a mari
Power Cutter MAKITA DPC6200
Click pentru a mari
Power Cutter MAKITA DPC6200
Click pentru a mari
Power Cutter MAKITA DPC6200
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
C10 0 1 394342111 - Indisponibil
C20 0 1 INEL DE CAUCIUC (965404900) 381 RON
C21 0 1 INEL CAUCIUC EXTERIOR (424427-4) 1565 RON
C30 0 1 INEL DE CAUCIUC (965404920) 381 RON
C31 0 1 INEL CAUCIUC (424426-6) 1565 RON
B01 0 1 010114081 - Indisponibil
001 0 1 BUSON REZERVOR (010114091) 4249 RON
002 0 1 ORING 30X3 (963230031) 1229 RON
003 0 1 963601121 - Indisponibil
004 0 1 963601240 - Indisponibil
005 0 1 965404911 - Indisponibil
005-1 1 1 FURTUN COMBUSTIBIL EK8100WS (965404913) 1341 RON
005-2 2 1 FURTUN COMBUSTIBIL cod vechi 965404911 (424723-0) 3913 RON
006 0 1 SURUB 5,5X45 (913455454) 1229 RON
007 0 1 924405500 - Indisponibil
007-1 1 1 WASHER (900005078) 669 RON
007-2 2 1 SAIBA (346870-6) 138 RON
008 0 1 965403532 - Indisponibil
009 0 1 AX PT AMORTIZOR (394114031) 1341 RON
009-1 1 1 AX PT AMORTIZOR cod vechi 394114031 AX PT. AMORTIZOR (394114281) 1788 RON
010 0 1 394114630 - Indisponibil
010-1 1 1 ANS REZERVOR (394114605) 74154 RON
011 0 1 TAMPON DE CAUCIUC (394114070) 381 RON
011-1 1 1 424692-5 - Indisponibil
012 0 1 VALVA (010175050) 381 RON
013 0 4 SURUB (394114100) 1453 RON
013-1 1 4 252897-5 - Indisponibil
014 0 1 BLOCATOR DE SOC (957117030) 3354 RON
015 0 1 MECANISM PORNIRE (957117020) 1147 RON
016 0 1 394117011 - Indisponibil
017 0 1 POT (394114050) 4361 RON
017-1 1 1 POT cod vechi 394114050 POT (394114051) 4025 RON
018 0 1 965403532 - Indisponibil
019 0 1 AX PT AMORTIZOR (394114031) 1341 RON
019-1 1 1 AX PT AMORTIZOR cod vechi 394114031 AX PT. AMORTIZOR (394114281) 1788 RON
020 0 1 SURUB (908305405) Indisponibil Indisponibil
020-1 1 1 SURUB TORX M5X40 (266943-8) 437 RON
021 0 1 BRAT SUPORT (394114640) 8947 RON
022 0 2 SURUB 5,5X20 (913455204) 105 RON
022-1 1 2 SURUB 5,5X20 (913455204) 105 RON
022-2 2 2 SURUB (266475-5) 334 RON
023 0 1 SURUB 5,5X45 (913455454) 1229 RON
024 0 1 924405500 - Indisponibil
024-1 1 1 WASHER (900005078) 669 RON
024-2 2 1 SAIBA (346870-6) 138 RON
025 0 1 965403532 - Indisponibil
026 0 1 AX PT AMORTIZOR (394114031) 1341 RON
026-1 1 1 AX PT AMORTIZOR cod vechi 394114031 AX PT. AMORTIZOR (394114281) 1788 RON
027 0 1 SURUB 5,5X45 (913455454) 1229 RON
028 0 1 965403532 - Indisponibil
029 0 1 MANSON PT. MANER (394310100) 31764 RON
029-1 1 1 MANER TUBULAR EK8100WS (394310101) 46081 RON
029-2 2 1 143097-7 - Indisponibil
030 0 1 010114081 - Indisponibil
032 0 1 SURUB 5,5X45 (913455454) 1229 RON
033 0 1 394114060 - Indisponibil

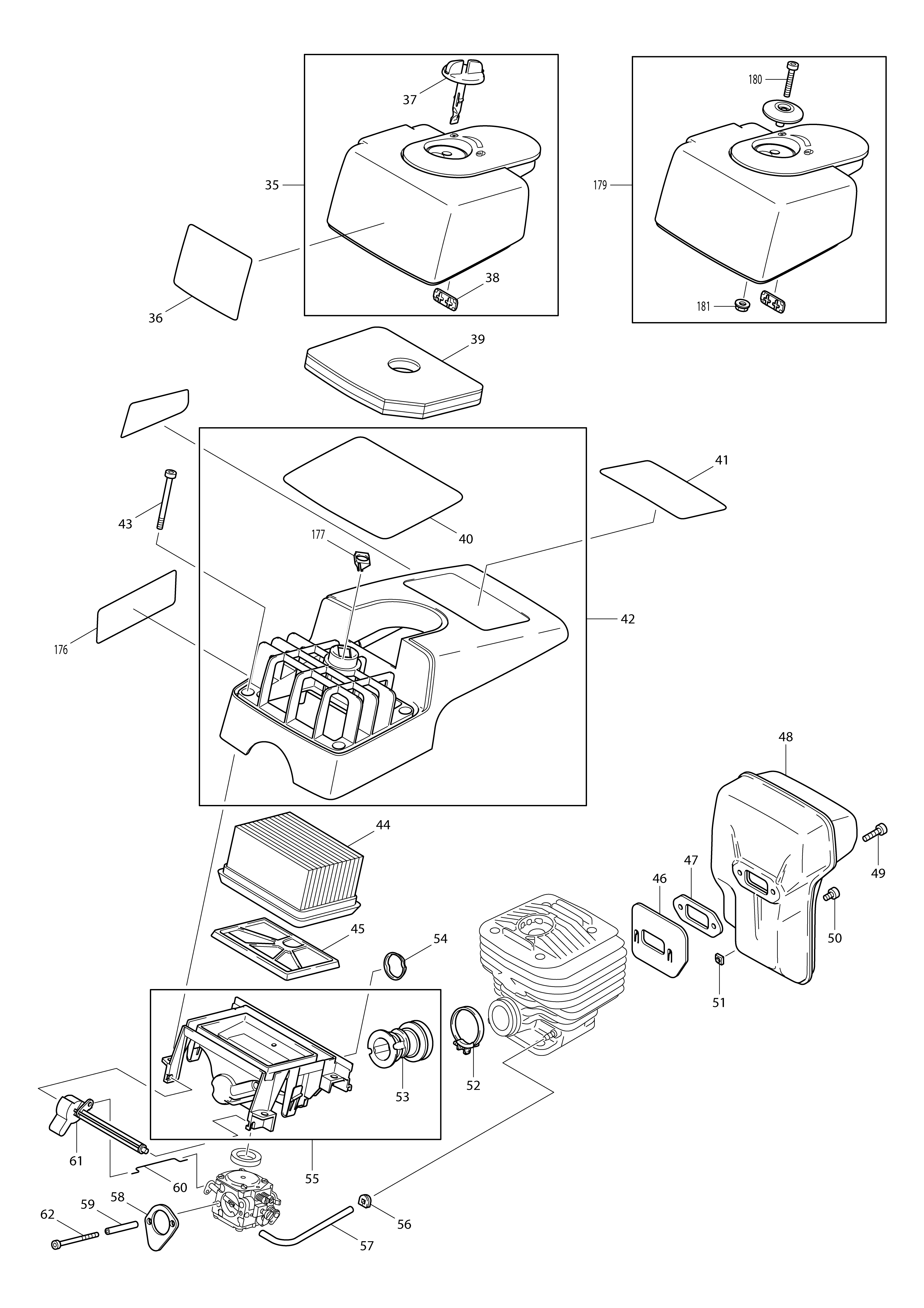

035 0 1 CAPOTA DPC 6400 (394118070) 20915 RON
036 0 1 980114611 - Indisponibil
037 0 1 MANER (394118010) 2235 RON
038 0 1 SEPARATOR (394118060) 1117 RON
039 0 1 PREFILTRU (394173030) 3131 RON
040 0 1 GARNITURA (394118020) 1676 RON
041 0 1 LABEL (980114574) 2347 RON
042 0 1 394118041 - Indisponibil
043 0 4 SURUB 5X55 (908505555) 894 RON
043-1 1 4 SURUB 5X55 cod vechi 908505555 (266480-2) 558 RON
044 0 1 FILTRU DE AER (394173010) Indisponibil Indisponibil
045 0 1 FILTRU INTERIOR (394173020) Indisponibil Indisponibil
046 0 1 394174050 - Indisponibil
046-1 1 1 394174110 - Indisponibil
046-2 2 1 CAPAC cod vechi 394174050 COVER PLATE (395174110) 446 RON
046-3 3 1 PLACA DE RACIRE DPC7301/EK8100 (346868-3) 393 RON
047 0 1 965531130 - Indisponibil
047-1 1 1 GARNITURA (965531131) 2347 RON
047-2 2 1 GARNITURA EK8100WS (395174120) 1341 RON
047-3 3 1 MUFFLER GASKET (346876-4) 295 RON
048 0 1 394174010 - Indisponibil
048-1 1 1 MUFFLER (394174401) 53686 RON
048-2 2 1 161339-7 - Indisponibil
049 0 2 SURUB M5X20 (908405205) Indisponibil Indisponibil
049-1 1 2 SURUB TORX M5X20 (266960-8) 175 RON
050 0 1 SURUB M5X9 (908005095) 893 RON
050-1 1 1 SURUB M5X9 (266474-7) 118 RON
051 0 1 PIULITA PATRATA (921905004) 781 RON
052 0 1 CLEMA PT. FURTUN (965603050) 3018 RON
053 0 1 394131100 - Indisponibil
053-1 1 1 RACORD CARBURATOR DPC (394131210) 13420 RON
054 0 1 INSERTIE PT. FURTUN COMBUSTIBIL (024131031) 3354 RON
054-1 1 1 INSERTIE PT. FURTUN COMBUSTIBIL cod vechi 024131031 INSERT FOR SUCTION HOSE (024131032) 5143 RON
054-2 2 1 MUFA FURTUN ASPIRARE (346867-5) 190 RON
055 0 1 394171050 - Indisponibil
055-1 1 1 MANSON CUPLARE cod vechi 394171051 MANSON CUPLARE (394171052) 11183 RON
056 0 1 BUCSA DE CAUCIUC (965401016) 1453 RON
056-1 1 1 BUCSA DE CAUCIUC (SOC) DBC400/4510/EK810 (424696-7) 315 RON
057 0 1 965452380 - Indisponibil
057-1 1 1 TUB (M) 5,5X3 (965452382) 5031 RON
058 0 1 GARNITURA CARBURATOR (965518120) 1453 RON
058-1 1 1 346874-8 - Indisponibil
059 0 1 INSULATING HOSE (970502050) 105 RON
059-1 1 1 970502052 - Indisponibil
060 0 1 PARGHIE DE SOC (394150042) 1453 RON
060-1 1 1 PARGHIE CLAPETA DE SOC EK8100WS (326496-0) 219 RON
061 0 1 PARGHIE SOC (394150030) 3354 RON
062 0 4 SURUB 4X55 (908204555) 1229 RON
062-1 1 4 266944-6 - Indisponibil

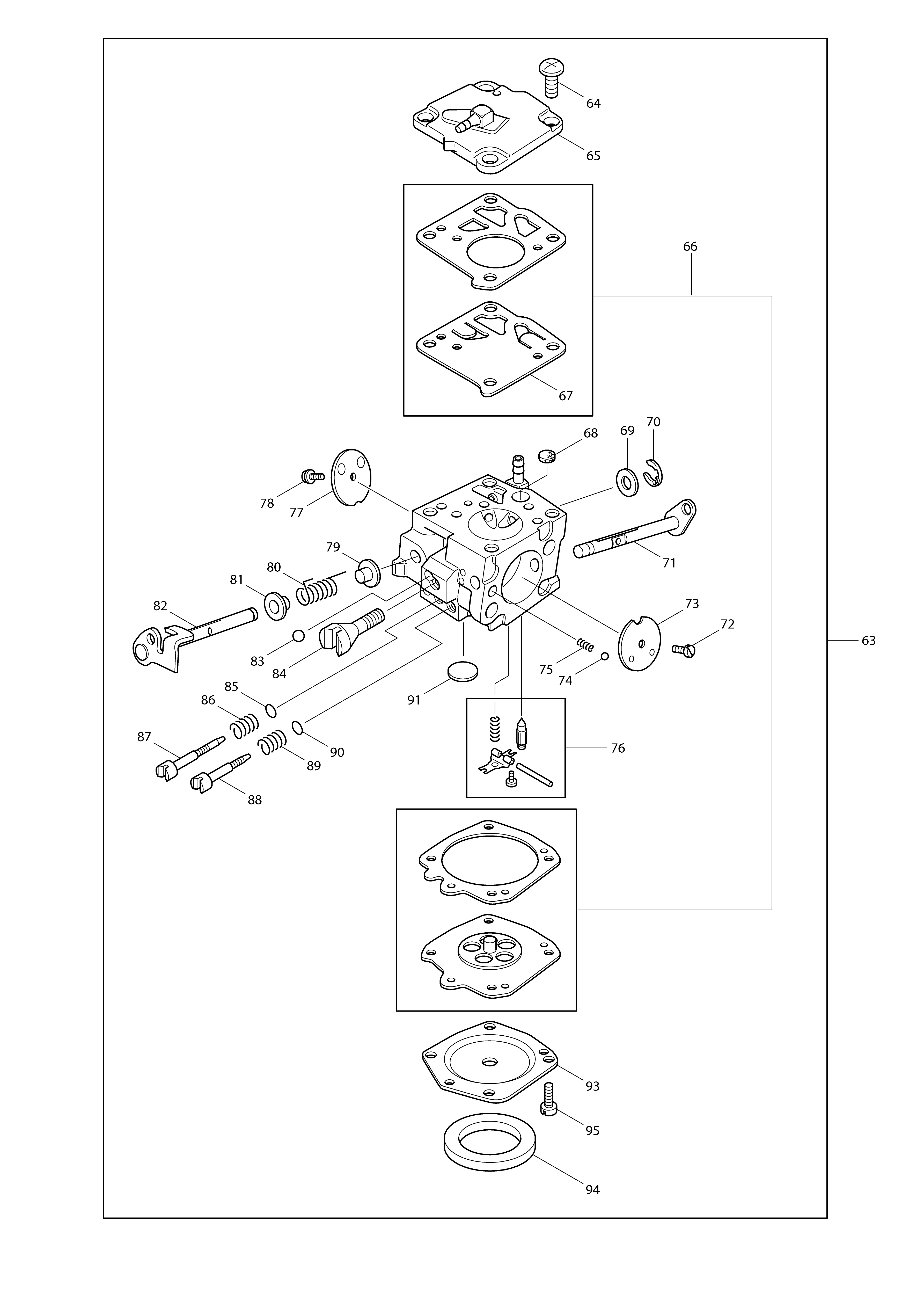

063 0 1 CARBURATOR ANS. (394150050) 58496 RON
063-1 1 1 ANS. CARBURATOR (394151051) 62634 RON
063-2 2 1 CARBURATOR ANS. cod vechi 394150050 (394151052) 87799 RON
063-3 3 1 CARBURATOR ANS. cod vechi 394150050 (394151052) 87799 RON
064 0 4 394150170 - Indisponibil
064-1 1 4 144150170 - Indisponibil
065 0 1 394150160 - Indisponibil
065-1 1 1 PUMP COVER CPL. (394151160) 9282 RON
066 0 1 SET GARNITURI (957150100) 12973 RON
066-1 1 1 SET GARNITURI/MEMBRANE (957151180) 14762 RON
067 0 1 MEMBRANA CAUCIUC (113150150) 3577 RON
067-1 1 1 MEMBRANA DE CAUCIUC (394151150) 297 RON
068 0 1 VIZOR (394150180) 296 RON
068-1 1 1 VIZOR (021151180) 1117 RON
069 0 1 122151400 - Indisponibil
069-1 1 1 DISC (394151400) 1564 RON
070 0 1 SAIBA ONDULATA (100150350) 3018 RON
070-1 1 1 SHAFT CLIP DBC3310 (108151350) 2459 RON
071 0 1 394150250 - Indisponibil
071-1 1 1 PARGHIE DE SOC (394151250) 9953 RON
072 0 1 001150650 - Indisponibil
072-1 1 1 SURUB (394151660) 2459 RON
073 0 1 113150261 - Indisponibil
073-1 1 1 395151260 - Indisponibil
074 0 1 113150380 - Indisponibil
074-1 1 1 BILA OL (118151170) 1788 RON
075 0 1 101150080 - Indisponibil
075-1 1 1 ARC DE TORSIUNE (118151160) 2459 RON
076 0 1 DISPOZITIV DE VERIFICARE (957150160) 11743 RON
076-1 1 1 KIT REPARATIE CARURATOR EK8100WS (957151191) 3690 RON
077 0 1 144151320 - Indisponibil
077-1 1 1 THROTTLE SHUTTER (394151320) 2012 RON
078 0 1 001150650 - Indisponibil
078-1 1 1 SURUB (394151650) 2459 RON
079 0 1 144151315 - Indisponibil
079-1 1 1 BUSHING (394151315) 2124 RON
080 0 1 394150310 - Indisponibil
080-1 1 1 ARC (394151310) 3689 RON
081 0 1 144151315 - Indisponibil
081-1 1 1 BUSHING (394151315) 2124 RON
082 0 1 394150300 - Indisponibil
082-1 1 1 THROTTLE SHAFT (394151300) 1338 RON
083 0 1 BILA KL40 (001150510) 2235 RON
083-1 1 1 LOCKING BALL (394151510) 2683 RON
084 0 1 SURUB CLAPETA (394150570) 2683 RON
084-1 1 1 IDLE STOP SCREW (394151570) 3130 RON
085 0 1 ORING (394150500) 2571 RON
086 0 1 ARC (L) (144151480) 190 RON
086-1 1 1 ARC (021151480) 2235 RON
087 0 1 JICLOR RELANTI (L) (394150470) 8835 RON
087-1 1 1 IDLE ADJUSTMENT SCREW (394151470) 11072 RON
088 0 1 JICLOR PRINCIPAL (H) (394150510) 8835 RON
088-1 1 1 MAIN ADJUSTMENT SCREW (001151450) 11519 RON
089 0 1 ARC (L) (144151480) 190 RON
089-1 1 1 ARC (021151480) 2235 RON
090 0 1 ORING (394150500) 2571 RON
091 0 1 SAIBA DE FIXARE (113150040) 1453 RON
091-1 1 1 COVER DISC (394151040) 2459 RON
093 0 1 CAPAC MEMBRANA (394150120) 3130 RON
093-1 1 1 DIAPHRAGM COVER (394151120) 3689 RON
094 0 1 GARNITURA (965402970) 1229 RON
094-1 1 1 GARNITURA (965402970) 1229 RON
095 0 4 001150520 - Indisponibil
095-1 1 5 SURUB cod vechi 118151020 SURUB (378151220) 105 RON

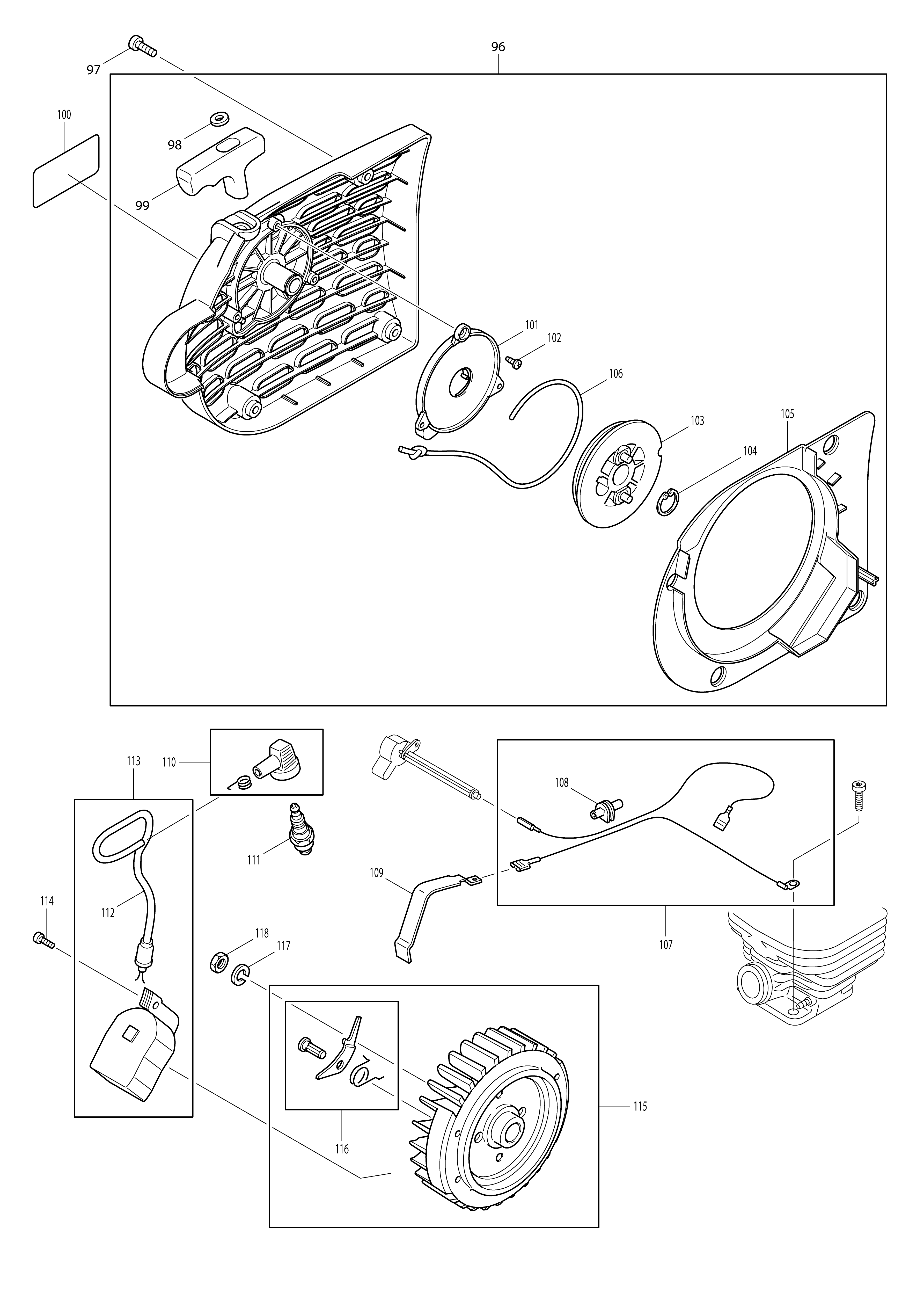

096 0 1 394112641 - Indisponibil
096-1 1 1 394112060 - Indisponibil
097 0 4 SURUB M5X16 (908005165) 105 RON
097-1 1 4 SURUB M5X16 EA3201S (266605-8) 558 RON
098 0 1 928405000 - Indisponibil
098-1 1 1 928405000 - Indisponibil
098-2 2 1 SAIBA ELASTICA cod vechi 928405000 (267821-5) 105 RON
099 0 1 MANER DE START (965402262) 3018 RON
100 0 1 LABEL DBC340 (980114217) 894 RON
101 0 1 ARC DE REVENIRE ANS. (020163031) 5927 RON
102 0 1 SURUB M3,5X9,5 (915135100) 781 RON
102-1 1 1 266150-3 - Indisponibil
103 0 1 024162081 - Indisponibil
103-1 1 1 CABLE DRUM (024162084) 9282 RON
104 0 1 INEL DE SIGURANTA 14X1V (929314100) 893 RON
105 0 1 394112020 - Indisponibil
106 0 1 SFOARA DE START 0,98M/3,5 (108164020) 190 RON
107 0 1 965605432 - Indisponibil
108 0 1 BUCSA DE CAUCIUC (965401016) 1453 RON
108-1 1 1 BUCSA DE CAUCIUC (SOC) DBC400/4510/EK810 (424696-7) 315 RON
109 0 1 394146011 - Indisponibil
109-1 1 1 ARC DE CONTACT (394146013) 190 RON
110 0 1 FISA BUJIE (957604240) 5591 RON
111 0 1 965603021 - Indisponibil
111-1 1 1 BUJIE DBC260U cod vechi 0650149661 BUJIE DBC260U/EM2600U cod vechi DA00000085 BUJIE DBC260U/EM2600U cod vechi 0650149661 (168648-5) 10848 RON
112 0 1 CABLU PT. BUJIE (M) (970310200) 3690 RON
113 0 1 394143010 - Indisponibil
113-1 1 1 BOBINA INDUCTIE DPC7311 (394143013) 86122 RON
114 0 2 SURUB 5X20 (908605205) 1117 RON
114-1 1 2 SURUB M5X20 (266942-0) 260 RON
115 0 1 VOLANTA (394141030) 51226 RON
116 0 2 CLICHET DE START (031166010) 679 RON
116-1 1 2 183F34-5 - Indisponibil
117 0 1 920308024 - Indisponibil
117-1 1 1 PIULITA M8X1 cod vechi 920308024 (264022-6) 446 RON
118 0 1 SAIBA ELASTICA (926208001) 781 RON
118-1 1 1 SAIBA ARCUITA 8 EA3201S EA3500S (267822-3) 111 RON

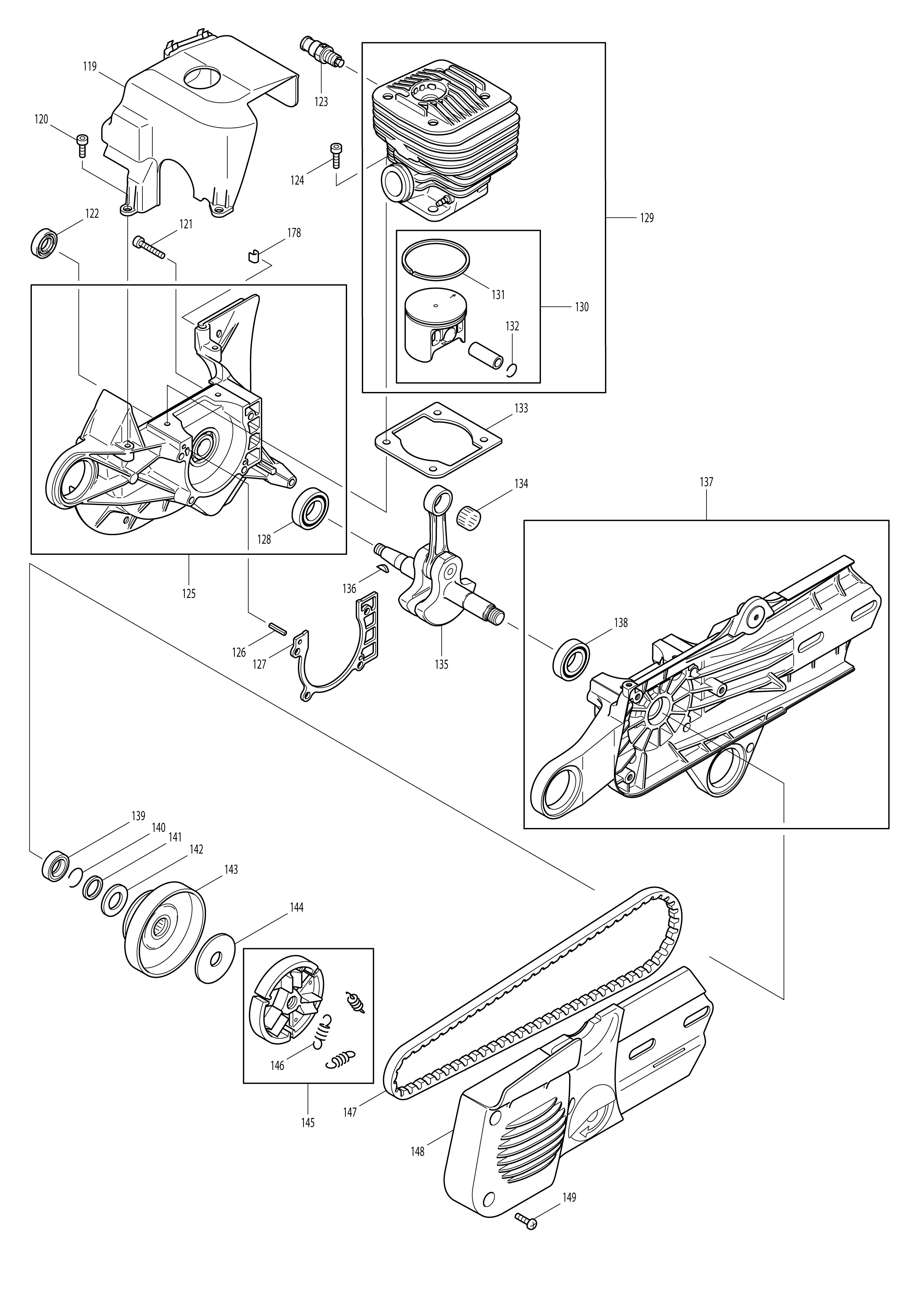

119 0 1 394131040 - Indisponibil
120 0 3 SURUB M5X16 (908005165) 105 RON
120-1 1 3 SURUB M5X16 EA3201S (266605-8) 558 RON
121 0 5 FILLISTER HEAD SCREW (908005305) 105 RON
121-1 1 5 266945-4 - Indisponibil
122 0 1 962900052 - Indisponibil
122-1 1 1 INEL RADIAL (213814-0) 4360 RON
123 0 1 SUPAPA DECOMPRESIUNE (001131150) 12525 RON
124 0 4 SURUB (908005205) 105 RON
124-1 1 4 SURUB (266476-3) 115 RON
125 0 1 394111110 - Indisponibil
126 0 2 CLEMA SPIRALA 3X16 (936430160) 893 RON
126-1 1 2 CLAMPING PIN EA3500S (258038-1) 223 RON
127 0 1 965531110 - Indisponibil
127-1 1 1 GARNITURA CARTER (965531111) 2459 RON
127-2 2 1 CRANK CASE GASKET (346877-2) 612 RON
128 0 2 960102159 - Indisponibil
129 0 1 325130010 - Indisponibil
130 0 1 325132110 - Indisponibil
131 0 1 SEGMENT PISTON (325132020) Indisponibil Indisponibil
132 0 2 119132060 - Indisponibil
132-1 1 2 CLIP EA7300P/7900P (038132080) 782 RON
132-2 2 2 SIGURANTA ELASTICA 12 (234359-5) 126 RON
133 0 1 965531120 - Indisponibil
133-1 1 1 GARNITURA (965531121) 1564 RON
134 0 1 962210015 - Indisponibil
135 0 1 394120010 - Indisponibil
135-1 1 1 AMBIELAJ cod vechi 394120010 CRANKSHAFT CPL. (394120011) 147415 RON
135-2 2 1 143108-8 - Indisponibil
136 0 1 PANA SEMIROTUNDA (939630370) 105 RON
136-1 1 1 254042-8 - Indisponibil
137 0 1 394111120 - Indisponibil
138 0 1 960102159 - Indisponibil
139 0 1 962900052 - Indisponibil
139-1 1 1 INEL RADIAL (213814-0) 4360 RON
140 0 1 ARC INELAR (930916160) 781 RON
140-1 1 1 INEL ARCUIT EK8100WS (234366-8) 061 RON
141 0 1 001245321 - Indisponibil
142 0 1 DISC GHIDARE (394182020) 1788 RON
142-1 1 1 346866-7 - Indisponibil
143 0 1 394223021 - Indisponibil
143-1 1 1 TAMBUR AMBREIAJ cod vechi 326223030 TAMBUR AMBREIAJ (394223025) 54245 RON
143-2 2 1 TAMBUR AMBREIAJ DPC7301/7311 (161317-7) 11322 RON
144 0 1 024182060 - Indisponibil
144-1 1 1 001182042 - Indisponibil
144-2 2 1 SAIBA DE GHIDARE cod vechi 001182041, 001182042 SAIBA DISC (267389-1) 190 RON
145 0 1 010180021 - Indisponibil
145-1 1 1 ANS. AMBREIAJ DPC7301/7311 (123305-2) 6030 RON
146 0 3 024184021 - Indisponibil
146-1 1 3 ARC TENSIONARE (181184020) 334 RON
146-2 2 3 ARC TENSIONARE cod vechi 024184021 (232352-3) 1676 RON
147 0 1 CUREA DE TRANSMISIE CRESTATA 850MM (965300470) Indisponibil Indisponibil
148 0 1 394213010 - Indisponibil
149 0 3 SURUB M5X14 (908605145) Indisponibil Indisponibil
149-1 1 3 SURUB M5X14 EK8100WS (266947-0) 223 RON

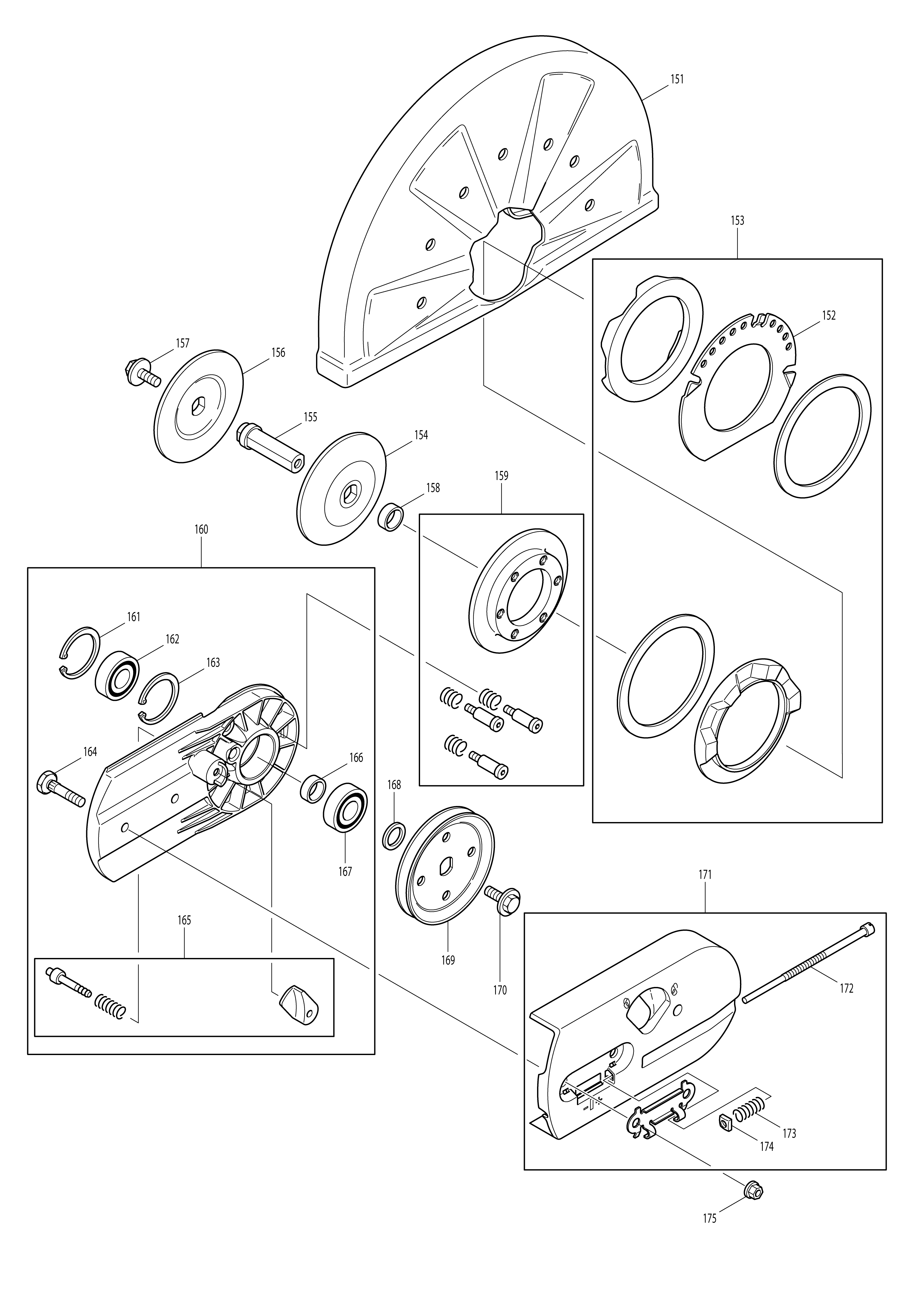

151 0 1 CAPAC PROTECTIE (325341610) 4910 RON
152 0 1 PLACA DE FIXARE (394342011) 5591 RON
153 0 1 CAPAC PROTECTIE (957342011) 13197 RON
154 0 1 FLANSA ELASTICA (394228061) 5367 RON
155 0 1 394228100 - Indisponibil
155-1 1 1 326502-1 - Indisponibil
156 0 2 FLANSA ELASTICA (394228061) 5367 RON
157 0 2 SURUB M8X25 (994280250) 3354 RON
158 0 2 DISTANTIER (394228020) 1117 RON
158-1 1 2 DISTANTIER (394228021) 1676 RON
158-2 2 2 257375-0 - Indisponibil
159 0 1 394342201 - Indisponibil
159-1 1 1 INEL DE PRESIUNE ANS. cod vechi 394342201 INEL DE PRESIUNE (394342211) 1891 RON
160 0 1 394211110 - Indisponibil
160-1 1 1 394211740 - Indisponibil
161 0 2 INEL DE SIGURANTA (929240180) 1453 RON
161-1 1 2 257998-4 - Indisponibil
162 0 2 RULMENT 6203 (960102176) 6262 RON
162-1 1 2 RULMENT 6203LLU (211281-3) 4920 RON
163 0 1 INEL DE SIGURANTA (929240180) 1453 RON
163-1 1 1 257998-4 - Indisponibil
164 0 1 SURUB (394211090) 2012 RON
164-1 1 1 SURUB (266688-8) 558 RON
165 0 1 BOLT (957211020) 5479 RON
166 0 1 DISTANTIER (394228020) 1117 RON
166-1 1 1 DISTANTIER (394228021) 1676 RON
166-2 2 1 257375-0 - Indisponibil
167 0 1 RULMENT 6203 (960102176) 6262 RON
167-1 1 1 RULMENT 6203LLU (211281-3) 4920 RON
168 0 1 DISC (900006179) 893 RON
169 0 1 394221010 - Indisponibil
169-1 1 1 394221050 - Indisponibil
169-2 2 1 FULIE DPC7301 cod vechi 394221050 (222180-4) 29079 RON
170 0 1 SURUB M8X25 (994280250) 3354 RON
171 0 1 ANSAMBLU CAPAC (394211100) 28297 RON
172 0 1 SURUB TENSIONARE (394213031) 190 RON
172-1 1 1 SURUB REGLARE (266691-9) 558 RON
173 0 1 ARC DE PRESIUNE (394342120) 296 RON
173-1 1 1 ARC (234215-9) 782 RON
174 0 1 PIULITA M6 (921906004) 781 RON
175 0 2 923208004 - Indisponibil
175-1 1 2 COLLARED HEX. NUT M8 (252145-2) 446 RON
176 0 1 PLACA DE CAUCIUC EK8100WS (965402870) 10624 RON
177 0 1 980114762 - Indisponibil
178 0 1 BLOCATOR (394118050) 893 RON
183 0 1 PACKING RING (394151330) 3354 RON
184 0 1 PACKING RING (394151330) 3354 RON
185 0 1 CLAPETA SOC EK8100WS (395151265) 1788 RON

Conditii Generale
