Pneumatic Pin Nailer MAKITA AF353
[AF353]
Pneumatic Pin Nailer MAKITA AF353
Click pentru a mari

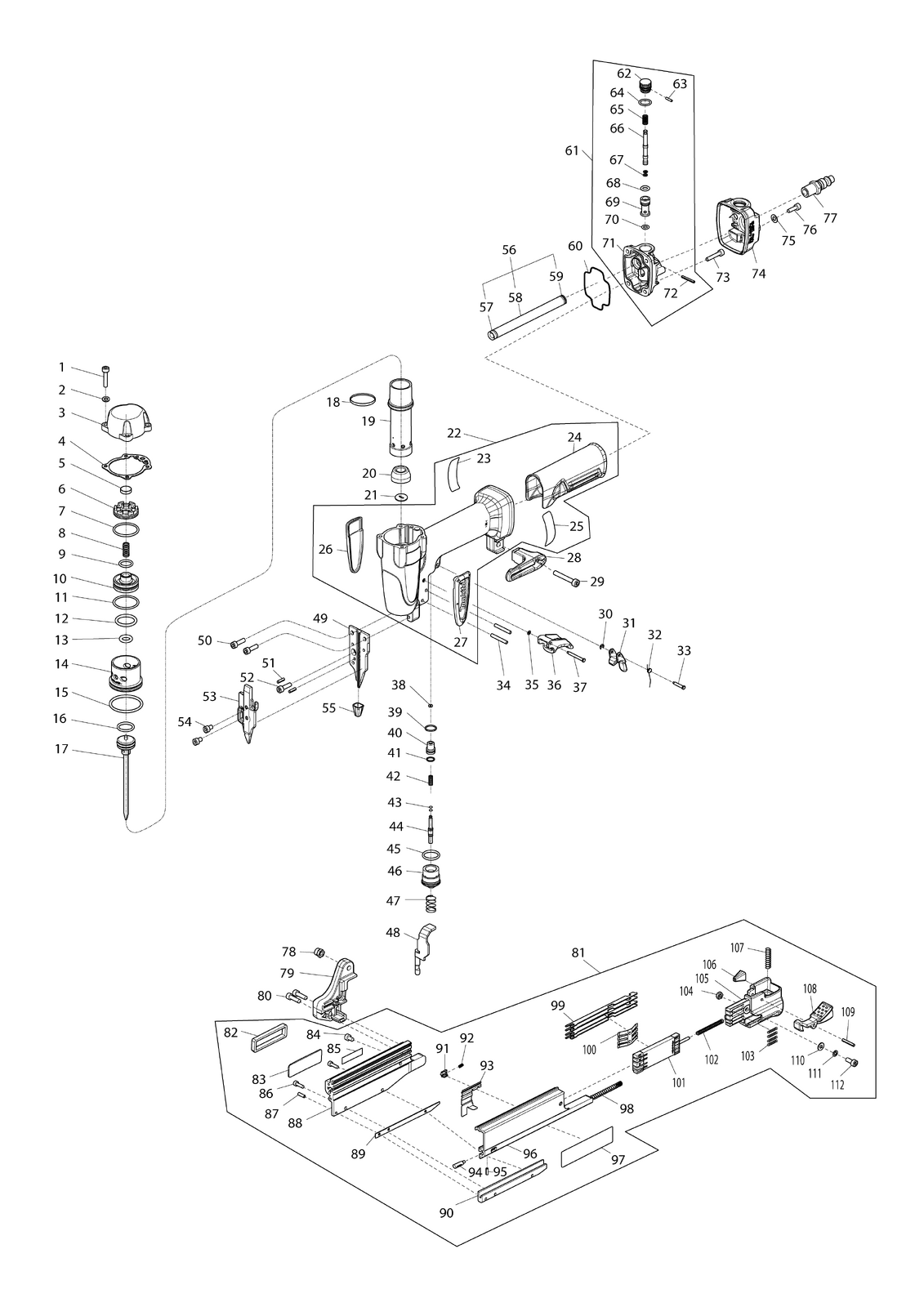

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
A01 0 1 HY00000700 - Indisponibil
A04 0 1 HY00000394 - Indisponibil
A05 0 1 HY00000395 - Indisponibil
A06 0 1 HY00000396 - Indisponibil
A06-1 1 1 181434-7 - Indisponibil
001 0 4 HY00000530 - Indisponibil
002 0 4 WASHER (HY00000070) 446 RON
003 0 1 CAPAC SUPERIOR AF353 (HY00000544) 3876 RON
004 0 1 TOP CAP GASKET (HY00000578) 232 RON
005 0 1 CUSHION V (HY00000581) 153 RON
006 0 1 HEAD VALVE GUIDE (HY00000594) 750 RON
007 0 1 ORING 25 (HY00000417) 116 RON
008 0 1 ARC COMPRESIE 5 (HY00000626) 116 RON
009 0 1 O-RING 12 AF505 (HY00000010) 334 RON
010 0 1 HEAD VALVE (HY00000593) 142 RON
011 0 1 ORING 25 (HY00000417) 116 RON
012 0 1 ORING 19 (HY00000406) 126 RON
013 0 1 ORING 8.5 (HY00000415) 13 RON
014 0 1 CYLINDER SEPARATER (HY00000555) 562 RON
015 0 1 ORING 32.5 (HY00000418) 157 RON
016 0 1 ORING 15.5 (HY00000413) 157 RON
017 0 1 PERCUTOR AF353 (HY00000549) 2517 RON
018 0 1 ORING 23.5 (HY00000416) 116 RON
019 0 1 CILINDRU (HY00000600) 2954 RON
020 0 1 FRONT CUSHION (HY00000547) 886 RON
021 0 1 GARNITURA FRONTALA (HY00000484) 283 RON
022 0 1 ANS. CARCASA (HY00000640) 19189 RON
023 0 1 HY00000586 - Indisponibil
024 0 1 GRIP (HY00000556) 750 RON
025 0 1 HY00000105 - Indisponibil
026 0 1 HY00000426 - Indisponibil
027 0 1 HY00000424 - Indisponibil
028 0 1 CARLIG AF505 (HY00000062) 1341 RON
029 0 1 HEX. SOCKET HEAD BOLT M5x30 (HY00000075) 446 RON
030 0 1 INEL BLOCARE (EXT) E-2.5 (HY00000064) 446 RON
031 0 1 HY00000435 - Indisponibil
032 0 1 ARC TORSIUNE 3 (HY00000617) 13 RON
033 0 1 HY00000638 - Indisponibil
034 0 2 HY00000682 - Indisponibil
035 0 1 HY00000411 - Indisponibil
036 0 1 HY00000434 - Indisponibil
037 0 1 HY00000595 - Indisponibil
038 0 1 HY00000411 - Indisponibil
039 0 1 ORING (HY00000420) 076 RON
040 0 1 TRIGGER VALVE GUIDE (HY00000598) 976 RON
041 0 1 ORING (HY00000419) 076 RON
042 0 1 ARC COMPRESIE 4 (HY00000548) 065 RON
043 0 2 O-RING 3 AF505 (HY00000037) 334 RON
044 0 1 TRIGGER VALVE STEM (HY00000516) 363 RON
045 0 1 O-RING 12 AF505 (HY00000010) 334 RON
046 0 1 TRIGGER VALVE CASE (HY00000597) 1740 RON
047 0 1 ARC COMPRESIE 10 (HY00000705) 075 RON
048 0 1 LINK (HY00000438) 1063 RON
049 0 1 PLACA GHIDAJ AF353 (HY00000604) 10437 RON
050 0 2 HEX.SOCKET HEAD BOLT M4X14 (HY00000681) 031 RON
051 0 2 SPRING PIN 2.5-10 (HY00000680) 061 RON
052 0 1 HEX.SOCKET HEAD BOLT M4X14 (HY00000681) 031 RON
053 0 1 CAPAC GHIDAJ PENTRU DRIVER AF353 (HY00000534) 4181 RON
054 0 2 HEX. SOCKET HEAD BOLT M4x6 (HY00000071) 446 RON
055 0 1 HY00000561 - Indisponibil
056 0 1 HY00000568 - Indisponibil
057 0 1 O RING 6.5 (HY00000398) 091 RON
058 0 1 HY00000572 - Indisponibil
059 0 1 O RING 6.5 (HY00000398) 091 RON
060 0 1 INEL ETANSARE (HY00000579) 198 RON
061 0 1 ANS. SUFLANTA (HY00000496) 5795 RON
062 0 1 DUSTER BUTTON (HY00000573) 352 RON
063 0 1 STIFT 2 (HY00000046) 446 RON
064 0 1 ORING 10.5 (HY00000414) 077 RON
065 0 1 ARC COMPRESIE 5 (HY00000591) 065 RON
066 0 1 VALVE STEM (HY00000513) 310 RON
067 0 2 O-RING 3 AF505 (HY00000037) 334 RON
068 0 1 ORING 8.5 (HY00000399) 077 RON
069 0 1 VALVE GUIDE (HY00000599) 937 RON
070 0 1 ORING 5 (HY00000397) 065 RON
071 0 1 HY00000497 - Indisponibil
072 0 1 SPRING PIN 2.5-18 (HY00000054) 446 RON
073 0 4 HY00000530 - Indisponibil
074 0 1 HY00000431 - Indisponibil
075 0 2 HY00000532 - Indisponibil
076 0 2 HY00000647 - Indisponibil
077 0 1 CUPLAJ RAPID AF505 (HY00000080) 1340 RON
078 0 1 HEX. LOCK NUT M5 (HY00000073) 446 RON
079 0 1 CONEXIUNE (HY00000542) 1358 RON
080 0 2 HEX.SOCKET HEAD BOLT M4X14 (HY00000681) 031 RON
081 0 1 MAGAZIE COMPLETA (HY00000474) 2256 RON
082 0 1 HY00000574 - Indisponibil
083 0 1 HY00000576 - Indisponibil
084 0 1 HEX. SOCKET HEAD BOLT M4x6 (HY00000071) 446 RON
085 0 1 HY00000662 - Indisponibil
086 0 2 HY00000683 - Indisponibil
087 0 1 SPRING PIN 2.5-10 (HY00000680) 061 RON
088 0 1 HY00000483 - Indisponibil
089 0 1 HY00000620 - Indisponibil
090 0 1 HY00000485 - Indisponibil
091 0 1 HY00000571 - Indisponibil
092 0 1 HY00000445 - Indisponibil
093 0 1 HY00000489 - Indisponibil
094 0 1 HY00000492 - Indisponibil
095 0 1 HY00000684 - Indisponibil
096 0 1 HY00000478 - Indisponibil
097 0 1 HY00000660 - Indisponibil
098 0 1 HY00000614 - Indisponibil
099 0 4 HY00000623 - Indisponibil
100 0 1 ARC LAMELAR (HY00000619) 488 RON
101 0 1 HY00000622 - Indisponibil
102 0 1 HY00000615 - Indisponibil
103 0 4 HY00000613 - Indisponibil
104 0 1 HY00000646 - Indisponibil
105 0 1 SLIDE DOOR CAP (HY00000501) 885 RON
106 0 1 HY00000561 - Indisponibil
107 0 1 ARC COMPRESIE 6 (HY00000612) 076 RON
108 0 1 PARGHIE (HY00000504) 367 RON
109 0 1 HY00000685 - Indisponibil
110 0 1 HY00000532 - Indisponibil
111 0 1 HY00000161 - Indisponibil
112 0 1 HEX. SOCKET HEAD BOLT M4x10 (HY00000001) 334 RON
