Pneumatic Brad Nailer MAKITA AF506
[AF506]
Pneumatic Brad Nailer MAKITA AF506
Click pentru a mari

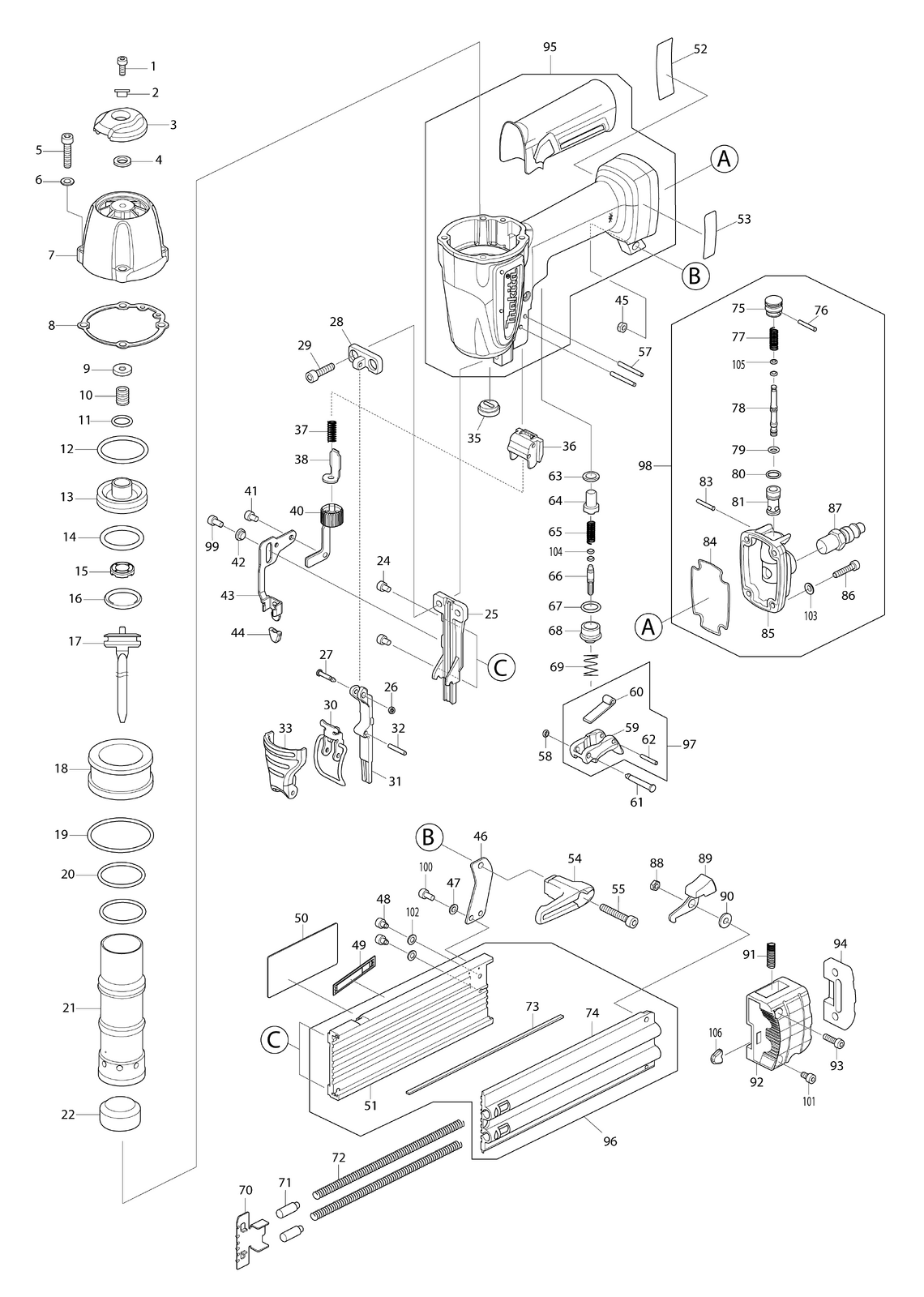

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
A01 0 1 HY00000951 - Indisponibil
A02-1 1 1 181434-7 - Indisponibil
A02-2 2 1 HY00000952 - Indisponibil
A02-3 3 1 181434-7 - Indisponibil
A04 0 1 HY00001107 - Indisponibil
001 0 1 HEX. SOCKET HEAD BOLT M4x10 (HY00000001) 334 RON
002 0 1 SLEEVE 4 (HY00000002) 446 RON
003 0 1 HY00000508 - Indisponibil
004 0 1 SAIBA DE CAUCIUC 4 AF505 (HY00000004) 446 RON
005 0 4 SURUB INBUS M5X22 (HY00000049) 558 RON
006 0 4 HY00000160 - Indisponibil
007-1 1 1 HY00001263 - Indisponibil
007 0 1 CAPAC (HY00000511) 4146 RON
008 0 1 GARNITURA CAPAC (HY00000509) 234 RON
009 0 1 AMORTIZOR V AF505 (HY00000008) 558 RON
010 0 1 ARC COMPRESIE 7 (HY00000629) 116 RON
011 0 1 O-RING 12 AF505 (HY00000010) 334 RON
012 0 1 O-RING 33 AF505 (HY00000011) 558 RON
013 0 1 ANS. BLOACARE CILINDRU (HY00000507) 118 RON
014 0 1 O RING 26.5 (HY00000408) 156 RON
015 0 1 AMORTIZOR P AF505 (HY00000014) 669 RON
016 0 1 ORING 22.5X3 AF506,AF601 (HY00000400) 262 RON
017 0 1 PERCUTOR AF506 (HY00000911) 4326 RON
018 0 1 SEPARATOR CILINDRU (HY00000912) 639 RON
019 0 1 O-RING 46 AF505 (HY00000016) 558 RON
020 0 2 O RING 30.5 (HY00000409) 138 RON
021 0 1 CILINDRU (HY00000913) 276 RON
022 0 1 AMORTIZOR FRONTAL AF506,AT638A (HY00000546) 874 RON
024 0 2 SURUB INBUS M4X8 (HY00000074) 446 RON
025 0 1 GHIDAJ TIJA AF506 (HY00000914) 4588 RON
026 0 1 RUBBER RING 2 (HY00000043) 446 RON
027 0 1 CAPAC PINION (HY00000915) 094 RON
028 0 1 HY00000916 - Indisponibil
029 0 2 SURUB INBUS M5X20 (HY00000005) 781 RON
030 0 1 OPRITOR (HY00000917) 371 RON
031 0 1 CAPAC GHIDAJ (HY00000918) 2894 RON
032 0 1 PIN PENTRU ARC 3-22 (HY00000531) 122 RON
033 0 1 CAPAC OPRITOR (HY00000919) 256 RON
035 0 1 GARNITURA FRONTALA AF505 (HY00000023) 669 RON
036 0 1 HOLDER (HY00000506) 322 RON
037 0 1 ARC COMPRESIE 5 (HY00000421) 065 RON
038 0 1 UNITATE MAGNET (HY00000444) 425 RON
040 0 1 HY00000950 - Indisponibil
041 0 1 HY00000649 - Indisponibil
042 0 1 BUCSA AF506 (HY00000633) 245 RON
043 0 1 CONTACT (HY00000923) 692 RON
044 0 1 MANSON PROTECTIE (HY00000378) 359 RON
045 0 1 HY00000924 - Indisponibil
046 0 1 HY00000925 - Indisponibil
047-1 1 2 WASHER (HY00000070) 446 RON
047 0 1 WASHER (HY00000070) 446 RON
048 0 2 HY00000926 - Indisponibil
049 0 1 HY00000927 - Indisponibil
050 0 1 HY00000928 - Indisponibil
051 0 1 HY00000929 - Indisponibil
052 0 1 HY00000930 - Indisponibil
053 0 1 HY00000931 - Indisponibil
054 0 1 CARLIG AF505 (HY00000062) 1341 RON
055 0 1 HY00000156 - Indisponibil
057 0 2 SPRING PIN 3-26 (HY00000024) 446 RON
058 0 1 O-RING 3 AF505 (HY00000037) 334 RON
059 0 1 TRAGACI AN924 (HY00000436) 275 RON
060 0 1 HY00000932 - Indisponibil
061 0 1 PIN 4 (HY00000933) 076 RON
062 0 1 PIN PENTRU ARC 2.5-16 (HY00000114) 382 RON
063 0 1 INEL DE CAUCIUC 8 AF505 (HY00000033) 334 RON
064 0 1 GHIDAJ SUPAPA AF505 (HY00000034) 1453 RON
065 0 1 ARC COMPRESIE 4 (HY00000035) 334 RON
066 0 1 TIJA VALVA DECLANSATOR (HY00000934) 336 RON
067 0 1 O-RING 11 AF505 (HY00000039) 334 RON
068 0 1 CARCASA VENTIL AF505 (HY00000038) 1453 RON
069 0 1 ARC CCOMPRESIE 10 AF505 (HY00000040) 334 RON
070 0 1 IMPINGATOR (HY00000935) 191 RON
071 0 2 PIN 7 (HY00000936) 17 RON
072 0 2 ARC DE COMPRESIE AF505 (HY00000059) 1340 RON
073 0 1 HY00000937 - Indisponibil
074 0 1 HY00000938 - Indisponibil
075 0 1 DUSTER BUTTON (HY00000573) 352 RON
076 0 1 STIFT 2 (HY00000046) 446 RON
077 0 1 HY00000589 - Indisponibil
078 0 1 VALVE STEM (HY00000513) 310 RON
079 0 1 ORING 5 (HY00000397) 065 RON
080 0 1 ORING 8.5 (HY00000399) 077 RON
081 0 1 VALVE GUIDE (HY00000599) 937 RON
083 0 1 SPRING PIN 2.5-18 (HY00000054) 446 RON
084 0 1 INEL ETANSARE (HY00000580) 168 RON
085 0 1 CAPAC (HY00000499) 2346 RON
086 0 4 HY00000650 - Indisponibil
087 0 1 CUPLAJ RAPID AF505 (HY00000080) 1340 RON
088 0 1 HY00000159 - Indisponibil
089 0 1 HY00000941 - Indisponibil
090 0 1 HY00000942 - Indisponibil
091 0 1 HY00000943 - Indisponibil
092 0 1 CAPAC USA GLISARE (HY00000944) 669 RON
093 0 1 HY00000647 - Indisponibil
094 0 1 CAP AMORTIZOR (HY00000945) 410 RON
095 0 1 HY00000946 - Indisponibil
096 0 1 ANS. REZERVOR (HY00000947) 10299 RON
097 0 1 ANS. COMUTATOR (HY00000948) 683 RON
098 0 1 ANS.VENTILATOR (HY00000494) 4520 RON
099 0 1 SURUB INBUS M4X8 (HY00000074) 446 RON
100 0 2 SURUB INBUS M4X8 (HY00000074) 446 RON
101 0 1 SURUB INBUS M4X8 (HY00000074) 446 RON
102 0 2 WASHER (HY00000070) 446 RON
103 0 4 WASHER (HY00000070) 446 RON
104 0 2 O-RING 3 AF505 (HY00000037) 334 RON
105 0 2 O-RING 3 AF505 (HY00000037) 334 RON
106 0 1 MANSON PROTECTIE (HY00000378) 359 RON
