Top » Piese de schimb » PIESE MAKITA » Masini pentru gradina » PM7651H

PM7651H
[PM7651H]
PM7651H
Click pentru a mari
Imagini suplimentare
PM7651H
Click pentru a mari
PM7651H
Click pentru a mari
PM7651H
Click pentru a mari
PM7651H
Click pentru a mari
PM7651H
Click pentru a mari
PM7651H
Click pentru a mari
PM7651H
Click pentru a mari
PM7651H
Click pentru a mari
PM7651H
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara

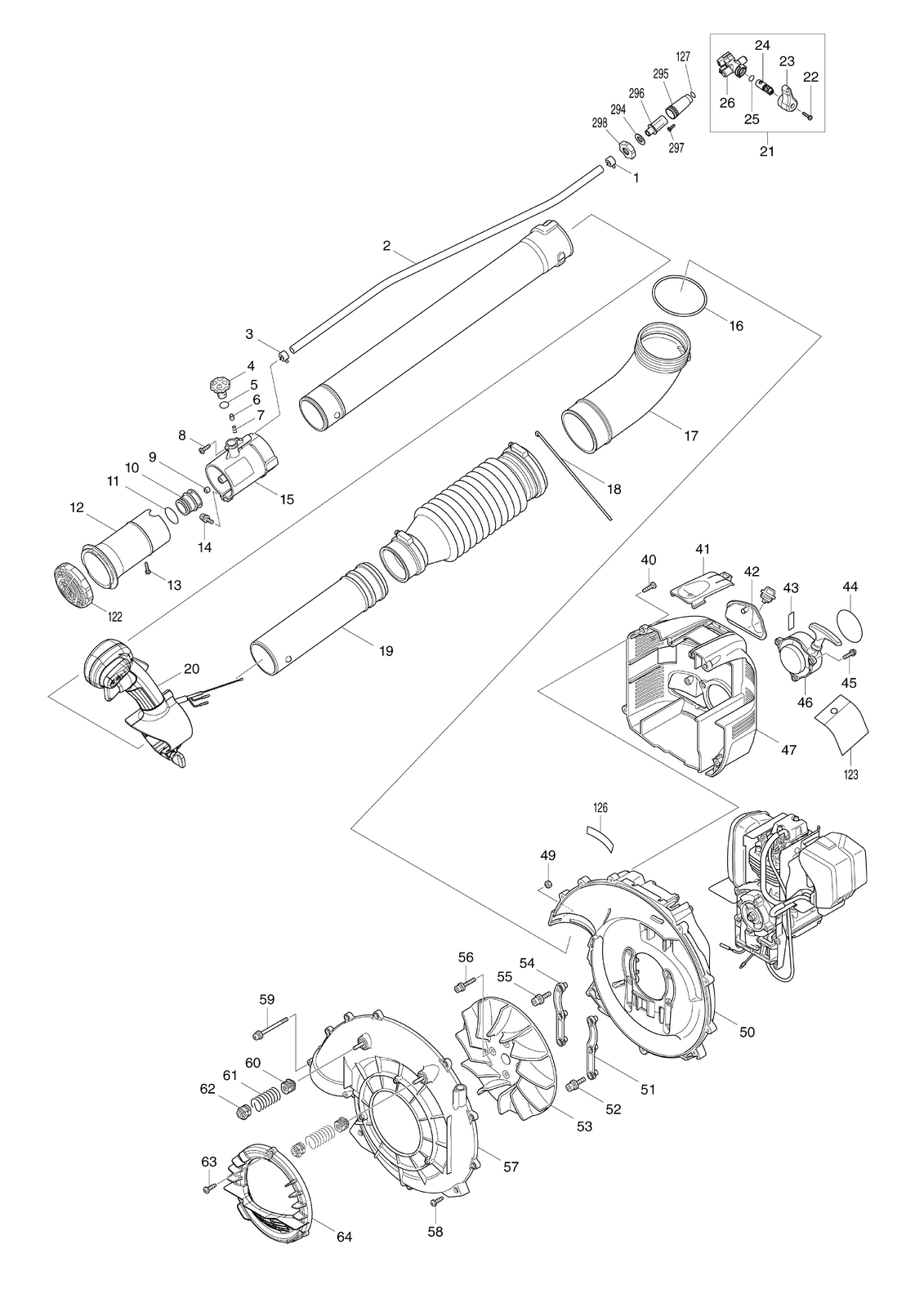

1 1 1 COLIER FURTUN 14 PM7650H (282023-2) 334 RON
2 1 1 CONDUCTA 10-750 PM7650H (412110-5) 1565 RON
3 1 1 COLIER FURTUN 14 PM7650H (282023-2) 334 RON
4 1 1 CAPAC DUZA PM7650H (453505-3) 1677 RON
5 1 1 0-RING 12 (213686-3) Indisponibil Indisponibil
6 1 1 PIN 5.5 (268288-0) 190 RON
7 1 1 ARC DE COMPRESIE 3 PM7650H (234244-2) 111 RON
8 1 1 SURUB PT3X1 SURUB AUTOFILETANT cod vechi 320266007 (266007-8) 558 RON
9 1 1 DUZA 4.5 PM7650H (326198-8) Indisponibil Indisponibil
10 1 1 MANSON 25 PM7650H (453599-8) 1117 RON
11 1 1 O RING 28 BHR262 (213437-4) 334 RON
12 1 1 ADAPTORPM7650H (453986-1) 2795 RON
13 1 1 SURUB 4X20 (266045-0) 334 RON
14 1 1 PAN HEAD SCREW M5X18 MT191 cod vechi 265131-4 SURUB M5X18 (911228-4) 558 RON
15 1 1 ADAPTOR DUZA (141921-8) 3354 RON
16 1 1 O RING 93 (213645-7) Indisponibil Indisponibil
17 1 1 COT PM7650H (412116-3) 2795 RON
18 1 1 453714-4 - Indisponibil
19 1 1 SWIVEL PIPE COMPLETE (168746-5) 8723 RON

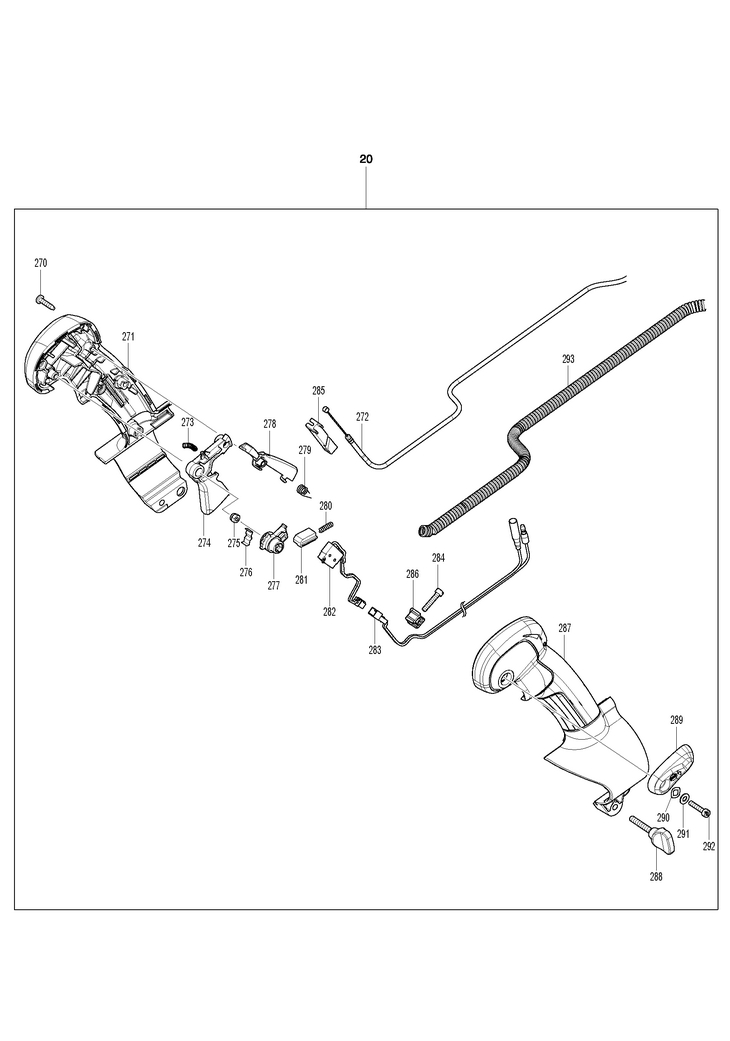

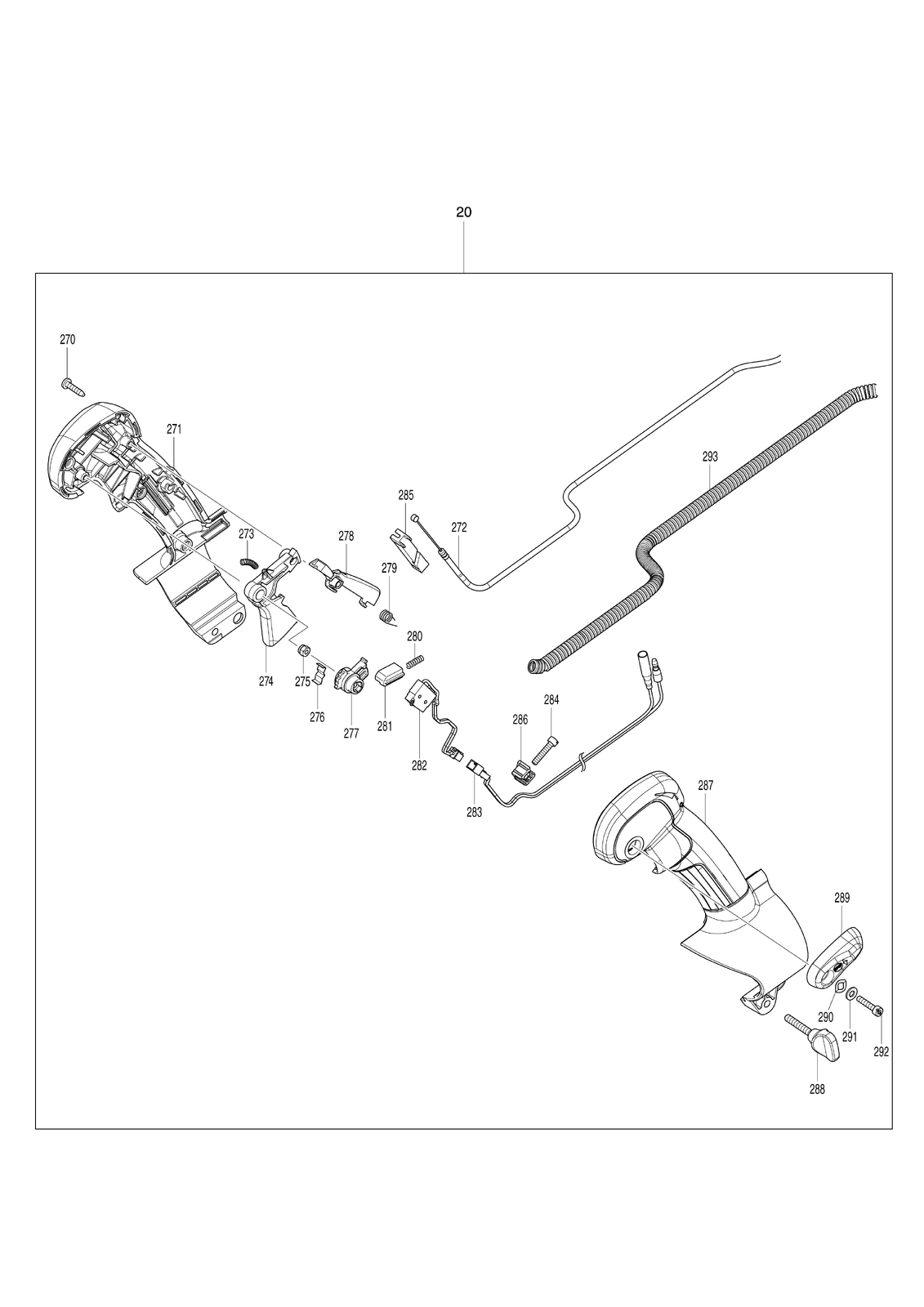

20 1 1 CONTROL LEVER ASSEMBLY PM7650 (126579-4) 65878 RON
21 1 1 ANSAMBLU ROBINET PM7650 cod vechi 126580-9 (123981-2) 7716 RON
22 1 1 SURUB 4X18 cod vechi 266326-2 SURUB AUTOFILETANT 4X18 (265995-6) 558 RON
23 1 1 MANETA ROBINET PM7650 (455657-6) 382 RON
24 1 1 ROBINET PM7650 (455655-0) 1341 RON
25 1 1 O RING 9 PM7650 (213647-3) 558 RON
26 1 1 CORP ROBINET PM7650 (455656-8) 2124 RON
27 1 1 Breather (168396-6) 2571 RON
28 1 1 GROMMET (424505-0) 2348 RON
29 1 1 FUEL TUBE 3-370 (412120-2) 2012 RON
30 1 1 FUEL TUBE 3-370 (412114-7) 1453 RON
34 1 1 COLIER FURTUN 14 PM7650H (282023-2) 334 RON
35 1 1 CONDUCTA 10-500 PM7650H (412109-0) 1229 RON
36 1 1 COLIER FURTUN 14 PM7650H (282023-2) 334 RON
37 1 1 CAPAC FURTUN PM7650 (453616-4) 782 RON
38 1 1 BLIND PACKING PM7651 (424760-4) Indisponibil Indisponibil
39 1 1 CONEXIUNE PM7651 (456172-3) Indisponibil Indisponibil
40 1 4 SURUB AUTOFILETANT 5X20 HR2810 (266420-0) Indisponibil Indisponibil
41 1 1 CAPAC BHX2500 cod vechi 6656500100 (450964-2) 1453 RON
42 1 1 OIL GUARD (424504-2) 1788 RON
43 1 1 850A39-7 - Indisponibil
44 1 1 ETICHETA MODEL PM7651 (805X10-4) 223 RON
45 1 3 SCREW WASHER ASSY SURUB M5X20 (911233-1) 334 RON

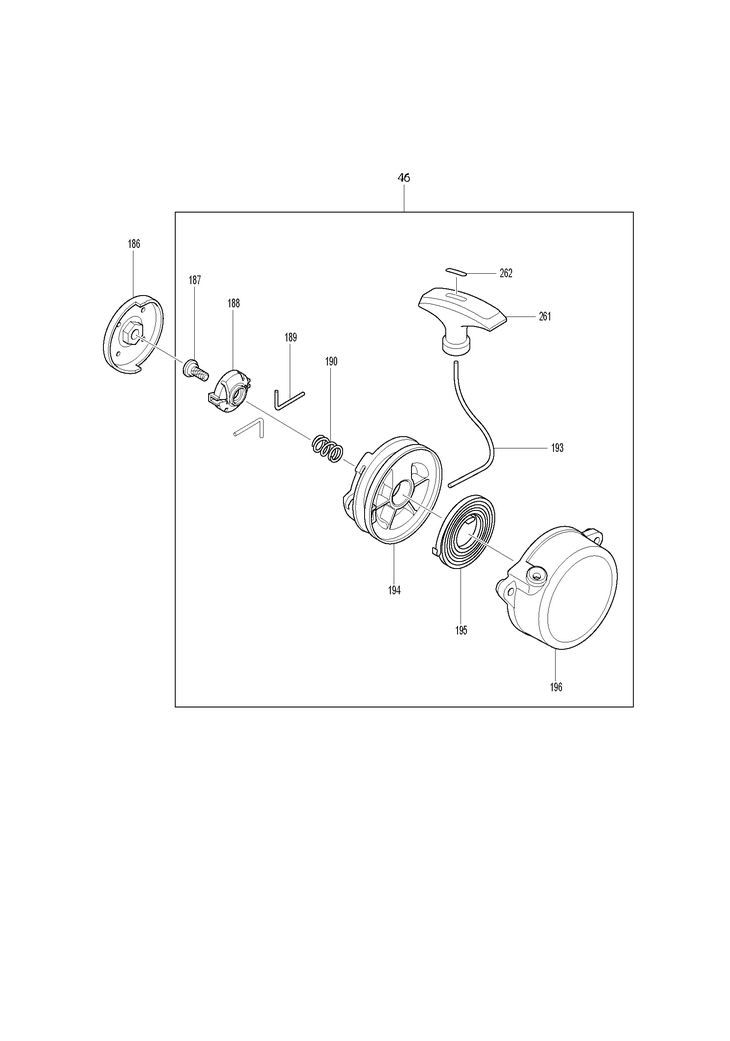

46 1 1 RECOIL (126165-1) 11967 RON
47 1 1 ENGINE COVER COMPLETE BBX7600 PM7651H (141521-4) 24941 RON
49 1 2 PIULITA HEXAGONALA M5 (931202-6) 894 RON
50 1 1 CARCASA SPIRALA 2 PM7650H (453558-2) 1998 RON
51 1 1 BASE R (318891-8) 2795 RON
52 1 3 HEX. SOCKET BOLT M6x30 EM2651UH SURUB INBUS M6X30 cod vechi 922353-6 (266579-3) 334 RON
53 1 1 IMPELLER BBX7600 PM7651H (240138-1) 11072 RON
54 1 1 BASE L (318890-0) 2795 RON
55 1 3 HEX. SOCKET BOLT M6x30 EM2651UH SURUB INBUS M6X30 cod vechi 922353-6 (266579-3) 334 RON
56 1 4 SURUB M6*40 PM7650 (266828-8) 334 RON
57 1 1 CARCASA SPIRALA PM7650H (454669-6) 1232 RON
58 1 9 SURUB AUTOFILETANT 5X20 HR2810 (266420-0) Indisponibil Indisponibil
59 1 2 SURUB M5X65 KP312S DP4700 (911288-6) 446 RON
60 1 2 SUPORT REZERVOR PM7650H (453561-3) 782 RON
61 1 2 ARC DE COMPRESIE 20 PM7650H (234247-6) 1117 RON
62 1 2 SUPORT REZERVOR PM7650H (453561-3) 782 RON
63 1 3 SURUB AUTOFILETANT 5X20 HR2810 (266420-0) Indisponibil Indisponibil
64 1 1 SIGURANTA VENTILATOR PM7650H (454670-1) 297 RON

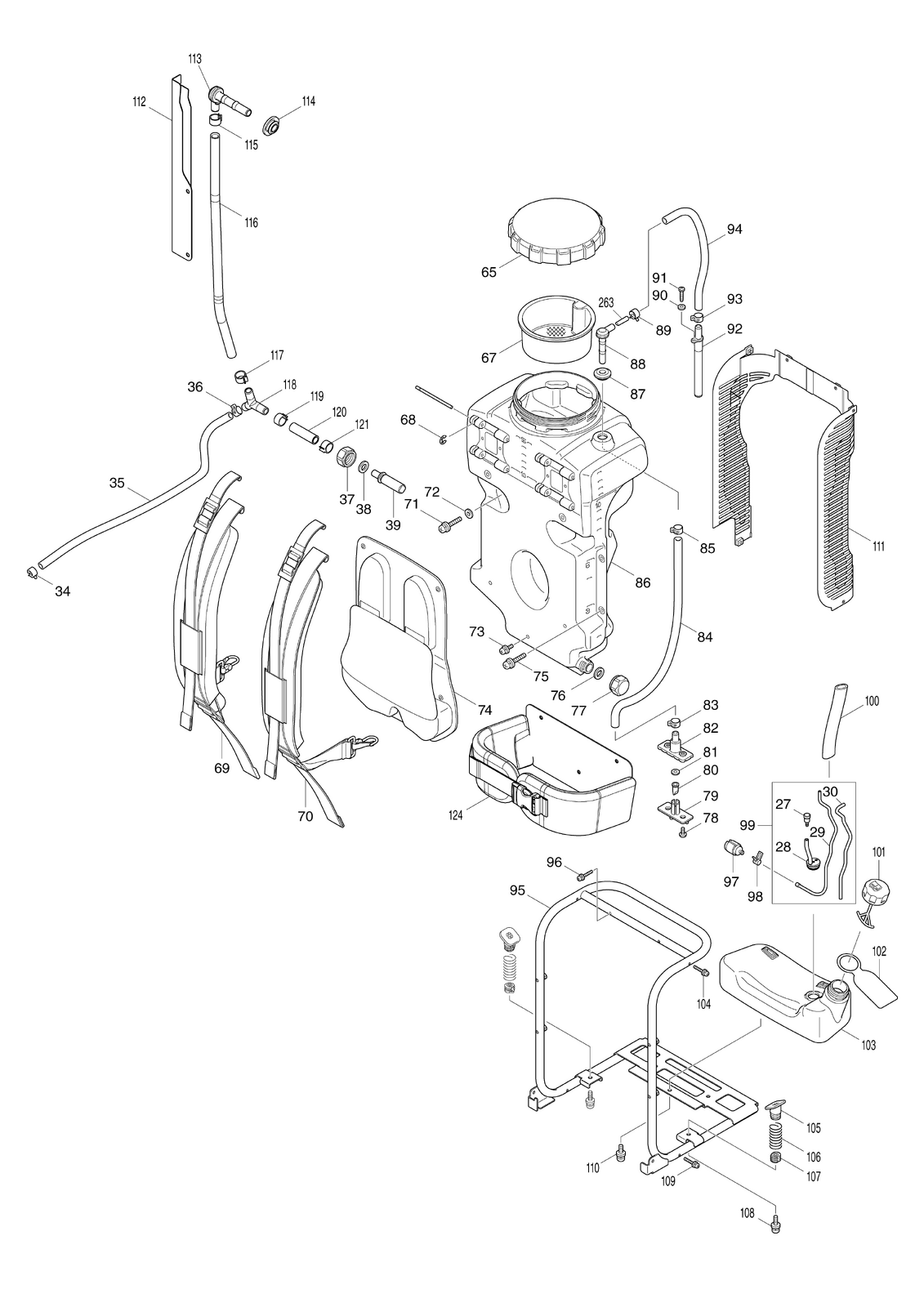

65 1 1 TANK CAP ASSEMBLY PM7651 (126581-7) 15210 RON
67 1 1 SITA REZERVOR PM7651 (455658-4) 10177 RON
68 1 4 INEL BLOCARE E-4 (961011-9) 558 RON
69 1 1 166143-9 - Indisponibil
70 1 1 166142-1 - Indisponibil
71 1 2 911353-1 - Indisponibil
72 1 2 SAIBA PLATA 6 (253804-1) 223 RON
73 1 5 SURUB M5X12 (911213-7) 558 RON
74 1 1 166144-7 - Indisponibil
75 1 4 911353-1 - Indisponibil
76 1 1 BLIND PACKING PM7651 (424760-4) Indisponibil Indisponibil
77 1 1 CAPAC EVH2000 cod vechi 6824505200 (453615-6) 1341 RON
78 1 2 266767-2 - Indisponibil
79 1 1 453496-8 - Indisponibil
80 1 1 424492-3 - Indisponibil
81 1 1 267462-7 - Indisponibil
82 1 1 453495-0 - Indisponibil
83 1 1 COLIER FURTUN 14 PM7650H (282023-2) 334 RON
84 1 1 CONDUCTA 10-500 PM7650H (412109-0) 1229 RON
85 1 1 COLIER FURTUN 14 PM7650H (282023-2) 334 RON
86 1 1 REZERVOR COMPLETE PM7651 (143031-7) 25053 RON
87 1 1 GROMET (424503-4) 1341 RON
88 1 1 CONEXIUNE 1 PM7650H (454683-2) 1453 RON
89 1 1 COLIER FURTUN 14 PM7650H (282023-2) 334 RON
90 1 1 SAIBA PLATA 4 SAIBA 4X12X0,5 cod vechi 924204020 (253874-0) 558 RON
91 1 1 265995-6 - Indisponibil
92 1 1 TEAVA DE PRESIUNE PM7650H (453498-4) 1677 RON
93 1 1 COLIER FURTUN 14 PM7650H (282023-2) 334 RON
94 1 1 CONDUCTA 10-300 PM7650H (412108-2) 782 RON
95 1 1 165686-8 - Indisponibil
96 1 2 SURUB M4X25 (911148-2) Indisponibil Indisponibil
97 1 1 FILTER cod vechi 377650290 (163532-9) 297 RON
98 1 1 HOSE CLAMP EBH252U cod vechi 345920-4 CLEMA FIXARE RBC220/EM4250/EM2600U (DA00000120) 670 RON
99 1 1 TUBE ASSEMBLY (126138-4) 8164 RON
100 1 1 TUBE cod vechi 377115986 (412119-7) 190 RON
101 1 1 FUEL TANK CAP EBH252U cod vechi 140435-4 FUEL TANK CAP EBH252U FUEL TANK CAP ASS%Y. cod vechi 367125472 (125472-9) 382 RON
102 1 1 CAUTION LABEL EM2651UH (810455-9) 781 RON
103 1 1 453618-0 - Indisponibil
104 1 2 SURUB M4X25 (911148-2) Indisponibil Indisponibil
105 1 2 SUPORT PM7650H (453499-2) 105 RON
106 1 2 ARC DE COMPRESIE 17 PM7650H (234246-8) 782 RON
107 1 2 SUPORT PM7650H (453560-5) 894 RON
108 1 2 SURUB M6X20 (911333-7) 334 RON
109 1 2 SURUB M4X25 (911148-2) Indisponibil Indisponibil
110 1 3 911313-3 - Indisponibil
111 1 1 454684-0 - Indisponibil
112 1 1 346745-9 - Indisponibil
113 1 1 CONEXIUNE 1 PM7650H (454683-2) 1453 RON
114 1 1 GROMET (424503-4) 1341 RON
115 1 1 COLIER FURTUN 14 PM7650H (282023-2) 334 RON
116 1 1 CONDUCTA 10-420 PM7650H (412143-0) 1341 RON
117 1 1 COLIER FURTUN 14 PM7650H (282023-2) 334 RON
118 1 1 CONEXIUNE PM7650H (454751-1) 1229 RON
119 1 1 COLIER FURTUN 14 PM7650H (282023-2) 334 RON
120 1 1 412142-2 - Indisponibil
121 1 1 COLIER FURTUN 14 PM7650H (282023-2) 334 RON
122 1 1 ACOPERITOARE DE DIFUZIE PM7650H (453506-1) 1453 RON
123 1 1 CAUTION TAG EM2651UH (819431-0) 334 RON
126 1 1 805X11-2 - Indisponibil
127 1 1 0-RING 12 (213686-3) Indisponibil Indisponibil

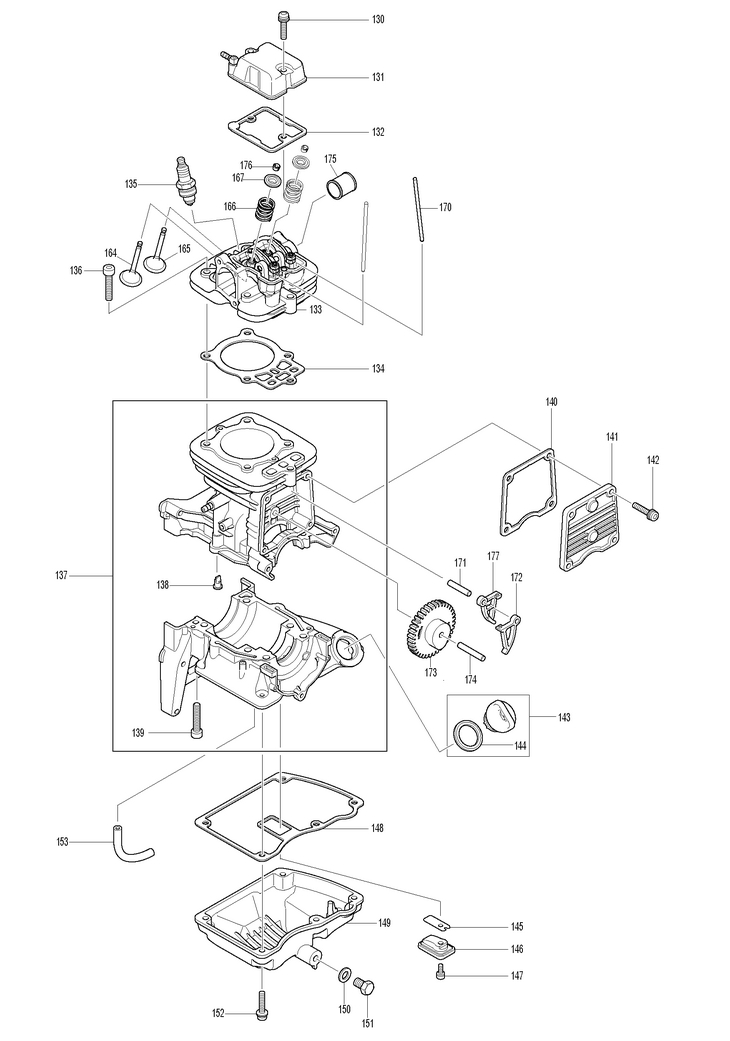

130 1 2 SURUB INBUS M5x30 DBC260U cod vechi 0119059570 (266789-2) 893 RON
130 2 2 SURUB M5X30 WITH WR (922253-0) 223 RON

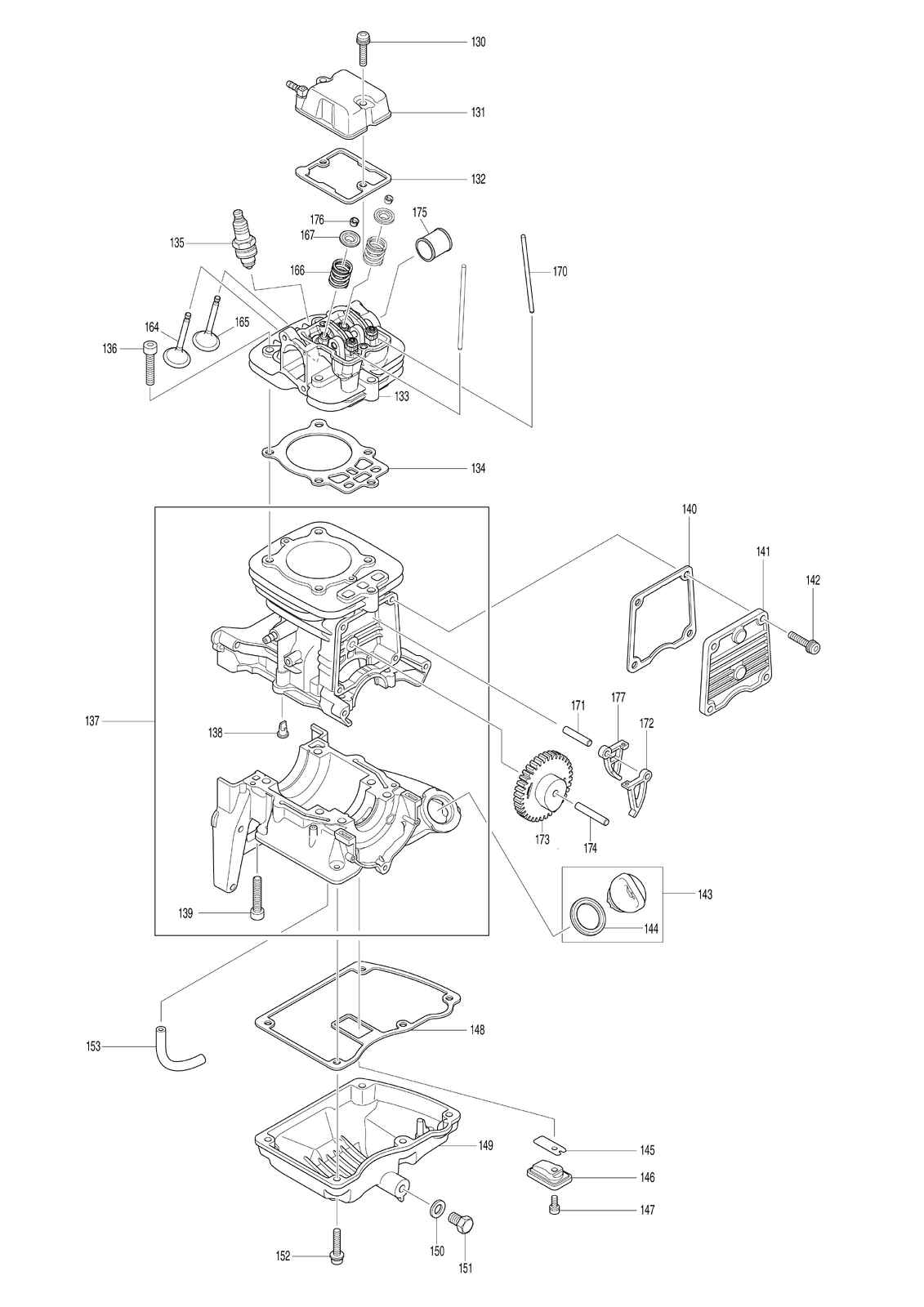

131 1 1 ROCKER COVER COMPLETE (141771-1) 3914 RON
132 1 1 ROCKER GASKET COVER cod vechi 377150090 (5971500900) 105 RON
133 1 1 CYLINDER HEAD COMPLETE BBX7600 (142771-4) 43844 RON
134 1 1 GARNITURA CAP CARBURATOR (442167-2) 2348 RON
135 1 1 168401-9 - Indisponibil
136 1 5 SURUB INBUS M6 (922357-8) 334 RON
137 1 1 CYLINDER BLOCK SET (5971007001) 86458 RON
138 1 2 CHECK VALVE EM2651UH VALVA /BHX2500 cod vechi 5921501800 (424201-0) 1229 RON
139 1 6 HEX. SOCKET HEAD BOLT (922352-8) 334 RON
140 1 1 GARNITURA (442168-0) 105 RON
141 1 1 CAPAC (318725-5) 105 RON
142 1 4 SURUB INBUS M5x16(W.SW) cod vechi 0119059531 (266813-1) 670 RON
143 1 1 OIL CAP ASSY cod vechi 377600500 (6676005000) 2348 RON
144 1 1 GARNITURA cod vechi 377322998 (0213229980) 1788 RON
145 1 1 Lead Valve EM2651UH MEBRANA ADMISIE cod vechi 367150100 (346083-9) 190 RON
146 1 1 RETAINER PLATE cod vechi 368150130 (5931501300) 1341 RON
147 1 1 SURUB INBUS M4X10 SURUB INBUS cod vechi 367904998 (0119049980) 446 RON
148 1 1 OIL CASE GASKET cod vechi 368650010 (5976500100) 2683 RON
149 1 1 319008-6 - Indisponibil
150 1 1 GARNITURA (346452-4) 223 RON
151 1 1 266916-1 - Indisponibil
152 1 5 SURUB M5X25 (0119059390) 446 RON
152 2 5 SURUB INBUS M5X25 HM0870C (922243-3) 781 RON
153 1 1 TUBE cod vechi 377110996 (0851109960) 782 RON

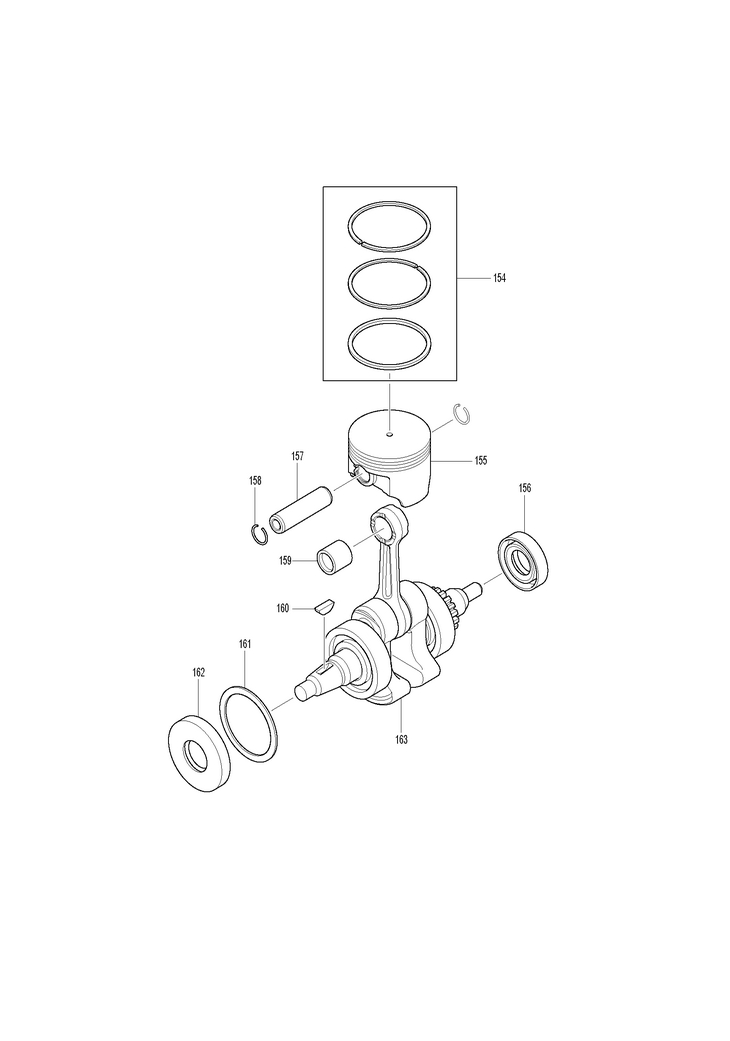

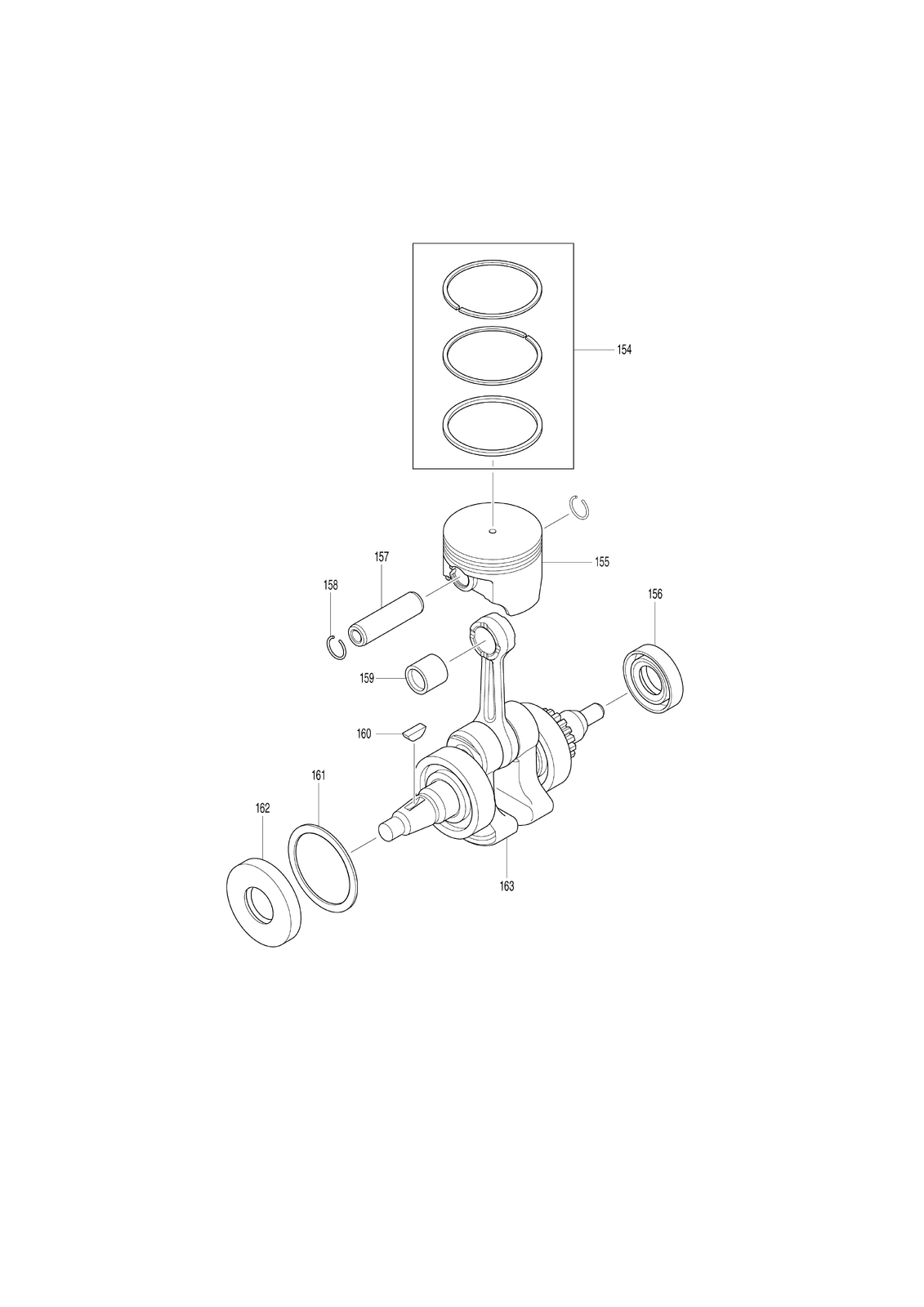

154 1 1 PISTON RING SET cod vechi 368200300 (5972003000) Indisponibil Indisponibil
155 1 1 PISTON (318726-3) 9282 RON
156 1 1 SIMERING ULEI? (213599-8) 3690 RON
157 1 1 5802500702 - Indisponibil
157 2 1 BOLT PISTON BBX7600 (257344-1) 105 RON
158 1 2 INEL EASTIC (233995-4) 223 RON
159 1 1 RULMENT CU ACE cod vechi 377012994 (0610129940) 3242 RON
160 1 1 WOODRUFF KEY (0323049950) 894 RON
161 1 1 SAIBA PLATA 41 (267448-1) 297 RON
162 1 1 SIMERING ULEI (213598-0) 190 RON
163 1 1 ANSAMBLU ARBORE COTIT BBX7600 (126576-0) 44067 RON
164 1 1 SUPAPA ADMISIE (331964-0) 7269 RON
165 1 1 SUPAPA EVACUARE (331965-8) 8723 RON
166 1 2 ARC COMPRESIE (234212-5) 558 RON
167 1 2 SAIBA RETINERE (331966-6) 782 RON
170 1 2 TIJA (256526-2) 105 RON
171 1 1 PIN 5 EM4350UH (256186-0) 334 RON
172 1 1 CAM LIFTER L (313266-6) 1677 RON
173 1 1 CAMGEAR ASSY cod vechi 383300200 (5973002002) 16664 RON
174 1 1 STIFT 5 AX cod vechi 367350010 (256200-2) 558 RON
175 1 1 DISTANTIER TOBA (331937-3) 670 RON
176 1 4 STIFT (331967-4) 334 RON
177 1 1 CAM LIFTER R (313267-4) 1565 RON
178 1 1 5973501302 - Indisponibil
178 2 1 GARNITURA ESAPAMNET BBX7600 (346682-7) 190 RON

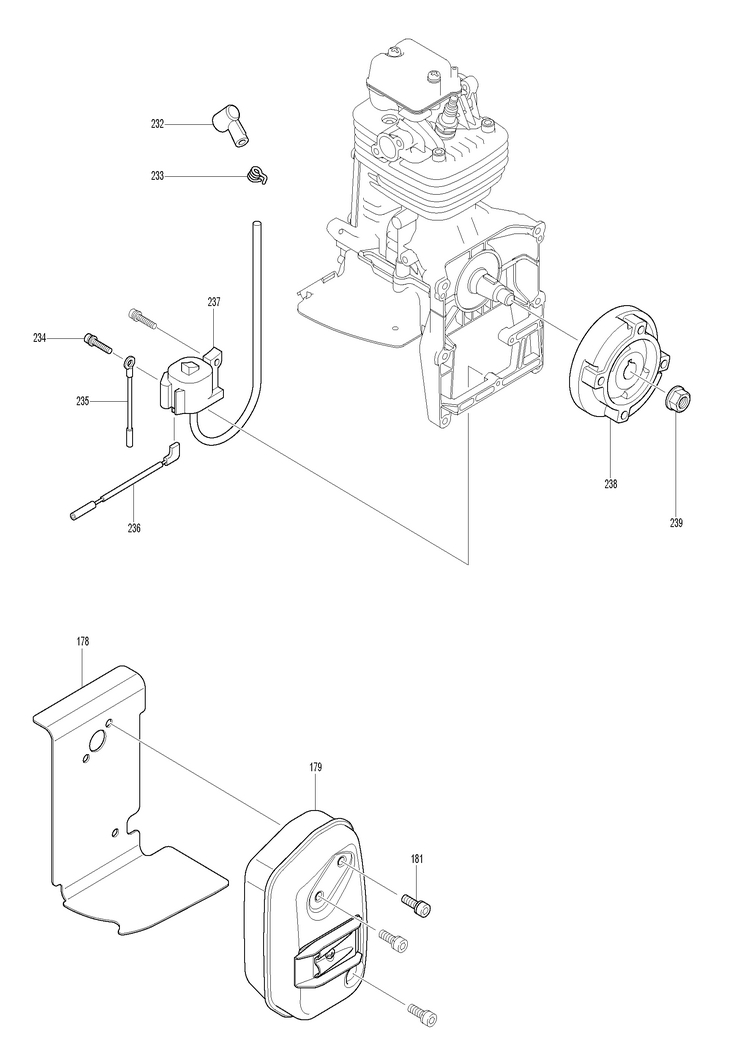

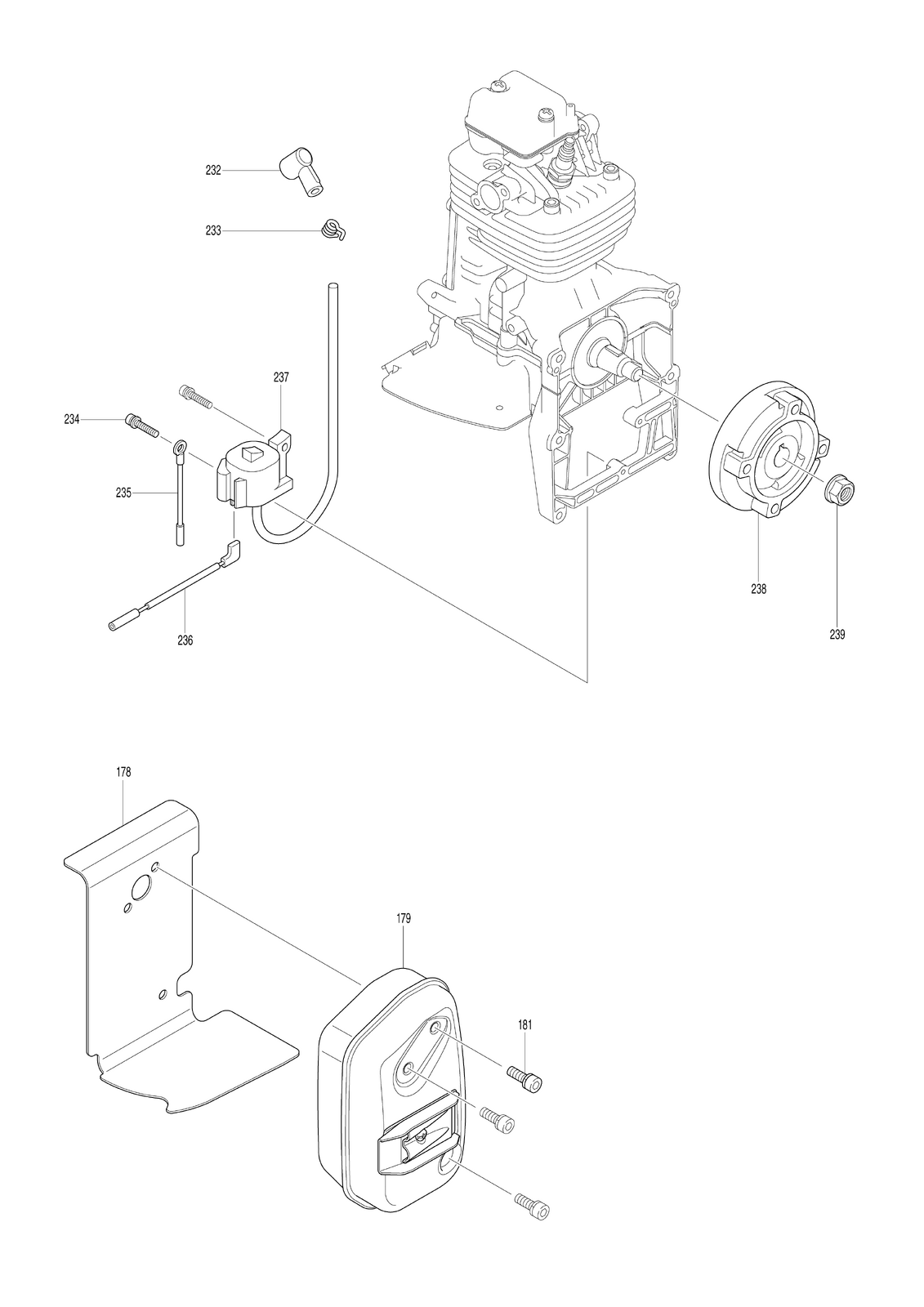

179 1 1 MUFFLER EXHAUST (5973001003) 13868 RON
181 1 3 SOCKET HEAD BOLT M6X18 (266771-1) 446 RON

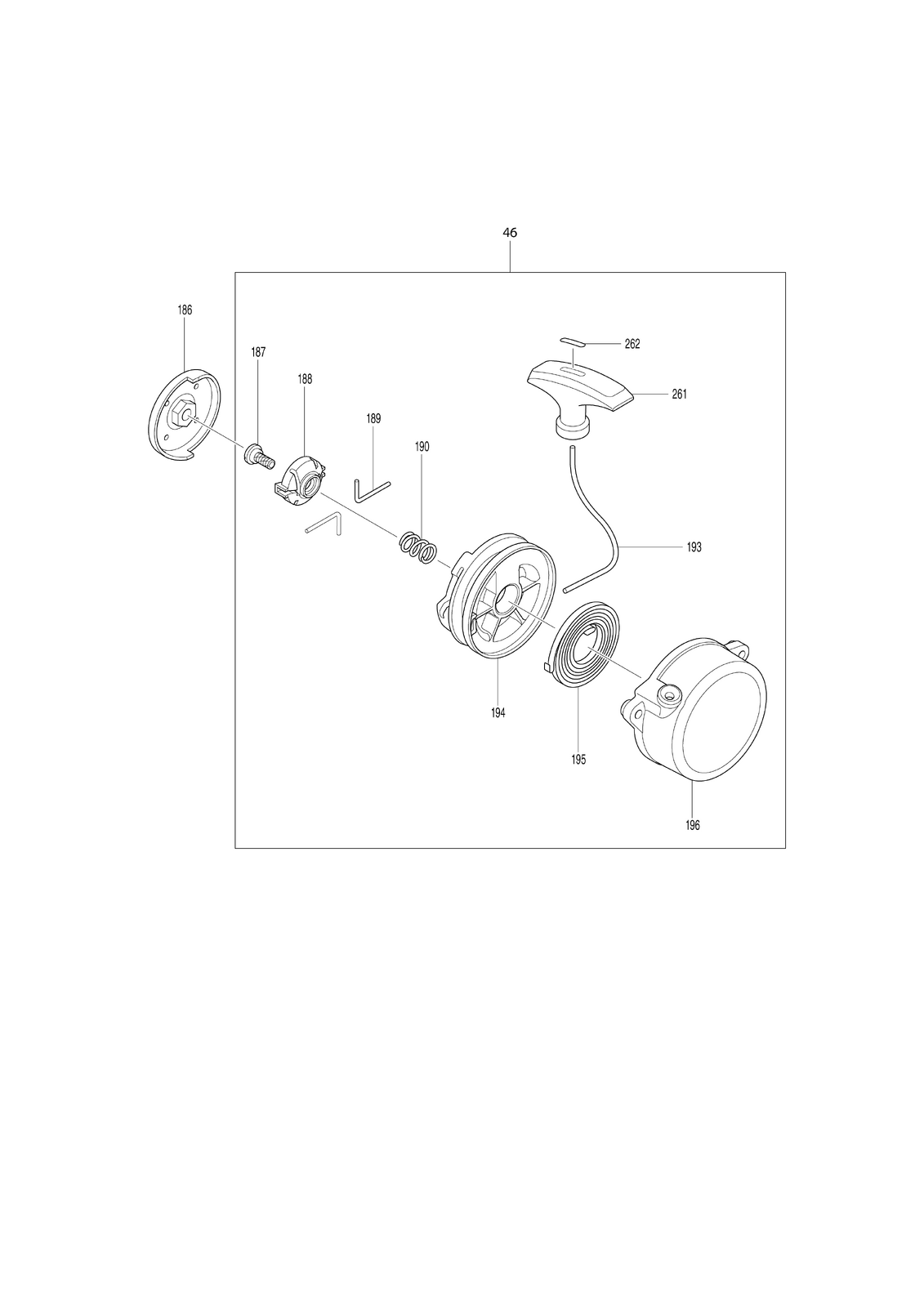

186 1 1 PULLEY cod vechi 382550000 (5975500000) 2795 RON
187 1 1 TAPPING SCREW 5X12 EM2651UH SURUB cod vechi 367500206 (266585-8) 781 RON
188 1 1 OPRITOR DE ARC (424516-5) 2571 RON
189 1 2 SWING ARM (326200-7) 2012 RON
190 1 1 FRICTION SPRING (234257-3) 2683 RON
193 1 1 FRANGHIE DE START (444043-6) 190 RON
194 1 1 REEL cod vechi 377500202 (441075-4) 3578 RON
195 1 1 SPIRAL SPRING cod vechi 377504003, 232262-4 (SG00000014) 3019 RON
196 1 1 STARTER CASE COMPLETE PM7650 (141649-8) 13085 RON

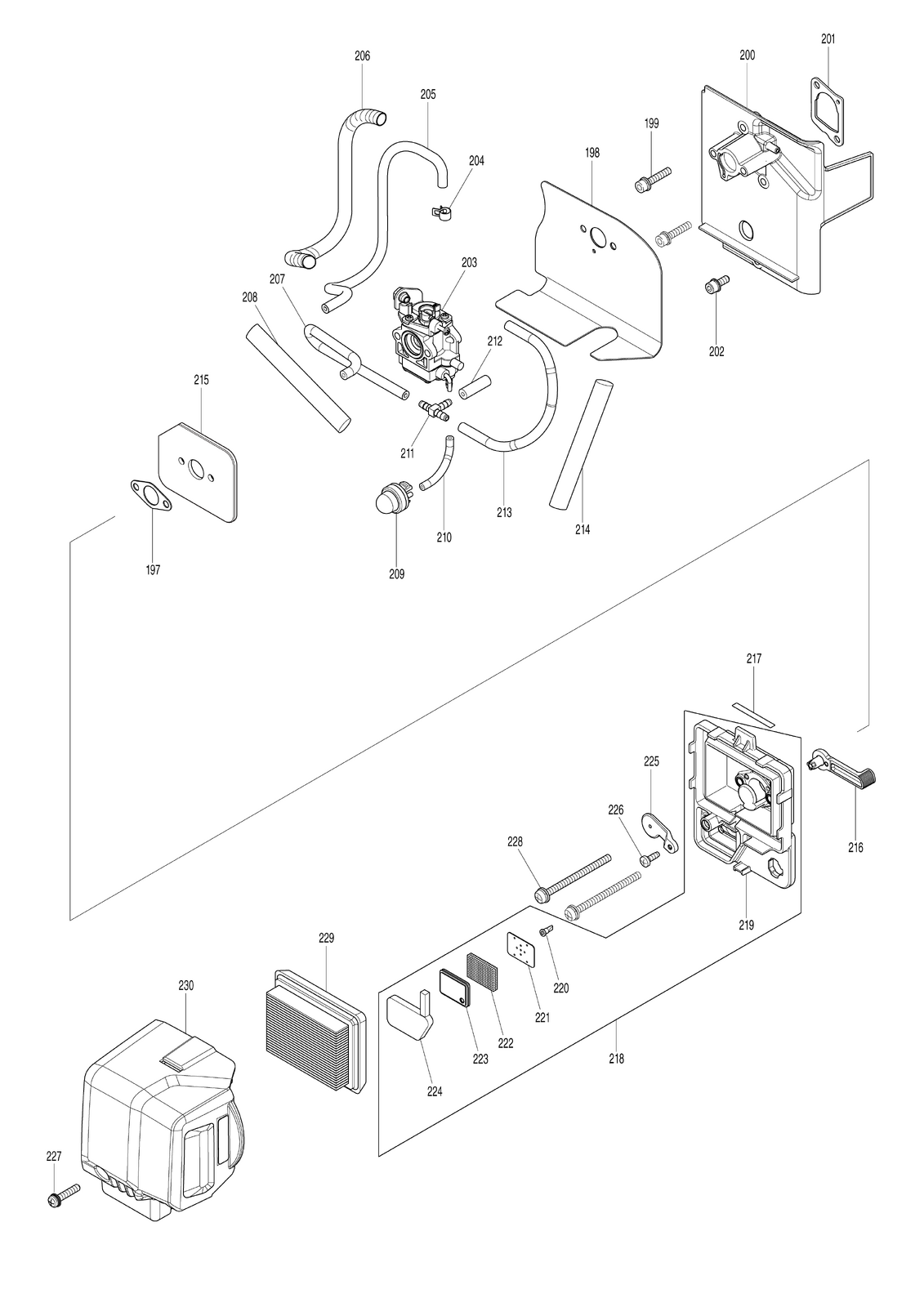

197 1 1 CARBURETOR GASKET RBC2500 (5233504200) 893 RON
198 1 1 CARBUR ETOR GASKET (423438-6) 1565 RON
199 1 2 HEX. S.H.B. M5X25 WITH WR (266749-4) 670 RON
200 1 1 INSULATOR COMPLETE PM7650H (141670-7) 5591 RON
201 1 1 INSULATOR GASKET (162333-2) 894 RON
202 1 1 SURUB INBUS M5X14 (W SW) RBC2500 (0119059490) 558 RON

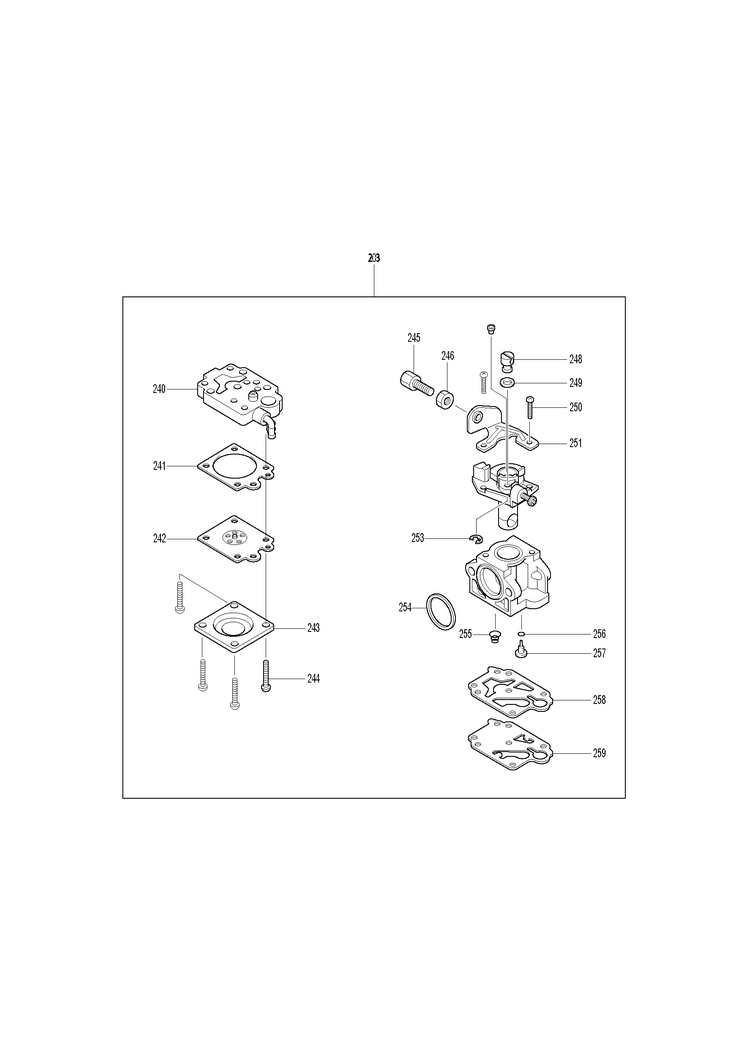

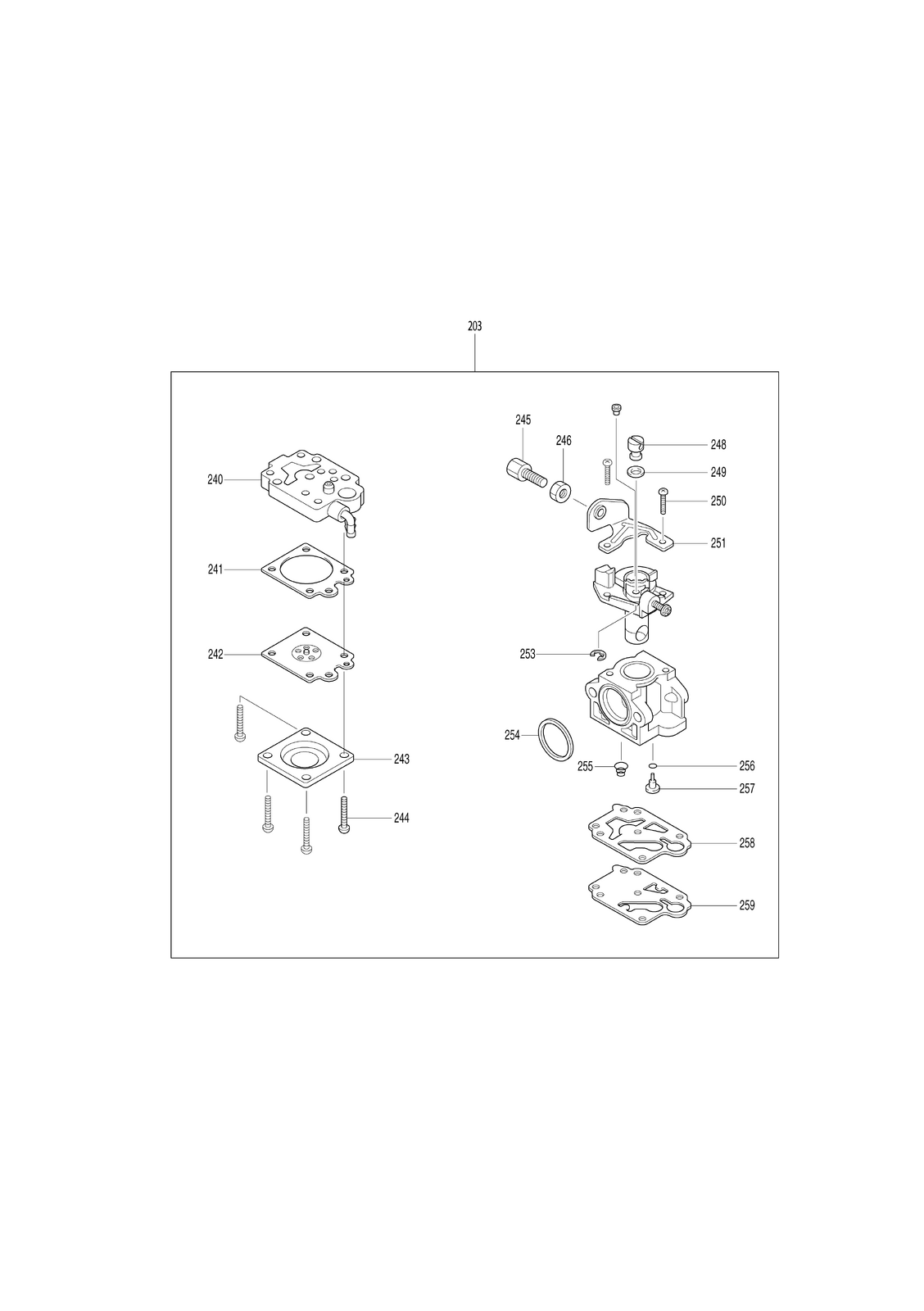

203 1 1 CARBURETOR (168725-3) 38475 RON
204 1 1 282027-4 - Indisponibil
205 1 1 TUBE 3-210 (412134-1) 105 RON
206 1 1 454190-5 - Indisponibil
207 1 1 TUBE 3-130 (412121-0) 670 RON
208 1 1 412123-6 - Indisponibil
209 1 1 POMPA AMORSARE COMPLETA DCS3501/4301 POMPA AMORSARE COMPLETA DCS3501/4301 cod vechi 302700322 PRIMER PUMP (168398-2) 4249 RON
210 1 1 TUBE 3-60 (412112-1) 334 RON
211 1 1 IMBINARE CONDUCTA (452952-5) 446 RON
212 1 1 TUBE cod vechi 377102993 (422096-5) 334 RON
213 1 1 TUBE 3-240 (412122-8) 1117 RON
214 1 1 TUBE 10-220 (412124-4) 670 RON
215 1 1 PLATE 31 (346582-1) 297 RON
216 1 1 CHOKE LEVER (453502-9) 1565 RON
217 1 1 814P65-0 - Indisponibil
218 1 1 126149-9 - Indisponibil
219 1 1 A IR CLEANER PLATE (453501-1) 573 RON
220 1 1 SUPAPA ULEI cod vechi 367350240 Check Valve EM2651UH (424316-3) 3577 RON
221 1 1 SEPARATOR GASKET (162325-1) 446 RON
222 1 1 352013-0 - Indisponibil
223 1 1 SEPARATOR STOPPER EJ2650LHG (162322-7) 2571 RON
224 1 1 SEPARATOR PLATE EM2651UH (162324-3) 4137 RON
225 1 1 CHOKE PLATE cod vechi 388350170 (5973501700) 782 RON
226 1 1 TAPPING SCREW 4X12 EM2651UH (266427-6) 558 RON
227 1 1 SURUB M5X25 (911243-8) 558 RON
228 1 2 PAN HEAD SCREW M5X70 (911293-3) 446 RON
229 1 1 FILTRU AER EM4350UH (442181-8) 8164 RON
230 1 1 AIR CLEANER COVER COMPLETE PM7650 (141525-6) 5256 RON
232 1 1 PLUG CAP EBH252U FISA BUJIE BHX2500 cod vechi 5927500100 (424105-6) 669 RON
233 1 1 ARC FIXARE CABLU BUJIE cod vechi 0654009931 PLUG CAP SPRING EM2651UH (324891-8) 446 RON
234 1 2 SURUB INBUS M4X20 RBC3101 EVH2000 SURUB M4X20 WG EBH252/253 MS245.4 BUR181 cod vechi 911139-3 SURUB M4X20 WG EBH252/253 MS245.4 BUR181 cod vechi 911139-3 (Duplicat_0119049970) 446 RON
235 1 1 Wire 1 RBC2500 (638784-6) 105 RON
236 1 1 CONDUCTOR ELECTRIC 2 BHX2500 cod vechi 5927011000 (638710-5) 670 RON
237 1 1 BOBINA DE INDUCTIE cod vechi 377700101 (5977001010) 18118 RON
238 1 1 ANSAMBL VOLANTA cod vechi 377700102 (5977001020) 11631 RON
239 1 1 PIULITA CU FLANSA (264054-3) 223 RON
240 1 1 PUMP BODY ASSEMBLY PM7651H EB7650TH (141672-3) 12190 RON
241 1 1 GARNITURA DCS 230T cod vechi WJ00092192 (442183-4) 1453 RON
242 1 1 MEMBRANA NIVEL EBH252U ANS. MEMBRANA cod vechi 367168574 METERING DIAPHRAGM EM2651UH MEMBRANE CARBURATOR DBC260U cod vechi 5266009010 cod vechi 168620-7 (DA00001148) Indisponibil Indisponibil
243 1 1 Cover (WJ00021158) 190 RON
244 1 4 Screw (WJ00096325) 2124 RON
245 1 1 ADJUST SCREW RBC420E (266795-7) 1565 RON
246 1 1 ADJUST NUT RBC2500 (264065-8) 894 RON
248 1 1 SWIVEL EM2651UH PIVOT cod vechi 367325922 (325922-6) 3689 RON
249 1 1 SAIBA cod vechi 367600503 WASHER EM2651UH (413140-9) 1676 RON
250 1 2 THROTTLE COLLAR SCREW RBC2500 (266704-6) 105 RON
251 1 1 BRACKET CABLE RBC2500 (346491-4) 488 RON
253 1 1 STOP RING E-3 EM2651UH SAIBA DE SIGURANTA cod vechi 367257964 (257964-1) 894 RON
254 1 1 SET INELE RBC2500 (424444-4) 1677 RON
255 1 1 CONICAL COMPRESSION SPRING EM2651UH ARC PT. POMPA cod vechi 367234183 (234183-6) 2235 RON
256 1 1 O RING 2 EM2651UH ORING cod vechi 367213538 (213538-8) 1788 RON
257 1 1 JET (326243-9) 4361 RON
258 1 1 GARNITURA DE POMPA cod vechi 367442155 GARNITURA MEMBANA POMPA EBH252U (442155-9) 1229 RON
259 1 1 MEMBRANA POMPA EBH252U cod vechi 168575-6 MEMBRANA BHX2500 PUMP DIAPHRAGM (WJ00009599) Indisponibil Indisponibil
261 1 1 MANER START EM4350UH (424361-8) 1677 RON
262 1 1 STOPPER cod vechi 388500103 (424360-0) 1788 RON
263 1 1 BURETE 12 PM7650H (423467-9) 446 RON
270 1 5 SURUB 4X18 cod vechi 266326-2 SURUB AUTOFILETANT 4X18 (265995-6) 558 RON
271 1 1 CARCASA MANETA SET PM7651 (183A32-9) 35119 RON
272 1 1 CABLU CONTROL EB7650T (168843-7) 2795 RON
273 1 1 COMPRESSION SPRING 4 BSS610 (231469-9) 894 RON
274 1 1 MANETA ACCELERATIE PM7651 (455648-7) 6822 RON
275 1 1 HEX. LOCKING NUT M4-7 MT081 (252126-6) 894 RON
276 1 1 LEAF SPRING CL102D (232264-0) 69233 RON
277 1 1 CONEXIUNE ACCELERATIE PM7651 (455651-8) 3019 RON
278 1 1 MANETA PM7651 (455649-5) 6822 RON
279 1 1 ARC TORSIUNE 7 EBH253U (233541-3) 558 RON
280 1 1 COMPRESSION SPRING 4 BSS610 (231469-9) 894 RON
281 1 1 OPRITOR PM7651 (455652-6) 3242 RON
282 1 1 SWITCH UNIT (638642-6) 6822 RON
283 1 1 FIRE CONEXIUNE (632C07-2) 190 RON
284 1 1 SURUB M4*20 PM7651 (266935-7) 223 RON
285 1 1 SUPORT CABLU PM7651 (455653-4) 5368 RON
286 1 1 AJUSTOR PM7651 (455654-2) 4137 RON
287 1 1 CARCASA MANETA SET PM7651 (183A32-9) 35119 RON
288 1 1 SURUB M5*30 MT370 (265762-9) 334 RON
289 1 1 MANETA 43 PM7651 (455650-0) 3578 RON
290 1 1 SAIBA ONDULATA 6 (253903-9) 558 RON
291 1 1 SAIBA PLATA 5 (267010-2) 334 RON
292 1 1 SURUB M4*20 PM7651 (266935-7) 223 RON
293 1 1 456235-5 - Indisponibil
294 1 1 BLIND PACKING PM7651 (424760-4) Indisponibil Indisponibil
295 1 1 CARCASA SITA PM7651 (456173-1) 2795 RON
296 1 1 RACORD SITA PM7650H (453559-0) 3466 RON
297 1 2 SURUB PT 3X16 TAPPING SCREW 3X16 MT081 cod vechi 266429-2 (266130-9) 558 RON
298 1 1 CAPAC FURTUN PM7650 (453616-4) 782 RON
1001 1 1 163319-9 - Indisponibil
1002 1 1 782237-8 - Indisponibil
1003 1 1 783019-1 - Indisponibil
1004 1 1 Oil Bottle EBH252U EM2651UH (242072-1) 2460 RON
1005 1 4 COLIER FURTUN 76 PM7650 (282024-0) 1565 RON
1006 1 1 COLIER FURTUN 100 PM7650 (282025-8) 1677 RON
1007 1 1 412115-5 - Indisponibil
1008 1 1 TEAVA DREAPTA 630 PM7650H (453699-4) 3242 RON
1009 1 1 326214-6 - Indisponibil
1010 1 1 453507-9 - Indisponibil

Conditii Generale
