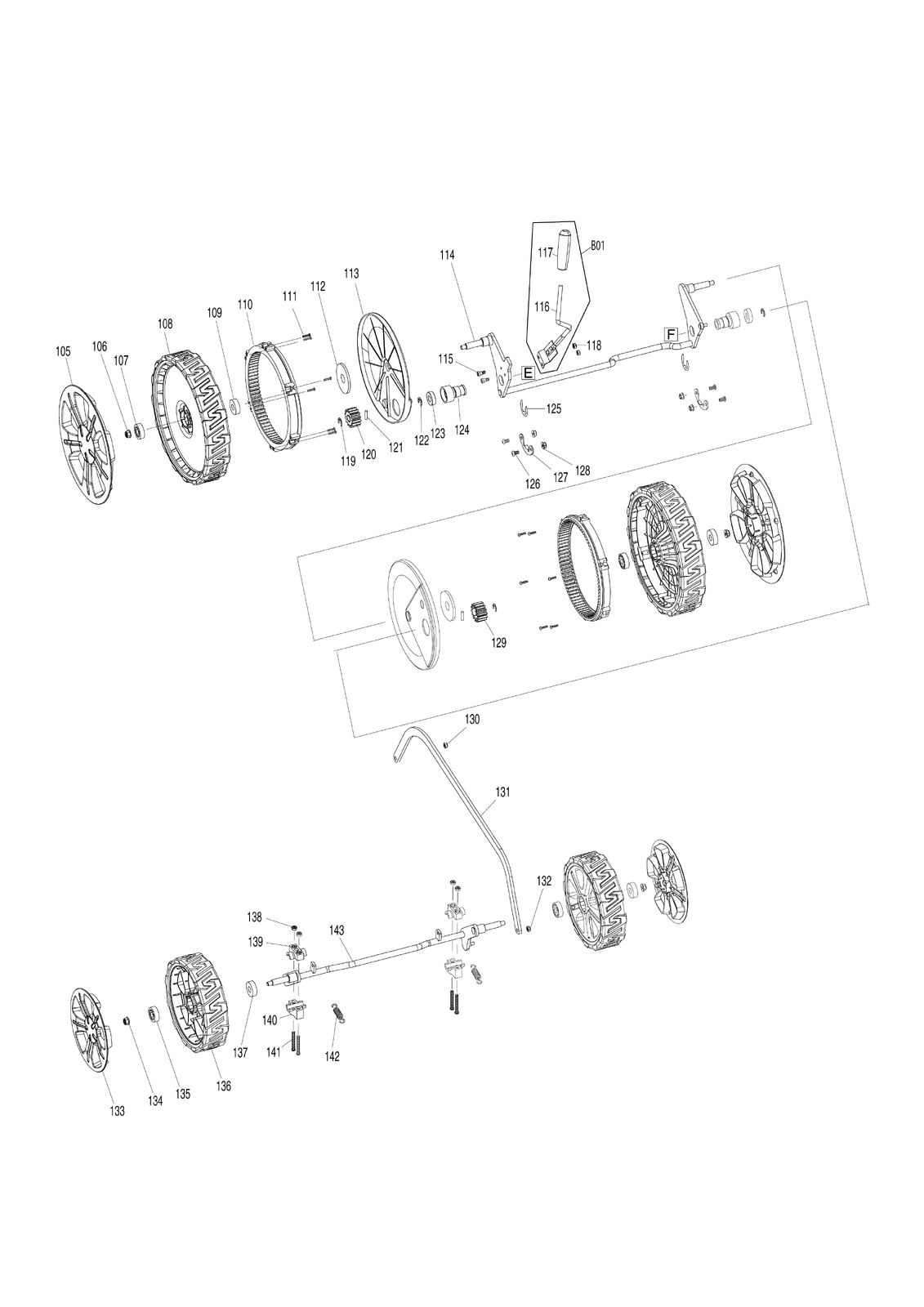

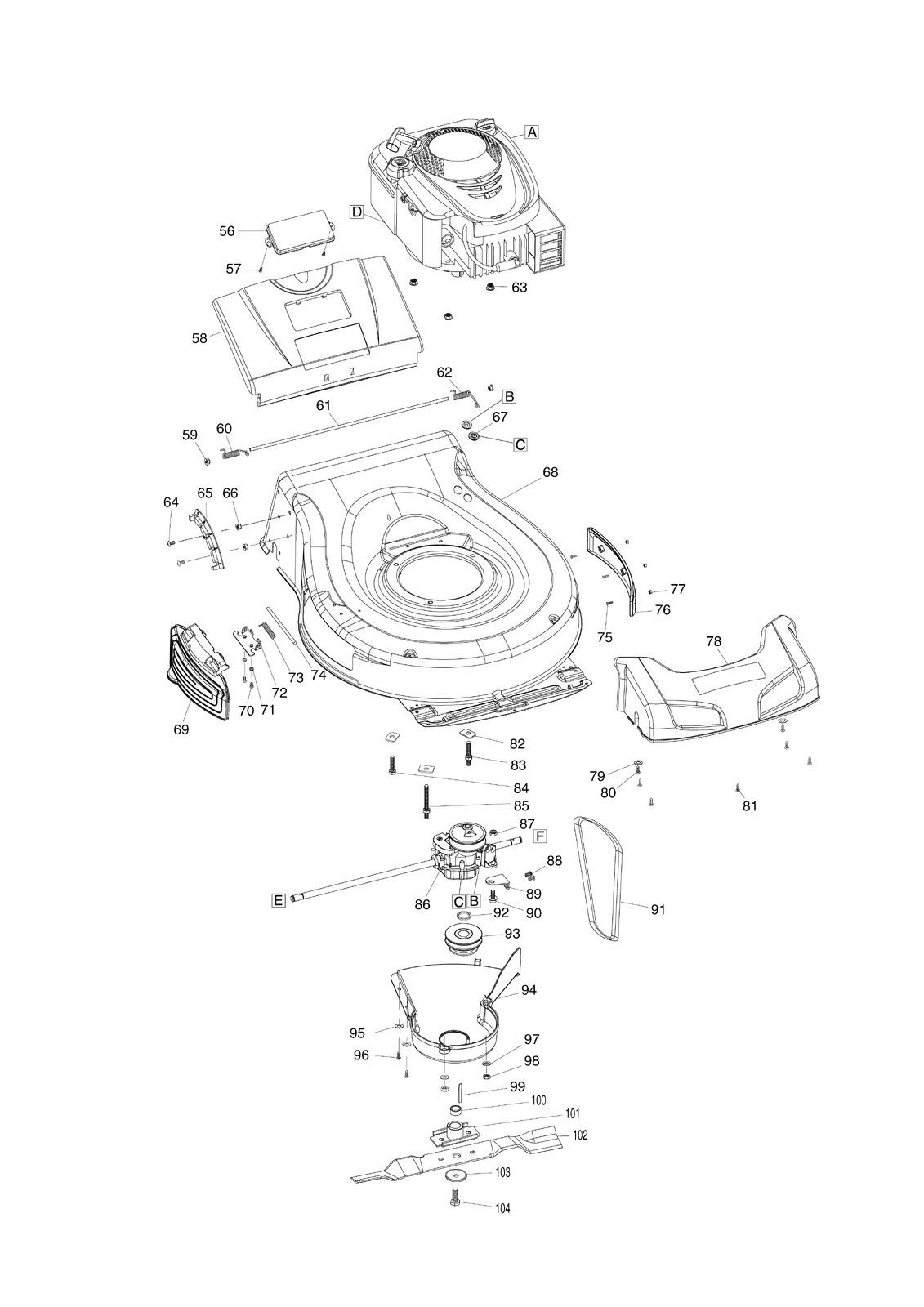

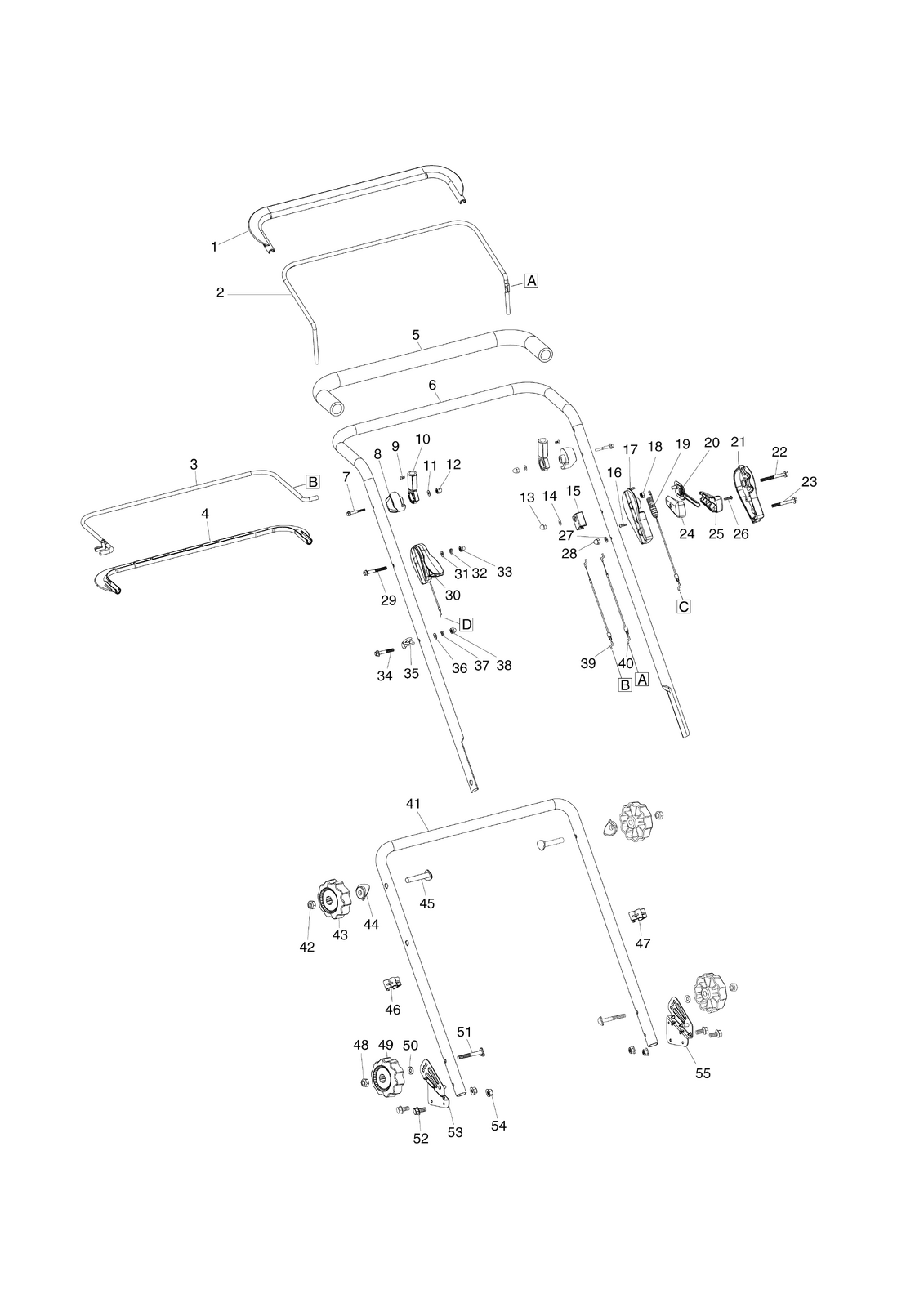

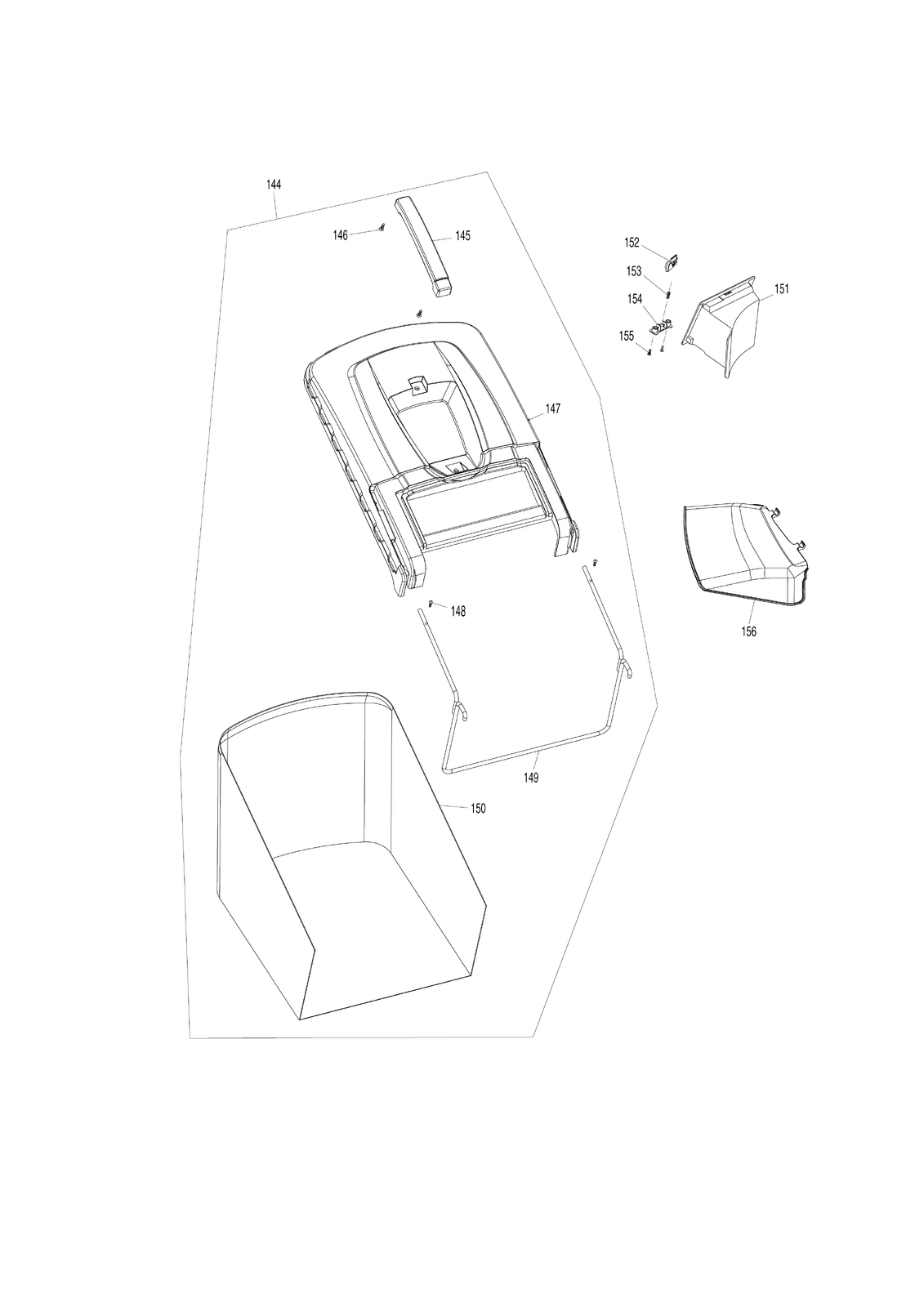

Top » Piese de schimb » PIESE MAKITA » Makita - Gazon » PM5600S3 PM5600S3 [PM5600S3] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara A01 0 1 21mm BOX SPANNER PLM4610 (671001078) 1788 RON A02 0 1 DA00000584 - Indisponibil 001 0 1 LEVER MOTOR BRAKE ASSY PLM5600 (671020120) 9618 RON 002 0 1 FRAMEOUT PULLING POLE (671002293) 6262 RON 003 0 1 DRIVING PULLING POLE (671002294) 5815 RON 004 0 1 LEVER DRIVING ASSY PLM5600 (671020110) 8276 RON 005 0 1 DA00000580 - Indisponibil 006 0 1 UPPER HANDLE POLE (671001868) 2274 RON 007 0 2 HEXAGON FLANGE BOLT PLM5600 (671006029) 446 RON 008 0 2 POSITION FIXING SUPPORT PLM5600 (671990001) 894 RON 009 0 2 SURUB M4X8 (671002025) 446 RON 010 0 2 PLUG-IN OF HANDLE PLM5600 (671989001) 105 RON 011 0 2 FLAT WASHER PLM5600 (671007070) 446 RON 012 0 2 PIULITA (DA00000575) 262 RON 013 0 1 PIULITA (DA00000575) 262 RON 014 0 1 DA00000574 - Indisponibil 015 0 1 PLACA DE FIXARE CABLURI PLM4817 (DA00000573) 35 RON 016 0 1 SURUB AUTOFILETANT (DA00000826) 086 RON 017 0 1 SWITCH BOX UPPER COVER PLM5600 (671827001) 1453 RON 018 0 1 DA00000549 - Indisponibil 019 0 1 CONTROL CABLE(3-GEAR) PLM5600 (671001243) 14651 RON 020 0 1 SWITCH LEVER PLM5600 (671002279) 1788 RON 021 0 1 SWITCH BOX LOWER COVER PLM5600 (671828001) 1229 RON 022 0 1 DA00000572 - Indisponibil 023 0 1 HEXAGON FLANGE BOLT PLM5600 (671006082) 558 RON 024 0 1 VARIABLE ADJUST HANDLE (DA00000870) 393 RON 025 0 1 VARIABLE ADJUST HANDLE UP (DA00000869) 393 RON 026 0 1 SURUB AUTOFILETANT PLM5113 (DA00000873) 223 RON 027 0 1 DA00000574 - Indisponibil 028 0 1 PIULITA (DA00000575) 262 RON 029 0 1 HEXAGON FLANGE BOLT PLM5600 (671006082) 558 RON 030 0 1 671106202 - Indisponibil 031 0 1 DA00000574 - Indisponibil 032 0 1 SAIBA ELASTICA PLM4627 (DA00000576) 223 RON 033 0 1 PIULITA (DA00000575) 262 RON 034 0 1 HEXAGON FLANGE BOLT (DA00000577) 236 RON 035 0 1 DA00000579 - Indisponibil 036 0 1 DA00000574 - Indisponibil 037 0 1 SAIBA ELASTICA PLM4627 (DA00000576) 223 RON 038 0 1 PIULITA (DA00000575) 262 RON 039 0 1 CONTROL CABLE (WHEEL DRIVE) PLM5600 (671001242) 14651 RON 040 0 1 BOWDEN CABLE THREAD MOTOR BRAKE PLM5600 (671001241) 1615 RON 041 0 1 LOWER HANDLE PLM5600 (671001869) 1615 RON 042 0 2 PIULITA cod vechi 671005007 (DA00000563 ) 781 RON 043 0 2 ROTITA PLASTIC (DA00000564) 1311 RON 044 0 2 SAIBA CURBATA SERIE PLM (DA00000924) 175 RON 045 0 2 DA00000569 - Indisponibil 046 0 1 DA00001170 - Indisponibil 047 0 1 DA00001170 - Indisponibil 048 0 2 PIULITA cod vechi 671005007 (DA00000563 ) 781 RON 049 0 2 ROTITA PLASTIC (DA00000564) 1311 RON 050 0 2 SAIBA PLATA (671007007) 446 RON 051 0 2 SURUB M8X35 cod vechi 671006118 FLAT HEAD BOLT (DA00000880) 1340 RON 052 0 4 DA00000562 - Indisponibil 053 0 1 671001829 - Indisponibil 054 0 4 PIULITA M8 CU AUTOBLOCARE (DA00000537) 214 RON 055 0 1 671018270 - Indisponibil 056 0 1 VIZOR PT COS PLM4627 (671385001) 1788 RON 057 0 2 SURUB AUTOFILETANT 4X12 PLM4627 (671010710) 334 RON 058 0 1 REAR FLAP PLM5600 (671004613) 10960 RON 059 0 2 ALL METAL HEXAGON FLANGE LOCKNUT (DA00000543) 157 RON 060 0 1 SPRING RIGHT PLM5600 (671011229) 1117 RON 061 0 1 LONG POLE PLM5600 (671001484) 1788 RON 062 0 1 SPRING LEFT PLM5600 (671011228) 1117 RON 063 0 3 PIULITA M8 CU AUTOBLOCARE (DA00000537) 214 RON 064 0 2 SURUB M6X12 (671002019) 558 RON 065 0 1 PLACA DE REGLARE A INALTIMII (DA00000791) 1652 RON 066 0 2 ALL METAL HEXAGON FLANGE LOCKNUT (DA00000543) 157 RON 067 0 2 MANSON CAUCIUC PLM4627 (671800104) 334 RON 068 0 1 671001878 - Indisponibil 069 0 1 SIDE DISCHARGE COVER PLM5600 (671406001) 382 RON 070 0 2 TRIGGER BOLT ELM4613 (671002010) 558 RON 071 0 2 SAIBA (DA00000198) 223 RON 072 0 1 FIXED PLATE PLM4617/4618 (671002183) 894 RON 073 0 1 ARC TORSIUNE PLM4627 (671111300) 105 RON 074 0 1 AX PLM4627 (671001019) 1453 RON 075 0 3 CROSS RECESS BOLT PLM5600 (671006085) 446 RON 076 0 1 DA00000878 - Indisponibil 077 0 3 HEX NUT M4 UR3000 (DA00000033) 558 RON 078 0 1 FRONT COVER PLM5600 (671825001) 11855 RON 079 0 2 WASHER PLM5600 (671007004) 334 RON 080 0 2 SURUB CU AUTOSTRANGERE (DA00000888) 175 RON 081 0 5 SURUB AUTOFILETANT PLM4627 (671001037) 446 RON 082 0 3 DA00000582 - Indisponibil 083 0 1 DA00000617 - Indisponibil 084 0 1 DA00000586 - Indisponibil 085 0 1 SPECIAL SCREW PLM5113 (671003024) 3019 RON 086 0 1 GEAR BOX PLM5600 (671502027) 54246 RON 087 0 1 DA00000549 - Indisponibil 088 0 2 DA00000553 - Indisponibil 089 0 1 FIXING PLATE PLM5600 (671002297) 1341 RON 090 0 1 FIXED BOLT PLM5600 (671006181) 105 RON 091 0 1 V-BELT PLM5600 (671002065) 6710 RON 092 0 1 FLAT WASHER PLM5600 (671002351) 1341 RON 093 0 1 PULLEY PLM5600 (671004019) 22928 RON 094 0 1 BELT COVER PLM5600 (671560001) 4920 RON 095 0 2 WASHER PLM5600 (671008011) 334 RON 096 0 2 SURUB AUTOFILETANT PLM4627 (671001037) 446 RON 097 0 2 SAIBA PLATA (671007007) 446 RON 098 0 2 M8 HEXAGONAL LOCKING NUT ELM4611 (671005008) 446 RON 099 0 1 PANA (671090002) Indisponibil Indisponibil 100 0 1 BLADE SLEEVE PLM5600 (671002089) 782 RON 101 0 1 SUPORT CUTIT PLM4610,4611,4612,5102 cod vechi 671001525 SUPORT CUTIT PLM4610,4611,4612,5102 (671015252) 7381 RON 102-1 1 1 CUTIT PLM5600 cod vechi 671002532 (DA00001275) 12862 RON 102 0 1 CUTIT PLM5600 (671002532) 763 RON 103 0 1 DA00000529 - Indisponibil 104 0 1 BLADE TIGHTEN SCREW PLM4620 (671006065) 4025 RON 105 0 2 WHEEL COVER PLM5113 (671001322) 5256 RON 106 0 2 PIULITA M8 CU AUTOBLOCARE (DA00000537) 214 RON 107 0 2 RULMENT (DA00000538) 1419 RON 108 0 2 ROATA PLM5102 (671002021) 18118 RON 109 0 2 RULMENT (DA00000538) 1419 RON 110 0 2 GEAR WHEEL PLM5600 (671200010) 6710 RON 111 0 12 SURUB AUTOFILETANT (DA00000603) 071 RON 112 0 2 BIG WASHER PLM5600 (671007065) 1117 RON 113 0 2 INNER WHEEL COVER PLM5600 (671251800) 4025 RON 114 0 1 REAR WHEEL AXLE PLM5600 (671002296) 32435 RON 115 0 2 SURUB M6X14 PLM4627 (671002030) 670 RON 116 0 1 HANDLE ASSY (DA00000879) 1224 RON 117 0 1 SUPORT MANER (DA00001058) 1048 RON 118 0 2 DA00000549 - Indisponibil 119 0 2 SAFETY WASHER RONDELLE ELM4611 cod vechi 671090020 (DA00000604 ) 446 RON 120 0 1 DA00000607 - Indisponibil 121 0 2 5x21.5 CYLINDRICAL PIN ELM4611 cod vechi 671090001 (DA00000597) 446 RON 122 0 2 SAFETY WASHER RONDELLE ELM4611 cod vechi 671090020 (DA00000604 ) 446 RON 123 0 2 RULMENT PLM5113 (DA00001029) 1788 RON 124 0 2 BEARING SHEATH (DA00000610) 1831 RON 125 0 2 DA00000612 - Indisponibil 126 0 4 SURUB M6X12 (671002019) 558 RON 127 0 2 FIXING RING FOR WHEEL AXIS (DA00000542) 320 RON 128 0 4 ALL METAL HEXAGON FLANGE LOCKNUT (DA00000543) 157 RON 129 0 1 ROATA DINATA 14 TRACTIUNE ST. (DA00000605) 1648 RON 130 0 1 DA00000549 - Indisponibil 131 0 1 LINK ROD PLM5600 (671002292) 4473 RON 132 0 1 DA00000549 - Indisponibil 133 0 2 WHEEL COVER (DA00000536) 1190 RON 134 0 2 PIULITA M8 CU AUTOBLOCARE (DA00000537) 214 RON 135 0 2 RULMENT (DA00000538) 1419 RON 136 0 2 8 inch WHEEL ASSY. PLM4610 (671020160) 11631 RON 137 0 2 RULMENT (DA00000538) 1419 RON 138 0 4 DA00000549 - Indisponibil 139 0 2 SUPORT RULMENT ELM/PLM (671445001) 105 RON 140 0 2 AXLE SHEATH PLM5600 (671076001) 1453 RON 141 0 4 HEXAGON BOLT PLM5600 (671006002) 558 RON 142 0 2 TENSION SPRING PLM5600 (671011087) 782 RON 143 0 1 FRONT WHEEL AXLE PLM5600 (671002295) 27290 RON 144 0 1 671005164 - Indisponibil 145 0 1 MANER COS DE IARBA PLM4627 (671384001) 1677 RON 146 0 2 SURUB AUTOFILETANT PLM4627 (671001037) 446 RON 147 0 1 GRASS-BOX UPPER PLM5600 (671409001) 14651 RON 148 0 2 SURUB 4 2X18 PLM4627 (671001032) 446 RON 149 0 1 FRAME PLM5600 (671001382) 17783 RON 150 0 1 671137910 - Indisponibil 151 0 1 MULCHING KIT PLM5600 (671315001) 1700 RON 152 0 1 PLACA DE PRESIUNE ELM/PLM (671317001) 558 RON 153 0 1 ARC (671011005) 1565 RON 154 0 1 BUTON DE BLOCARE (671316004) 781 RON 155 0 2 SURUB AUTOFILETANT (DA00000603) 071 RON 156 0 1 PROTECTION COVER PLM5600 (671065001) 10177 RON
