PETROL LAWN MOWER MAKITA PM4601S3
[PM4601S3]
PETROL LAWN MOWER MAKITA PM4601S3
Click pentru a mari
Imagini suplimentare
PETROL LAWN MOWER MAKITA PM4601S3
Click pentru a mari
PETROL LAWN MOWER MAKITA PM4601S3
Click pentru a mari

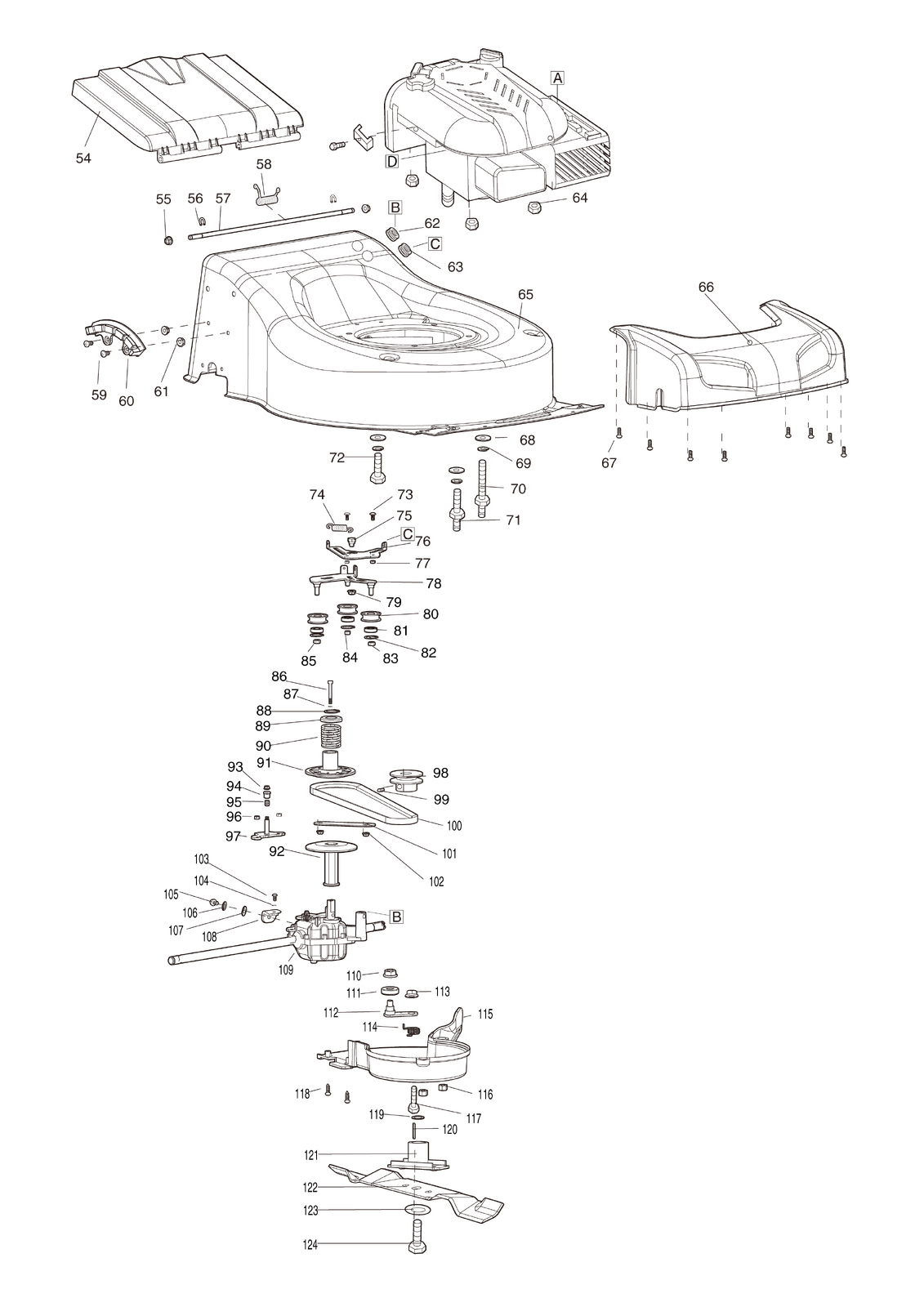

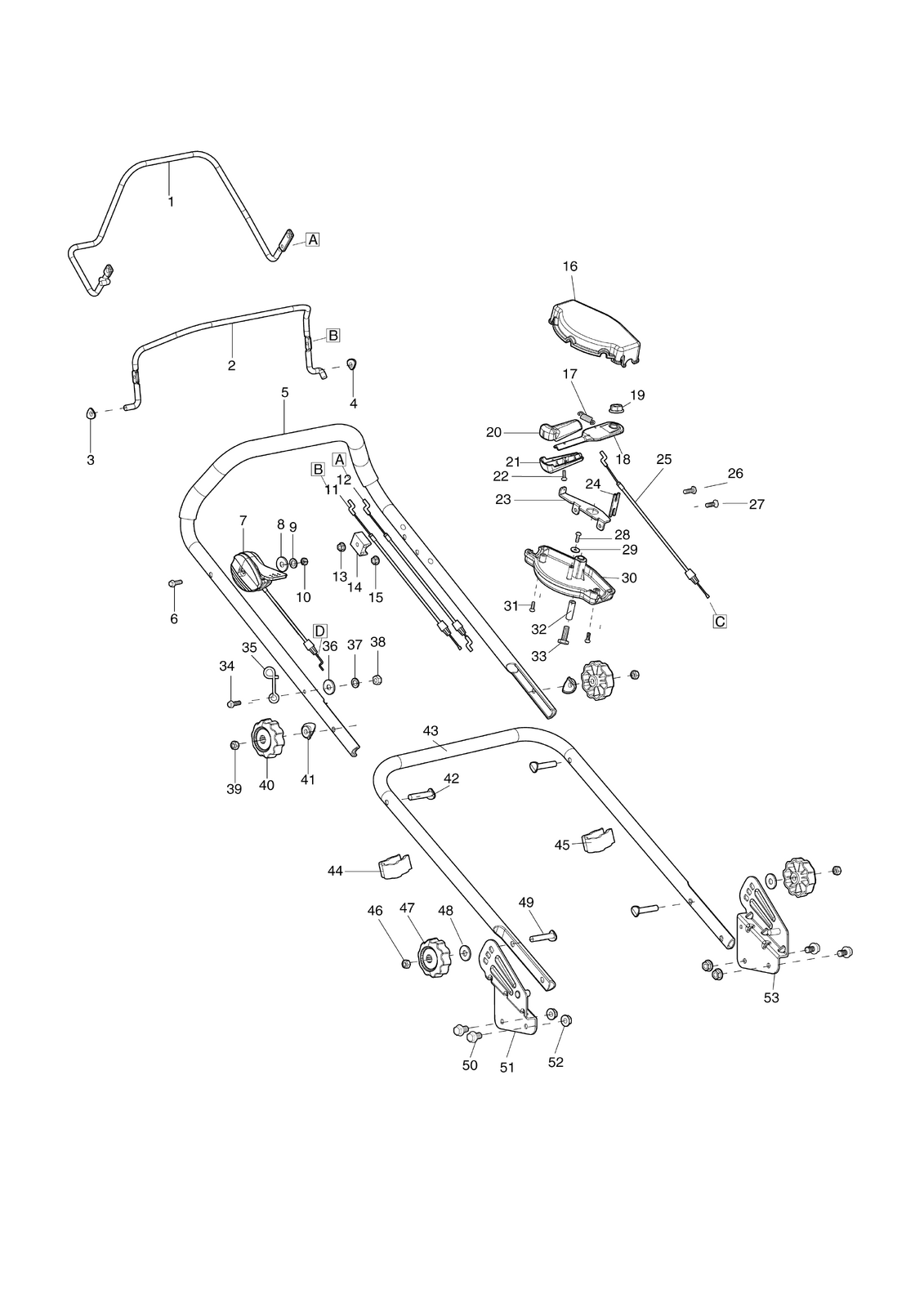

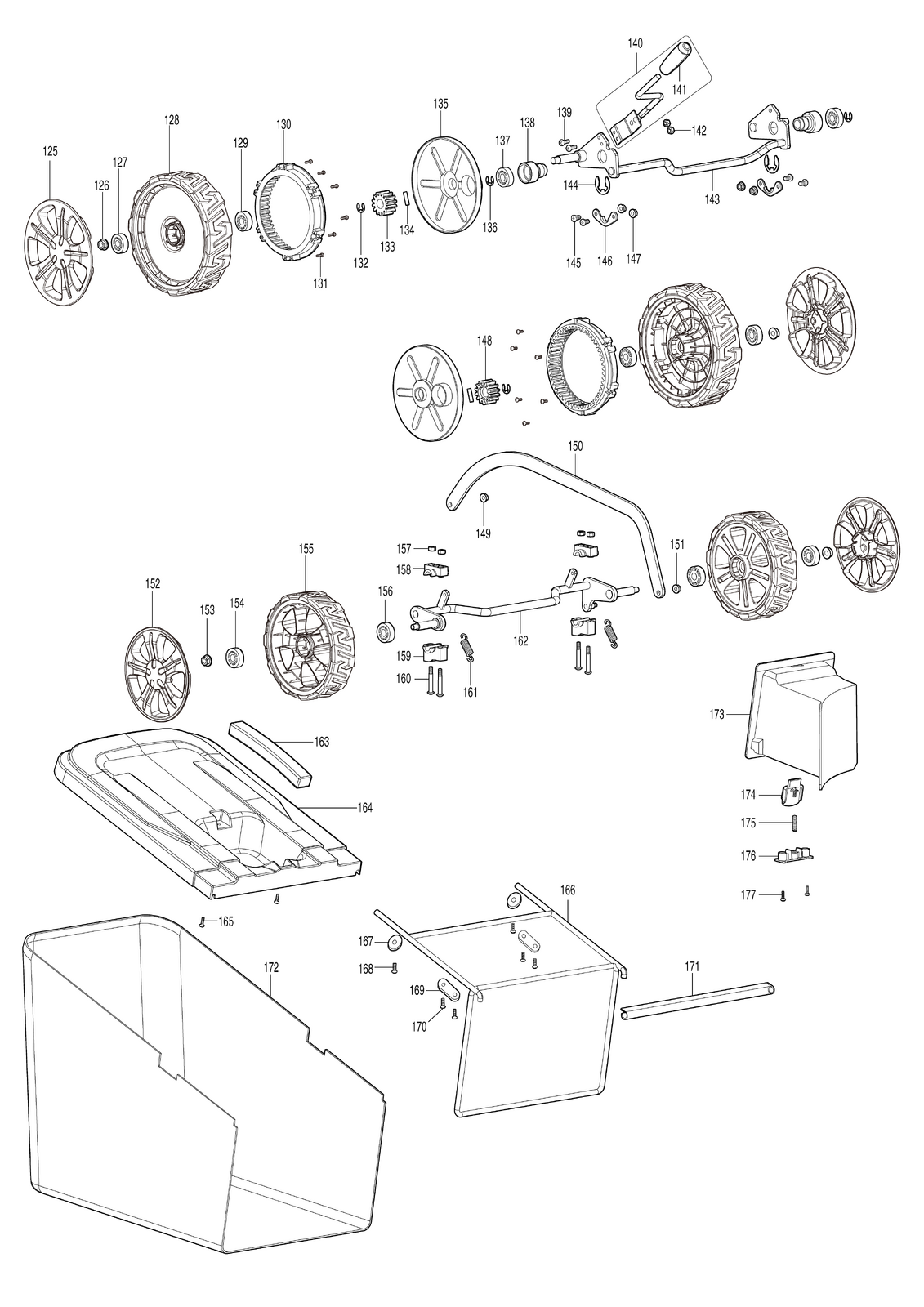

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
C10 0 1 TENSION SPRING (671011180) 4249 RON
A01 0 1 21mm BOX SPANNER PLM4610 (671001078) 1788 RON
A02 0 1 DA00000584 - Indisponibil
001 0 1 LEVER, DRIVING PLM5113 (DA00000964) 2923 RON
002 0 1 LEVER, MOTOR BRAKE PLM4610/4620/5113 (DA00000961) 2523 RON
003 0 1 PRESSING PLATE PLM5113 (671001524) 670 RON
004 0 1 PRESSING PLATE PLM5113 (671001524) 670 RON
005 0 1 HANDLE UPPER PART PLM4622 (671002002) 20579 RON
006 0 1 HEXAGON FLANGE BOLT PLM5600 (671006082) 558 RON
007 0 1 PARGHIE ACCELERATIE EM/ELM (671001137) 12079 RON
008 0 1 DA00000574 - Indisponibil
009 0 1 DA00000864 - Indisponibil
010 0 1 PIULITA (DA00000575) 262 RON
011 0 1 CABLU TRACTIUNE PLM5102 (671001115) 25164 RON
012 0 1 CABLU TRACTIUNE PLM4611 PLM5113 (DA00000977) 382 RON
013 0 1 ALL METAL HEXAGON FLANGE LOCKNUT (DA00000543) 157 RON
014 0 1 PLACA DE FIXARE CABLURI PLM4817 (DA00000573) 35 RON
015 0 1 ALL METAL HEXAGON FLANGE LOCKNUT (DA00000543) 157 RON
016 0 1 CASE RIGHT PLM5113 (671470002) 2012 RON
017 0 1 SPRING OF SPEED ADJUSTMENT WHEEL PLM5113 (671011123) 558 RON
018 0 1 LEVER PLM5113 (DA00000972) 915 RON
019 0 1 ALL METAL HEXAGON FLANGE LOCKNUT (DA00000543) 157 RON
020 0 1 VARIABLE ADJUST HANDLE UP (DA00000869) 393 RON
021 0 1 VARIABLE ADJUST HANDLE (DA00000870) 393 RON
022 0 1 SURUB AUTOFILETANT PLM5113 (DA00000873) 223 RON
023 0 1 CONNECTING BOARD CPL. PLM5113 (671001514) 1453 RON
024 0 1 FIXED PLATE PLM5113 (671001511) 670 RON
025 0 1 CABLU TRACTIUNE PLM5102/5113 (671011162) 13421 RON
026 0 1 HEXAGON BOLT PLM5113 (671006063) 670 RON
027 0 1 HEXAGON FLANGE BOLT (DA00000577) 236 RON
028 0 1 SURUB AUTOFILETANT (DA00000603) 071 RON
029 0 1 ?12/4.5x1.0 WASHER ELM4611 (671002075) 446 RON
030 0 1 CASE LEFT PLM5113 (671470001) 190 RON
031 0 2 SELF-TAPPING SCREW PLM4622 (671010630) 334 RON
032 0 1 SLEEVE PLM5113 (671001513) 894 RON
033 0 1 HEXAGON BOLT PLM5113 (671006063) 670 RON
034 0 1 HEXAGON FLANGE BOLT (DA00000577) 236 RON
035 0 1 DA00000579 - Indisponibil
036 0 1 DA00000574 - Indisponibil
037 0 1 DA00000864 - Indisponibil
038 0 1 PIULITA (DA00000575) 262 RON
039 0 2 PIULITA cod vechi 671005007 (DA00000563 ) 781 RON
040 0 2 ROTITA PLASTIC (DA00000564) 1311 RON
041 0 2 DA00000565 - Indisponibil
042 0 2 DA00000569 - Indisponibil
043-1 1 1 HANDLE LOWER PART PLM4610/4620/5113 (671001606) 13197 RON
043 0 1 HANDLE, LOWER PART PLM4610 (671001453) 14091 RON
044-1 1 1 CLEMA FIXARE CABLU PLM4627 (671611001) 446 RON
044 0 1 CLIPS DE CABLU (671177001) 893 RON
045-1 1 1 CLEMA FIXARE CABLU PLM4627 (671611001) 446 RON
045 0 1 CLIPS DE CABLU (671177001) 893 RON
046 0 2 PIULITA cod vechi 671005007 (DA00000563 ) 781 RON
047 0 2 ROTITA PLASTIC (DA00000564) 1311 RON
048 0 2 SAIBA PLATA (671007007) 446 RON
049 0 2 671006118 - Indisponibil
050 0 4 DA00000562 - Indisponibil
051 0 1 671001213 - Indisponibil
052 0 4 PIULITA M8 CU AUTOBLOCARE (DA00000537) 214 RON
053 0 1 671001212 - Indisponibil
054 0 1 DECK LID ELM4611 (671468001) 13980 RON
055 0 2 ALL METAL HEXAGON FLANGE LOCKNUT (DA00000543) 157 RON
056 0 2 INEL ARCUIT (671009017) 446 RON
057 0 1 LONG POLE TRINGLE ELM4611 (671001518) 2124 RON
058 0 1 ARC (671011101) 893 RON
059 0 2 SURUB M6X12 (671002019) 558 RON
060 0 1 DA00000787 - Indisponibil
061 0 2 ALL METAL HEXAGON FLANGE LOCKNUT (DA00000543) 157 RON
062 0 1 MANSON CAUCIUC PLM4627 (671800104) 334 RON
063 0 1 MANSON CAUCIUC PLM4627 (671800104) 334 RON
064 0 3 PIULITA M8 CU AUTOBLOCARE (DA00000537) 214 RON
065 0 1 671001530 - Indisponibil
066 0 1 FRONT COVER PLM4620 (671659001) 12973 RON
067 0 8 SELF-TAPPING SCREW PLM4620/5113 (DA00000911) 157 RON
068 0 3 SAIBA PLATA (671007007) 446 RON
069 0 3 SPRING RING PLM4620/5113 (DA00000832) 334 RON
070 0 1 SPECIAL SCREW PLM5113 (671003024) 3019 RON
071 0 1 DA00000617 - Indisponibil
072 0 1 DA00000586 - Indisponibil
073 0 2 SURUB M6X12 (671002019) 558 RON
074 0 1 FIXED BOLT PLM5113 (671011021) 446 RON
075 0 1 FIXED BOLT PLM4622 (671003042) 1229 RON
076 0 1 PARGHIR COMUTARE (DA00000971) 348 RON
077 0 2 DA00000549 - Indisponibil
078 0 1 FIXED BOARD OF SPEED ADJUSTMENT WHEEL PLM5113 (671001455) 5144 RON
079 0 1 PIULITA M8 CU AUTOBLOCARE (DA00000537) 214 RON
080 0 3 PULLEY PLM5113 (671001056) 6151 RON
081 0 3 RULMENT PLM5113 (671004015) 4137 RON
082 0 3 RING PLM5113 (671009021) 558 RON
083 0 1 PIULITA cod vechi 671005007 (DA00000563 ) 781 RON
084 0 1 M8 HEXAGONAL LOCKING NUT ELM4611 (671005008) 446 RON
085 0 1 PIULITA cod vechi 671005007 (DA00000563 ) 781 RON
086 0 1 SURUB M5X55 ELM/PLM/EM/PM (671006123) 558 RON
087 0 1 SAIBA ELASTICA PLM5102/PLM4617/4618/5113 (671008004) 558 RON
088 0 1 RING PLM5113 (671009020) 1229 RON
089 0 1 PLACA DE PRESIUNE (671001457) 558 RON
090 0 1 SPRING PLM5113 (671011122) 1229 RON
091 0 1 FULIE SUPERIOARA PLM4612 (671010540) 6374 RON
092 0 1 AX ANTRENARE PLM cod vechi 671001057 (671001082) 7380 RON
093 0 1 ALL METAL HEXAGON FLANGE LOCKNUT (DA00000543) 157 RON
094 0 1 SHAFT SHEATH PLM5113 (671002038) 1117 RON
095 0 1 SPRING PLM5113 (671011156) 670 RON
096 0 2 PIULITA M5 (671005011) 446 RON
097 0 1 FIXED PLATE OF GEAR BOX PLM5113 (671001717) 2012 RON
098 0 1 PULLEY PLM4622 (671401201) 4473 RON
099 0 1 DA00000598 - Indisponibil
100 0 1 CUREA 816MM PLM 4612 PLM4612 cod vechi 671020280 (671020282) 5144 RON
101 0 1 PRESSING PLATE OF FIXED BOARD PLM5113 (671001533) 1341 RON
102 0 2 PIULITA M8 CU AUTOBLOCARE (DA00000537) 214 RON
103 0 1 SURUB M6X12 (671002019) 558 RON
104 0 1 DA00000864 - Indisponibil
105 0 1 DA00000562 - Indisponibil
106 0 1 SPRING RING PLM4620/5113 (DA00000832) 334 RON
107 0 1 SAIBA PLATA (671007007) 446 RON
108 0 1 FIXED BOARD 2 OG GEAR ELM4611 (DA00000915) 1048 RON
109 0 1 GEAR BOX PLM4622 (671502017) 33665 RON
110 0 1 PIULITA M8 CU AUTOBLOCARE (DA00000537) 214 RON
111 0 1 RULMENT PLM5113 (671004015) 4137 RON
112 0 1 DA00000974 - Indisponibil
113 0 1 ALL METAL HEXAGON FLANGE LOCKNUT (DA00000543) 157 RON
114 0 1 SPRING PLM5113 (671011136) 894 RON
115 0 1 BELT COVER PLM4622 (671658001) 7157 RON
116 0 2 M8 HEXAGONAL LOCKING NUT ELM4611 (671005008) 446 RON
117 0 1 SURUB PLM5113 (671006066) 894 RON
118 0 2 SURUB AUTOFILETANT PLM4627 (671001037) 446 RON
119 0 1 DA00000979 - Indisponibil
120 0 1 PANA PLATA 4.8X4.7X46.5 (DA00000535) 252 RON
121 0 1 SUPORT CUTIT PLM4610,4611,4612,5102 cod vechi 671001525 SUPORT CUTIT PLM4610,4611,4612,5102 (671015252) 7381 RON
122-1 1 1 CUTIT 460MM PLM4610/4611/12 cod vechi 671001451 (DA00001274) Indisponibil Indisponibil
122 0 1 671014610 - Indisponibil
123 0 1 SAIBA (671010730) 1564 RON
124 0 1 BLADE TIGHTEN SCREW PLM4620 (671006065) 4025 RON
125-1 1 2 WHEEL COVER (DA00000536) 1190 RON
125 0 2 8 inch WHEEL COVER ELM4611 (671001177) 3354 RON
126 0 2 PIULITA M8 CU AUTOBLOCARE (DA00000537) 214 RON
127 0 2 RULMENT (DA00000538) 1419 RON
128 0 2 ANSAMBLU ROATA PLM4610 (671020170) 12973 RON
129 0 2 RULMENT (DA00000538) 1419 RON
130 0 2 DA00000849 - Indisponibil
131 0 12 SURUB AUTOFILETANT (DA00000603) 071 RON
132 0 2 SAFETY WASHER RONDELLE ELM4611 cod vechi 671090020 (DA00000604 ) 446 RON
133 0 1 DA00000607 - Indisponibil
134 0 2 5x21.5 CYLINDRICAL PIN ELM4611 cod vechi 671090001 (DA00000597) 446 RON
135 0 2 CAPAC ROATA PT PROTECTIE PRAF (DA00000606) 763 RON
136 0 2 SAFETY WASHER RONDELLE ELM4611 cod vechi 671090020 (DA00000604 ) 446 RON
137 0 2 RULMENT PLM5113 (DA00001029) 1788 RON
138 0 2 BEARING SHEATH (DA00000610) 1831 RON
139 0 2 SURUB M5X12 (671002029) 893 RON
140-1 1 1 MANSON MANER (DA00001073) 3059 RON
140 0 1 LEVER, HEIGHT ADJUSTMENT ELM4611 cod vechi 671001430 (671102602) 3914 RON
141 0 1 SUPORT MANER (DA00001058) 1048 RON
142 0 2 PIULITA M5 (671005011) 446 RON
143 0 1 REAR AXLE ASSY. PLM4622 (671144602) 27290 RON
144 0 2 DA00000612 - Indisponibil
145 0 4 SURUB M6X12 (671002019) 558 RON
146 0 2 FIXING RING FOR WHEEL AXIS (DA00000542) 320 RON
147 0 4 ALL METAL HEXAGON FLANGE LOCKNUT (DA00000543) 157 RON
148 0 1 ROATA DINATA 14 TRACTIUNE ST. (DA00000605) 1648 RON
149 0 1 DA00000549 - Indisponibil
150 0 1 671002671 - Indisponibil
151 0 1 DA00000549 - Indisponibil
152 0 2 7" WHEEL COVER ELM4110 (671001176) 3466 RON
153 0 2 PIULITA M8 CU AUTOBLOCARE (DA00000537) 214 RON
154 0 2 RULMENT (DA00000538) 1419 RON
155 0 2 ROATA FATA PLM4612 (671020150) 8499 RON
156 0 2 RULMENT (DA00000538) 1419 RON
157 0 4 DA00000549 - Indisponibil
158 0 2 SUPORT RULMENT ELM/PLM (671445001) 105 RON
159 0 2 HALF-BEARING ELM4611 (671418001) 1229 RON
160 0 4 SURUB M6X45 (671002028) 558 RON
161 0 2 EXTENSION SPRING OF FRONT WHEEL AXIS ELM4110 (671011125) 781 RON
162 0 1 FRONT WHEEL AXLE PLM4620 (671001786) 17559 RON
163 0 1 HANDLE OF GRASS CATCHER ELM4110 (671454001) 2683 RON
164 0 1 GRASS-BOX, UPPER ELM4611 (671467001) 1232 RON
165 0 2 SELF DRIVING SCREW 5*16 DLM380Z (DA00000326) 223 RON
166 0 1 GRASS CATCHER BRSCKET ELM4611 (671001443) 17559 RON
167 0 2 WASHER UR3000 (DA00000025) 334 RON
168 0 2 SURUB CU AUTOSTRANGERE (DA00000888) 175 RON
169-1 1 2 PLACA PUNTE FRONTALA DLM380Z (DA00000335) 223 RON
169 0 2 PLACA DE PRESIUNE (671001203) 670 RON
170 0 4 SURUB CU AUTOSTRANGERE (DA00000888) 175 RON
171 0 1 PRESSING PLATE ELM4611 (671001353) 1229 RON
172 0 1 DA00000966 - Indisponibil
173 0 1 671660001 - Indisponibil
174 0 1 BUTON DE BLOCARE (671316004) 781 RON
175 0 1 ARC (671011005) 1565 RON
176 0 1 PLACA DE PRESIUNE ELM/PLM (671317001) 558 RON
177 0 2 SURUB AUTOFILETANT (DA00000603) 071 RON
