Top » Piese de schimb » PIESE MAKITA » Masini pentru gradina » PB500R

PB500R
[PB500R]
PB500R
Click pentru a mari
Imagini suplimentare
PB500R
Click pentru a mari
PB500R
Click pentru a mari
PB500R
Click pentru a mari
PB500R
Click pentru a mari
PB500R
Click pentru a mari

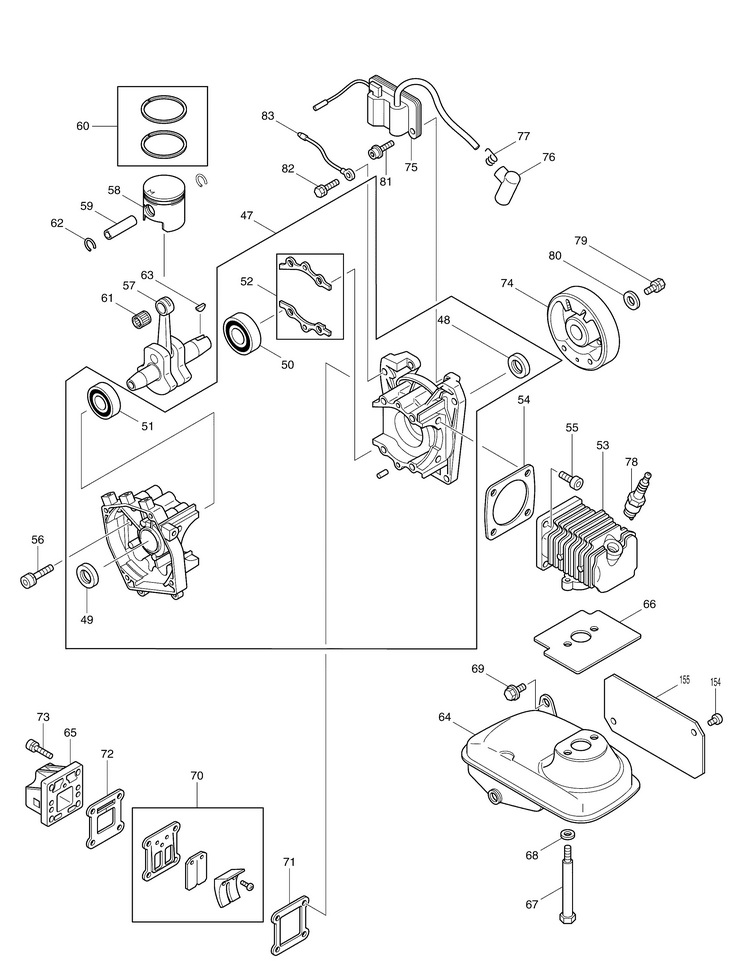

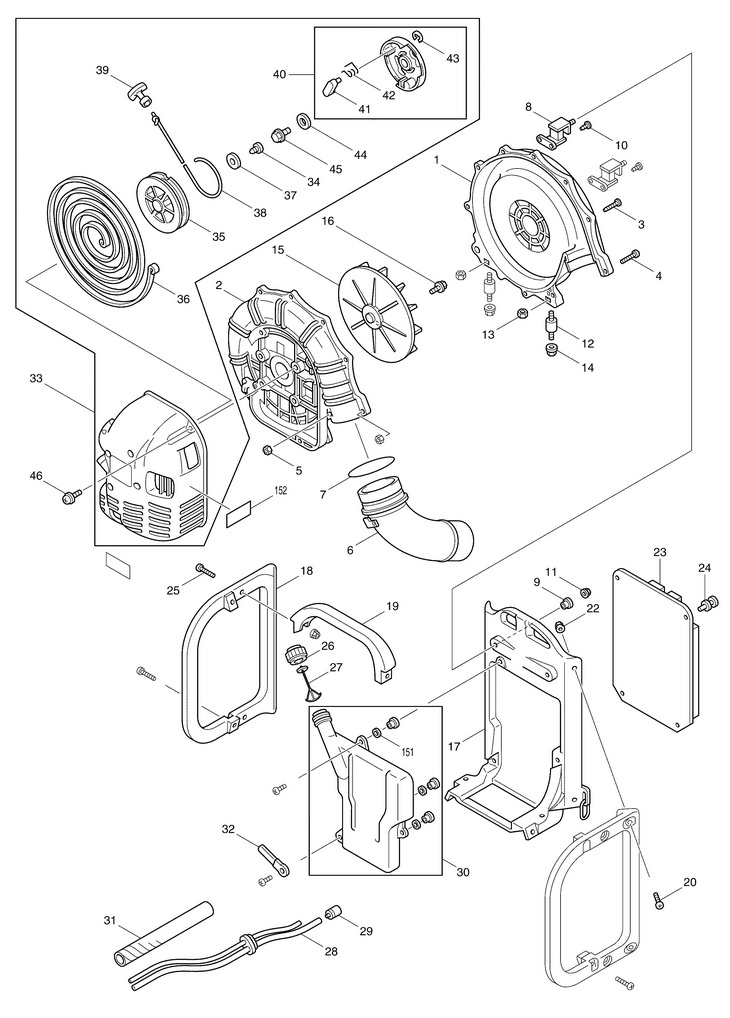

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 VOLUTE CASE 1 (6621500201) 20355 RON
2 1 1 6621004001 - Indisponibil
2 2 1 6621004002 - Indisponibil
2 3 1 VOLUTE CASE 2 CPL. (6621004003) 36573 RON
3 1 10 0150059870 - Indisponibil
4 1 2 SURUB ASSY. (0043605250) 446 RON
5 1 2 PIULITA M5 cod vechi 0021705000 (264086-0) 446 RON
6 1 1 ELBOW (6621006001) 9394 RON
7 1 1 O-RING (0062630850) 2012 RON
8 1 2 BRACKET CPL. (6621005000) 5927 RON
9 1 2 6621500300 - Indisponibil
9 2 2 SPACER (6621500900) 1341 RON
10 1 4 SURUB AUTOFILETANT (0150059910) 446 RON
11 1 2 PIULITA M5 (0023705000) 558 RON
12 1 2 DAMPER (6621500401) 382 RON
13 1 2 PIULITA (0021706000) 334 RON
14 1 2 PIULITA EVH2000 (0023706000) 334 RON
15 1 1 IMPELLER (6821500201) 34448 RON
16 1 3 0011306250 - Indisponibil
17 1 1 FRAME CPL. (6622008001) 18454 RON
18 1 2 FRAME (6622500600) 9618 RON
19 1 1 KNOB (6622500701) 6151 RON
20 1 9 SURUB (0043105200) 446 RON
20 2 9 0140059430 - Indisponibil
21 1 11 SAIBA EVH2000 (0031205000) 446 RON
22 1 11 PIULITA M5 (0023705000) 558 RON
23 1 1 6622010000 - Indisponibil
23 2 1 CUSHION (6622010001) 13756 RON
24 1 4 LOCK RIVET (6822500200) 782 RON
25 1 2 SURUB ASSY. (0043605250) 446 RON
25 2 2 0140059430 - Indisponibil
26 1 1 5316014000 - Indisponibil
26 2 1 FUEL TANK CAP ETR2500 (5256058000) 3466 RON
27 1 1 6255021001 - Indisponibil
27 2 1 6255021002 - Indisponibil
27 3 1 STRAP RBC2500 (5256067000) 3242 RON
28 1 1 TUBE (6623003001) 15993 RON
29 1 1 FILTRU /BHX (5236503900) 2795 RON
30 1 1 6623500300 - Indisponibil
30 2 1 6623004000 - Indisponibil
30 3 1 TANK FUEL (6623005000) 23263 RON
31 1 1 SPIRAL TUBE (8558502200) 2571 RON
32 1 1 CLAMP (8558501100) 105 RON
33 1 1 MOTOR CASE COMPLETE (6628010000) 40376 RON
34 1 1 5105015110 - Indisponibil
35 1 1 5415003010 - Indisponibil
36 1 1 5415003020 - Indisponibil
37 1 1 5415003030 - Indisponibil
38 1 1 STARTER ROPE MS4200E (5415001140) 1565 RON
39 1 1 STARTER KNOB GE1100 (5305002110) 2124 RON
40 1 1 STARTER WHEEL CPL. (5415011000) 5591 RON
41 1 1 5415011010 - Indisponibil
42 1 1 5415011020 - Indisponibil
43 1 1 5215003040 - Indisponibil
44 1 1 0200069920 - Indisponibil
45 1 1 ANS. BOLT cod vechi 381130616 (0011306160) 446 RON
46 1 8 SURUB M6x20 BHX2500 (0043606200) 669 RON
47 1 1 5411007000 - Indisponibil
47 2 1 5411007001 - Indisponibil
47 3 1 CRANKCASE ASSY. (5411012000) 58496 RON
48 1 1 0440179930 - Indisponibil
48 2 1 0440179920 - Indisponibil
49 1 1 GARNITURA ULEI (0440159971) 1453 RON
49 2 1 0440159950 - Indisponibil
50 1 1 0600179830 - Indisponibil
51 1 1 0600159880 - Indisponibil
51 2 1 0600150060 - Indisponibil
51 3 1 0600159880 - Indisponibil
52 1 1 GARNITURA CARTER MS4200E (5411501200) 782 RON
53 1 1 CYLINDER (5411501800) 50554 RON
54 1 1 5411500500 - Indisponibil
54 2 1 GARNITURA CILINDRU RBC420E (5411500501) 1229 RON
55 1 4 SURUB M6X18 RBC420E (0119069990) 446 RON
56 1 4 0119059940 - Indisponibil
57 1 1 CRANKSHAFT CPL. (5412024000) 8780 RON
58 1 1 PISTON (5412500700) 14539 RON
59 1 1 PISTON PIN (5602501100) 1677 RON
60 1 2 PISTON RING (5602500900) 2124 RON
61 1 1 NEEDLE ROLLER BEARING (0610129950) 4473 RON
62 1 2 0565119990 - Indisponibil
63 1 1 0053203101 - Indisponibil
64 1 1 5413045001 - Indisponibil
64 2 1 5413045002 - Indisponibil
64 3 1 5413045003 - Indisponibil
65 1 1 5413046001 - Indisponibil
65 2 1 INTERMEDIATE FLANGE CPL. (5413046002) 4585 RON
66 1 1 GARNITURA (5413501700) 4473 RON
67 1 2 SURUB (5413502001) 1677 RON
68 1 2 SAIBA (0200099990) 446 RON
69 1 1 SURUB ASSY. (0011506160) 558 RON
70 1 1 REED VALVE ASSY. (5413036000) 12190 RON
71 1 1 BRACKET GASKET MS4200E (5413502800) 670 RON
72 1 1 INSULATER GASKET MS4200E (5403500600) 670 RON
73 1 4 0119059630 - Indisponibil
74 1 1 FLYWHEEL (5417021010) 31988 RON
75 1 1 COIL (5417024021) 26843 RON
76 1 1 PLUG CAP RBC420E (0655009940) 1229 RON
77 1 1 ARC FIXARE CABLU BUJIE cod vechi 0654009931 PLUG CAP SPRING EM2651UH (324891-8) 446 RON
78 1 1 BUJIE DBC260U cod vechi 0650149661 BUJIE DBC260U/EM2600U cod vechi DA00000085 BUJIE DBC260U/EM2600U cod vechi 0650149661 (168648-5) 10848 RON
79 1 1 0011308160 - Indisponibil
80 1 1 SAIBA (0031108000) 223 RON
81 1 2 SURUB M5X22 RBC420E (0119059790) 558 RON
82 1 4 0011306250 - Indisponibil
83 1 1 CABLE CPL. (6628003000) 190 RON
84 1 1 5416043001 - Indisponibil
84 2 1 5416043002 - Indisponibil

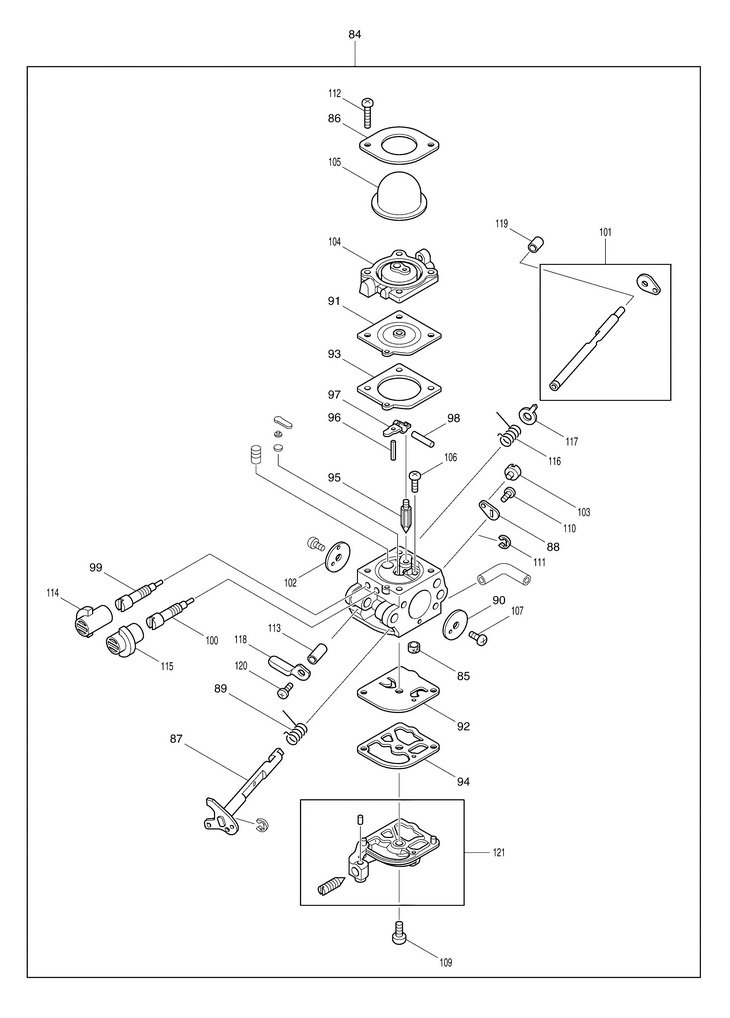

84 3 1 CARBURETOR CPL. (5416043003) 38251 RON
85 1 1 STRAINER (5416043430) 1341 RON
86 1 1 RETAINER (SYLINGE) (5416043460) 1788 RON
86 2 1 5416043860 - Indisponibil
87 1 1 THROTTLE SHAFT (5416043020) 8052 RON
88 1 1 LEVER (5416043520) 1788 RON
89 1 1 SPRING THROTTLE RETURN (5416043030) 1229 RON
90 1 1 THROTTLE SHUTTER (5416043040) 2124 RON
91 1 1 CONTROL DIAPHRAGM (5416043260) 8835 RON
92 1 1 PUMP DIAPHRAGM (5416043110) 2571 RON
93 1 1 GARNITURA METERING (5416043310) 1341 RON
94 1 1 GARNITURA PUMP (5416043120) 1341 RON
95 1 1 INLET NEEDLE VALVE RBC2500 (5416043210) 5927 RON
96 1 1 METERING LEVER SPRING RBC2500 (5416043220) 3019 RON
97 1 1 METERING LEVER RBC2500 (5416043230) 2348 RON
98 1 1 STIFT RBC2500 (5416043240) 105 RON
99 1 1 SURUB MAIN MIXTURE (5416043350) 382 RON
100 1 1 SURUB IDLE MIXTURE (5416043360) 382 RON
101 1 1 5416043550 - Indisponibil
101 2 1 CHOKE SHAFT (5416043551) 10065 RON
102 1 1 CHOKE SHUTTER (5416043620) 2012 RON
103 1 1 SWIVEL (5416043540) 3242 RON
104 1 1 BASE ASSY. PRIMER (5416043320) 17559 RON
104 2 1 5416043920 - Indisponibil
105 1 1 SYRINGE (5416043510) 2571 RON
106 1 1 SURUB (PIN) (5416043250) 446 RON
107 1 2 SURUB (THROTTLE VALVE) (5416043050) 446 RON
109 1 1 SURUB (PUMP COVER) (5416043160) 446 RON
110 1 1 SURUB (THROTTLE LEVER) (5416043530) 446 RON
111 1 2 E-RING (THROTTLE SHAFT) (5416043060) 446 RON
112 1 2 SURUB (RETAINER) (5416043330) 558 RON
112 2 4 5416043910 - Indisponibil
113 1 1 5416043720 - Indisponibil
113 2 1 BUSH (5416043850) 894 RON
114 1 1 LIMITER TAMPER RESIST (5416043760) 2012 RON
115 1 1 LIMITER TAMPER RESIST (5416043810) 2012 RON
116 1 1 SPRING CHOKE RETURN (5416043640) 1229 RON
117 1 1 5416043560 - Indisponibil
118 1 1 CHOKE LEVER (5416043660) 1788 RON
119 1 1 COLLAR SHOKE SHAFT (5416043610) 558 RON
120 1 1 SURUB (CHOKE LEVER) (5416043710) 446 RON
121 1 1 PUMP COVER KIT (5416043820) 6262 RON

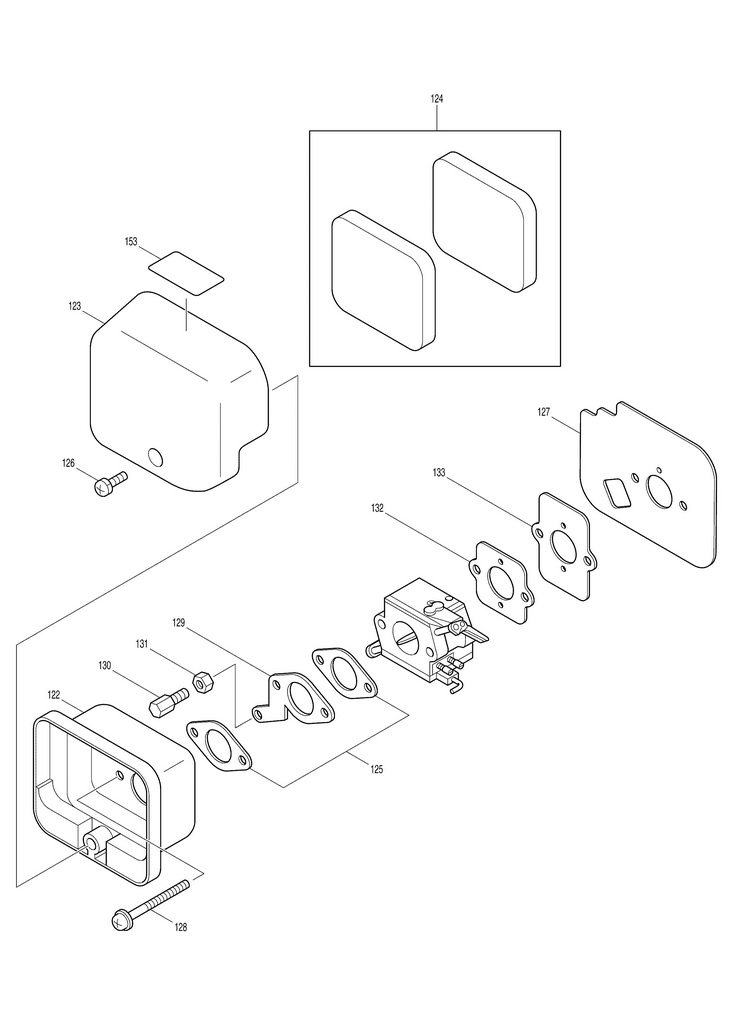

122 1 1 FILTER HOUSING (5413048001) 3019 RON
123 1 1 FILTER COVER (5413507001) 1677 RON
124 1 2 AIR FILTER (5413507101) 2124 RON
125 1 2 GARNITURA (5413507200) 558 RON
126 1 1 SURUB cod vechi 367360514 (0043605140) 446 RON
127 1 1 GARNITURA (5416504302) 1117 RON
128 1 2 SURUB (0043605550) 558 RON
129 1 1 CABLE BRACKET (5416504600) 1229 RON
130 1 1 ADJUST SCREW RBC420E (5216008010) 2235 RON
131 1 1 PIULITA M6 (0022706000) 446 RON
132 1 1 GARNITURA (5413507900) 670 RON
133 1 1 PLATE (5413507800) 105 RON

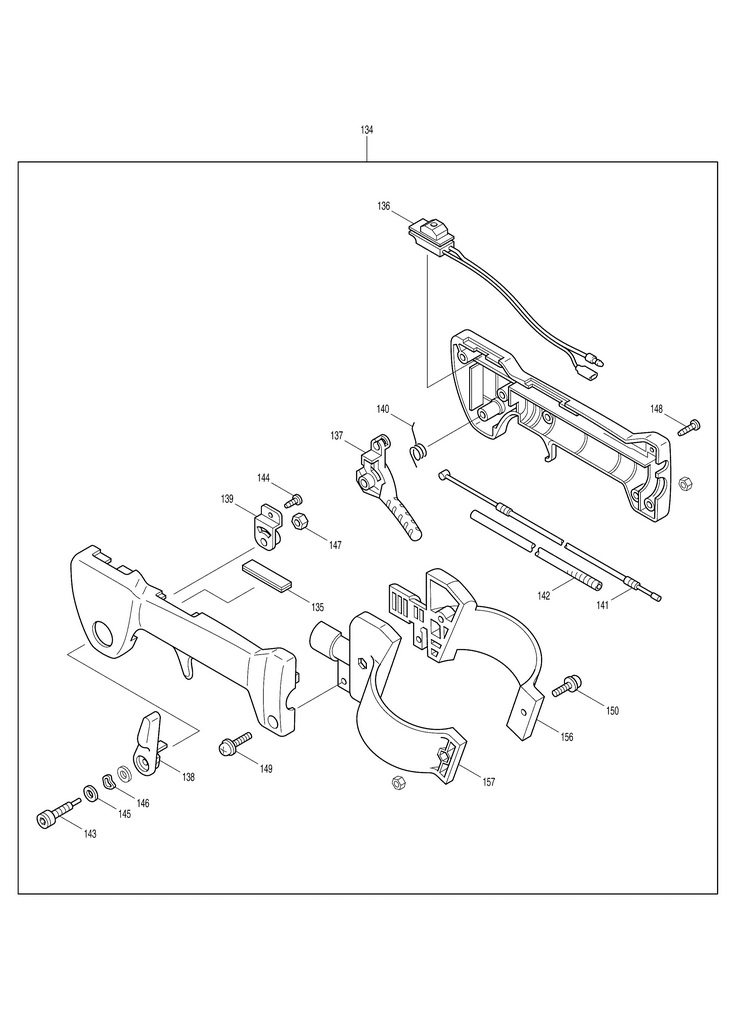

134 1 1 CONTROL LEVER ASSY (6625001002) 26619 RON
135 1 1 COVER (6625500500) 1341 RON
136 1 1 SWITCH CPL. (6625003001) 3578 RON
137 1 1 THROTTLE LEVER (6625500601) 1788 RON
138 1 1 THROTTLE LEVER (6625500701) 1677 RON
139 1 1 BRACKET (6625004000) 1677 RON
140 1 1 SPRING (6625500901) 670 RON
141 1 1 CONTROL CABLE (0630139901) 2348 RON
142 1 1 TUBE (6625501001) 3354 RON
143 1 1 SURUB (6625501700) 1565 RON
144 1 1 SURUB (0150049970) 334 RON
145 1 2 0031106000 - Indisponibil
146 1 1 SAIBA ARCUITA (0032206000) 670 RON
147 1 1 PIULITA M6 (0022706000) 446 RON
148 1 4 SURUB (0150049940) 446 RON
149 1 1 SURUB ASSY. (0043605250) 446 RON
150 1 2 SURUB (0043105200) 446 RON
151 1 3 0200069920 - Indisponibil
152 1 1 6629508600 - Indisponibil
153 1 1 LABEL (0736409430) 1117 RON
154 1 2 0140059920 - Indisponibil
154 2 2 0140059921 - Indisponibil
155 1 1 PLATE (5413506001) 3466 RON
156 1 1 6625500802 - Indisponibil
157 1 1 6625005002 - Indisponibil
1001 1 2 6629021000 - Indisponibil
1001 2 2 SHOULDER HARNESS cod vechi 377902600 (6709026000) 8611 RON
1002 1 1 HOSE CLAMP (6629019000) 2236 RON
1003 1 1 HOSE CLAMP (6629020000) 190 RON
1004 1 1 FLEXIBLE PIPE (6989506900) 9394 RON
1005 1 1 SWIVEL PIPE (6709017010) 16553 RON
1006 1 1 SWIVEL PIPE (6709017020) 7716 RON
1007 1 1 END PIPE (6629506700) 7157 RON
1008 1 1 5019001000 - Indisponibil
