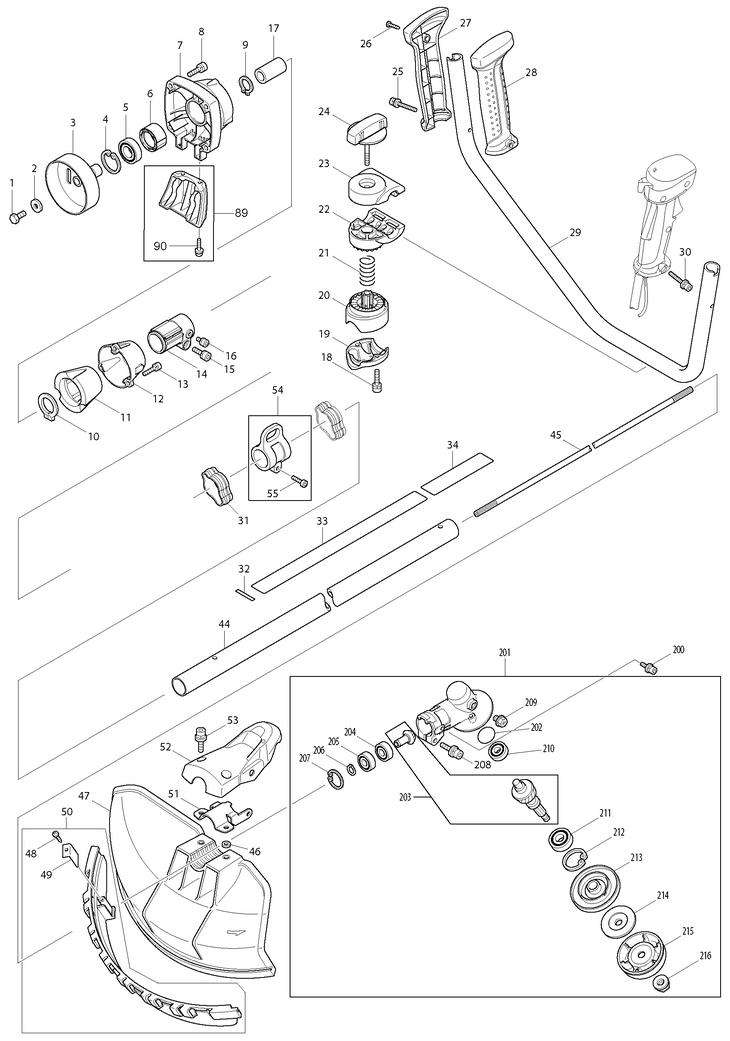

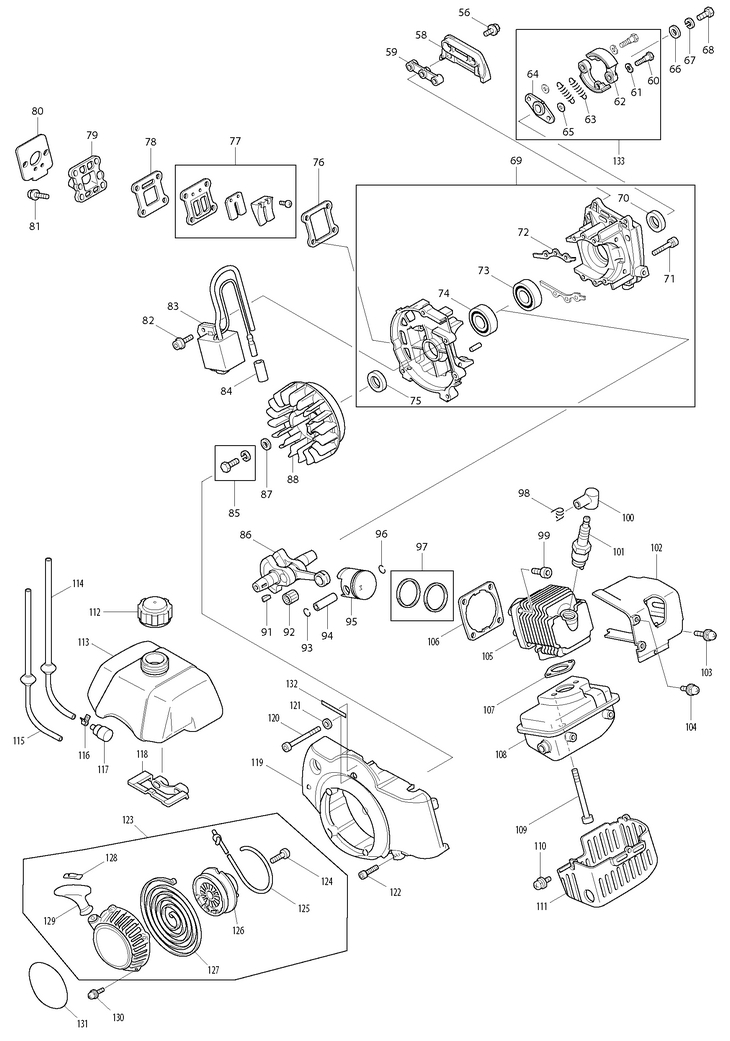

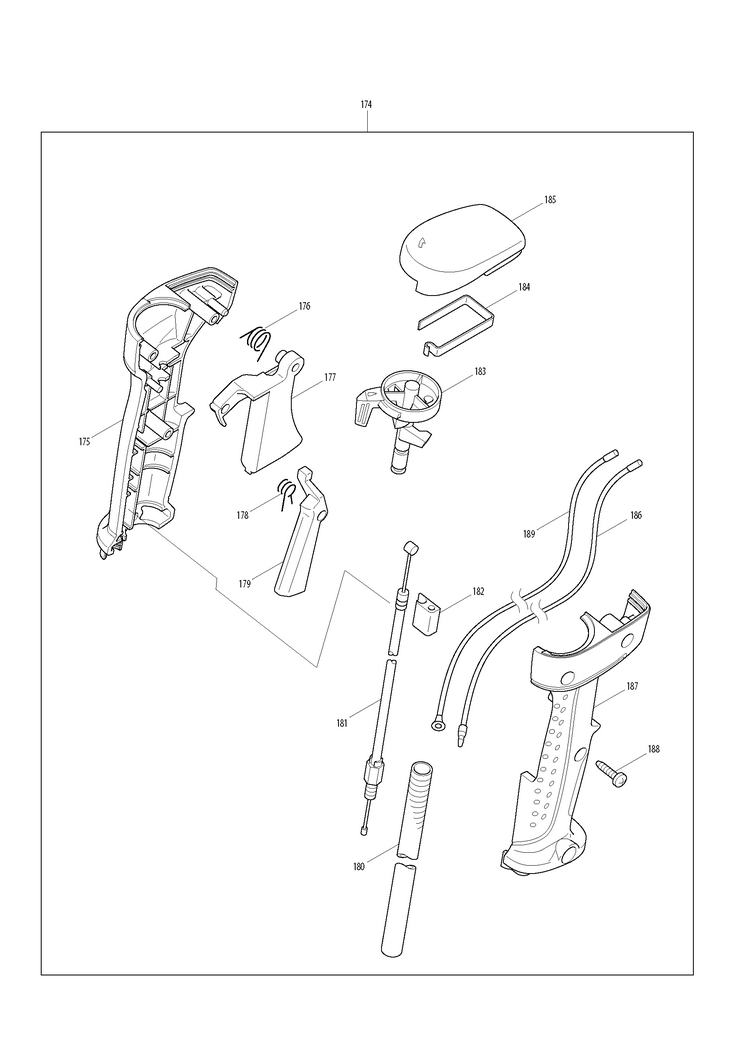

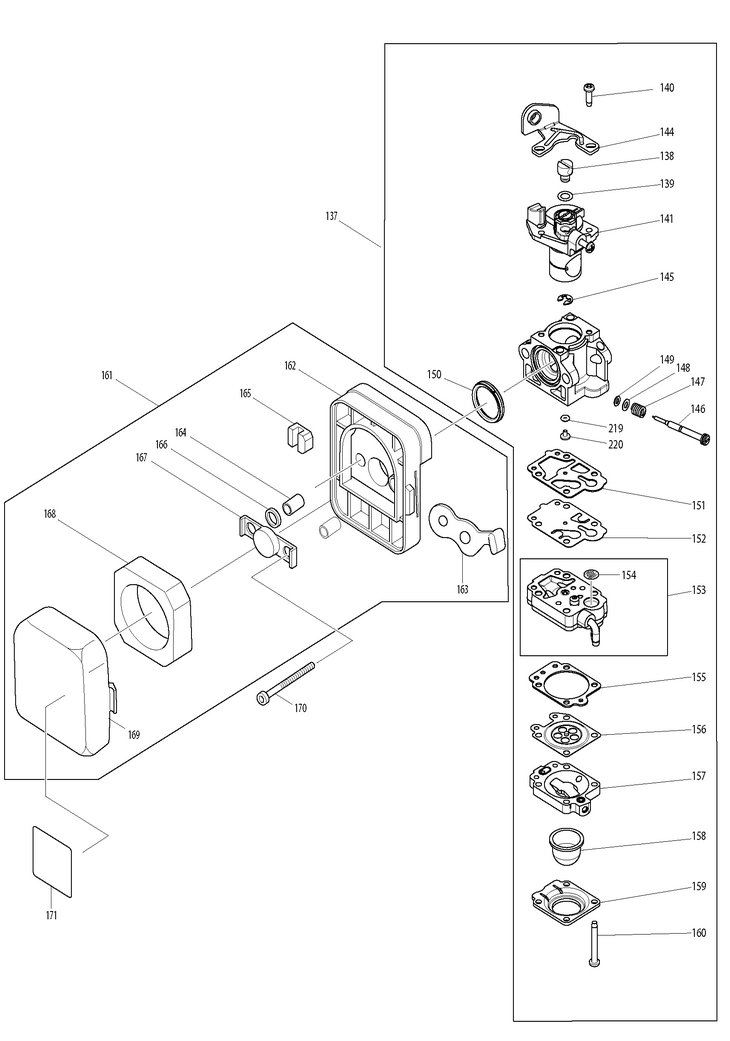

Top » Piese de schimb » PIESE MAKITA » Masini pentru gradina » MS4215 MS4215 [MS4215] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 HEX. HEAD BOLT M6X14 cod vechi 266598-9 (251527-5) 223 RON 2 1 1 SAIBA EVH2000 cod vechi 6202500600 (267429-5) 669 RON 3 1 1 CLUTCH DRUM COMPLETE cod vechi 141689-6 (161877-9) 4697 RON 4 1 1 SAIBA DE SIGURANTA R-35 (962153-2) 558 RON 5 1 1 210126-2 - Indisponibil 6 1 1 DISTANTIER EBH341U (451157-4) 558 RON 7 1 1 CLUTCH CASE EBH341U (318421-5) 4473 RON 8 1 4 922331-6 - Indisponibil 9 1 1 SAIBA DE SIGURANTA S-17 (961057-5) 334 RON 10 1 1 RETAINING RING S-32 EBH341U (961151-3) 446 RON 11 1 1 AMORTIZOR EBH341U (424204-4) 1117 RON 12 1 1 PIPE RETAINER EBH341U (318453-2) 2236 RON 13 1 3 SURUB M5X20 LF1000 EBH341U (922231-0) 223 RON 14 1 1 PIPE BRACKET EBH341U (318454-0) 3466 RON 15 1 1 922331-6 - Indisponibil 16 1 1 HEX. SOCKET HEAD BOLT M5X8 EBH341U (922201-9) 334 RON 17 1 1 DAMPER RBC420E (424403-8) 297 RON 18 1 2 SURUB INBUS M6X25 (922341-3) 334 RON 19 1 1 PIPE CLAMP EBH341U (318422-3) 2124 RON 20 1 1 PIPE HOLDER EBH341U (318423-1) 3578 RON 21 1 1 ARC DE COMPRESIE 20 HR2400/160 (233202-5) 334 RON 22 1 1 HANDLE HOLDER EBH341U (318424-9) 3242 RON 23 1 1 HANDLE CLAMP EBH341U (318425-7) 3354 RON 24 1 1 KNOB 57 EM2651UH cod vechi 168524-3 (168796-0) 3018 RON 25 1 1 HEX. SOCKET HEAD BOLT M5 EBH252U (922256-4) 893 RON 26 1 1 SURUB 4X18 cod vechi 266326-2 SURUB AUTOFILETANT 4X18 (265995-6) 558 RON 27 1 1 MANER EBH341U (188660-9) 3131 RON 28 1 1 MANER EBH341U (188660-9) 3131 RON 29 1 1 MANER EBH341U (331863-6) 7380 RON 30 1 1 HEX. SOCKET HEAD BOLT M5 EBH252U (922256-4) 893 RON 31 1 2 WIRE CLAMP EBH341U (451525-1) 670 RON 31 2 2 451160-5 - Indisponibil 31 3 2 WIRE CLAMP (455588-9) 446 RON 32 1 1 801D19-4 - Indisponibil 34 1 1 893388-3 - Indisponibil 44 1 1 142702-3 - Indisponibil 45 1 1 AX TRANSMISIE RBC413U / 1436X8MM (142144-1) 6710 RON 46 1 2 WASHER EM2651UH (413143-3) 334 RON 47 1 1 PROTECTIE EBH341U (452259-9) 5256 RON 48 1 1 SURUB 4X18 cod vechi 266326-2 SURUB AUTOFILETANT 4X18 (265995-6) 558 RON 49 1 1 CUTTER EM2651UH (346074-0) 781 RON 50 1 1 PROTECTOR EXTENSION EM2651UH (135398-7) 4361 RON 51 1 1 PROTECTOR CLAMP EBH341U (346072-4) 105 RON 52 1 1 PROTECTOR COVER EBH341U (451090-0) 2124 RON 53 1 2 HEX. SOCKET BOLT M6x30 EM2651UH SURUB INBUS M6X30 cod vechi 922353-6 (266579-3) 334 RON 54 1 1 HANGER ASSEMBLY EBH341U (125558-9) 2571 RON 55 1 1 SURUB INBUS M5 (922232-8) 334 RON 56 1 2 HEX. HEAD BOLT M5X14 (266595-5) 223 RON 58 1 1 168586-1 - Indisponibil 59 1 1 DAMPER RBC420E (424335-9) 1341 RON 60 1 2 SHOULDER HEX. BOLT M8 (266894-5) 1453 RON 61 1 2 WAVE SAIBA 10 (267849-3) 446 RON 62 1 2 CLUTCH SHOE (168622-3) 4697 RON 63 1 2 ARC (231869-3) 670 RON 64 1 1 SUPORT (313197-9) 5032 RON 65 1 2 FLAT WASHER 8 EM4350UH (267428-7) 1117 RON 66 1 1 SAIBA EVH2000 cod vechi 6202500600 (267429-5) 669 RON 67 1 1 SAIBA ELASTICA 6 (942151-2) 558 RON 68 1 1 HEX. HEAD BOLT M6X14 cod vechi 266598-9 (251527-5) 223 RON 69 1 1 CRANKCASE ASSEMBLY (135558-1) 4549 RON 70 1 1 GARNITURA ULEI RBC420E (213546-9) Indisponibil Indisponibil 71 1 4 SURUB M5X30 SG1250 KP312S (922251-4) 334 RON 72 1 1 CRANKCASE GASKET RBC420E (442157-5) 782 RON 73 1 1 RULMENT 6202 (211483-1) 1565 RON 74 1 1 RULMENT 6202 (211483-1) 1565 RON 75 1 1 GARNITURA ULEI RBC420E (213546-9) Indisponibil Indisponibil 76 1 1 CARBURETOR GASKET RBC420E (442160-6) 670 RON 77 1 1 126211-0 - Indisponibil 78 1 1 INSULATOR GASKET RBC420E (442189-2) 670 RON 79 1 1 Insulator Ass'y RBC420E (453971-4) 2683 RON 80 1 1 GARNITURA CARBURATOR (442190-7) 558 RON 81 1 4 SURUB INBUS M5X25 DBC260U cod vechi 0119059640 (266793-1) 670 RON 82 1 2 PIULITA M5X22 (922236-0) 223 RON 83 1 1 BOBINA APRINDERE RBC420E cod vechi 5417041020 (168587-9) 18454 RON 84 1 1 Tube RBC420E (422059-1) 1229 RON 85 1 1 266596-3 - Indisponibil 86 1 1 CRANKSHAFT COMPLETE (142159-8) Indisponibil Indisponibil 87 1 1 SAIBA M6 RBC420E RBC3101 (267427-9) 446 RON 88 1 1 FLYWHEEL RBC413U (318632-2) 6262 RON 89 1 1 Stand Set EBH252U (195144-0) 1788 RON 90 1 2 911218-7 - Indisponibil 91 1 1 PANA BHX2500 cod vechi 0323039990 WOODRUFF KEY 3 EM2651UH (254040-2) 1229 RON 92 1 1 RULMENT CU ACE EPH1000 cod vechi 5412501300 (212085-6) 4025 RON 93 1 1 CLEMA EPH1000 cod vechi 0565099990 (233983-1) 334 RON 94 1 1 PISTON PIN RBC420E (257797-4) 558 RON 95 1 1 PISTON RBC420E (318631-4) 8723 RON 96 1 1 CLEMA EPH1000 cod vechi 0565099990 (233983-1) 334 RON 97 1 2 SEGMENT RBC420E (257309-3) 2124 RON 98 1 1 ARC FIXARE CABLU BUJIE cod vechi 0654009931 PLUG CAP SPRING EM2651UH (324891-8) 446 RON 99 1 4 PIULITA M6X18 (922327-7) 223 RON 100 1 1 125936-3 - Indisponibil 101 1 1 BUJIE DBC260U cod vechi 0650149661 BUJIE DBC260U/EM2600U cod vechi DA00000085 BUJIE DBC260U/EM2600U cod vechi 0650149661 (168648-5) 10848 RON 102 1 1 455199-0 - Indisponibil 103 1 1 SCREW WASHER ASSY SURUB M5X20 (911233-1) 334 RON 104 1 1 911218-7 - Indisponibil 105 1 1 CILINDRU RBC420E (318630-6) 32435 RON 106 1 1 GARNITURA CILINDRU RBC420E (442156-7) 1453 RON 107 1 1 MUFFLER GASKET RBC420E (168584-5) 894 RON 108 1 1 EXHAUST MUFFLER (168589-5) 3466 RON 109 1 2 HEX. SOCKET HEAD BOLT M6X60 RBC420E (266589-0) 446 RON 110 1 3 911218-7 - Indisponibil 111 1 1 MUFFLER COVER (451998-8) 1565 RON 112 1 1 BUSON REZERVOR COMBUSTIBIL cod vechi 377605900 (168668-9) 4920 RON 113 1 1 FUEL TANK (454559-3) 7269 RON 114 1 1 FURTUN RBC420E (168765-1) 190 RON 115 1 1 FURTUN RBC420E (168766-9) Indisponibil Indisponibil 116 1 3 HOSE CLAMP EBH252U cod vechi 345920-4 CLEMA FIXARE RBC220/EM4250/EM2600U (DA00000120) 670 RON 117 1 1 FILTRU DE BENZINA DCS230T (163447-0) 1788 RON 118 1 1 FUEL TANK DAMPER (424336-7) 894 RON 119 1 1 455198-2 - Indisponibil 120 1 1 SURUB INBUS M5X50 (266592-1) 446 RON 121 1 1 SAIBA PLATA 5 (941102-2) 894 RON 122 1 2 PIULITA M5X22 (922236-0) 223 RON 123 1 1 RECOIL STARTER ASSEMBLY (126364-5) 6822 RON 124 1 1 SET SCREW M6X20 EM4350UH (266634-1) 670 RON 125 1 1 SG00000019 - Indisponibil 126 1 1 ROLA STARTER EM4350UH (452288-2) 3914 RON 127 1 1 SPIRAL SPRING (SG00000018) 297 RON 128 1 1 STOPPER cod vechi 388500103 (424360-0) 1788 RON 129 1 1 MANER START EM4350UH (424361-8) 1677 RON 130 1 4 911218-7 - Indisponibil 131 1 1 803S11-6 - Indisponibil 132 1 1 819967-9 - Indisponibil 133 1 1 CLUTCH ASSEMBLY cod vechi 125829-4 (123885-8) 14651 RON 137 1 1 CABURATOR RBC413U (168874-6) Indisponibil Indisponibil 138 1 1 SWIVEL EM2651UH PIVOT cod vechi 367325922 (325922-6) 3689 RON 139 1 1 SAIBA cod vechi 367600503 WASHER EM2651UH (413140-9) 1676 RON 140 1 2 THROTTLE COLLAR SCREW RBC2500 (266704-6) 105 RON 141 1 1 VALVA ACCELERATIE RBC420E (453970-6) 22257 RON 144 1 1 BRACKET CABLE RBC2500 (346491-4) 488 RON 145 1 1 STOP RING E-3 EM2651UH SAIBA DE SIGURANTA cod vechi 367257964 (257964-1) 894 RON 150 1 1 SET INELE RBC2500 (424444-4) 1677 RON 151 1 1 GARNITURA cod vechi 381600103 (442172-9) 3130 RON 152 1 1 MEMBRANA POMPA EBH252U cod vechi 168575-6 MEMBRANA BHX2500 PUMP DIAPHRAGM (WJ00009599) Indisponibil Indisponibil 153 1 1 CORP POMPA CARBURATOR MS252U RBC420E cod vechi 5236046130 (140989-1) 28744 RON 154 1 1 SITA CARBURATOR EBH252U FILTRU cod vechi 367352010 (352010-6) Indisponibil Indisponibil 155 1 1 GARNITURA cod vechi 367442154 GARNITURA MEMBRANA NIVEL EBH252U (442154-1) Indisponibil Indisponibil 156 1 1 MEMBRANE CARBURATOR DBC260U cod vechi 168767-7 MEMBRANE CARBURATOR DBC260U (5316005250) 9953 RON 157 1 1 SUPORT FILTRU DE AER DBC260U cod vechi 5236046060 (140988-3) 6039 RON 158 1 1 BALON POMPA AMORSARE cod vechi 381600115,424314-7 (DA00001149) 2348 RON 159 1 1 PRIMER PUMP COVER EM2651UH POMPA DE AMORSARE cod vechi 374604605 (346270-0) 1788 RON 160 1 4 TAPPING SCREW 3X24 EM2651UH SURUB cod vechi 367266582 (266582-4) 1453 RON 161 1 1 126212-8 - Indisponibil 162 1 1 AIR CLEANER HOUSING RBC420E (453981-1) 5144 RON 163 1 1 346627-5 - Indisponibil 164 1 2 332044-5 - Indisponibil 165 1 1 Clip (Air Cleaner) RBC420E (453983-7) 2460 RON 166 1 1 SAIBA RBC420E (424523-8) 105 RON 167 1 1 346626-7 - Indisponibil 168 1 1 FILTRU AER RBC420E (443180-3) 4361 RON 169 1 1 Air Cleaner Cover RBC420E (453982-9) 488 RON 170 1 2 HEX. SOCKET HEAD BOLT M5X50 RBC420E (266794-9) 558 RON 171 1 1 800G01-8 - Indisponibil 174 1 1 126447-1 - Indisponibil 175 1 1 188657-8 - Indisponibil 175 2 1 LEVER CASE SET EBH341U (183A09-4) 3466 RON 176 1 1 ARC TORSIUNE 11 EBH253U (233540-5) 558 RON 177 1 1 THROTTLE LEVER EM2651UH (451084-5) 893 RON 178 1 1 ARC TORSIUNE 7 EBH253U (233541-3) 558 RON 179 1 1 Lock Off Lever EM2651UH (451083-7) 558 RON 180 1 1 Tube EBH252U (451213-0) 1788 RON 181 1 1 168846-1 - Indisponibil 182 1 1 CABLE HOLDER EM2651UH (451081-1) 446 RON 183 1 1 LEVIER OPRIRE/PORNIRE EM4350UH (451500-7) 670 RON 184 1 1 LEAF SPRING EM2651UH (232251-9) 446 RON 185 1 1 CAPAC EM4350UH (451253-8) 670 RON 185 2 1 ACOPERITOARE INTRERUPATOR (455723-9) 558 RON 186 1 1 632A46-0 - Indisponibil 187 1 1 188657-8 - Indisponibil 187 2 1 LEVER CASE SET EBH341U (183A09-4) 3466 RON 188 1 3 SURUB 4X18 cod vechi 266326-2 SURUB AUTOFILETANT 4X18 (265995-6) 558 RON 189 1 1 632A47-8 - Indisponibil 200 1 2 HEX. SOCKET BOLT M5x14 EM2651UH (922218-2) 558 RON 201 1 1 ANS. CARCASA ANGRENAJ EBH341U cod vechi 126310-8 (123835-3) 27961 RON 202 1 1 O RING 32 (213459-4) 558 RON 203 1 1 CUTTER SHAFT SET EBH341U cod vechi 187644-4 (183K07-8) 7269 RON 204 1 1 RULMENT 6000 (211064-1) 2347 RON 205 1 1 RULMENT 6000ZZ (211062-5) 2012 RON 206 1 1 SAIBA DE SIGURANTA S-10 (961006-2) 558 RON 207 1 1 SAIBA DE SIGURANTA R-26 (962105-3) 446 RON 208 1 1 HEX. SOCKET BOLT M6x30 EM2651UH SURUB INBUS M6X30 cod vechi 922353-6 (266579-3) 334 RON 209 1 1 Hex Bolt M8x10 with R EM2651UH (265590-2) 558 RON 210 1 1 RULMENT 629ZZ EBH341U (210081-8) 1565 RON 211 1 1 RULMENT 6201LLU EBH341U (210116-5) 2012 RON 212 1 1 SAIBA DE SIGURANTA R-32 (962151-6) 334 RON 213 1 1 RECEIVE WASHER EBH341U cod vechi 331860-2 RECEIVE SAIBA (332114-0) 297 RON 214 1 1 SAIBA EM4350UH (346355-2) 573 RON 215 1 1 LIMITATOR EBH252U (168526-9) 2124 RON 216 1 1 PIULITA HEXAGONALA EBH (264025-0) 1788 RON 218 1 1 804N65-6 - Indisponibil 219 1 1 O RING (WJ00016104) 894 RON 220 1 1 JET #50 RBC420E (5416046010) 297 RON 1001 1 1 122907-1 - Indisponibil 1003 1 1 782235-2 - Indisponibil 1004 1 1 782238-6 - Indisponibil 1005 1 1 WRENCH 4 EM2651UH (783223-2) 1453 RON 1006 1 1 HEX. WRENCH 5 EM2651UH (783232-1) 670 RON 1007 1 1 831315-2 - Indisponibil 1008 1 1 CUTTER COVER MS335.4U EM2651UH (451252-0) 5144 RON 1010 1 1 195246-2 - Indisponibil
