Top » Piese de schimb » PIESE MAKITA » Masini pentru gradina » MS3202E

MS3202E
[MS3202E]
MS3202E
Click pentru a mari
Imagini suplimentare
MS3202E
Click pentru a mari
MS3202E
Click pentru a mari
MS3202E
Click pentru a mari
MS3202E
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara

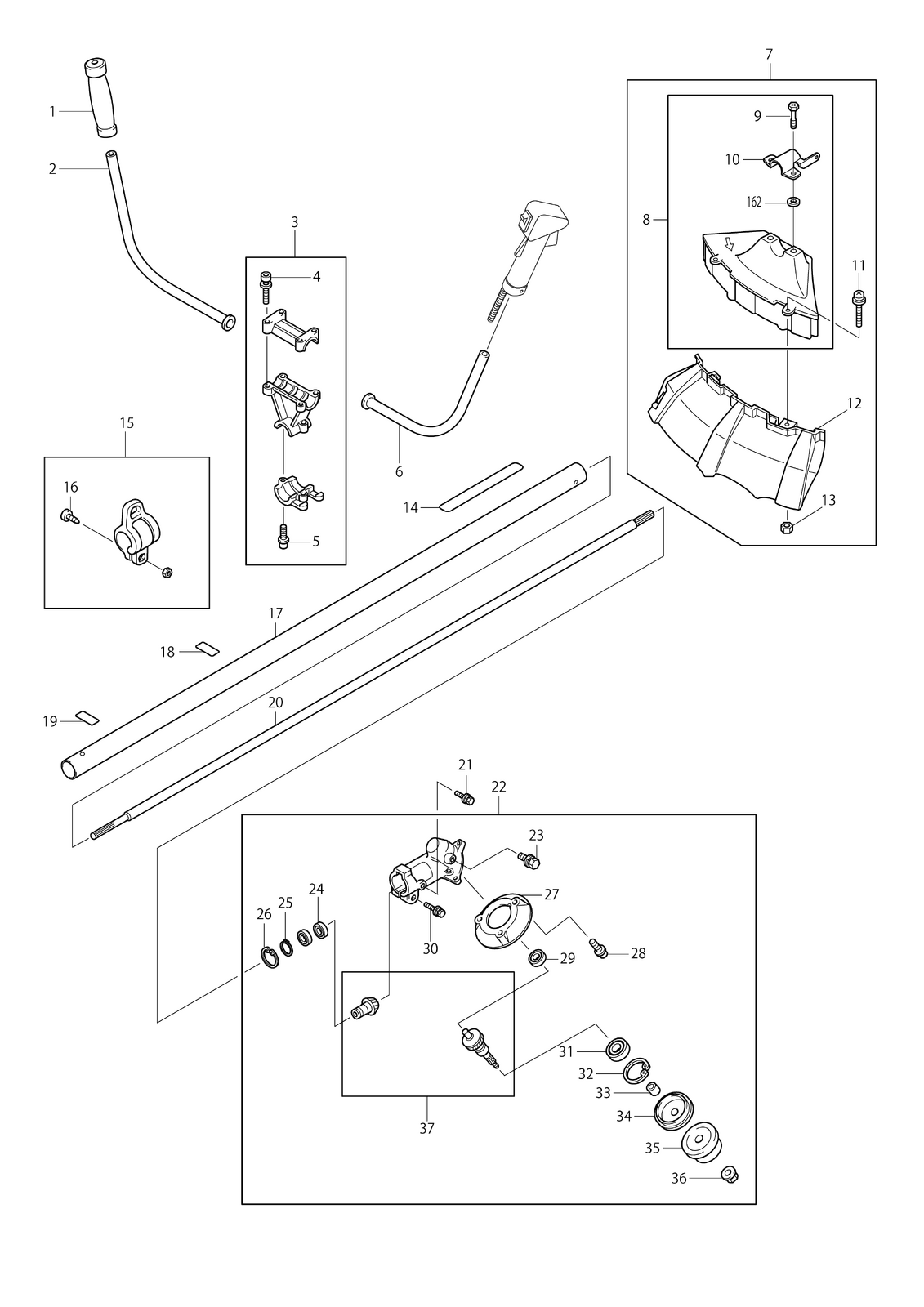

1 1 1 MANER II DBC260U (6274501000) 2683 RON
2 1 1 Handle Left RBC3101 (6274500700) 9170 RON
3 1 1 HANDLE HOLDER ASSY RBC320 RBC3101 (6254030001) 14763 RON
4 1 4 SURUB INBUS M5X25 DBC 260U cod vechi 0119059890 SURUB INBUS M5X25 DBC 260U/EM2600U (DA00000137) 446 RON
5 1 2 0119059940 - Indisponibil
6 1 1 Handle right RBC3101 (6274500600) 8947 RON
7 1 1 PROTECTOR ASSY RBC3101 (6278011002) 24158 RON
8 1 1 Protector Ass'y RBC3101 (6278012002) 12079 RON
9 1 2 SURUB RBC420E RBC3101 (0100069770) 1453 RON
10 1 1 Protector Clamp RBC3101 (6278501000) 2012 RON
11 1 2 SURUB ASSEMBLY RBC3101 RBC2500 (0140059380) 558 RON
12 1 1 CAPAC PROTECTIE DBC260U cod vechi 6258053001 CAPAC PROTECTIE EM2600U (DA00000526) 9617 RON
13 1 2 0021805000 - Indisponibil
14 1 1 6279519600 - Indisponibil
15 1 1 HANGER ASS'Y RBC3101 (6277002000) 3242 RON
16 1 1 ANS. SURUB DBC260U cod vechi 0140059360 (266788-4) 558 RON
17 1 1 SHAFT PIPE COMPLETE RBC3101 (6271019000) 55028 RON
18 1 1 ETICHETA ATENTIONARE DBC260U (6259514700) 446 RON
19 1 1 ETICHETA ATENTIONARE DBC260U (6259514700) 446 RON
20 1 1 AX TRANSMISIE RBC3101 (6271500802) 8388 RON
21 1 1 0130069910 - Indisponibil
22 1 1 ANS. CARCASA ANGRENAJ RBC3101 (6273001008) 51226 RON
23 1 1 OIL BOLT MS3202 (6413500600) 1453 RON
24 1 2 RULMENT 609ZZ (6212500300) 4137 RON
25 1 1 OUTER SNAP RING RBC3101 (6253502600) 893 RON
26 1 1 INEL DE SIGURANTA INT. DB260U cod vechi 0031424000 (257987-9) 781 RON
27 1 1 Guard RBC3101 (6418500200) 2012 RON
28 1 3 ANS SURUB DBC260U cod vechi 0140059390 (265195-8) 781 RON
29 1 1 Rulment 627ZZ RBC3101 (0600079990) 2795 RON
30 1 1 0130069920 - Indisponibil
31 1 1 Rulment 3200DDU RBC3101 (0600109970) 4025 RON
32 1 1 SIGURANTA INEL RBC3101 (0031430000) 670 RON
33 1 1 Spacer RBC3101 (6253501300) 297 RON
34 1 1 RECEIVE WASHER RBC3101 (6258503600) 7381 RON
35 1 1 CLAMP WASHER RBC3101 (6258500001) 4137 RON
36 1 1 PIULITA DBC260U cod vechi 6258505001 PIULITA EM2600U (DA00000172) 3130 RON
37 1 1 SET PINIOANE CAP TAIERE RBC3101 (6273013000) 25612 RON

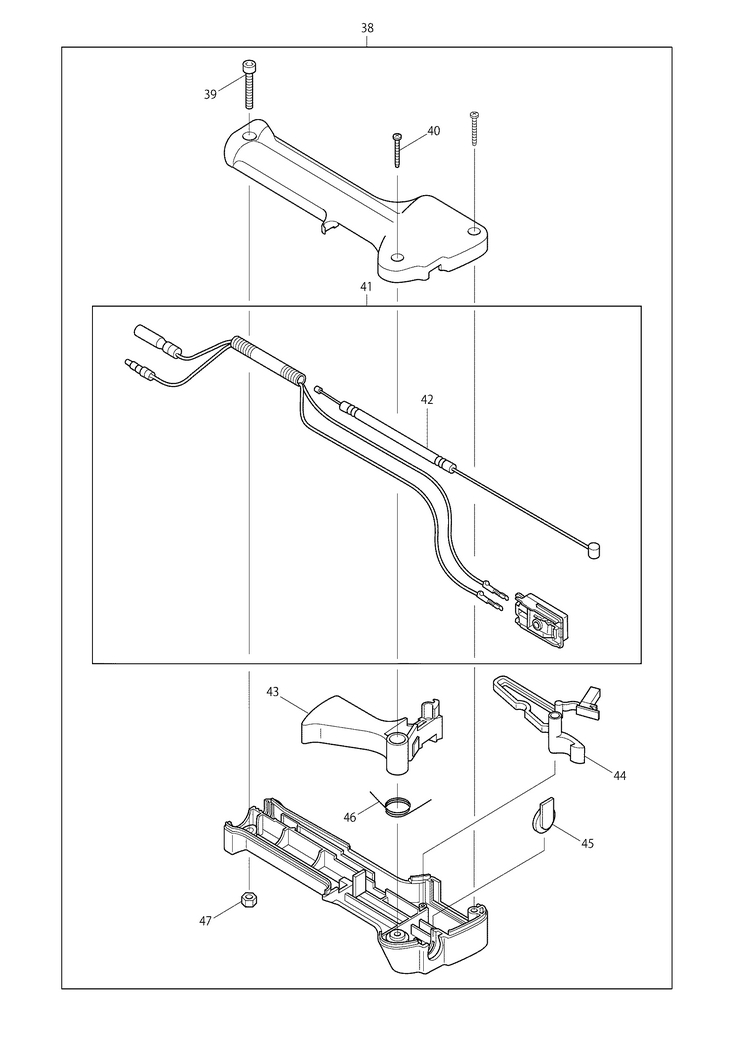

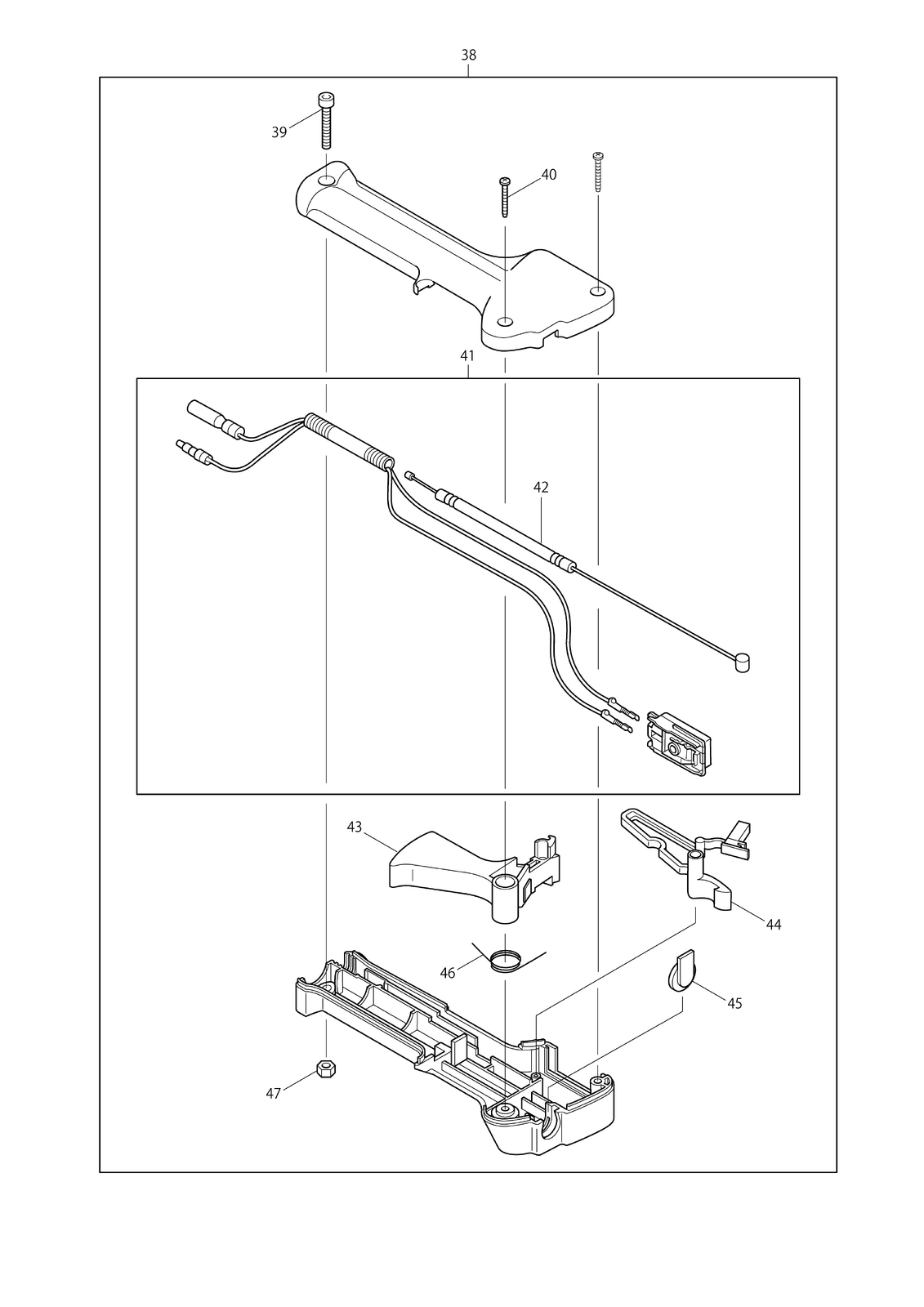

38 1 1 CONTROL LEVER ASS'Y RBC3101 (6275008000) 31763 RON
39 1 1 SURUB INBUS M5X30 RBC3101 RBC2500 (0119059980) 782 RON
40 1 2 TAPPING SCREW M4x20 RBC2500 (6195006060) 105 RON
41 1 1 Wire Set RBC3101 (6275008010) 22369 RON
42 1 1 CABLU ACCELERATIE RBC3101 (6275005040) 6822 RON
43 1 1 PARGHIE DBC260U (6215022030) 4697 RON
44 1 1 PARGHIE DBC260U (6195013010) 190 RON
45 1 1 CAPAC DBC260U (6195006150) 670 RON
46 1 1 ARC DBC260U (6195006050) 894 RON
47 1 1 NUT M5 RBC2500 (6215022040) 190 RON
48 1 1 SURUB RBC3101 (0140059490) Indisponibil Indisponibil

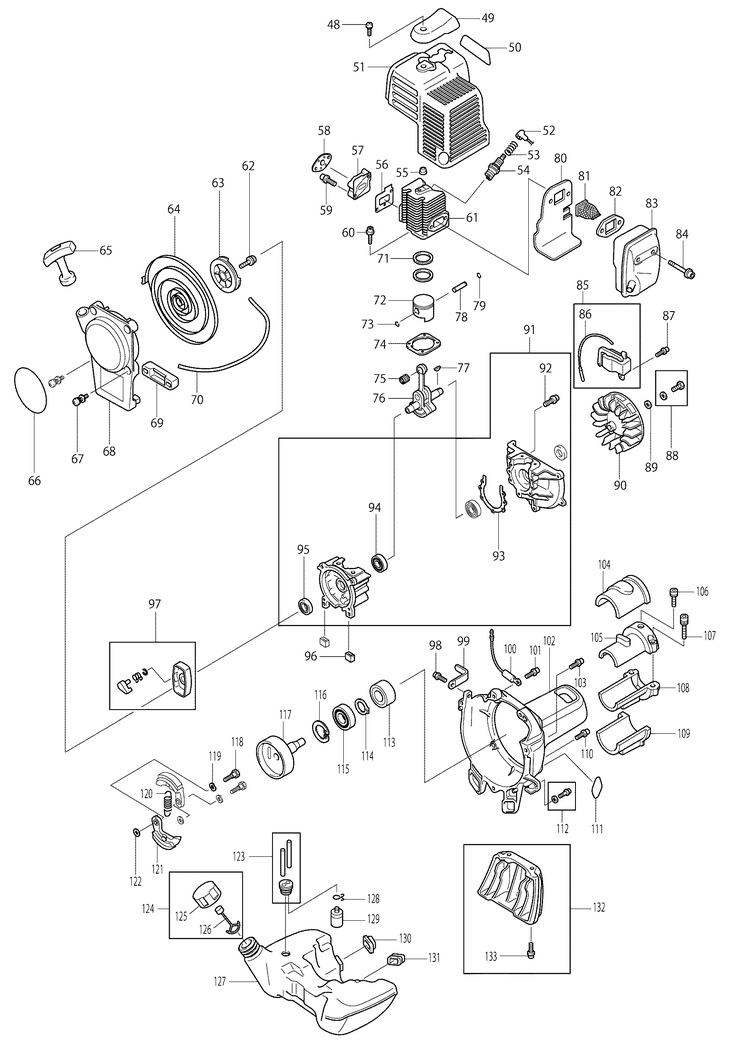

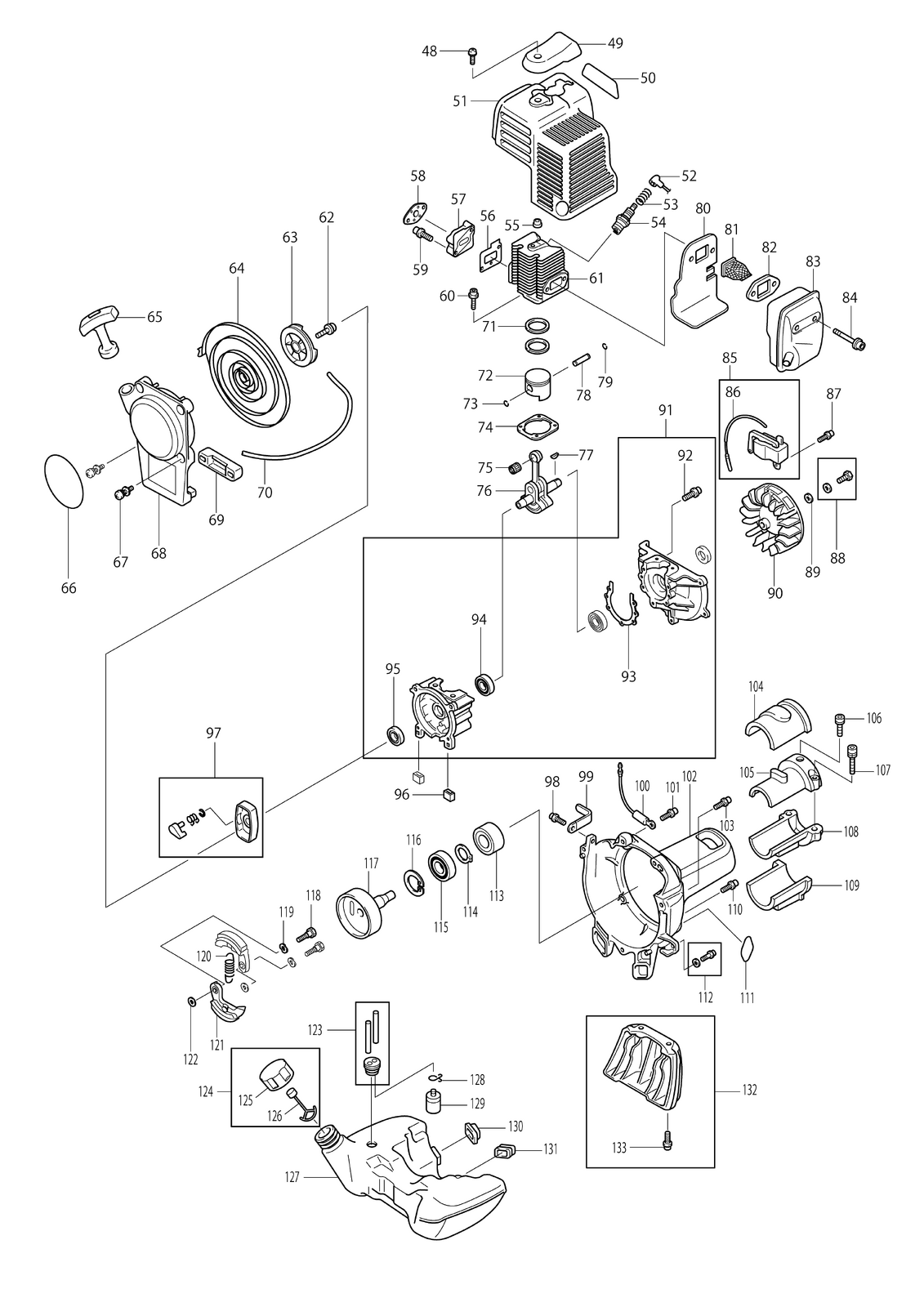

49 1 1 Plug Cover RBC3101 (5317501200) 1453 RON
50 1 1 6169508100 - Indisponibil
51 1 1 CYLINDER COVER (5315506100) 9059 RON
52 1 1 Plug Cap RBC3101 (5317010030) 1117 RON
53 1 1 ARC FIXARE CABLU BUJIE cod vechi 0654009931 PLUG CAP SPRING EM2651UH (324891-8) 446 RON
54 1 1 BUJIE RBC3101 cod vechi 0650149721 (168662-1) 10848 RON
55 1 1 SPACER HTR5600 (5503503001) 670 RON
56 1 1 INSULATOR GASKET RBC3101 (5313502300) 105 RON
57 1 1 INSULATOR COMPLETE RBC3101 (5313021002) 297 RON
58 1 1 SPACER GASKET HTR4500 (5103502801) 670 RON
59 1 2 0119059631 - Indisponibil
60 1 4 SURUB INBUS M5X18 RBC3101 RBC2500 (0119059950) 558 RON
61 1 1 Cilindru RBC3101 (5311500201) 44850 RON
62 1 1 SURUB RBC (5425003010) 105 RON
63 1 1 TAMBUR EPH1000 (5315022020) 3466 RON
64 1 1 ARC SPIRAL EPH1000 (5025001020) 2571 RON
65 1 1 BUTON DE START EPH1000 (5215002110) 2012 RON
66 1 1 6279520400 - Indisponibil
67 1 4 0140059350 - Indisponibil
68 1 1 STARTER CASE CP RBC3101 (5315021001) 16664 RON
69 1 1 DAMPER RBC3101 (5316503800) 2012 RON
70 1 1 SFOARA DE START EPH1000 (5315022040) 2795 RON
71 1 2 Segment RBC3101 (5982500200) 2348 RON
72 1 1 PISTON RBC3101 (5312500601) 10289 RON
73 1 1 CLEMA FIXARE RST/RBC/RBL/EM/BHX cod vechi 0565089970 Clip EM2651UH (233976-8) 334 RON
74 1 1 Garnitura cilindru RBC3101 (5311500301) 2012 RON
75 1 1 NEEDLE ROLLER BEARING RBC3101 (0610089990) 3354 RON
76 1 1 CRANK SHAFT COMPLETE RBC3101 (5312012000) 133434 RON
77 1 1 PANA BHX2500 cod vechi 0323039990 WOODRUFF KEY 3 EM2651UH (254040-2) 1229 RON
78 1 1 PISTON PIN RBC3101 (5312500400) 8275 RON
79 1 1 CLEMA FIXARE RST/RBC/RBL/EM/BHX cod vechi 0565089970 Clip EM2651UH (233976-8) 334 RON
80 1 1 MUFFLER GASKET RBC3101 (5313504101) 3690 RON
81 1 1 Spark Arrester RBC3101 (5243501400) 6039 RON
82 1 1 MUFFLER GASKET RBC3101 (5313500600) 1564 RON
83 1 1 EXHAUST MUFFLER RBC3101 (5313028000) 14427 RON
84 1 2 SURUB INBUS M5X55 RBC3101 (0119059670) 1229 RON
85 1 1 Bobina aprindere RBC3101 (5317015021) 23375 RON
86 1 1 5317015030 - Indisponibil
87 1 2 SURUB INBUS M4X20 RBC3101 EVH2000 SURUB M4X20 WG EBH252/253 MS245.4 BUR181 cod vechi 911139-3 SURUB M4X20 WG EBH252/253 MS245.4 BUR181 cod vechi 911139-3 (Duplicat_0119049970) 446 RON
88 1 1 ANS. BOLT cod vechi 381130616 (0011306160) 446 RON
89 1 1 0200069920 - Indisponibil
90 1 1 FLYWHEEL RBC3101 (5317015010) 14763 RON
91 1 1 CRANKCASE CPL. RBC3101 (5311007000) 53686 RON
92 1 5 SURUB M5X25 RBC3101 (0140059790) 446 RON
93 1 1 Garnitura cilindru RBC3101 (5311501200) 1229 RON
94 1 2 Rulment 6001C3 UR MS252U RBC3101 cod vechi 0600129850 (210113-1) 2683 RON
95 1 2 GARNITURA ULEI RBC3101 RBC2500 (0440129970) 1117 RON
96 1 2 DAMPER ETR2500 (5216500200) 446 RON
97 1 1 FULIE EPH1000 (5315023000) 5927 RON
98 1 1 SURUB M5x12 cod vechi 0140059370 (266808-4) 558 RON
99 1 1 0566059980 - Indisponibil
100 1 1 Wire 1 RBC2500 (6165500201) 1564 RON
101 1 1 0119059870 - Indisponibil
102 1 1 6271502700 - Indisponibil
103 1 1 0119059870 - Indisponibil
104 1 1 PIPE DAMPER 1 RBC3101 (6241501200) 2683 RON
105 1 1 PIPE BRACKET 1 RBC3101 (6271502000) 2460 RON
106 1 1 SURUB INBUS M5X12 DBC 260U SURUB INBUS cod vechi 367905990 (0119059900) 670 RON
107 1 2 SURUB INBUS M5X18 RBC3101 RBC2500 (0119059950) 558 RON
108 1 1 PIPE BRACKET 2 RBC3101 (6271502100) 2571 RON
109 1 1 PIPE DAMPER 2 RBC3101 (6241501300) 2683 RON
110 1 1 0119059870 - Indisponibil
111 1 1 6279520500 - Indisponibil
112 1 1 SURUB M5x12 cod vechi 0140059370 (266808-4) 558 RON
113 1 1 Spacer RBC3101 (6271502300) 2347 RON
114 1 1 INEL DE SIGURANTA EXT. DBC260U INEL DE SIGURANTA cod vechi 382151200 (0031512000) 558 RON
115 1 1 RULMENT RBC3101 (0600129810) 3578 RON
116 1 1 INEL DE SIGURANTA cod vechi 382143200 (0031432000) 105 RON
117 1 1 CLUTCH DRUM COMPLETE RBC3101 (6272006000) 9170 RON
118 1 2 5318500503 - Indisponibil
119 1 2 0200109870 - Indisponibil
120 1 1 ARC AMBREIAJ RBC3101 (5318004010) 2012 RON
121 1 2 GREUTATE AMBREIAJ RBC3101 (5318003010) 5367 RON
121 2 2 CLUTCH SHOE EBH341U PATINA AMBREIAJ cod vechi 367168563 (168563-3) 7157 RON
122 1 2 0200089800 - Indisponibil
123 1 1 FURTUN RBC3101 (0851179940) 3914 RON
124 1 1 FUEL TANK CAP COMPL. RBC2500 (5256059000) 3466 RON
125 1 1 FUEL TANK CAP ETR2500 (5256058000) 3466 RON
126 1 1 STRAP RBC2500 (5256067000) 3242 RON
127 1 1 FUEL TANK RBC3101 (5316503700) 10624 RON
128 1 1 CLEMA FIXARE RBC220/EM4250 (0561059990) 781 RON
129 1 1 FILTRU /BHX (5236503900) 2795 RON
130 1 1 PLACA EPH (5036500200) 1117 RON
131 1 1 PLACA EPH (5036500300) 894 RON
132 1 1 Stand Set RBC3101 (5219002000) Indisponibil Indisponibil
133 1 2 SCREW ASS'Y M5X14 (266809-2) 446 RON

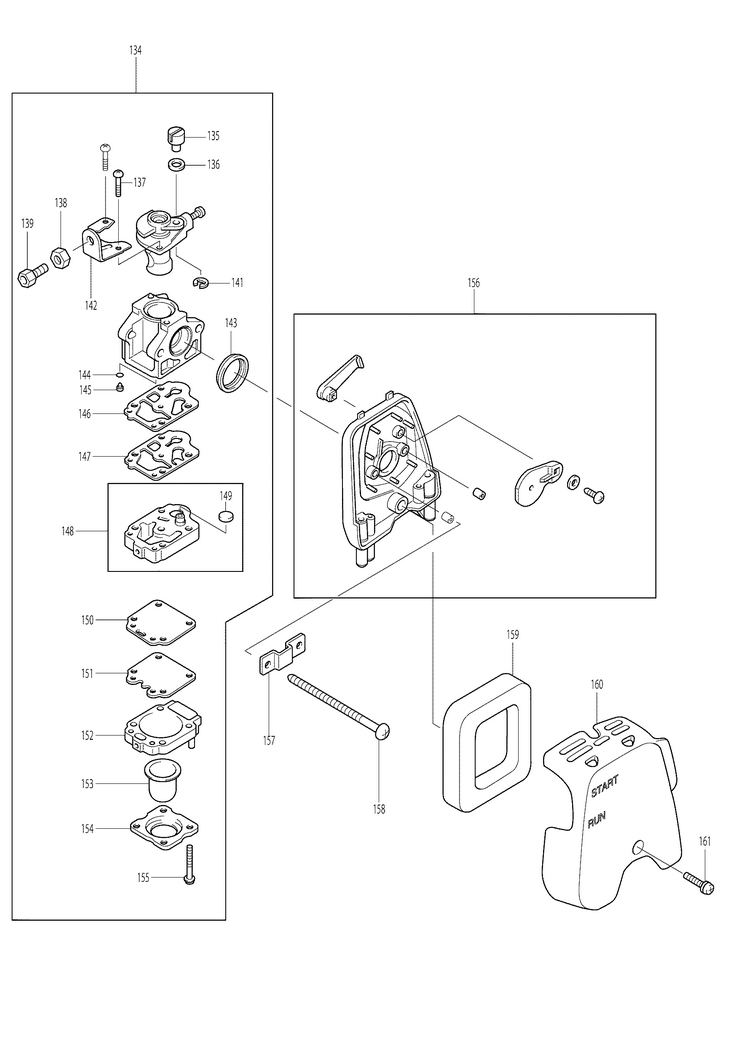

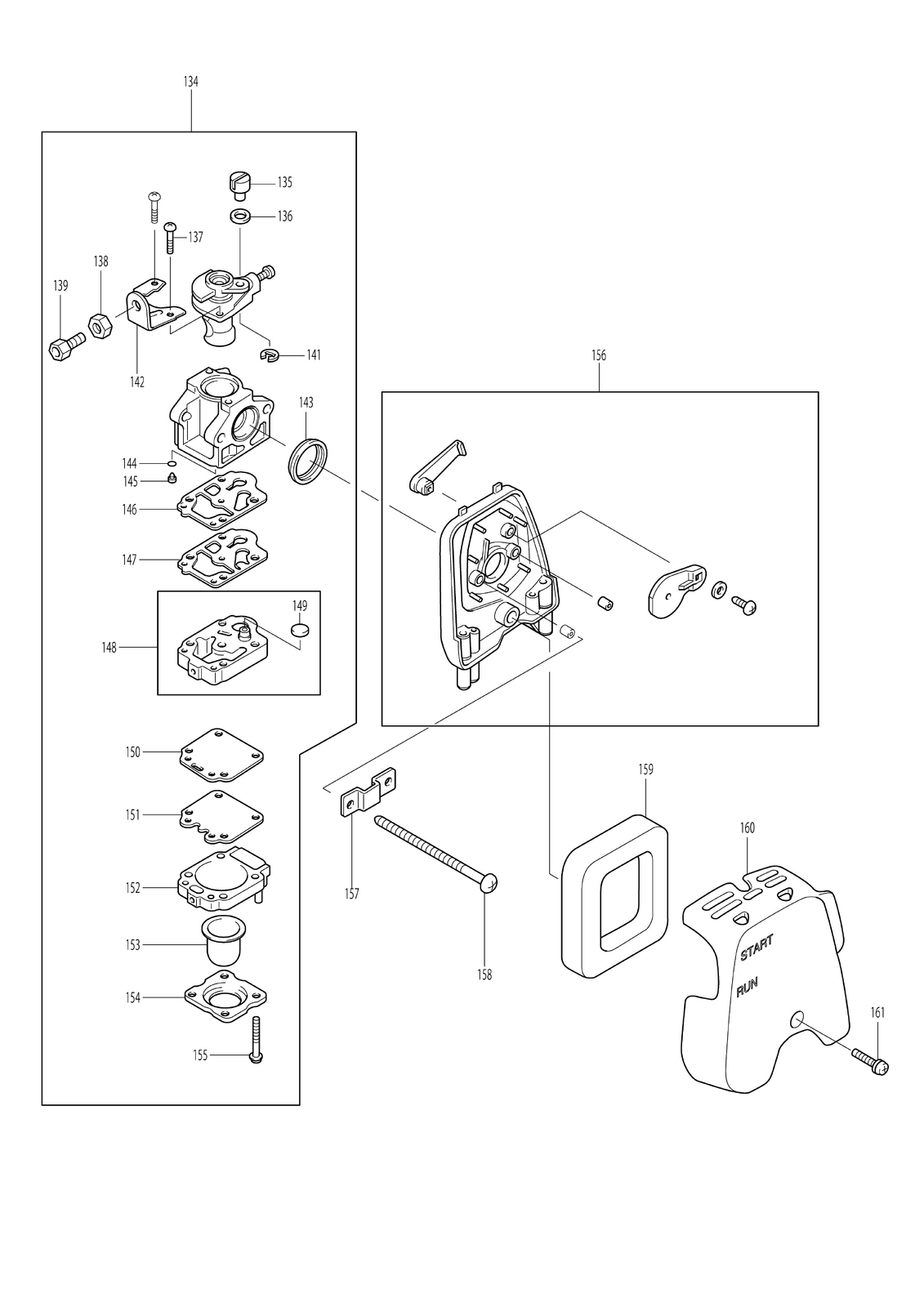

134 1 1 CARBURATOR cod vechi 381602100 CARBURETOR RBC3101 (5316021000) 44067 RON
135 1 1 PIVOT BHX (5236018040) 3242 RON
136 1 1 SAIBA BHX2500 (5426005030) 190 RON
137 1 2 THROTTLE COLLAR SCREW RBC2500 (5246001240) 1676 RON
138 1 1 ADJUST NUT RBC2500 (5316005450) 1229 RON
139 1 1 CABLE ADJUST SCREW RBC2500 (5316020020) 2795 RON
141 1 1 INEL /BHX (5316005120) 2124 RON
142 1 1 BRACKET CABLE RBC2500 (5236052020) 5031 RON
143 1 1 RING PACKING RBC2500 (5236018020) 2459 RON
144 1 1 O RING (5246001010) 2235 RON
145 1 1 JET RBC3101 (5036002010) 297 RON
146 1 1 GARNITURA MEMBRANA POMPA RBC420E (5246001030) 2683 RON
147 1 1 MEMBRANA POMPA EBH252U cod vechi 168575-6 MEMBRANA BHX2500 PUMP DIAPHRAGM (WJ00009599) Indisponibil Indisponibil
148 1 1 CORP POMPA CARBURATOR MS252U RBC420E (5236046130) 25053 RON
149 1 1 VIZOR INTERIOR BHX (5016004010) 2012 RON
150 1 1 MEMBRANA /BHX2500 (5236046040) 3018 RON
151 1 1 MEMBRANE CARBURATOR DBC260U cod vechi 168767-7 MEMBRANE CARBURATOR DBC260U (5316005250) 9953 RON
152 1 1 SUPORT FILTRU DE AER DBC260U (5236046060) 6822 RON
153 1 1 BALON POMPA AMORSARE /BHX2500 (5246001150) 2571 RON
154 1 1 CAPAC POMPA AMORSARE BHX2500 (5236046050) 3019 RON
155 1 4 SURUB CAPAC POMPA BHX2500 (5236046010) 1453 RON
156 1 1 Air Cleaner Plate Ass'y RBC3101 (5253022000) 3242 RON
157 1 1 Air Cleaner Plate Ass'y RBC2500 (5013502400) 1788 RON
158 1 2 SURUB M5X55 RBC3101 (0043105550) 446 RON
159 1 1 FILTRU AER RBC3101 cod vechi 5233504700 FILTRU AER RBC3101 cod vechi 5233504700 (443167-5) 1117 RON
160 1 1 Air Cleaner Case RBC3101 RBC3101 cod vechi 5253501300 AIR CLEANER CASE MS3202 453410-4 cod vechi 5253501300 (453410-4) 2235 RON
161 1 1 SCREW ASS'Y M5X14 (266809-2) 446 RON
162 1 2 WASHER EM2651UH (413143-3) 334 RON
1001 1 2 CLAMP RBC3101 (450563-0) 334 RON
