MOTOFIERASTRAU CU LANT MAKITA EA3500S40B
[EA3500S40B]
MOTOFIERASTRAU CU LANT MAKITA EA3500S40B
Click pentru a mari
Imagini suplimentare
MOTOFIERASTRAU CU LANT MAKITA EA3500S40B
Click pentru a mari
MOTOFIERASTRAU CU LANT MAKITA EA3500S40B
Click pentru a mari
MOTOFIERASTRAU CU LANT MAKITA EA3500S40B
Click pentru a mari
MOTOFIERASTRAU CU LANT MAKITA EA3500S40B
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
C02 0 1 DUZA VALVA CONTROL EA3500S (ZJ00000077) 1660 RON
C04 0 1 SITA (ZJ00000003) 558 RON
C06 0 1 PIN (ZJ00000008) 670 RON
C08 0 1 ZJ00000078 - Indisponibil
C10 0 1 LEVIER (ZJ00000006) 446 RON
C12 0 1 VALVA (ZJ00000007) 5256 RON
C14 0 1 SURUB (ZJ00000009) 111 RON
C16 0 1 ZJ00000079 - Indisponibil
C18 0 1 ZJ00000013 - Indisponibil
C20 0 1 DIAFRAGMA (ZJ00000029) 446 RON
C22 0 1 GARNITURA POMPA (ZJ00000016) 334 RON
C24 0 1 COVER KIT PUMP (ZJ00000004) 765 RON
C26 0 1 SURUB CARCASA POMPA (ZJ00000020) 223 RON
C28 0 1 SCREW IDLE MIXTURE (ZJ00000026) 2012 RON
C30 0 1 SCREW MAIN MIXTURE (ZJ00000027) 2012 RON
C32 0 2 FIXATOR (ZJ00000035) 223 RON
C34 0 1 SITA (ZJ00000037) 223 RON
C36 0 1 ARC (ZJ00000073) 223 RON
C38 0 1 SHAFT ASSY CHOKE (ZJ00000015) 4361 RON
C40 0 1 SHAFT ASSY CHOKE (ZJ00000012) 3019 RON
C42 0 1 ZJ00000080 - Indisponibil
C44 0 2 SCREW (ZJ00000001) 223 RON
C46 0 1 PLUG ACC POCKET (ZJ00000036) 446 RON
C48 0 1 SPRING THROTTLE RETURN (ZJ00000034) 446 RON
C50 0 1 LEVER THROTTLE (ZJ00000022) 558 RON
C52 0 2 SURUB (ZJ00000023) 223 RON
C54 0 1 COLIER (ZJ00000021) 894 RON
C56 0 1 COVER METERING (ZJ00000028) 894 RON
C58 0 2 SURUB (ZJ00000014) 223 RON
C60 0 1 WASHER (ZJ00000033) 558 RON
C62 0 1 LEVER CHOKE (ZJ00000031) 446 RON
C64 0 1 LEVER CHOKE (ZJ00000025) 446 RON
C66 0 1 SPRING THROTTLE RETURN (ZJ00000040) 558 RON
C68 0 1 E-RING (ZJ00000017) 446 RON
C70 0 1 VALVE CHOKE (ZJ00000024) 446 RON
C72 0 1 PLUNGER KIT (ZJ00000005) 1341 RON
C74 0 1 SPRING CHOKE RETURN (ZJ00000032) 446 RON
C76 0 1 ZJ00000081 - Indisponibil
C78 0 1 KIT MEMBRANE SI GARNITURI EA3500S/3501S (ZJ00000082) 2162 RON
C80 0 1 ZJ00000083 - Indisponibil
C82 0 1 ZJ00000084 - Indisponibil
C10 0 1 PISTON 38 EA3500S/EA3501S (319108-2) 6030 RON
C10 0 1 142417-2 - Indisponibil
C10 0 1 142417-2 - Indisponibil
A01 0 1 165202-6 - Indisponibil
A01-1 1 1 165202-6 - Indisponibil
A02 0 1 CHAIN COVER EA3201S EA3500S (419560-5) 1229 RON
A03 0 1 196208-3 - Indisponibil
A03-1 1 1 191H12-3 - Indisponibil
A04 0 1 782026-1 - Indisponibil
A05 0 1 783012-5 - Indisponibil
F04 0 1 199465-2 - Indisponibil

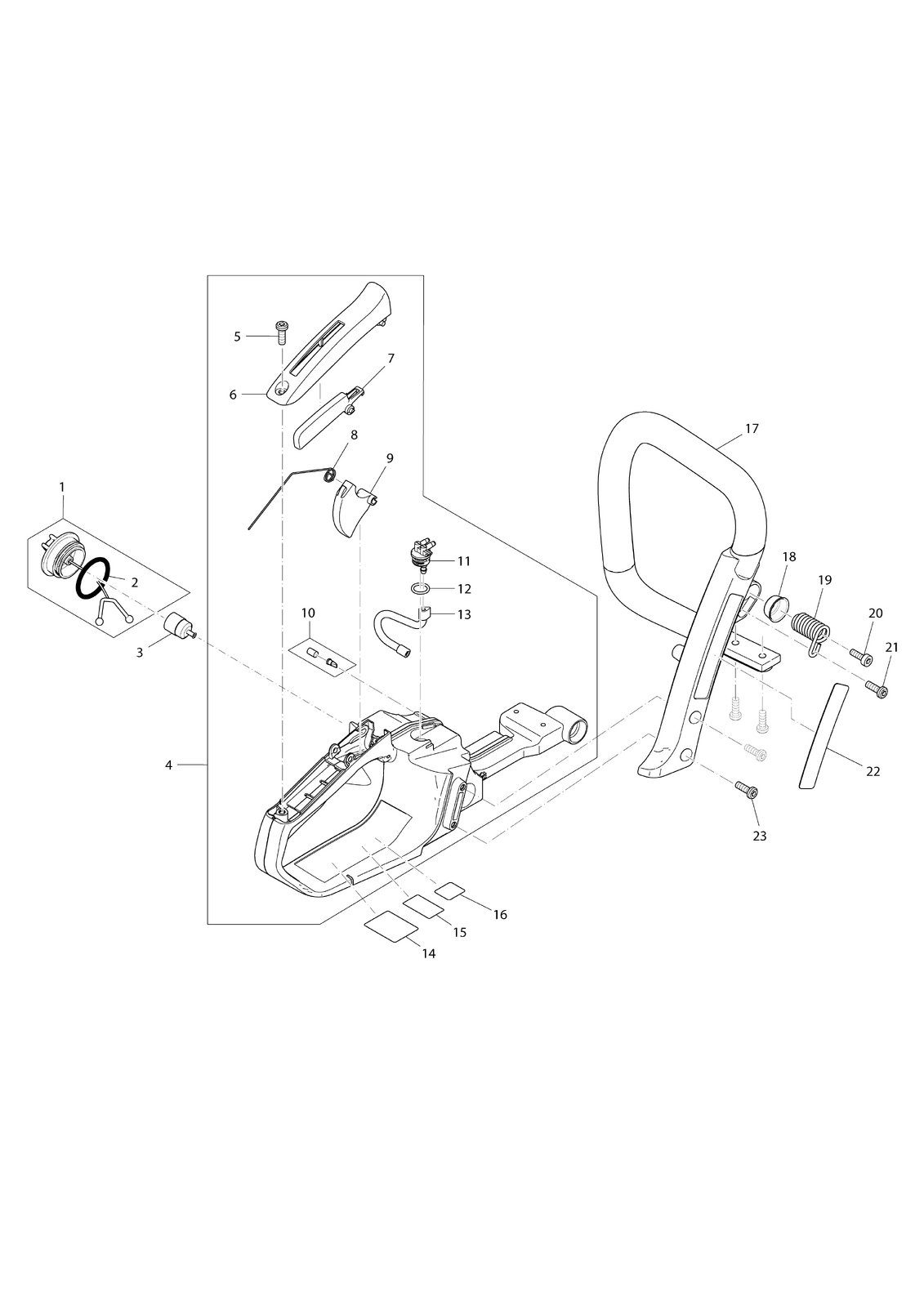

001 0 1 BUSON REZERVOR ULEI CPL. EA3201S cod vechi 168507-3 ANS. BUSON REZERVOR ULEI EA3201S EA3500S (168823-3) 1788 RON
002 0 1 O RING 29.5 EA3201S EA3500S (213080-9) 558 RON
003 0 1 FILTRU DE BENZINA DCS230T (163447-0) 1788 RON
003-1 1 1 FILTRU DE BENZINA DCS230T (163447-0) 1788 RON
004 0 1 ANS. REZERVOR BENZINA EA3201S (195758-5) 11072 RON
005 0 1 H.L. TAPPING SCREW 5.5X16 EA3201S (266651-1) 558 RON
006 0 1 CAPAC MANER EA3201S (452021-2) 893 RON
007 0 1 CLAPETA DE SIGURANTA EA3201S (452020-4) 558 RON
008 0 1 ARC REVENIRE 10 EA3201S (231866-9) 334 RON
009 0 1 TRAGACI ACCELERATIE EA3201S (452019-9) 558 RON
010 0 1 VALVA REZERVOR EA3201S (195762-4) 1229 RON
011 0 1 RACORD COMBUSTIBIL EA3201S NIPPLE EA4300 cod vechi 195114060 (452018-1) 446 RON
012 0 1 O RING 11 5 EA3201S EA3500S (213586-7) 334 RON
013 0 1 FURTUN COMBUSTIBIL EA3201S (424456-7) 4137 RON
014 0 1 850C72-1 - Indisponibil
015 0 1 802K43-2 - Indisponibil
016 0 1 802K41-6 - Indisponibil
017 0 1 MANER TUBULAR EA3201S EA3500S (452036-9) 6710 RON
018 0 1 SUPORT ARC EA3201S (346517-2) 669 RON
019 0 1 ARC AMORTIZOR 12 EA3201S (234189-4) 781 RON
020 0 1 SURUB M5X16 EA3201S (266605-8) 558 RON
021 0 1 H.L. TAPPING SCREW 5.5X16 EA3201S (266651-1) 558 RON
022 0 1 MAKITA LOGO LABEL EA3201S EA3500S (891898-4) Indisponibil Indisponibil
023 0 4 H.L. TAPPING SCREW 5.5X16 EA3201S (266651-1) 558 RON

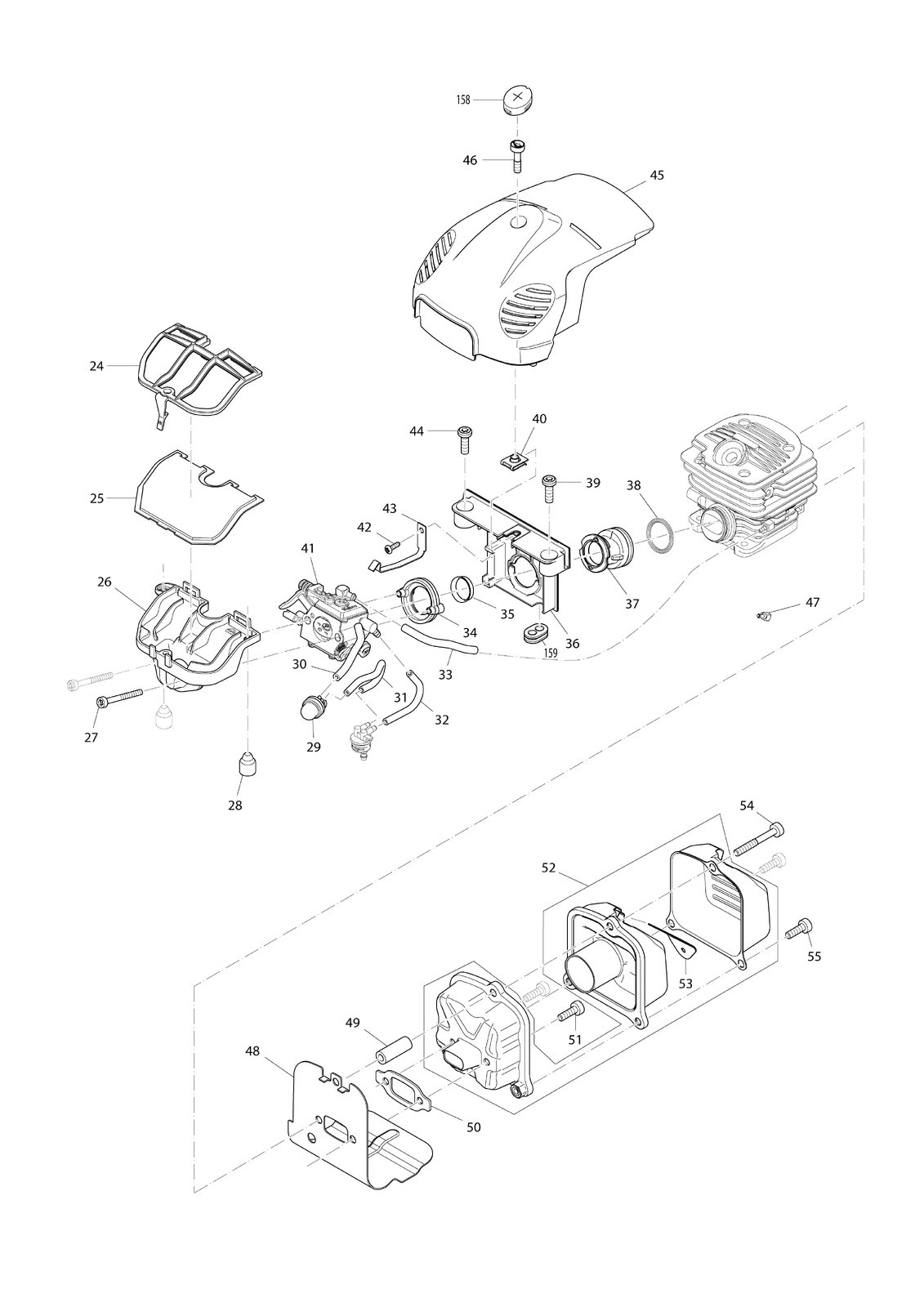

024 0 1 RAMA FILTRU AER EA3201S EA3500S (452031-9) 446 RON
025 0 1 FILTRU DE AER EA3500S FILTRU DE AER EA3201S (423414-0) 2460 RON
026 0 1 SUPORT FILTRU EA3201S (452030-1) 1229 RON
027 0 2 SURUB M4X40 EA3201S (266604-0) 558 RON
028 0 2 AMORTIZOR EA3201S (424173-9) Indisponibil Indisponibil
029 0 1 POMPA AMORSARE COMPLETA DCS3501/4301 POMPA AMORSARE COMPLETA DCS3501/4301 cod vechi 302700322 PRIMER PUMP (168398-2) 4249 RON
030 0 1 FURTUN 2.5-55 EA3201S EA3500S (422067-2) 670 RON
031 0 1 FURTUN 2.5-112 EA3201S EA3500S (422065-6) 1117 RON
032 0 1 FURTUN 3-70 EA3201S (422068-0) 782 RON
033 0 1 FURTUN 2.5-72 EA3201S EA3500S (422066-4) 670 RON
034 0 1 FLANSA EA3201S (318634-8) 105 RON
035 0 1 INEL METALIC 17 EA3201S (346413-4) 334 RON
036 0 1 FLANSA CARBURATOR EA3500 (454874-5) 437 RON
037 0 1 424617-9 - Indisponibil
038 0 1 ARC COLIER EA3201S EA3500S (233971-8) 670 RON
039 0 1 H.L. TAPPING SCREW 5.5X16 EA3201S (266651-1) 558 RON
040 0 1 PIULITA M5 EA3201S (264044-6) 446 RON
041 0 1 CARBURATOR EA3500S/3501S (168829-1) 11273 RON
041-1 1 1 CARBURATOR EA3500S/3501S (168829-1) 11273 RON
042 0 1 SURUB 3X10 EA3201S (266421-8) 894 RON
043 0 1 ARC CONTACT EA3201S (346290-4) 334 RON
044 0 1 H.L. TAPPING SCREW 5.5X16 EA3201S (266651-1) 558 RON
045 0 1 APARATOARE (454875-3) 1127 RON
046 0 1 SURUB M5X20 EA3201S (266607-4) 558 RON
047 0 1 NIPLU IMPULS AER EA3201S (325938-1) 781 RON
048 0 1 PLACA DE RACIRE EA3500S cod vechi 125174180 (346764-5) 558 RON
049 0 1 326390-6 - Indisponibil
050 0 1 GARNITURA EA3201S (346304-9) 334 RON
051 0 2 SURUB M5X16 EA3201S (266605-8) 558 RON
052 0 1 TOBA ESAPAMENT (168830-6) 1255 RON
053 0 1 346823-5 - Indisponibil
054 0 1 SURUB 5X55 cod vechi 908505555 (266480-2) 558 RON
055 0 2 SURUB M5X16 EA3201S (266605-8) 558 RON

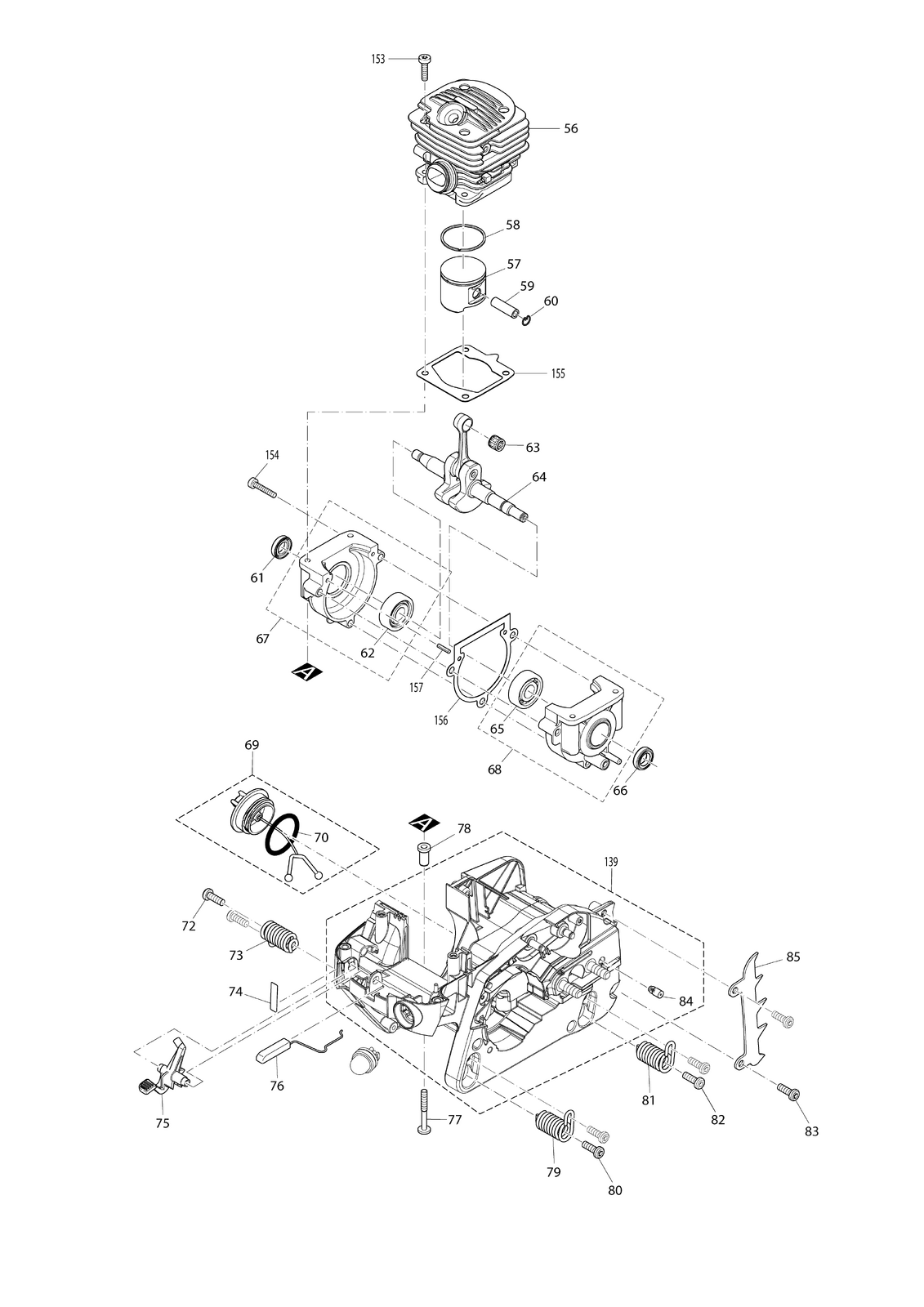

056 0 1 319073-5 - Indisponibil
056-1 1 1 CILINDRU EA3500S/3501S (143323-4) 13021 RON
057 0 1 PISTON 38 EA3500S/EA3501S (319108-2) 6030 RON
057-1 1 1 ANS. PISTON EA3500S cod vechi 125132100 (197479-5) 23487 RON
058 0 1 SEGMENT PISTON 38MM/1,3MM EA/DCS3500 (257366-1) 961 RON
059 0 1 326395-6 - Indisponibil
060 0 2 234323-6 - Indisponibil
061 0 1 INEL RADIAL cod vechi 962900050 (213141-5) 2460 RON
062 0 1 211494-6 - Indisponibil
062-1 1 1 RULMENT 6201 EA3201S (211341-1) 2012 RON
063 0 1 RULMENT AXIAL (212093-7) 1660 RON
064 0 1 142417-2 - Indisponibil
064-1 1 1 123530-5 - Indisponibil
064-2 2 1 ANS. AMBIELAJ+CARTER EA3500S (127075-5) 22634 RON
065 0 1 211494-6 - Indisponibil
065-1 1 1 RULMENT 6201 EA3201S (211341-1) 2012 RON
066 0 1 INEL RADIAL cod vechi 962900050 (213141-5) 2460 RON
067 0 1 CRANKCASE ASSY EA3500S (126380-7) 6030 RON
067-1 1 1 SEMICARTER STANGA (MS) EA3500S (144357-0) 6134 RON
068 0 1 126381-5 - Indisponibil
068-1 1 1 SEMICARTER DREAPTA (KS) EA3500S (144356-2) 5156 RON
069 0 1 BUSON REZERVOR ULEI CPL. EA3201S cod vechi 168507-3 ANS. BUSON REZERVOR ULEI EA3201S EA3500S (168823-3) 1788 RON
070 0 1 O RING 29.5 EA3201S EA3500S (213080-9) 558 RON
072 0 2 H.L. TAPPING SCREW 5.5X16 EA3201S (266651-1) 558 RON
073 0 1 ARC AMORTIZOR 12 EA3201S (234189-4) 781 RON
074 0 1 INDICATION LABEL EA3201S (816917-5) 558 RON
075 0 1 LEVIER ON-OFF EA3201S (452025-4) 558 RON
076 0 1 PARGHIE SOC EA3201S (452022-0) 669 RON
077 0 4 SURUB 5X40 EA3201S SURUB 5X40 DCS34 COD VECHI 913350404 (266608-2) 558 RON
078 0 4 326402-5 - Indisponibil
079 0 1 ARC AMORTIZOR 12 EA3201S (234189-4) 781 RON
080 0 2 H.L. TAPPING SCREW 5.5X16 EA3201S (266651-1) 558 RON
081 0 1 ARC AMORTIZOR 12 EA3201S (234189-4) 781 RON
082 0 2 H.L. TAPPING SCREW 5.5X16 EA3201S (266651-1) 558 RON
083 0 2 H.L. TAPPING SCREW 5.5X16 EA3201S (266651-1) 558 RON
084 0 1 VALVA ULEI EA3201S EA3500S (168504-9) 105 RON
085 0 1 GHIARA METALICA EA3201S (346301-5) 893 RON
086 0 1 ARC TERMINAL EA3500S (326210-4) 558 RON

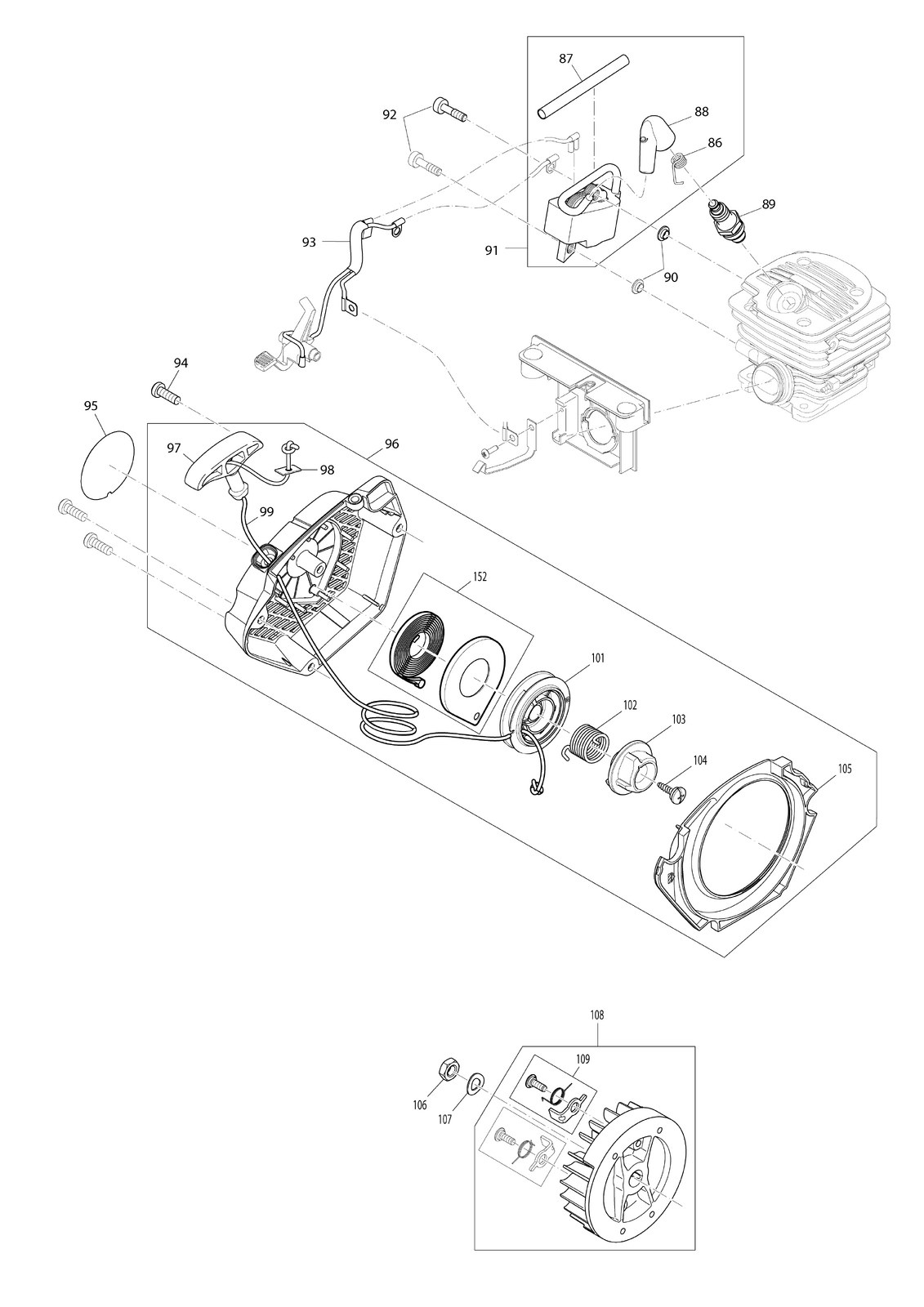

087 0 1 ISOLATING TUBE 6-80 (444042-8) 334 RON
088 0 1 FISA BUJIE EA3500S (424522-0) 1117 RON
089 0 1 BUJIE EM4250/DCS230T/BHX2 cod vechi 0650109950 BUJIE NGK CMR6A BUJIE NGK CMR7A-5 EA4300 cod vechi 965603040, COD VECHI 965603030 (168401-9) 8163 RON
090 0 2 SAIBA IZOLATOARE EA3201S (452670-5) 781 RON
091 0 1 BOBINA EA3201S, EA3200, EA3500S (126270-4) 21362 RON
091-1 1 1 BOBINA EA3201S, EA3200, EA3500S (126270-4) 21362 RON
092 0 2 SURUB M5X20 EA3201S (266631-7) 334 RON
093 0 1 CABLE HARNESS EA3201S (168601-1) 1676 RON
094 0 3 H.L. TAPPING SCREW 5.5X16 EA3201S (266651-1) 558 RON
095 0 1 802K44-0 - Indisponibil
096 0 1 168608-7 - Indisponibil
096-1 1 1 ANSAMBLU STARTER EA3201S (cod echivalent 161328-2) ANSAMBLU STARTER EA3201S EA3500S (161328-2) 10177 RON
097 0 1 MANER DE STARTER EA3201S EA3500S (453783-5) 1565 RON
098 0 1 SQUARE WASHER 4 EA3201S EA3500S (267847-7) 446 RON
099 0 1 SFOARA EA3201S EA3500S (444038-9) 670 RON
101 0 1 ROLA STARTER EA3201S EA3500S (453785-1) 1311 RON
101-1 1 1 TAMBUR EA3200/4301F (455919-2) 1249 RON
102 0 1 ARC SECUNDAR 20 EA3201S EA3500S (234253-1) 105 RON
103 0 1 STARTER WHEEL cod vechi 170160780 (453786-9) 2124 RON
104 0 1 SURUB 5X12 EA3201S EA3500S (266777-9) 446 RON
105 0 1 GHIDAJ AER EA3201S (452026-2) 1788 RON
106 0 1 PIULITA M8X1 EA3201S (264053-5) 334 RON
107 0 1 SAIBA ARCUITA 8 EA3201S EA3500S (267822-3) 111 RON
108 0 1 VOLANTA CPL. EA3201S (140480-9) 9729 RON
109 0 2 SET CLICHETI EA3201S EA3500S (195761-6) 1229 RON

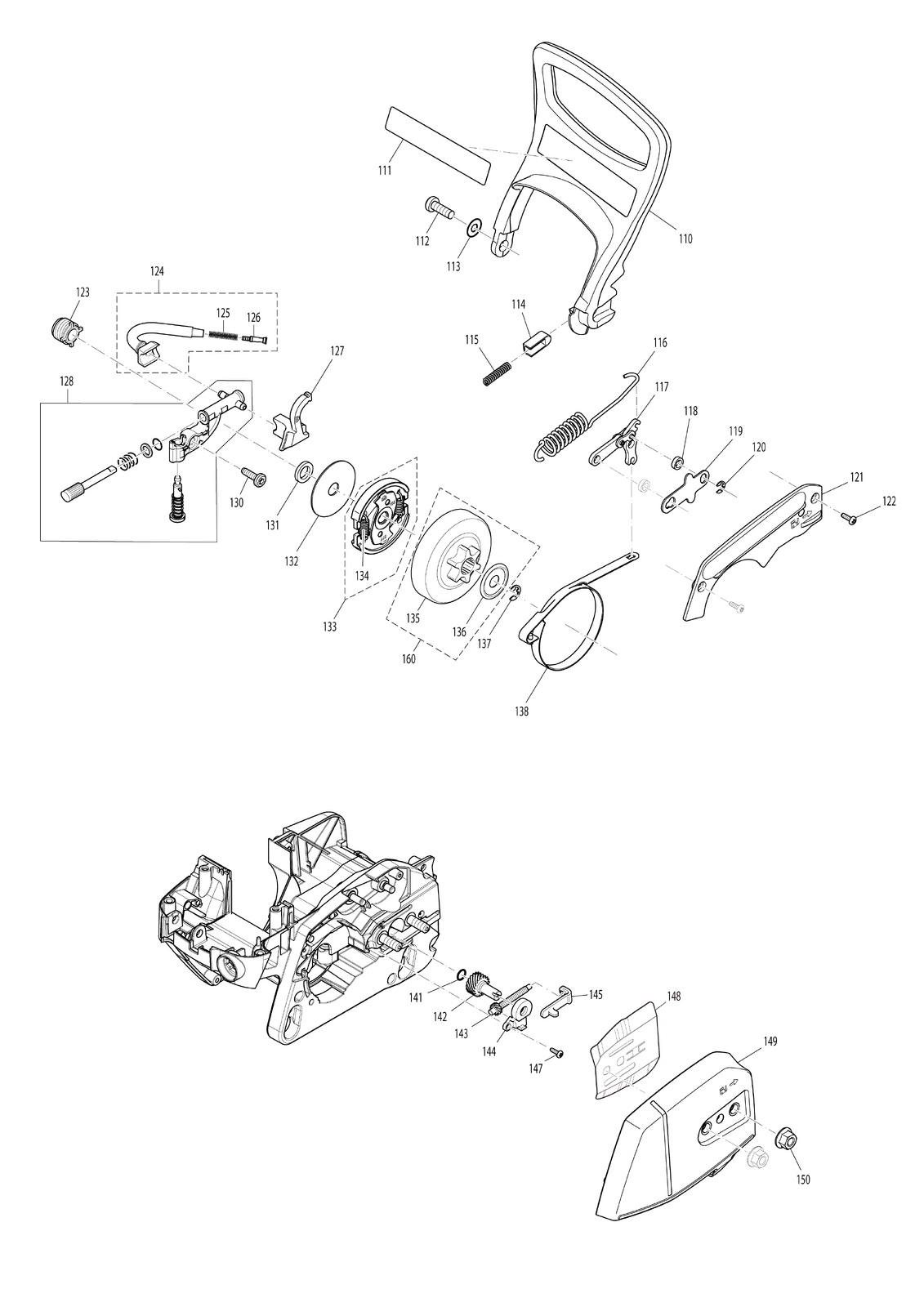

110 0 1 GARDA DE MANA EA3201S (452032-7) 2571 RON
111 0 1 810449-4 - Indisponibil
111-1 1 1 818L12-9 - Indisponibil
112 0 1 H.L. TAPPING SCREW 5.5X16 EA3201S (266651-1) 558 RON
113 0 1 SAIBA PLATA 6 (253715-0) 558 RON
114 0 1 GHIDAJ EA3201S (313212-9) 446 RON
115 0 1 ARC 6 EA3201S (234210-9) 558 RON
116 0 1 ARC FRANA 10 EA3201S (231868-5) 781 RON
117 0 1 SUPORT ARC EA3201S (163500-2) 4473 RON
118 0 2 BUCSA 6 EA3201S (325947-0) 334 RON
119 0 1 DISTANTIER TABLA EA3201S EA3500S (346299-6) 111 RON
120 0 1 INEL BLOCARE E-4 (961011-9) 558 RON
121 0 1 CAPAC FRANA EA3201S (452033-5) 105 RON
121-1 1 1 CAPAC FRANA EA3201S EA3500S (458425-6) 393 RON
122 0 2 SURUB 3X10 EA3201S (266421-8) 894 RON
123 0 1 BUCSA ANTRENARE POMPA ULEI EA3201S (452035-1) 2123 RON
124 0 1 CONDUCTA ULEI CU FILTRU EA3201S/3500S (168645-1) 2236 RON
125 0 1 ARC (FILTRU ULEI) 6 EA3201S (234207-8) 558 RON
126 0 1 DOP EA3201S EA3500S (452666-6) 334 RON
126-1 1 1 DOP EA3201S EA3500S (452666-6) 334 RON
127 0 1 OIL PRESSURE LINE EA3201S (424342-2) 2571 RON
128 0 1 POMPA ULEI CPL. EA3201S EA3500S (161346-0) 9059 RON
130 0 1 SURUB M5X16 EA3201S (266605-8) 558 RON
131 0 1 SAIBA 10 EA3201S (267430-0) 558 RON
132 0 1 SAIBA PLATA 10 EA3201S (267431-8) 669 RON
133 0 1 AMBREIAJ CPL. EA3201S (168607-9) 3466 RON
134 0 2 ARC AMBREIAJ 5 EA3201S EA3500S (231873-2) 143 RON
135 0 1 140484-1 - Indisponibil
135-1 1 1 TAMBUR AMBREIAJ (140A30-6) 12637 RON
135-2 2 1 TAMBUR AMBREIAJ ASSY. EA3201S EA3500S cod vechi 140484-1 TAMBUR AMBREIAJ ASSY. EA3201S EA3500S Cod vechi 140980-9 140A30-6 (140M30-8) 5815 RON
136 0 1 SAIBA 8 EA3201S EA3500S SAIBA 8 EA3201S EA3500S cod vechi 267451-2 (267833-8) 334 RON
137 0 1 SAIBA DE SIGURANTA SERIA UC*30A SAIBA DE SIGURANTA 6,0 cod vechi 927306000 INEL BLOCARE E-6 cod vechi 961012-7 (259033-4) 558 RON
138 0 1 BANDA FRANA EA3201S (346298-8) 1788 RON
138-1 1 1 BANDA FRANARE (347363-6) 874 RON
139 0 1 CARCASA MOTOR CPL (143549-8) 694 RON
141 0 1 O RING 7 EA3500S (213594-8) 223 RON
142 0 1 ROATA DINTATA 18 EA3500S (227744-9) 2348 RON
143 0 1 ROATA DINTATA INTINZATOR EA3500S (227743-1) 2795 RON
144 0 1 CAPAC MECANISM PROFESIONAL EA3500S (452667-4) 223 RON
145 0 1 GHIDAJ INTINZATOR EA3500S (346300-7) 670 RON
147 0 1 SURUB 3X10 EA3201S (266421-8) 894 RON
148 0 1 PLACA DE GHIDARE EA3201S EA3500S (346518-0) 670 RON
149 0 1 SPROCKET GUARD (452044-0) 2683 RON
150 0 2 PIULITA HEXAGONALA M8 cod vechi 923208004 (264055-1) 446 RON
152 0 1 SET ARC STARTER EA3201S EA3500S (195955-3) 3466 RON
153 0 4 SURUB TORX M5X20 (266960-8) 175 RON
154 0 3 266880-6 - Indisponibil
155 0 1 GARNITURA CILINDRU (346760-3) 448 RON
156 0 1 GARNITURA PASLA (346761-1) 262 RON
157 0 2 STIFT TUBULAR 3-16 (951063-8) 558 RON
158 0 1 424618-7 - Indisponibil
159 0 1 424631-5 - Indisponibil
160 0 1 197441-0 - Indisponibil
160-1 1 1 199033-1 - Indisponibil
160-2 2 1 191A48-0 - Indisponibil

Conditii Generale
