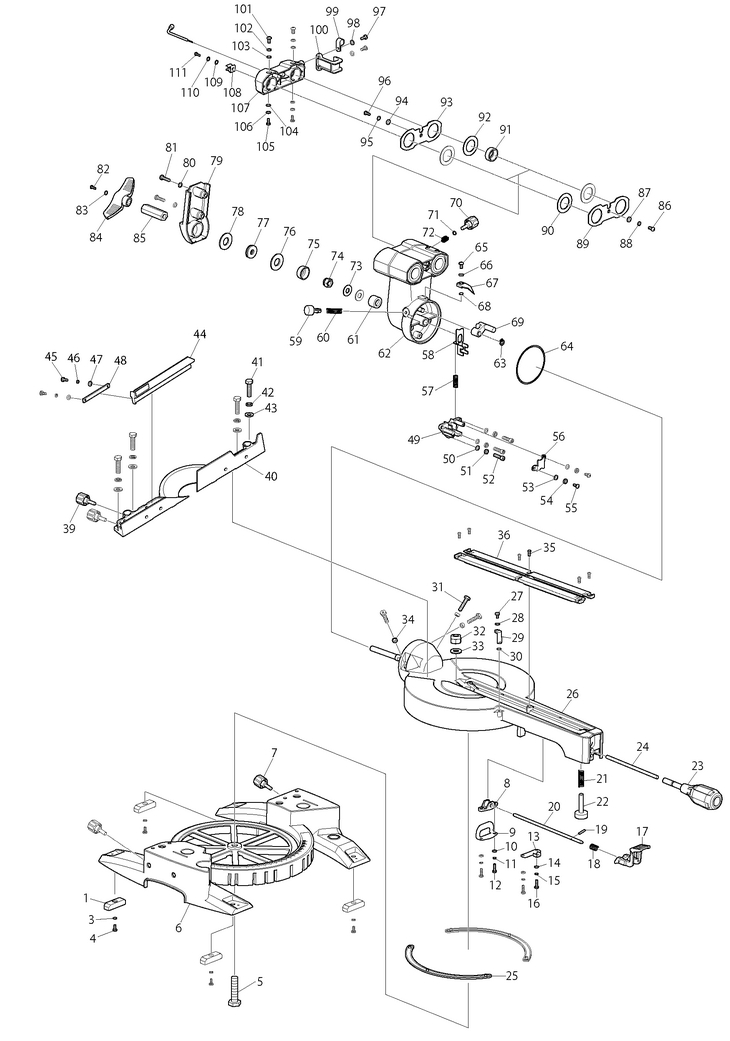

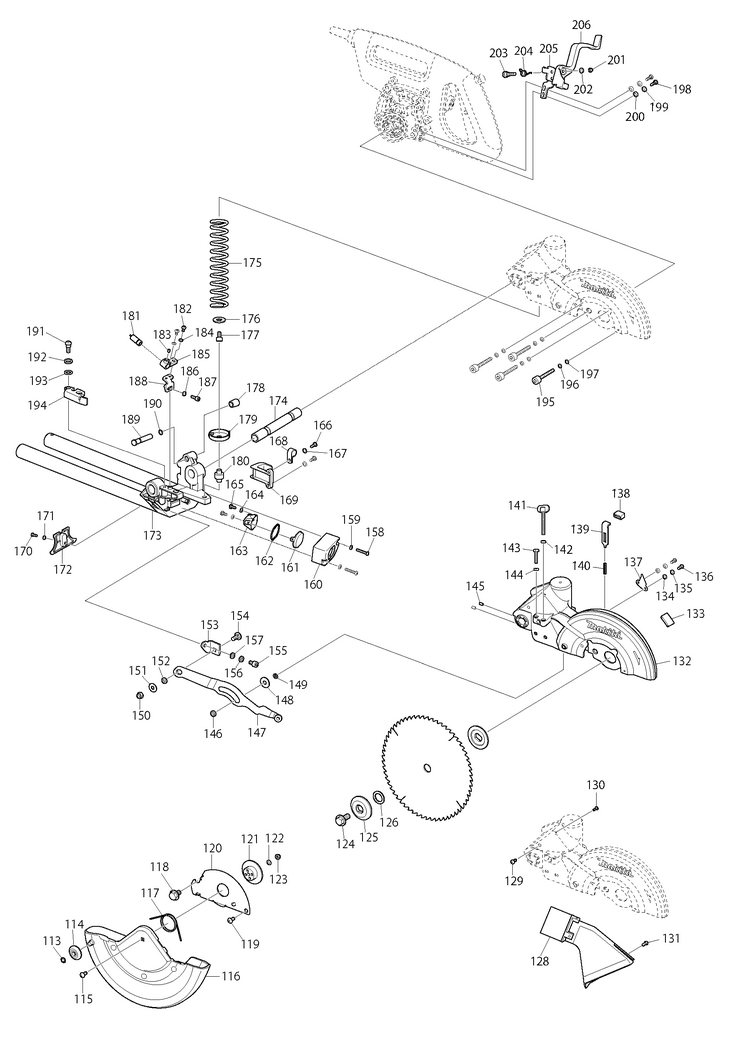

Top » Piese de schimb » PIESE MAKITA » Scule pentru lemn » LS0815FL LS0815FL [LS0815FL] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 4 BUFFER PAD (JM23500132) 446 RON 3 1 4 FLAT WASHER 4 LS1018L (JM23100016) 558 RON 4 1 4 SURUB M4X10 (JM23500008) 446 RON 5 1 1 PIVOT SHAFT (JM23500009) 1341 RON 6 1 1 BASE COMPLETE LS0815FL (JM23510001) 22033 RON 7 1 2 Lock knob for ext. wings LS1018L (JM23100013) 893 RON 8 1 1 Working Table Locking Bracket LS1018L (JM23100025) 1341 RON 9 1 1 LOCK PLATE B LS1018L (JM23100020) 1340 RON 10 1 2 FLAT WASHER 4 LS1018L (JM23100016) 558 RON 11 1 2 SPRING WASHER 4 LS1018L (JM23100015) 558 RON 12 1 2 Cross Head Screw M4x15 LS1018L (JM23100014) 446 RON 12 2 2 Cross Head Screw M4x12 LS1018L (JM23100033) 558 RON 13 1 1 LOCK PLATE A LS1018L (JM23100018) 1340 RON 14 1 2 FLAT WASHER 4 LS1018L (JM23100016) 558 RON 15 1 2 SPRING WASHER 4 LS1018L (JM23100015) 558 RON 16 1 2 Cross Head Screw M4x15 LS1018L (JM23100014) 446 RON 16 2 2 Cross Head Screw M4x12 LS1018L (JM23100033) 558 RON 17 1 1 Press Plate LS1018L (JM23100023) 105 RON 18 1 1 LOCK SPRING LS1018L (JM23100021) 1229 RON 19 1 1 LOCK PIN LS1018L (JM23100022) 893 RON 20 1 1 LOCK SHAFT B (JM23500015) 670 RON 21 1 1 ARC 11 (JM23500014) 334 RON 22 1 1 ADJUSTABLE ROD (JM23500013) 670 RON 23 1 1 MITER LOCKING HANDLE LS1018L (JM23100027) 2123 RON 24 1 1 LOCK SHAFT A (JM23500016) 670 RON 25 1 2 FRICTION PLATE (JM23500012) 1341 RON 26 1 1 WORKING TABLE COMPLETE LS0815FL (JM23510002) 26395 RON 27 1 1 SURUB M4X10 (JM23500008) 446 RON 28 1 1 FLAT WASHER 4 LS1018L (JM23100016) 558 RON 29 1 1 MITER POINTER LS1018L (JM23100030) 893 RON 30 1 1 OUT STAR SAIBA (JM23500053) 223 RON 31 1 3 Hex Bolt M6x28 LS1018L (JM23100034) 781 RON 32 1 1 LOCKNUT M8 (JM23500023) 334 RON 33 1 1 SAIBA PLATA 8 (JM23500022) 223 RON 34 1 3 Anti-loosen Ring LS1018L (JM23100035) 446 RON 35 1 6 SURUB M4X10 (JM23500008) 446 RON 36 1 2 Table Insert LS1018L (JM23100029) 1341 RON 39 1 2 Lock knob for ext. wings LS1018L (JM23100013) 893 RON 40 1 1 RIP FENCE LS0815FL (JM23500026) 11855 RON 41 1 4 HEX. BOLT M8X30 LS1018L (JM23100062) 781 RON 42 1 4 SPRING WASHER 8 LS1018L (JM23100061) 334 RON 43 1 4 FLAT WASHER 8 LS1018L (JM23100060) 558 RON 44 1 1 SUB FENCE COMPLETE (JM23510013) 3690 RON 45 1 2 Cross Head Screw M4x8 LS1018L (JM23100065) 334 RON 46 1 2 SPRING WASHER 4 LS1018L (JM23100015) 558 RON 47 1 2 FLAT WASHER 4 LS1018L (JM23100016) 558 RON 48 1 1 KEY (JM23500024) 1341 RON 49 1 1 45DEGREE LIMIT BRACKET (JM23500095) 1341 RON 50 1 3 FLAT WASHER 5 LS1018L (JM23100007) 558 RON 51 1 3 Spring Washer 5 LS1018L (JM23100149) 334 RON 52 1 3 H.S.BOLT M5X14 (JM23500096) 334 RON 53 1 2 FLAT WASHER 4 LS1018L (JM23100016) 558 RON 54 1 2 SPRING WASHER 4 LS1018L (JM23100015) 558 RON 55 1 2 SURUB M4X10 (JM23500008) 446 RON 56 1 1 45DEGREE COVER (JM23500097) 446 RON 57 1 1 ARC 8 (JM23500094) 223 RON 58 1 1 45DEGREE LIMIT PLATE (JM23500093) 670 RON 59 1 1 Limited Knob LS1018L (JM23100051) 105 RON 60 1 1 MITER PRESSION SPRING LS1018L (JM23100049) 893 RON 61 1 1 CLAMP PLATE LS1018L (JM23100052) 781 RON 62 1 1 SUPPORT ARM COMPLTE (JM23510008) 20579 RON 63 1 1 RETAINING RING 8 (JM23500079) 223 RON 64 1 1 FRICTION RING (JM23500078) 446 RON 65 1 1 Cross Head Screw M4x15 LS1018L (JM23100014) 446 RON 65 2 1 Cross Head Screw M4x12 LS1018L (JM23100033) 558 RON 66 1 1 FLAT WASHER 4 LS1018L (JM23100016) 558 RON 67 1 1 BEVEL POINTER LS1018L (JM23100048) 781 RON 68 1 1 OUT STAR SAIBA (JM23500053) 223 RON 69 1 1 90DEGREE LIMIT BRACKET (JM23500080) 1341 RON 70 1 1 Sliding Bar Locking Knob LS1018L (JM23100086) 3690 RON 71 1 1 Spring Washer 6 LS1018L (JM23100190) 781 RON 72 1 1 PRESSURE SPRING LS1018L (JM23100088) 781 RON 73 1 2 FLAT WASHER 10 LS1018L (JM23100010) 558 RON 74 1 1 LOCK NUT M10 LS1018L (JM23100009) 669 RON 75 1 1 BOWL TYPE PLATE LS1018L (JM23100053) 781 RON 76 1 1 Big Flat Washer 10x26x2,5 LS1018L (JM23100055) 781 RON 77 1 1 Surface Bearing LS1018L (JM23100054) 3242 RON 78 1 1 Big Flat Washer 10x26x2,5 LS1018L (JM23100055) 781 RON 79 1 1 SUPPORT ARM COVER (JM23500086) 670 RON 80 1 2 FLAT WASHER 5 LS1018L (JM23100007) 558 RON 81 1 2 Cross Head Screw M5x20 LS1018L (JM23100006) 446 RON 82 1 1 Cross Head Screw M4x18 LS1018L (JM23100019) 446 RON 83 1 1 FLAT WASHER 4 LS1018L (JM23100016) 558 RON 84 1 1 BEVEL LOCKING HANDLE (JM23500087) 105 RON 85 1 1 HEX NUT (JM23500088) 334 RON 86 1 1 SURUB M5X (JM23500081) 446 RON 87 1 1 FLAT WASHER 5 LS1018L (JM23100007) 558 RON 88 1 1 Spring Washer 5 LS1018L (JM23100149) 334 RON 89 1 1 SUPPORT ARM COVER (JM23500082) 1341 RON 90 1 2 DUSTPROOF RING (JM23500083) 334 RON 91 1 1 GARNITURA RULMENT (JM23500084) 446 RON 92 1 2 DUSTPROOF RING (JM23500083) 334 RON 93 1 1 SUPPORT ARM COVER (JM23500082) 1341 RON 94 1 1 FLAT WASHER 5 LS1018L (JM23100007) 558 RON 95 1 1 Spring Washer 5 LS1018L (JM23100149) 334 RON 96 1 1 SURUB M5X (JM23500081) 446 RON 97 1 2 Cross Head Screw M4x18 LS1018L (JM23100019) 446 RON 98 1 2 FLAT WASHER 4 LS1018L (JM23100016) 558 RON 99 1 1 CORD CLAMP LS1018L (JM23100072) 669 RON 100 1 1 CABLE HOLDER BRACKET (JM23500066) 670 RON 101 1 2 SURUB M5X (JM23500081) 446 RON 102 1 2 Spring Washer 5 LS1018L (JM23100149) 334 RON 103 1 2 FLAT WASHER 5 LS1018L (JM23100007) 558 RON 104 1 2 FLAT WASHER 5 LS1018L (JM23100007) 558 RON 105 1 2 SURUB M5X (JM23500081) 446 RON 106 1 2 Spring Washer 5 LS1018L (JM23100149) 334 RON 107 1 1 SLIDING BAR BRACKET (JM23500085) 670 RON 108 1 1 WRENCH CLIP LS1018L (JM23100091) 781 RON 109 1 1 FLAT WASHER 4 LS1018L (JM23100016) 558 RON 110 1 1 SPRING WASHER 4 LS1018L (JM23100015) 558 RON 111 1 1 Cross Head Screw M4x15 LS1018L (JM23100014) 446 RON 111 2 1 Cross Head Screw M4x12 LS1018L (JM23100033) 558 RON 113 1 1 Wheel Lock Ring LS1018L (JM23100103) 558 RON 114 1 1 Guard Wheel LS1018L (JM23100102) 558 RON 115 1 1 SQUARE NECK BOLT M5X12 (JM23500031) 223 RON 116 1 1 LOW BLADE GUARD COD VECHI JM23510004 (JM23510024) 8947 RON 117 1 1 GUARD SPRING (JM23500035) 446 RON 118 1 1 HEX BOLT M8X15 (JM23500134) 334 RON 119 1 1 Cross Head Screw for Guard LS1018L (JM23100113) 781 RON 120 1 1 LOW GUARD FIX PLATE (JM23500036) 1341 RON 121 1 1 GUARD LINKAGE CENTER PLATE (JM23500037) 1341 RON 122 1 1 FLAT WASHER 5 LS1018L (JM23100007) 558 RON 123 1 1 LOCK NUT M5 LS1018L (JM23100141) 558 RON 124 1 1 BLADE BOLT (JM23500135) 105 RON 125 1 2 BLADE FLANGE (JM23500038) 3019 RON 126 1 1 BUCSA LH1200FL (JM23100144) 893 RON 128 1 1 DUST PORT (JM23500039) Indisponibil Indisponibil 129 1 1 STIFT C LS1018L (JM23100193) 781 RON 129 2 1 JM23500040 - Indisponibil 130 1 1 STIFT C LS1018L (JM23100193) 781 RON 130 2 1 JM23500040 - Indisponibil 131 1 1 SURUB (JM23500034) Indisponibil Indisponibil 132 1 1 UP BLADE GUARD COMPLETE LS0815FL (JM23510005) 15322 RON 133 1 1 GUARD INSERT (JM23500047) 446 RON 134 1 2 FLAT WASHER 4 LS1018L (JM23100016) 558 RON 135 1 2 SPRING WASHER 4 LS1018L (JM23100015) 558 RON 136 1 2 Cross Head Screw M4x15 LS1018L (JM23100014) 446 RON 136 2 2 Cross Head Screw M4x12 LS1018L (JM23100033) 558 RON 137 1 1 LOCK PLATE (JM23500048) 446 RON 138 1 1 LOCK COVER (JM23100138) 558 RON 139 1 1 LOCK PLATE (JM23500050) 446 RON 140 1 1 LOCK SPRING5 (JM23500049) 446 RON 141 1 1 Limited Knob LS1018L (JM23100119) 1341 RON 142 1 1 Anti-loosen Ring LS1018L (JM23100035) 446 RON 143 1 1 HEX BOLT M6X25 (JM23500051) 334 RON 144 1 1 Anti-loosen Ring LS1018L (JM23100035) 446 RON 145 1 2 H.S.SET SCREW (JM23500052) 446 RON 146 1 1 Link Sleeve LS1018L (JM23100098) 669 RON 147 1 1 LINK COMPLETE (JM23510003) 2683 RON 148 1 1 SAIBA PLATA 6 cod vechi 253804-1 THIN FLAT WASHER 6 LS1018L (JM23100071) Indisponibil Indisponibil 149 1 1 RETAINING RING 5 LS1018L (JM23100115) 334 RON 150 1 1 LOCK THIN NUT (JM23500027) 334 RON 151 1 1 SAIBA PLATA 6 cod vechi 253804-1 THIN FLAT WASHER 6 LS1018L (JM23100071) Indisponibil Indisponibil 152 1 1 Link Sleeve LS1018L (JM23100098) 669 RON 153 1 1 LINK FIX PLATE (JM23500055) 670 RON 154 1 1 SQUARE NECK BOLT M6X14 (JM23500054) 223 RON 155 1 1 H.S.BOLT M6X12 (JM23500071) 334 RON 156 1 1 Spring Washer 6 LS1018L (JM23100151) 334 RON 157 1 1 Spring Washer 6 LS1018L (JM23100190) 781 RON 158 1 2 SURUB M4X28 (JM23500056) 446 RON 159 1 2 FLAT WASHER 4 LS1018L (JM23100016) 558 RON 160 1 1 LAMP COVER (JM23500057) 670 RON 161 1 1 LAMP LENZ (JM23500058) 446 RON 162 1 1 SEALING RING (JM23500059) 223 RON 163 1 1 LAMP ASSY (JM23510006) 5927 RON 164 1 2 SAIBA PLATA 3 (JM23500128) 223 RON 165 1 2 S.T.CROSS HEAD SCREW 9X13 (JM23500062) 446 RON 166 1 2 Cross Head Screw M4x18 LS1018L (JM23100019) 446 RON 167 1 2 FLAT WASHER 4 LS1018L (JM23100016) 558 RON 168 1 1 CORD CLAMP LS1018L (JM23100072) 669 RON 169 1 1 CABLE HOLDER BRACKET (JM23500066) 670 RON 170 1 1 SURUB M4X10 (JM23500008) 446 RON 171 1 1 FLAT WASHER 4 LS1018L (JM23100016) 558 RON 172 1 1 BRACKET BACK COVER (JM23500077) 446 RON 173 1 1 UP BLADE GUARD BRACKET (JM23510007) 17671 RON 174 1 1 CONNECTION SHAFT (JM23500064) 670 RON 175 1 1 ARC 32 (JM23500072) 3690 RON 176 1 1 SAIBA PLATA 8 (JM23500022) 223 RON 177 1 1 H.S.BOLT M6X12 (JM23500071) 334 RON 178 1 1 BUTON PLASTIC LS1018L (JM23100097) 781 RON 179 1 1 SPRING BRACKET (JM23500065) 670 RON 180 1 1 SPRING SUPPORT PIN (JM23500063) 670 RON 181 1 1 LASER (JM23500070) 3690 RON 182 1 2 H.S.BOLT M4X8 (JM23500068) 334 RON 183 1 1 H.S.SET SCREW (JM23500069) 334 RON 184 1 2 FLAT WASHER 4 LS1018L (JM23100016) 558 RON 185 1 1 LASER BRACKET (JM23500067) 670 RON 186 1 1 FLAT WASHER 4 LS1018L (JM23100016) 558 RON 187 1 1 H.S.Bolt M4x12 LS1018L (JM23100067) 446 RON 188 1 1 LASER MOVING PLATE (JM23500073) 105 RON 189 1 1 JM23100093 - Indisponibil 189 2 1 STIFT C LS1018L (JM23100193) 781 RON 190 1 1 SEALING RING LS1018L (JM23100150) 781 RON 191 1 1 Depth Adjustable Plate Bolt LS1018L (JM23100096) 446 RON 192 1 1 FLAT WASHER 8 LS1018L (JM23100060) 558 RON 193 1 1 Wave Spring Washer LS1018L (JM23100094) 446 RON 194 1 1 Cutting depth adjustable plate LS1018L (JM23100092) 781 RON 195 1 4 H.S.BOLT M6X40 (JM23500041) 334 RON 196 1 4 Spring Washer 6 LS1018L (JM23100151) 334 RON 197 1 4 Spring Washer 6 LS1018L (JM23100190) 781 RON 198 1 2 Cross Head Screw M4x15 LS1018L (JM23100014) 446 RON 198 2 2 Cross Head Screw M4x12 LS1018L (JM23100033) 558 RON 199 1 2 SPRING WASHER 4 LS1018L (JM23100015) 558 RON 200 1 2 FLAT WASHER 4 LS1018L (JM23100016) 558 RON 201 1 1 LOCK NUT M5 LS1018L (JM23100141) 558 RON 202 1 1 FLAT WASHER 5 LS1018L (JM23100007) 558 RON 203 1 1 LEVER SCREW LS1018L (JM23100139) 781 RON 204 1 1 LEVER SPRING (JM23500045) 446 RON 205 1 1 LOCK LEVER BRACKET (JM23500044) 670 RON 206 1 1 LOCK LEVER (JM23500043) 558 RON 207 1 1 OUTPUT SHAFT (JM23500103) 3019 RON 208 1 1 KEY 5X10 (JM23100156) 670 RON 209 1 1 BEARING 6304 (JM23100157) 2795 RON 210 1 1 RETAINING RING 20 (JM23100158) 446 RON 211 1 1 GEAR WHEEL (JM23500104) 5927 RON 212 1 1 RETAINING RING 16 (JM23100160) 446 RON 213 1 1 OUTPUT SHAFT SCREW M8X12 (JM23100161) 446 RON 214 1 1 GEAR BOX COMPLETE (JM23510011) 8947 RON 215 1 1 Protection Tube LS1018L (JM23100165) 1341 RON 216 1 1 POWER SUPPLY CORD LH1200FL (JM23000156) 11071 RON 217 1 1 CORD CLAMP LS1018L (JM23100166) 669 RON 218 1 2 STIFT C LS1018L (JM23100193) 781 RON 218 2 2 JM23500040 - Indisponibil 219 1 1 PROTECTIVE SLEEVE (JM23500108) 670 RON 220 1 1 MAGNETIC RING ASSY (JM23500133) 1341 RON 221 1 1 TRANSFORMATOR (JM23500109) 3019 RON 222 1 1 Brake System Switch Key LS1018L (JM23100177) 669 RON 223 1 1 Switch Lock Plate LS1018L (JM23100175) 1564 RON 224 1 1 TERMINAL POLE LS1018L (JM23100171) 1341 RON 225 1 1 SWITCH LOCK BRACKET LS1018L (JM23100173) 893 RON 226 1 1 CAPACITOR LS1018L (JM23100169) 2683 RON 227 1 1 INTRERUPATOR LS1018L (JM23100179) 679 RON 228 1 1 SWITCH HANDLE SPRING LS1018L (JM23100176) 1564 RON 229 1 1 SWITCH HANDLE LS1018L (JM23100174) 2347 RON 230 1 1 BAFFLER RING (JM23500110) 558 RON 231 1 1 JM23500137 - Indisponibil 232 1 1 ROTOR LS0815FL (JM23500001) 43844 RON 233 1 1 BEARING 608 (JM23500111) 190 RON 234 1 1 DAMPING RING (JM23500112) 334 RON 235 1 2 S.T. CROSS HEAD 4.2X65 (JM23500113) 446 RON 236 1 1 STATOR 230V LS0815FL (JM23500004) 46863 RON 237 1 1 MOTOR HOUSING COMPLETE (JM23510012) 8947 RON 238 1 2 CAPAC PERIE (JM23500116) 223 RON 239 1 2 PERIE CARBON (JM23500117) 1788 RON 240 1 4 Spring Washer 6 LS1018L (JM23100190) 781 RON 241 1 4 SURUB M6X60 (JM23500118) 446 RON 242 1 1 MODUL PORNIRE USOARA LS1018L (JM23100186) 9841 RON 243 1 1 MOTOR REAR COVER (JM23500119) 190 RON 244 1 2 SELF TAPPING SCREW M4x16 LS1018L (JM23100167) 781 RON 245 1 1 RIGHT HANDLE (JM23500121) 5927 RON 246 1 3 FLAT WASHER 5 LS1018L (JM23100007) 558 RON 247 1 3 SURUB M5X40 (JM23500123) 446 RON 248 1 3 SELF TAPPING SCREW M4x16 LS1018L (JM23100167) 781 RON 249 1 1 SWITCH BRACKET (JM23500124) 446 RON 250 1 1 LASER SWITCH (JM23500125) 3019 RON 251 1 1 LASER SWITCH PROTECTIVE COVER (JM23500126) 446 RON 252 1 2 ST CROSS HEAD SCREW 4.2X28 (JM23500120) 446 RON 253 1 1 LEFT HANDLE (JM23500107) 5927 RON 254 1 1 JM23580018 - Indisponibil 1001 1 2 JM23000127 - Indisponibil 1002 1 1 JM23570002 - Indisponibil 1003 1 1 VISE ASSEMBLY (JM23510009) 5927 RON 1004 1 1 DUST BAG ASSY (JM23510010) 3019 RON 1005 1 1 JM27000328 - Indisponibil 1006 1 1 782230-2 - Indisponibil
