Lawn Mower MAKITA EM461S
[EM461S]
Lawn Mower MAKITA EM461S
Click pentru a mari
Imagini suplimentare
Lawn Mower MAKITA EM461S
Click pentru a mari
Lawn Mower MAKITA EM461S
Click pentru a mari
Lawn Mower MAKITA EM461S
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara

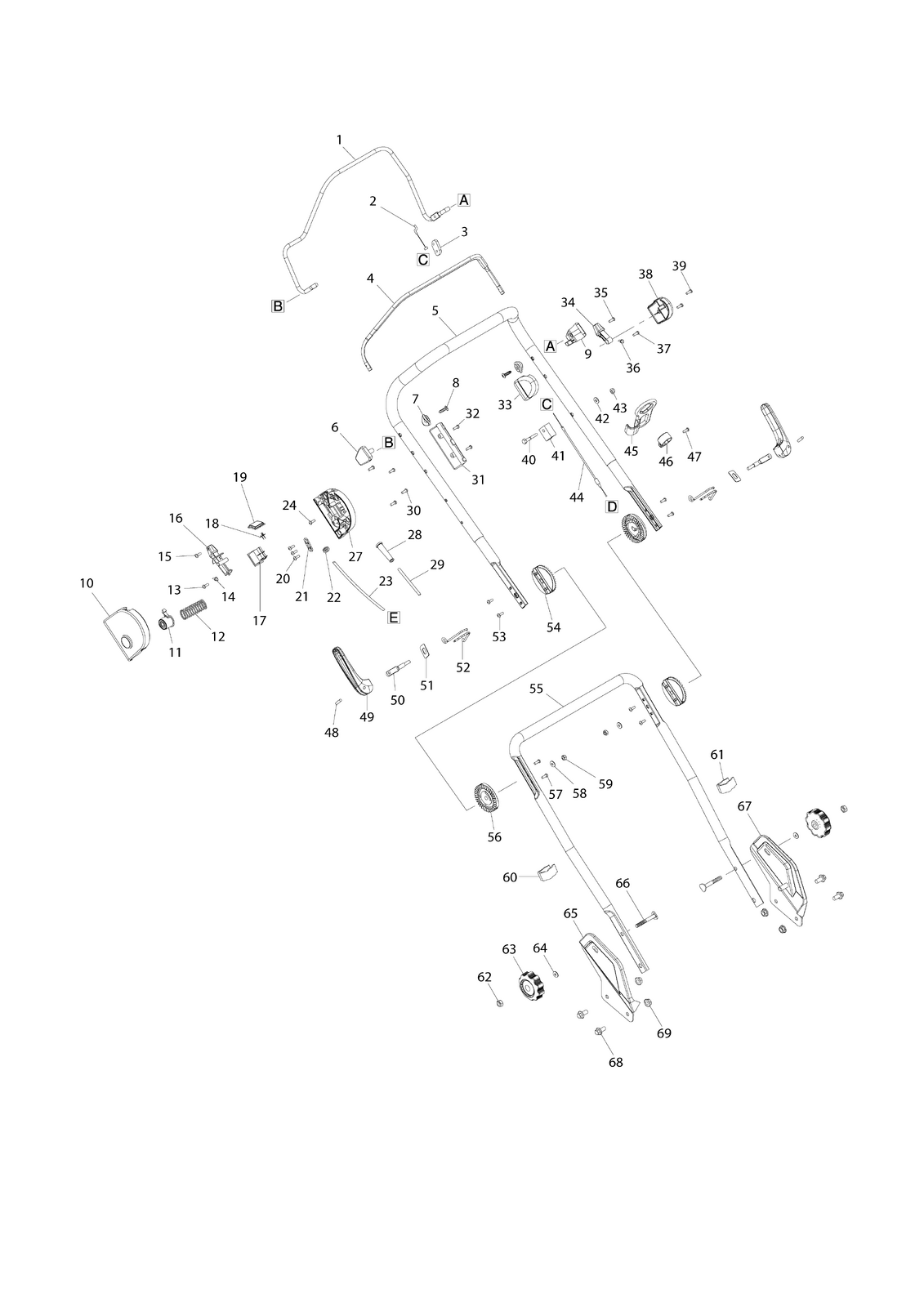

A01 0 1 CHEIE FIXA ELM3310 (671002009) 2236 RON
001 0 1 DA00001089 - Indisponibil
002 0 1 DRIVING CABLE CONNECTOR ELM4613 (671001313) 894 RON
003 0 1 CONNECTOR ELM4613 (671657001) 105 RON
004 0 1 LEVER MOTOR BRAKE ELM4613 (671001852) 7493 RON
005 0 1 UPPER HANDLE ELM4613 (671001713) 23263 RON
006 0 1 OPRITOR STALP (DA00000852) 441 RON
007 0 2 DA00001030 - Indisponibil
008 0 2 SELF DRIVING SCREW 5*16 DLM380Z (DA00000326) 223 RON
009 0 1 OPRITOR STALP (DA00000854) 486 RON
010 0 1 DA00000845 - Indisponibil
011 0 1 BUTON DE SIGURANTA (RO?U) ELM3311/3711 (COMP.3310/3710) (671425003) Indisponibil Indisponibil
012 0 1 ARC (671011079) 446 RON
013 0 1 SURUB AUTOFILETANT (DA00000816) 223 RON
014 0 1 ARC (671011124) 446 RON
015 0 1 DA00000820 - Indisponibil
016 0 1 RIGHT PLUG-IN OF HANDLE ELM3311 (671072001) 782 RON
017 0 1 INTRERUPATOR ELM3310 (671010040) 3578 RON
018 0 1 DA00000813 - Indisponibil
019 0 1 LAMPSHADE (DA00000842) 153 RON
020 0 2 SURUB AUTOFILETANT (DA00000826) 086 RON
021 0 1 DA00001053 - Indisponibil
022 0 1 DA00000818 - Indisponibil
023 0 1 DA00000841 - Indisponibil
024 0 1 SURUB AUTOFILETANT (DA00000826) 086 RON
027 0 1 671077001 - Indisponibil
028 0 1 671803001 - Indisponibil
029 0 1 671010570 - Indisponibil
030 0 4 SURUB AUTOFILETANT (DA00000603) 071 RON
031 0 1 PRESSING PLATE OF SWITCH BOX ELM4611 (671451001) 1341 RON
032 0 2 SURUB AUTOFILETANT (DA00000603) 071 RON
033 0 1 RIGHT HANDLE SUPPORT ELM4613 (671084001) 894 RON
034 0 1 STIFT MANER (DA00000817) 195 RON
035 0 1 DA00000820 - Indisponibil
036 0 1 ARC (671011124) 446 RON
037 0 1 SURUB AUTOFILETANT (DA00000816) 223 RON
038 0 1 LEFT HANDLE SUPPORT ELM4613 (671083001) 894 RON
039 0 2 SURUB AUTOFILETANT (DA00000603) 071 RON
040 0 1 HEXAGON FLANGE BOLT (DA00000577) 236 RON
041 0 1 PLACA DE FIXARE CABLURI PLM4817 (DA00000573) 35 RON
042 0 1 DA00000574 - Indisponibil
043 0 1 PIULITA (DA00000575) 262 RON
044 0 1 CONTROL CABLE (WHEEL DRIVE) ELM4613 cod vechi 671001276 (DA00000851) 14539 RON
045 0 1 CABLE HOLDER ELM4613 (671479001) 446 RON
046 0 1 BLOCK RING ELM4613 (671800102) 223 RON
047 0 1 SURUB AUTOFILETANT (DA00000826) 086 RON
048 0 2 CYLINDRICAL PIN (671090040) 334 RON
049 0 2 SHIFT HANDLE ELM3310 (671431001) 2460 RON
050 0 2 HANDLE LOCKING BOLT (671006167) 105 RON
051 0 2 PLACA DE PRESIUNE PLM4627 (671001119) 558 RON
052 0 2 CABLE HOLDER ELM4613 (671002361) 894 RON
053 0 4 SURUB M3X10 PLM4627 cod vechi 671001049 (DA00000840) 446 RON
054 0 2 UPPER ADJUSTING TOOTH RING ELM4613 (671068001) Indisponibil Indisponibil
055 0 1 LOWER HANDLE POLE ELM4613 (671017070) 2083 RON
056 0 2 LOWER ADJUSTING TOOTH RING ELM4613 (671058001) 1229 RON
057 0 4 SURUB M3X10 PLM4627 cod vechi 671001049 (DA00000840) 446 RON
058 0 2 SAIBA PLATA (671007007) 446 RON
059 0 2 M8 HEXAGONAL LOCKING NUT ELM4611 (671005008) 446 RON
060 0 1 CLEMA FIXARE CABLU PLM4627 (671611001) 446 RON
061 0 1 CLEMA FIXARE CABLU PLM4627 (671611001) 446 RON
062 0 2 PIULITA cod vechi 671005007 (DA00000563 ) 781 RON
063 0 2 ROTITA PLASTIC (DA00000564) 1311 RON
064 0 2 SAIBA PLATA (671007007) 446 RON
065 0 1 DA00000855 - Indisponibil
066 0 2 DA00000839 - Indisponibil
067 0 1 DA00000856 - Indisponibil
068 0 4 DA00000562 - Indisponibil
069 0 4 PIULITA M8 CU AUTOBLOCARE (DA00000537) 214 RON
070 0 1 671933002 - Indisponibil
071 0 1 SPRING ELM4613 (671011203) 1117 RON
072 0 2 INEL ARCUIT (671009017) 446 RON
073 0 1 LONG POLE ELM4613 (671002365) 105 RON
074 0 1 671932002 - Indisponibil
075 0 7 SURUB AUTOFILETANT (DA00000826) 086 RON
076 0 2 SURUB AUTOFILETANT (DA00000826) 086 RON
077 0 1 CABLE PRESSING BOARD (671010230) 334 RON
078 0 1 CLIPS DE CABLU (671260001) 558 RON
079 0 2 SURUB AUTOFILETANT (DA00000826) 086 RON
080 0 1 MANSON CAUCIUC PLM4627 (671800104) 334 RON
081 0 1 SECTOR HEIGHT ADJUSTMENT ELM4613 (671010670) 297 RON
082 0 2 DA00000552 - Indisponibil
083 0 1 SIDE DISCHARGE BOARD ELM4613 (671085001) 1788 RON
084 0 2 DA00000549 - Indisponibil
085 0 1 AX PLM4627 (671001019) 1453 RON
086 0 1 SPRING OF SID (671011205) 1453 RON
087 0 1 SIDE DISCHARGE COVER BOARD ELM4613 (671929001) 5032 RON
088 0 1 PLACA PLM5102/5113 (671001571) 1453 RON

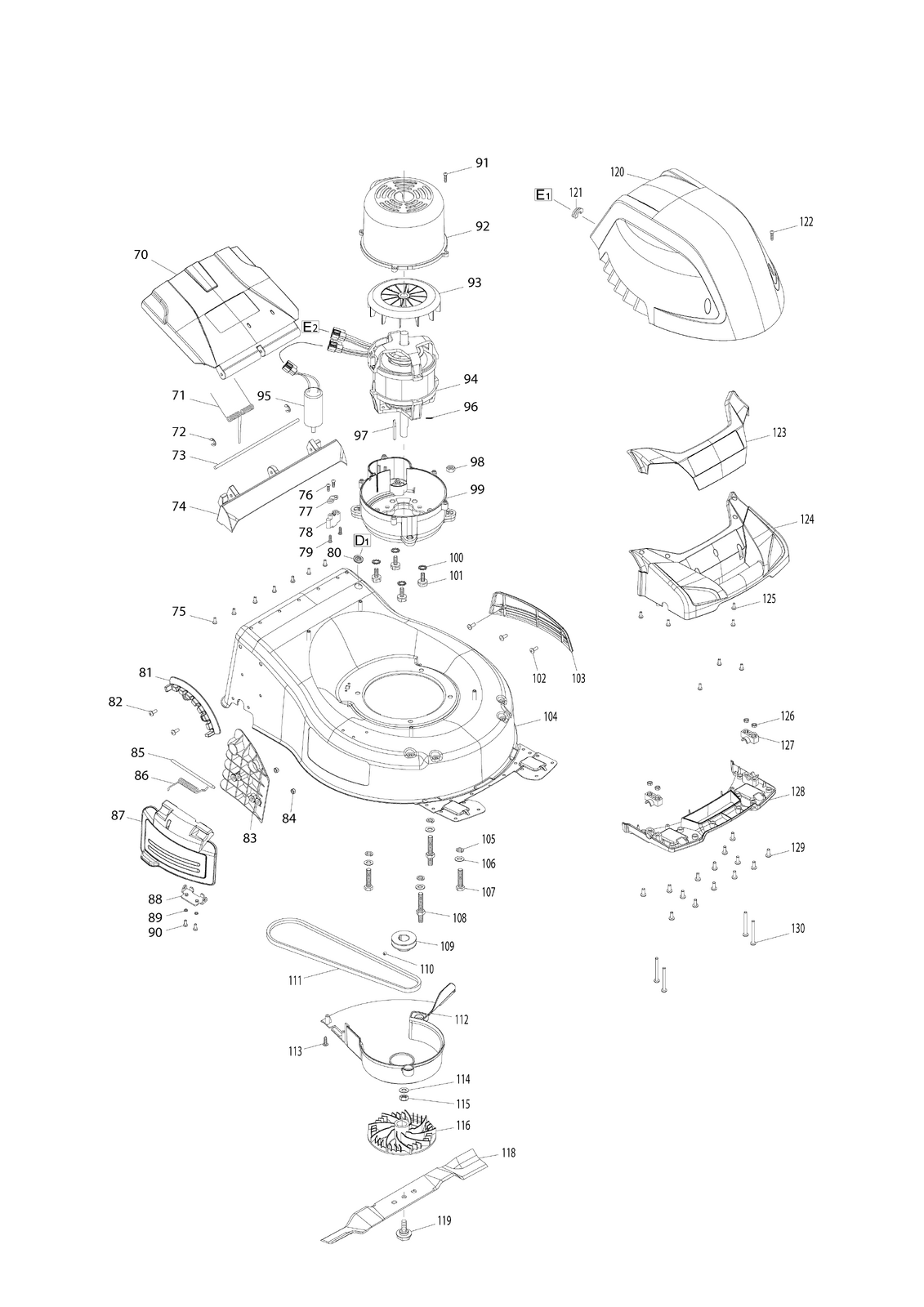

089 0 2 SAIBA (DA00000198) 223 RON
090 0 2 TRIGGER BOLT ELM4613 (671002010) 558 RON
091 0 5 SURUB AUTOFILETANT (DA00000826) 086 RON
092 0 1 WIND SLEEVE (UPPER) ELM4613 (671625001) 6374 RON
093 0 1 VENTILATOR MOTOR (DA00001026) 1660 RON
094 0 1 MOTOR 1800W 220V ELM4611 (DA00000850) 102452 RON
095 0 1 CONDENSATOR 25MF ELM4612/4613 (DA00001198) 4743 RON
096 0 1 STEEL WIRE RING OF AXIS ELM4611 (671009019) 446 RON
097 0 1 FLAT KEY ELM4611 (671090037) 558 RON
098 0 4 M8 HEXAGONAL LOCKING NUT ELM4611 (671005008) 446 RON
099 0 1 WIND SLEEVE (LOWER) ELM4613 (671997001) 9170 RON
100 0 2 TOOTHED WASHER ELM4613 (671080100) 223 RON
101 0 4 BOLT BOCARE MOTOR ELM4612 (DA00000835) 437 RON
102 0 3 SELF-TAPPING SCREW ELM4613 (671010310) 558 RON
103 0 1 PROTECTING HOOD ELM4613 (671928001) 1565 RON
104 0 1 671001819 - Indisponibil
105 0 4 SPRING RING PLM4620/5113 (DA00000832) 334 RON
106 0 4 SAIBA PLATA (671007007) 446 RON
107 0 2 DA00000586 - Indisponibil
108 0 2 DA00000617 - Indisponibil
109 0 1 FULIE 45MM ELM4611 (671004009) 6262 RON
110 0 1 DA00000598 - Indisponibil
111 0 1 V-BELT ELM4613 (671001273) 3578 RON
112 0 1 BELT COVER ELM4613 (671996001) 5480 RON
113 0 2 SURUB AUTOFILETANT PLM4627 (671001037) 446 RON
114 0 2 SAIBA PLATA (671007007) 446 RON
115 0 2 M8 HEXAGONAL LOCKING NUT ELM4611 (671005008) 446 RON
116 0 1 SUPORT CUTIT ELM4611 ELM4611 SUPORT CUTIT ELM4611 ELM4611 cod vechi 671478001 (671005057) 7381 RON
118 0 1 BLADE ELM4613 (671146102) 11855 RON
118-1 1 1 DA00001279 - Indisponibil
119 0 1 BOLT TIGHTEN OF BLADE ELM4110 (DA00000827) 262 RON
120 0 1 MOTOR COVER ELM4613 (671995001) 11296 RON
121 0 1 DA00000810 - Indisponibil
122 0 4 ST SCREW ELM4613 (671003079) 334 RON
123 0 1 FRONT COVER BOARD ELM4613 (671925001) 2571 RON
124 0 1 FRONT COVER ELM4613 (671926001) 9170 RON
125 0 7 SURUB AUTOFILETANT (DA00000826) 086 RON
126 0 4 DA00000549 - Indisponibil
127 0 2 SUPORT RULMENT ELM/PLM (671445001) 105 RON
128 0 1 FRONT COVER SUPPORT ELM4613 (671927001) 5480 RON
129 0 14 SURUB AUTOFILETANT (DA00000826) 086 RON
130 0 4 SURUB M6X60 PLM4627 (671006119) 558 RON

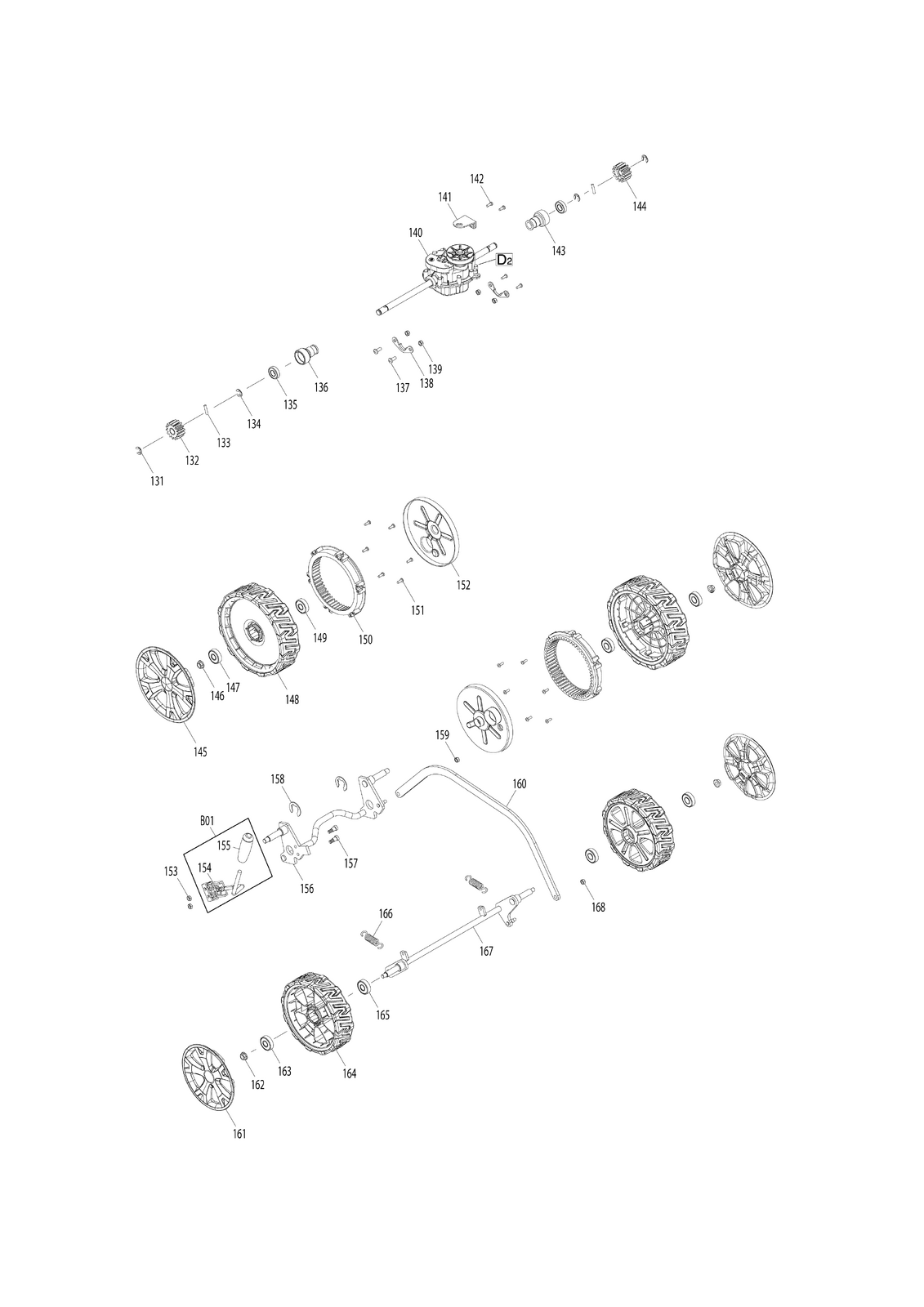

131 0 2 SAFETY WASHER RONDELLE ELM4611 cod vechi 671090020 (DA00000604 ) 446 RON
132 0 1 RIGHT GEAR ELM4611 cod vechi 671003002 (DA00001091) 3354 RON
133 0 2 5x21.5 CYLINDRICAL PIN ELM4611 cod vechi 671090001 (DA00000597) 446 RON
134 0 2 SAFETY WASHER RONDELLE ELM4611 cod vechi 671090020 (DA00000604 ) 446 RON
135 0 2 RULMENT PLM5113 (DA00001029) 1788 RON
136 0 1 BEARING BOX COMPLETE ELM4613 (671002085) 3019 RON
137 0 4 SURUB M6X12 (671002019) 558 RON
138 0 2 FIXING RING FOR WHEEL AXIS (DA00000542) 320 RON
139 0 4 ALL METAL HEXAGON FLANGE LOCKNUT (DA00000543) 157 RON
140 0 1 GEAR BOX ELM4613 (671502038) 38139 RON
141 0 1 FIXING PLATE ELM4613 (671002577) 1341 RON
142 0 2 DA00000553 - Indisponibil
143 0 1 BEARING SHEATH (DA00000610) 1831 RON
144 0 1 ROATA DINTATA PLM4612 cod vechi 671003001 (DA00001090) 3131 RON
145 0 2 WHEEL COVER ELM4613 (671030150) 2012 RON
146 0 2 PIULITA M8 CU AUTOBLOCARE (DA00000537) 214 RON
147 0 2 RULMENT (DA00000538) 1419 RON
148 0 2 DA00000601 - Indisponibil
149 0 2 RULMENT (DA00000538) 1419 RON
150 0 2 INEL ANGRENAJ (DA00000602) 2534 RON
151 0 12 SURUB AUTOFILETANT (DA00000603) 071 RON
152 0 2 CAPAC ROATA PT PROTECTIE PRAF (DA00000606) 763 RON
153 0 2 DA00000549 - Indisponibil
154 0 1 DA00000834 - Indisponibil
155 0 1 SUPORT MANER (DA00001058) 1048 RON
156 0 1 671002367 - Indisponibil
157 0 2 CROSS PAN BOLT ELM4613 (671002041) 446 RON
158 0 2 DA00000612 - Indisponibil
159 0 1 DA00000549 - Indisponibil
160 0 1 LINK ROD ELM4613 (671002364) 5256 RON
161 0 2 WHEEL COVER ELM4613 (671003014) 2460 RON
162 0 2 PIULITA M8 CU AUTOBLOCARE (DA00000537) 214 RON
163 0 2 RULMENT (DA00000538) 1419 RON
164 0 2 7" WHEEL ASSY. ELM4110 (671002012) 6710 RON
165 0 2 RULMENT (DA00000538) 1419 RON
166 0 2 SPRING OF FRONT WHEEL AXLE ELM4613 (671011230) 1229 RON
167 0 1 671002362 - Indisponibil
168 0 1 DA00000549 - Indisponibil

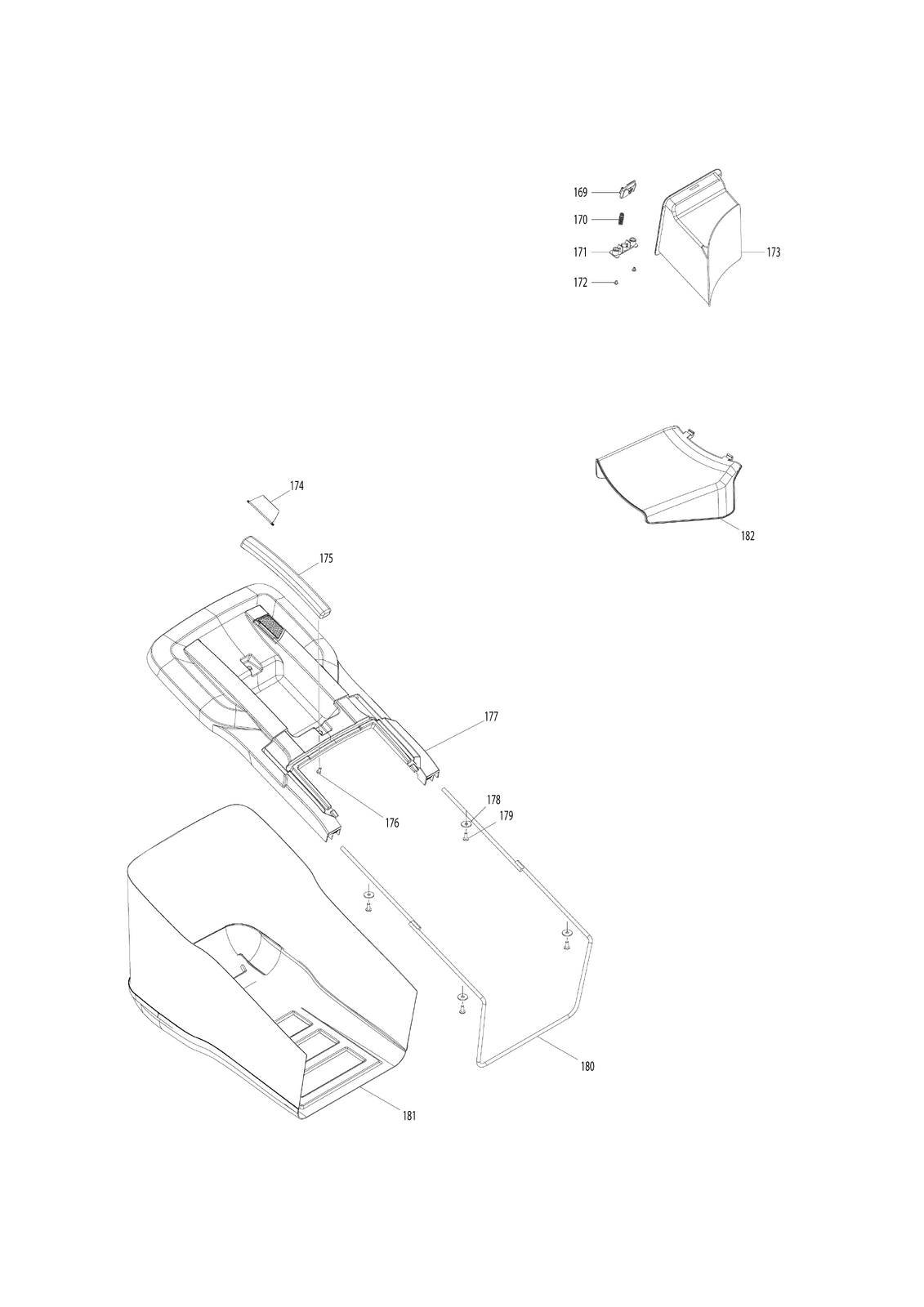

169 0 1 BUTON DE BLOCARE (671316004) 781 RON
170 0 1 ARC (671011005) 1565 RON
171 0 1 PLACA DE PRESIUNE ELM/PLM (671317001) 558 RON
172 0 2 SURUB AUTOFILETANT (DA00000603) 071 RON
173 0 1 DA00000844 - Indisponibil
174 0 1 671010780 - Indisponibil
175 0 1 HANDLE OF GRASS CATCHER ELM4613 (671937001) 1453 RON
176 0 2 SURUB AUTOFILETANT (DA00000603) 071 RON
177 0 1 GRASS-BOX UPPER ELM4613 (671992001) 15434 RON
178 0 4 WASHER UR3000 (DA00000025) 334 RON
179 0 4 SURUB AUTOFILETANT (DA00000603) 071 RON
180 0 1 GRASS CATCHER BRACKET ELM4612 (DA00000843) 571 RON
181 0 1 671153402 - Indisponibil
182 0 1 SIDE DISCHARGE PROTECTING COVER ELM4613 (671930001) 6374 RON
