Top » Piese de schimb » PIESE MAKITA » Masini pentru gradina » HTR5600

HTR5600
[HTR5600]
HTR5600
Click pentru a mari
Imagini suplimentare
HTR5600
Click pentru a mari
HTR5600
Click pentru a mari
HTR5600
Click pentru a mari

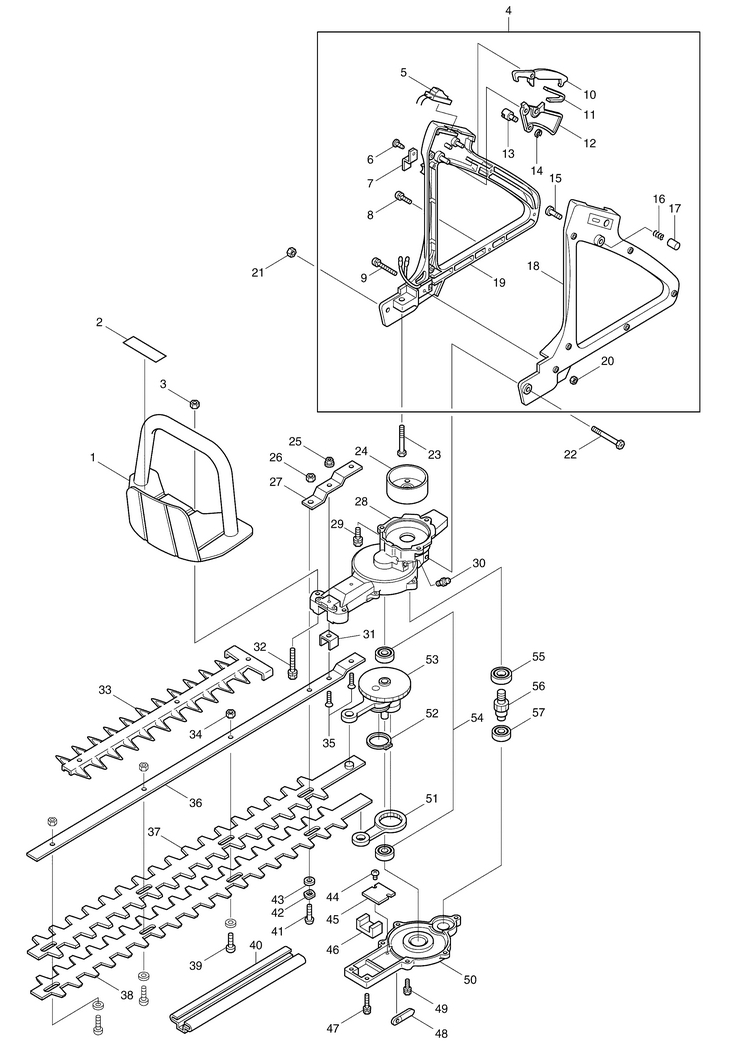

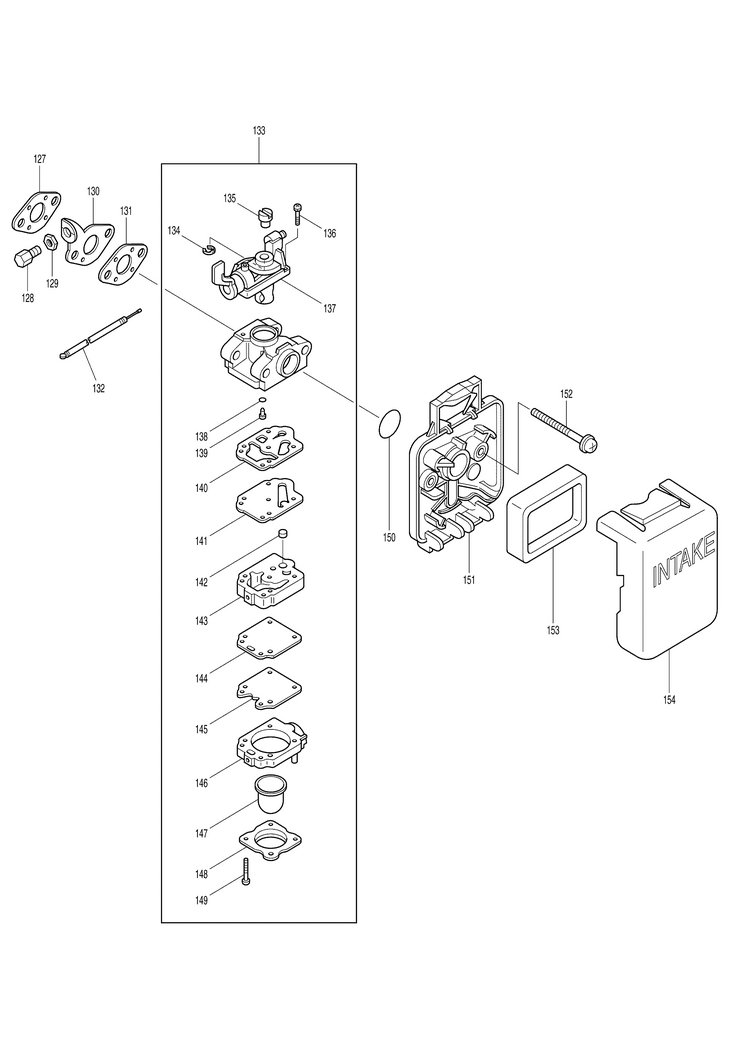

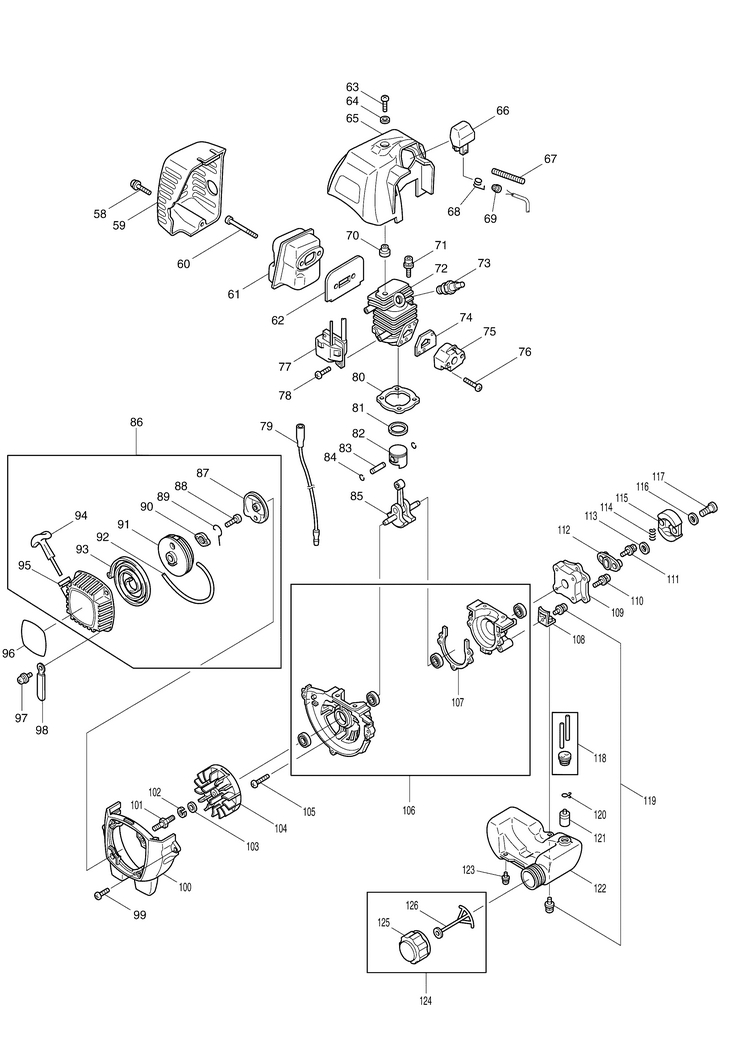

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 1181150000 - Indisponibil
1 2 1 MANER FRONTAL HTR5600 (1181550000) 16776 RON
2 1 1 ETICHETA SIMBOLURI cod vechi 374635998 (0736359980) 1452 RON
3 1 2 PIULITA (0151060000) 670 RON
3 2 2 151060000K - Indisponibil
4 1 1 1180110000 - Indisponibil
4 2 1 CONTROL LEVER ASSY HTR5600 (126493-4) 24158 RON
5 1 1 INTRERUPATOR COMPL. (0005044004) 11072 RON
5 2 1 SLIDE SWITCH HTR5600 (005044004A) 7157 RON
6 1 1 0112040100 - Indisponibil
6 2 1 112040100K - Indisponibil
7 1 1 CABLE HOLDER HTR5600 (1181210000) 105 RON
8 1 5 SURUB (0017040160) 558 RON
8 2 5 017040160K - Indisponibil
9 1 1 SURUB (0017040300) 670 RON
9 2 1 PAN HEAD SCREW M4X30 HTR5600 (017040300K) 334 RON
10 1 1 1181510000 - Indisponibil
10 2 1 XOC0000033 - Indisponibil
11 1 1 ARC (0003010004) 3690 RON
11 2 1 1181620000 - Indisponibil
12 1 1 1181150000 - Indisponibil
12 2 1 XOC0000032 - Indisponibil
13 1 1 1181110000 - Indisponibil
14 1 1 0280002500 - Indisponibil
14 2 1 280002500K - Indisponibil
15 1 1 1181120000 - Indisponibil
16 1 1 1181140000 - Indisponibil
17 1 1 1181130000 - Indisponibil
18 1 1 1181500000 - Indisponibil
19 1 1 1181490000 - Indisponibil
20 1 6 0015004000 - Indisponibil
20 2 6 150040000K - Indisponibil
21 1 1 PIULITA (0151060000) 670 RON
21 2 1 151060000K - Indisponibil
22 1 1 0055060500 - Indisponibil
22 2 1 HEX BOLT M6X50 WITH.WR HTR5600 (266881-4) 1117 RON
23 1 1 0055060400 - Indisponibil
23 2 1 055060400K - Indisponibil
24 1 1 TAMBUR AMBREIAJ cod vechi 374136141 (1361410000) 1891 RON
25 1 1 0162050000 - Indisponibil
25 2 1 FLANGE NUT M5 HTR5600 (162050000K) 334 RON
26 1 1 0162050000 - Indisponibil
26 2 1 FLANGE NUT M5 HTR5600 (162050000K) 334 RON
27 1 1 PLACA FIXARE (0325102004) 5368 RON
27 2 1 REINFORCING PLATE HTR5600 (3251020040) 6039 RON
28 1 1 UPPER CASE HTR5600 (0325100002) 29191 RON
29 1 2 SURUB (0054060150) 782 RON
29 2 2 (+)HEX. BOLT M6X15 HTR5600 (054060150K) 334 RON
30 1 1 NIPLU ULEI (0055000100) 1565 RON
30 2 1 GREASING NIPPLE HTR5600 (055000100R) 670 RON
31 1 1 PLACA FIXARE (0325103004) 4585 RON
31 2 1 SLIGHTLY STOPPER HTR5600 (3251030040) 190 RON
32 1 2 SURUB (0054060350) 894 RON
32 2 2 BOLT M6X35 (W/SW) HTR5600 (054060350K) 446 RON
33 1 1 0287110002 - Indisponibil
33 2 1 APARATOARE CUTIT HTR5600 (287110002A) 18678 RON
33 3 1 BLADE GUARD HTR5600 (XOC0000030) 8164 RON
34 1 4 0164060000 - Indisponibil
34 2 4 164060000K - Indisponibil
35 1 2 SURUB (0011050205) 894 RON
35 2 2 SCREW M5X20 HTR5600 (011050205K) 558 RON
36 1 1 PLACA DE GHIDARE cod vechi 374118126 (1181260000) 4443 RON
37 1 1 LAMA (SUPERIOARA) cod vechi 374077106 (6018505400) 33889 RON
38 1 1 LAMA (INFERIOARA) cod vechi 374077107 (6018505500) 32211 RON
39 1 3 SURUB cod vechi 381000200 (0040002009) 3018 RON
39 2 3 BLADE SLIDE SCREW L19 HTR5600 (040002009A) 105 RON
40 1 1 BLADE COVER (0028002039) 14987 RON
40 2 1 BLADE COVER HTR5600 (028002039A) 10289 RON
41 1 1 0040003009 - Indisponibil
41 2 1 SURUB M6X22 HTR5600 (040003009A) 1229 RON
42 1 1 SAIBA ONDULATA cod vechi 381906000 (0229060000) 1117 RON
42 2 1 WAVE WASHER HTR5600 (229060000K) 334 RON
43 1 4 SLIDING WASHER HTR5600 (0082500000) 223 RON
44 1 2 SURUB (0010030050) 670 RON
44 2 2 010030050K - Indisponibil
45 1 1 PLACA DE GLISARE cod vechi 374030110 (0301100000) 4025 RON
46 1 1 FELT (0325104004) 573 RON
46 2 1 FELT HTR5600 (3251040040) 4473 RON
47 1 2 SURUB (0054050160) 894 RON
47 2 2 (+)HEX. BOLT M5X16 HTR5600 (054050160K) 334 RON
48 1 1 CLEMA cod vechi 374607997 (0566079970) 670 RON
49 1 5 SURUB (0054050160) 894 RON
49 2 5 (+)HEX. BOLT M5X16 HTR5600 (054050160K) 334 RON
50 1 1 0325101002 - Indisponibil
50 2 1 CARCASA INFERIOARA HTR5600 (3251010020) 19013 RON
51 1 1 1181000000 - Indisponibil
51 2 1 TE1A044000 - Indisponibil
51 3 1 1A044000TE - Indisponibil
51 4 1 ROD HTR5600 (XOC0000018) 21697 RON
52 1 1 0283026000 - Indisponibil
52 2 1 INEL DE SIGURANTA cod vechi 374283026 (283026000K) 105 RON
53 1 1 1360030000 - Indisponibil
54 1 2 RULMENT (0353006080) 8164 RON
54 2 2 353006080K - Indisponibil
55 1 1 RULMENT (0354060010) 1339 RON
55 2 1 BALL BEARING 6001 2RS HTR5600 (354060010K) 9059 RON
56 1 1 PINION GEAR HTR5600 (1361420000) 25724 RON
57 1 1 RULMENT (0353006080) 8164 RON
57 2 1 353006080K - Indisponibil
58 1 1 SURUB ASSY (0140059290) 446 RON
59 1 1 MUFFLER COVER HTR5600 (5253500500) 190 RON
60 1 2 SURUB INBUS DBC260U (0119059550) 782 RON
60 2 2 SURUB INBUS DBC260U cod vechi 0119059550 (266754-1) 894 RON
61 1 1 TOBA ESAPAMENT cod vechi 374307100 (5253071000) 13979 RON
62 1 1 GARNITURA cod vechi 374350010 (5253500102) 1453 RON
63 1 1 SURUB RBC3101 (0140059490) Indisponibil Indisponibil
64 1 1 0200070010 - Indisponibil
65 1 1 CYLINDER COVER (MAKITA COLOR) HTR5600 (5255500301) 2683 RON
66 1 1 PIPA PT. BUJIE cod vechi 388750330 (5237503301) 2795 RON
67 1 1 0851049950 - Indisponibil
68 1 1 ARC FIXARE CABLU BUJIE (0654009931) 670 RON
68 2 1 ARC FIXARE CABLU BUJIE cod vechi 0654009931 PLUG CAP SPRING EM2651UH (324891-8) 446 RON
69 1 1 INEL DE CAUCIUC BHX2500 (5257500300) 105 RON
69 2 1 MANSON DE CAUCIUC cod vechi 374750030 (424313-9) 334 RON
70 1 1 SPACER HTR5600 (5503503001) 670 RON
71 1 2 SURUB INBUS M5X20 DBC 260U SURUB INBUS M5X20 DBC 260U (0119059730) 2123 RON
71 2 2 SURUB INBUS M5X20 DBC 260U (266814-9) 894 RON
72 1 1 5251500201 - Indisponibil
72 2 1 CILINDRU NOU RBC2500 (5231501804) 36573 RON
72 3 1 CILINDRU NOU RBC2500 cod vechi 5231501804 (318762-9) 25389 RON
73 1 1 BUJIE RBC3101 (0650149721) 9953 RON
73 2 1 BUJIE RBC3101 cod vechi 0650149721 (168662-1) 10848 RON
74 1 1 GARNITURA cod vechi 374350020 (5253500200) 782 RON
75 1 1 5233014000 - Indisponibil
75 2 1 INSULATOR COMPLETE HTR5600 (141056-5) 2460 RON
76 1 2 0140059500 - Indisponibil
76 2 2 SURUB M5X25 RBC2500 (266700-4) 558 RON
77 1 1 BOBINA DE APRINDERE cod vechi 374700102 (5257001021) 1615 RON
78 1 2 SURUB cod vechi 367004992 (0140049920) 446 RON
79 1 1 WIRE cod vechi 374700500 (5607005000) 2012 RON
80 1 1 GARNITURA CILINDRU NEW RBC2500 (5231502304) Indisponibil Indisponibil
80 2 1 GARNITURA CILINDRU NEW RBC2500 cod vechi 5231502304 (442171-1) 1676 RON
81 1 1 SEGMENT RBC2500 (5242500701) Indisponibil Indisponibil
81 2 1 SEGMENT PISTON cod vechi 382250070 (257979-8) 3354 RON
82 1 1 PISTON HTR5600 (5232501902) 7269 RON
83 1 1 BOLT PISTON BHX (5232502600) 1565 RON
83 2 1 PISTON PIN EBH252U BOLT PISTON BHX cod vechi 5232502600 (257781-9) 1788 RON
84 1 2 CLEMA FIXARE RST/RBC/RBL/EM/BHX (0565089970) 1117 RON
84 2 2 CLEMA FIXARE RST/RBC/RBL/EM/BHX cod vechi 0565089970 Clip EM2651UH (233976-8) 334 RON
85 1 1 5252002001 - Indisponibil
85 2 1 ARBORE CU CAMA cod vechi 374200200 (5252002002) 3783 RON
86 1 1 REWIND STARTER HTR5600 (5255052000) 10960 RON
87 1 1 PULLY HTR5600 (5255505900) 1677 RON
88 1 1 SURUB BHX2500 (5195002060) 190 RON
88 2 1 TAPPING SCREW 5X12 EM2651UH SURUB cod vechi 367500206 (266585-8) 781 RON
89 1 1 BRAT BHX2500/EM4250 (5195002100) 105 RON
89 2 1 SWING ARM EBH252U BRAT cod vechi 367500210 (325923-4) 781 RON
90 1 1 COLIER BHX2500 (5195002110) 1341 RON
90 2 1 COLIER cod vechi 367500211 COLLAR EBH252U (451938-6) 781 RON
91 1 1 ROLA HTR5600 (5195002030) 2236 RON
91 2 1 REEL (452972-9) 190 RON
92 1 1 STARTER ROPE RBC2500 (5255016020) 3242 RON
92 2 1 STARTER ROPE EM2651UH (444024-0) 105 RON
93 1 1 ARC SPIRAL HTR5600 (5195002050) 3914 RON
93 2 1 SPIRAL SPRING cod vechi 381500205 (234220-6) 3913 RON
94 1 1 MANER DE START/BHX2500 (5225004020) 2012 RON
94 2 1 MANER DEMAROR EBH253U MANER DE START/BHX2500 cod vechi 5225004020 (424319-7) 1788 RON
95 1 1 5255001040 - Indisponibil
95 2 1 DAMPER EM2651UH (424359-5) 669 RON
96 1 1 6019509000 - Indisponibil
97 1 4 SURUB ASSY (0140049760) 446 RON
98 1 1 0566059980 - Indisponibil
98 2 1 Clamp EBH252U (345963-6) 446 RON
99 1 3 0140059350 - Indisponibil
99 2 3 266699-3 - Indisponibil
100 1 1 CARCASA VENTILATOR HTR5600 (5255505700) 3131 RON
101 1 1 BOLT HTR5600 (5257501400) 1341 RON
102 1 1 SAIBA ELASTICA RBC420E (0032006000) 446 RON
103 1 1 SAIBA cod vechi 381120600 (0031206000) 446 RON
104 1 1 VOLANTA HTR5600 HTR5600 (5257041010) 11967 RON
105 1 3 SURUB M5x25 (0140059520) 446 RON
105 2 3 SURUB M5X25 RBC2500 (266701-2) 446 RON
106 1 1 CARCASA MECANISM cod vechi 374100300 (5251003000) 33441 RON
107 1 1 CRANKCASE GASKET ETR2500 (5231502202) 782 RON
107 2 1 CRANKCASE GASKET new RBC2500 cod vechi 5231502202 (424447-8) 670 RON
108 1 1 PLACA REZERVOR HTR5600 (5256002000) 105 RON
109 1 1 FLANSA INTERMEDIARA cod vechi 374118124 (1181240000) 13756 RON
109 2 1 SPACER HTR5600 (318892-6) 6933 RON
110 1 4 0140059350 - Indisponibil
110 2 4 266699-3 - Indisponibil
111 1 1 ANS. BOLT cod vechi 383200605 (6202006000) 893 RON
111 2 1 BOLT ASS'Y RBC2500 (5235504700) 781 RON
111 3 1 266703-8 - Indisponibil
112 1 1 SUPORT cod vechi 374250000 (6202500000) 1788 RON
113 1 2 SAIBA EVH2000 (6202500600) 446 RON
113 2 2 SAIBA EVH2000 cod vechi 6202500600 (267429-5) 669 RON
114 1 1 ARC cod vechi 374850050 (5238500500) 1229 RON
115 1 2 CONTRAGREUTATE cod vechi 374250080 (6252500801) 4920 RON
116 1 2 SAIBA M8 (0200089911) 446 RON
116 2 2 SAIBA M8 cod vechi 0200089911 SAIBA PLATA 8 EBH253U (267817-6) 334 RON
117 1 2 SURUB AMBREIAJ (6252500400) 1117 RON
117 2 2 Shoulder Hex. Bolt M6 EBH252U EM2651UH SURUB AMBREIAJ cod vechi 6252500400 (266457-7) Indisponibil Indisponibil
118 1 1 TUB DE COMBUSTIBIL cod vechi 374601200 (5256012001) 3578 RON
119 1 2 SURUB ASSY (0140059290) 446 RON
120 1 1 CLEMA FIXARE RBC220/EM4250 (0561059990) 781 RON
120 2 1 HOSE CLAMP EBH252U cod vechi 345920-4 CLEMA FIXARE RBC220/EM4250/EM2600U (DA00000120) 670 RON
121 1 1 FILTRU /BHX (5236503900) 2795 RON
121 2 1 FILTRU DE BENZINA DCS230T (163447-0) 1788 RON
122 1 1 REZERVOR COMBUSTIBIL cod vechi 374602500 (5256025000) 7381 RON
123 1 2 SURUB AUTOFILETANT (0150059800) 558 RON
124 1 1 FUEL TANK CAP COMPL. RBC2500 (5256059000) 3466 RON
124 2 1 BUSON REZERVOR COMBUSTIBIL cod vechi 377605900 (168668-9) 4920 RON
125 1 1 FUEL TANK CAP ETR2500 (5256058000) 3466 RON
125 2 1 FUEL TANK CAP COMPLETE new RBC2500 cod vechi 5256058000 (452920-8) 3131 RON
126 1 1 STRAP RBC2500 (5256067000) 3242 RON
126 2 1 STRAP complete EBH252U (140436-2) 2795 RON
127 1 1 SPACER GASKET HTR4500 (5103502801) 670 RON
127 2 1 Spacer Gasket RBC3101 cod vechi 5103502801 (442177-9) Indisponibil Indisponibil
128 1 1 CABLE ADJUST SCREW RBC2500 (5316020020) 2795 RON
128 2 1 CABLE ADJUST SCREW RBC2500 (326084-3) 2795 RON
129 1 1 PIULITA M6 (0022706000) 446 RON
130 1 1 FIXATOR CABLU ACCELERATIE cod vechi 374650190 (5256501900) 1677 RON
131 1 1 SPACER GASKET HTR4500 (5103502801) 670 RON
131 2 1 Spacer Gasket RBC3101 cod vechi 5103502801 (442177-9) Indisponibil Indisponibil
132 1 1 CABLU ACCELERATIE cod vechi 374002983 (0630029830) 3578 RON
133 1 1 CARBURATOR HTR5600 (5256085000) 48541 RON
134 1 1 INEL /BHX (5316005120) 2124 RON
134 2 1 STOP RING E-3 EM2651UH SAIBA DE SIGURANTA cod vechi 367257964 (257964-1) 894 RON
135 1 1 PIVOT BHX (5236018040) 3242 RON
135 2 1 SWIVEL EM2651UH PIVOT cod vechi 367325922 (325922-6) 3689 RON
136 1 2 SURUB (5206008030) 1676 RON
136 2 2 PAN HEAD SCREW M3x8 EM2651UH SURUB PT. CILINDRU cod vechi 388600803 (266581-6) 1117 RON
136 3 2 Screw (WJ00096364) 2124 RON
137 1 1 VALVA ACCELERATIE RBC3101 (5196002010) 36573 RON
138 1 1 O RING (5246001010) 2235 RON
138 2 1 O RING 2 EM2651UH ORING cod vechi 367213538 (213538-8) 1788 RON
139 1 1 5026004010 - Indisponibil
139 2 1 JET HTR5600 (326085-1) 2348 RON
140 1 1 GARNITURA MEMBRANA POMPA RBC420E (5246001030) 2683 RON
140 2 1 GARNITURA cod vechi 381600103 (442172-9) 3130 RON
141 1 1 MEMBRANA POMPA EBH252U cod vechi 168575-6 MEMBRANA BHX2500 PUMP DIAPHRAGM (WJ00009599) Indisponibil Indisponibil
141 2 1 MEMBRANA POMPA EBH252U cod vechi 168575-6 MEMBRANA BHX2500 PUMP DIAPHRAGM (WJ00009599) Indisponibil Indisponibil
142 1 1 VIZOR INTERIOR BHX (5016004010) 2012 RON
142 2 1 SITA CARBURATOR EBH252U FILTRU cod vechi 367352010 (352010-6) Indisponibil Indisponibil
143 1 1 CORP POMPA CARBURATOR MS252U RBC420E (5236046130) 25053 RON
143 2 1 CORP POMPA CARBURATOR MS252U RBC420E cod vechi 5236046130 (140989-1) 28744 RON
144 1 1 MEMBRANA /BHX2500 (5236046040) 3018 RON
144 2 1 GARNITURA cod vechi 367442154 GARNITURA MEMBRANA NIVEL EBH252U (442154-1) Indisponibil Indisponibil
145 1 1 MEMBRANE CARBURATOR DBC260U cod vechi 168767-7 MEMBRANE CARBURATOR DBC260U (5316005250) 9953 RON
145 2 1 MEMBRANE CARBURATOR DBC260U cod vechi 168767-7 MEMBRANE CARBURATOR DBC260U (5316005250) 9953 RON
146 1 1 SUPORT FILTRU DE AER DBC260U (5236046060) 6822 RON
146 2 1 SUPORT FILTRU DE AER DBC260U cod vechi 5236046060 (140988-3) 6039 RON
147 1 1 BALON POMPA AMORSARE /BHX2500 (5246001150) 2571 RON
147 2 1 BALON POMPA AMORSARE cod vechi 381600115,424314-7 (DA00001149) 2348 RON
148 1 1 CAPAC POMPA AMORSARE BHX2500 (5236046050) 3019 RON
148 2 1 PRIMER PUMP COVER EM2651UH POMPA DE AMORSARE cod vechi 374604605 (346270-0) 1788 RON
149 1 4 SURUB CAPAC POMPA BHX2500 (5236046010) 1453 RON
149 2 4 TAPPING SCREW 3X24 EM2651UH SURUB cod vechi 367266582 (266582-4) 1453 RON
150 1 1 ORING HTR5600 (5236061000) 334 RON
151 1 1 CARCASA FILTRU AER HTR5600 (5253003020) 3242 RON
152 1 2 SURUB 5X65 cod vechi 374330565 (0043305650) 558 RON
153 1 1 FILTRU DE AER NYLON cod vechi 374300401 (5203004010) 2124 RON
154 1 1 CAP FILTRU DE AER cod vechi 374302001 (5253020010) 7045 RON
1001 1 1 5019001000 - Indisponibil
5001 1 1 1181600000 - Indisponibil

Conditii Generale
