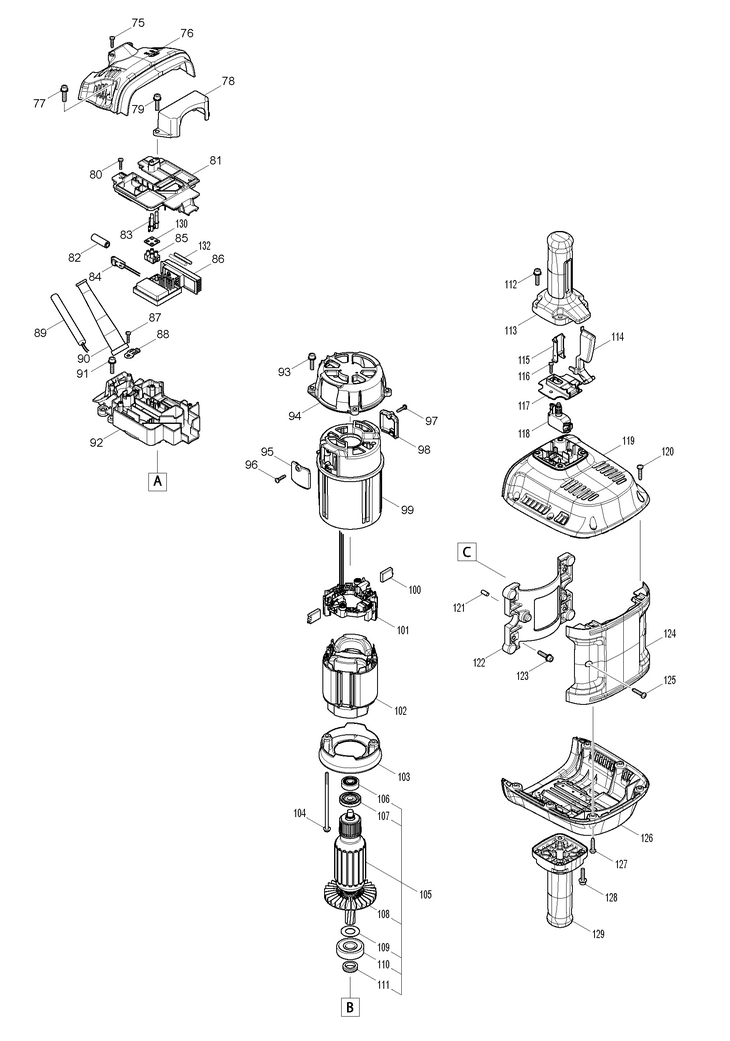

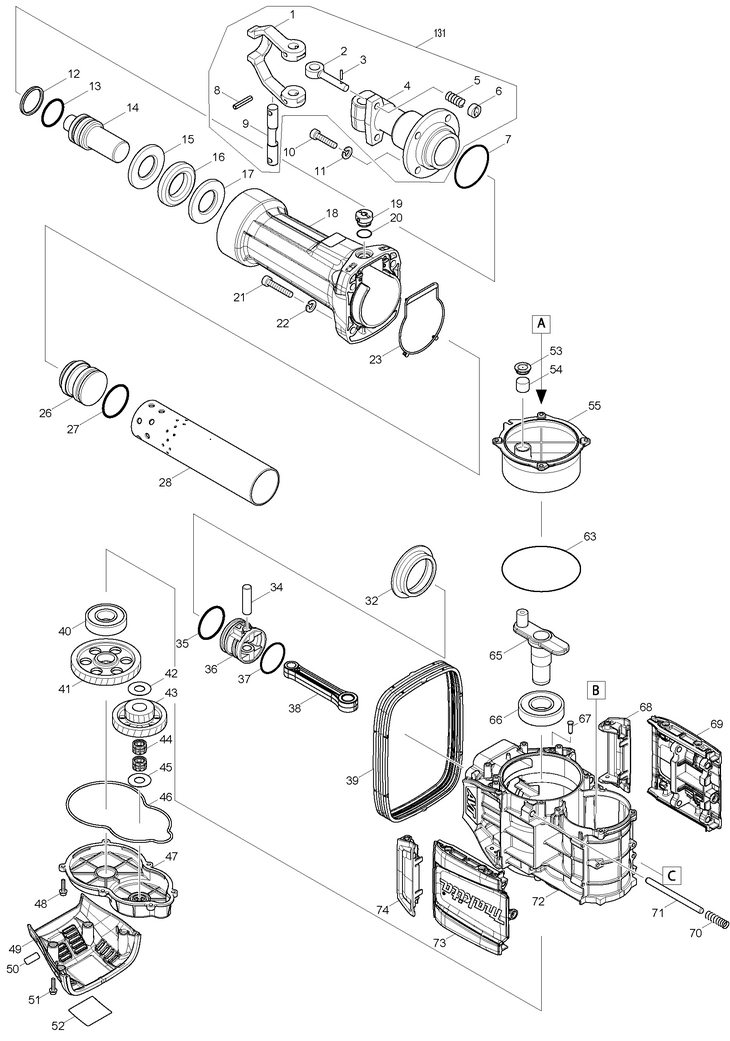

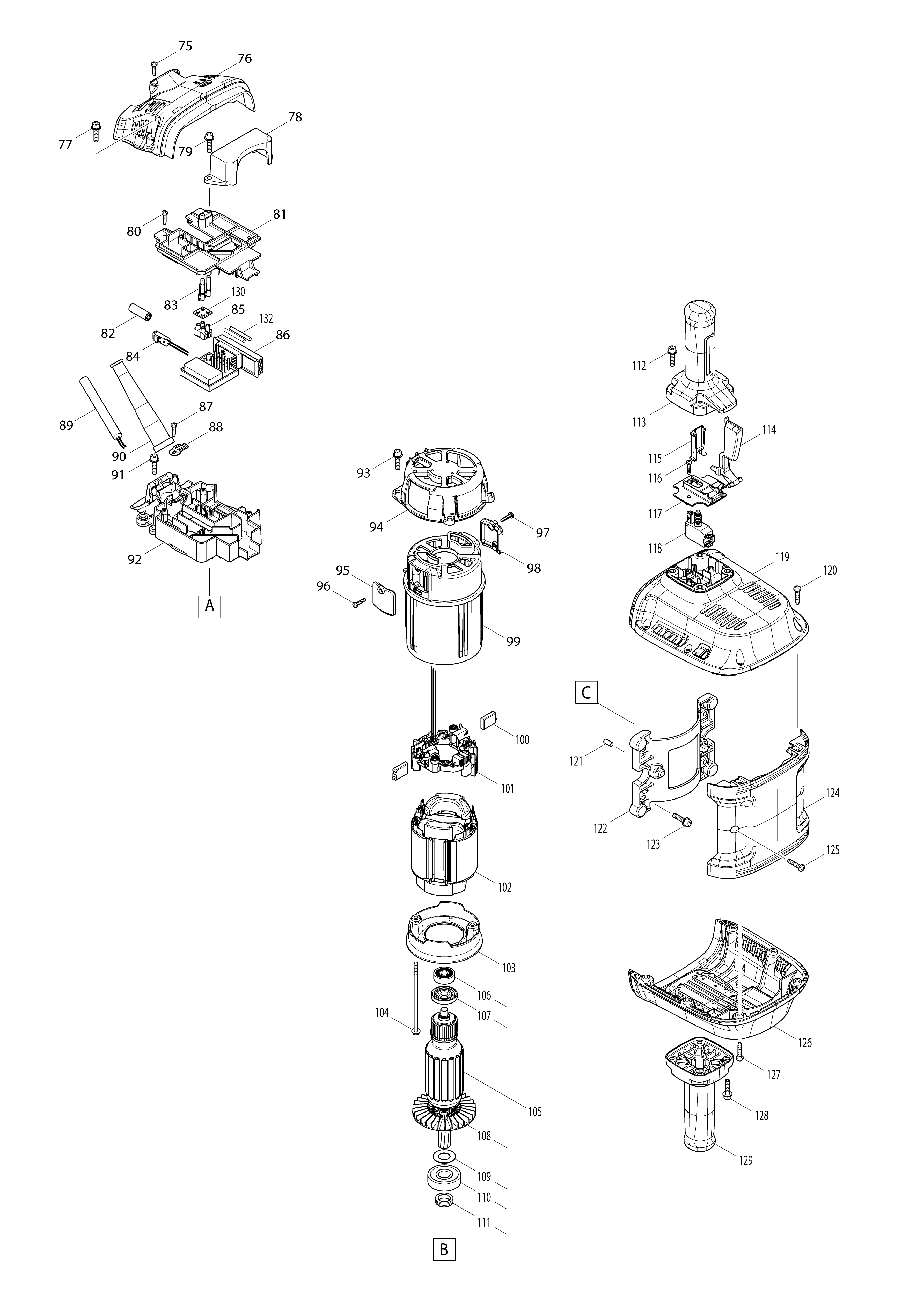

Top » Piese de schimb » PIESE MAKITA » Masini pentru beton » HM1802 HM1802 [HM1802] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 TOOL RETAINER HM1810 (324236-0) 76056 RON 2 1 2 INEL FIXARE HM1800/1801/1500B (322477-2) 18453 RON 3 1 2 STIFT 4 (256219-1) 446 RON 4 1 1 TOOL HOLDER 29 HM1812 (310616-6) 14649 RON 5 1 2 ARC DE COMPRESIE 12 (233083-7) 105 RON 6 1 2 INEL FIXARE (322560-5) 2347 RON 7 1 1 O RING 80 4112HS (213757-6) 894 RON 8 1 2 STIFT ELASTIC 8-40 (951272-9) 893 RON 9 1 1 AX PORTSCULA HM1800 (324238-6) 17671 RON 10 1 4 SURUB M12X45 (265989-1) 2012 RON 11 1 4 SAIBA ELASTICA 12 (942301-9) 558 RON 12 1 1 X-RING 47 HM1802 HM1812 (213797-4) 3466 RON 13 1 1 O-RING 47 HM1802 HM1812 (213798-2) 2683 RON 14 1 1 IMPACT BOLT (326469-3) 15881 RON 15 1 1 WASHER 42 (332127-1) 3914 RON 16 1 1 RUBBER RING 47 HM1802 HM1812 (262174-7) 10177 RON 17 1 1 WASHER 42 (332127-1) 3914 RON 18 1 1 BARREL HM1802 HM1812 (319218-5) 65990 RON 19 1 1 CAPAC HM1810 (450347-6) 5144 RON 20 1 1 ORING 24 HM1810 (213953-6) 334 RON 21 1 4 SURUB INBUS M12X55 (922677-0) 105 RON 22 1 4 SAIBA ELASTICA 12 (942301-9) 558 RON 23 1 1 SEAL RING A HM1802 HM1812 (424666-6) 1788 RON 26 1 1 STRIKER (326470-8) 13980 RON 27 1 1 O-RING 56 HM1802 HM1812 (213799-0) 3690 RON 28 1 1 343.07 (332130-2) 16766 RON 32 1 1 SPACER (332131-0) 8388 RON 34 1 1 PIN 15C (268328-4) 1229 RON 35 1 1 O-RING 56 HM1802 HM1812 (213799-0) 3690 RON 36 1 1 PISTON HM1802 HM1812 (455509-1) 3578 RON 37 1 1 ORING 55 HM1810 (213662-7) 670 RON 38 1 1 CONNECTING ROD HM1802 HM1812 (455490-6) Indisponibil Indisponibil 39 1 1 BELLOWS HM1802 HM1812 (424669-0) 8947 RON 40 1 1 BALL BEARING 6306LLB HM1802 HM1812 (211151-6) 10177 RON 41 1 1 HELICAL GEAR 57 (227797-8) 19572 RON 42 1 1 Flat Washer 18 (267290-0) 446 RON 43 1 1 GEAR COMPLETE 23-59 (226834-5) 17671 RON 44 1 2 NEEDLE CAGE 1816 HM1802 HM1812 (212099-5) 5368 RON 45 1 1 Flat Washer 18 (267290-0) 446 RON 46 1 1 SEAL RING B HM1802 HM1812 (424667-4) 2012 RON 47 1 1 GEAR COVER HM1802 HM1812 (455491-4) 5815 RON 48 1 6 H.S.HEAD BOLT M6X25 WITH GM HM1802 HM1812 (266923-4) 446 RON 49 1 1 SIDE COVER B HM1802 HM1812 (455500-9) 6039 RON 50 1 1 850X58-1 - Indisponibil 51 1 4 H.S.HEAD BOLT M6X25 WITH GM HM1802 HM1812 (266923-4) 446 RON 52 1 1 850U11-9 - Indisponibil 53 1 1 FILTER CAP HM1802 HM1812 (424668-2) 670 RON 54 1 1 FILTRU (443127-7) 558 RON 55 1 1 CRANK CAP HM1802 (455513-0) 7716 RON 63 1 1 O-RING 135 HM1802 HM1812 (213902-3) 2124 RON 65 1 1 CRANK SHAFT (310618-2) 21026 RON 66 1 1 BALL BEARING 6307LLU HM1802 HM1812 (211500-7) 13533 RON 67 1 4 FLAT FILLISTER HD PIN 6 HM1802 HM1812 (256559-7) 223 RON 68 1 1 HANDLE C HM1802 HM1812 (455506-7) 2012 RON 69 1 1 CENTER COVER HM1802 HM1812 (455503-3) 13197 RON 70 1 4 COMPRESSION SPRING 12B HM1802 (234350-3) 105 RON 71 1 4 ROD (326471-6) 105 RON 72 1 1 CRANK HOUSING COMPLETE HM1802 (142923-7) 102452 RON 73 1 1 CENTER COVER HM1802 HM1812 (455503-3) 13197 RON 74 1 1 HANDLE C HM1802 HM1812 (455506-7) 2012 RON 75 1 2 265995-6 - Indisponibil 76 1 1 SIDE COVER A HM1802 HM1812 (455499-8) 5591 RON 77 1 4 H.S.HEAD BOLT M6X25 WITH GM HM1802 HM1812 (266923-4) 446 RON 78 1 1 BRACKET HM1802 HM1812 (455510-6) 1788 RON 79 1 2 H.S.HEAD BOLT M6X25 WITH GM HM1802 HM1812 (266923-4) 446 RON 80 1 3 265995-6 - Indisponibil 81 1 1 CAP COVER HM1802 HM1812 (455495-6) 3242 RON 82 1 2 LINE FILTER MT081 (688165-4) 669 RON 83 1 1 LENS HM1802 HM1812 (455514-8) 782 RON 84 1 1 LEAD UNIT HM1802 HM1812 (632E02-4) 2124 RON 85 1 1 TERMINAL BLOCK 2P UH6580 (654531-7) 781 RON 86 1 1 CONTROLLER HM1802 (620363-4) 36462 RON 87 1 1 265995-6 - Indisponibil 88 1 1 FIXATOR DE CABLU (687169-3) 446 RON 89 1 1 695123-3 - Indisponibil 90 1 1 PROTECTIE CABLU (682560-0) 1453 RON 91 1 2 H.S.HEAD BOLT M6X25 WITH GM HM1802 HM1812 (266923-4) 446 RON 92 1 1 CRANK HOUSING CAP HM1802 HM1812 (455494-8) 6151 RON 93 1 4 H.S.HEAD BOLT M6X25 WITH GM HM1802 HM1812 (266923-4) 446 RON 94 1 1 BEARING BOX (319220-8) 10065 RON 95 1 1 BRUSH HOLDER COVER HM1802 HM1812 (455498-0) 670 RON 96 1 1 265995-6 - Indisponibil 97 1 1 265995-6 - Indisponibil 98 1 1 BRUSH HOLDER COVER HM1802 HM1812 (455498-0) 670 RON 99 1 1 MOTOR HOUSING HM1802 HM1812 (455496-4) 11072 RON 100 1 1 PERII CARBON CB-218 HM1812 (197129-2) 2460 RON 101 1 1 BRUSH HOLDER UNIT HM1802 HM1812 632L58-9 cod vechi 632E01-6 (632L58-9) 7157 RON 102 1 1 FIELD 240V HM1802 HM1812 (636409-6) 44627 RON 103 1 1 BAFFLE PLATE HM1802 HM1812 (455497-2) 1788 RON 104 1 2 HEX. BOLT M5X120 WITH GM HM1802 HM1812 (266922-6) 894 RON 105 1 1 ARMATURE ASSY 240V HM1802 HM1812 (517914-1) 52792 RON 106 1 1 RULMENT 6200DDW (211087-9) 2347 RON 107 1 1 SAIBA IZOLARE (681630-2) 334 RON 108 1 1 FAN 90 HM1812 (240156-9) 2348 RON 109 1 1 FLAT WASHER17 HM1812 (267487-1) 446 RON 110 1 1 BALL BEARING 6303LLU HM1812 (211152-4) 5256 RON 111 1 1 SEALING SCREW HM1812 (332129-7) 782 RON 112 1 4 H.S.HEAD BOLT M6X25 WITH GM HM1802 HM1812 (266923-4) 446 RON 113 1 1 HANDLE A HM1802 HM1812 (455504-1) 10065 RON 114 1 1 SWITCH LEVER HM1802 HM1812 (455508-3) 1341 RON 115 1 1 SWITCH GUIDE HM1802 HM1812 (455511-4) 894 RON 116 1 1 265995-6 - Indisponibil 117 1 1 SWITCH COVER HM1802 HM1812 (455507-5) 1117 RON 118 1 1 SWITCH C3JW-C-P HM1802 HM1812 (650738-3) 8052 RON 119 1 1 HANDLE BASE A HM1802 HM1812 (455502-5) 17783 RON 120 1 6 SURUB 5X25 (266041-8) Indisponibil Indisponibil 121 1 2 PIN 6 HM1802 HM1812 (256269-6) 334 RON 122 1 1 BASE (319222-4) 5144 RON 123 1 4 H.S.HEAD BOLT M6X25 WITH GM HM1802 HM1812 (266923-4) 446 RON 124 1 1 HEAD COVER HM1802 HM1812 (455501-7) 7269 RON 125 1 2 SURUB 5X25 (266041-8) Indisponibil Indisponibil 126 1 1 HANDLE BASE B HM1802 HM1812 (455512-2) 17671 RON 127 1 6 SURUB 5X25 (266041-8) Indisponibil Indisponibil 128 1 4 H.S.HEAD BOLT M6X25 WITH GM HM1802 HM1812 (266923-4) 446 RON 129 1 1 HANDLE B HM1802 HM1812 (455505-9) 1041 RON 130 1 1 RUBBER SHEET HM1802 (685756-2) 334 RON 131 1 1 488.93 " (135669-2) 111 RON 132 1 2 684970-7 - Indisponibil 1001 1 1 783203-8 - Indisponibil 1002 1 1 B-10372 - Indisponibil 5001 1 1 801S45-3 - Indisponibil
