Top » Piese de schimb » PIESE MAKITA » Masini pentru beton » HM1214C

HM1214C
[HM1214C]
HM1214C
Click pentru a mari
Imagini suplimentare
HM1214C
Click pentru a mari

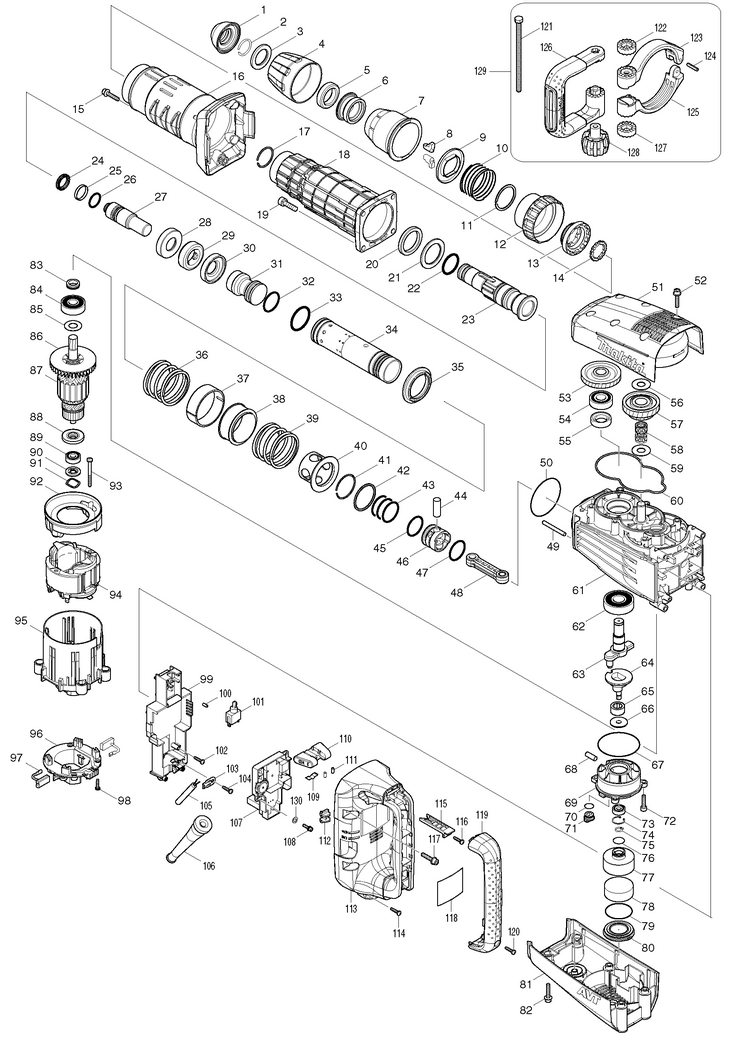

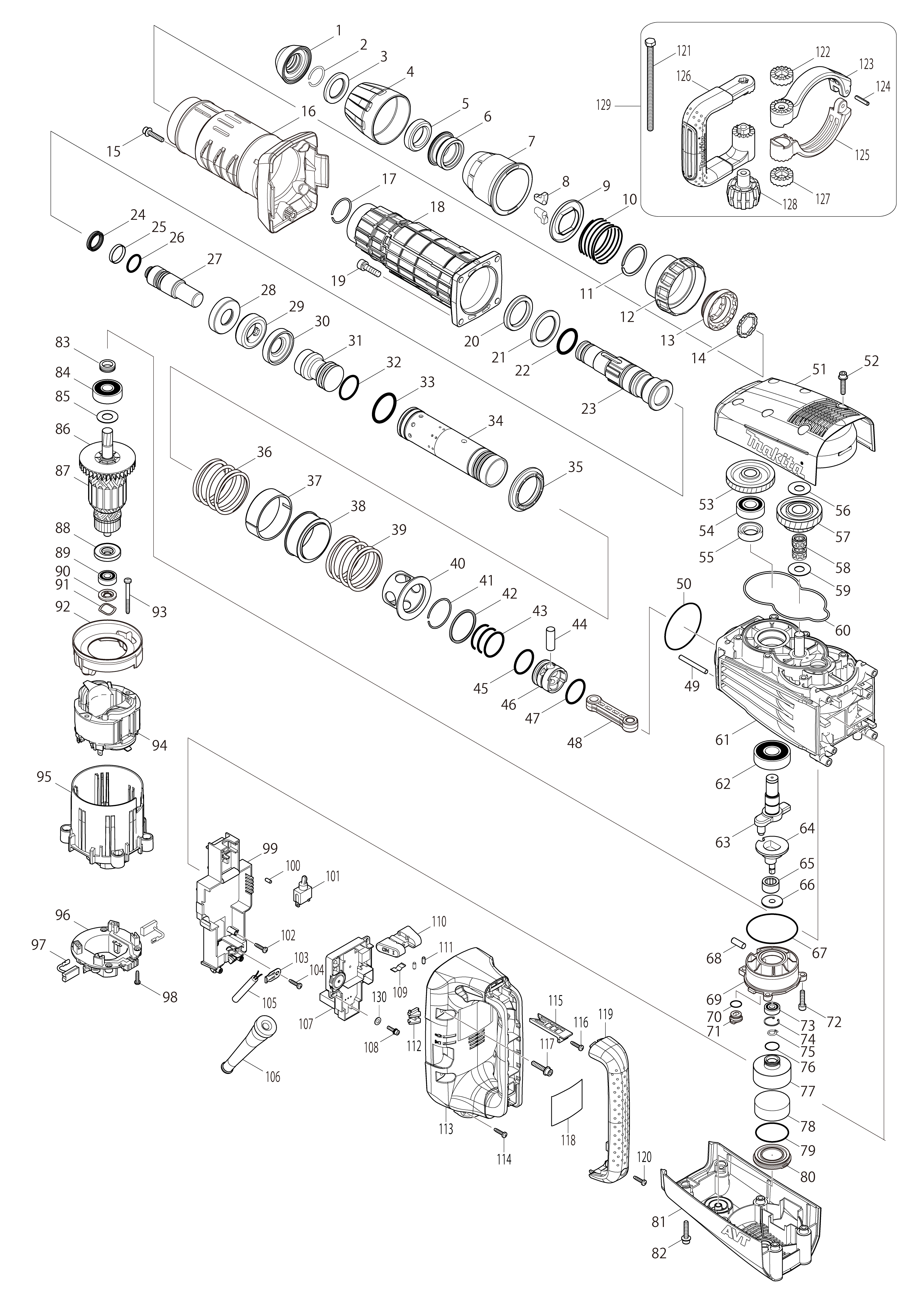

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
A01 0 1 A-80787 - Indisponibil
A01-1 1 1 D-34176 - Indisponibil
A02 0 1 194659-4 - Indisponibil
A02-1 1 1 194683-7 - Indisponibil
A02-2 2 1 198993-4 - Indisponibil
A03 0 1 Cloth (443122-7) 3130 RON
A04 0 1 824882-4 - Indisponibil
C10 0 2 162271-8 - Indisponibil
A05 0 2 HM1214C PLASTIC CASE LABEL HM1214C (809301-1) 670 RON
B01 0 1 195114-9 - Indisponibil
C10 0 2 181490-7 - Indisponibil
C11 0 2 1914C5-7 - Indisponibil
E03 0 1 801092-0 - Indisponibil
F01 0 1 194683-7 - Indisponibil
F03-1 1 1 199143-4 - Indisponibil
F04-1 1 1 199143-4 - Indisponibil
F06-1 1 1 199144-2 - Indisponibil
C10 0 1 417765-1 - Indisponibil
C20 0 1 417766-9 - Indisponibil
C30 0 1 415021-3 - Indisponibil
C31 0 1 415021-3 - Indisponibil
F07-1 1 1 199144-2 - Indisponibil
F11 0 1 198993-4 - Indisponibil
001 0 1 Tool Holder Cap (424165-8) 190 RON
002 0 1 Ring Spring 26 (233973-4) 781 RON
003 0 1 Flat Washer 30 (267386-7) 3242 RON
004-1 1 1 4139A1-4 - Indisponibil
004 0 1 CAPAC MANDRINA (450894-7) 2235 RON
005 0 1 Rubber Ring 30 (262147-0) 2571 RON
006 0 1 INEL MANDRINA (324987-5) 8499 RON
007 0 1 Release Cover (450895-5) 2348 RON
008 0 2 Tool Retainer (310279-8) 3131 RON
009 0 1 Spring Guide (346015-6) 2012 RON
010 0 1 COMPRESSION SPRING 56 HM1214C HM1203C (234086-4) 1788 RON
011 0 1 SAIBA DE SIGURANTA HR5001C/HM120 (961232-3) 1229 RON
012 0 1 CAPAC INEL (450893-9) 1565 RON
013 0 1 Cahnge Ring (324969-7) 14987 RON
014 0 1 Lock Ring (324988-3) 8947 RON
015 0 1 H.S HEAD BOLT M6X30 WITH GM HM1307CB HM1214C (266499-1) 558 RON
016 0 1 CAPAC (451113-4) 956 RON
017 0 1 Ring Spring 35 (233970-0) 670 RON
018-1 1 1 CARCASA COMPLETA HM1214C (141786-8) 26129 RON
018 0 1 BARREL COMPLETE (158984-7) 41942 RON
019 0 4 SURUB INBUS M8X30 HM1303/4 (266010-9) 105 RON
020 0 1 Rubber Ring 39 (262148-8) 190 RON
021 0 1 FLAT WASHER 39 HM1214C HM1203C (267387-5) 3019 RON
022 0 1 O RING 35.5 (213079-4) 1564 RON
023 0 1 Tool Holder (324985-9) 71022 RON
024 0 1 X-RING 21 (213980-3) 2683 RON
025 0 1 INEL METALIZAT HR4000C (213431-6) 4585 RON
026 0 1 O RING 23 HR5001C/HM1202C (213394-6) 558 RON
027 0 1 IMPACT BOLT (325681-2) 1338 RON
028 0 1 Shoulder Sleeve (324993-0) 4361 RON
029 0 1 Rubber Ring 24 (262149-6) 297 RON
030 0 1 Shoulder Sleeve (324993-0) 4361 RON
031 0 1 STRIKER HM1214C (325680-4) 13197 RON
032 0 1 O RING 31.5 HM1213C/1203C (213499-2) 2459 RON
033 0 1 O RING 44 (213581-7) 1788 RON
034 0 1 CYLINDER (331856-3) 49324 RON
035 0 1 CYLINDER GUIDE (451110-0) 296 RON
036 0 1 COMPRESSION SPRING 58 HM1214C (234107-2) 3914 RON
037 0 1 WEIGHT GUIDE (451103-7) 2236 RON
038 0 1 COUNTER WEIGHT (331854-7) 3354 RON
039 0 1 COMPRESSION SPRING 58 HM1214C (234107-2) 3914 RON
040 0 1 SLIDE SLEEVE (325661-8) 16888 RON
041 0 1 ARC INELAR 43 HR5001C (231985-1) 893 RON
042 0 1 RING 45 HM1214C (257297-4) 3019 RON
043 0 3 O RING 36 (213510-0) 558 RON
044 0 1 STIFT 12 (268121-6) 558 RON
045 0 1 O RING 31.5 HM1213C/1203C (213499-2) 2459 RON
046 0 1 Piston (450961-8) 4249 RON
047 0 1 O RING 35 (213149-9) 105 RON
048 0 1 BIELA (450890-5) 4697 RON
049 0 1 STIFT 6 HM1214C (268235-1) 3466 RON
050 0 1 O RING 71 HM1200/1400.HR5000 (213754-2) 893 RON
051 0 1 CAPAC MECANISM (451115-0) 14427 RON
052 0 6 H.S HEAD BOLT M6X30 WITH GM HM1307CB HM1214C (266499-1) 558 RON
053 0 1 HELICAL GEAR 52 (226699-5) 9730 RON
054-2 2 1 211256-2 - Indisponibil
054-1 1 1 RULMENT 6203ZZ (211290-2) 1922 RON
054 0 1 211256-2 - Indisponibil
055 0 1 SIMERING 20 HR2410/2010 (213313-2) 3018 RON
056 0 1 SAIBA PLATA 14 HM0860C (267166-1) 894 RON
057 0 1 ANSAMBLU ANGRENAJ (226155-5) 30981 RON
058 0 2 NEEDLE CAGE (212159-3) 297 RON
059 0 1 SAIBA PLATA 14 HM0860C (267166-1) 894 RON
060 0 1 SIMERING (424196-7) 893 RON
061 0 1 CRANK HOUSING COMPLETE (158983-9) 107261 RON
062 0 1 RULMENT 6304LLU (211327-5) 7045 RON
063 0 1 CRANK SHAFT (325659-5) 7716 RON
064 0 1 COUNTER SHAFT (325660-0) 32323 RON
065 0 1 NEEDLE BEARING 1613 (212225-6) 9059 RON
066 0 1 Shoulder washer 8 (325662-6) 1341 RON
067 0 1 O RING 71 HM1200/1400.HR5000 (213754-2) 893 RON
068 0 1 STIFT 8 HM1214C (268222-0) 2795 RON
069 0 1 CARCASA RULMENT (158985-5) 22033 RON
070 0 1 O RING 14 (213176-6) 558 RON
071 0 1 Grease Cap (451104-5) 105 RON
072 0 3 HEX.BOLT M6X25 HM1214C (266087-4) 446 RON
073-1 1 1 BALL BEARING 608ZZ (210223-4) 854 RON
073 0 1 RULMENT 608ZZ (211032-4) 629 RON
074 0 1 SAIBA DE SIGURANTA R-22 (962112-6) 334 RON
075 0 1 SAIBA DE SIGURANTA S-8 (961004-6) 558 RON
076 0 1 O RING 18 (213262-3) 334 RON
077 0 1 FILTER CASE (451108-7) 1677 RON
078 0 1 Filter (443147-1) 190 RON
079 0 1 O RING 45 (213569-7) 558 RON
080 0 1 FILTER CASE COVER (451109-5) 1341 RON
081 0 1 CAPAC POSTERIOR (451116-8) 12862 RON
082 0 6 H.S HEAD BOLT M6X30 WITH GM HM1307CB HM1214C (266499-1) 558 RON
083 0 1 SURUB ETANSARE HM1307CB (331855-5) 1117 RON
084 0 1 Ball Bearing 6302LLU (211249-9) 6151 RON
085 0 1 SAIBA PLATA 15 (267397-2) 446 RON
086 0 1 VENTILATOR 80 (240003-4) 1229 RON
087 0 1 ROTOR 220/240V (517838-1) 90931 RON
088 0 1 SAIBA IZOLARE (681642-5) 3354 RON
089 0 1 210059-1 - Indisponibil
090 0 1 WASHER GUIDE (451107-9) 1676 RON
091 0 1 WAVE WASHER 19 new (267809-5) 334 RON
092 0 1 DEFLECTOR HM1307CB (451111-8) 1341 RON
093 0 2 SURUB 5X55 (266095-5) 446 RON
094 0 1 STATOR HR5211C (636303-2) 17112 RON
095 0 1 MOTOR HOUSING (451117-6) 11966 RON
096-2 2 1 BRUSH HOLDER UNIT (632D00-2) 2534 RON
096-1 1 1 BRUSH HOLDER UNIT (632D00-2) 2534 RON
096 0 1 BLOC CONEXIUNI HR5211C (638447-4) Indisponibil Indisponibil
097-1 1 1 PERII CARBON CB175 cod vechi CB171 194412-8 (195844-2) 2683 RON
097 0 1 194412-8 - Indisponibil
098 0 4 SURUB 4X18 SURUB AUTOFILETANT 4X18 (265995-6) 558 RON
099-1 1 1 REGULATOR DE TURATIE COVER COMPLETE HM1307CB HM1214C (158986-3) 7269 RON
099 0 1 REGULATOR DE TURATIE COVER COMPLETE HM1307CB HM1214C (158986-3) 7269 RON
100 0 1 RUBBER PIN 4 HR4501C (263027-3) 446 RON
101-1 1 1 INTRERUPATOR 3706/3707-3708F (651423-1) 4025 RON
101 0 1 INTRERUPATOR 3706/3707-3708F (651423-1) 4025 RON
102 0 2 SURUB 4X18 SURUB AUTOFILETANT 4X18 (265995-6) 558 RON
103 0 1 FIXATOR DE CABLU (687169-3) 446 RON
104 0 1 SURUB 4X18 SURUB AUTOFILETANT 4X18 (265995-6) 558 RON
105-1 1 1 CABLU ALIMENTARE 1.5-2-4.0 GA (695123-3) 6213 RON
105 0 1 CABLU ALIMENTARE 1.5-2-4.0 GA (695123-3) 6213 RON
106 0 1 PROTECTIE CABLU (682560-0) 1453 RON
107-2 2 1 REGULATOR DE TURATIE cod vechi 631883-3 REGULATOR DE TURATIE (620226-4) 44067 RON
107-1 1 1 631883-3 - Indisponibil
107 0 1 631883-3 - Indisponibil
108-1 1 2 266834-3 - Indisponibil
108 0 2 265490-6 - Indisponibil
109 0 1 ARC LAMELAR HM0860C (232209-8) 558 RON
110 0 1 SLIDE LEVER (451112-6) 2571 RON
111 0 2 RUBBER PIN 4 HR4501C (263027-3) 446 RON
112 0 1 LENS (451105-3) 1788 RON
113 0 1 HANDLE (451118-4) 15322 RON
114 0 1 SURUB 4X18 SURUB AUTOFILETANT 4X18 (265995-6) 558 RON
115 0 1 PARGHIE INTRERUPATOR (451106-1) 1229 RON
116 0 1 SURUB 4X18 SURUB AUTOFILETANT 4X18 (265995-6) 558 RON
117 0 4 H.S HEAD BOLT M6X30 WITH GM HM1307CB HM1214C (266499-1) 558 RON
118 0 1 HM1214C NAME PLATE HM1214C (866749-0) 558 RON
118-1 1 1 858S22-6 - Indisponibil
119 0 1 HANDLE COVER HM1307CB HM1214C (451119-2) 10624 RON
120 0 2 SURUB 4X18 SURUB AUTOFILETANT 4X18 (265995-6) 558 RON
121 0 1 SURUB M8X150 (265439-6) 1229 RON
122 0 1 BUCSA MANER HM1202C/HR4011C (417002-3) 1117 RON
123 0 1 SIDE HANDLE BASE 90A HM1214C (318430-4) 6710 RON
124 0 1 STIFT PT. ARC 5-24 (951166-8) 446 RON
125 0 1 SIDE HANDLE BASE 90B HM1214C (318431-2) 6039 RON
126 0 1 MANER LATERAL HM1202C (417003-1) 8835 RON
127 0 1 BUCSA MANER HM1202C/HR4011C (417002-3) 1117 RON
128 0 1 PIULITA FLUTURE M8 (252640-2) 3354 RON
129 0 1 135283-4 - Indisponibil
130 0 2 FLAT WASHER 4 BCL180 (941051-3) 558 RON
130-1 1 2 PLATE HM1307CB HM1214C (346546-5) 334 RON
131 0 1 BOTH SIDE ADHESIVE TAPE HM1307CB HM1214C (442180-0) 670 RON
132 0 1 126096-4 - Indisponibil
132-1 1 1 141804-2 - Indisponibil
