HM1203C
[HM1203C]
HM1203C
Click pentru a mari
Imagini suplimentare
HM1203C
Click pentru a mari

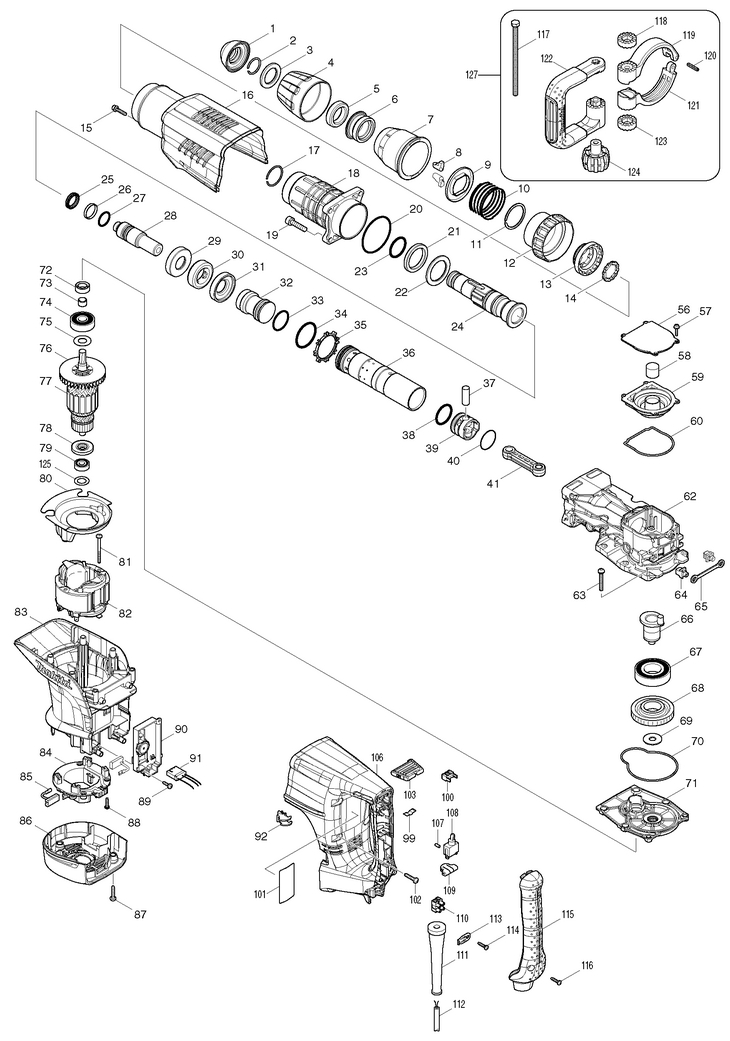

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Tool Holder Cap (424165-8) 190 RON
2 1 1 Ring Spring 26 (233973-4) 781 RON
3 1 1 Flat Washer 30 (267386-7) 3242 RON
4 1 1 CAPAC MANDRINA (450894-7) 2235 RON
5 1 1 Rubber Ring 30 (262147-0) 2571 RON
6 1 1 INEL MANDRINA (324987-5) 8499 RON
7 1 1 Release Cover (450895-5) 2348 RON
8 1 2 Tool Retainer (310279-8) 3131 RON
9 1 1 Spring Guide (346015-6) 2012 RON
10 1 1 COMPRESSION SPRING 56 HM1214C HM1203C (234086-4) 1788 RON
11 1 1 SAIBA DE SIGURANTA HR5001C/HM120 (961232-3) 1229 RON
12 1 1 CAPAC INEL (450893-9) 1565 RON
13 1 1 Cahnge Ring (324969-7) 14987 RON
14 1 1 Lock Ring (324988-3) 8947 RON
15 1 1 SURUB INBUS M5X25 HM0870C (922243-3) 781 RON
16 1 1 CARCASA PLASTIC (450903-2) 1041 RON
17 1 1 Ring Spring 35 (233970-0) 670 RON
18 1 1 MANSON CILINDRU (158858-2) 29191 RON
19 1 4 SURUB INBUS M8 (922456-6) 558 RON
20 1 1 O RING 67 (213720-9) 334 RON
21 1 1 Rubber Ring 39 (262148-8) 190 RON
22 1 1 FLAT WASHER 39 HM1214C HM1203C (267387-5) 3019 RON
23 1 1 O RING 35.5 (213079-4) 1564 RON
24 1 1 Tool Holder (324985-9) 71022 RON
25 1 1 X-RING 21 (213980-3) 2683 RON
26 1 1 INEL METALIZAT HR4000C (213431-6) 4585 RON
27 1 1 O RING 23 HR5001C/HM1202C (213394-6) 558 RON
28 1 1 BOLT DE IMPACT (324990-6) 10177 RON
29 1 1 Shoulder Sleeve (324993-0) 4361 RON
30 1 1 Rubber Ring 24 (262149-6) 297 RON
31 1 1 Shoulder Sleeve (324993-0) 4361 RON
32 1 1 324991-4 - Indisponibil
32 2 1 PERCUTOR (326002-1) 26060 RON
33 1 1 O RING 31.5 HM1213C/1203C (213499-2) 2459 RON
34 1 1 O RING 44 (213581-7) 1788 RON
35 1 1 ONE WAY VALVE GUIDE HM1203C (450889-0) 670 RON
36 1 1 331848-2 - Indisponibil
36 2 1 CILINDRU 40 (331925-0) 59614 RON
37 1 1 STIFT 12 (268121-6) 558 RON
38 1 1 O RING 31.5 HM1213C/1203C (213499-2) 2459 RON
39 1 1 Piston (450961-8) 4249 RON
40 1 1 O RING 35 (213149-9) 105 RON
41 1 1 BIELA (450890-5) 4697 RON
56 1 1 CAPAC BIELA (450899-7) 1117 RON
57 1 4 SURUB M4X18 (911133-5) 558 RON
58 1 1 FILTRU (443127-7) 558 RON
59 1 1 CAPAC MECANISM (450898-9) 1565 RON
60 1 1 GARNITURA CAUCIUC (424166-6) 558 RON
62 1 1 CARCASA MECANISM (318364-1) 21921 RON
63 1 6 H.S.BUTTON HEAD SCREW M6X40 HM1203C (266482-8) 446 RON
64 1 2 GHIDAJ FIX HR4011C (419008-7) Indisponibil Indisponibil
65 1 1 PLACA HR5211C (423366-5) 558 RON
66 1 1 ARBORE CU CAMA (324994-8) 8946 RON
67 1 1 RULMENT 6206LLU HM1213C (211424-7) 8611 RON
68 1 1 ROATA DINTATA 57 (226691-1) 14763 RON
69 1 1 SAIBA 12 (267398-0) 558 RON
70 1 1 GARNITURA CAUCIUC (424167-4) 781 RON
71 1 1 CAPAC ANGRENAJ (158859-0) 18454 RON
72 1 1 SIMERING 15 HR4500C (213231-4) 3690 RON
73 1 1 MANSON 12 HR4500C (331596-3) 893 RON
74 1 1 Ball Bearing 6302LLU (211249-9) 6151 RON
75 1 1 SAIBA PLATA 15 (267397-2) 446 RON
76 1 1 VENTILATOR 80 (240003-4) 1229 RON
77 1 1 ROTOR (517818-7) 40936 RON
78 1 1 SAIBA IZOLARE (681642-5) 3354 RON
79 1 1 RULMENT 6000DDW HR4000C cod vechi 210059-1 RULMENT 6000DDW (211289-7) 4920 RON
79 2 1 RULMENT 6000DDW HR4000C cod vechi 210059-1 RULMENT 6000DDW (211289-7) 4920 RON
80 1 1 DEFLECTOR (450900-8) 1117 RON
81 1 2 SURUB 5X55 (266095-5) 446 RON
82 1 1 STATOR HR5211C (636303-2) 17112 RON
83 1 1 CARCASA MOTOR (450904-0) 16553 RON
84 1 1 BLOC CONEXIUNI HR5211C (638447-4) Indisponibil Indisponibil
85 1 1 PERII CARBON CB175 cod vechi CB171 194412-8 (195844-2) 2683 RON
85 2 1 PERII CARBON CB175 cod vechi CB171 194412-8 (195844-2) 2683 RON
86 1 1 CAPAC VENTILATOR (450901-6) 4473 RON
87 1 3 SURUB 5X25 (266041-8) Indisponibil Indisponibil
88 1 4 SURUB 4X18 cod vechi 266326-2 SURUB AUTOFILETANT 4X18 (265995-6) 558 RON
89 1 2 SURUB AUTOFILETANT 4x14 (266192-7) 334 RON
90 1 1 REGULATOR DE TURATIE (631869-7) 26395 RON
91 1 1 LEAD UNIT HM1203C (638650-7) 3354 RON
92 1 1 LENS (419010-0) 893 RON
99 1 1 ARC LAMELAR HM0860C (232209-8) 558 RON
100 1 1 LEVER STOPPER HM1203C (450891-3) 782 RON
101 1 1 HM1203C NAME PLATE HM1203C (866622-4) 446 RON
102 1 6 SURUB 5X25 (266041-8) Indisponibil Indisponibil
103 1 1 LEVIER (450897-1) 1565 RON
106 1 1 MANER (450907-4) 18789 RON
107 1 1 RUBBER PIN 4 HR4501C (263027-3) 446 RON
108 1 1 INTRERUPATOR 3706/3707-3708F (651423-1) 4025 RON
109 1 1 SPONGE SHEET HM1203C (423379-6) 223 RON
110 1 1 TERMINAL BLOCK 2P UH6580 (654531-7) 781 RON
111 1 1 PROTECTIE CABLU (682560-0) 1453 RON
112 1 1 695123-3 - Indisponibil
113 1 1 FIXATOR DE CABLU (687169-3) 446 RON
114 1 1 SURUB 4X18 cod vechi 266326-2 SURUB AUTOFILETANT 4X18 (265995-6) 558 RON
115 1 1 CAPAC MANER (450908-2) 7828 RON
116 1 2 SURUB 4X18 cod vechi 266326-2 SURUB AUTOFILETANT 4X18 (265995-6) 558 RON
117 1 1 SURUB M8X150 (265439-6) 1229 RON
118 1 1 BUCSA MANER HM1202C/HR4011C (417002-3) 1117 RON
119 1 1 SUPORT MANER LATERAL 82A HM1202C cod vechi 317223-6 SIDE HANDLE BASE 82A (318505-9) Indisponibil Indisponibil
120 1 1 STIFT PT. ARC 5-24 (951166-8) 446 RON
121 1 1 SUPORT MANER LATERAL 82B HM1202C cod vechi 317224-4 SIDE HANDLE BASE 82B (318506-7) Indisponibil Indisponibil
122 1 1 MANER LATERAL HM1202C (417003-1) 8835 RON
123 1 1 BUCSA MANER HM1202C/HR4011C (417002-3) 1117 RON
124 1 1 PIULITA FLUTURE M8 (252640-2) 3354 RON
125 1 1 SAIBA PLATA 15 HP2040/HP2041 (267164-5) 558 RON
127 1 1 135269-8 - Indisponibil
1001 1 1 AC1300 (AC1300) Indisponibil Indisponibil
1002 1 1 194659-4 - Indisponibil
1002 2 1 GREASE VESSEL SET HR4501C (198993-4) (088381518994) Indisponibil Indisponibil
1003 1 1 Cloth (443122-7) 3130 RON
1004 1 1 824876-9 - Indisponibil
1005 1 2 HM1203C PLASTIC CASE LABEL HM1203C (809279-8) 558 RON
