Electric Lawn Mower MAKITA ELM4621
[ELM4621]
Electric Lawn Mower MAKITA ELM4621
Click pentru a mari
Imagini suplimentare
Electric Lawn Mower MAKITA ELM4621
Click pentru a mari
Electric Lawn Mower MAKITA ELM4621
Click pentru a mari

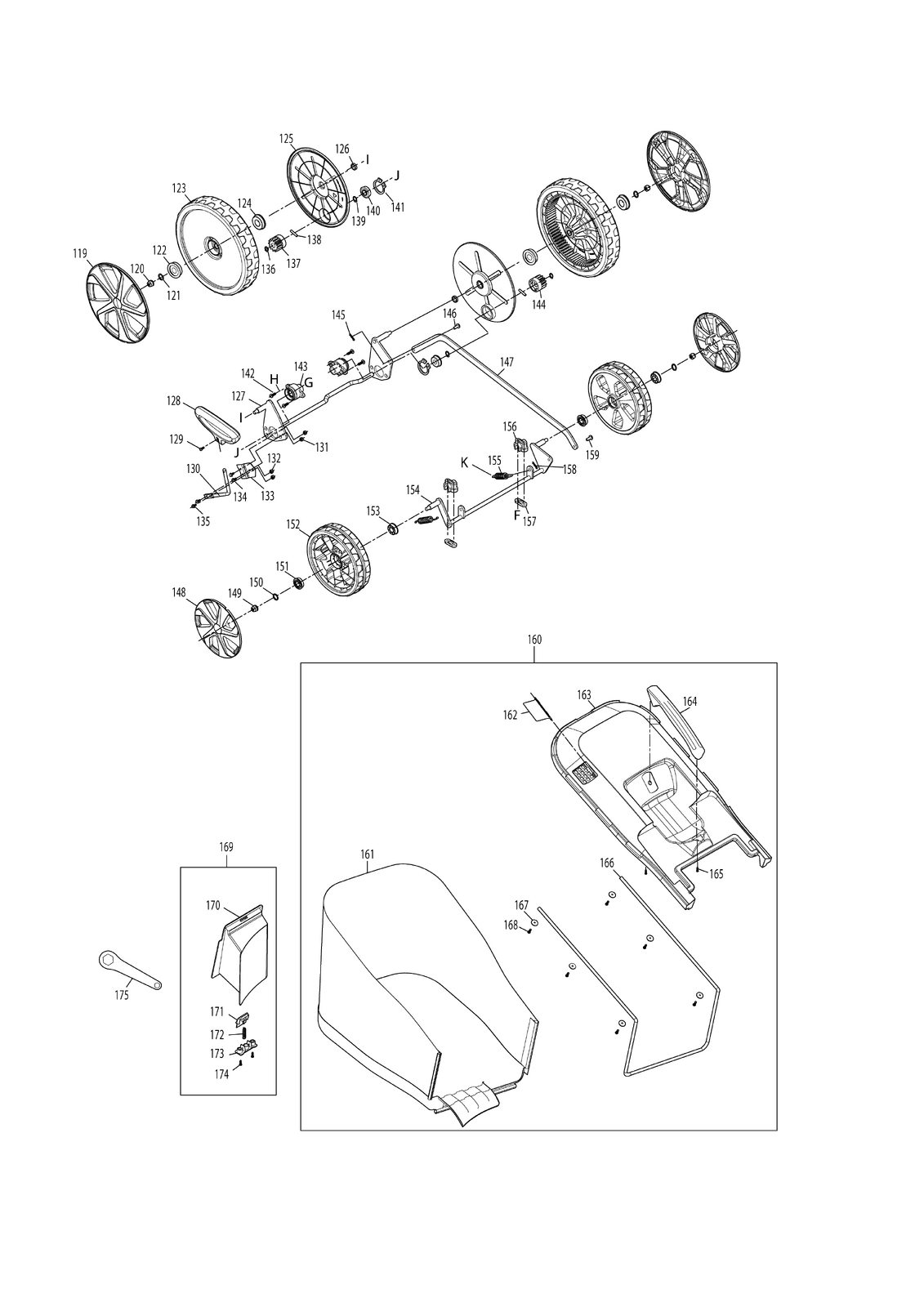

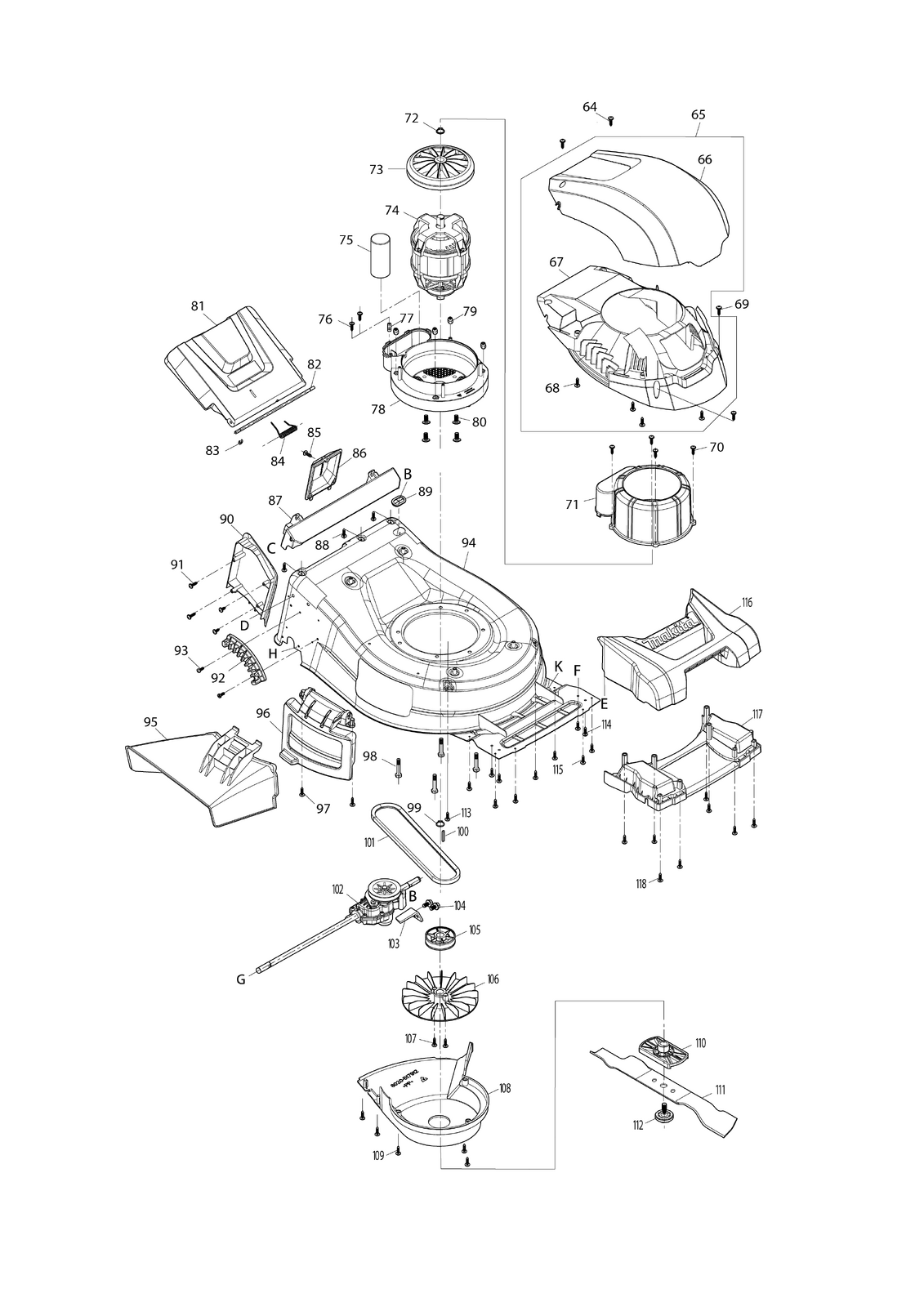

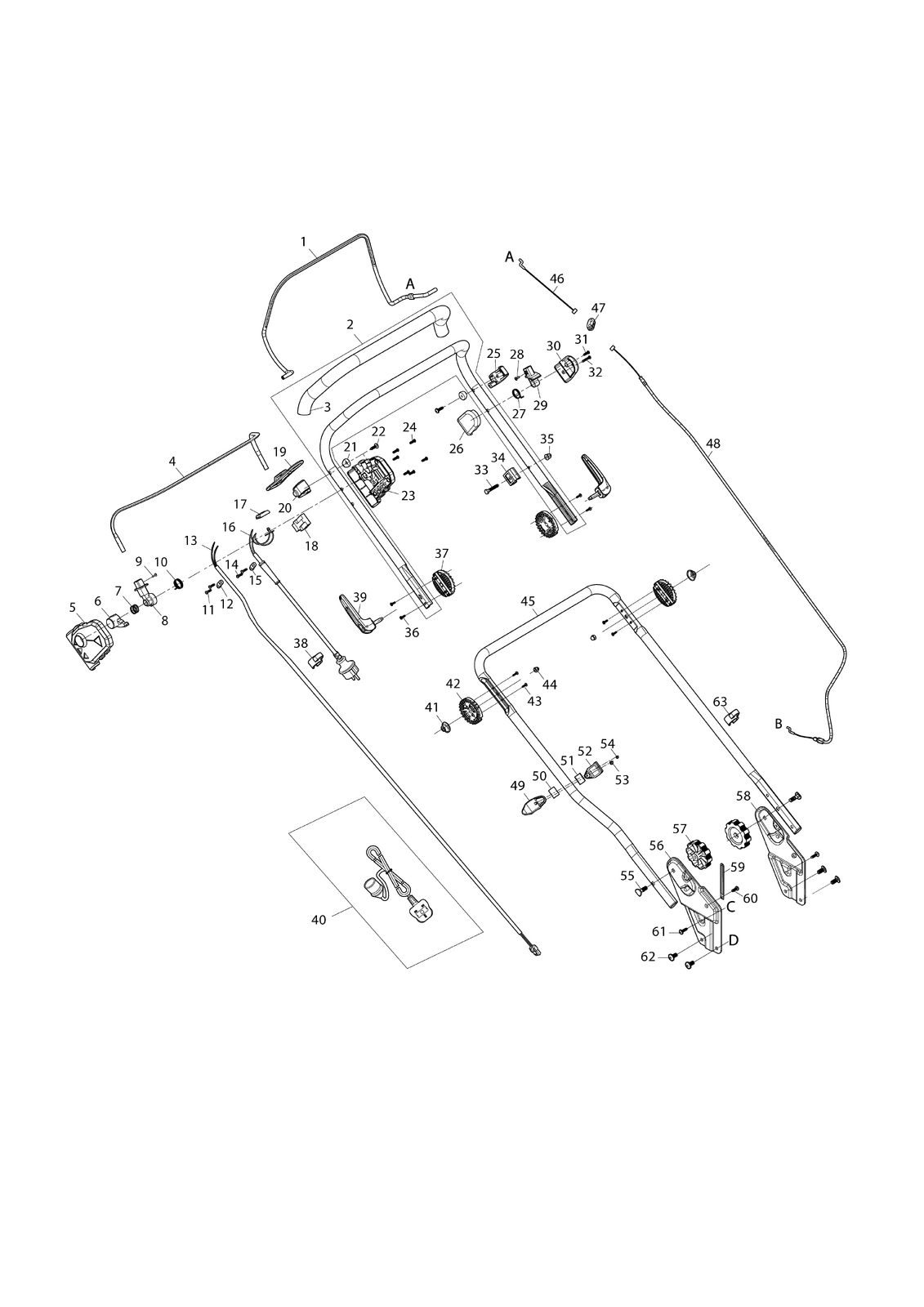

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
001 0 1 CONNECTING ROAD (YA00001108) 3325 RON
002 0 1 HANDLE ASSY (YA00001159) 9391 RON
003 0 1 YA00001185 - Indisponibil
004 0 1 CONNECTING ROD (YA00001160) 2247 RON
005 0 1 SWITCH BOX RIGHT (YA00000765) 445 RON
006 0 1 SWITCH LINK BUTTON (YA00000766) 262 RON
007 0 1 COMPRESSION SPRING 16 (YA00000767) 175 RON
008 0 1 SWITCH LEVER END CAP RIGHT (YA00000768) 262 RON
009 0 1 SCREW UV3600 (652024721) 223 RON
010 0 1 SWITCH TORSION SPRING (YA00000769) 175 RON
011 0 2 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
012 0 1 CABLE PRESSBOARD (YA00000780) 097 RON
013 0 1 CABLU CONDUCTOR (YA00001038) 1416 RON
014 0 2 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
015 0 1 CABLE PRESSBOARD (YA00000780) 097 RON
016 0 1 CABLU ALIMENTARE ELM3720 (YA00000773) 4282 RON
017 0 1 LIGHT COVER CAP (YA00000781) 186 RON
018 0 1 INTRERUPATOR ELM3320/3720 (YA00000772) 874 RON
019 0 1 CABLE HANGER UV3200 (652023811) 105 RON
020 0 1 FIX SEAT (YA00001105) 337 RON
020-1 1 1 FIX SEAT (YA00001105) 337 RON
021 0 2 FIX SEAT (YA00001106) 212 RON
022 0 2 SELF TAPPING SCREW ST5 (YA00000820) 157 RON
023 0 1 SWITCH BOX LEFT (YA00000782) 552 RON
024 0 6 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
025 0 1 FIXATOR LEVIER (STANGA) ELM4621 (YA00001107) 437 RON
025-1 1 1 FIXATOR LEVIER (STANGA) ELM4621 (YA00001107) 437 RON
026 0 1 RIGHT HANDLE SUPPORT UV3600 (652023795) 1117 RON
027 0 1 LEVER TORSION SPRING 18.3 (YA00000737) 291 RON
028 0 1 SCREW UV3600 (652024721) 223 RON
029 0 1 LEFT PLUG-IN OF HANDLE UV3600 (652023794) 2683 RON
030 0 1 LEFT HANDLE SUPPORT UV3600 (652023793) 1117 RON
031 0 1 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
032 0 1 SURUB AUTOFILETANT (YA00000785) 094 RON
033 0 1 MACHINE SCREW M6X35 (YA00001109) 157 RON
034 0 1 CABLE FIX SEAT (YA00001110) 236 RON
035 0 1 M6 COVER NUT M6-10 (YA00000802) 175 RON
036 0 4 YA00000960 - Indisponibil
037 0 2 PIESA REGLARE MANER (A) ELM4621 (YA00000961) 437 RON
038 0 1 YA00000921 - Indisponibil
039 0 2 HAND SHANK ASSY (YA00000975) 1966 RON
040 0 1 EXTENSION LINE (YA00000858) 13282 RON
041 0 2 ARC DE PRESIUNE 9-23 (YA00000976) 315 RON
042 0 2 PIESA REGLARE MANER (B) ELM4621 (YA00000977) 393 RON
043 0 4 YA00000960 - Indisponibil
044 0 2 M6 COVER NUT M6-10 (YA00000802) 175 RON
045 0 1 ANSAMBLU MANER (YA00001046) 6172 RON
046 0 1 COMPONENTE CABLU (YA00001143) 349 RON
047 0 1 FIX SEAT (YA00001142) 175 RON
048 0 1 COMPONENTE CABLU (YA00001161) 1337 RON
049 0 1 CABLE CLIP UPPER COVER CAP (YA00000970) 186 RON
050 0 1 YA00000971 - Indisponibil
051 0 1 YA00000971 - Indisponibil
052 0 1 CABLE CLIP LOWER COVER CAP (YA00000972) 173 RON
053 0 1 SELF TAPPING SCREW 4X12 (YA00000873) 094 RON
054 0 1 SURUB AUTOFILETANT 3X16 (YA00000973) 080 RON
055 0 2 SURUB CU GAT PATRAT M8x40 (YA00000983) 175 RON
056 0 1 HINGE (YA00001060) 3337 RON
057 0 2 ELEMENT FIXARE MANER M8 (YA00000803) 358 RON
058 0 1 HINGE (YA00001063) 3484 RON
059 0 1 CLAPETA (YA00000997) 212 RON
060 0 1 MACHINE SCREW M6X8 (YA00000998) 094 RON
061 0 2 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
062 0 4 YA00000995 - Indisponibil
063 0 1 YA00000921 - Indisponibil
064 0 2 652023758 - Indisponibil
065 0 1 COVER CAP ASS M (YA00001125) 7675 RON
066 0 1 YA00001070 - Indisponibil
067 0 1 YA00001126 - Indisponibil
068 0 4 SELF TAPPING SCREW ST5 (YA00000820) 157 RON
069 0 2 652023758 - Indisponibil
070 0 4 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
071 0 1 FIX SEAT (YA00001140) 2034 RON
072 0 1 YA00001096 - Indisponibil
073 0 1 VENTILATOR (YA00001097) 1185 RON
074 0 1 MOTOR ANS. (YA00001074) 74193 RON
075 0 1 CONDENSATOR (YA00001099) 232 RON
076 0 2 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
077 0 1 CABLE PRESSBOARD UD2500 (652023752) 223 RON
078 0 1 SUPORT FIXARE (YA00001075) 4282 RON
079 0 4 SELF-LOCKING NUT UV3600 (652023843) 223 RON
080 0 4 YA00000995 - Indisponibil
081 0 1 END CAP M (YA00001058) 2526 RON
082 0 1 AXLE 6 (YA00001122) 399 RON
083 0 1 E RING (YA00000990) 079 RON
084 0 1 ARC TORSIUNE 9.5 (YA00000994) 266 RON
085 0 1 652023758 - Indisponibil
086 0 1 CAPAC (YA00001134) 319 RON
087 0 1 SUPORT SAC ELM4621 (YA00001061) 1337 RON
088 0 3 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
089 0 1 CUTTING SLEEVE (YA00001135) 160 RON
090 0 1 APARATOARE (YA00001089) 665 RON
091 0 4 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
092 0 1 GEAR PLATE (YA00001064) 797 RON
093 0 2 652023758 - Indisponibil
094 0 1 DECK (YA00001123) 44348 RON
095 0 1 COVER CAP (YA00001090) 168 RON
096 0 1 SIDE DISCHARGE ASSY (YA00001092) 3112 RON
097 0 2 SURUB AUTOFILETANT 5X12 (YA00001091) 094 RON
098 0 4 MACHINE SCREW M8X35 (YA00001076) 161 RON
099 0 1 YA00001096 - Indisponibil
100 0 1 FLAT KEY (YA00001141) 120 RON
101 0 1 CUREA (YA00001138) 1573 RON
102 0 1 ANS. TRANSMISIE ELM4621 (YA00001121) 20370 RON
103 0 1 FIXING BAFFLE PLATE (YA00001137) 133 RON
104 0 2 MACHINE SCREW M6X16 (YA00001136) 134 RON
105 0 1 PULLEY (YA00001139) 590 RON
106 0 1 IMPELLER (YA00001094) 1634 RON
107 0 2 YA00001024 - Indisponibil
108 0 1 MOTOR COVER CAP (YA00001095) 2534 RON
109 0 5 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
110 0 1 FIX SEAT ASSY (YA00001066) 1311 RON
111 0 1 YA00000742 - Indisponibil
111-1 1 1 YA00000741 - Indisponibil
112 0 1 MACHINE SCREW M10X30 (YA00001067) 857 RON
113 0 2 SURUB AUTOFILETANT 4X10 (YA00001031) 094 RON
114 0 4 YA00001024 - Indisponibil
115 0 6 SELF TAPPING SCREW ST5 (YA00000820) 157 RON
116 0 1 FRONT COVER CAP TOP M (YA00001079) 3298 RON
117 0 1 FRONT COVER CAP BOTTOM (YA00001080) 1675 RON
118 0 8 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
119 0 2 WHEEL COVER CAP (YA00001049) 1473 RON
120 0 2 SELF-LOCKING NUT UV3600 (652023843) 223 RON
121 0 2 SAIBA (YA00000420) 558 RON
122 0 2 RUMENT 1/2 ELM4621 (YA00001186) 625 RON
123 0 2 ROATA SPATE ELM4621 (YA00001050) 6541 RON
123-1 1 2 ROATA (YA00001113) 5996 RON
124 0 2 RUMENT 1/2 ELM4621 (YA00001186) 625 RON
125 0 2 WHEEL COVER CAP (YA00001132) 881 RON
126 0 1 AXLE SLEEVE (YA00001088) 173 RON
126-1 1 2 AXLE SLEEVE (YA00001088) 173 RON
127 0 1 WHEEL AXLE ASSY (YA00001052) 6690 RON
127-1 1 1 YA00001115 - Indisponibil
128 0 1 HAND SHANK (YA00000989) 890 RON
129 0 1 MACHINE SCREW M4X12 (YA00000988) 080 RON
130 0 1 CONECTOR AJUSTARE INALTIME (YA00001053) 971 RON
131 0 2 YA00000393 - Indisponibil
131-1 1 2 YA00000393 - Indisponibil
132 0 2 YA00000393 - Indisponibil
132-1 1 2 YA00000393 - Indisponibil
133 0 1 ADJUST HEIGHT SPRING (YA00000986) 477 RON
134 0 2 SURUB5*12 (YA00000407) 1565 RON
135 0 2 SURUB5*12 (YA00000407) 1565 RON
136 0 2 YA00001117 - Indisponibil
137 0 1 ROATA DINTATA STANGA (YA00001130) 1570 RON
138 0 2 GEAR PIN (YA00001131) 120 RON
139 0 2 YA00001117 - Indisponibil
140 0 2 RULMENT 12 (YA00001118) 433 RON
141 0 2 CIRCLIP 34 (YA00001119) 146 RON
142 0 4 652023758 - Indisponibil
143 0 2 SUPORT (YA00001120) 333 RON
144 0 1 ROATA DINTATA DREAPTA (YA00001133) 1570 RON
145 0 1 R PIN 7 (YA00000851) 094 RON
146 0 1 YA00001018 - Indisponibil
147 0 1 CONNECTING ROAD (YA00001127) 2514 RON
148 0 2 WHEEL COVER CAP (YA00001081) 1033 RON
149 0 2 SELF-LOCKING NUT UV3600 (652023843) 223 RON
150 0 2 SAIBA (YA00000420) 558 RON
151 0 2 BUCSA PLASTIC ELM4621 (YA00001100) 198 RON
152 0 2 ROATA (YA00001082) 5136 RON
153 0 2 BUCSA PLASTIC ELM4621 (YA00001100) 198 RON
154 0 1 YA00001085 - Indisponibil
155 0 2 YA00001084 - Indisponibil
156 0 2 YA00001083 - Indisponibil
157 0 2 YA00001025 - Indisponibil
158 0 1 R PIN 7 (YA00000851) 094 RON
159 0 1 YA00001018 - Indisponibil
160 0 1 YA00001039 - Indisponibil
161 0 1 SAC PENTRU IARBA ELM4121 (YA00001041) 10119 RON
162 0 1 YA00000791 - Indisponibil
163 0 1 YA00001043 - Indisponibil
164 0 1 YA00000795 - Indisponibil
165 0 2 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
166 0 1 YA00001111 - Indisponibil
167 0 6 YA00000796 - Indisponibil
168 0 6 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
169 0 1 YA00001047 - Indisponibil
170 0 1 YA00001048 - Indisponibil
171 0 1 YA00000980 - Indisponibil
172 0 1 YA00001112 - Indisponibil
173 0 1 YA00000982 - Indisponibil
174 0 2 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
175 0 1 YA00001045 - Indisponibil
