Electric Lawn Mower MAKITA ELM4620
[ELM4620]
Electric Lawn Mower MAKITA ELM4620
Click pentru a mari
Imagini suplimentare
Electric Lawn Mower MAKITA ELM4620
Click pentru a mari
Electric Lawn Mower MAKITA ELM4620
Click pentru a mari

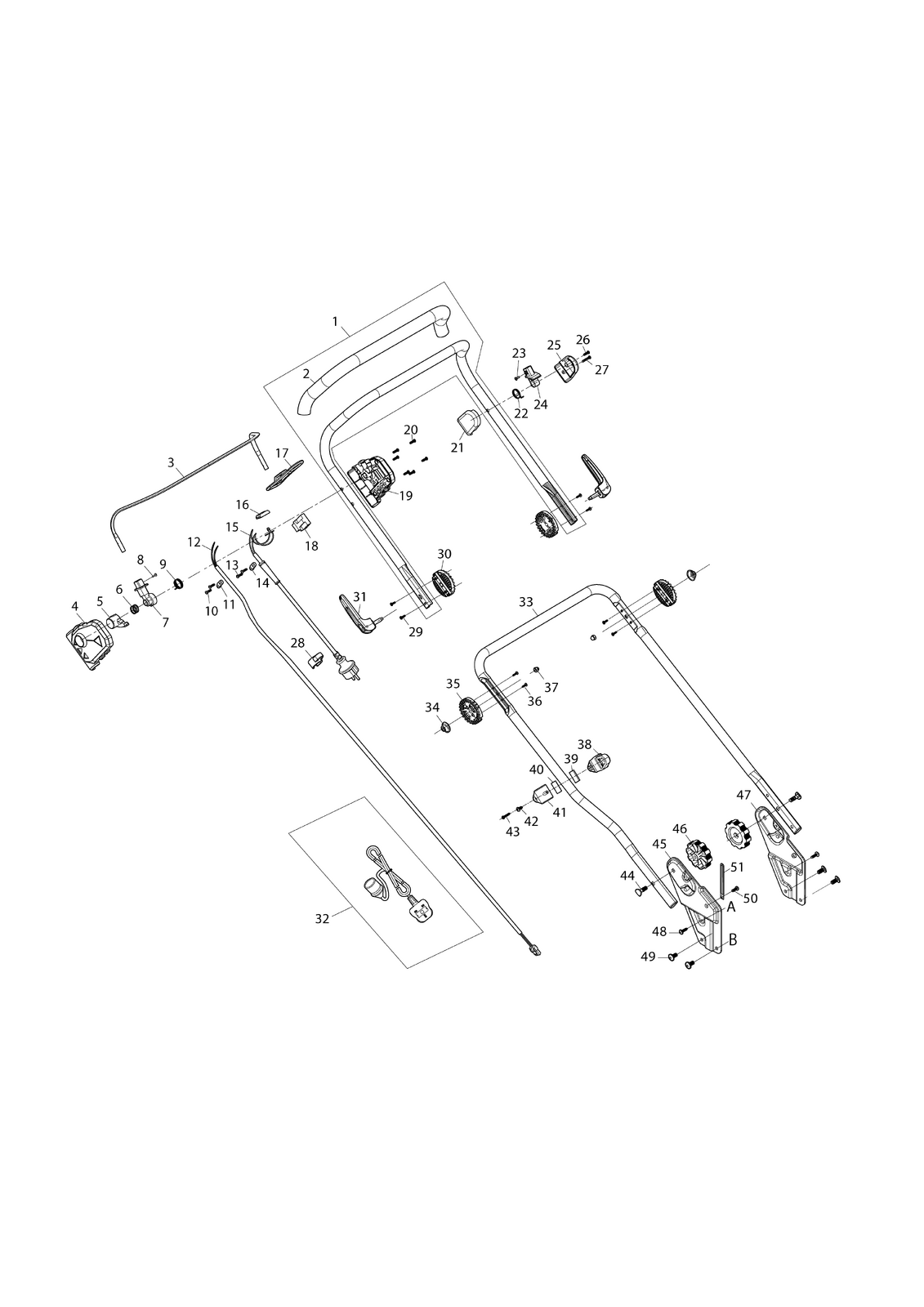

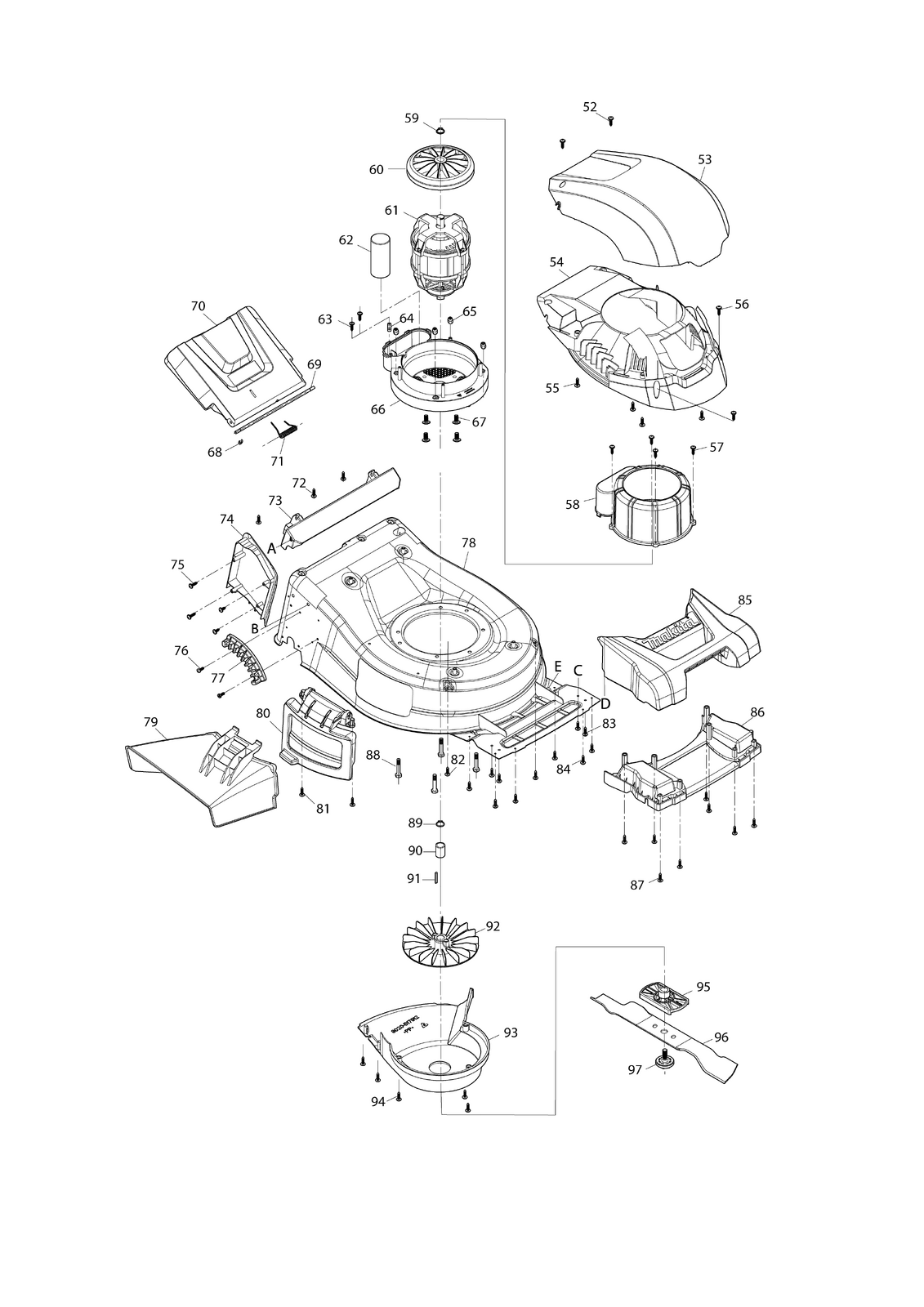

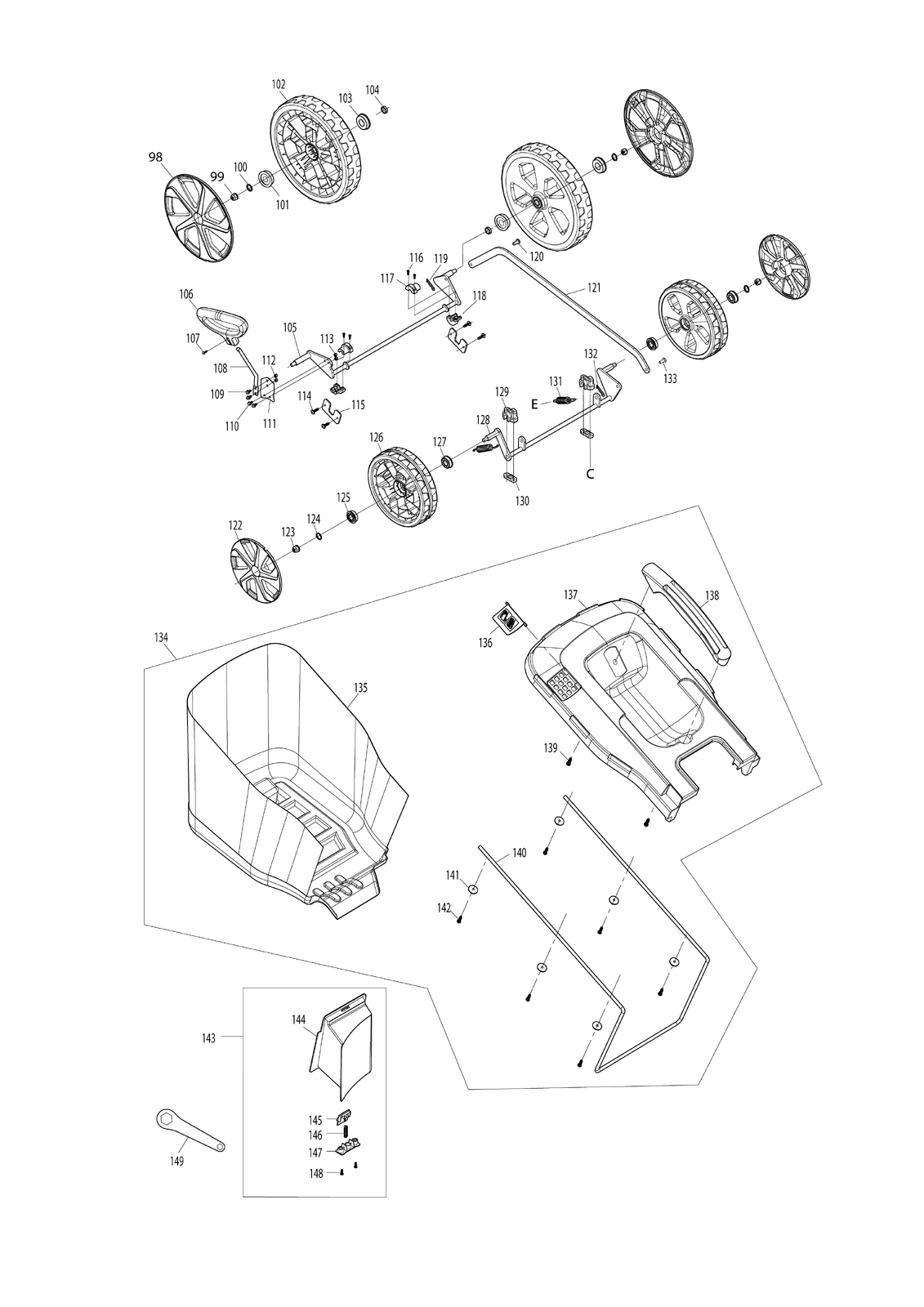

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
001 0 1 HANDLE ASSY (YA00001159) 9391 RON
002 0 1 YA00001185 - Indisponibil
003 0 1 CONNECTING ROD (YA00001160) 2247 RON
004 0 1 SWITCH BOX RIGHT (YA00000765) 445 RON
005 0 1 SWITCH LINK BUTTON (YA00000766) 262 RON
006 0 1 COMPRESSION SPRING 16 (YA00000767) 175 RON
007 0 1 SWITCH LEVER END CAP RIGHT (YA00000768) 262 RON
008 0 1 SCREW UV3600 (652024721) 223 RON
009 0 1 SWITCH TORSION SPRING (YA00000769) 175 RON
010 0 2 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
011 0 1 CABLE PRESSBOARD (YA00000780) 097 RON
012 0 1 CABLU CONDUCTOR (YA00001038) 1416 RON
013 0 2 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
014 0 1 CABLE PRESSBOARD (YA00000780) 097 RON
015 0 1 CABLU ALIMENTARE ELM3720 (YA00000773) 4282 RON
016 0 1 LIGHT COVER CAP (YA00000781) 186 RON
017 0 1 CABLE HANGER UV3200 (652023811) 105 RON
018 0 1 INTRERUPATOR ELM3320/3720 (YA00000772) 874 RON
019 0 1 SWITCH BOX LEFT (YA00000782) 552 RON
020 0 6 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
021 0 1 RIGHT HANDLE SUPPORT UV3600 (652023795) 1117 RON
022 0 1 LEVER TORSION SPRING 18.3 (YA00000737) 291 RON
023 0 1 SCREW UV3600 (652024721) 223 RON
024 0 1 LEFT PLUG-IN OF HANDLE UV3600 (652023794) 2683 RON
025 0 1 LEFT HANDLE SUPPORT UV3600 (652023793) 1117 RON
026 0 1 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
027 0 1 SURUB AUTOFILETANT (YA00000785) 094 RON
028 0 1 YA00000921 - Indisponibil
029 0 4 YA00000960 - Indisponibil
030 0 2 PIESA REGLARE MANER (A) ELM4621 (YA00000961) 437 RON
031 0 2 HAND SHANK ASSY (YA00000975) 1966 RON
033 0 1 ANSAMBLU MANER (YA00001046) 6172 RON
034 0 2 ARC DE PRESIUNE 9-23 (YA00000976) 315 RON
035 0 2 PIESA REGLARE MANER (B) ELM4621 (YA00000977) 393 RON
036 0 4 YA00000960 - Indisponibil
037 0 2 M6 COVER NUT M6-10 (YA00000802) 175 RON
038 0 1 CABLE CLIP UPPER COVER CAP (YA00000970) 186 RON
039 0 1 YA00000971 - Indisponibil
040 0 1 YA00000971 - Indisponibil
041 0 1 CABLE CLIP LOWER COVER CAP (YA00000972) 173 RON
042 0 1 SELF TAPPING SCREW 4X12 (YA00000873) 094 RON
043 0 1 SURUB AUTOFILETANT 3X16 (YA00000973) 080 RON
044 0 1 SURUB CU GAT PATRAT M8x40 (YA00000983) 175 RON
045 0 1 HINGE (YA00001060) 3337 RON
046 0 2 ELEMENT FIXARE MANER M8 (YA00000803) 358 RON
047 0 1 HINGE (YA00001063) 3484 RON
048 0 2 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
049 0 4 YA00000995 - Indisponibil
050 0 1 MACHINE SCREW M6X8 (YA00000998) 094 RON
051 0 1 CLAPETA (YA00000997) 212 RON
052 0 2 652023758 - Indisponibil
053 0 1 YA00001070 - Indisponibil
054 0 1 YA00001072 - Indisponibil
055 0 4 SELF TAPPING SCREW ST5 (YA00000820) 157 RON
056 0 2 652023758 - Indisponibil
057 0 4 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
058 0 1 FIX SEAT (YA00001140) 2034 RON
059 0 1 YA00001096 - Indisponibil
060 0 1 VENTILATOR (YA00001097) 1185 RON
061 0 1 MOTOR ANS. (YA00001074) 74193 RON
062 0 1 CONDENSATOR (YA00001099) 232 RON
063 0 2 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
064 0 1 CABLE PRESSBOARD UD2500 (652023752) 223 RON
065 0 4 SELF-LOCKING NUT UV3600 (652023843) 223 RON
066 0 1 SUPORT FIXARE (YA00001075) 4282 RON
067 0 4 YA00000995 - Indisponibil
068 0 1 E RING (YA00000990) 079 RON
069 0 1 YA00001057 - Indisponibil
070 0 1 END CAP M (YA00001058) 2526 RON
071 0 1 ARC TORSIUNE 9.5 (YA00000994) 266 RON
072 0 3 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
073 0 1 SUPORT SAC ELM4621 (YA00001061) 1337 RON
074 0 1 APARATOARE (YA00001089) 665 RON
075 0 4 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
076 0 2 652023758 - Indisponibil
077 0 1 GEAR PLATE (YA00001064) 797 RON
078 0 1 YA00001065 - Indisponibil
079 0 1 COVER CAP (YA00001090) 168 RON
080 0 1 SIDE DISCHARGE ASSY (YA00001092) 3112 RON
081 0 2 SURUB AUTOFILETANT 5X12 (YA00001091) 094 RON
082 0 2 SURUB AUTOFILETANT 4X10 (YA00001031) 094 RON
083 0 4 YA00001024 - Indisponibil
084 0 6 SELF TAPPING SCREW ST5 (YA00000820) 157 RON
085 0 1 FRONT COVER CAP TOP M (YA00001079) 3298 RON
086 0 1 FRONT COVER CAP BOTTOM (YA00001080) 1675 RON
087 0 8 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
088 0 4 MACHINE SCREW M8X35 (YA00001076) 161 RON
089 0 1 YA00001096 - Indisponibil
090 0 1 YA00001093 - Indisponibil
091 0 1 YA00001098 - Indisponibil
092 0 1 IMPELLER (YA00001094) 1634 RON
093 0 1 MOTOR COVER CAP (YA00001095) 2534 RON
094 0 5 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
095 0 1 FIX SEAT ASSY (YA00001066) 1311 RON
096 0 1 YA00000742 - Indisponibil
096-1 1 1 YA00000741 - Indisponibil
097 0 1 MACHINE SCREW M10X30 (YA00001067) 857 RON
098 0 2 WHEEL COVER CAP (YA00001049) 1473 RON
099 0 2 SELF-LOCKING NUT UV3600 (652023843) 223 RON
100 0 2 SAIBA (YA00000420) 558 RON
101 0 2 RUMENT 1/2 ELM4621 (YA00001186) 625 RON
102 0 2 ROATA SPATE ELM4621 (YA00001050) 6541 RON
103 0 2 RUMENT 1/2 ELM4621 (YA00001186) 625 RON
104 0 2 AXLE SLEEVE (YA00001088) 173 RON
104-1 1 2 AXLE SLEEVE (YA00001088) 173 RON
105 0 1 WHEEL AXLE ASSY (YA00001052) 6690 RON
106 0 1 HAND SHANK (YA00000989) 890 RON
107 0 1 MACHINE SCREW M4X12 (YA00000988) 080 RON
108 0 1 CONECTOR AJUSTARE INALTIME (YA00001053) 971 RON
109 0 2 SURUB5*12 (YA00000407) 1565 RON
110 0 2 SURUB5*12 (YA00000407) 1565 RON
111 0 1 ADJUST HEIGHT SPRING (YA00000986) 477 RON
112 0 2 YA00000393 - Indisponibil
112-1 1 2 YA00000393 - Indisponibil
113 0 2 YA00000393 - Indisponibil
113-1 1 2 YA00000393 - Indisponibil
114 0 4 YA00001086 - Indisponibil
115 0 2 YA00001087 - Indisponibil
116 0 4 YA00001054 - Indisponibil
117 0 2 YA00001055 - Indisponibil
118 0 2 YA00001056 - Indisponibil
119 0 1 R PIN 7 (YA00000851) 094 RON
120 0 1 YA00001018 - Indisponibil
121 0 1 YA00001077 - Indisponibil
122 0 2 WHEEL COVER CAP (YA00001081) 1033 RON
123 0 2 SELF-LOCKING NUT UV3600 (652023843) 223 RON
124 0 2 SAIBA (YA00000420) 558 RON
125 0 2 BUCSA PLASTIC ELM4621 (YA00001100) 198 RON
126 0 2 ROATA (YA00001082) 5136 RON
127 0 2 BUCSA PLASTIC ELM4621 (YA00001100) 198 RON
128 0 1 YA00001085 - Indisponibil
129 0 2 YA00001083 - Indisponibil
130 0 2 YA00001025 - Indisponibil
131 0 2 YA00001084 - Indisponibil
132 0 1 R PIN 7 (YA00000851) 094 RON
133 0 1 YA00001018 - Indisponibil
134 0 1 YA00001039 - Indisponibil
135 0 1 SAC PENTRU IARBA ELM4121 (YA00001041) 10119 RON
136 0 1 YA00000791 - Indisponibil
137 0 1 YA00001043 - Indisponibil
138 0 1 YA00000795 - Indisponibil
139 0 2 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
140 0 1 YA00001044 - Indisponibil
141 0 6 YA00000796 - Indisponibil
142 0 6 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
143 0 1 YA00001047 - Indisponibil
144 0 1 YA00001048 - Indisponibil
145 0 1 YA00000980 - Indisponibil
146 0 1 YA00000981 - Indisponibil
147 0 1 YA00000982 - Indisponibil
148 0 2 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
149 0 1 YA00001045 - Indisponibil
