Top » Piese de schimb » PIESE MAKITA » Makita - Gazon » ELM4121

Electric Lawn Mower MAKITA ELM4121
[ELM4121]
Electric Lawn Mower MAKITA ELM4121
Click pentru a mari
Imagini suplimentare
Electric Lawn Mower MAKITA ELM4121
Click pentru a mari
Electric Lawn Mower MAKITA ELM4121
Click pentru a mari

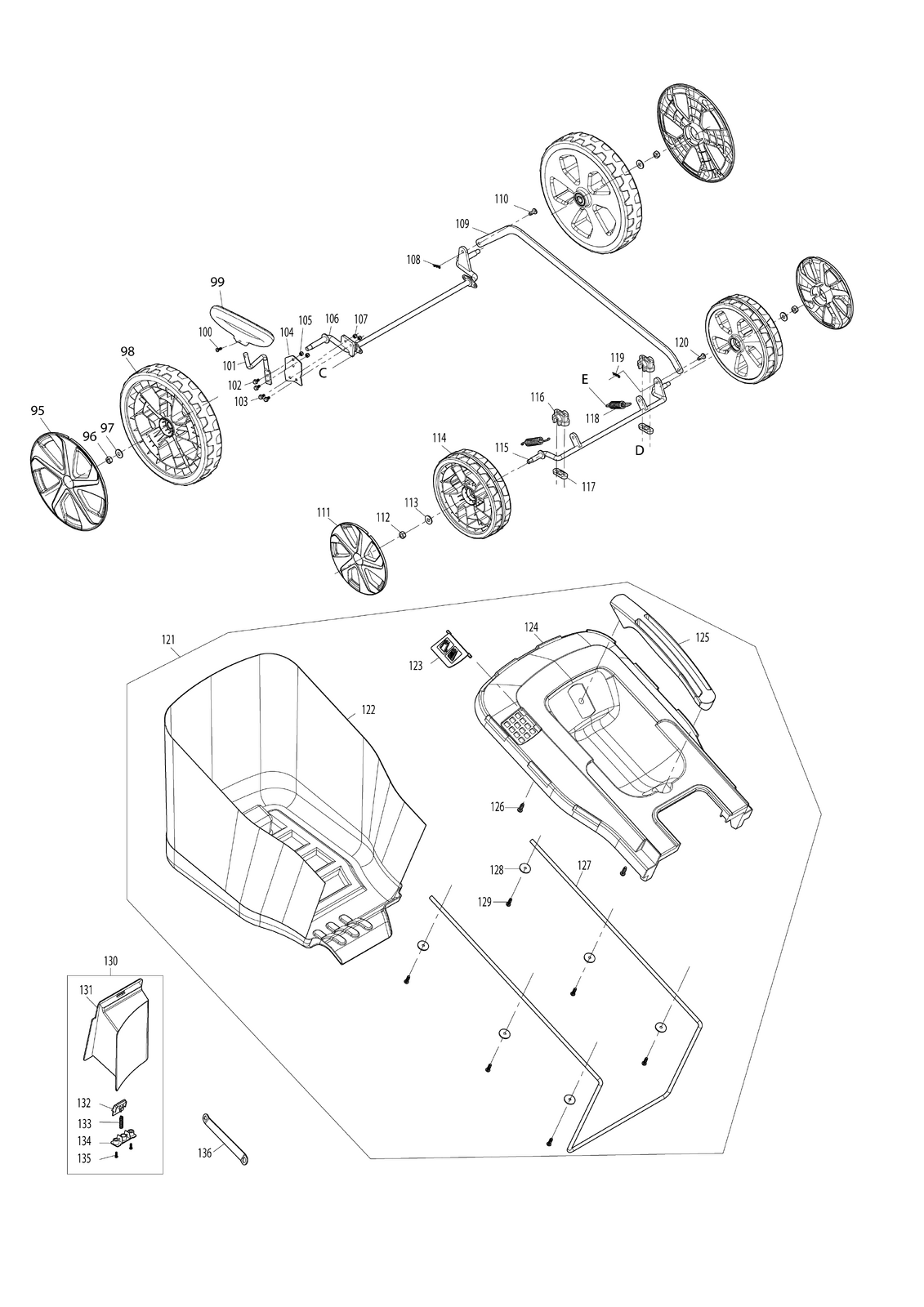

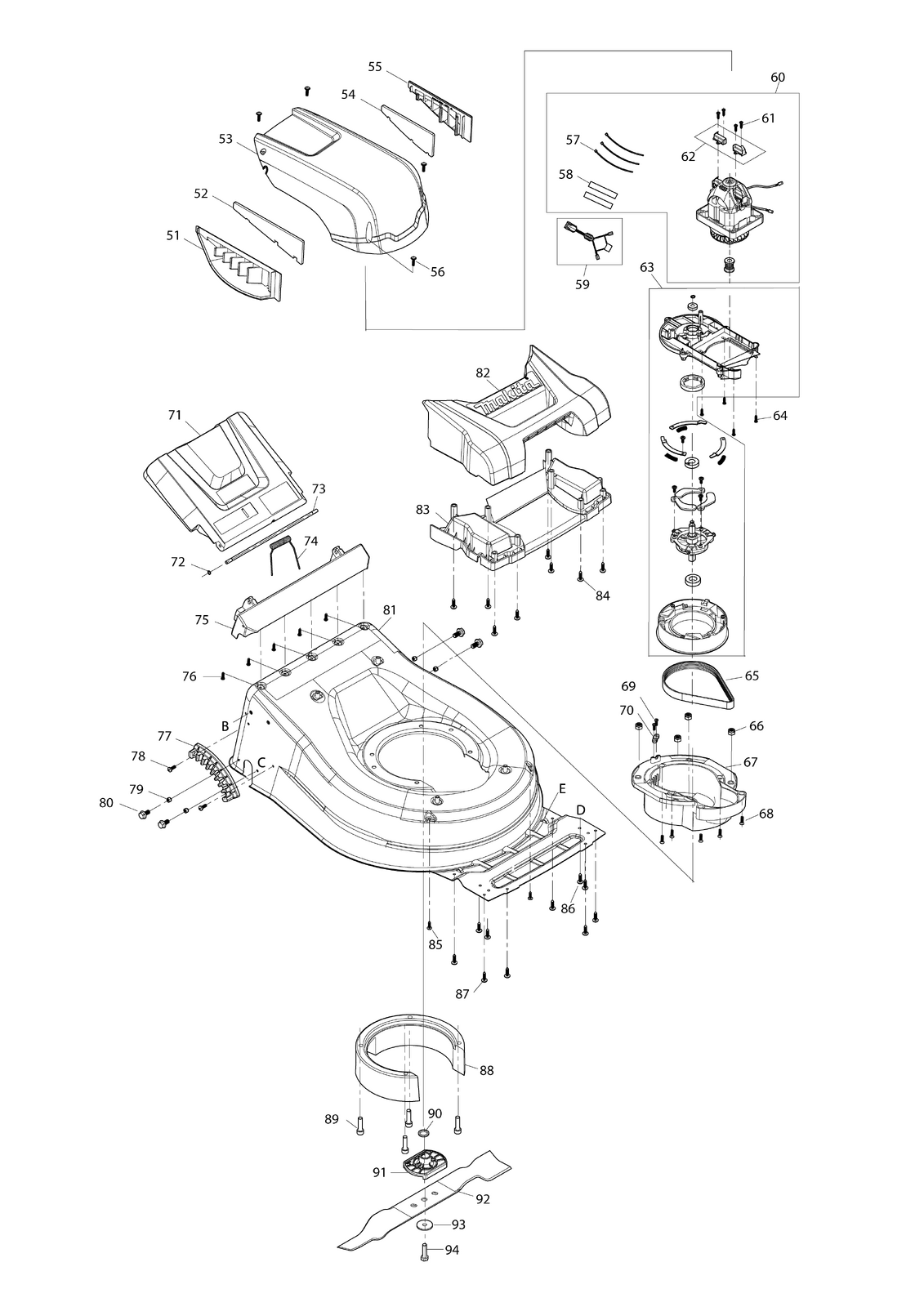

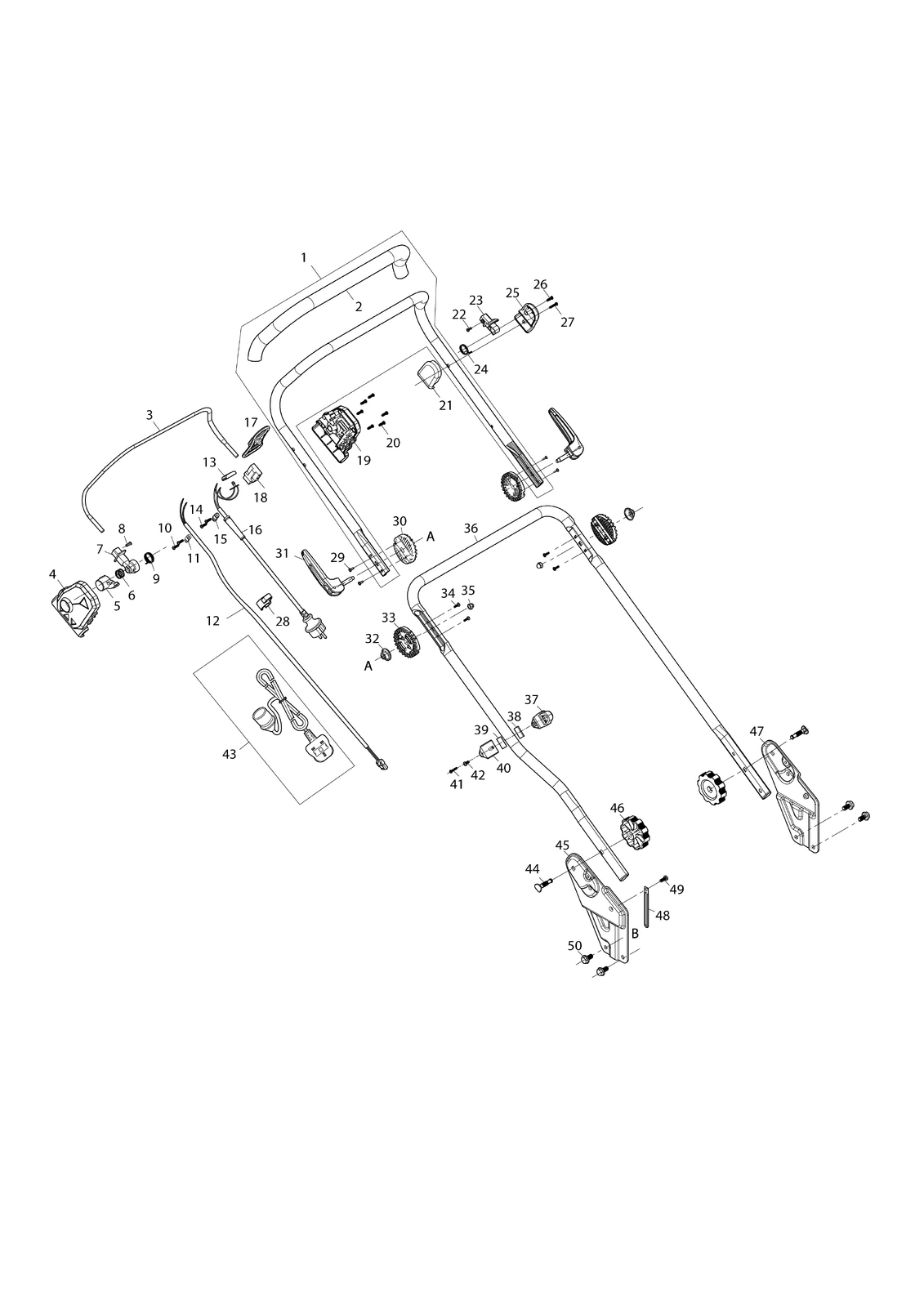

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
001 0 1 YA00000958 - Indisponibil
002 0 1 YA00001187 - Indisponibil
003 0 1 YA00000959 - Indisponibil
004 0 1 SWITCH BOX RIGHT (YA00000765) 445 RON
005 0 1 SWITCH LINK BUTTON (YA00000766) 262 RON
006 0 1 COMPRESSION SPRING 16 (YA00000767) 175 RON
007 0 1 SWITCH LEVER END CAP RIGHT (YA00000768) 262 RON
008 0 1 SCREW UV3600 (652024721) 223 RON
009 0 1 SWITCH TORSION SPRING (YA00000769) 175 RON
010 0 2 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
011 0 1 CABLE PRESSBOARD (YA00000780) 097 RON
012 0 1 YA00000914 - Indisponibil
013 0 1 LIGHT COVER CAP (YA00000781) 186 RON
014 0 2 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
015 0 1 CABLE PRESSBOARD (YA00000780) 097 RON
016 0 1 CABLU ALIMENTARE ELM3720 (YA00000773) 4282 RON
017 0 1 CABLE HANGER UV3200 (652023811) 105 RON
018 0 1 INTRERUPATOR ELM3320/3720 (YA00000772) 874 RON
019 0 1 SWITCH BOX LEFT (YA00000782) 552 RON
020 0 6 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
021 0 1 RIGHT HANDLE SUPPORT UV3600 (652023795) 1117 RON
022 0 1 SCREW UV3600 (652024721) 223 RON
023 0 1 LEFT PLUG-IN OF HANDLE UV3600 (652023794) 2683 RON
024 0 1 LEVER TORSION SPRING 18.3 (YA00000737) 291 RON
025 0 1 LEFT HANDLE SUPPORT UV3600 (652023793) 1117 RON
026 0 1 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
027 0 1 SURUB AUTOFILETANT (YA00000785) 094 RON
028 0 1 YA00000921 - Indisponibil
029 0 4 YA00000960 - Indisponibil
030 0 2 PIESA REGLARE MANER (A) ELM4621 (YA00000961) 437 RON
031 0 2 HAND SHANK ASSY (YA00000975) 1966 RON
032 0 2 ARC DE PRESIUNE 9-23 (YA00000976) 315 RON
033 0 2 PIESA REGLARE MANER (B) ELM4621 (YA00000977) 393 RON
034 0 4 YA00000960 - Indisponibil
035 0 2 M6 COVER NUT M6-10 (YA00000802) 175 RON
036 0 2 YA00000974 - Indisponibil
036-1 1 1 YA00000974 - Indisponibil
037 0 1 CABLE CLIP UPPER COVER CAP (YA00000970) 186 RON
038 0 1 YA00000971 - Indisponibil
039 0 1 YA00000971 - Indisponibil
040 0 1 CABLE CLIP LOWER COVER CAP (YA00000972) 173 RON
041 0 1 SELF TAPPING SCREW 4X12 (YA00000873) 094 RON
042 0 1 SURUB AUTOFILETANT 3X16 (YA00000973) 080 RON
044 0 2 SURUB CU GAT PATRAT M8x40 (YA00000983) 175 RON
045 0 1 YA00000996 - Indisponibil
045-1 1 1 YA00000996 - Indisponibil
046 0 2 ELEMENT FIXARE MANER M8 (YA00000803) 358 RON
047 0 1 YA00001001 - Indisponibil
047-1 1 1 YA00001001 - Indisponibil
048 0 1 CLAPETA (YA00000997) 212 RON
049 0 1 MACHINE SCREW M6X8 (YA00000998) 094 RON
050 0 4 YA00000995 - Indisponibil
051 0 1 YA00001008 - Indisponibil
052 0 1 SPONGE SHEET (YA00001010) 153 RON
053 0 1 MOTOR HOOD UPPER BLUE (YA00001006) 333 RON
054 0 1 SPONGE SHEET (YA00001011) 198 RON
055 0 1 YA00001012 - Indisponibil
056 0 4 YA00000450 - Indisponibil
056-1 1 4 YA00000450 - Indisponibil
057 0 1 YA00001174 - Indisponibil
058 0 1 YA00001173 - Indisponibil
059 0 1 ANS. CONECTOR ELM4121 (YA00001181) 189 RON
060 0 1 ANSAMBLU MOTOR ELM4121 (YA00000928) 34868 RON
061 0 4 YA00000813 - Indisponibil
062 0 1 PERII CARBON 2PCS/ SET ELM3320/3720 (YA00000814) 1486 RON
063 0 1 RAMA MOTOR ELM4121 (YA00001183) 6685 RON
064 0 4 SURUB AUTOFILETANT 5X20 (YA00000806) 262 RON
065 0 1 CUREA TRANSMISIE ELM3720 PJ483/190J (YA00001180) 4640 RON
066 0 4 SELF-LOCKING NUT UV3600 (652023843) 223 RON
067 0 1 SUPORT MOTOR ELM4121 (YA00001184) 348 RON
068 0 5 SURUB AUTOFILETANT 5X20 (YA00000806) 262 RON
069 0 2 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
070 0 1 CORD CLAMP (YA00001034) 126 RON
071 0 1 YA00000992 - Indisponibil
072 0 1 E RING (YA00000990) 079 RON
073 0 1 YA00000991 - Indisponibil
074 0 1 ARC TORSIUNE 9.5 (YA00000994) 266 RON
075 0 1 YA00000999 - Indisponibil
076 0 5 YA00000794 - Indisponibil
077 0 1 YA00001002 - Indisponibil
078 0 2 YA00000450 - Indisponibil
078-1 1 2 YA00000450 - Indisponibil
079 0 4 YA00000393 - Indisponibil
079-1 1 4 YA00000393 - Indisponibil
080 0 4 YA00001032 - Indisponibil
081 0 1 CARCASA ELM4121 (YA00001003) 35672 RON
082 0 1 FRONT HOOD BLUE (YA00001019) 1966 RON
083 0 1 YA00001021 - Indisponibil
084 0 8 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
085 0 2 YA00000794 - Indisponibil
086 0 4 YA00001030 - Indisponibil
087 0 6 YA00001030 - Indisponibil
088 0 1 SUPORT CAPAC CUREA (YA00001015) 1660 RON
089 0 4 YA00001016 - Indisponibil
090 0 1 YA00001029 - Indisponibil
091 0 1 SUPORT CUTIT ELM3720/4121 (YA00000890) 786 RON
092 0 1 LAMA ELM4121 (YA00000734) 6135 RON
092-1 1 1 YA00000738 - Indisponibil
093 0 1 CLAMP WASHER 8 (YA00000891) 253 RON
094 0 1 SURUB HEXAGONAL M8x25 (YA00000827) 437 RON
095 0 2 YA00000925 - Indisponibil
096 0 2 SELF-LOCKING NUT UV3600 (652023843) 223 RON
097 0 2 SAIBA (YA00000420) 558 RON
098 0 2 ROATA ELM4120 (YA00000926) 2212 RON
099 0 1 HAND SHANK (YA00000989) 890 RON
100 0 1 MACHINE SCREW M4X12 (YA00000988) 080 RON
101 0 1 YA00000987 - Indisponibil
102 0 2 SURUB5*12 (YA00000407) 1565 RON
103 0 2 SURUB5*12 (YA00000407) 1565 RON
104 0 1 ADJUST HEIGHT SPRING (YA00000986) 477 RON
105 0 1 YA00000393 - Indisponibil
105-1 1 1 YA00000393 - Indisponibil
106 0 1 YA00000985 - Indisponibil
107 0 2 YA00000393 - Indisponibil
107-1 1 2 YA00000393 - Indisponibil
108 0 1 R PIN 7 (YA00000851) 094 RON
109 0 1 YA00001017 - Indisponibil
110 0 1 YA00001018 - Indisponibil
111 0 2 YA00001022 - Indisponibil
112 0 2 SELF-LOCKING NUT UV3600 (652023843) 223 RON
113 0 2 SAIBA (YA00000420) 558 RON
114 0 2 YA00001023 - Indisponibil
115 0 1 YA00000954 - Indisponibil
115-1 1 1 YA00001028 - Indisponibil
116 0 2 YA00001026 - Indisponibil
117 0 2 YA00001025 - Indisponibil
118 0 2 YA00001027 - Indisponibil
119 0 1 R PIN 7 (YA00000851) 094 RON
120 0 1 YA00001018 - Indisponibil
121 0 1 YA00000962 - Indisponibil
122 0 1 YA00000964 - Indisponibil
123 0 1 YA00000791 - Indisponibil
124 0 1 YA00000966 - Indisponibil
125 0 1 YA00000795 - Indisponibil
126 0 2 YA00000794 - Indisponibil
127 0 1 YA00000968 - Indisponibil
128 0 6 YA00000967 - Indisponibil
129 0 6 YA00000794 - Indisponibil
130 0 1 YA00000978 - Indisponibil
131 0 1 YA00000979 - Indisponibil
132 0 1 YA00000980 - Indisponibil
133 0 1 YA00000981 - Indisponibil
134 0 1 YA00000982 - Indisponibil
135 0 2 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
136 0 1 SPANNER 10-13 (YA00000798) 525 RON
