Top » Piese de schimb » PIESE MAKITA » Makita - Gazon » ELM3720

Electric Lawn Mower MAKITA ELM3720
[ELM3720]
Electric Lawn Mower MAKITA ELM3720
Click pentru a mari
Imagini suplimentare
Electric Lawn Mower MAKITA ELM3720
Click pentru a mari
Electric Lawn Mower MAKITA ELM3720
Click pentru a mari

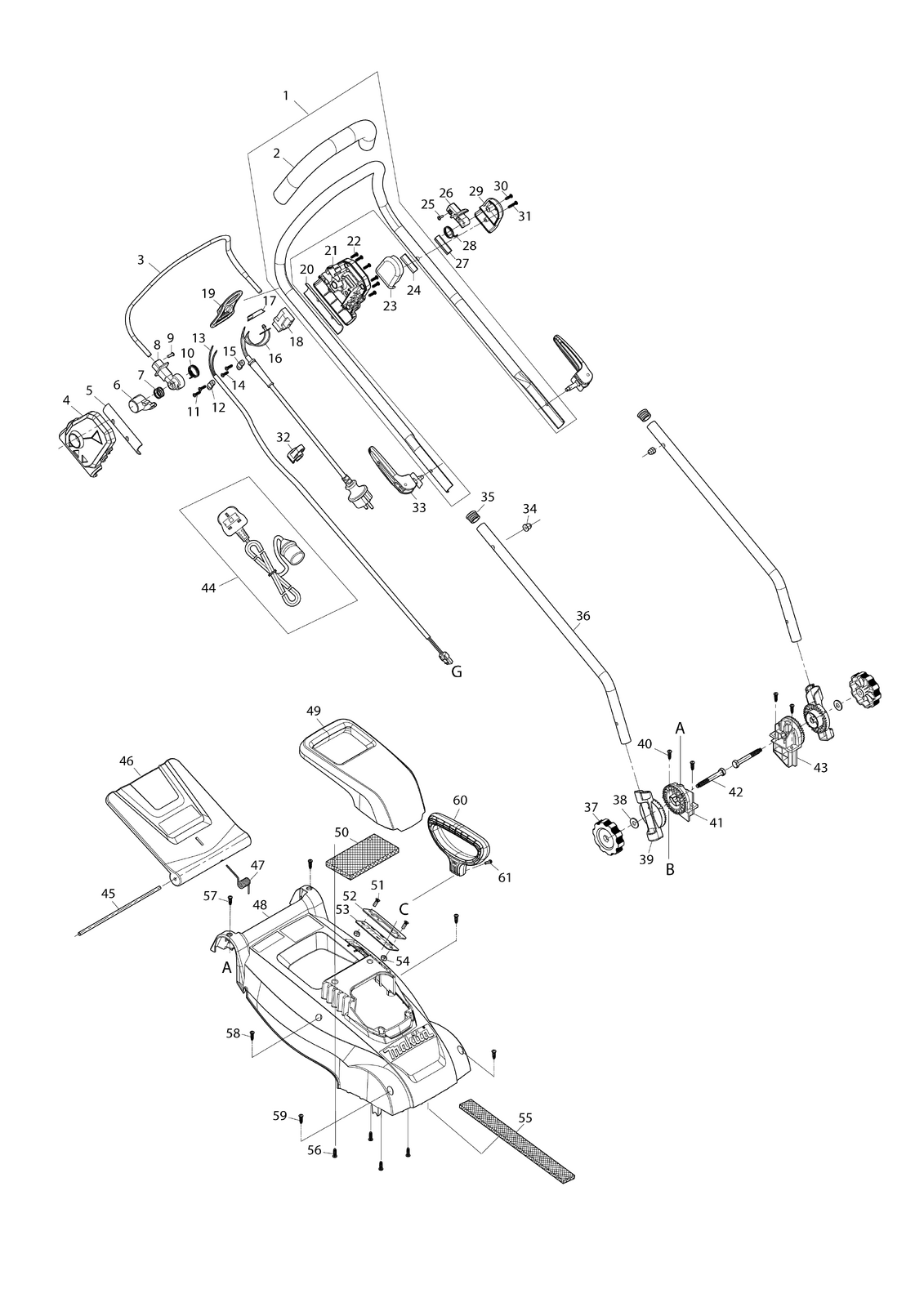

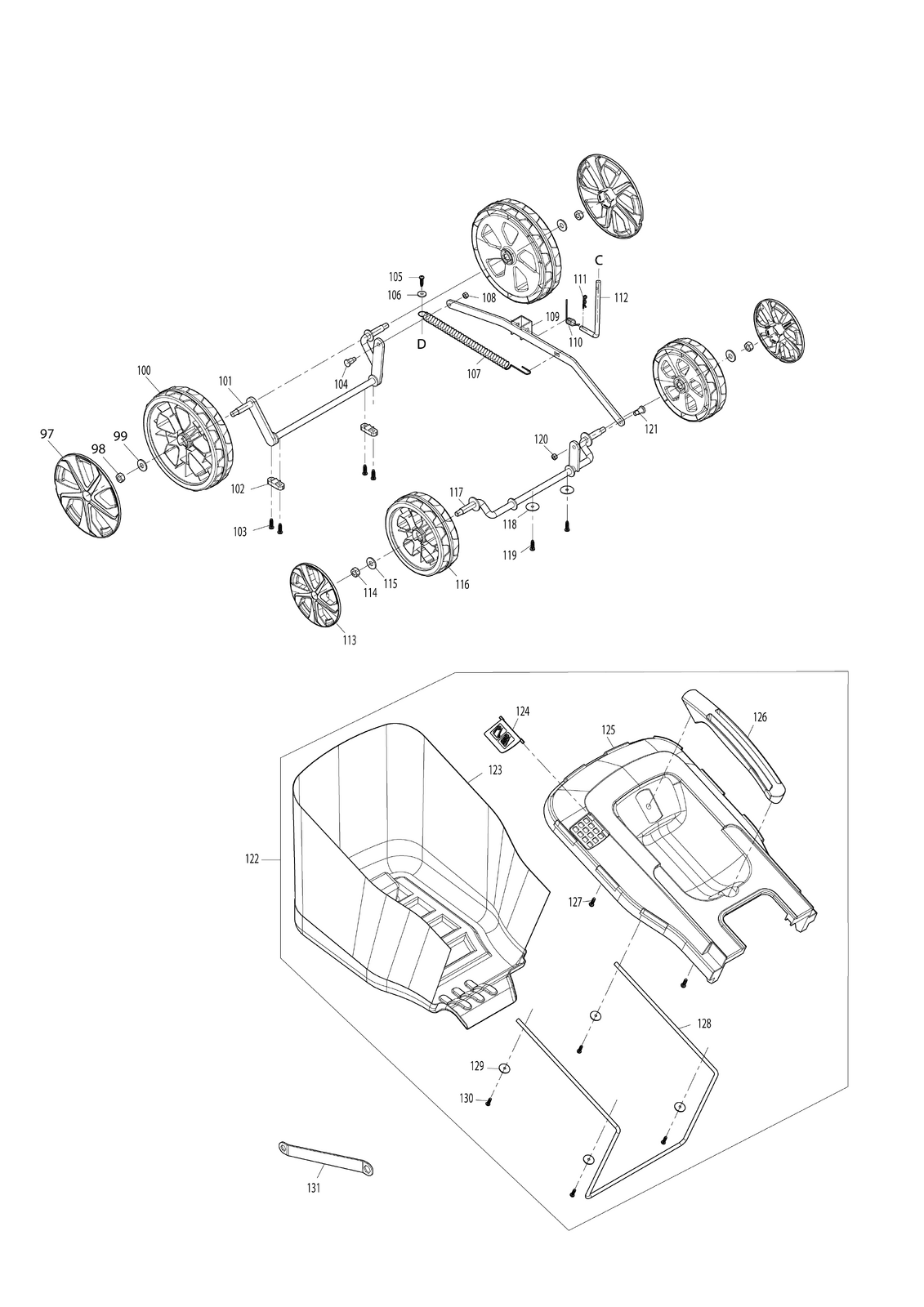

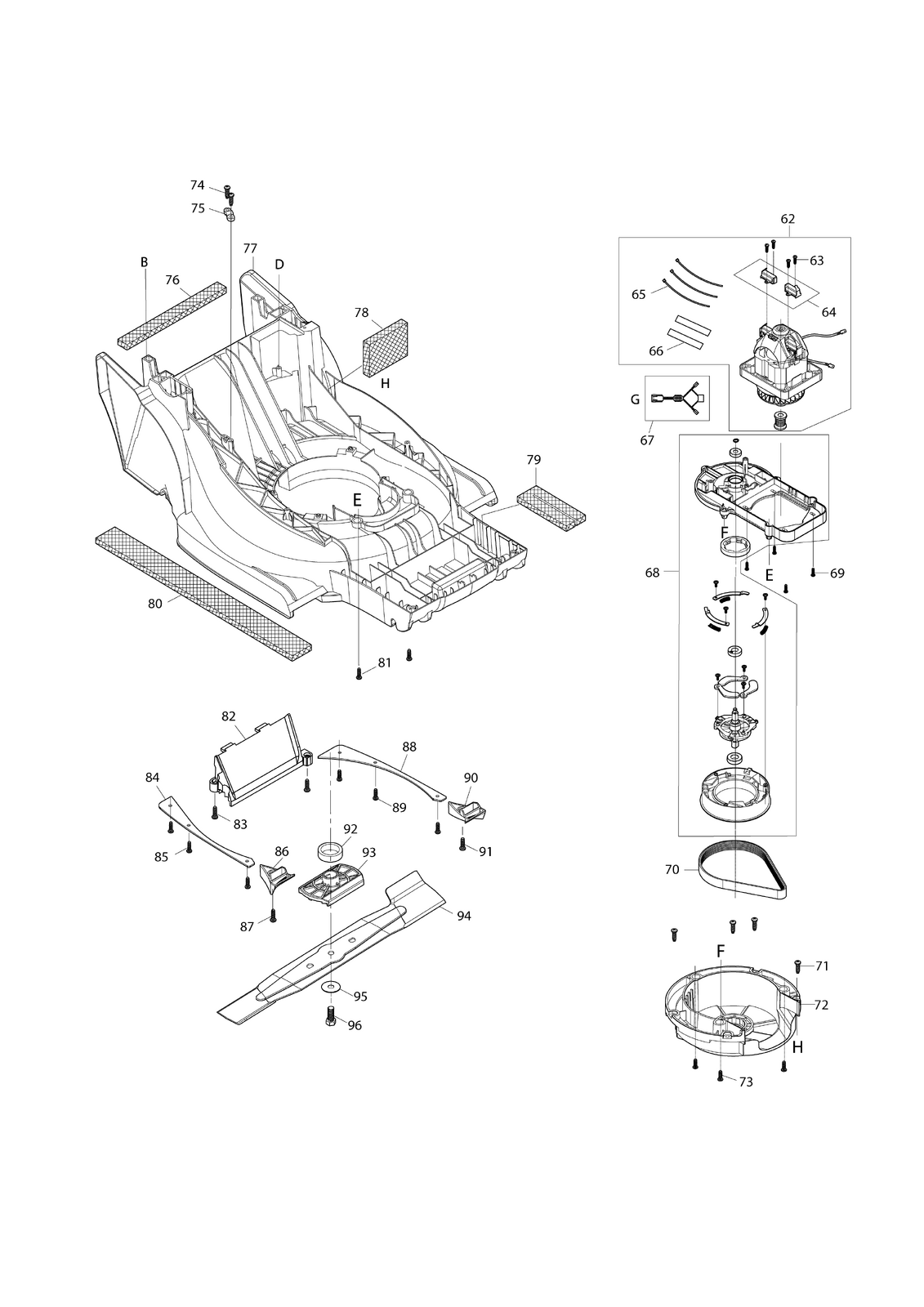

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
001 0 1 UPPER HANDLE BAR ASSY (YA00000866) 7862 RON
002 0 1 SPONGE LIP EL3720 (YA00001175) 2259 RON
003 0 1 SWITCH LEVER (YA00000867) 1445 RON
004 0 1 SWITCH BOX RIGHT (YA00000765) 445 RON
005 0 1 SWITCH BOX CLAMP SPACER (YA00000786) 186 RON
006 0 1 SWITCH LINK BUTTON (YA00000766) 262 RON
007 0 1 COMPRESSION SPRING 16 (YA00000767) 175 RON
008 0 1 SWITCH LEVER END CAP RIGHT (YA00000768) 262 RON
009 0 1 SCREW UV3600 (652024721) 223 RON
010 0 1 SWITCH TORSION SPRING (YA00000769) 175 RON
011 0 2 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
012 0 1 CABLE PRESSBOARD (YA00000780) 097 RON
013 0 1 CABLE INDUCTOR (YA00000771) 124 RON
014 0 2 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
015 0 1 CABLE PRESSBOARD (YA00000780) 097 RON
016 0 1 CABLU ALIMENTARE ELM3720 (YA00000773) 4282 RON
017 0 1 LIGHT COVER CAP (YA00000781) 186 RON
018 0 1 INTRERUPATOR ELM3320/3720 (YA00000772) 874 RON
019 0 1 CABLE HANGER UV3200 (652023811) 105 RON
020 0 1 SWITCH BOX CLAMP SPACER (YA00000786) 186 RON
021 0 1 SWITCH BOX LEFT (YA00000782) 552 RON
022 0 6 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
023 0 1 RIGHT HANDLE SUPPORT UV3600 (652023795) 1117 RON
024 0 1 ASSIST BUSH (YA00000787) 133 RON
025 0 1 SCREW UV3600 (652024721) 223 RON
026 0 1 LEFT PLUG-IN OF HANDLE UV3600 (652023794) 2683 RON
027 0 1 LEVER TORSION SPRING 18.3 (YA00000737) 291 RON
028 0 1 ASSIST BUSH (YA00000787) 133 RON
029 0 1 LEFT HANDLE SUPPORT UV3600 (652023793) 1117 RON
030 0 1 SELF TAPPING SCREW 4X16 (YA00000778) 094 RON
031 0 1 SURUB AUTOFILETANT (YA00000785) 094 RON
032 0 1 CABLE CLIP (YA00000799) 179 RON
033 0 2 TENSION LEVER ASSY (YA00000801) 699 RON
034 0 2 M6 COVER NUT M6-10 (YA00000802) 175 RON
035 0 2 PIPE CLOSE (YA00001166) 138 RON
036 0 2 MANER INFERIOR (YA00001167) 1888 RON
037 0 2 ELEMENT FIXARE MANER M8 (YA00000803) 358 RON
038 0 2 SAIBA (YA00000420) 558 RON
039 0 2 ANGLE ADJUSTMENT (YA00000804) 558 RON
040 0 4 SURUB AUTOFILETANT 5X20 (YA00000806) 262 RON
041 0 1 ANGLE ADJUSTMENT JOINT LOWER R (YA00000875) 874 RON
042 0 2 M8X65 MACHINE SCREW (YA00000807) 228 RON
043 0 1 ANGLE ADJUSTMENT JOINT LOWER L (YA00000876) 874 RON
045 0 1 AXLE 6 (YA00000894) 36 RON
046 0 1 REAR FLAP BULE (YA00000895) 1445 RON
047 0 1 ARC TORSIUNE CAPAC ELM331/3711 (YA00000831) 146 RON
048 0 1 CARCASA ELM3720 (YA00000901) 6213 RON
049 0 1 CAPAC SUPERIOR ELM3720 (YA00000897) 1311 RON
050 0 2 YA00000398 - Indisponibil
050-1 1 1 SPONGE CUSHION (YA00000841) 236 RON
051 0 1 GEAR PLATE (YA00000898) 558 RON
051-1 1 2 YA00000398 - Indisponibil
052 0 1 APARATOARE (YA00000899) 452 RON
052-1 1 1 GEAR PLATE (YA00000898) 558 RON
053 0 2 SELF LOCK NUT M5-8 (YA00000837) 121 RON
053-1 1 1 APARATOARE (YA00000899) 452 RON
054 0 1 SPONGE CUSHION (YA00000841) 236 RON
054-1 1 2 SELF LOCK NUT M5-8 (YA00000837) 121 RON
055 0 1 SPONGE CUSHION (YA00000840) 874 RON
056 0 4 SELF TAPPING SCREW ST5 (YA00000820) 157 RON
057 0 2 SELF TAPPING SCREW 4X16 (YA00000821) 157 RON
058 0 2 SELF TAPPING SCREW 4X16 (YA00000821) 157 RON
059 0 2 SELF TAPPING SCREW 4X16 (YA00000821) 157 RON
060 0 1 MANER AJUSTARE INALTIME ELM3320/3720 (YA00000848) 786 RON
061 0 1 MACHINE SCREW M4X10 (YA00000849) 080 RON
061-1 1 1 MACHINE SCREW M4X10 (YA00000849) 080 RON
062 0 1 ANS. MOTOR ELM3720/4120 (YA00001176) 23516 RON
063 0 4 YA00000813 - Indisponibil
064 0 1 PERII CARBON 2PCS/ SET ELM3320/3720 (YA00000814) 1486 RON
065 0 3 YA00001174 - Indisponibil
066 0 2 YA00001173 - Indisponibil
067 0 1 ANS. CONECTOR ELM4121 (YA00001181) 189 RON
068 0 1 ANS. SUPORT MOTOR ELM3720 (YA00001178) 4282 RON
069 0 4 SURUB AUTOFILETANT 5X20 (YA00000806) 262 RON
070 0 1 CUREA TRANSMISIE ELM3720 PJ483/190J (YA00001180) 4640 RON
071 0 4 SURUB AUTOFILETANT 5X20 (YA00000806) 262 RON
072 0 1 CAPAC CUREA ELM3720/4120 (YA00001179) 2534 RON
073 0 3 SURUB AUTOFILETANT 5X20 (YA00000806) 262 RON
074 0 2 SELF TAPPING SCREW 4X16 (YA00000821) 157 RON
075 0 1 CABLE PRESSBOARD (YA00000780) 097 RON
076 0 1 SPONGE CUSHION (YA00000884) 179 RON
077 0 1 CAROSERIE PLASTIC ELM3720 (YA00000881) 10146 RON
078 0 1 SPONGE CUSHION (YA00000882) 179 RON
079 0 1 SPONGE CUSHION (YA00000883) 275 RON
080 0 1 SPONGE CUSHION (YA00000885) 275 RON
081 0 2 SURUB AUTOFILETANT 5X20 (YA00000806) 262 RON
082 0 1 GRASS INTAKE UNDER PLATE (YA00000887) 315 RON
083 0 2 SELF TAPPING SCREW ST5 (YA00000820) 157 RON
084 0 1 FIXING BAFFLE PLATE (YA00000888) 731 RON
085 0 3 SELF TAPPING SCREW ST5 (YA00000820) 157 RON
086 0 1 COMB GRASS BOARD (YA00000889) 173 RON
087 0 1 SELF TAPPING SCREW ST5 (YA00000820) 157 RON
088 0 1 FIXING BAFFLE PLATE (YA00000904) 638 RON
089 0 3 SELF TAPPING SCREW ST5 (YA00000820) 157 RON
090 0 1 COMB GRASS BOARD (YA00000905) 173 RON
091 0 1 SELF TAPPING SCREW ST5 (YA00000820) 157 RON
092 0 1 INEL DISTANTIER16 ELM3720/4120 (YA00000910) 236 RON
093 0 1 SUPORT CUTIT ELM3720/4121 (YA00000890) 786 RON
094 0 1 LAMA 37 (YA00000732) 4282 RON
094-1 1 1 YA00000746 - Indisponibil
095 0 1 CLAMP WASHER 8 (YA00000891) 253 RON
096 0 1 SURUB HEXAGONAL M8x25 (YA00000827) 437 RON
097 0 2 WHEEL CAP 6 INCH (YA00000809) 786 RON
098 0 2 SELF-LOCKING NUT UV3600 (652023843) 223 RON
099 0 2 SAIBA (YA00000420) 558 RON
100 0 2 WHEEL 7 INCH (YA00000810) 1048 RON
101 0 1 REAR AXLE (YA00000812) 3059 RON
101-1 1 1 YA00000877 - Indisponibil
102 0 2 AXLE RETAINER (YA00000811) 236 RON
103 0 4 SELF TAPPING SCREW ST5 (YA00000820) 157 RON
104 0 1 STEPPED HEX BOLT M6X16 (YA00000843) 134 RON
105 0 1 SELF TAPPING SCREW ST5 (YA00000820) 157 RON
106 0 1 PAD 5.2 (YA00000845) 094 RON
107 0 1 TENSION SPRING 11 (YA00000903) 472 RON
108 0 1 SELF-LOCKING NUTS M6 (YA00000627) 111 RON
109 0 1 CONNECTING ROAD (YA00000902) 2185 RON
110 0 1 ARC DE TROSIUNE 8 ELM3720/4120 (YA00000907) 157 RON
111 0 1 R PIN 7 (YA00000851) 094 RON
112 0 1 LEVIER REGLAJ INALTIME ELM3720 (YA00000906) 786 RON
113 0 2 WHEEL CAP 4.5 INCH (YA00000853) 779 RON
114 0 2 SELF-LOCKING NUT UV3600 (652023843) 223 RON
115 0 2 SAIBA (YA00000420) 558 RON
116 0 2 WHEEL 5.5 INCH (YA00000854) 757 RON
117 0 1 FRONT AXLE (YA00000908) 3233 RON
118 0 2 PAD 6 (YA00000909) 121 RON
119 0 2 SELF TAPPING SCREW ST5 (YA00000820) 157 RON
120 0 1 SELF-LOCKING NUTS M6 (YA00000627) 111 RON
121 0 1 STEPPED HEX BOLT M6X16 (YA00000843) 134 RON
122 0 1 ANSAMBLU COS IARBA ELM3720 (YA00000869) 10932 RON
123 0 1 YA00000870 - Indisponibil
124 0 1 YA00000791 - Indisponibil
125 0 1 YA00000872 - Indisponibil
126 0 1 YA00000795 - Indisponibil
127 0 2 SELF TAPPING SCREW 4X12 (YA00000873) 094 RON
128 0 1 YA00000874 - Indisponibil
129 0 4 YA00000796 - Indisponibil
130 0 4 SELF TAPPING SCREW 4X12 (YA00000873) 094 RON
131 0 1 SPANNER 10-13 (YA00000798) 525 RON
