Electric Grass Trimmer MAKITA UR3500
[UR3500]

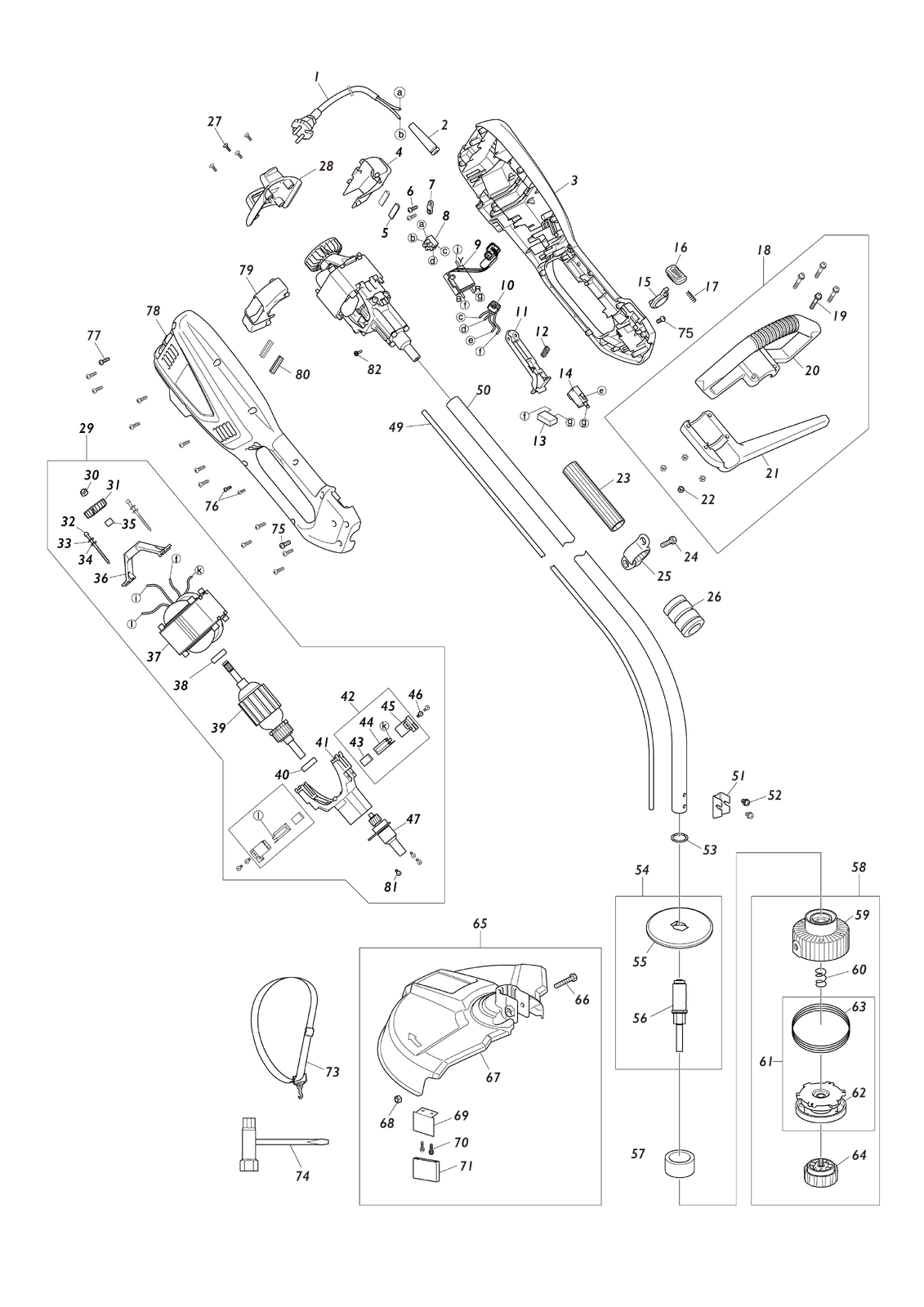

Electric Grass Trimmer MAKITA UR3500
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
A01 0 1 SPANNER (YA00000437) 1565 RON
F01 0 1 YA00000649 - Indisponibil
F02 0 1 NYLON LINE (YA00000635) 894 RON
001 0 1 POWER CORD & PLUG (YA00000497) 1677 RON
002 0 1 CORD PROTECTOR (YA00000516) 334 RON
003 0 1 SET CARCASA UR3500/3501 (YA00000660) 8573 RON
004 0 1 LEFT VOLUTE CASE (YA00000562) 558 RON
005 0 2 RUBBER PAD (YA00000514) 223 RON
006 0 2 TAPPING SCREW ST4X14 (YA00000618) 111 RON
007 0 1 CABLE PRESS BOARD (YA00000547) 223 RON
008-1 1 1 YA00001306 - Indisponibil
008 0 2 TERMINAL SET (YA00000501) 223 RON
009-1 1 1 YA00001596 - Indisponibil
009 0 1 PCB CONTROL BOARD (YA00000643) 11967 RON
010 0 1 RIGLETA (YA00000499) Indisponibil Indisponibil
011 0 1 SWITCH TRIGGER (YA00000554) 446 RON
012 0 1 SPRING (YA00000513) 111 RON
013-1 1 1 YA00001307 - Indisponibil
013 0 1 CAPACITOR (YA00000498) 558 RON
014-1 1 1 SWITCH cod vechi YA00000555 (YA00001315) 1229 RON
014 0 1 BUTON ACTIONARE (YA00000555) 681 RON
015 0 1 DISTANTIER (YA00000539) 223 RON
016 0 1 PUSH BUTTON (YA00000525) 334 RON
017 0 1 COMPRESSION SPRING (YA00000511) 111 RON
018 0 1 AUXILIARY HANDLE ASSEMBLY (YA00000620) 7716 RON
019 0 4 SLOT THREE COMBINED NYLOC (YA00000621) 223 RON
020 0 1 AUX.HANDLE COVER (YA00000564) 4025 RON
021 0 1 AUX.HANDLE SUPPORT (YA00000563) 1453 RON
022 0 4 SELF-LOCKING NUTS M5 (YA00000622) 111 RON
023 0 1 THE INSULATING SHEATH (YA00000623) 670 RON
024 0 1 PAN HEAD MACHINE SCREWS M6X20 (YA00000624) 223 RON
025 0 1 SHOULD BELT RING (YA00000541) 894 RON
026 0 1 RUBBER COVER (YA00000521) 1677 RON
027-2 2 4 YA00000625 - Indisponibil
027-1 1 4 SELF-TAPPING SCREW (YA00000453) 223 RON
027 0 4 SELF-TAPPING SCREW (YA00000453) 223 RON
028 0 1 REAR COVER (YA00000560) 1341 RON
029 0 1 MOTOR ASSEMBLY 230V/700W (YA00000645) 48429 RON
030 0 1 SELF-LOCKING NUTS M6 (YA00000627) 111 RON
031 0 1 IMPELLER (YA00000507) 782 RON
032 0 2 STATOR SCREW (YA00000538) 223 RON
033 0 2 SPRING WASHER (YA00000523) 111 RON
034 0 2 FLAT WASHER (YA00000524) 111 RON
035 0 1 AXLE SLEEVE (YA00000531) 446 RON
036 0 1 REAR BRACKET (YA00000526) 1677 RON
037-1 1 1 YA00000506 - Indisponibil
037 0 1 YA00000506 - Indisponibil
038-1 1 1 608 BEARING (YA00000431) 105 RON
038 0 1 608 BEARING (YA00000431) 105 RON
039 0 1 ROTOR ASSEMBLY (YA00000646) 22033 RON
040-1 1 1 BEARING (YA00000430) 1677 RON
040 0 1 BEARING (YA00000430) 1677 RON
041 0 1 FRONT BRACKET ASSEMBLY (YA00000629) 7157 RON
042-1 1 1 YA00000489 - Indisponibil
042 0 2 YA00000489 - Indisponibil
043-1 1 1 CARBON BRUSH cod vechi YA00000504 (YA00001194) Indisponibil Indisponibil
043 0 1 YA00000504 - Indisponibil
044-1 1 2 COPPER BRUSH HOLDER (YA00000502) 446 RON
044 0 1 COPPER BRUSH HOLDER (YA00000502) 446 RON
045-1 1 2 BRUSH HOLDER BRACKET (YA00000503) 334 RON
045 0 1 BRUSH HOLDER BRACKET (YA00000503) 334 RON
046 0 4 THREE COMBINATION SCREW M4X12 (YA00000630) 223 RON
047 0 1 YA00000483 - Indisponibil
049 0 1 FLEXIBLE SHAFT (YA00000551) 4361 RON
050 0 1 YA00000495 - Indisponibil
051 0 1 FIXING FRAME (YA00000527) 670 RON
052-1 1 2 COMBINATION MACHINE SCREW (YA00000647) 223 RON
052 0 2 COMBINATION MACHINE SCREW (YA00000647) 223 RON
053 0 1 SEALING RING (YA00000534) 223 RON
054 0 1 YA00000485 - Indisponibil
055 0 1 SAFETY GUARD (YA00000432) Indisponibil Indisponibil
056 0 1 THE SHAFT JOINT ASSEMBLY (YA00000648) 10177 RON
057 0 1 DUST PROOF RING (YA00000568) 446 RON
058-1 1 1 YA00000649 - Indisponibil
058 0 1 YA00000649 - Indisponibil
059-1 1 1 CUTTING HEAD SEAT ASSEMBLY (YA00000650) 2683 RON
059 0 1 CUTTING HEAD SEAT ASSEMBLY (YA00000650) 2683 RON
060 0 1 COMPRESSION SPRING (YA00000512) Indisponibil Indisponibil
061-1 1 1 WINDING SEAT ASSEMBLY (YA00000651) 3242 RON
061 0 1 WINDING SEAT ASSEMBLY (YA00000651) 3242 RON
062-1 1 1 YA00000476 - Indisponibil
062 0 1 YA00000476 - Indisponibil
063-1 1 1 NYLON LINE (YA00000635) 894 RON
063 0 1 NYLON LINE (YA00000635) 894 RON
064 0 1 KNOB ASSEMBLY (YA00000652) 848 RON
065 0 1 SHIELD ASSEMBLY (YA00000653) 488 RON
066-1 1 1 BOLT M6X35 (YA00000654) 223 RON
066 0 1 BOLT M6X35 (YA00000654) 223 RON
067 0 1 SAFETY GUARD (YA00000544) 3578 RON
068 0 1 SELF-LOCKING NUTS M6 (YA00000627) 111 RON
069 0 1 BLADE (YA00000529) 782 RON
070 0 2 SELF-LOCKING SCREWS ST4X12 SELF-TAPPING SCREW cod vechi YA00000457 (YA00000655) 111 RON
071 0 1 YA00000518 - Indisponibil
073 0 1 YA00000639 - Indisponibil
074 0 1 SPANNER (YA00000437) 1565 RON
075 0 2 SCREW (YA00000451) 111 RON
075-1 1 2 YA00000640 - Indisponibil
076 0 2 PLUM SELF TAPPING SCREWS (YA00000641) 111 RON
076-1 1 2 PLUM SELF TAPPING SCREWS (YA00000641) 111 RON
077 0 12 PLUM SELF TAPPING SCREWS ST4.2 (YA00000656) 223 RON
077-1 1 12 PLUM SELF TAPPING SCREWS ST4.2 (YA00000656) 223 RON
078 0 1 SET CARCASA UR3500/3501 (YA00000660) 8573 RON
079 0 1 RIGHT VOLUTE HOUSING (YA00000561) 558 RON
080 0 2 RUBBER PAD (YA00000514) 223 RON
081 0 3 THREE COMBINATION SCREW M4X12 (YA00000630) 223 RON
082 0 1 CROSS RECESSED HEAD SCREWS M (YA00000657) 111 RON
082-1 1 1 CROSS RECESSED HEAD SCREWS M (YA00000657) 111 RON
