Electric Grass Trimmer MAKITA ET110C
[ET110C]
Electric Grass Trimmer MAKITA ET110C
Click pentru a mari

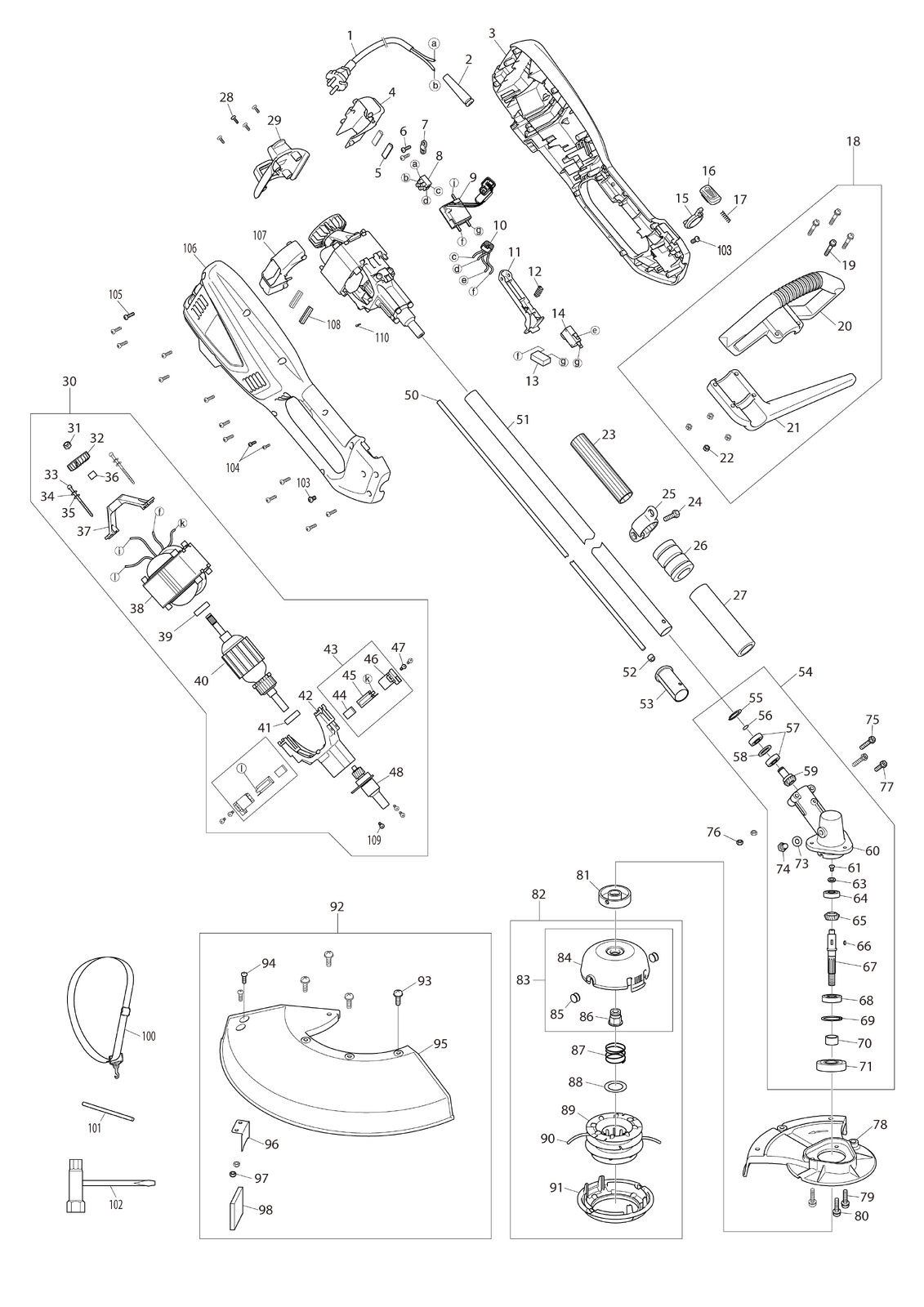

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
A01 0 1 YA00000438 - Indisponibil
A02 0 1 YA00000473 - Indisponibil
001 0 1 POWER CORD & PLUG (YA00000497) 1677 RON
002 0 1 CORD PROTECTOR (YA00000516) 334 RON
003 0 1 YA00000661 - Indisponibil
004 0 1 LEFT VOLUTE CASE (YA00000562) 558 RON
005 0 2 RUBBER PAD (YA00000514) 223 RON
006 0 2 TAPPING SCREW ST4X14 (YA00000618) 111 RON
007 0 1 CABLE PRESS BOARD (YA00000547) 223 RON
008 0 2 TERMINAL SET (YA00000501) 223 RON
008-1 1 1 YA00001306 - Indisponibil
009 0 1 YA00000619 - Indisponibil
009-1 1 1 YA00001595 - Indisponibil
010 0 1 RIGLETA (YA00000499) Indisponibil Indisponibil
011 0 1 SWITCH TRIGGER (YA00000554) 446 RON
012 0 1 SPRING (YA00000513) 111 RON
013 0 1 CAPACITOR (YA00000498) 558 RON
013-1 1 1 YA00001307 - Indisponibil
014 0 1 BUTON ACTIONARE (YA00000555) 681 RON
014-1 1 1 SWITCH cod vechi YA00000555 (YA00001315) 1229 RON
015 0 1 DISTANTIER (YA00000539) 223 RON
016 0 1 PUSH BUTTON (YA00000525) 334 RON
017 0 1 COMPRESSION SPRING (YA00000511) 111 RON
018 0 1 AUXILIARY HANDLE ASSEMBLY (YA00000620) 7716 RON
019 0 4 SLOT THREE COMBINED NYLOC (YA00000621) 223 RON
020 0 1 AUX.HANDLE COVER (YA00000564) 4025 RON
021 0 1 AUX.HANDLE SUPPORT (YA00000563) 1453 RON
022 0 4 SELF-LOCKING NUTS M5 (YA00000622) 111 RON
023 0 1 THE INSULATING SHEATH (YA00000623) 670 RON
024 0 1 PAN HEAD MACHINE SCREWS M6X20 (YA00000624) 223 RON
025 0 1 SHOULD BELT RING (YA00000541) 894 RON
026 0 1 RUBBER COVER (YA00000521) 1677 RON
027 0 1 YA00000519 - Indisponibil
028 0 4 YA00000625 - Indisponibil
028-1 1 4 SELF-TAPPING SCREW (YA00000453) 223 RON
028-2 2 4 YA00000625 - Indisponibil
029 0 1 REAR COVER (YA00000560) 1341 RON
030 0 1 ANS. MOTOR UR3501 (YA00000626) 39246 RON
031 0 1 SELF-LOCKING NUTS M6 (YA00000627) 111 RON
032 0 1 IMPELLER (YA00000507) 782 RON
033 0 2 STATOR SCREW (YA00000538) 223 RON
034 0 2 SPRING WASHER (YA00000523) 111 RON
035 0 2 FLAT WASHER (YA00000524) 111 RON
036 0 1 AXLE SLEEVE (YA00000531) 446 RON
037 0 1 REAR BRACKET (YA00000526) 1677 RON
038 0 1 YA00000505 - Indisponibil
039 0 1 608 BEARING (YA00000431) 105 RON
039-1 1 1 608 BEARING (YA00000431) 105 RON
040 0 1 YA00000628 - Indisponibil
041 0 1 BEARING (YA00000430) 1677 RON
041-1 1 1 BEARING (YA00000430) 1677 RON
042 0 1 FRONT BRACKET ASSEMBLY (YA00000629) 7157 RON
043 0 2 YA00000489 - Indisponibil
043-1 1 1 YA00000489 - Indisponibil
044 0 1 YA00000504 - Indisponibil
044-1 1 1 CARBON BRUSH cod vechi YA00000504 (YA00001194) Indisponibil Indisponibil
045 0 1 COPPER BRUSH HOLDER (YA00000502) 446 RON
045-1 1 2 COPPER BRUSH HOLDER (YA00000502) 446 RON
046 0 1 BRUSH HOLDER BRACKET (YA00000503) 334 RON
046-1 1 2 BRUSH HOLDER BRACKET (YA00000503) 334 RON
047 0 4 THREE COMBINATION SCREW M4X12 (YA00000630) 223 RON
048 0 1 YA00000483 - Indisponibil
050 0 1 FLEXIBLE SHAFT (YA00000550) 3555 RON
051 0 1 YA00000481 - Indisponibil
052 0 1 YA00000528 - Indisponibil
053 0 1 YA00000553 - Indisponibil
054 0 1 REDUCTOR (YA00000480) 12233 RON
055 0 1 YA00000468 - Indisponibil
056 0 1 YA00000434 - Indisponibil
057 0 2 YA00000471 - Indisponibil
057-1 1 2 BEARING (YA00000430) 1677 RON
057-2 2 2 BEARING (YA00000430) 1677 RON
058 0 1 YA00000440 - Indisponibil
059 0 1 YA00000442 - Indisponibil
060 0 1 YA00000548 - Indisponibil
061 0 1 YA00000460 - Indisponibil
063 0 1 YA00000542 - Indisponibil
064 0 1 RULMENT 629Z (YA00000470) 1114 RON
065 0 1 YA00000443 - Indisponibil
066 0 1 YA00000465 - Indisponibil
067 0 1 YA00000552 - Indisponibil
068 0 1 YA00000469 - Indisponibil
069 0 1 YA00000467 - Indisponibil
070 0 1 YA00000515 - Indisponibil
071 0 1 YA00000441 - Indisponibil
073 0 1 YA00000533 - Indisponibil
074 0 1 YA00000459 - Indisponibil
075 0 2 YA00000458 - Indisponibil
076 0 2 YA00000461 - Indisponibil
076-1 1 2 SELF-LOCKING NUTS M5 (YA00000622) 111 RON
077 0 1 YA00000446 - Indisponibil
078 0 1 YA00000546 - Indisponibil
079 0 2 YA00000631 - Indisponibil
080 0 1 YA00000632 - Indisponibil
081 0 1 YA00000540 - Indisponibil
082 0 1 YA00000633 - Indisponibil
082-1 1 1 YA00000681 - Indisponibil
083 0 1 YA00000477 - Indisponibil
083-1 1 1 YA00000682 - Indisponibil
084 0 1 YA00000556 - Indisponibil
084-1 1 1 YA00000678 - Indisponibil
085 0 2 YA00000532 - Indisponibil
085-1 1 2 YA00001193 - Indisponibil
086 0 1 YA00000535 - Indisponibil
087 0 1 YA00000634 - Indisponibil
087-1 1 1 YA00000466 - Indisponibil
088 0 1 YA00000510 - Indisponibil
089 0 1 YA00000549 - Indisponibil
089-1 1 1 YA00000679 - Indisponibil
090 0 1 NYLON LINE (YA00000635) 894 RON
090-1 1 1 NYLON LINE (YA00000635) 894 RON
091 0 1 YA00000557 - Indisponibil
091-1 1 1 YA00000680 - Indisponibil
092 0 1 YA00000636 - Indisponibil
093 0 4 YA00000637 - Indisponibil
093-1 1 4 YA00000637 - Indisponibil
094 0 2 YA00000638 - Indisponibil
094-1 1 2 YA00000638 - Indisponibil
095 0 1 YA00000545 - Indisponibil
096 0 1 YA00000439 - Indisponibil
097 0 2 SELF-LOCKING NUTS M5 (YA00000622) 111 RON
098 0 1 YA00000472 - Indisponibil
100 0 1 YA00000639 - Indisponibil
101 0 1 YA00000473 - Indisponibil
101-1 1 1 YA00000473 - Indisponibil
102 0 1 YA00000438 - Indisponibil
103 0 2 YA00000640 - Indisponibil
103-1 1 2 YA00000640 - Indisponibil
104 0 2 PLUM SELF TAPPING SCREWS (YA00000641) 111 RON
104-1 1 2 PLUM SELF TAPPING SCREWS (YA00000641) 111 RON
105 0 12 PLUM SELF TAPPING SCREWS ST4.2 (YA00000656) 223 RON
105-1 1 12 PLUM SELF TAPPING SCREWS ST4.2 (YA00000656) 223 RON
106 0 1 YA00000661 - Indisponibil
107 0 1 RIGHT VOLUTE HOUSING (YA00000561) 558 RON
108 0 2 RUBBER PAD (YA00000514) 223 RON
109 0 3 THREE COMBINATION SCREW M4X12 (YA00000630) 223 RON
110 0 1 CROSS RECESSED HEAD SCREWS M (YA00000657) 111 RON
110-1 1 1 CROSS RECESSED HEAD SCREWS M (YA00000657) 111 RON
