Top » Piese de schimb » PIESE MAKITA » Masini pentru gradina » EBH341L

EBH341L
[EBH341L]
EBH341L
Click pentru a mari
Imagini suplimentare
EBH341L
Click pentru a mari
EBH341L
Click pentru a mari
EBH341L
Click pentru a mari
EBH341L
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara

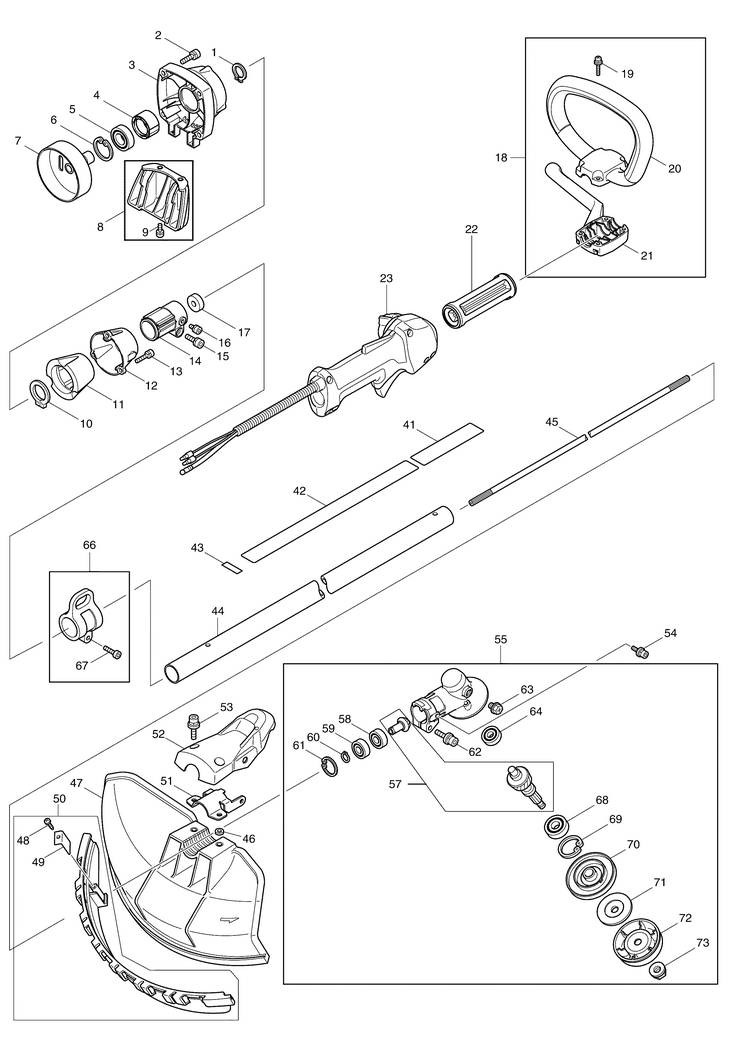

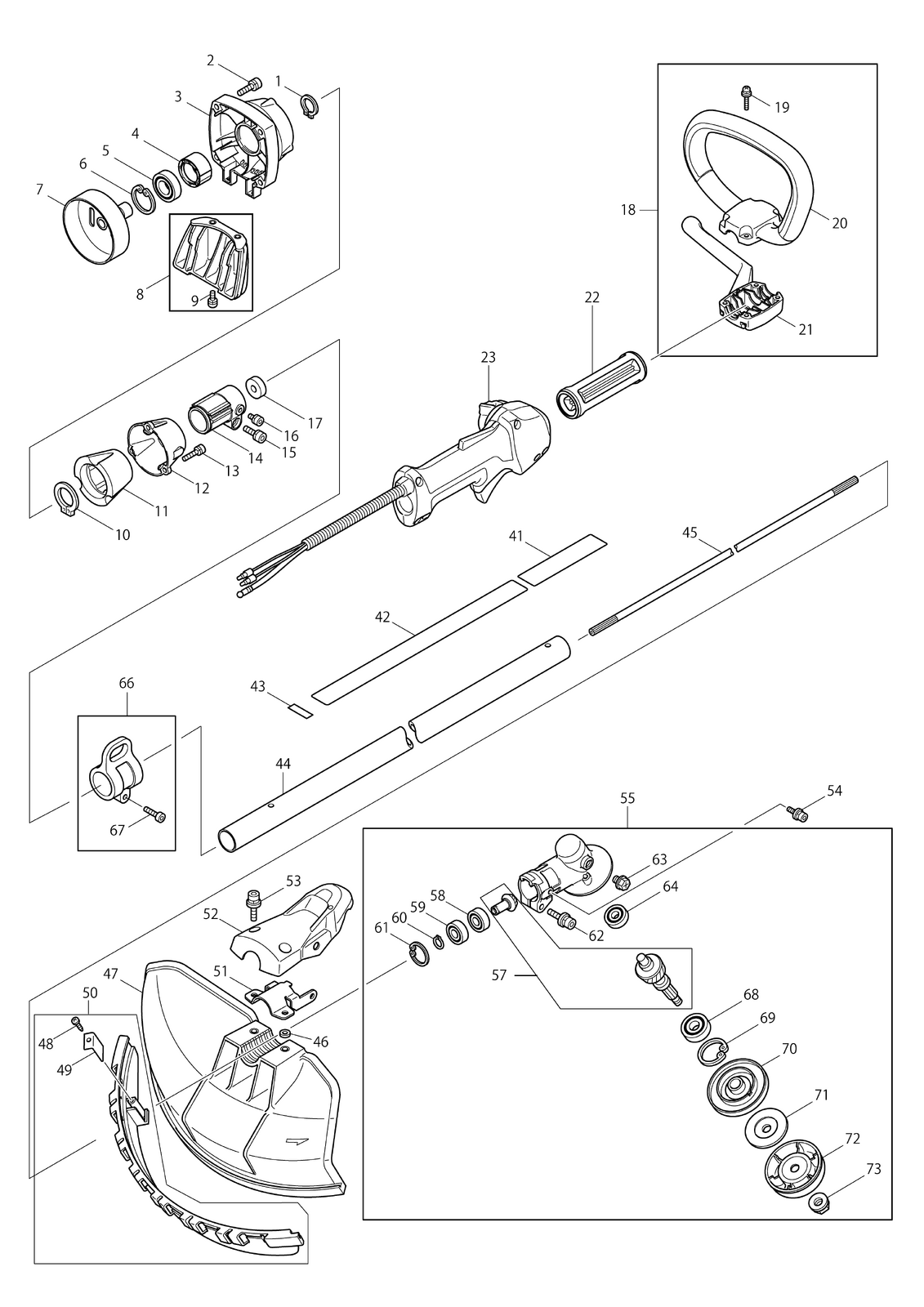

1 1 1 SAIBA DE SIGURANTA S-17 (961057-5) 334 RON
2 1 4 922331-6 - Indisponibil
3 1 1 CLUTCH CASE EBH341U (318421-5) 4473 RON
4 1 1 DISTANTIER EBH341U (451157-4) 558 RON
5 1 1 211338-0 - Indisponibil
5 2 1 210126-2 - Indisponibil
6 1 1 SAIBA DE SIGURANTA R-35 (962153-2) 558 RON
7 1 1 TAMBUR AMBREIAJ EBH341U (165577-3) 3466 RON
8 1 1 Stand Set EBH252U (195144-0) 1788 RON
9 1 2 911218-7 - Indisponibil
10 1 1 RETAINING RING S-32 EBH341U (961151-3) 446 RON
11 1 1 AMORTIZOR EBH341U (424204-4) 1117 RON
12 1 1 PIPE RETAINER EBH341U (318453-2) 2236 RON
13 1 3 SURUB M5X20 LF1000 EBH341U (922231-0) 223 RON
14 1 1 PIPE BRACKET EBH341U (318454-0) 3466 RON
15 1 1 922331-6 - Indisponibil
16 1 1 HEX. SOCKET HEAD BOLT M5X8 EBH341U (922201-9) 334 RON
17 1 1 FELT RING 8 EBH341U (443146-3) 446 RON
18 1 1 195251-9 - Indisponibil
19 1 4 SURUB M5X30 (911253-5) 446 RON
20 1 1 451596-8 - Indisponibil
21 1 1 451597-6 - Indisponibil
22 1 1 451600-3 - Indisponibil
23 1 1 125760-4 - Indisponibil

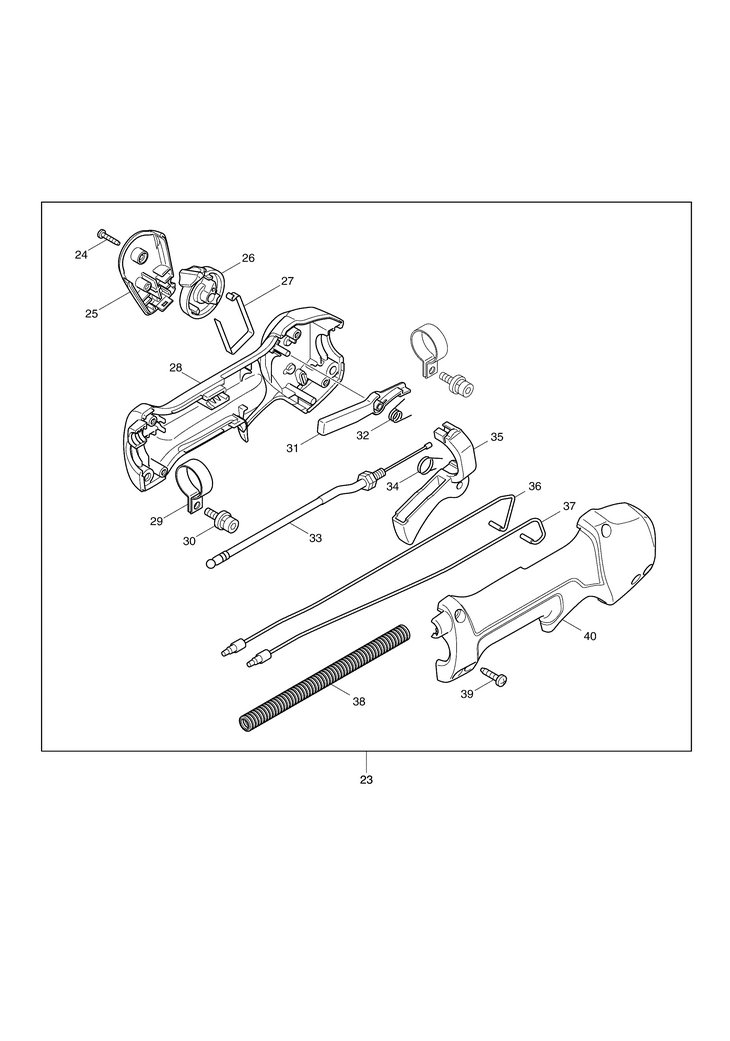

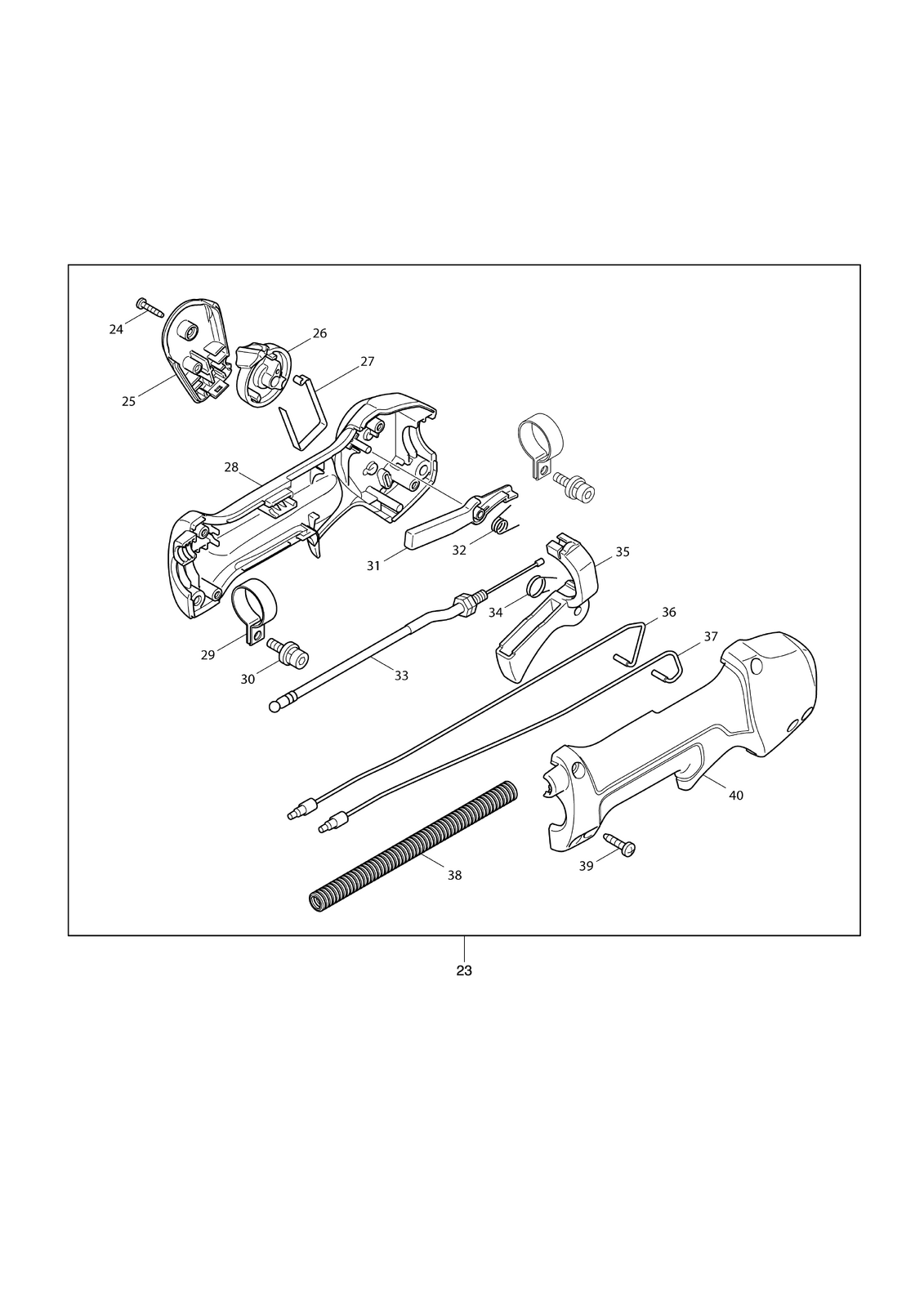

24 1 1 SURUB PT 3X16 TAPPING SCREW 3X16 MT081 cod vechi 266429-2 (266130-9) 558 RON
25 1 1 SWITCH COVER EX2650LH (451595-0) 558 RON
26 1 1 PARGHIE INTRERUPATOR EX2650LH (451594-2) 894 RON
27 1 1 LEAF SPRING EM2651UH (232251-9) 446 RON
28 1 1 188831-8 - Indisponibil
29 1 2 346249-1 - Indisponibil
30 1 2 HEX. SOCKET BOLT M5x14 EM2651UH (922218-2) 558 RON
31 1 1 PARGHIE BLOCARE EX2650LH (451593-4) 782 RON
32 1 1 ARC TORSIUNE 7 EBH253U (233541-3) 558 RON
33 1 1 168549-7 - Indisponibil
34 1 1 ARC TORSIUNE 11 EBH253U (233540-5) 558 RON
35 1 1 THROTTLE LEVER EX2650LH (451592-6) 1117 RON
36 1 1 638676-9 - Indisponibil
37 1 1 638677-7 - Indisponibil
38 1 1 451602-9 - Indisponibil
39 1 4 SURUB 4X18 cod vechi 266326-2 SURUB AUTOFILETANT 4X18 (265995-6) 558 RON
40 1 1 188831-8 - Indisponibil
41 1 1 MAKITA Logo Label EM2651UH (819312-8) 558 RON
42 1 1 810560-2 - Indisponibil
43 1 1 Label, Date Code EBH252U (819760-1) 894 RON
43 2 1 814A82-0 - Indisponibil
43 3 1 801D19-4 - Indisponibil
44 1 1 SHAFT PIPE COMPLETE EBH341U (140042-3) 18454 RON
45 1 1 AX TRANSMISIE CANELAT EBH341U/1536X8 (325675-7) 8164 RON
46 1 2 WASHER EM2651UH (413143-3) 334 RON
47 1 1 PROTECTIE EBH341U (452259-9) 5256 RON
48 1 1 SURUB 4X18 cod vechi 266326-2 SURUB AUTOFILETANT 4X18 (265995-6) 558 RON
49 1 1 CUTTER EM2651UH (346074-0) 781 RON
50 1 1 PROTECTOR EXTENSION EM2651UH (135398-7) 4361 RON
51 1 1 PROTECTOR CLAMP EBH341U (346072-4) 105 RON
52 1 1 PROTECTOR COVER EBH341U (451090-0) 2124 RON
53 1 2 HEX. SOCKET BOLT M6x30 EM2651UH SURUB INBUS M6X30 cod vechi 922353-6 (266579-3) 334 RON
54 1 2 HEX. SOCKET BOLT M5x14 EM2651UH (922218-2) 558 RON
55 1 1 125557-1 - Indisponibil
55 2 1 126260-7 - Indisponibil
55 3 1 ANS. CARCASA ANGRENAJ EBH341U cod vechi 126310-8 (123835-3) 27961 RON
57 1 1 188865-1 - Indisponibil
57 2 1 CUTTER SHAFT SET EBH341U cod vechi 187644-4 (183K07-8) 7269 RON
58 1 1 RULMENT 6000 (211064-1) 2347 RON
59 1 1 RULMENT 6000ZZ (211062-5) 2012 RON
60 1 1 SAIBA DE SIGURANTA S-10 (961006-2) 558 RON
61 1 1 SAIBA DE SIGURANTA R-26 (962105-3) 446 RON
62 1 1 HEX. SOCKET BOLT M6x30 EM2651UH SURUB INBUS M6X30 cod vechi 922353-6 (266579-3) 334 RON
63 1 1 Hex Bolt M8x10 with R EM2651UH (265590-2) 558 RON
64 1 1 RULMENT 629ZZ EBH341U (210081-8) 1565 RON
66 1 1 HANGER ASSEMBLY EBH341U (125558-9) 2571 RON
67 1 1 SURUB INBUS M5X20 (922233-6) 334 RON
67 2 1 SURUB INBUS M5 (922232-8) 334 RON
68 1 1 RULMENT 6201LLU EBH341U (210116-5) 2012 RON
69 1 1 SAIBA DE SIGURANTA R-32 (962151-6) 334 RON
70 1 1 RECEIVE WASHER EBH341U cod vechi 331860-2 RECEIVE SAIBA (332114-0) 297 RON
70 2 1 RECEIVE WASHER EBH341U cod vechi 331860-2 RECEIVE SAIBA (332114-0) 297 RON
71 1 1 SAIBA DE FIXARE EBH (346084-7) 1229 RON
71 2 1 SAIBA EM4350UH (346355-2) 573 RON
72 1 1 LIMITATOR EBH252U (168526-9) 2124 RON
73 1 1 PIULITA HEXAGONALA EBH (264025-0) 1788 RON

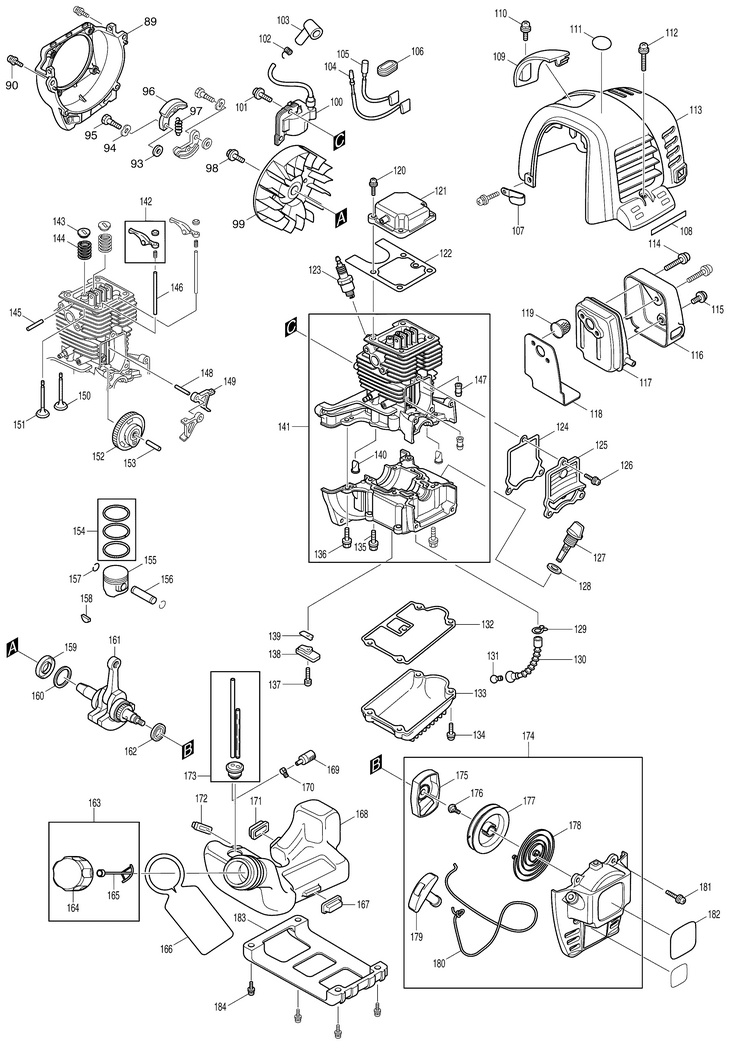

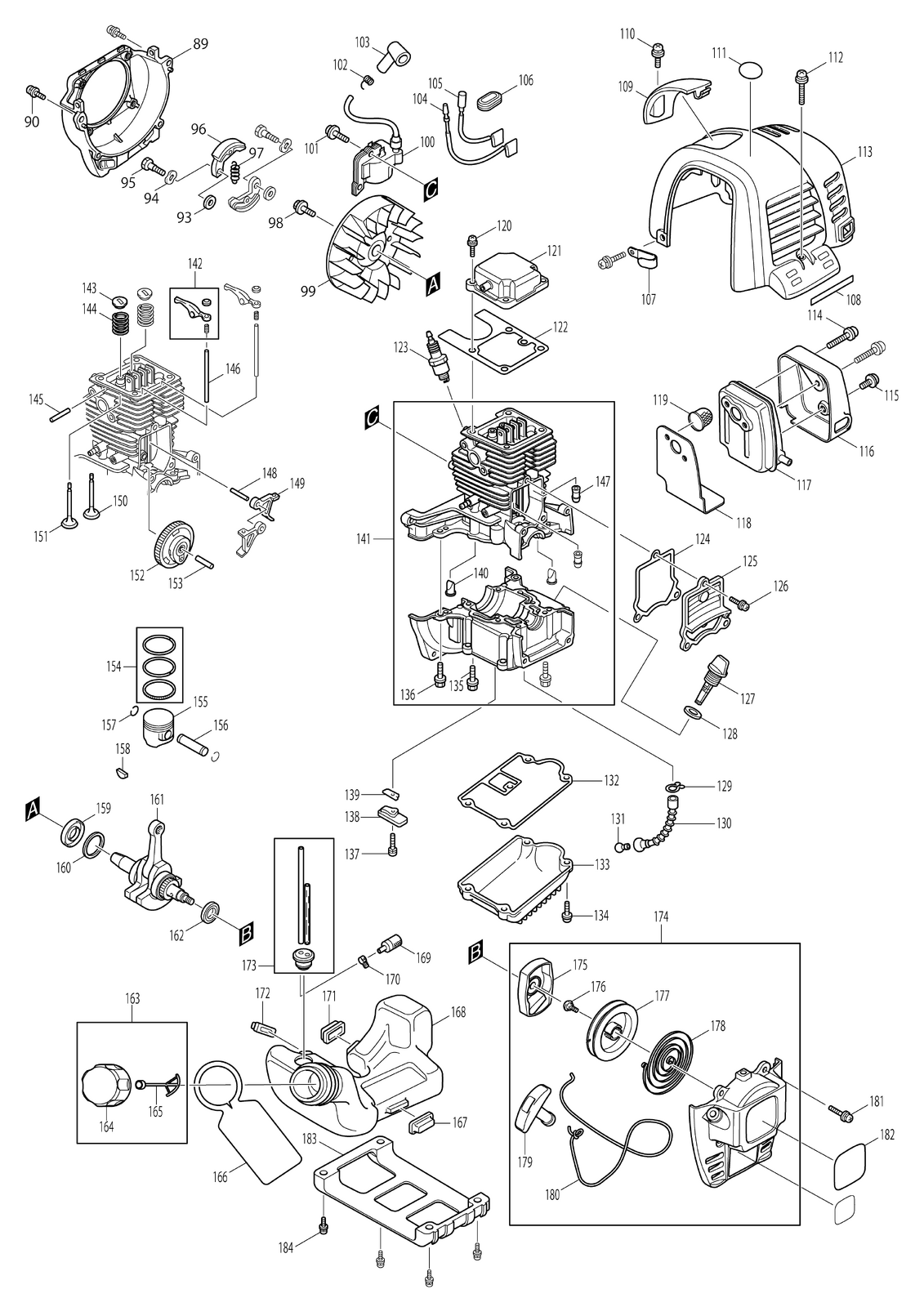

89 1 1 BLOWER HOUSING EBH341U (318614-4) 9618 RON
90 1 4 Hex. Socket Head Bolt M5x16 EM2651UH (922223-9) 558 RON
93 1 2 FLAT WASHER 8 EBH341U (267424-5) 782 RON
93 2 2 SAIBA PLATA 8 (253762-1) 334 RON
94 1 2 WAVE WASHER 10 EBH341U (267832-0) 446 RON
95 1 2 CLUTCH BOLT cod vechi 367266571 (266571-9) 1453 RON
96 1 2 CLUTCH SHOE EBH341U PATINA AMBREIAJ cod vechi 367168563 (168563-3) 7157 RON
96 2 1 CLUTCH ASSEMBLY (125757-3) 5591 RON
97 1 1 ARC AMBREIAJ cod vechi 367231863, 231863-5 ARC AMBREIAJ (367800302) 1565 RON
97 2 1 AN02010000 - Indisponibil
98 1 1 SURUB M6x16 BHX2500 cod vechi 0130069940 HEX. SOCKET HEAD BOLT M6x16 EBH252U (265577-4) 334 RON
99 1 1 FLYWHEEL EBH341U (318611-0) Indisponibil Indisponibil
100 1 1 BOBINA APRINDERE EBH252U cod vechi168501-5 (168816-0) 27513 RON
101 1 2 H.S.H.BOLT M4X20 WITH WR JV0600 (922138-0) 1229 RON
102 1 1 ARC FIXARE CABLU BUJIE cod vechi 0654009931 PLUG CAP SPRING EM2651UH (324891-8) 446 RON
103 1 1 PLUG CAP EBH252U FISA BUJIE BHX2500 cod vechi 5927500100 (424105-6) 669 RON
104 1 1 LEAD UNIT EBH252U (638664-6) 105 RON
105 1 1 ANS. CABLURI cod vechi 367701800 LEAD UNIT EBH252U (638665-4) 669 RON
106 1 1 MANSON DE CAUCIUC cod vechi 374750030 (424313-9) 334 RON
107 1 1 Clamp EBH252U (345963-6) 446 RON
108 1 1 814995-9 - Indisponibil
109 1 1 CAPAC EPH1000 cod vechi 5935500500,451876-2 (455001-7) 670 RON
109 2 1 CAPAC EPH1000 cod vechi 5935500500,451876-2 (455001-7) 670 RON
110 1 1 SURUB M5X8 EBH341U (266572-7) 111 RON
111 1 1 4 STROKE INDICATION LABEL EM2651UH (808633-3) 558 RON
112 1 3 SURUB M5X12 (911213-7) 558 RON
113 1 1 CYLINDER COVER EBH341U (451875-4) 8164 RON
114 1 2 SURUB M5x40 EM4250/BHX2500 cod vechi 0119059520 HEX. SOCKET HEAD BOLT M5x40 EM2651UH (266440-4) 781 RON
115 1 1 Screw EBH252U SURUB cod vechi 367005996 (265184-3) 670 RON
116 1 1 MUFFLER CPL. EBH252U CAPAC TOBA cod vechi 367350340 (345915-7) 3913 RON
117 1 1 TOBA ESAPAMENT EBH253U TOBA ESAPAMENT cod vechi 367300100 (168469-5) 3354 RON
118 1 1 MUFFLER GASKET EBH252U MUFFLER GASKET EW1050H cod vechi 345916-5 (346331-6) 2459 RON
119 1 1 IZOLATOR EBH252U PARA SCANTEI /BHX2500 cod vechi 5923008011 (324980-9) 1565 RON
120 1 4 HEX. SOCKET HEAD BOLT M5x14 (922217-4) 334 RON
121 1 1 CAPAC COMPLET cod vechi 374100400 (140419-2) 4696 RON
122 1 1 GARNITURA cod vechi 374150080 (162307-3) 2124 RON
123 1 1 BUJIE EBH252U / 341U (168534-0) 7828 RON
124 1 1 GARNITURA CAPAC CAMA EBH253U GARNITURA cod vechi 367150070 (162274-2) 2235 RON
125 1 1 Cam Gear Cover EM2651UH CAPAC PT. ROATA CU CAMA cod vechi 383150050 (318443-5) 1341 RON
126 1 3 SURUB INBUS M5 (922212-4) 334 RON
127 1 1 JOJA ULEI cod vechi 367450565 JOJA ULEI EBH253U (450565-6) 1341 RON
128 1 1 GARNITURA EPH1000 cod vechi 0213169990 Gasket EBH252U (424100-6) 894 RON
129 1 1 CLEMA FIXARE BHX2500 cod vechi 0561059970 HOSE CLAMP EM2651UH (282020-8) 334 RON
130 1 1 TUB ULEI cod vechi 367650020 FURTUN ULEI EBH253U (424202-8) 297 RON
131 1 1 Oil Weight EM2651UH GREUTATE PT BAIA DE ULEI cod vechi 367650030 (325666-8) 1341 RON
132 1 1 GARNITURA cod vechi 388650010 (162308-1) 297 RON
133 1 1 BAIE DE ULEI cod vechi 374650000 (318612-8) 2124 RON
134 1 4 HEX. SOCKET HEAD BOLT M5x14 (922217-4) 334 RON
135 1 4 HEX. SOCKET HEAD BOLT M5X33 EBH341U (266573-5) 223 RON
136 1 4 266570-1 - Indisponibil
136 2 4 SURUB INBUS M5 (922222-1) 558 RON
137 1 1 266569-6 - Indisponibil
137 2 1 SURUB INBUS M4 (922112-8) 334 RON
138 1 1 Retainer Plate EBH252U PLACA DE FIXARE cod vechi 367150110 (318440-1) 781 RON
139 1 1 Lead Valve EM2651UH MEBRANA ADMISIE cod vechi 367150100 (346083-9) 190 RON
140 1 2 CHECK VALVE EM2651UH VALVA /BHX2500 cod vechi 5921501800 (424201-0) 1229 RON
141 1 1 CILINDRU EBH341U (135373-3) 74266 RON
142 1 2 TACHET EBH252U ANS. BRAT cod vechi 374300200 (125554-7) 3466 RON
143 1 2 FIXATOR DE ARC cod vechi 367350030 (325912-9) 2124 RON
144 1 2 ARC SUPAPA cod vechi 367350020 (234181-0) 670 RON
144 2 2 ARC SUPAPA cod vechi 367350020 (234181-0) 670 RON
145 1 1 STIFT 5 AX cod vechi 367350010 (256200-2) 558 RON
146 1 2 TIJA cod vechi 374350000 (256866-8) 446 RON
147 1 2 DISTANTIER cod vechi 367150140 SPACER EM2651UH (424200-2) 670 RON
148 1 1 STIFT 4 EM2651UH AX RIDICATOR cod vechi 367350060 (268239-3) 334 RON
149 1 2 CAM LIFTER EM2651UH cod vechi 5923500001 CULBUTOR /BHX2500 CULBUTOR BCX2500/EM2651UH (313169-4) 3913 RON
150 1 1 SUPAPA EVACUARE cod vechi 367350040 (325913-7) 382 RON
151 1 1 SUPAPA DE ADMISIE cod vechi 388350050 (325914-5) 382 RON
152 1 1 PINION CAMA EM2651UH ROATA DINTATA BHX2500 cod vechi 5933003000 (125552-1) 3577 RON
153 1 1 STIFT 5 EM2651UH AX CU CAME cod vechi 367350050 (268238-5) 558 RON
154 1 1 SET SEGMENTI cod vechi 367195141 (195141-6) 5256 RON
155 1 1 PISTON cod vechi 367250040 (318613-6) 5927 RON
156 1 1 BOLT PISTON cod vechi 374250090 (257796-6) 558 RON
157 1 2 CLEMA EPH1000 cod vechi 0565099990 (233983-1) 334 RON
158 1 1 PANA BHX2500 cod vechi 0323039990 WOODRUFF KEY 3 EM2651UH (254040-2) 1229 RON
159 1 1 SIMERING (L) EPH1000 cod vechi 0440129950 (213537-0) 2236 RON
160 1 1 INEL DISTANTIER cod vechi 367250100 (267425-3) 670 RON
161 1 1 CRANKSHAFT ASSEMBLY EBH341U (125756-5) 3316 RON
161 2 1 CRANKSHAFT ASSEMBLY EBH341U (125756-5) 3316 RON
162 1 1 OIL SEAL 10 EM2651UH cod vechi 213148-1 OIL SEAL 10 EH6000W (213769-9) 1453 RON
163 1 1 FUEL TANK CAP EBH252U cod vechi 140435-4 FUEL TANK CAP EBH252U FUEL TANK CAP ASS%Y. cod vechi 367125472 (125472-9) 382 RON
164 1 1 FUEL TANK CAP EBH252U cod vechi 140435-4 FUEL TANK CAP EBH252U FUEL TANK CAP ASS%Y. cod vechi 367125472 (125472-9) 382 RON
165 1 1 STRAP complete EBH252U (140436-2) 2795 RON
166 1 1 CAUTION LABEL EM2651UH (810455-9) 781 RON
167 1 1 AMORTIZOR EBH253U PLACA cod vechi 388650030 (424104-8) 2571 RON
168 1 1 REZERVOR ULEI cod vechi 374650020 (451877-0) 7157 RON
169 1 1 FILTRU DE BENZINA DCS230T (163447-0) 1788 RON
170 1 1 HOSE CLAMP EBH252U cod vechi 345920-4 CLEMA FIXARE RBC220/EM4250/EM2600U (DA00000120) 670 RON
171 1 1 PLATE EBH252U PLACA cod vechi 381650030 (424103-0) 1676 RON
172 1 1 PLACA cod vechi 381650020 PLATE EBH252U (424102-2) 670 RON
173 1 1 TUB COMBUSTIBIL EPH1000 cod vechi 5936003000 (162309-9) 2683 RON
174 1 1 195142-4 - Indisponibil
174 2 1 RECOIL STARTER SET EBH341U (126475-6) 13644 RON
175 1 1 165606-2 - Indisponibil
175 2 1 168827-5 - Indisponibil
176 1 1 SURUB cod vechi 367266580 (266580-8) 1229 RON
177 1 1 ROLA cod vechi 367451923 (451923-9) 3019 RON
178 1 1 ARC SPIRAL cod vechi 367232257 (232257-7) 5480 RON
179 1 1 MANER DE START cod vechi 381500211 (424317-1) 296 RON
180 1 1 SFOARA DE START cod vechi 367444018 (444018-5) 3018 RON
181 1 4 911218-7 - Indisponibil
182 1 1 819433-6 - Indisponibil
183 1 1 162310-4 - Indisponibil
184 1 4 911218-7 - Indisponibil
184 2 4 SCREW ASS'Y M5X14 (266809-2) 446 RON

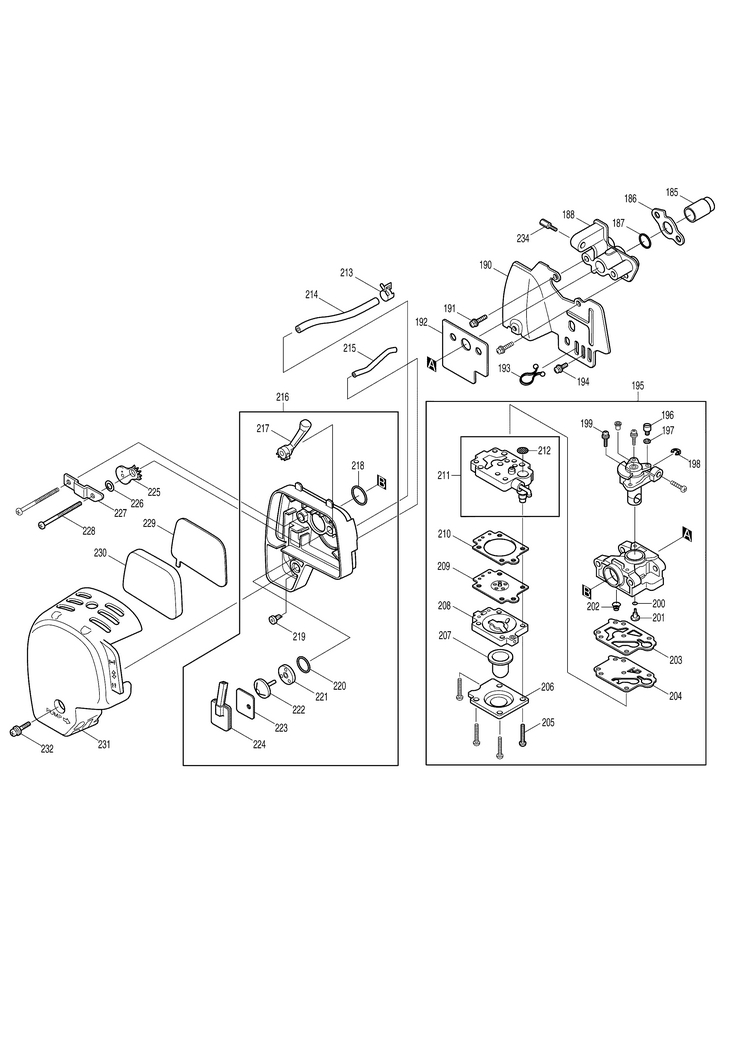

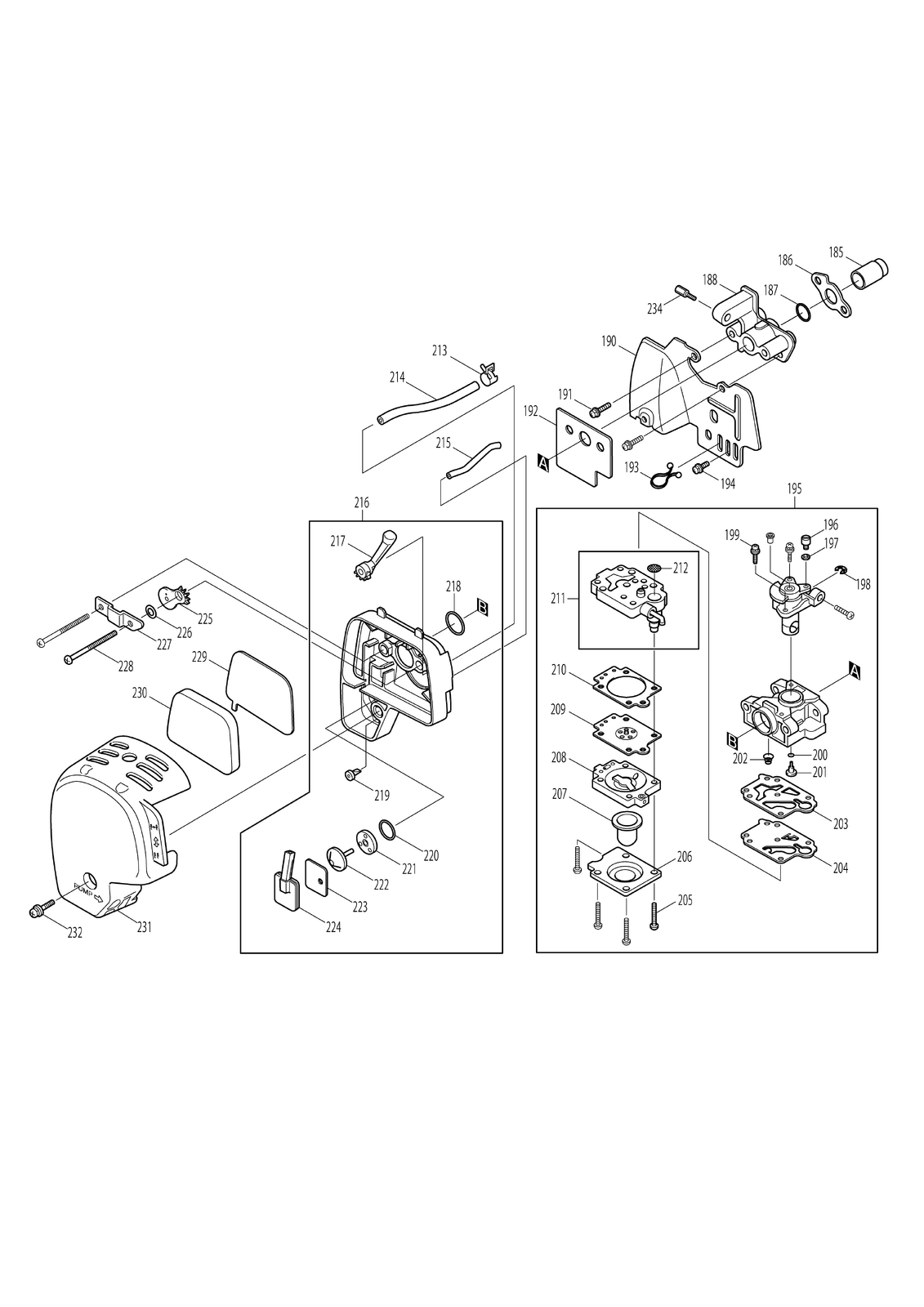

185 1 1 INTAKE PIPE EBH341U (325915-3) 446 RON
186 1 1 GARNITURA IZOLATOR CARB EBH253U (413120-5) 334 RON
187 1 1 O-RING 10 EBH252U (213078-6) 223 RON
187 2 1 O RING 10 O-RING 10 EBH252U cod vechi 213078-6 (213063-9) 558 RON
188 1 1 INSULATOR EBH341U (451874-6) 2683 RON
190 1 1 CARBURETOR INSULATOR EBH341U (346261-1) 105 RON
191 1 2 HEX.SOCKET HEAD BOLT M5X18 EM2651UH (922228-9) 558 RON
192 1 1 GARNITURA CARBURATOR BHX2500 cod vechi 5923501900 (413138-6) 670 RON
193 1 1 CLAMP cod vechi 367450562 CLAMP EBH252U (450562-2) 1117 RON
194 1 1 HEX.SOCKET HEAD BOLT M5X12 EBH252U (922213-2) 558 RON
195 1 1 CARBURATOR cod vechi 367600400 (168561-7) 22033 RON
196 1 1 SWIVEL EM2651UH PIVOT cod vechi 367325922 (325922-6) 3689 RON
197 1 1 SAIBA cod vechi 367600503 WASHER EM2651UH (413140-9) 1676 RON
198 1 1 STOP RING E-3 EM2651UH SAIBA DE SIGURANTA cod vechi 367257964 (257964-1) 894 RON
199 1 2 PAN HEAD SCREW M3x8 EM2651UH SURUB PT. CILINDRU cod vechi 388600803 (266581-6) 1117 RON
199 2 2 Screw (WJ00096364) 2124 RON
200 1 1 O RING 2 EM2651UH ORING cod vechi 367213538 (213538-8) 1788 RON
201 1 1 JET EBH341U (325921-8) 5815 RON
202 1 1 CONICAL COMPRESSION SPRING EM2651UH ARC PT. POMPA cod vechi 367234183 (234183-6) 2235 RON
203 1 1 GARNITURA DE POMPA cod vechi 367442155 GARNITURA MEMBANA POMPA EBH252U (442155-9) 1229 RON
204 1 1 MEMBRANA POMPA EBH252U cod vechi 168575-6 MEMBRANA BHX2500 PUMP DIAPHRAGM (WJ00009599) Indisponibil Indisponibil
205 1 4 TAPPING SCREW 3X24 EM2651UH SURUB cod vechi 367266582 (266582-4) 1453 RON
206 1 1 PRIMER PUMP COVER EM2651UH POMPA DE AMORSARE cod vechi 374604605 (346270-0) 1788 RON
207 1 1 BALON POMPA AMORSARE cod vechi 381600115,424314-7 (DA00001149) 2348 RON
208 1 1 Air Purge Body EM2651UH CORP FILTRU DE AER /BHX25 cod vechi 5236046140 (140438-8) Indisponibil Indisponibil
209 1 1 MEMBRANA NIVEL EBH252U ANS. MEMBRANA cod vechi 367168574 METERING DIAPHRAGM EM2651UH MEMBRANE CARBURATOR DBC260U cod vechi 5266009010 cod vechi 168620-7 (DA00001148) Indisponibil Indisponibil
210 1 1 GARNITURA cod vechi 367442154 GARNITURA MEMBRANA NIVEL EBH252U (442154-1) Indisponibil Indisponibil
211 1 1 CORP POMPA CARBURATOR EBH252U (140437-0) 1339 RON
212 1 1 SITA CARBURATOR EBH252U FILTRU cod vechi 367352010 (352010-6) Indisponibil Indisponibil
213 1 1 CLEMA FIXARE EM4250/BHX2500 cod vechi 0561080010 HOSE CLAMP EM2651UH (345918-1) 446 RON
214 1 1 Breather Pipe EM2651UH TUB AERISIRE EPH1000 cod vechi 5931500900 (422055-9) 1341 RON
215 1 1 TUB DE RETUR ULEI cod vechi 367350300 FURTUN EBH EBH253U (422042-8) 1564 RON
216 1 1 CLEANER PLATE EBH252U PLACA FILTRU EVH2000 cod vechi 5923004003,125468-0 (123845-0) 8611 RON
217 1 1 PARGHIE DE SOC cod vechi 367350220 PARGHIE DE SOC (451925-5) 893 RON
218 1 1 ORING P15 EM4250/BHX2500 cod vechi 0240159990 O RING 15 EM2651UH (213540-1) 558 RON
219 1 1 SUPAPA ULEI cod vechi 367350240 Check Valve EM2651UH (424316-3) 3577 RON
220 1 1 ORING P14 EM4250/BHX2500 cod vechi 0240139970 O RING 14 EBH252U (213539-6) 670 RON
221 1 1 SCAUN DE SUPAPA cod vechi 367350250 CHECK VALVE PLATE EBH252U (451924-7) 105 RON
222 1 1 VALVA DE CONTROL cod vechi 367424315 CHECK VALVE EBH252U (424315-5) 670 RON
223 1 1 GASKET EBH252U GARNITURA cod vechi 367350350 (168577-2) 669 RON
224 1 1 SEPARATOR PLATE EBH252U PLACA SEPARARE cod vechi 367350161 (168576-4) Indisponibil Indisponibil
225 1 1 Choke Plate EBH252U cod vechi 450560-2 cod echivalent 450560-6 (450560-6) 1229 RON
226 1 1 GARNITURA RBC/EM/BHX2500 cod vechi 0213069990 Gasket EBH252U (423376-2) 334 RON
227 1 1 PLATE EBH252U CLEMA cod vechi 367350260 (345919-9) 2683 RON
228 1 2 SCREW EBH252U SURUB cod vechi 367350310 (265188-5) 558 RON
229 1 1 FILTRU DE AER cod vechi 367443140 ELEMENT FILTRANT EBH252U FILTRU DE AER FETRU /BHX2500 cod vechi 5933500900 (443140-5) 894 RON
230 1 1 FILTRU DE AER cod vechi 367443141 ELEMENT FILTRANT EBH252U (443141-3) 781 RON
231 1 1 CAPAC FILTRU AER cod vechi 367450561 AIR CLEANER COVER EBH252U (450561-4) 1341 RON
232 1 1 911218-7 - Indisponibil
234 1 1 SURUB (325663-4) 446 RON
235 1 1 AUOCOLANT ATENTIONARE I DBC260U cod vechi 6259514700 (808723-2) 334 RON
1001 1 1 A-81658 - Indisponibil
1002 1 1 125516-5 - Indisponibil
1003 1 1 BOX DRIVER EM2651UH (783013-3) 190 RON
1004 1 1 783217-7 - Indisponibil
1004 2 1 HEX. WRENCH 5 EM2651UH (783232-1) 670 RON
1004 3 1 783217-7 - Indisponibil
1005 1 1 WRENCH 4 EM2651UH (783223-2) 1453 RON
1005 2 1 783202-0 - Indisponibil
1006 1 1 Oil Bottle EBH252U EM2651UH (242072-1) 2460 RON
1007 1 1 Accessory Baguum EM2651UH (831304-7) 1676 RON
1010 1 1 195501-2 - Indisponibil
5001 1 1 CAUTION LABEL EBH252U (819430-2) 334 RON

Conditii Generale
