Top » Piese de schimb » PIESE MAKITA » Scule pe acumulator » DTW281

DTW281
[DTW281]

DTW281
Click pentru a mari
Imagini suplimentare
DTW281
Click pentru a mari

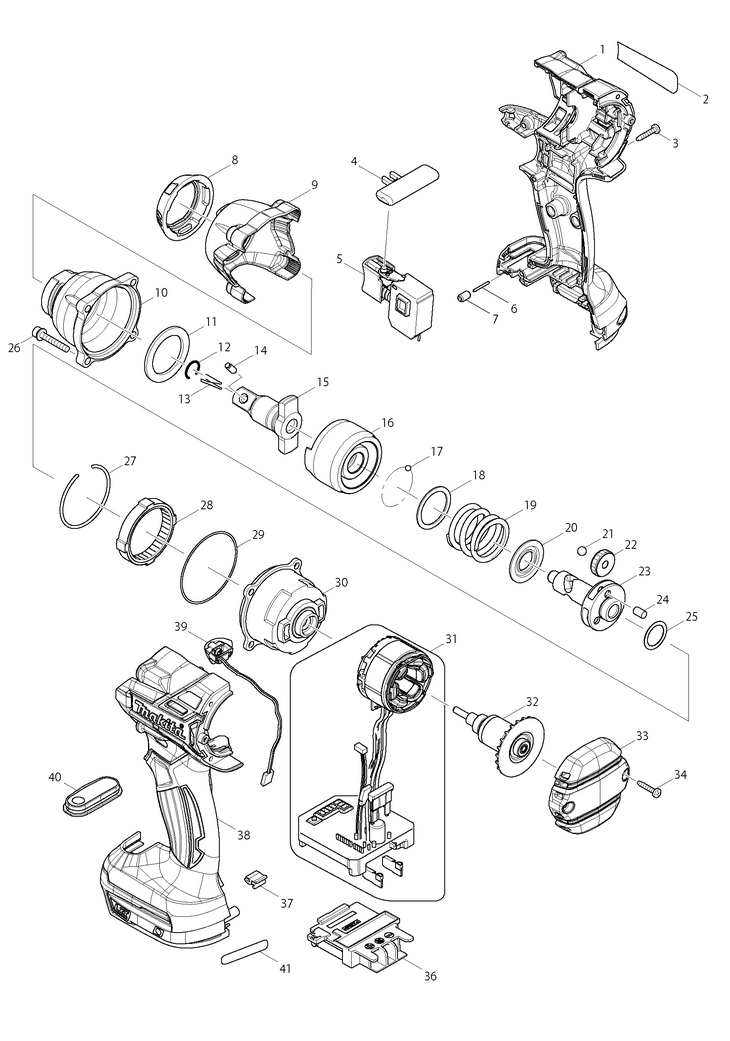

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)
Cumpara
1 1 1 HOUSING SET DTW281 DTW281RFE cod vechi 187819-5 (183D46-6) 14092 RON
2 1 1 815N14-8 - Indisponibil
3 1 8 SURUB PT 3X16 TAPPING SCREW 3X16 MT081 cod vechi 266429-2 (266130-9) 558 RON
4 1 1 INVERSOR DE SENS (419041-9) 446 RON
5 1 1 SWITCH C3JW-1A BTP131 DTW281RFE (650673-5) 8388 RON
6 1 1 STIFT 1.5 (268184-2) 334 RON
7 1 1 RUBBER PIN 5 (263036-2) 1341 RON
8 1 1 BUMPER DTW281 DTW281RFE (424568-6) Indisponibil Indisponibil
9 1 1 ACOPERITOARE CARCASA PERCUTOR DTW281RFE (454851-7) 894 RON
10 1 1 142388-3 - Indisponibil
11 1 1 SAIBA NYLON 28 DTW281RFE (261154-0) 223 RON
12 1 1 ARC INELAR 10 cod vechi 231907-1 (232323-0) 334 RON
15 1 1 135617-1 - Indisponibil
16 1 1 HAMMER DTW281 DTW281RFE (326384-1) 14875 RON
17 1 24 BILA OL 3.5 (216001-0) 558 RON
18 1 1 SAIBA PLATA 24 6914/16/18/BHR162 (267175-0) 334 RON
19 1 1 COMPRESSION SPRING 25 DTW281 DTW281RFE (234322-8) 1788 RON
20 1 1 TALER 14 (267766-7) 334 RON
21 1 2 BILE RULMENT 5.6 (216011-7) 558 RON
22 1 3 SPUR GEAR 22 DTW281 DTW281RFE (227338-0) Indisponibil Indisponibil
23 1 1 SPINDLE DTW281 DTW281RFE (326385-9) 21697 RON
24 1 3 PIN 5 DTW281 DTW281RFE (268311-1) 446 RON
25 1 1 FLAT WASHER 15 LF1000 2704 (253147-1) 223 RON
26 1 4 HEX.SOCKET HEAD BOLT M4X25 DTW281 DTW281RFE (266915-3) 334 RON
27 1 1 RING SPRING 43 6853 (233910-8) 223 RON
28 1 1 INTERNAL GEAR 51 DTW281 DTW281RFE (227337-2) 1677 RON
29 1 1 O-RING 49 DTW281RFE (213785-1) 223 RON
30 1 1 INTERNAL GEAR CASE COMPLETE DTW281 DTW281RFE (142389-1) 9394 RON
31 1 1 STATOR UNIT DTW281 DTW281RFE (632D63-8) 58719 RON
32 1 1 ROTOR DTW281 DTW281RFE (619341-9) 21921 RON
33 1 1 CARCASA POSTERIOARE DTW281RFE (454850-9) 1229 RON
34 1 2 SURUB PT 3X16 TAPPING SCREW 3X16 MT081 cod vechi 266429-2 (266130-9) 558 RON
36 1 1 TERMINAL BCL182 (643860-3) 2347 RON
37 1 1 CUSHION DDF480 (424517-3) 334 RON
38 1 1 HOUSING SET DTW281 DTW281RFE cod vechi 187819-5 (183D46-6) 14092 RON
39 1 1 LED CIRCUIT DTW281 DTW281RFE (620295-5) 3578 RON
40 1 1 SWITCH PLATE COMPLETE DTW281 DTW281RFE (142394-8) 1341 RON
40 2 1 SWITCH PLATE COMPLETE DTW281 DTW281RFE (142394-8) 1341 RON
40 1 1 SWITCH PLATE COMPLETE DTW281 DTW281RFE (142394-8) 1341 RON
1001 1 1 266622-8 - Indisponibil
1002 1 1 346317-0 - Indisponibil
1003 1 1 ***DC18RC - Indisponibil
1003 1 1 821550-0 - Indisponibil
1004 1 2 194204-5 - Indisponibil
1004 2 2 194204-5 - Indisponibil
1004 1 1 837670-0 - Indisponibil
1004 1 2 196399-0 - Indisponibil
1005 1 1 BATTERY COVER BDF451 (450128-8) 558 RON
1005 1 1 803R32-2 - Indisponibil
1005 1 1 803R34-8 - Indisponibil
1006 1 1 824979-9 - Indisponibil
1006 1 2 803R33-0 - Indisponibil
1006 1 2 803R35-6 - Indisponibil
1007 1 1 ***DC18RC - Indisponibil
1008 1 2 194204-5 - Indisponibil
1008 2 2 194204-5 - Indisponibil
1008 1 2 196399-0 - Indisponibil
1009 1 1 BATTERY COVER BDF451 (450128-8) 558 RON
