DTW250
[DTW250]

DTW250
Click pentru a mari
Imagini suplimentare
DTW250
Click pentru a mari

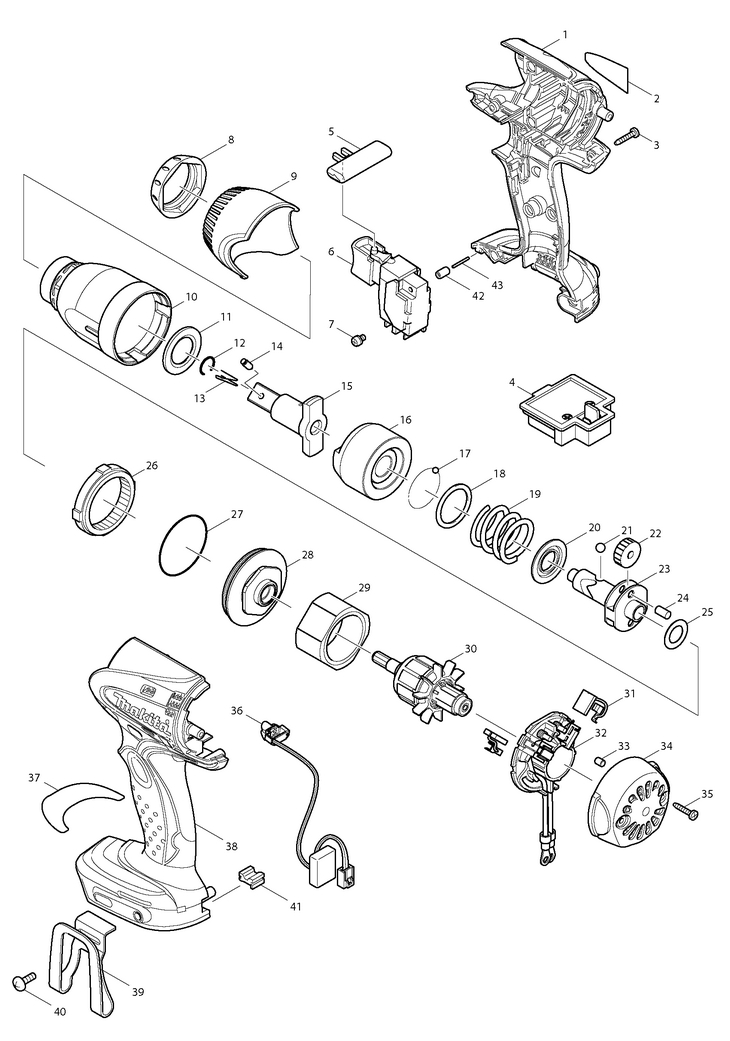

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)
Cumpara
23 1 1 AX 6916/6934F/D (324220-5) 6151 RON
24 1 2 STIFT 5 (256253-1) 558 RON
25 1 1 SAIBA PLATA 12 (267212-0) 558 RON
26 1 1 ROATA DINTATA 51 (227150-8) 1452 RON
27 1 1 O RING 40 HR1800/HR2220/2210 (213507-9) 334 RON
28 1 1 Bearing Box Complete (158145-9) 7493 RON
28 2 1 143035-9 - Indisponibil
29 1 1 MAGNET STATOR (638495-3) 9618 RON
30 1 1 ROTOR (619251-0) 14763 RON
31 1 1 PERII CARBON CB-440 cod vechi 194427-5 (195021-6) 2123 RON
32 1 1 SUPORT DE PERII DTW250RFJ ( cod vechi 638853-3, 632G47-4 ) (632L19-9) 488 RON
33 1 2 RUBBER PIN 4 (263032-0) 558 RON
34 1 1 CAPAC POSTERIOR (418981-8) 5367 RON
35 1 2 SURUB PT 3X16 TAPPING SCREW 3X16 MT081 cod vechi 266429-2 (266130-9) 558 RON
36 1 1 CIRCUIT ILUMINARE (631631-0) 1232 RON
38 1 1 HOUSING SET BTW250 251 DTW250RFJ (187466-2) 29415 RON
39 1 1 346317-0 - Indisponibil
40 1 1 SURUB M4X12 (251314-2) 558 RON
41 1 1 BUCSA BTW250RFE (424026-2) 1340 RON
41 2 1 CUSHION DDF480 (424476-1) 223 RON
42 1 1 RUBBER PIN 5 (263036-2) 1341 RON
43 1 1 STIFT 1.5 (268184-2) 334 RON
1001 1 1 ***DC18RC - Indisponibil
1002 1 2 194065-3 - Indisponibil
1002 2 2 194065-3 - Indisponibil
1002 1 2 196388-5 - Indisponibil
1002 2 2 196388-5 - Indisponibil
1003 1 1 141205-4 - Indisponibil
1003 1 1 821550-0 - Indisponibil
1004 1 1 802U59-7 - Indisponibil
1004 2 1 802U63-6 - Indisponibil
1004 1 1 837670-0 - Indisponibil
1005 1 1 BATTERY COVER BDF451 (450128-8) 558 RON
1006 1 2 802U57-1 - Indisponibil
1006 2 2 805V35-6 - Indisponibil
1006 1 2 802U58-9 - Indisponibil
1006 2 2 805V36-4 - Indisponibil
1006 1 2 802U66-0 - Indisponibil
1006 2 2 805V37-2 - Indisponibil
1007 1 1 802U61-0 - Indisponibil
1007 1 1 802U62-8 - Indisponibil
1007 1 1 802U65-2 - Indisponibil
1 1 1 HOUSING SET BTW250 251 DTW250RFJ (187466-2) 29415 RON
2 1 1 815F41-7 - Indisponibil
3 1 8 SURUB PT 3X16 TAPPING SCREW 3X16 MT081 cod vechi 266429-2 (266130-9) 558 RON
4 1 1 TERMINAL BDF448 (643866-1) 2348 RON
5 1 1 INVERSOR DE SENS (419041-9) 446 RON
6 1 1 INTRERUPATOR DTW250RFJ (650652-3) 23487 RON
7 1 2 Pan Head Screw M3.5x5 (652045-0) 334 RON
8 1 1 AMORTIZOR BTW250/251RFE (424375-7) 2124 RON
9 1 1 HAMMER CASE COVER (452439-7) 4584 RON
10 1 1 CARCASA MECANISM (140171-2) 17559 RON
11 1 1 SAIBA DE NYLON 18 6918/6934D (261116-8) 105 RON
12 1 1 ARC INELAR 10 cod vechi 231907-1 (232323-0) 334 RON
15 1 1 ANVIL (324706-9) 24494 RON
16 1 1 HAMMER (324703-5) 10065 RON
17 1 24 BILA OL 3.5 (216001-0) 558 RON
18 1 1 SAIBA PLATA 24 6914/16/18/BHR162 (267175-0) 334 RON
19 1 1 ARC COMPRESIE 25 (234337-5) 1341 RON
20 1 1 TALER 14 (267766-7) 334 RON
21 1 2 BILE RULMENT 5.6 (216011-7) 558 RON
22 1 2 SPUR GEAR 22 (227233-4) 2795 RON
