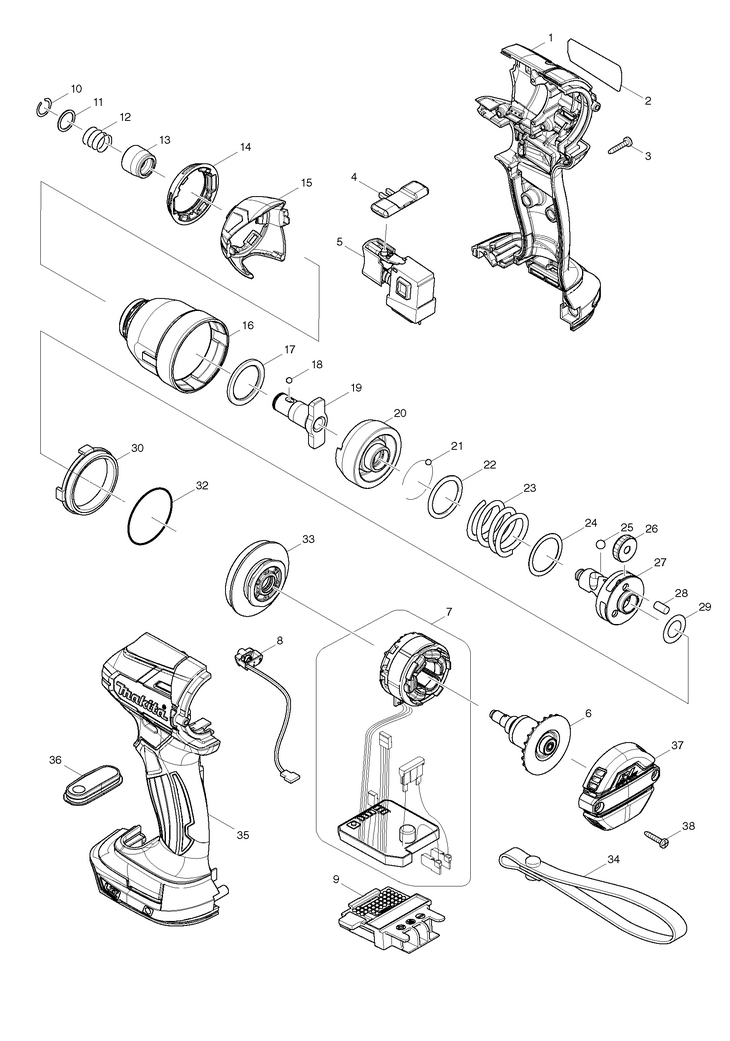

Top » Piese de schimb » PIESE MAKITA » Scule pe acumulator » DTD137 DTD137 [DTD137] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 HOUSING DTD137 (187972-7) 12526 RON 2 1 1 850D06-0 - Indisponibil 3 1 8 SURUB PT 3X16 TAPPING SCREW 3X16 MT081 cod vechi 266429-2 (266130-9) 558 RON 4 1 1 F/R CHANGE LEVER (455053-8) 446 RON 5 1 1 SWITCH COMPLETE B/DTD136 (141448-8) 13197 RON 6 1 1 ROTOR (619343-5) 32211 RON 7 1 1 STATOR UNIT DTD137 (632D60-4) 52792 RON 8 1 1 LED CIRCUIT (620294-7) 5144 RON 9 1 1 BLOC CONTACTE BCL142 (643850-6) 2347 RON 10 1 1 ARC INELAR 11 (231951-8) 558 RON 11 1 1 SAIBA PLATA 12 (267085-1) 558 RON 12 1 1 ARC COMPRESIE 13 (233005-7) 558 RON 13 1 1 MANSON B/DTD136 (326072-0) 1229 RON 14 1 1 BUMPER (424627-6) 558 RON 15 1 1 HAMMER CASE COVER (455051-2) 670 RON 16 1 1 HAMMER CASE COMPLETE cod vechi 142516-0 (144788-3) 9394 RON 17 1 1 NYLON WASHER 24 (261155-8) 334 RON 18 1 2 BILA OL 3.5 (216001-0) 558 RON 19 1 1 ANVIL M cod vechi 326431-8 PERCUTOR M (326508-9) 4585 RON 19 2 1 ANVIL M cod vechi 326431-8 PERCUTOR M (326508-9) 4585 RON 19 1 1 ANVIL M cod vechi 326431-8 PERCUTOR M (326508-9) 4585 RON 20 1 1 HAMMER (326412-2) 11743 RON 21 1 24 BILA OL 3.5 (216001-0) 558 RON 22 1 1 SAIBA PLATA 24 6914/16/18/BHR162 (267175-0) 334 RON 23 1 1 COMPRESSION SPRING 25 (234251-5) 1788 RON 24 1 1 FLAT WASHER 24 (253090-4) 334 RON 25 1 2 BILE RULMENT 5.6 (216011-7) 558 RON 26 1 3 SPUR GEAR 22 DTW281 DTW281RFE (227338-0) Indisponibil Indisponibil 27 1 1 SPINDLE (326411-4) 19013 RON 28 1 3 PIN 5 DTW281 DTW281RFE (268311-1) 446 RON 29 1 1 SAIBA 15 (253314-8) 669 RON 30 1 1 INTERNAL GEAR 51 (227351-8) 3019 RON 32 1 1 O RING 40 HR1800/HR2220/2210 (213507-9) 334 RON 33 1 1 BEARING BOX COMPLETE (142517-8) 8052 RON 35 1 1 HOUSING DTD137 (187972-7) 12526 RON 36 1 1 SWITCH PLATE COMPLETE B/DTD136 (141583-2) 1677 RON 36 2 1 SWITCH PLATE COMPLETE B/DTD136 (141583-2) 1677 RON 36 1 1 SWITCH PLATE COMPLETE B/DTD136 (141583-2) 1677 RON 37 1 1 REAR COVER (455052-0) 1788 RON 38 1 2 SURUB PT 3X16 TAPPING SCREW 3X16 MT081 cod vechi 266429-2 (266130-9) 558 RON 1001 1 1 266622-8 - Indisponibil 1002 1 1 346317-0 - Indisponibil 1003 1 1 BATTERY COVER BDF451 (450128-8) 558 RON 1004 1 1 ***DC18RC - Indisponibil 1005 1 2 194065-3 - Indisponibil 1005 2 2 194065-3 - Indisponibil 1005 1 2 196388-5 - Indisponibil 1006 1 1 821550-0 - Indisponibil 1007 1 1 837670-0 - Indisponibil 1008 1 1 804W85-4 - Indisponibil 1008 1 1 804W87-0 - Indisponibil 1009 1 2 804W86-2 - Indisponibil 1009 1 2 804W88-8 - Indisponibil
