Top » Piese de schimb » PIESE MAKITA » Scule pe acumulator » DFR540

DFR540
[DFR540]
DFR540
Click pentru a mari
Imagini suplimentare
DFR540
Click pentru a mari

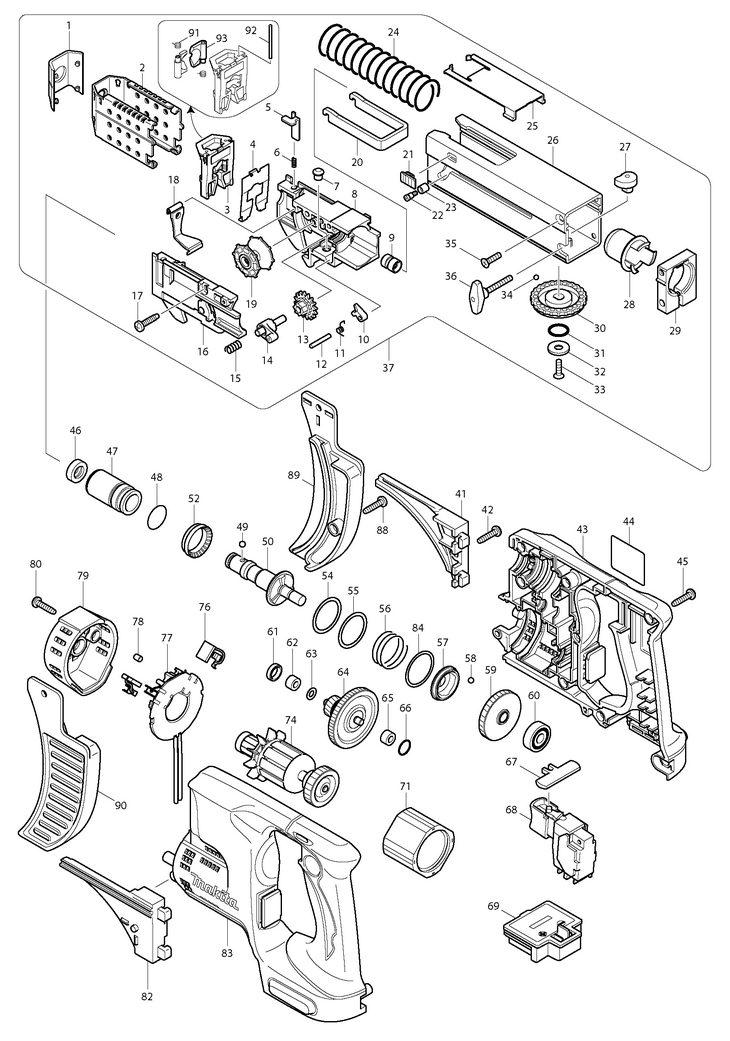

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CAPAC 6842 (424043-2) 2124 RON
2 1 1 PLACA DE FIXARE 55 6842 (345839-7) 297 RON
3 1 1 GUIDE BOX COMPLETE 6842 (140493-0) 9394 RON
4 1 1 GUARD 6842 (346269-5) 1565 RON
5 1 2 LEVER 6842 (345837-1) 446 RON
6 1 2 COMPRESSION SPRING 2 6842 (233211-4) 223 RON
7 1 1 STIFT 6 (256451-7) 105 RON
8 1 1 FEEDER BOX 6842 (450107-6) 2571 RON
9 1 1 MANSON 5 6842 (257685-5) 2347 RON
10 1 1 OPRITOR 6833/6834/6835D (310062-3) 2124 RON
11 1 1 ARC 4 6833/6834/6835D/6842 (231636-6) 558 RON
12 1 1 STIFT 3 (256158-5) 223 RON
13 1 1 ROATA DINTATA 16 6833/34/35D (226344-2) 1788 RON
14 1 1 BRAT 6842 (158374-4) 6822 RON
15 1 1 233212-2 - Indisponibil
16 1 1 PROTECTIE 6842 (158375-2) 297 RON
17 1 1 265995-6 - Indisponibil
18 1 1 CAPAC DE PRAF 6833/34/35D (162201-9) Indisponibil Indisponibil
19 1 1 ROATA ANTRENARE 6833/34/35D (416518-5) 2012 RON
20 1 1 PLATE 6842 (345838-9) 2795 RON
21 1 2 OPRITOR 6842 (450111-5) 1340 RON
22 1 1 SHOULDER FLAT HEAD SCREW M3X5 6842 (265177-0) 2012 RON
23 1 1 SLEEVE 4 6842 (257764-9) 1117 RON
24 1 1 COMPRESSION SPRING 23 6842 (234031-9) 1117 RON
25 1 1 CASING COVER 6842 (450114-9) 894 RON
26 1 1 CASING 55 COMPLETE 6842 (158377-8) 29191 RON
27 1 1 STIFT 6842 (310237-4) 2012 RON
28 1 1 INSULATION SLEEVE 6842 (450110-7) 105 RON
29 1 1 CLAMPER 6842 (318181-9) 4025 RON
30 1 1 SAIBA DE REGLARE 42 6833/34/35 (417056-0) 1117 RON
31 1 1 O RING 12 (213107-5) 334 RON
32 1 1 FLAT WASHER 6 6842 (267201-5) 670 RON
33 1 1 SURUB CU CAP CONIC M4X12 (912117-6) 894 RON
34 1 1 BILA OL 3.5 (216001-0) 558 RON
35 1 3 SURUB CU CAP CONIC M4X12 (912117-6) 894 RON
36 1 1 SURUB M4x28 6833-35D/BFR440 (265779-2) 781 RON
37 1 1 195184-8 - Indisponibil
41 1 1 GHIDAJ SET (188309-1) 3131 RON
42 1 1 265995-6 - Indisponibil
43 1 1 187475-1 - Indisponibil
44 1 1 815R47-7 - Indisponibil
45 1 9 265995-6 - Indisponibil
46 1 1 PROTECTIE DE PRAF 6830-35D/BFR440RF (421467-3) 781 RON
47 1 1 BUCSA GLISARE 14 BFR440RFE/6842 (214173-5) 2236 RON
48 1 1 O RING 18 (213262-3) 334 RON
49 1 1 BILA OL 3.5 (216001-0) 558 RON
50 1 1 ARBORE B 6842 (324808-1) 10065 RON
52 1 1 MANSON BFR440RFE/6842 (421927-5) 558 RON
54 1 1 Flat Washer 25 (267331-2) 558 RON
55 1 1 Flat Washer 25 (267331-2) 558 RON
56 1 1 COMPRESSEION SPRING 25 BFS451 (234017-3) 1229 RON
57 1 1 CUPLAJ C 6842 (223169-5) 10960 RON
58 1 3 BILA DE OL cod vechi 170213770 BILA OTEL 4MM (216008-6) 334 RON
59 1 1 ROATA DINTATA (226670-9) 1891 RON
60 1 1 RULMENT 608DDW cod vechi 210005-4 RULMENT 608 (211034-0) 1788 RON
61 1 1 MANSON CAUCIUC 10 (165115-1) 2348 RON
62 1 1 BUCSA LAGAR 5 (214017-9) 334 RON
63 1 1 SAIBA PLATA 5 (253811-4) 558 RON
64 1 1 Gear complete 18-44 (154937-4) 29191 RON
65 1 1 BUCSA LAGAR 5 (214017-9) 334 RON
66 1 1 O RING 10 (213055-8) 558 RON
67 1 1 INVERSOR DE SENS BFR440/6842 (419304-3) 1229 RON
68 1 1 INTRERUPATOR TG513SBA-2 (650670-1) 9170 RON
69 1 1 BLOC CONTACTE BCL142 (643850-6) 2347 RON
71 1 1 MAGNET STATOR (638426-2) 1615 RON
74 1 1 ARMATURE (619180-7) 15993 RON
76 1 1 PERII CARBON CB-440 cod vechi 194427-5 (195021-6) 2123 RON
77 1 1 SUPORT PERII (638433-5) 2012 RON
78 1 2 RUBBER PIN 4 (263032-0) 558 RON
79 1 1 FRONT COVER (419307-7) 2348 RON
80 1 2 265995-6 - Indisponibil
82 1 1 GHIDAJ SET (188309-1) 3131 RON
83 1 1 187475-1 - Indisponibil
84 1 1 Flat Washer 26 (267332-0) 334 RON
88 1 2 265995-6 - Indisponibil
89 1 1 GHIDAJ SET BFR440RFE/6842 (188310-6) 4025 RON
90 1 1 GHIDAJ SET BFR440RFE/6842 (188310-6) 4025 RON
91 1 2 TORSION SPRING 4 6842 (233567-5) 223 RON
92 1 2 STIFT 2 6842 (268188-4) 446 RON
93 1 2 GUIDE 6842 (310282-9) 1453 RON
94 1 1 125809-0 - Indisponibil
1001 1 1 Hook (281217-6) 2795 RON
1003 1 1 ***DC18RC - Indisponibil
1004 1 2 194065-3 - Indisponibil
1004 2 2 194065-3 - Indisponibil
1005 1 1 141352-1 - Indisponibil
1005 1 1 142077-0 - Indisponibil
1006 1 1 BATTERY COVER BDF451 (450128-8) 558 RON
1006 1 2 BATTERY COVER BDF451 (450128-8) 558 RON
1007 1 1 837631-0 - Indisponibil
1008 1 1 803W71-2 - Indisponibil
1008 1 1 803W73-8 - Indisponibil
1009 1 2 803W72-0 - Indisponibil
1009 1 2 803W74-6 - Indisponibil
5001 1 1 620122-6 - Indisponibil
5002 1 2 INEL FILTRU BDF448 (688172-7) 446 RON
