BSS611
[BSS611]
BSS611
Click pentru a mari
Imagini suplimentare
BSS611
Click pentru a mari

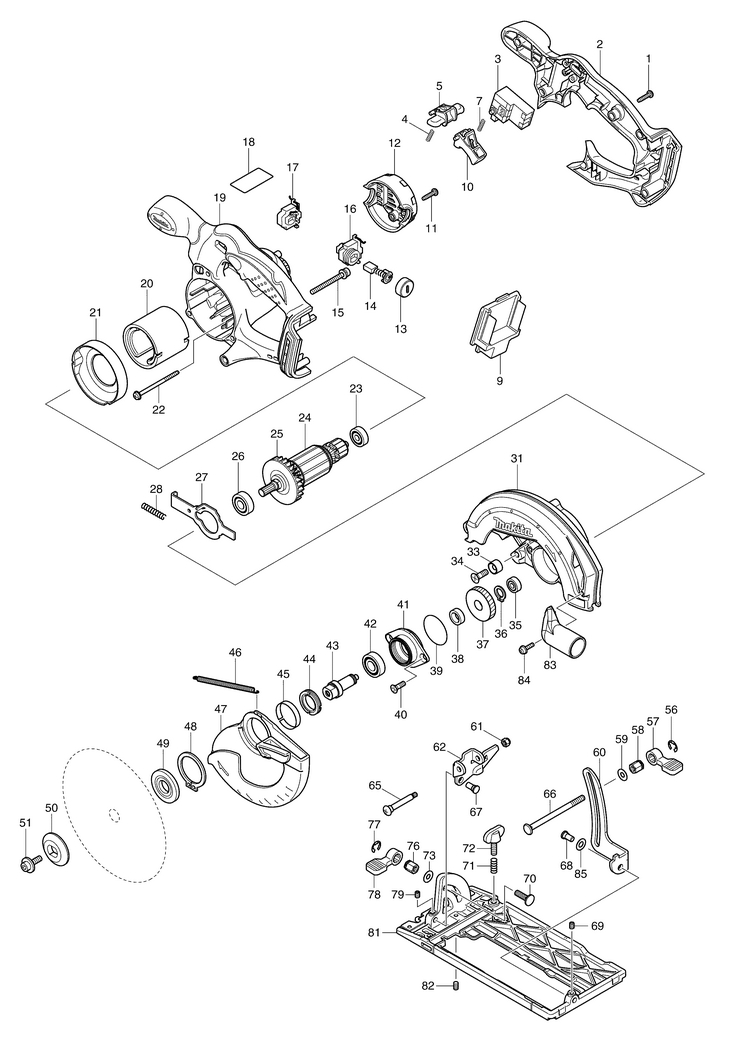

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 5 265995-6 - Indisponibil
2 1 1 450227-6 - Indisponibil
2 2 1 141472-1 - Indisponibil
3 1 1 651976-0 - Indisponibil
4 1 1 COMPRESSION SPRING 4 BSS610 (231469-9) 894 RON
5 1 1 Lock Off Lever (419664-3) 558 RON
7 1 1 COMPRESSION SPRING 4 BSS610 (231469-9) 894 RON
9 1 1 643812-4 - Indisponibil
9 2 1 TERMINAL BTD/BDF/BHP/BGA/BJR (643838-6) 3914 RON
9 3 1 643859-8 - Indisponibil
9 4 1 TERMINAL DHP458 (644808-8) 1788 RON
10 1 1 Switch Lever (419665-1) 558 RON
11 1 2 265995-6 - Indisponibil
12 1 1 CAPAC POSTERIOR (419281-9) 105 RON
13 1 2 CAPAC PERII (643829-7) 446 RON
14 1 1 PERII CARBON CB-429 cod vechi 191970-5 PERII CARBON CB432 cod vechi 191976-3 PERII CARBON CB-441 PERII CARBON CB-429 cod vechi 191970-5 (195022-4) 2683 RON
15 1 3 SURUB M5X40 (911263-2) 334 RON
16 1 1 643825-5 - Indisponibil
16 2 1 643884-9 - Indisponibil
17 1 1 643824-7 - Indisponibil
17 2 1 643885-7 - Indisponibil
18 1 1 864619-7 - Indisponibil
19 1 1 450226-8 - Indisponibil
19 2 1 141473-9 - Indisponibil
20 1 1 MAGNET STATOR DKP180 cod vechi 638571-3 (632H52-7) 6710 RON
21 1 1 DEFLECTOR (419285-1) 2124 RON
22 1 2 TAPPING SCREW M4X65 (266292-3) 781 RON
23 1 1 210045-2 - Indisponibil
24 1 1 510095-0 - Indisponibil
25 1 1 VENTILATOR 55 (241869-5) 782 RON
26 1 1 RULMENT 6000LLB (211061-7) 2012 RON
27 1 1 Shaft Lock (345659-9) 1564 RON
27 2 1 SHAFT LOCK BSS610 (346059-6) 893 RON
28 1 1 ARC COMPRESIE 6 cod vechi 233084-5 ARC COMPRESIE 5 (233092-6) 334 RON
31 1 1 158603-5 - Indisponibil
31 2 1 158603-5 - Indisponibil
33 1 1 INEL CAUCIUC 6 (262049-0) 334 RON
34 1 1 #NAME? (251368-9) 105 RON
35 1 1 210028-2 - Indisponibil
36 1 1 SAIBA DE SIGURANTA S-12 (961052-5) 558 RON
37 1 1 SPUR GEAR 52 COMPLETE (227156-6) 3354 RON
38 1 1 INEL 12 5604R (257173-2) 334 RON
39 1 1 O RING 39 (213512-6) 893 RON
40 1 2 SURUB M5X16 (265034-2) 558 RON
41 1 1 CARCASA RULMENT Complete (318009-1) 2235 RON
42 1 1 BALL BEARING 6001DDW DUC302Z (210109-2) 894 RON
43 1 1 ANSAMBLU ARBORE BSS610SF (324626-7) 9170 RON
44 1 1 FIXATOR DE RULMENT 19-29 (285845-9) 669 RON
45 1 1 THICKNESS RING (345469-4) 1564 RON
46 1 1 TENSION SPRING 3 BSS610 (231821-1) 1117 RON
47 1 1 APARATOARE BSS610SF (419286-9) 3130 RON
48 1 1 SAIBA DE SIGURANTA S-34 (961152-1) 670 RON
49 1 1 224412-5 - Indisponibil
49 2 1 FLANSA INTERIOARA 35 (224593-5) 1229 RON
50 1 1 FLANSA EXTERIOARA 35 HS6100 (224409-4) 105 RON
51 1 1 SURUB M6 (266133-3) 558 RON
56 1 1 INEL BLOCARE E-8 (961014-3) Indisponibil Indisponibil
57 1 1 PARGHIE 40 (272229-0) 1340 RON
58 1 1 HEX. NUT M6 BSS610SF (252158-3) 2235 RON
59 1 1 SAIBA PLATA 6 (941151-9) 558 RON
60 1 1 DEPTH GUIDE (345658-1) Indisponibil Indisponibil
61 1 1 PIULITA M5X8 SAIBA PLATA 5 cod vechi 253194-2, 252286-4 252103-8 (252286-4) 558 RON
62 1 1 ANGULAR GUIDE BSS610SF (345657-3) Indisponibil Indisponibil
65 1 1 SURUB CU CAP CONIC M5 (265056-2) 334 RON
66 1 1 SURUB CU CAP PLAT M6x90 (266194-3) 1788 RON
67 1 1 Shoulder Pin 6-7 (256480-0) 334 RON
68 1 1 Shoulder Pin 6-7 (256480-0) 334 RON
69 1 1 HEX. SOCKET HEAD SCREW M5x6 BSS610 (266264-8) 334 RON
70 1 1 SURUB CU CAP PATRAT M6X (251919-8) 334 RON
71 1 1 ARC COMPRESIE 6 (231007-7) 334 RON
72 1 1 SCREW M5x20 (251896-4) 105 RON
73 1 1 SAIBA PLATA 6 (941151-9) 558 RON
76 1 1 PIULITA HEXAGONALA M6 3901 (252133-9) 894 RON
77 1 1 INEL BLOCARE E-8 (961014-3) Indisponibil Indisponibil
78 1 1 LEVER 30 BSS610SF (272251-7) 105 RON
79 1 1 HEX. SOCKET HEAD SCREW M5x6 BSS610 (266264-8) 334 RON
81 1 1 PLACA DE BAZA (154832-8) 26954 RON
82 1 1 HEX. SOCKET SET SCREW M5x8 BSS610 (266229-0) 334 RON
83 1 1 DUST NOZZLE DSS611 (419283-5) 1565 RON
84 1 1 SURUB M4X12 (911118-1) 558 RON
85 1 1 SAIBA PLATA 7 SAIBA PLATA 7 SERIA HR2300-2611 cod vechi 267449-9 (253186-1) 558 RON
1001 1 1 164095-8 - Indisponibil
1002 1 1 ***DC18RA - Indisponibil
1002 2 1 ***DC18RC - Indisponibil
1003 1 2 194204-5 - Indisponibil
1003 2 2 194204-5 - Indisponibil
1003 3 2 194204-5 - Indisponibil
1003 4 2 194204-5 - Indisponibil
1004 1 1 BATTERY COVER BDF451 (450128-8) 558 RON
1005 1 1 783203-8 - Indisponibil
1006 1 1 824757-7 - Indisponibil
1006 2 1 141353-9 - Indisponibil
1007 1 1 806548-8 - Indisponibil
1008 1 1 D-26630 - Indisponibil
1008 2 1 D-51079 - Indisponibil
5001 1 1 620086-4 - Indisponibil
5001 2 1 620259-9 - Indisponibil
5002 1 1 LINE FILTER BFS451 (688163-8) 669 RON
