BBX7600
[BBX7600]
BBX7600
Click pentru a mari
Imagini suplimentare
BBX7600
Click pentru a mari
BBX7600
Click pentru a mari
BBX7600
Click pentru a mari
BBX7600
Click pentru a mari
BBX7600
Click pentru a mari
BBX7600
Click pentru a mari
BBX7600
Click pentru a mari
BBX7600
Click pentru a mari
BBX7600
Click pentru a mari
BBX7600
Click pentru a mari
BBX7600
Click pentru a mari
BBX7600
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara

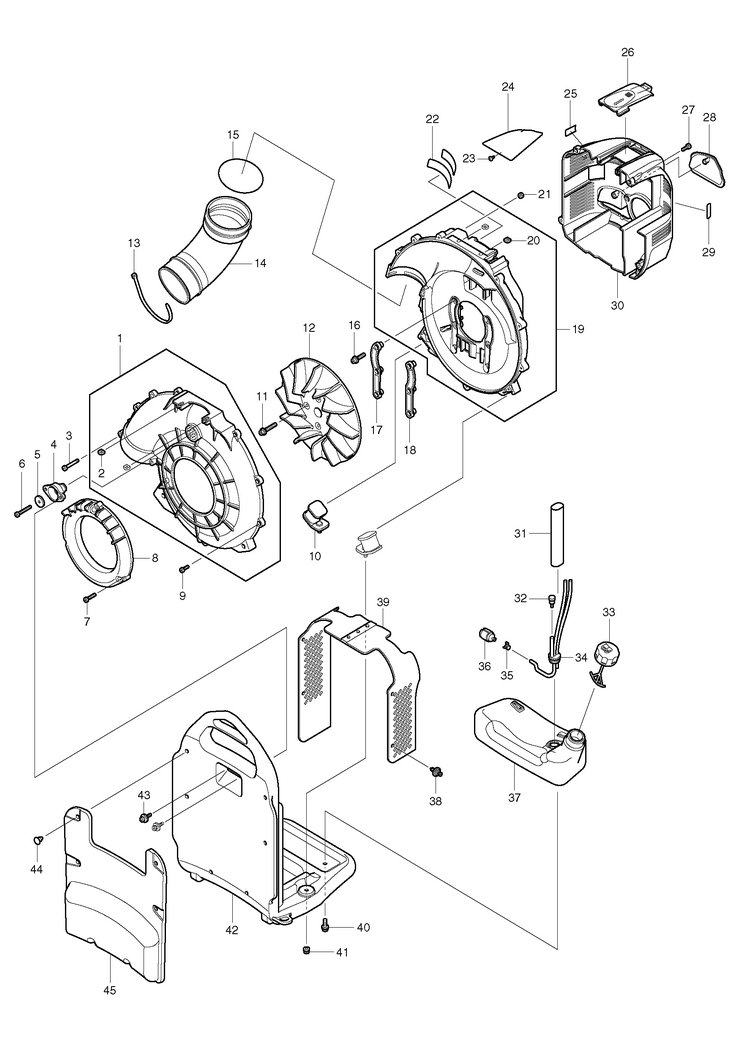

1 1 1 VOLUTE CASE 1 CPL. cod vechi 388100700 (6671007001) 24270 RON
1 2 1 VOLUTE CASE 1 CPL. cod vechi 388100700 (6671007001) 24270 RON
2 1 2 SQUARE NUT cod vechi 377100501 (6671005010) 670 RON
3 1 2 SCREW ASS%Y. cod vechi 377005922 (0140059220) 893 RON
4 1 1 DAMPER COMPL. cod vechi 377100200 (6671002000) 7493 RON
5 1 1 WASHER cod vechi 388005991 (0200059910) 781 RON
6 1 1 PAN HEAD SCREW cod vechi 377310540 (0043105400) 558 RON
7 1 3 TAPPING SCREW cod vechi 377005973 (0150059730) 558 RON
8 1 1 INLET COVER CPL. cod vechi 377100100 (6671001000) 5480 RON
9 1 9 TAPPING SCREW 5x16 (0150059760) 781 RON
9 2 9 SURUB AUTOFILETANT (0150059800) 558 RON
10 1 2 DAMPER COMPL cod vechi 368100300 (6671003000) 6262 RON
11 1 4 SOCKET HEAD BOLT cod vechi 377906969 (0119069690) 894 RON
12 1 1 IMPELLER COMPL cod vechi 377100401 (6671004000) 20467 RON
13 1 1 WIRE BAND (0563379990) 670 RON
14 1 1 ELBOW cod vechi 368150040 (6671500400) 4137 RON
15 1 1 O-RING cod vechi 377098999 (0240989990) 2571 RON
16 1 6 0119069680 - Indisponibil
17 1 1 BASE cod vechi 382150020 (6671500200) 3131 RON
18 1 1 BASE cod vechi 381150030 (6671500300) 3131 RON
19 1 1 VOLUTE CASE 2 ASSY. (6671008001) 23711 RON
19 2 1 VOLUTE CASE 2 ASSY. (6671008001) 23711 RON
20 1 2 SQUARE NUT cod vechi 377100501 (6671005010) 670 RON
21 1 2 NUT cod vechi 377005995 (0170059950) 558 RON
22 1 1 ETICHETA DE AVERTIZARE (0736289980) 2795 RON
22 2 1 892460-8 - Indisponibil
23 1 1 SURUB AUTOFILETANT (0150049820) 446 RON
24 1 1 MUFFLER GUARD cod vechi 388650070 (6676500700) 2236 RON
25 1 1 0736309870 - Indisponibil
26 1 1 CAPAC BHX2500 (6656500100) 1565 RON
27 1 4 TAPPING SCREW 5x16 (0150059760) 781 RON
27 2 4 SURUB AUTOFILETANT (0150059800) 558 RON
28 1 1 OIL GUARD cod vechi 382650010 (6676500100) 2124 RON
29 1 1 6419504300 - Indisponibil
30 1 1 6676500802 - Indisponibil
30 2 1 6676500803 - Indisponibil
30 3 1 6676500804 - Indisponibil
30 4 1 6676500805 - Indisponibil
31 1 1 0851159861 - Indisponibil
32 1 1 5316503300 - Indisponibil
33 1 1 BUSON REZERVOR BHX2500 (5926017000) 4137 RON
34 1 1 TUBE cod vechi 377133996 (0851339960) 5591 RON
35 1 1 CLEMA FIXARE RBC220/EM4250 (0561059990) 781 RON
36 1 1 FILTER (5806502900) 3019 RON
37 1 1 FUEL TANK CPL. (6673002001) 9730 RON
37 2 1 453618-0 - Indisponibil
38 1 4 ROCK RIVET cod vechi 377250030 (6672500300) 105 RON
39 1 1 GUARD CPL. cod vechi 388200200 (6672002000) 5368 RON
40 1 2 SCREW ASS%Y. cod vechi 377370612 (0043706120) 558 RON
41 1 2 PIULITA EVH2000 (0023706000) 334 RON
42 1 1 CARCASA COMPL. cod vechi 377200100 (6672001000) 24829 RON
43 1 2 SCREW ASS%Y. cod vechi 377005921 (0140059210) 670 RON
44 1 6 ROCK RIVET cod vechi 388250020 (6672500200) 1117 RON
45 1 1 6672500000 - Indisponibil
45 2 1 CUSHION CPL (6672003000) 10065 RON

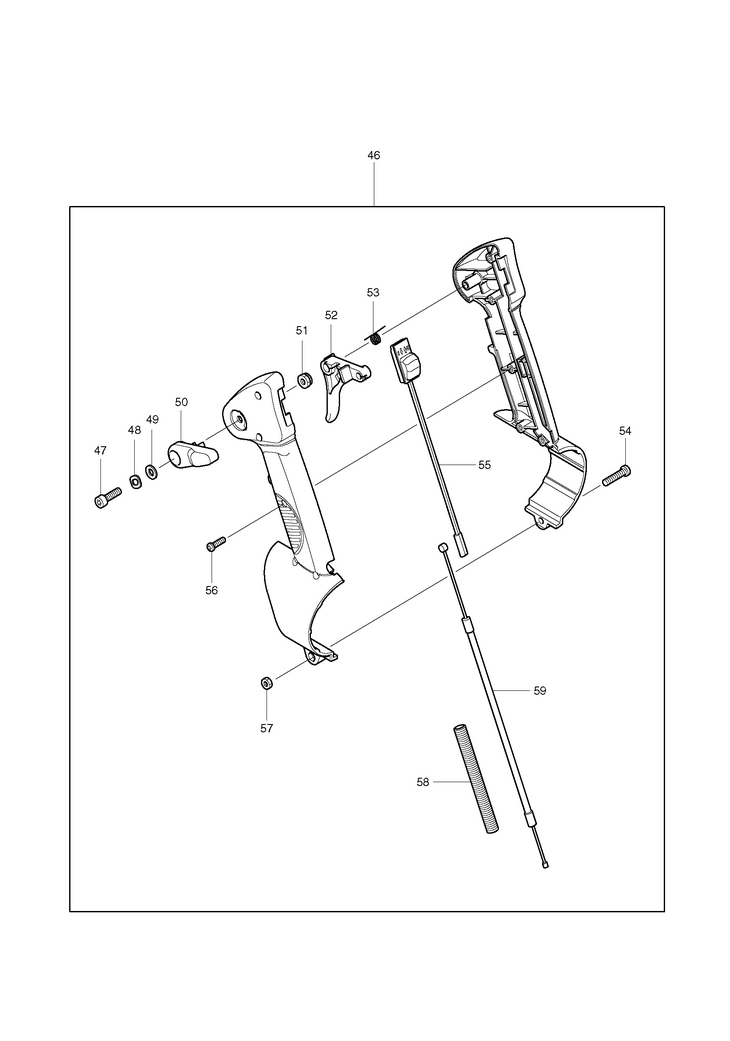

46 1 1 CONTROL LEVER ASSY (6675001001) 26843 RON
46 2 1 6675001002 - Indisponibil
47 1 1 SOCKET HEAD BOLT cod vechi 377500101 (6675001010) 781 RON
48 1 1 SAIBA ARCUITA (0032206000) 670 RON
49 1 1 0031106000 - Indisponibil
50 1 1 THROTTLE LEVER (6625500701) 1677 RON
51 1 1 NUT cod vechi 377006996 (0170069960) 670 RON
52 1 1 THROTTLE LEVER (6625500601) 1788 RON
53 1 1 SPRING (6625500901) 670 RON
54 1 1 SURUB cod vechi 377500103 (6675001030) 670 RON
55 1 1 ANS. INTRERUPATOR cod vechi 388500400 (6675004000) 382 RON
56 1 5 TAPPING SCREW cod vechi 377500102 (6675001020) 670 RON
57 1 1 NUT cod vechi 377005995 (0170059950) 558 RON
58 1 1 CABLE TUBE cod vechi 377550000 (6675500001) 2571 RON
59 1 1 CONTROL CABLE cod vechi 377013982 (0630139820) 5144 RON

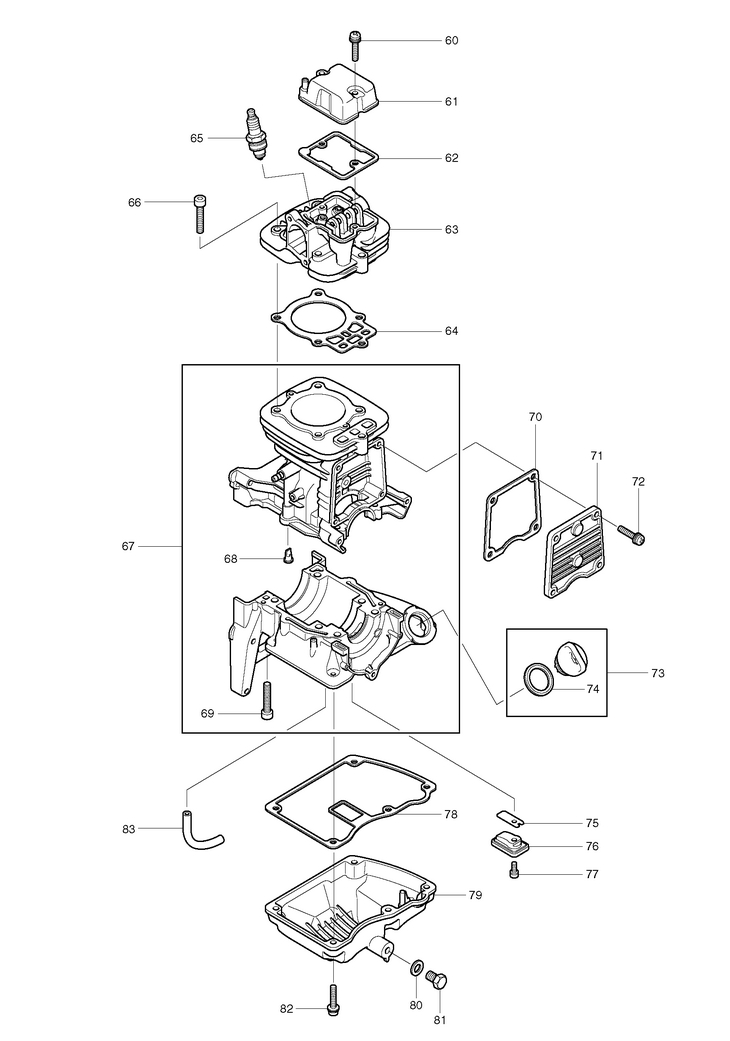

60 1 2 SURUB RST250/BHX2500 (0043605300) 558 RON
60 2 2 SURUB INBUS M5x30 DBC260U cod vechi 0119059570 (266789-2) 893 RON
61 1 1 5971500700 - Indisponibil
62 1 1 ROCKER GASKET COVER cod vechi 377150090 (5971500900) 105 RON
62 2 1 ROCKER GASKET COVER cod vechi 377150090 (5971500900) 105 RON
63 1 1 CYLINDER HEAD CPL. (5971003001) 334 RON
64 1 1 5971500502 - Indisponibil
64 2 1 5971500502 - Indisponibil
65 1 1 BUJIE EM4250/DCS230T/BHX2 cod vechi 0650109950 BUJIE NGK CMR6A BUJIE NGK CMR7A-5 EA4300 cod vechi 965603040 (965603030) 8163 RON
65 2 1 168401-9 - Indisponibil
66 1 5 SOCKET HEAD BOLT cod vechi 377906967 (0119069670) 670 RON
67 1 1 5971007000 - Indisponibil
68 1 2 VALVA /BHX2500 (5921501800) 1341 RON
69 1 6 SURUB INBUS cod vechi 377906993 (0119069930) 558 RON
70 1 1 5971500800 - Indisponibil
70 2 1 5971500800 - Indisponibil
71 1 1 5971500600 - Indisponibil
72 1 4 SURUB M5X16 (0043605160) 558 RON
72 2 4 SURUB INBUS M5x16(W.SW) cod vechi 0119059531 (266813-1) 670 RON
73 1 1 OIL CAP ASSY cod vechi 377600500 (6676005000) 2348 RON
74 1 1 GARNITURA cod vechi 377322998 (0213229980) 1788 RON
75 1 1 VALVA /BHX2500 (5921501000) 2347 RON
76 1 1 RETAINER PLATE cod vechi 368150130 (5931501300) 1341 RON
77 1 1 SURUB INBUS M4X10 SURUB INBUS cod vechi 367904998 (0119049980) 446 RON
78 1 1 OIL CASE GASKET cod vechi 368650010 (5976500100) 2683 RON
79 1 1 OIL CASE cod vechi 377650000 (5976500000) 765 RON
80 1 1 GARNITURA cod vechi 377700800 (0037008000) 782 RON
81 1 1 BOLT cod vechi 377660812 (0016608120) 558 RON
82 1 5 0140059680 - Indisponibil
82 2 5 SURUB M5X25 (0119059390) 446 RON
83 1 1 TUBE cod vechi 377110996 (0851109960) 782 RON
84 1 1 PISTON RING SET cod vechi 368200300 (5972003000) Indisponibil Indisponibil
85 1 1 5972500001 - Indisponibil
85 2 1 PISTON (5972500002) 11631 RON
85 3 1 PISTON (318726-3) 9282 RON
86 1 1 0440179910 - Indisponibil
87 1 1 5802500701 - Indisponibil
88 1 2 0565119990 - Indisponibil
89 1 1 RULMENT CU ACE cod vechi 377012994 (0610129940) 3242 RON
90 1 1 WOODRUFF KEY (0323049950) 894 RON
91 1 1 5972500800 - Indisponibil
92 1 1 0440209890 - Indisponibil
93 1 1 5972002001 - Indisponibil

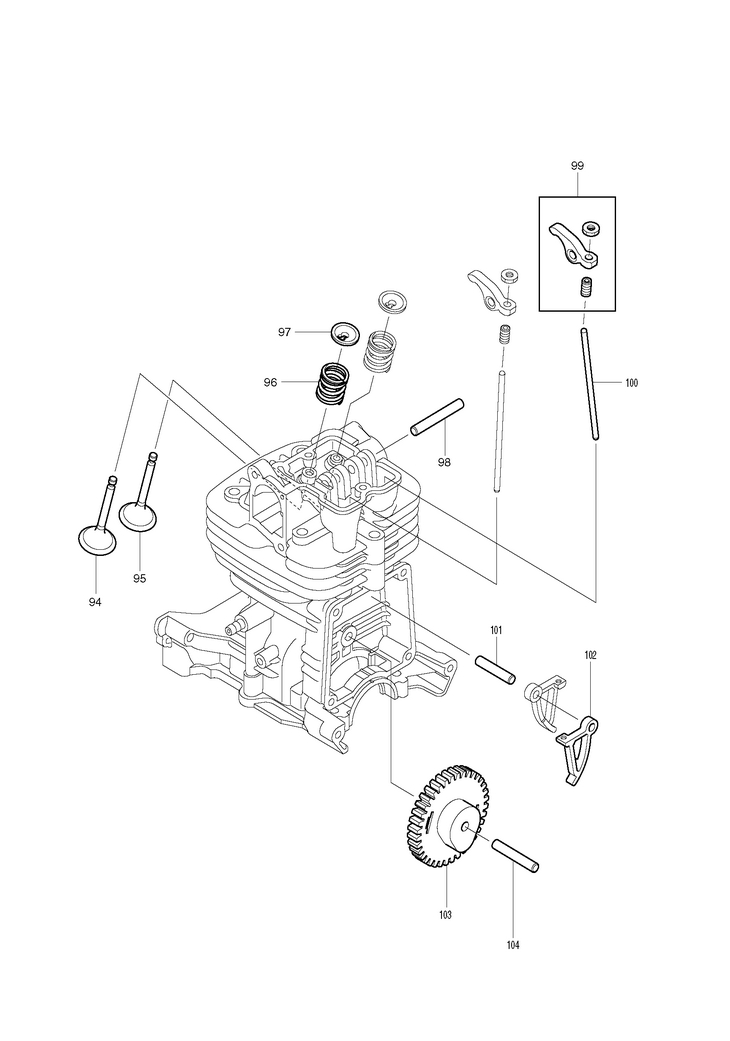

94 1 1 INTAKE VALVE (5973500100) Indisponibil Indisponibil
95 1 1 5973500200 - Indisponibil
95 2 1 5973500201 - Indisponibil
95 3 1 EXHAUST VALVE (5973500202) Indisponibil Indisponibil
96 1 2 VALVE SPRING (5973500301) 894 RON
97 1 2 SPRING RETAINER (5973500400) 1677 RON
97 2 2 SAIBA RETINERE (331966-6) 782 RON
98 1 1 5973500500 - Indisponibil
99 1 2 5973004000 - Indisponibil
99 2 2 ANSAMBLU TACHET (126005-3) 7493 RON
100 1 2 PUSH ROD (5973500800) 670 RON
100 2 2 TIJA (256526-2) 105 RON
101 1 1 SHAFT cod vechi 377350070 (5973500700) 781 RON
102 1 2 CAM LIFTER cod vechi 368350060 (5973500601) 3131 RON
102 2 1 CAM LIFTER cod vechi 368350060 (5973500601) 3131 RON
103 1 1 5973002001 - Indisponibil
103 2 1 CAMGEAR ASSY cod vechi 383300200 (5973002002) 16664 RON
104 1 1 PARGHIE BHX2500 (5933500100) 781 RON

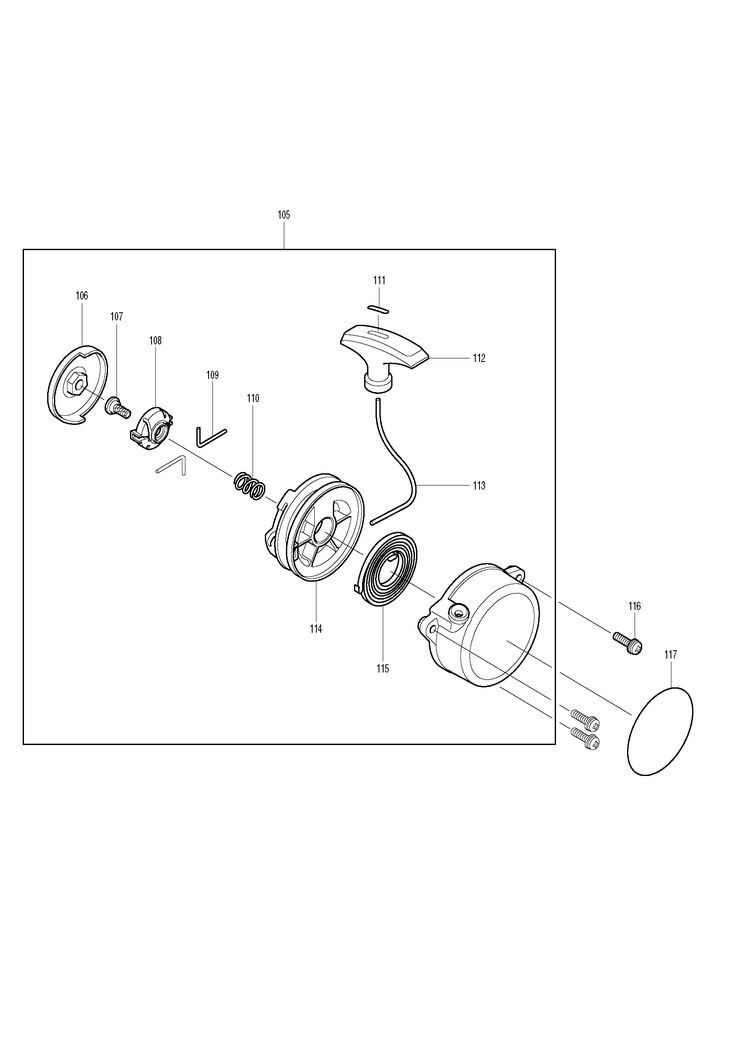

105 1 1 STARTER REWIND cod vechi 382500101 (5975001000) 15210 RON
106 1 1 PULLEY cod vechi 382550000 (5975500000) 2795 RON
107 1 1 SURUB BHX2500 (5195002060) 190 RON
108 1 1 5975002040 - Indisponibil
109 1 2 5975002050 - Indisponibil
110 1 1 5975002030 - Indisponibil
111 1 1 OPRITOR EPH1000 (5315001030) 558 RON
112 1 1 5315001020 - Indisponibil
113 1 1 SFOARA DE START cod vechi 377500211 (5975002110) 2348 RON
114 1 1 5975002020 - Indisponibil
115 1 1 5255040030 - Indisponibil
116 1 3 ANS. SURUB DBC260U cod vechi 0140059360 (266788-4) 558 RON
117 1 1 6679500702 - Indisponibil

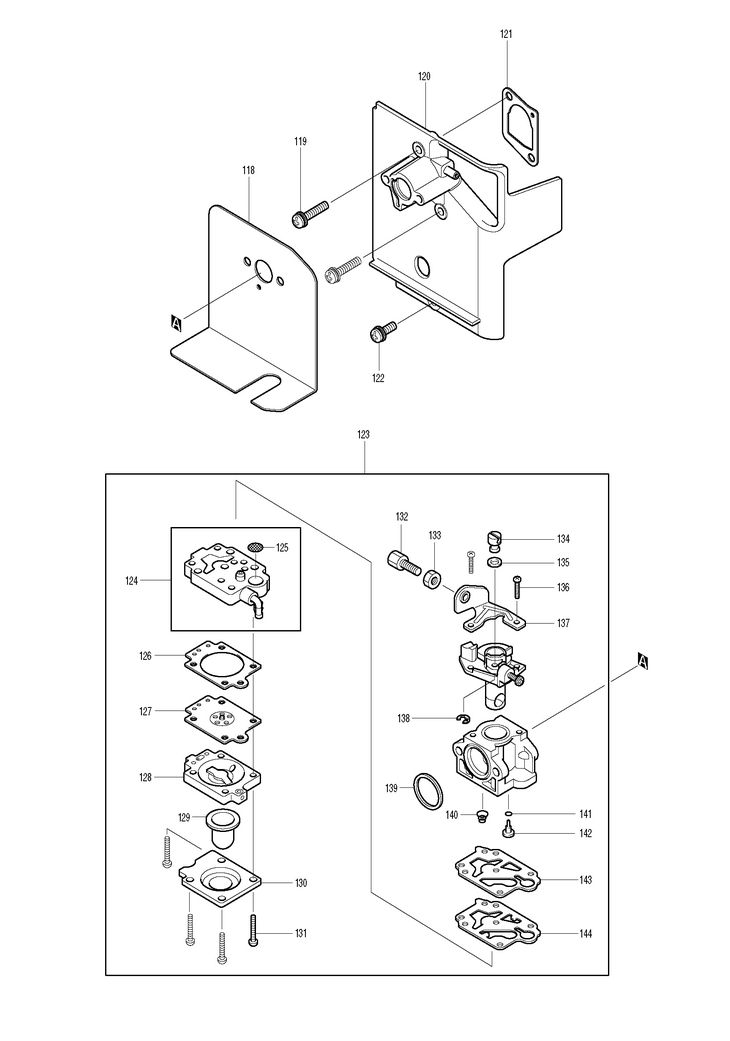

118 1 1 CARBURETOR GASKET cod vechi 377350120 (5973501200) 1677 RON
119 1 2 0140059680 - Indisponibil
119 2 2 SURUB M5X25 (0119059390) 446 RON
119 3 2 SURUB INBUS M5X25 DBC260U cod vechi 0119059640 (266793-1) 670 RON
120 1 1 INSULATOR CPL. cod vechi 377300900 (5973009001) 4585 RON
121 1 1 INSULATOR GASKET (5973501100) 670 RON
121 2 1 INSULATOR GASKET (162333-2) 894 RON
122 1 1 SURUB cod vechi 367360514 (0043605140) 446 RON
122 2 1 SURUB INBUS M5X14 (W SW) RBC2500 (0119059490) 558 RON
123 1 1 CARBURETOR cod vechi 377600100 (5976001000) 51897 RON
124 1 1 BODY PUMP ASSEMBLY cod vechi 377600101 (5976001010) 16441 RON
124 2 1 BODY PUMP ASSEMBLY cod vechi 377600101 (5976001010) 16441 RON
125 1 1 VIZOR INTERIOR BHX (5016004010) 2012 RON
126 1 1 MEMBRANA /BHX2500 (5236046040) 3018 RON
127 1 1 MEMBRANA BHX2500 (5926008010) 956 RON
128 1 1 CORP POMPA AMORSARE CARBURATOR (5236046140) 8388 RON
129 1 1 BALON POMPA AMORSARE /BHX2500 (5246001150) 2571 RON
130 1 1 CAPAC POMPA AMORSARE BHX2500 (5236046050) 3019 RON
131 1 4 SURUB CAPAC POMPA BHX2500 (5236046010) 1453 RON
132 1 1 ADJUST SCREW RBC420E (5216008010) 2235 RON
133 1 1 ADJUST NUT RBC2500 (5316005450) 1229 RON
134 1 1 PIVOT BHX (5236018040) 3242 RON
135 1 1 SAIBA BHX2500 (5426005030) 190 RON
136 1 2 THROTTLE COLLAR SCREW RBC2500 (5246001240) 1676 RON
137 1 1 BRACKET CABLE RBC2500 (5236052020) 5031 RON
138 1 1 INEL /BHX (5316005120) 2124 RON
139 1 1 RING PACKING RBC2500 (5236018020) 2459 RON
140 1 1 ARC PT. POMPA BHX2500 (5926002020) 2012 RON
141 1 1 O RING (5246001010) 2235 RON
142 1 1 JET cod vechi 377600102 (5976001020) 3131 RON
143 1 1 GARNITURA BHX2500 (5926002040) 2012 RON
144 1 1 MEMBRANA POMPA EBH252U cod vechi 168575-6 MEMBRANA BHX2500 PUMP DIAPHRAGM (WJ00009599) Indisponibil Indisponibil

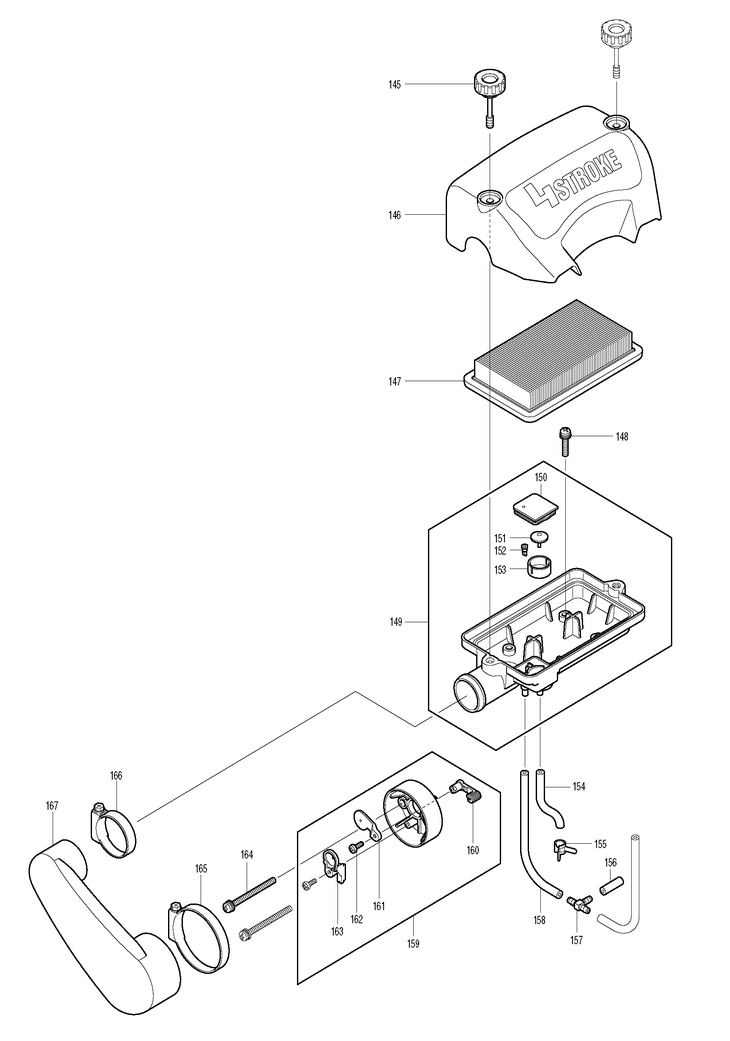

145 1 2 KNOB BOLT cod vechi 377650120 (6676501200) 297 RON
146 1 1 FILTER COVER cod vechi 377600200 (6676002002) 9059 RON
146 2 1 FILTER COVER cod vechi 377600200 (6676002002) 9059 RON
147 1 1 AIR FILTER cod vechi 377650020 (6676500201) 9170 RON
147 2 1 AIR FILTER cod vechi 377650020 (6676500201) 9170 RON
148 1 4 SURUB M5X16 (0043605160) 558 RON
149 1 1 6676003001 - Indisponibil
149 2 1 FILTER HOUSING cod vechi 388600300 (6676003002) 15881 RON
149 3 1 FILTER HOUSING cod vechi 388600300 (6676003002) 15881 RON
150 1 1 6676500600 - Indisponibil
150 2 1 SEPARATOR PLATE cod vechi 377650130 (6676501300) 3578 RON
151 1 1 VENTIL /BHX2500 (5316500701) 1676 RON
152 1 1 VALVA DE CONTROL BHX2500 (5923502400) 2236 RON
153 1 1 CHECK PLATE VALVE cod vechi 377650050 (6676500500) 1453 RON
153 2 1 CHECK PLATE VALVE cod vechi 377650050 (6676500500) 1453 RON
154 1 1 0851139920 - Indisponibil
155 1 1 0561079990 - Indisponibil
156 1 1 0851029930 - Indisponibil
157 1 1 5973502200 - Indisponibil
158 1 2 TUBE cod vechi 377119996 (0851199960) 1341 RON
159 1 1 INTAKE CASE ASS%Y. cod vechi 377300600 (5973006000) 382 RON
160 1 1 PARGHIE DE SOC cod vechi 377350180 (5973501800) 782 RON
161 1 1 CHOKE PLATE cod vechi 388350170 (5973501700) 782 RON
162 1 2 TAPPING SCREW cod vechi 377300601 (5973006010) 670 RON
163 1 1 INTAKE PLATE cod vechi 377350190 (5973501900) 782 RON
164 1 2 0043605650 - Indisponibil
165 1 1 HOSE CLAMP cod vechi 377167999 (0561679990) 1565 RON
166 1 1 HOSE CLAMP cod vechi 377143999 (0561439990) 1453 RON
167 1 1 AIR DUCT CLEANER cod vechi 377650040 (6676500400) 7940 RON
167 2 1 AIR DUCT CLEANER cod vechi 377650040 (6676500400) 7940 RON
168 1 1 MUFFLER GASKET cod vechi 377350130 (5973501301) 573 RON

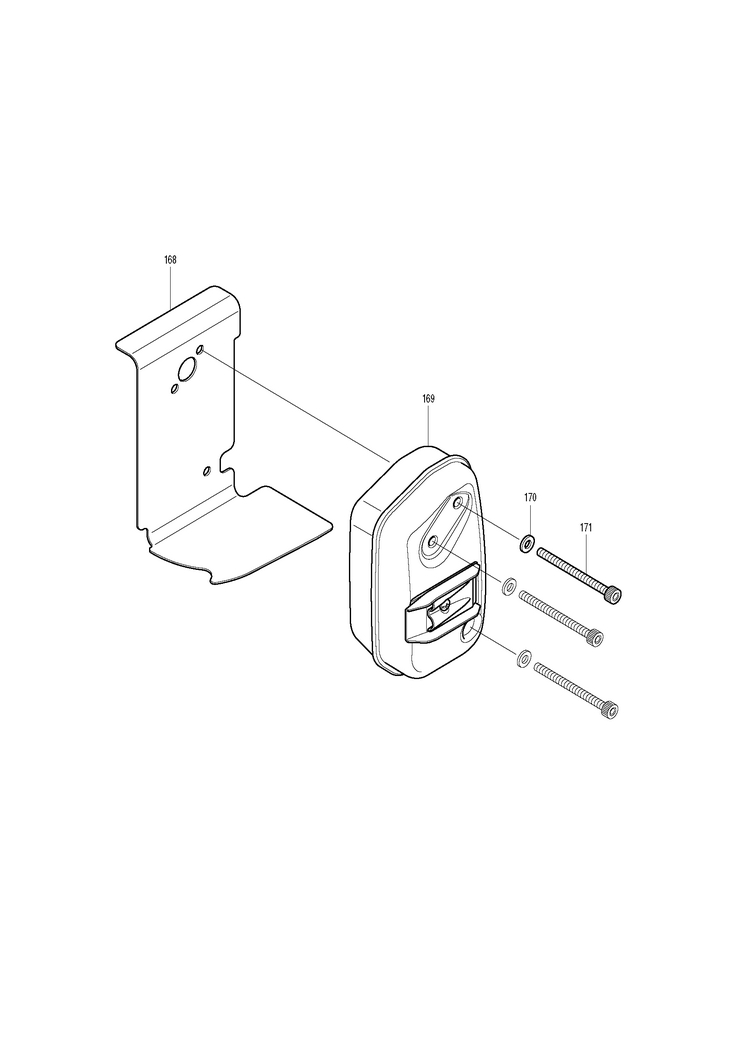

169 1 1 5973001001 - Indisponibil
169 2 1 5973001002 - Indisponibil
170 1 3 WASHER cod vechi 377006989 (0200069890) 670 RON
171 1 3 SOCKET HEAD BOLT cod vechi 377906965 (0119069650) 105 RON
172 1 1 FISA BUJIE BHX2500 (5927500100) 670 RON
173 1 1 ARC FIXARE CABLU BUJIE cod vechi 0654009931 PLUG CAP SPRING EM2651UH (324891-8) 446 RON
174 1 2 SURUB INBUS M4X20 RBC3101 EVH2000 SURUB M4X20 WG EBH252/253 MS245.4 BUR181 cod vechi 911139-3 SURUB M4X20 WG EBH252/253 MS245.4 BUR181 cod vechi 911139-3 (Duplicat_0119049970) 446 RON
175 1 1 Wire 1 RBC2500 (6165500201) 1564 RON
176 1 1 CONDUCTOR ELECTRIC 2 BHX2500 (5927011000) 1565 RON
177 1 1 BOBINA DE INDUCTIE cod vechi 377700101 (5977001010) 18118 RON
178 1 1 ANSAMBL VOLANTA cod vechi 377700102 (5977001020) 11631 RON
179 1 1 0023710000 - Indisponibil

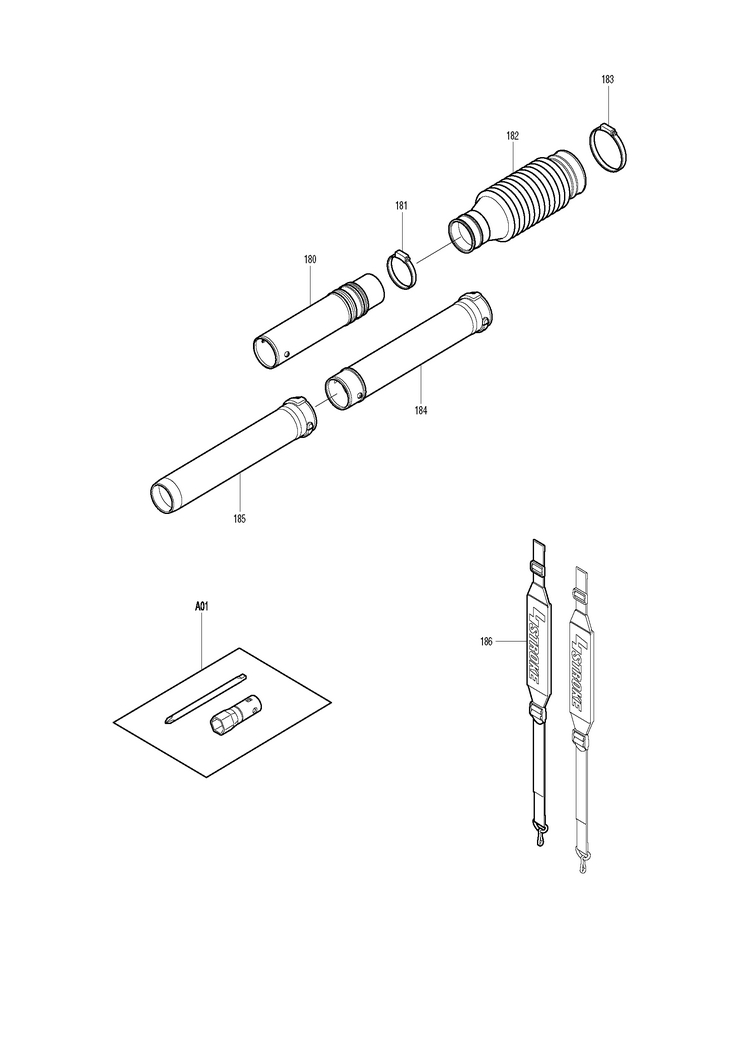

180 1 1 SWIVEL PIPE CPL. cod vechi 377900200 (6679002000) 8388 RON
181 1 1 HOSE CLAMP cod vechi 377176999 (0561769990) 1677 RON
182 1 1 FLEXIBLE PIPE cod vechi 377950000 (6679500000) 9953 RON
183 1 1 HOSE CLAMP cod vechi 377100999 (0561009990) 190 RON
184 1 1 6679501801 - Indisponibil
185 1 1 6679501900 - Indisponibil
186 1 2 BAND CPL. cod vechi 388900100 (6679001000) 11743 RON
187 1 1 5973502300 - Indisponibil
188 1 1 6672500400 - Indisponibil
189 1 2 ROCK RIVET cod vechi 377250030 (6672500300) 105 RON
190 1 1 6676501500 - Indisponibil
191 1 1 6676501600 - Indisponibil
192 1 1 6676501700 - Indisponibil
1001 1 1 6909059000 - Indisponibil

Conditii Generale
