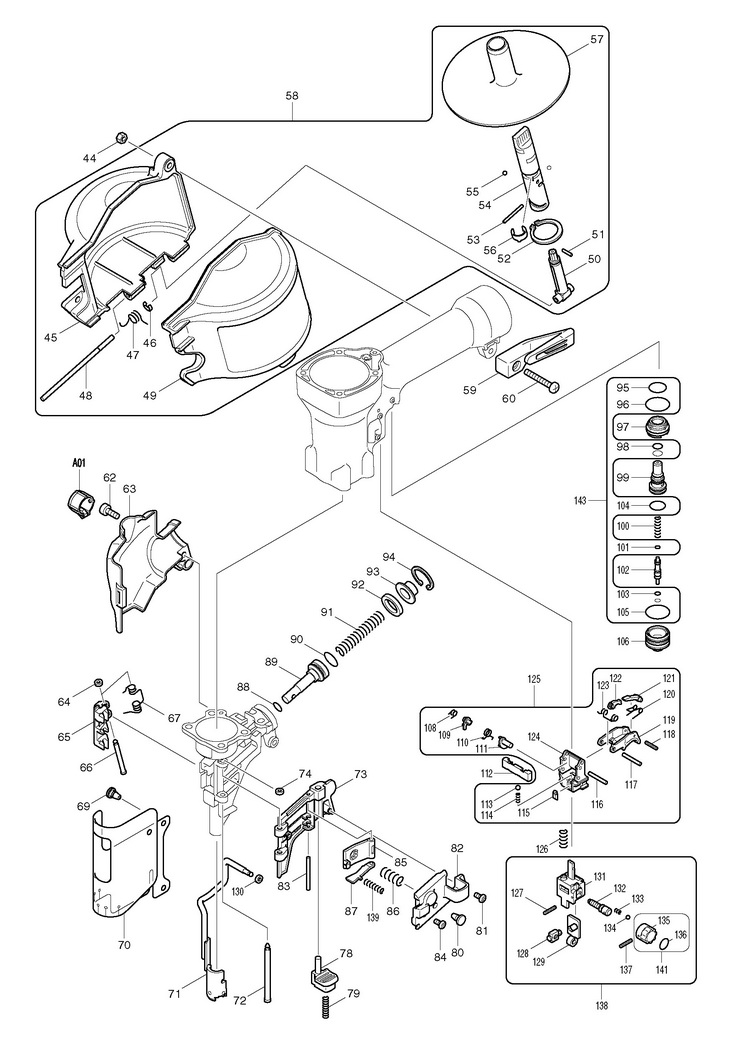

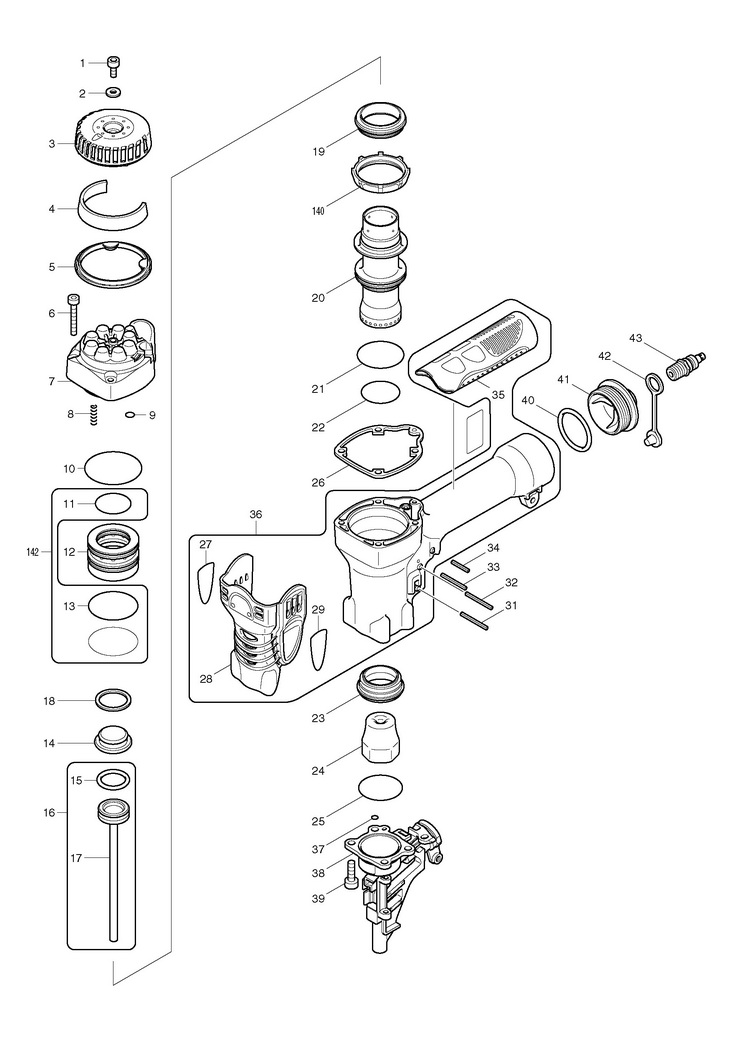

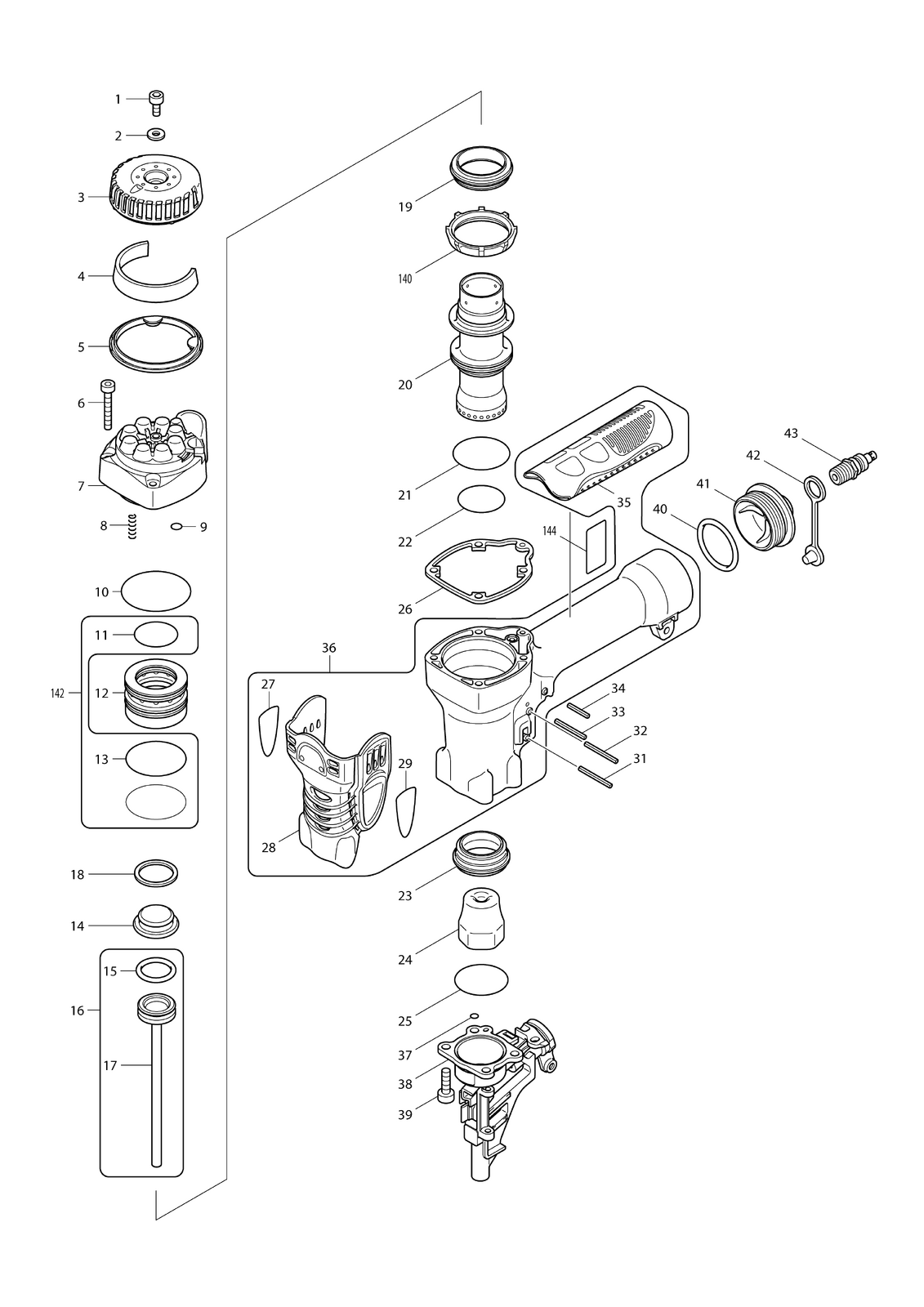

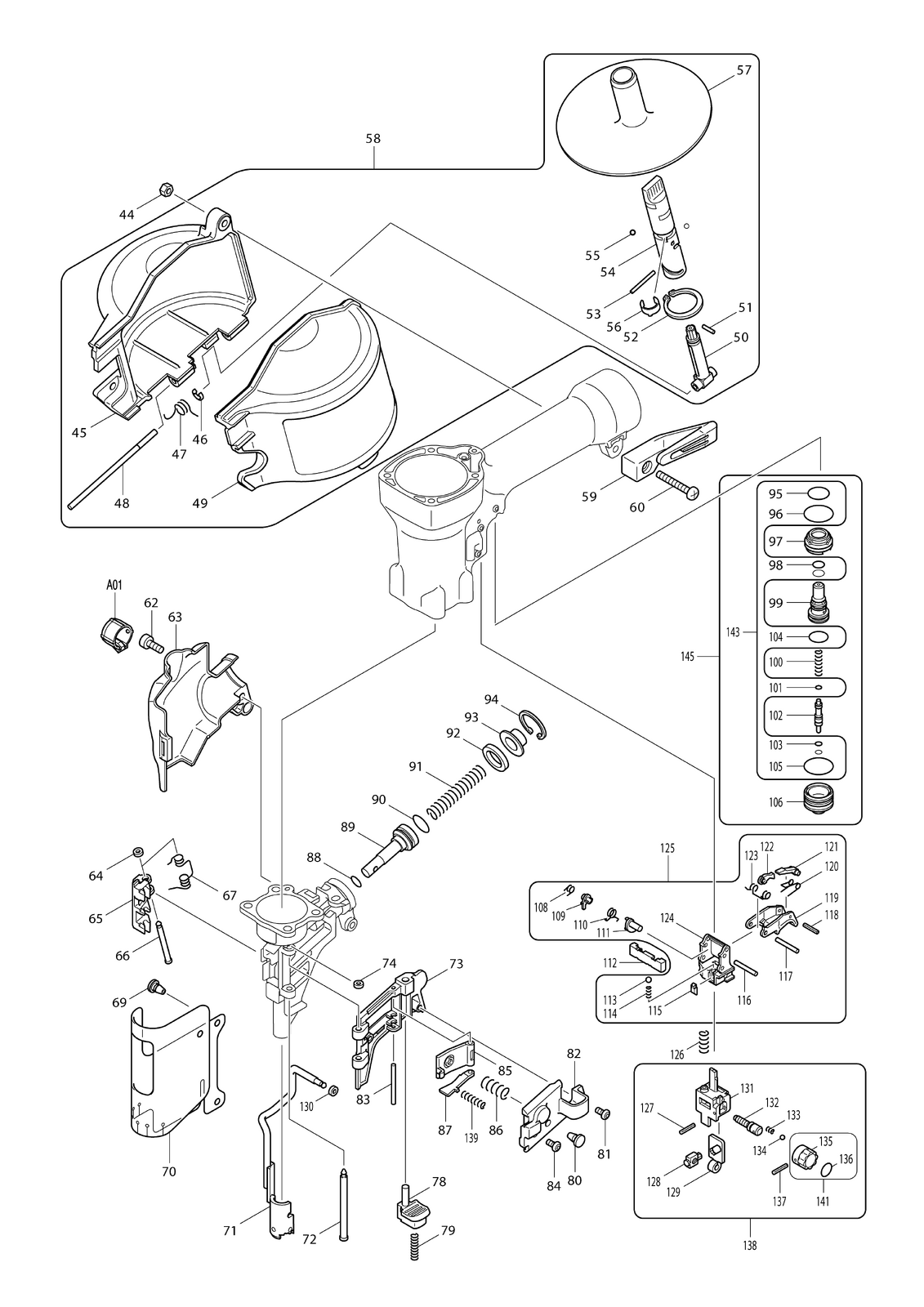

Top » Piese de schimb » PIESE MAKITA » Masini diverse si pneumatice » AN620H AN620H [AN620H] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 SURUB INBUS M5 (922212-4) 334 RON 2 1 1 267343-5 - Indisponibil 3 1 1 419734-8 - Indisponibil 4 1 1 FILTER AN610H (413103-5) 2124 RON 5 1 1 COVER SEAL (419735-6) 894 RON 6 1 4 HEX. SOCKET HEAD BOLT M5X35 AN450H (922257-2) 334 RON 7 1 1 TOP CAP AN620H/610H (318109-7) 26060 RON 8 1 8 COMPRESSION SPRING 4 AN711H (233484-9) 782 RON 9 1 1 O RING 5 (213021-5) 558 RON 10 1 1 O RING 50 (213604-1) 446 RON 11 1 1 213447-1 - Indisponibil 11 2 1 O RING 30 (213423-5) 446 RON 12 1 1 HEAD VALVE AN450H cod 419736-2 (419736-4) 8723 RON 13 1 2 O RING 42 (213558-2) 334 RON 14 1 1 REAR CUSHION AN610H (421983-5) 10177 RON 15 1 1 O RING 22.5 (213967-5) 4249 RON 16 1 1 DRIVER ASSY (135174-9) 58496 RON 17 1 1 DRIVER AN620H (168454-8) 43284 RON 18 1 1 FLAT WASHER 26 (267342-7) 334 RON 19 1 1 VALVE SEAT AN450H (421981-9) 6486 RON 20 1 1 CYLINDER (331740-2) 16888 RON 21 1 1 O RING 40 (213509-5) 334 RON 22 1 1 O RING 34 (213475-6) 334 RON 23 1 1 CYLINDER GUIDE AN620H/610H (324742-5) 6710 RON 24 1 1 FRONT CUSHION AN610H (421982-7) 2683 RON 25 1 1 O RING 38 (213528-1) 670 RON 26 1 1 TOP CAP GASKET AN620H/450H (162246-7) 382 RON 27 1 1 819321-7 - Indisponibil 29 1 1 819322-5 - Indisponibil 31 1 1 SPRING PIN AN250HC (951078-5) 223 RON 32 1 1 SPRING PIN AN250HC (951078-5) 223 RON 33 1 1 SPRING PIN 3-30 (258029-2) 334 RON 34 1 1 SPRING PIN 3-20 AN250HC (951069-6) 223 RON 36 1 1 HOUSING SET AN610H (188604-9) 86793 RON 37 1 1 O RING 4 (213970-6) 446 RON 38 1 1 DRIVER GUIDE AN620H (310251-0) 87017 RON 39 1 4 922332-4 - Indisponibil 40 1 1 O RING 36 AN621 cod vechi 213521-5 (213506-1) 558 RON 41 1 1 INLET CAP AN250 AN510 AN911 (318108-9) 21138 RON 42 1 1 CAP 9 (286280-4) 670 RON 43 1 1 ONE TOUCH JOINT (243105-5) 6822 RON 44 1 1 264008-0 - Indisponibil 45 1 1 419737-2 - Indisponibil 45 2 1 MAGAZINE AN610H (453103-3) 4697 RON 46 1 1 STOP RING E-3 (259042-3) 111 RON 47 1 1 TORSION SPRING 8 (233504-9) 782 RON 48 1 1 256773-5 - Indisponibil 49 1 1 MAGAZINE CAP COMPLETE (158918-0) 11631 RON 50 1 1 ADJUST SHAFT (419747-9) 670 RON 51 1 1 PIN 2.5 AN620H/610H (268166-4) 334 RON 52 1 1 SAIBA DE SIGURANTA S-25 (961105-0) 446 RON 53 1 1 PIN 2.5 (268167-2) 446 RON 54 1 1 ADJUST SLEEVE (419746-1) 894 RON 55 1 2 BILA OL 3.5 (216001-0) 558 RON 56 1 1 LEAF SPRING (232233-1) 334 RON 57 1 1 CHANGE PLATE (419745-3) 105 RON 58 1 1 135256-7 - Indisponibil 58 2 1 MAGASINE ASSY AN620H (135499-1) 21921 RON 59 1 1 419739-8 - Indisponibil 60 1 1 911257-7 - Indisponibil 62 1 1 SURUB INBUS M5 (922212-4) 334 RON 63 1 1 CONTACT ARM COVER AN620H (419740-3) 1341 RON 64 1 1 URETHANE RING 6 (262120-0) 334 RON 65 1 1 FEEDING CLAW AN620H (310195-4) 13197 RON 66 1 1 PIN 4.5 AN620H (268165-6) 670 RON 67 1 1 TORSION SPRING 6 (231632-4) 1565 RON 69 1 1 RUBBER PIN 9.5 (421418-6) 670 RON 70 1 1 COVER AN620H (413104-3) 2795 RON 71 1 1 CONTACT ARM AN620H (165492-1) 21921 RON 72 1 1 256772-7 - Indisponibil 73 1 1 DOOR AN620H (310193-8) 25053 RON 74 1 1 URETHANE RING 6 (262120-0) 334 RON 78 1 1 LOCK LEVER (162247-5) 1341 RON 79 1 1 COMPRESSION SPRING 5 AN711H (233486-5) 558 RON 80 1 1 RUBBER PIN 9.5 (421418-6) 670 RON 81 1 1 266419-5 - Indisponibil 82 1 1 DOOR COVER AN620H (419741-1) 1341 RON 83 1 1 PIN 3 AN620H (268164-8) 558 RON 84 1 1 266419-5 - Indisponibil 85 1 1 NAIL HOLDER AN620H (310194-6) 11631 RON 86 1 1 COMPRESSION SPRING 8 AN620H (233487-3) 446 RON 87 1 1 CHECK CLAW AN620H (345774-9) 334 RON 88 1 1 O RING 9 AN901 (213054-0) 558 RON 89 1 1 PISTON AN620H (324744-1) 2683 RON 90 1 1 O RING 14 KP312S (213154-6) 111 RON 91 1 1 COMPRESSION SPRING 9 AN621 (233198-0) 558 RON 92 1 1 RUBBER RING 16 (262075-9) 446 RON 93 1 1 CUP WASHER 5 (344452-8) 105 RON 94 1 1 RETAINING RING R-24 EM2651UH (962103-7) 446 RON 95 1 1 O RING 15 (213233-0) 334 RON 96 1 1 O RING 18 HR4011C/4010C (213275-4) 334 RON 97 1 1 TRIGGER VALVE GUIDE AN450H (419732-2) 223 RON 98 1 2 O RING 7 (213968-3) 1117 RON 99 1 1 419733-0 - Indisponibil 100 1 1 COMPRESSION SPRING 4 AN510H (233485-7) 894 RON 101 1 1 O RING 3 DA3011F (213034-6) 111 RON 101 2 1 O RING 3 (213044-3) 334 RON 102 1 1 324743-3 - Indisponibil 102 2 1 TRIGGER VALVE STEM (326189-9) 3019 RON 103 1 2 O RING 3 AN620H (213979-8) 894 RON 103 2 2 213640-7 - Indisponibil 104 1 1 O RING 12.5 (213185-5) 334 RON 105 1 1 O RING 18 HR4011C/4010C (213275-4) 334 RON 106 1 1 TRIGGER VALVE CASE (331741-0) 5815 RON 108 1 1 TORSION SPRING 5 (233501-5) 558 RON 109 1 1 STOPPER PLATE (310199-6) 3019 RON 110 1 1 233502-3 - Indisponibil 110 2 1 TORSION SPRING 6 (233576-4) 1788 RON 111 1 1 LEVER (310310-0) 3019 RON 112 1 1 CHANGE ROD AN711H (310293-4) 7381 RON 113 1 1 STEEL BALL 4 LS1216 (216024-8) 111 RON 113 2 1 LOCK PIN AN630H (326144-1) 894 RON 114 1 1 COMPRESSION SPRING 2 (233490-4) 334 RON 115 1 1 SPRING COVER (419743-7) 334 RON 116 1 1 PIN 3 (268168-0) 446 RON 117 1 1 PIN 3 (268168-0) 446 RON 118 1 1 SPRING PIN 2-12 AN250HC (951007-8) 223 RON 119 1 1 TRIGGER (310294-2) 8947 RON 120 1 1 TORSION SPRING 4 (231699-2) 446 RON 121 1 1 TRIP LEVER (310196-2) 3354 RON 122 1 1 LEVER (310198-8) 3131 RON 123 1 1 TORSION SPRING 4 (233503-1) 1229 RON 124 1 1 TRIGGER BASE AN250HC (419844-1) 2571 RON 125 1 1 135231-3 - Indisponibil 125 2 1 135494-1 - Indisponibil 126 1 1 COMPRESSION SPRING 6 (233489-9) 446 RON 127 1 1 SPRING PIN 2-14 AN901 (951010-9) 781 RON 128 1 1 ADJUSTER PIECE AN250HC (310201-5) 297 RON 129 1 1 SLIDE PLATE AN620H (345775-7) 894 RON 130 1 1 URETHANE RING 6 (262120-0) 334 RON 131 1 1 UPPER YORK AN510H (310234-0) 11631 RON 132 1 1 324745-9 - Indisponibil 133 1 1 COMPRESSION SPRING 2 AN250HC (233491-2) 446 RON 134 1 1 STEEL BALL 2.3 (216031-1) 223 RON 137 1 1 SPRING PIN 2-14 AN901 (951010-9) 781 RON 138 1 1 ADJUSTER (135232-1) 21921 RON 139 1 1 COMPRESSION SPRING 5 AN620H (233488-1) 446 RON 140 1 1 CYLINDER STAY (331739-7) 382 RON 141 1 1 ADJUSTER COMPLETE (158747-1) 670 RON 142 1 1 AIR LEAK REPAIR SET (194735-4) 9394 RON 143 1 1 AIR LEAK REPAIR SET (194735-4) 9394 RON 144 1 1 866119-3 - Indisponibil 1001 1 1 NOSE ADAPTER AN620H (421984-3) 670 RON 1002 1 1 192517-8 - Indisponibil 1002 2 1 195246-2 - Indisponibil 1003 1 1 194381-3 - Indisponibil 1004 1 1 824490-1 - Indisponibil
