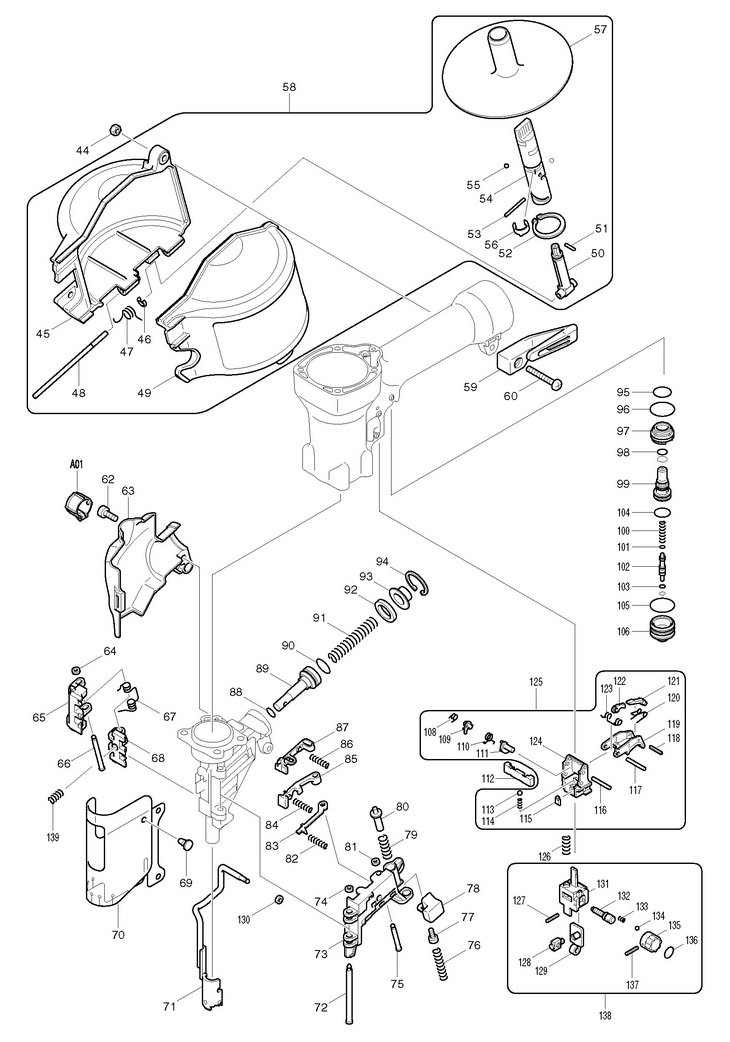

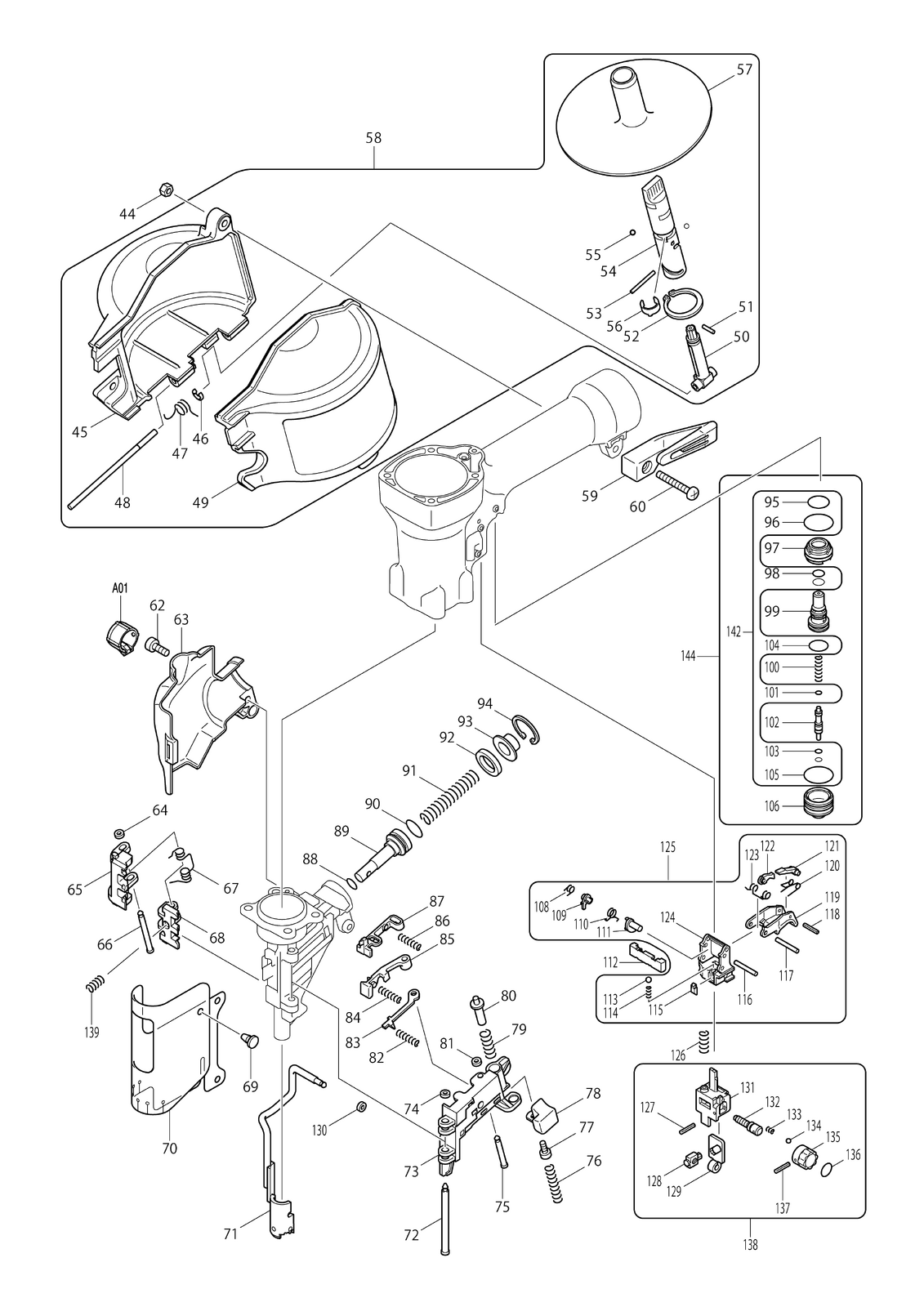

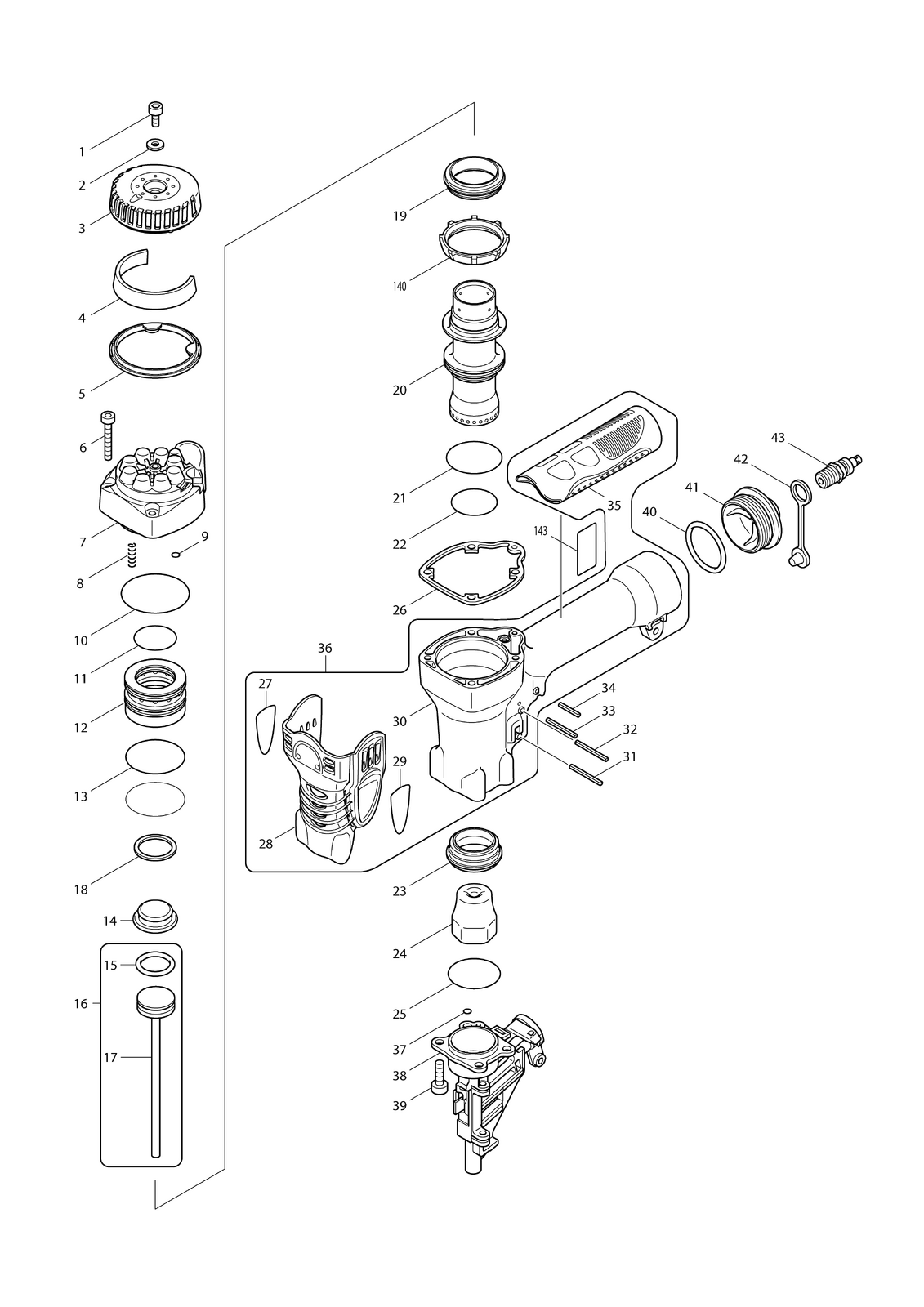

Top » Piese de schimb » PIESE MAKITA » Makita - Insurubare » AN610H AN610H [AN610H] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara C10 0 1 808231-3 - Indisponibil C10 0 1 816919-1 - Indisponibil A01 0 1 421574-2 - Indisponibil A02 0 1 192517-8 - Indisponibil A02-1 1 1 195246-2 - Indisponibil A03 0 1 194381-3 - Indisponibil A04 0 1 824490-1 - Indisponibil C10 0 1 186347-7 - Indisponibil 001 0 1 SURUB INBUS M5 (922212-4) 334 RON 002 0 1 267343-5 - Indisponibil 003-1 1 1 EXHAUST COVER AN620H (453875-0) 1677 RON 003 0 1 419734-8 - Indisponibil 004 0 1 FILTER AN610H (413103-5) 2124 RON 005 0 1 COVER SEAL (419735-6) 894 RON 006 0 4 HEX. SOCKET HEAD BOLT M5X35 AN450H (922257-2) 334 RON 007 0 1 TOP CAP AN620H/610H (318109-7) 26060 RON 008 0 8 COMPRESSION SPRING 4 AN711H (233484-9) 782 RON 009 0 1 O RING 5 (213021-5) 558 RON 010 0 1 O RING 50 (213604-1) 446 RON 011-1 1 1 O RING 30 (213423-5) 446 RON 011 0 1 213447-1 - Indisponibil 012 0 1 HEAD VALVE AN450H cod 419736-2 (419736-4) 8723 RON 013 0 2 O RING 42 (213558-2) 334 RON 014 0 1 REAR CUSHION AN610H (421983-5) 10177 RON 015 0 1 O RING 22.5 (213967-5) 4249 RON 016 0 1 135235-5 - Indisponibil 017 0 1 168500-7 - Indisponibil 018 0 1 FLAT WASHER 26 (267342-7) 334 RON 019 0 1 VALVE SEAT AN450H (421981-9) 6486 RON 020-1 1 1 326758-6 - Indisponibil 020 0 1 CYLINDER (331740-2) 16888 RON 021 0 1 O RING 40 (213509-5) 334 RON 022 0 1 O RING 34 (213475-6) 334 RON 023 0 1 CYLINDER GUIDE AN620H/610H (324742-5) 6710 RON 024 0 1 FRONT CUSHION AN610H (421982-7) 2683 RON 025 0 1 O RING 38 (213528-1) 670 RON 026 0 1 TOP CAP GASKET AN620H/450H (162246-7) 382 RON 027 0 1 819321-7 - Indisponibil 029 0 1 819322-5 - Indisponibil 031 0 1 SPRING PIN AN250HC (951078-5) 223 RON 032 0 1 SPRING PIN AN250HC (951078-5) 223 RON 033-1 1 1 258039-9 - Indisponibil 033 0 1 SPRING PIN 3-30 (258029-2) 334 RON 034 0 1 SPRING PIN 3-20 AN250HC (951069-6) 223 RON 036 0 1 HOUSING SET AN610H (188604-9) 86793 RON 037 0 1 O RING 4 (213970-6) 446 RON 038 0 1 310250-2 - Indisponibil 039 0 4 922332-4 - Indisponibil 040-1 1 1 O RING 36 AN621 cod vechi 213521-5 (213506-1) 558 RON 040 0 1 213521-5 - Indisponibil 041 0 1 INLET CAP AN250 AN510 AN911 (318108-9) 21138 RON 042 0 1 CAP 9 (286280-4) 670 RON 043 0 1 ONE TOUCH JOINT (243105-5) 6822 RON 044 0 1 264008-0 - Indisponibil 045-2 2 1 457138-6 - Indisponibil 045-1 1 1 MAGAZINE AN610H (453103-3) 4697 RON 045 0 1 419737-2 - Indisponibil 046 0 1 STOP RING E-3 (259042-3) 111 RON 047 0 1 TORSION SPRING 8 (233504-9) 782 RON 048 0 1 256773-5 - Indisponibil 049 0 1 158936-8 - Indisponibil 050-1 1 1 456962-4 - Indisponibil 050 0 1 ADJUST SHAFT (419747-9) 670 RON 051 0 1 PIN 2.5 AN620H/610H (268166-4) 334 RON 052 0 1 SAIBA DE SIGURANTA S-25 (961105-0) 446 RON 053 0 1 PIN 2.5 (268167-2) 446 RON 054 0 1 ADJUST SLEEVE (419746-1) 894 RON 055 0 2 BILA OL 3.5 (216001-0) 558 RON 056 0 1 LEAF SPRING (232233-1) 334 RON 057 0 1 CHANGE PLATE (419745-3) 105 RON 058-2 2 1 135805-0 - Indisponibil 058-1 1 1 135498-3 - Indisponibil 058 0 1 135233-9 - Indisponibil 059 0 1 419739-8 - Indisponibil 060-1 1 1 SURUB M5X35 (911258-5) 558 RON 060 0 1 911257-7 - Indisponibil 062 0 1 SURUB INBUS M5 (922212-4) 334 RON 063 0 1 450828-0 - Indisponibil 064 0 1 URETHANE RING 3 (262054-7) 334 RON 065 0 1 310046-1 - Indisponibil 066 0 1 268027-8 - Indisponibil 067 0 1 TORSION SPRING 6 (231632-4) 1565 RON 068 0 1 310186-5 - Indisponibil 069 0 2 RUBBER PIN 9.5 (421418-6) 670 RON 070 0 1 413127-1 - Indisponibil 071 0 1 165542-2 - Indisponibil 072 0 1 STIFT 5 AN621 (268025-2) 781 RON 073 0 1 310182-3 - Indisponibil 074 0 1 URETHANE RING 3 (262054-7) 334 RON 075 0 1 268024-4 - Indisponibil 076 0 1 233204-1 - Indisponibil 077 0 1 HEX. SOCKET HEAD BOLT M4X10 AN901 (266167-6) 781 RON 078 0 1 LOCK LEVER AN901 (310050-0) 297 RON 079 0 1 COMPRESSION SPRING 6 AN901 (233201-7) 894 RON 080 0 1 323713-9 - Indisponibil 081 0 1 URETHANE RING 3 (262054-7) 334 RON 082 0 1 ARC DE COMPRESIE 4 (233101-1) 894 RON 083 0 1 345758-7 - Indisponibil 084 0 1 ARC DE COMPRESIE 4 (233101-1) 894 RON 085 0 1 310179-2 - Indisponibil 086 0 1 ARC DE COMPRESIE 4 (233101-1) 894 RON 087 0 1 310184-9 - Indisponibil 088 0 1 O RING 9 AN901 (213054-0) 558 RON 089 0 1 324962-1 - Indisponibil 090 0 1 O RING 14 KP312S (213154-6) 111 RON 091 0 1 COMPRESSION SPRING 9 AN621 (233198-0) 558 RON 092 0 1 RUBBER RING 16 (262075-9) 446 RON 093 0 1 CUP WASHER 5 (344452-8) 105 RON 094 0 1 RETAINING RING R-24 EM2651UH (962103-7) 446 RON 095 0 1 O RING 15 (213233-0) 334 RON 096 0 1 O RING 18 HR4011C/4010C (213275-4) 334 RON 097 0 1 TRIGGER VALVE GUIDE AN450H (419732-2) 223 RON 098 0 2 O RING 7 (213968-3) 1117 RON 099-1 1 1 PILOT VALVE AN510H (456262-2) 17559 RON 099 0 1 419733-0 - Indisponibil 100 0 1 COMPRESSION SPRING 4 AN510H (233485-7) 894 RON 101-1 1 1 O RING 3 (213044-3) 334 RON 101 0 1 O RING 3 DA3011F (213034-6) 111 RON 102-1 1 1 TRIGGER VALVE STEM (326189-9) 3019 RON 102 0 1 324743-3 - Indisponibil 103-1 1 2 213640-7 - Indisponibil 103 0 2 O RING 3 AN620H (213979-8) 894 RON 104 0 1 O RING 12.5 (213185-5) 334 RON 105 0 1 O RING 18 HR4011C/4010C (213275-4) 334 RON 106 0 1 TRIGGER VALVE CASE (331741-0) 5815 RON 108 0 1 TORSION SPRING 5 (233501-5) 558 RON 109 0 1 STOPPER PLATE (310199-6) 3019 RON 110-1 1 1 TORSION SPRING 6 (233576-4) 1788 RON 110 0 1 233502-3 - Indisponibil 111 0 1 310197-0 - Indisponibil 111-1 1 1 LEVER (310310-0) 3019 RON 112 0 1 CHANGE ROD AN711H (310293-4) 7381 RON 113 0 1 STEEL BALL 4 LS1216 (216024-8) 111 RON 113-1 1 1 LOCK PIN AN630H (326144-1) 894 RON 114 0 1 COMPRESSION SPRING 2 (233490-4) 334 RON 115 0 1 SPRING COVER (419743-7) 334 RON 116 0 1 PIN 3 (268168-0) 446 RON 117 0 1 PIN 3 (268168-0) 446 RON 118 0 1 SPRING PIN 2-12 AN250HC (951007-8) 223 RON 119 0 1 TRIGGER (310294-2) 8947 RON 120 0 1 TORSION SPRING 4 (231699-2) 446 RON 121-1 1 1 313724-2 - Indisponibil 121 0 1 TRIP LEVER (310196-2) 3354 RON 122 0 1 LEVER (310198-8) 3131 RON 123 0 1 TORSION SPRING 4 (233503-1) 1229 RON 124 0 1 TRIGGER BASE AN250HC (419844-1) 2571 RON 125-1 1 1 135494-1 - Indisponibil 125 0 1 135231-3 - Indisponibil 126 0 1 COMPRESSION SPRING 6 (233489-9) 446 RON 127 0 1 SPRING PIN 2-14 AN901 (951010-9) 781 RON 128 0 1 ADJUSTER PIECE AN250HC (310201-5) 297 RON 129 0 1 SLIDE PLATE AN620H (345775-7) 894 RON 130 0 1 URETHANE RING 6 (262120-0) 334 RON 131 0 1 UPPER YORK AN510H (310234-0) 11631 RON 132 0 1 324745-9 - Indisponibil 133 0 1 COMPRESSION SPRING 2 AN250HC (233491-2) 446 RON 134 0 1 STEEL BALL 2.3 (216031-1) 223 RON 135 0 1 ADJUSTER COMPLETE (158747-1) 670 RON 137 0 1 SPRING PIN 2-14 AN901 (951010-9) 781 RON 138 0 1 ADJUSTER (135232-1) 21921 RON 139 0 1 233081-1 - Indisponibil 140 0 1 CYLINDER STAY (331739-7) 382 RON 141 0 1 AIR LEAK REPAIR SET (194735-4) 9394 RON 143 0 1 866116-9 - Indisponibil 144 0 1 135598-9 - Indisponibil 144-1 1 1 135681-2 - Indisponibil
